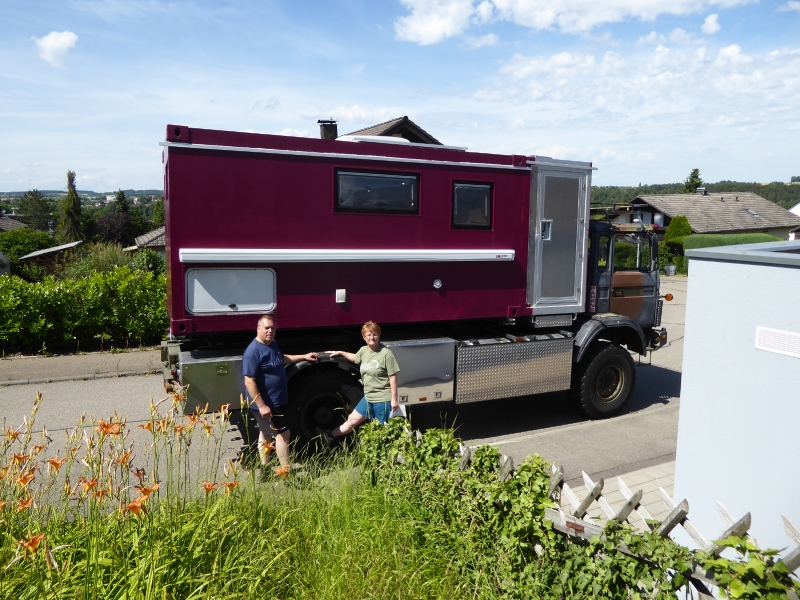

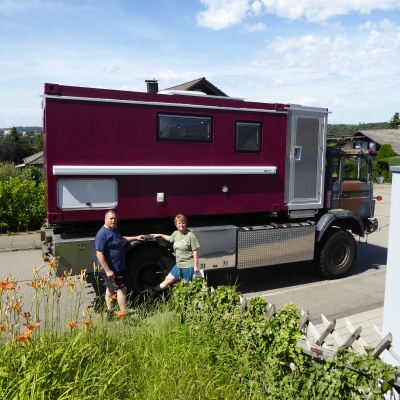

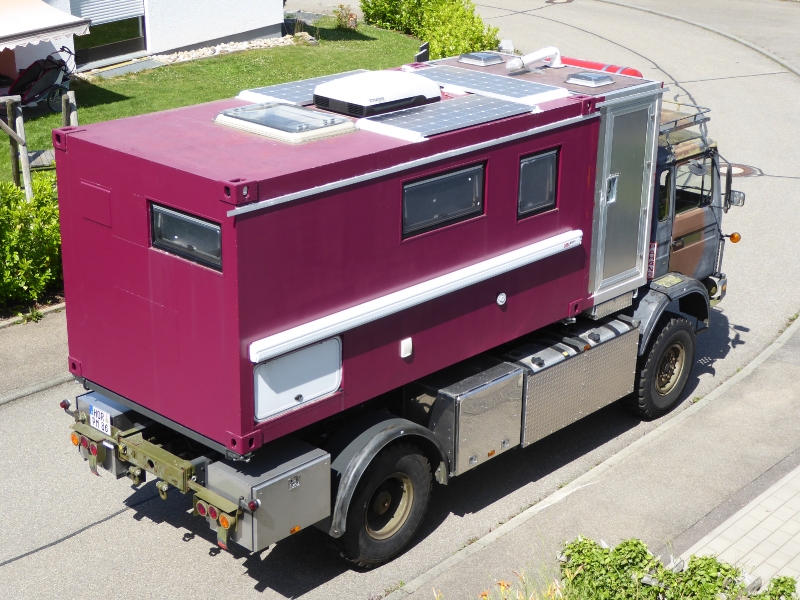

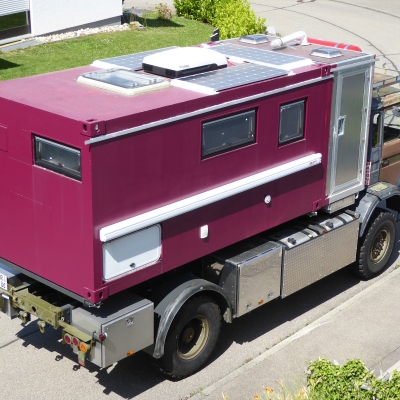

Aufbau eines Weltreisemobils auf Basis eines Allrad-LKWs und Zeppelin FM2-Shelter

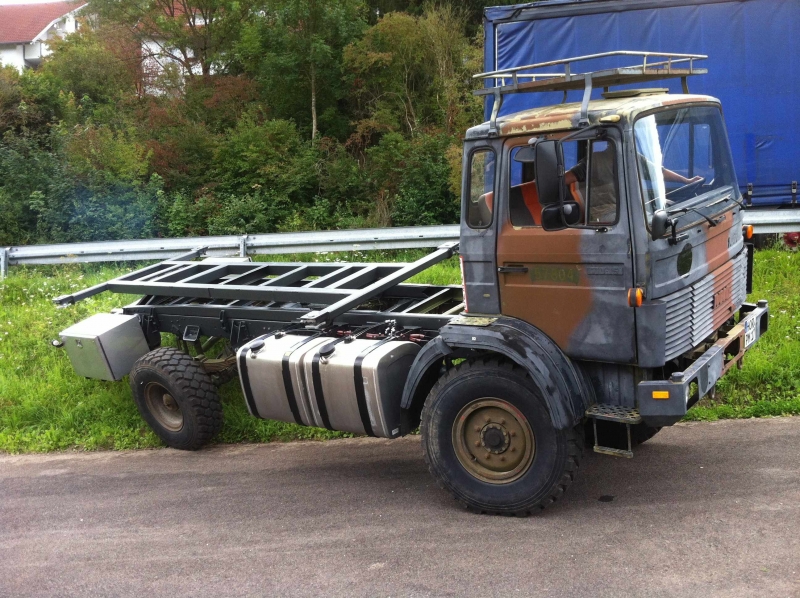

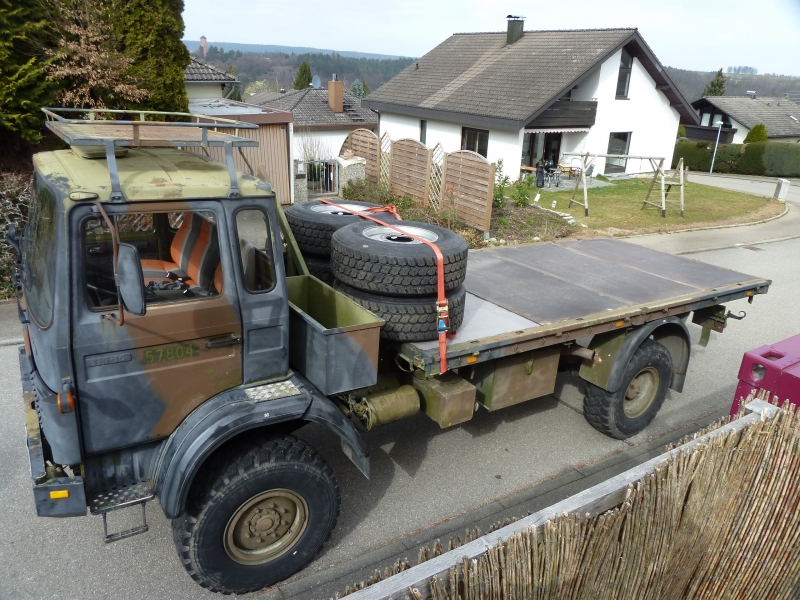

| Manufacturer and model | Iveco 110-16 |
|---|---|
| Name | Peter Endres |
| Country | Deutschland |
| Website | http://www.endres.reisen/index.php/expeditionsmobil |
| Year of manufacture | 1987 |
| For sale? | no |
| Engine type | M 168 M 11 FL |
|---|---|
| Cubic capacity | 6128 |
| Horsepower | 168 |
| Torque | 2650 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 4,20 |
| Number of seats | 3 |
| Tyre size | 365/80 R20 |
| Rim size | Sprengring |
| Type of tyre | Michelin XZL |

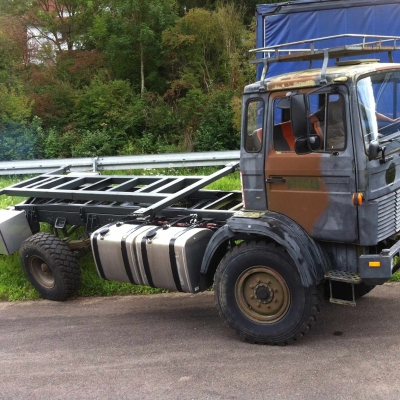

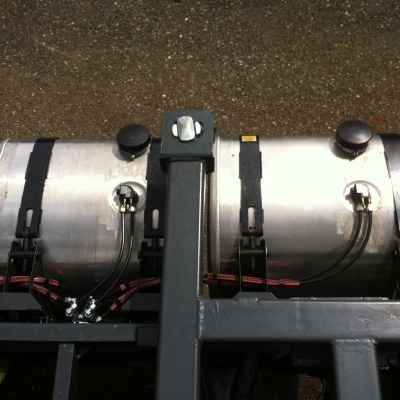

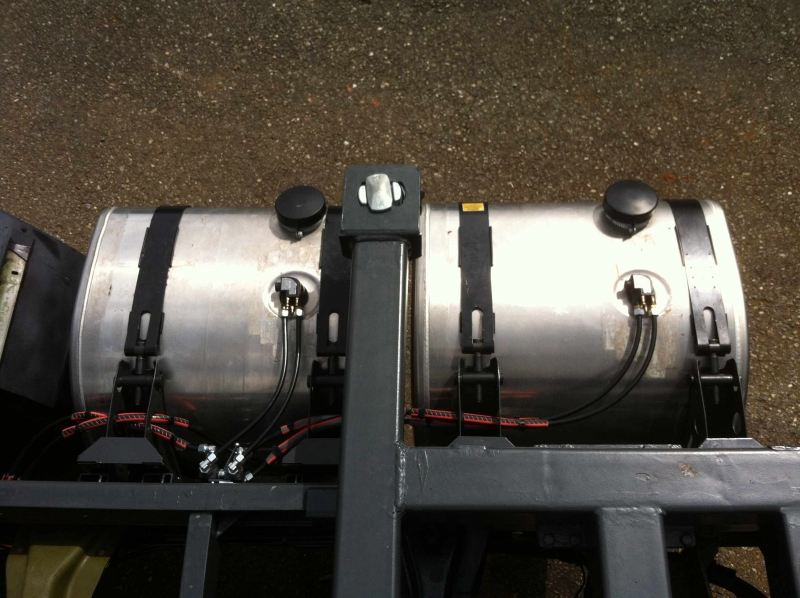

| Tank capacity | 700 l |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | zuschaltbar |
| Diff locks | 2 |

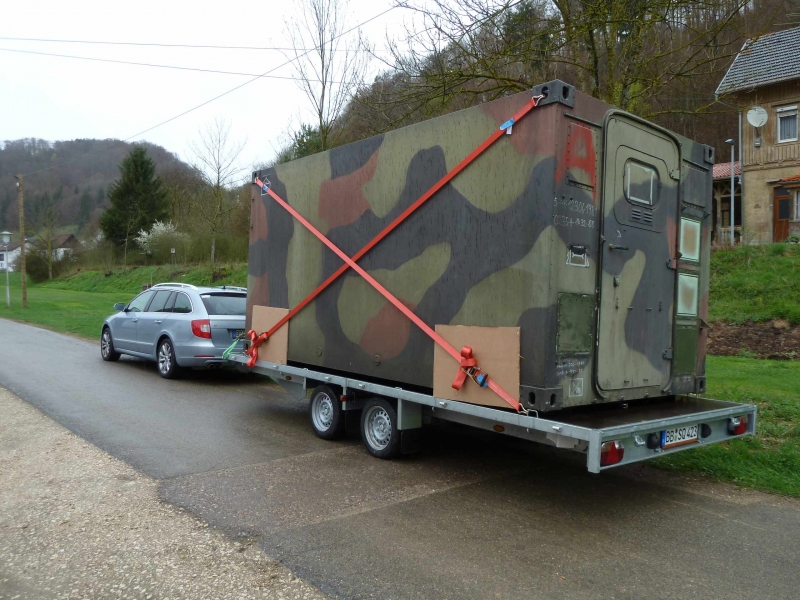

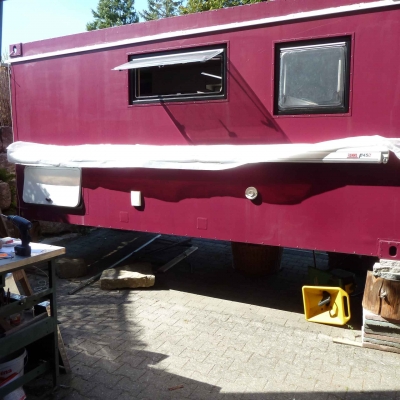

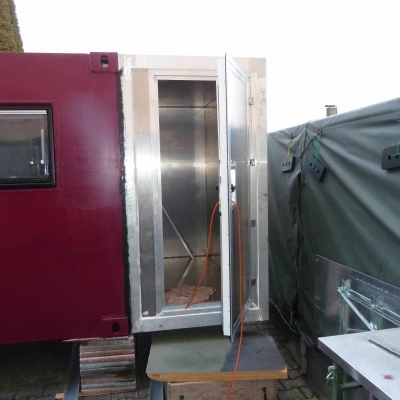

| Manufacturer of the cabin | Zeppelin FM2 |
|---|---|
| Inner dimensions (LxWxH) | LxBxH 5335x2050x1950 |
| Outer dimensions (LxWxH) | LxBxH 5350x2200x2100 |

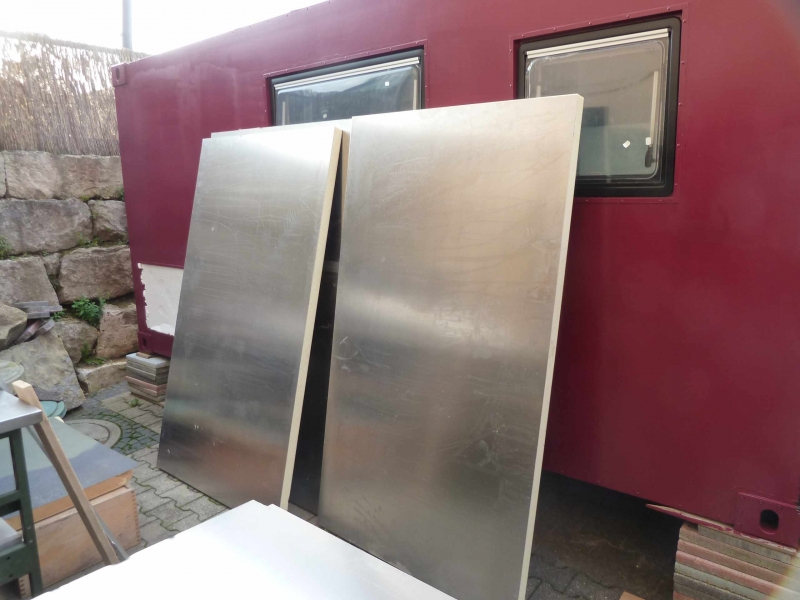

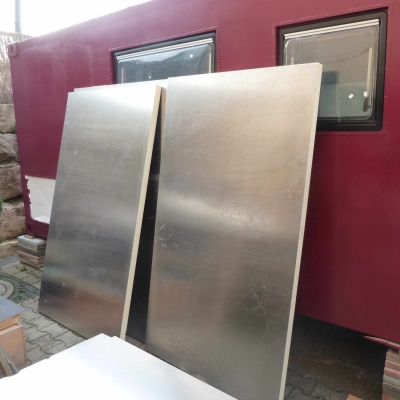

| Cabin material | Alu |
| Kind and thickness of insulation | 60mm |
| Number of beds | 2 |
| Windows | 5 |

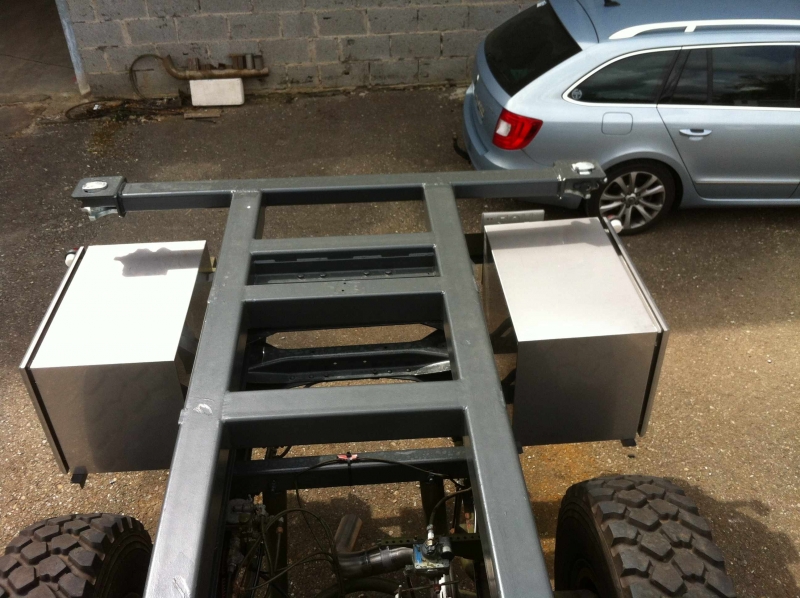

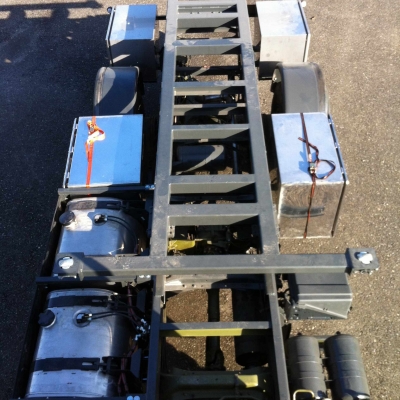

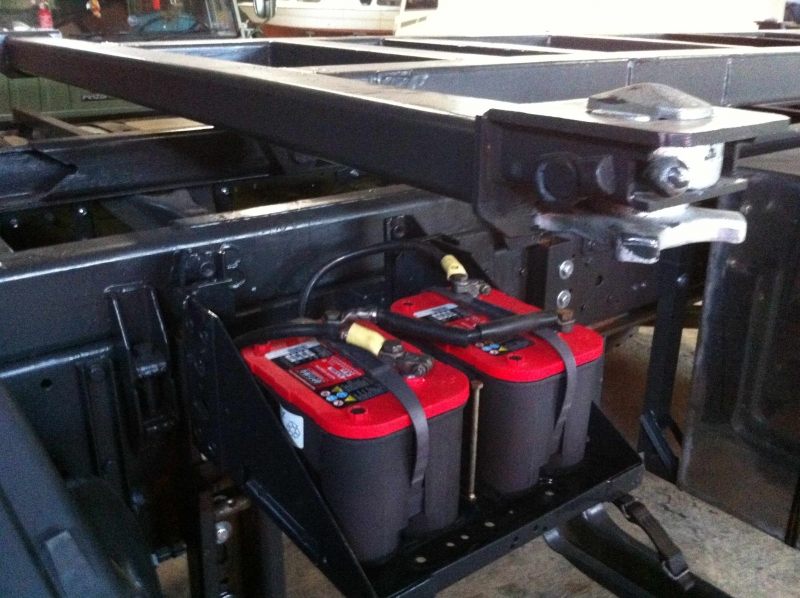

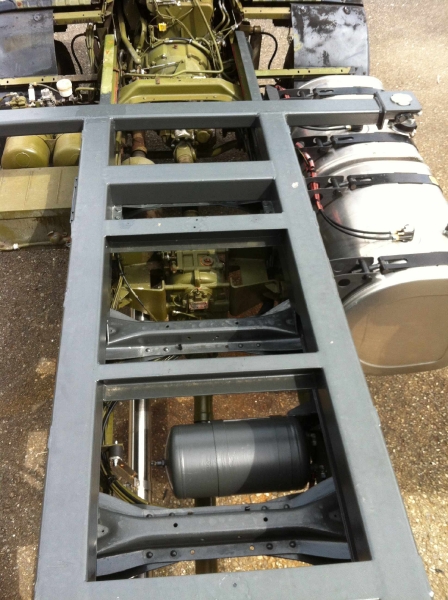

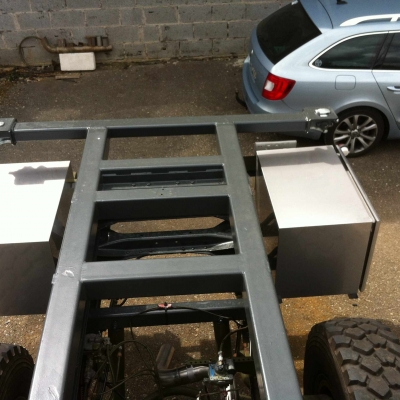

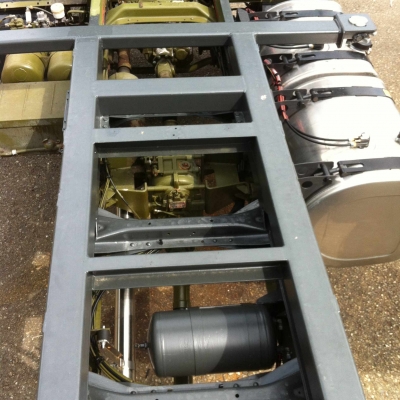

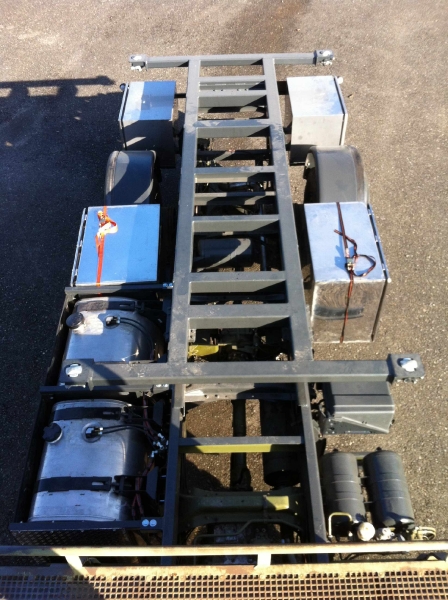

| Subframe | 3 Punkt-Lagerung (Original) |

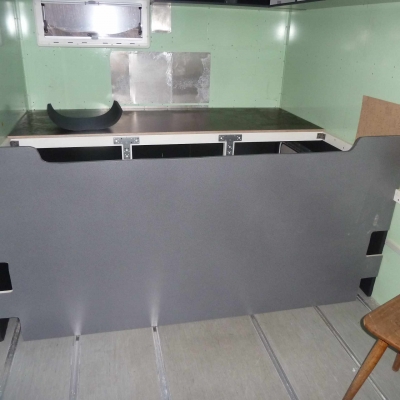

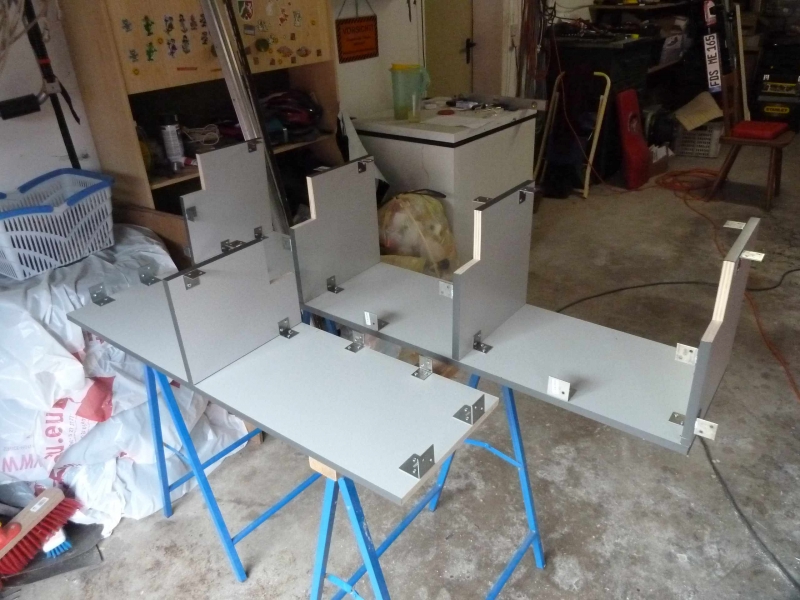

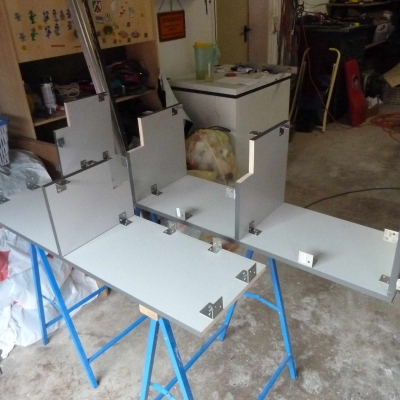

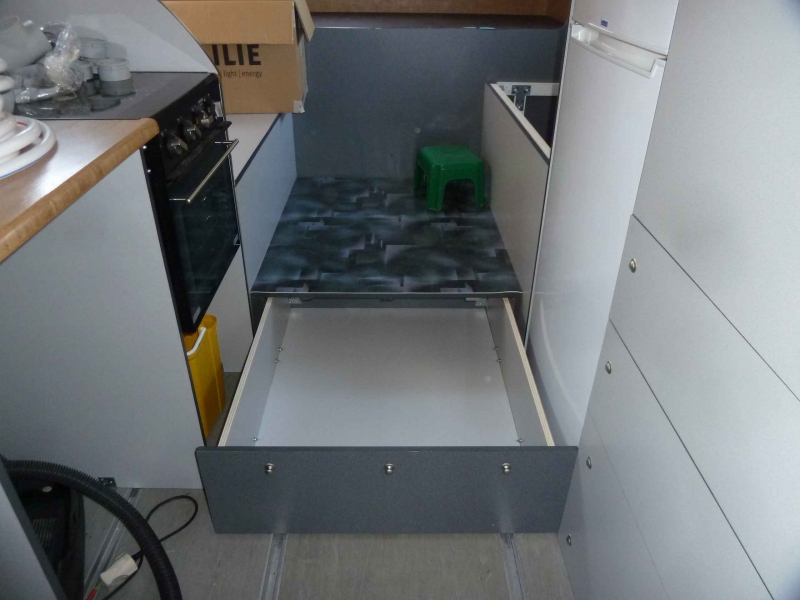

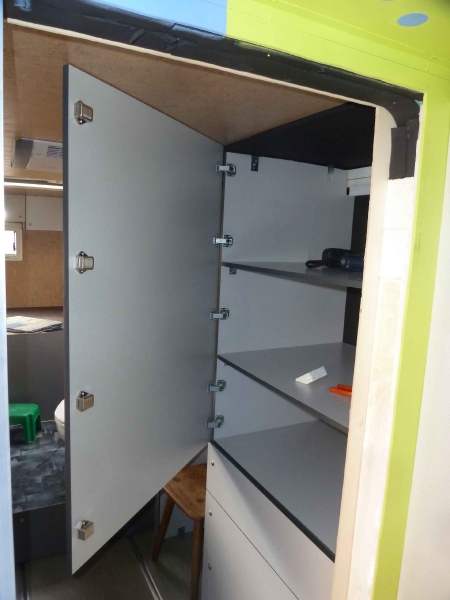

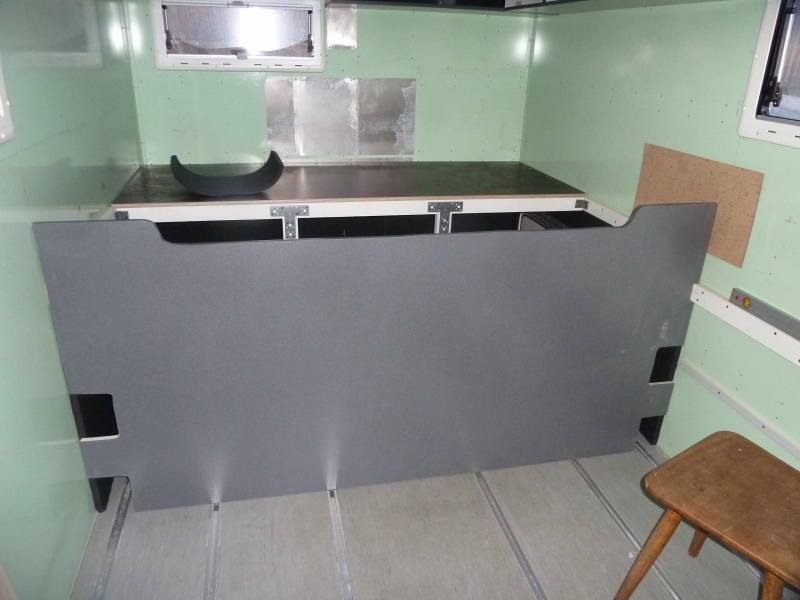

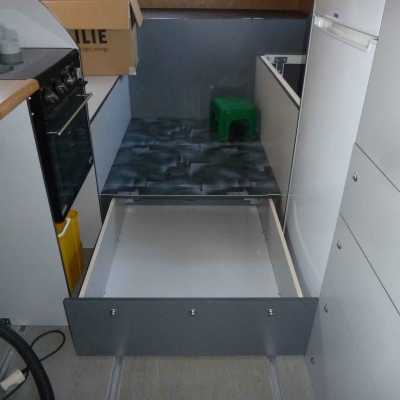

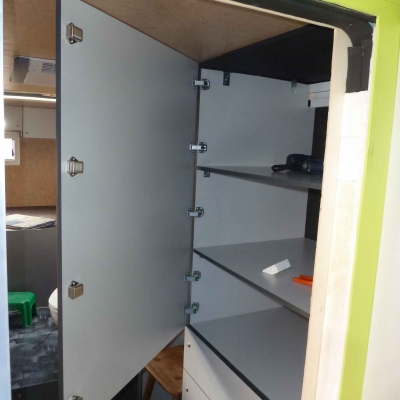

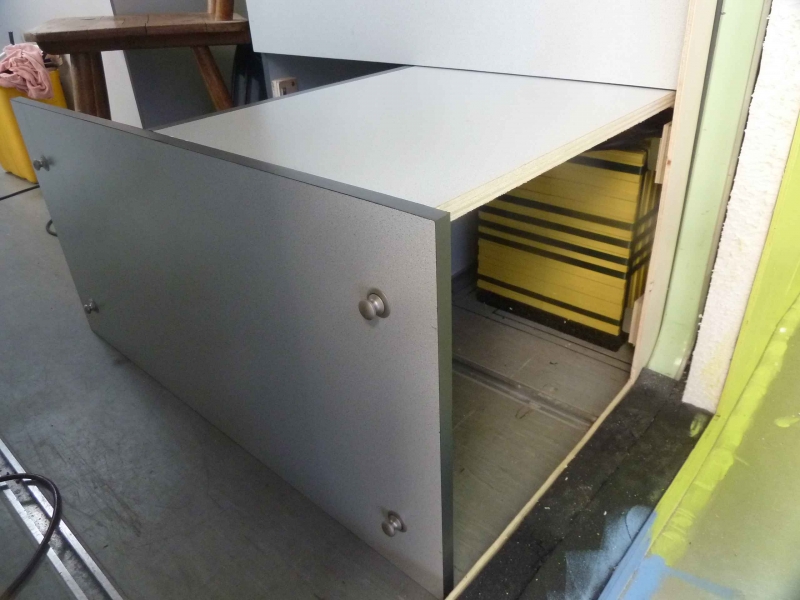

| Material of furniture | Pappel Sperrholz beschichtet (Fa. Vöhringer) |
|---|

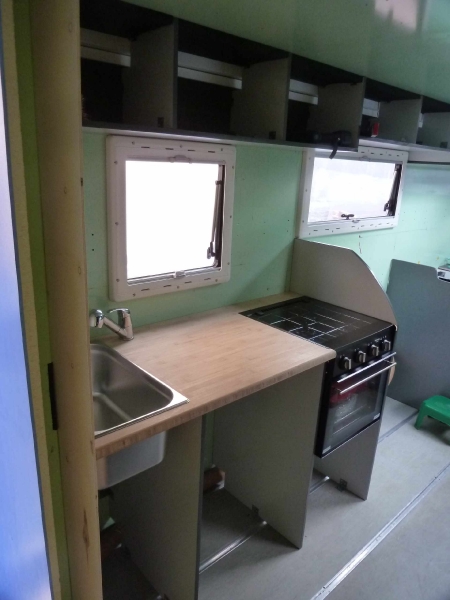

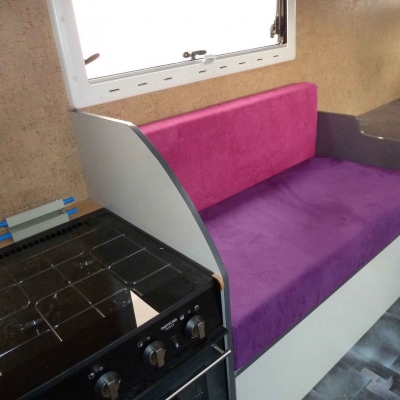

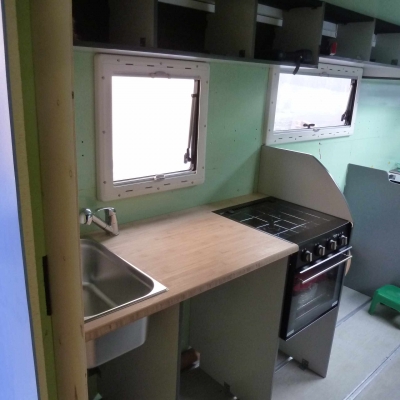

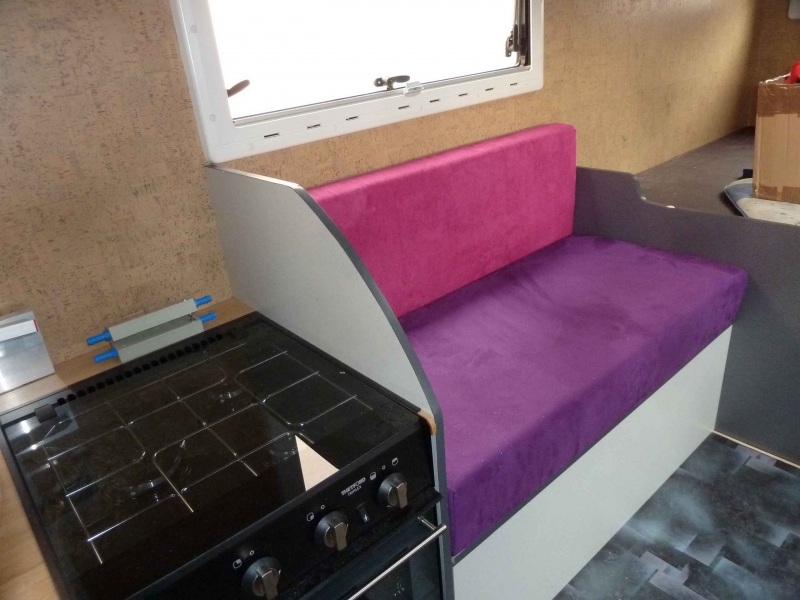

| Cooking stove | Thetford Triplex |
|---|---|
| Gas installation | Ja |

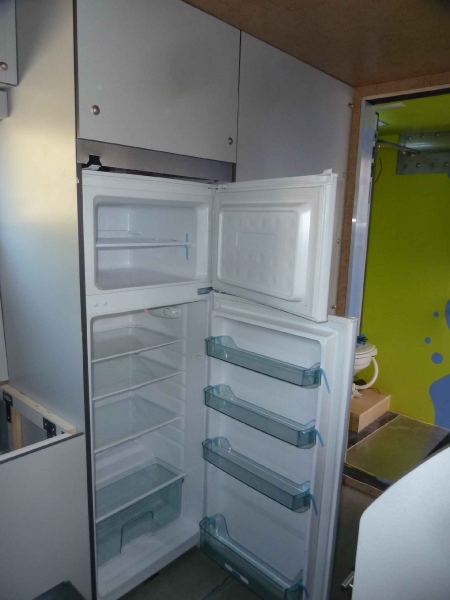

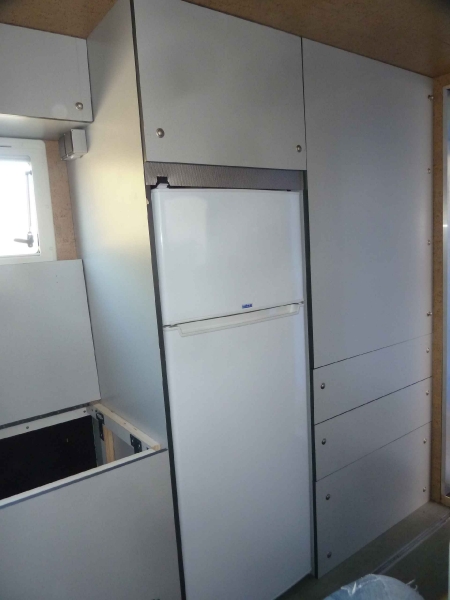

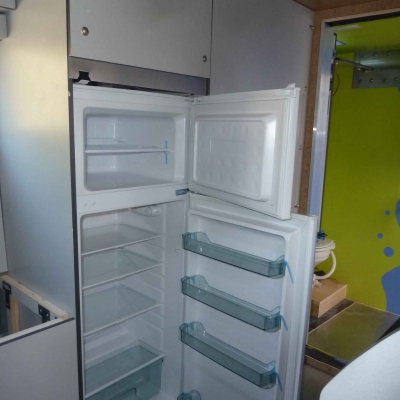

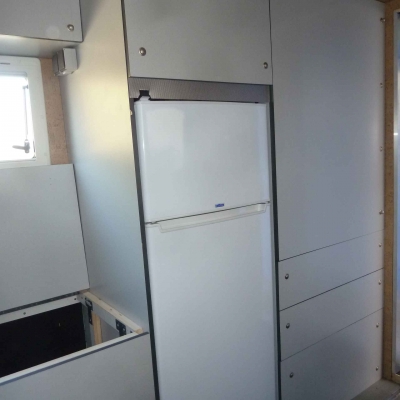

| Manufacturer and type of fridge / cooler | Isotherm Cruise 219 12/24V (178l Kühl + 41l Gefrier) |
|---|---|
| Other | |
| Aus dem Yachtbereich. Bessere Dämmung und Danfoss-Kompressor. Verträgt bis zu 30% Krängung | |

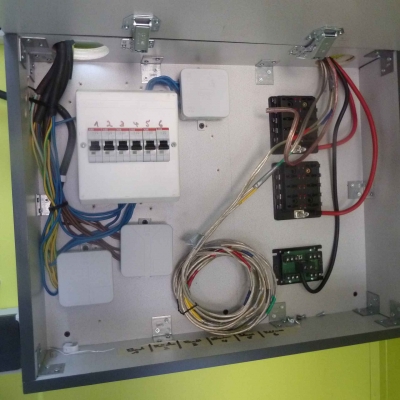

| Voltage in the chassis | 24 V |
|---|---|
| Voltage in the cabin | 12 V |
| Charging converter 24V-12V | Fraron B2B-Lader B2B40M12V |
| 110V / 230V in the cabin? | yes |

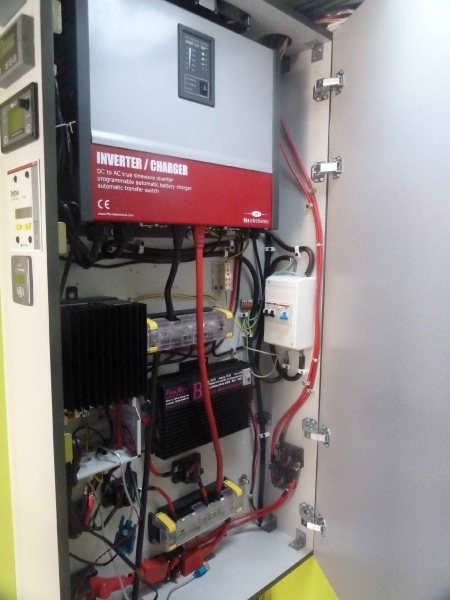

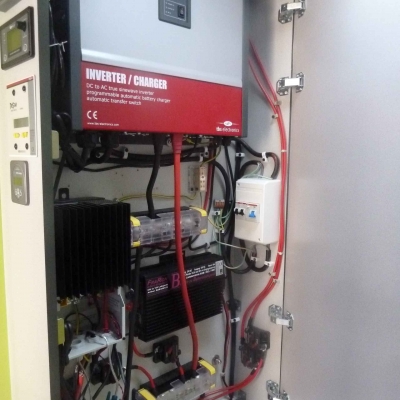

| Inverter | TBS Electronics Kombiwechselrichter 12V80A 1800W Nenn 4000W Spitze |

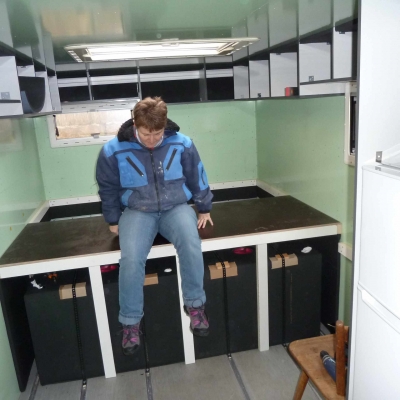

| Capacity of batteries in the cabin | 400 AH |
|---|---|

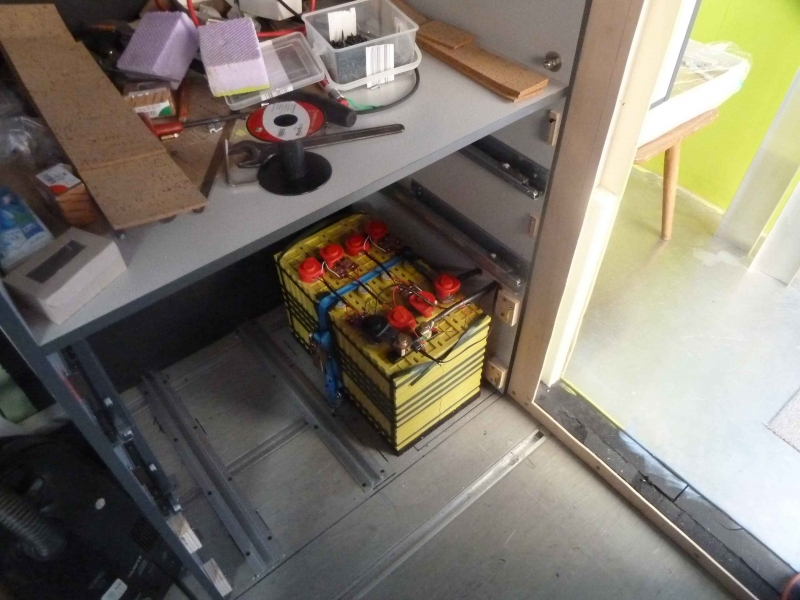

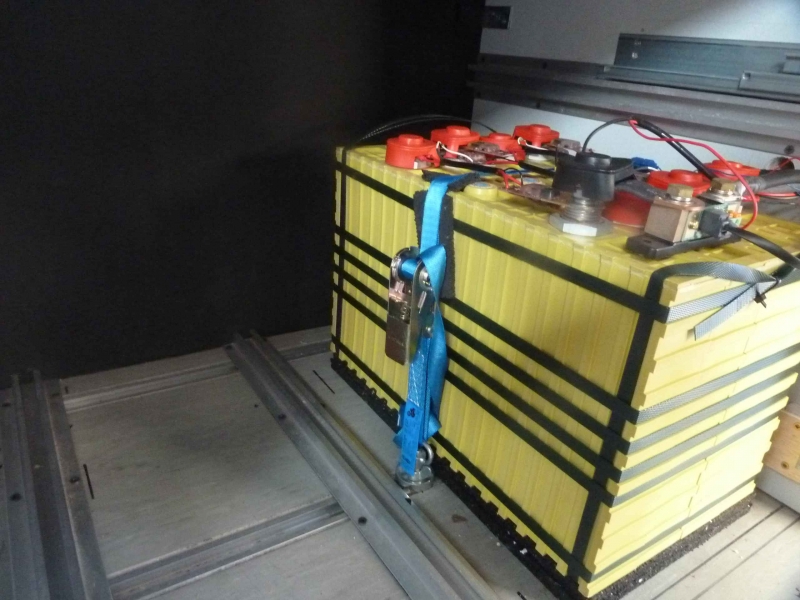

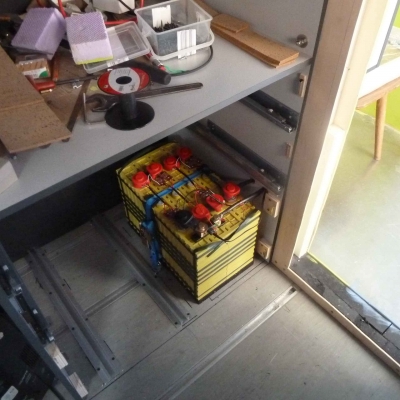

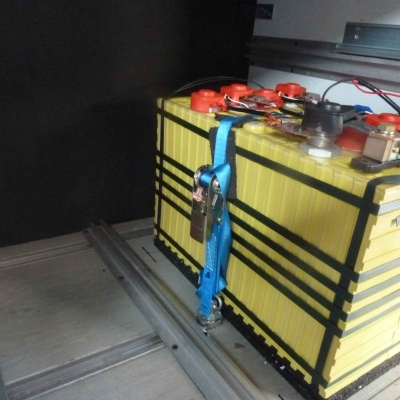

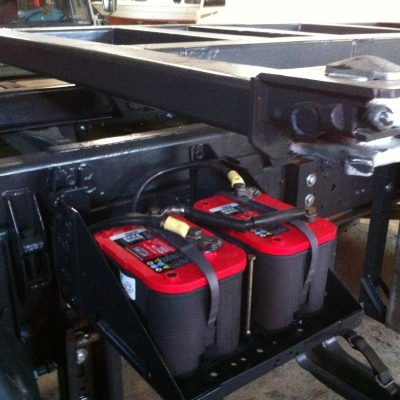

| Battery type | Winston WB-LYP400AHA LiFeYPO4, Thundersky TS-LFP400AHA |
| Battery charger for cabin batteries | 80A Lader im Kombiwechselrichter |
| Battery management | BMS / Trennrelais Philippi TSA 265 |

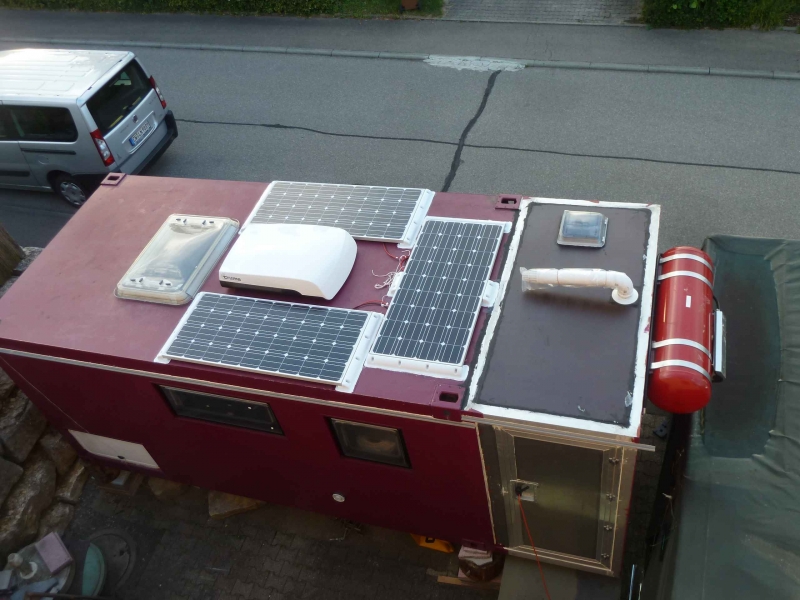

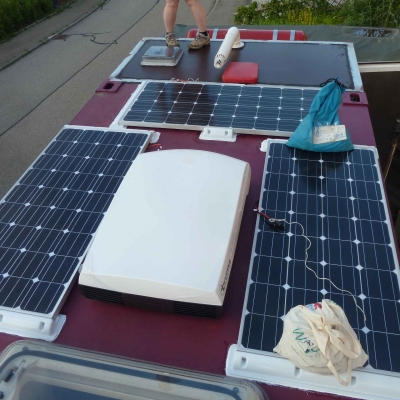

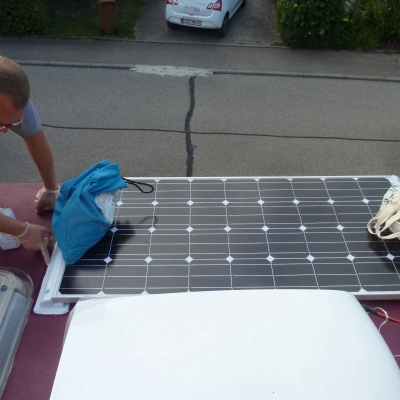

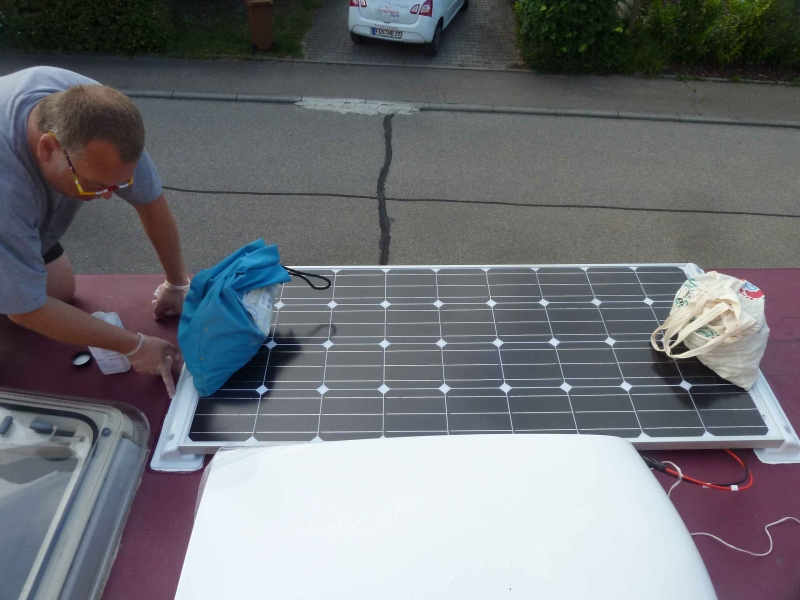

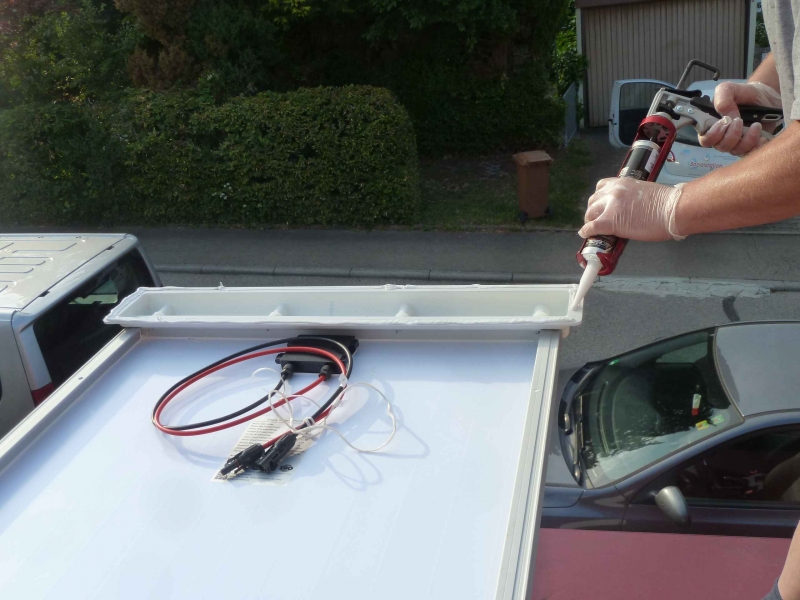

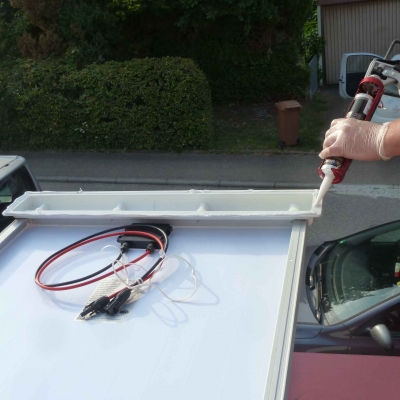

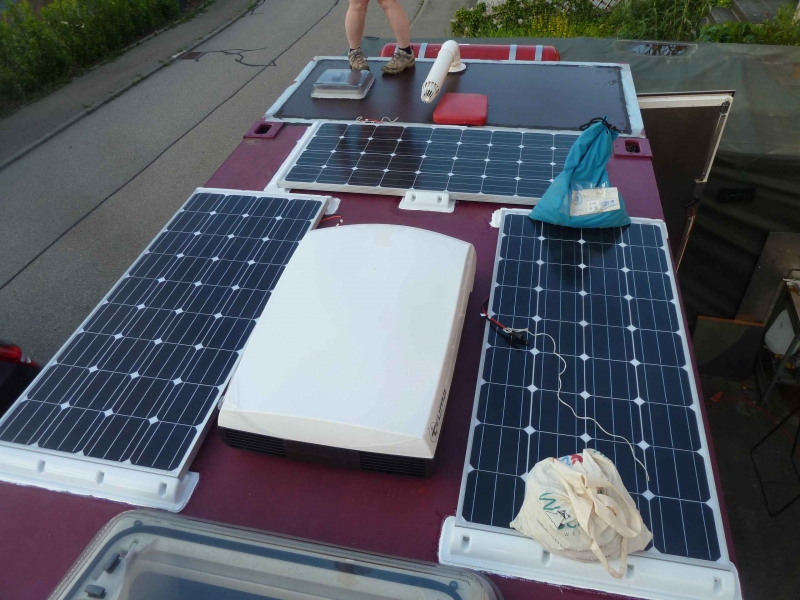

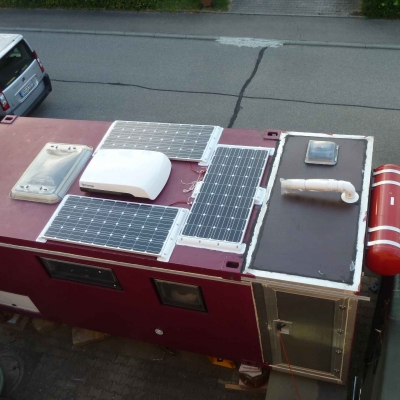

| Solar capacity | 3 x 150 W Monokristallin |
|---|---|

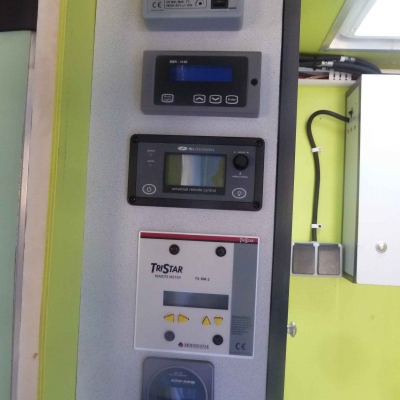

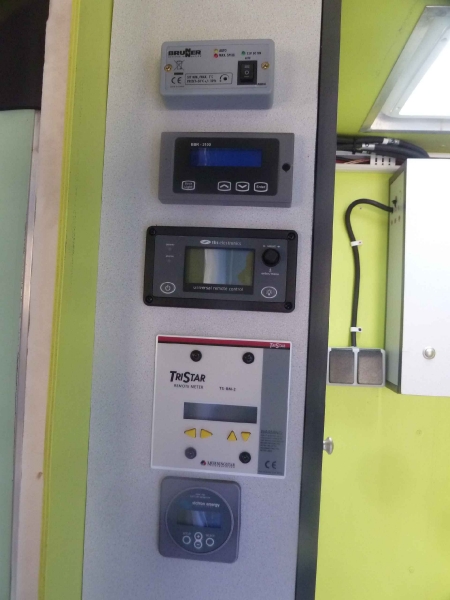

| Solar controller | Morningstar Tristar MPPT 45 |
| Fuel cell | no |

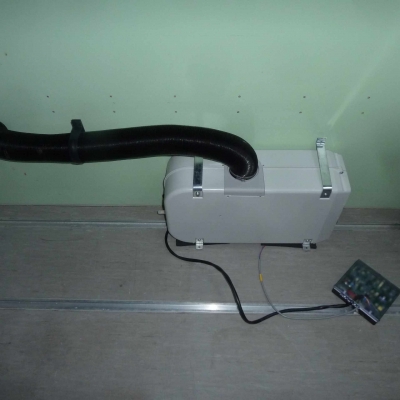

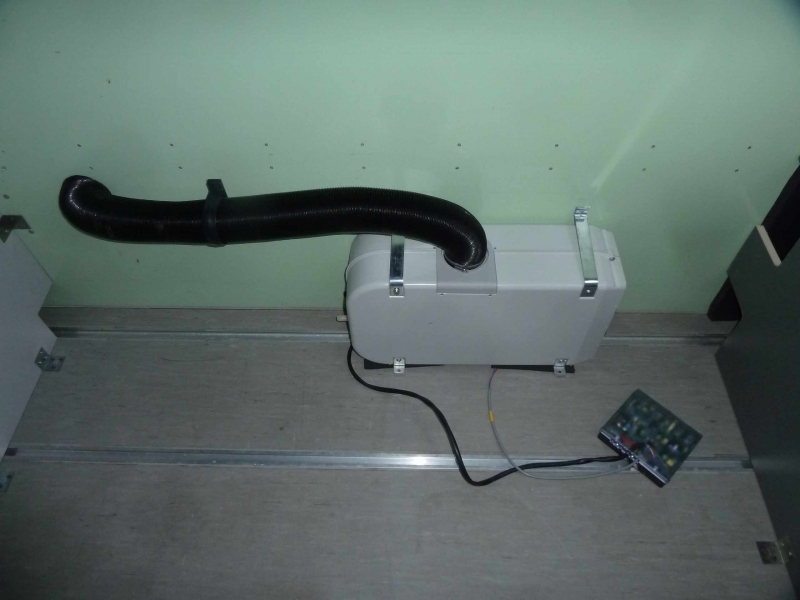

| Manufacturer and type of heating system | Truma E 4000 |
|---|---|
| Warm water processing | Gas-Durchlauferhitzer |
| Explanation of gas system | |
|---|---|

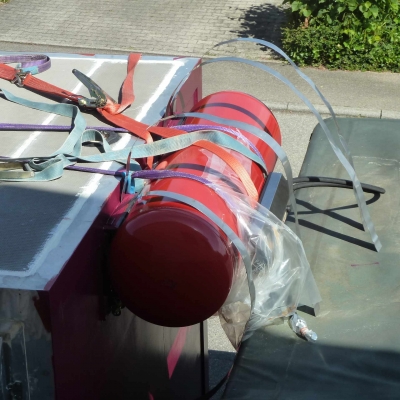

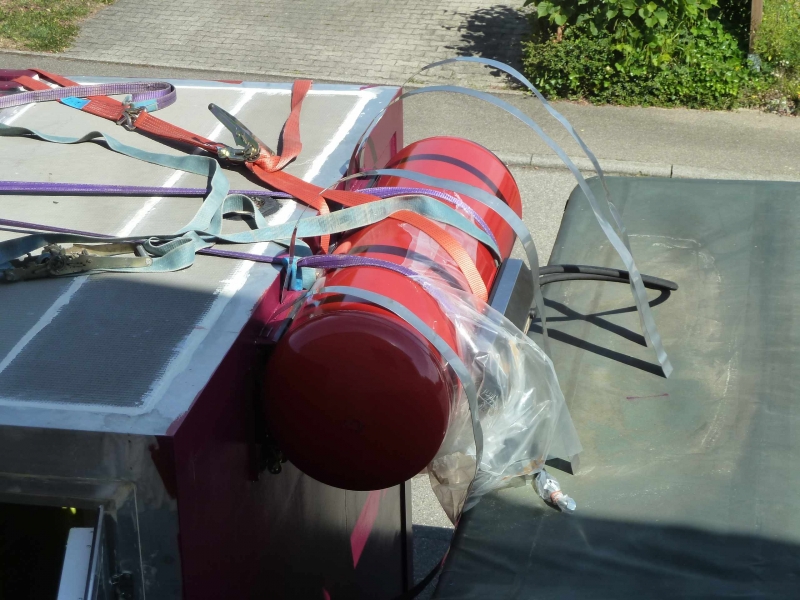

| Wynen-Gas-155l Aussentank, 10 / 8mm Stahlleitungen |

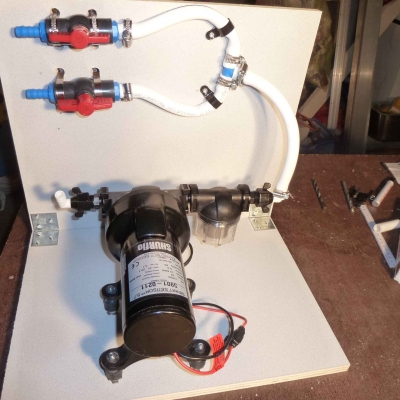

| water flow | 12mm Schlauch |
|---|---|

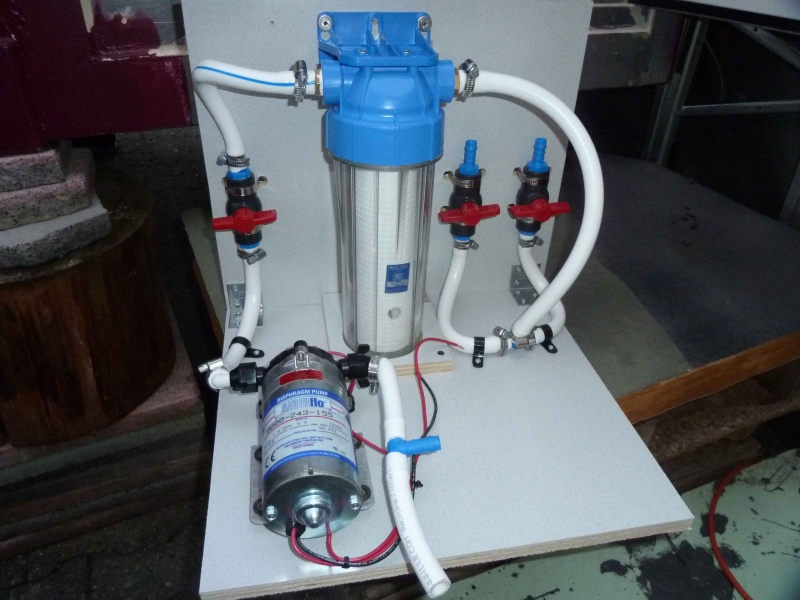

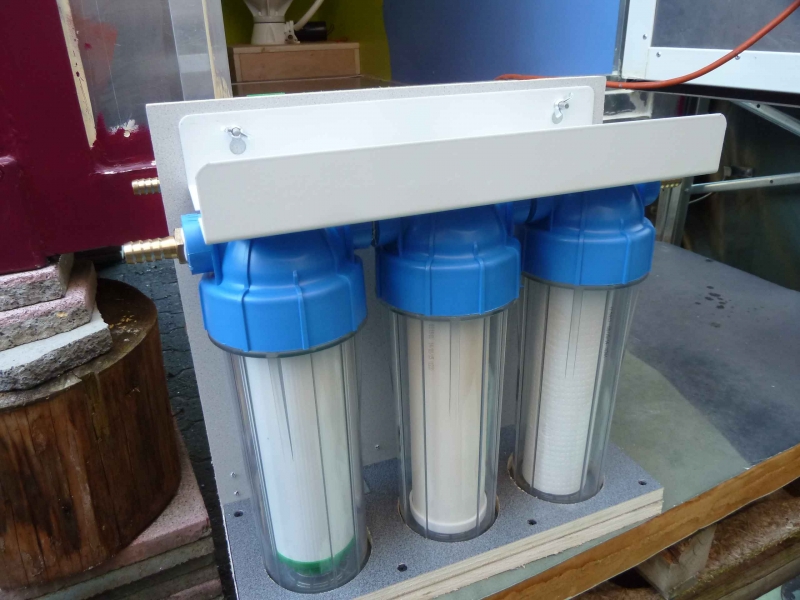

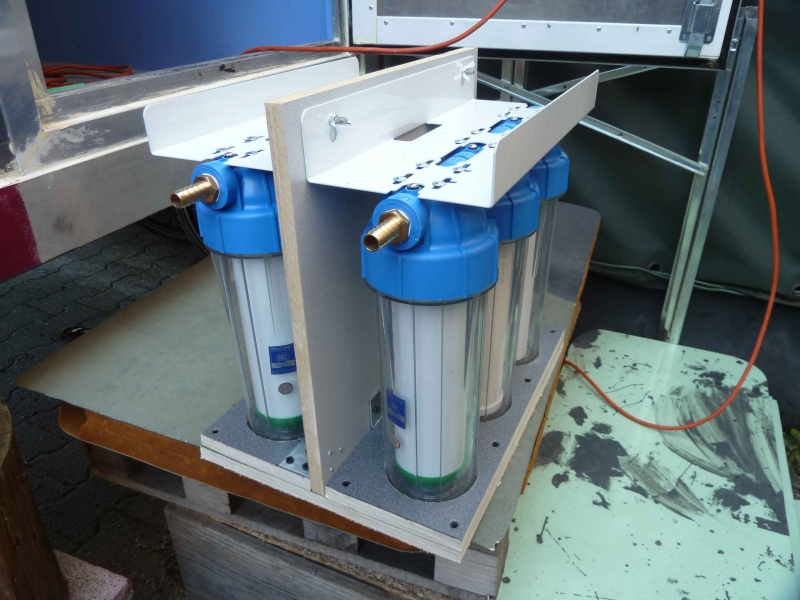

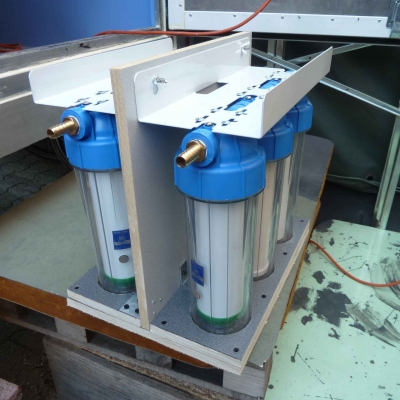

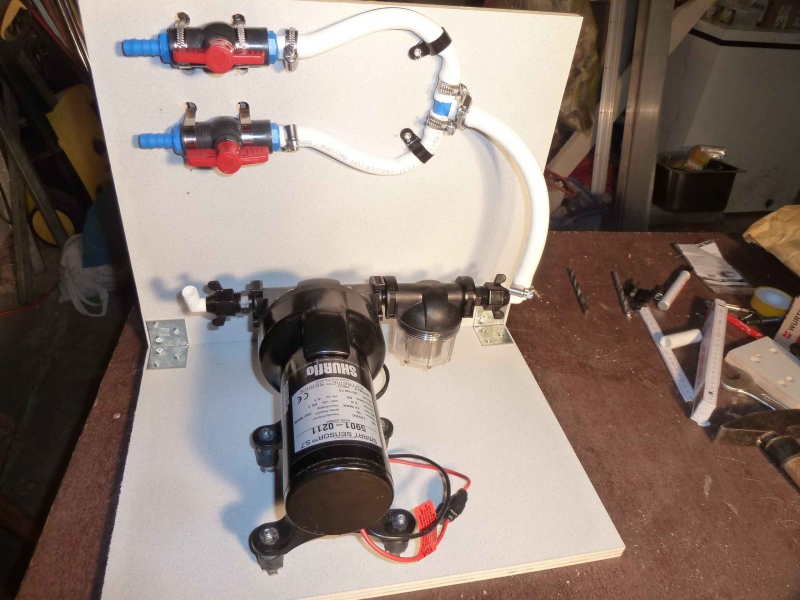

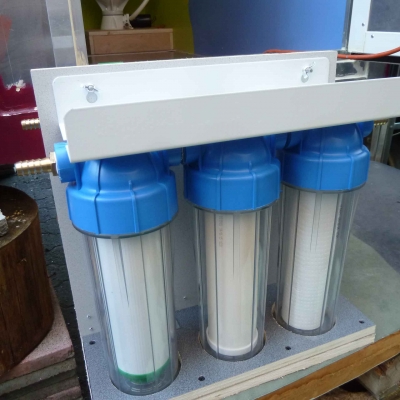

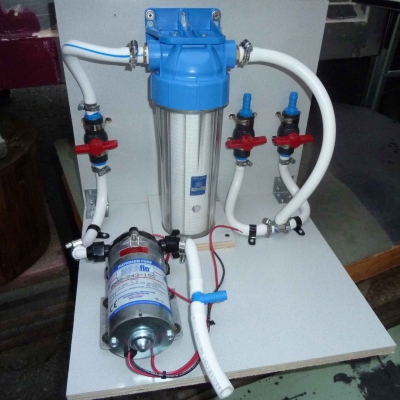

| Water filtration system | Eigenbau |

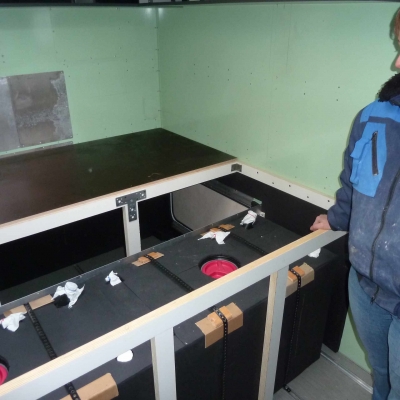

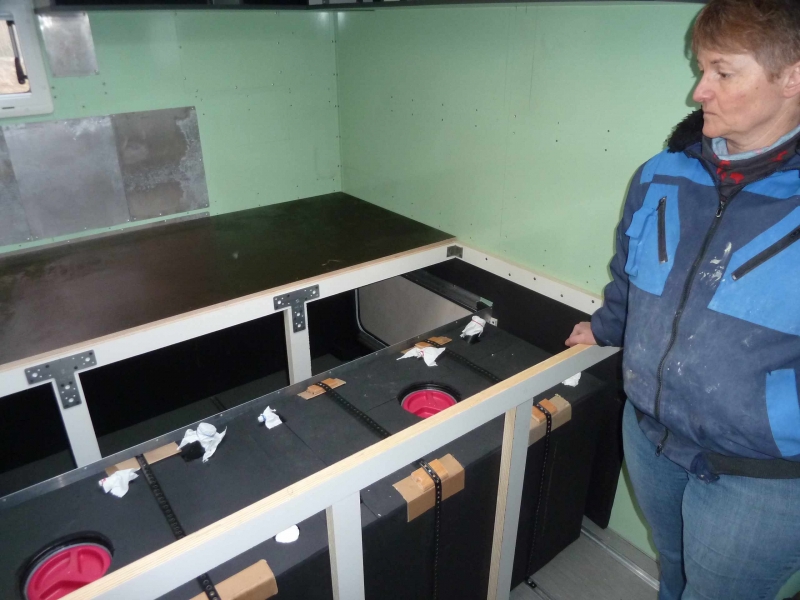

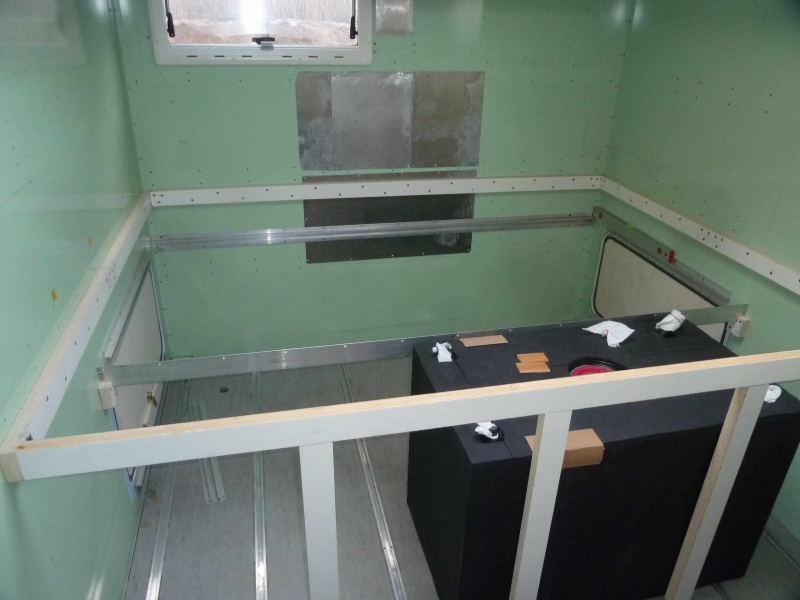

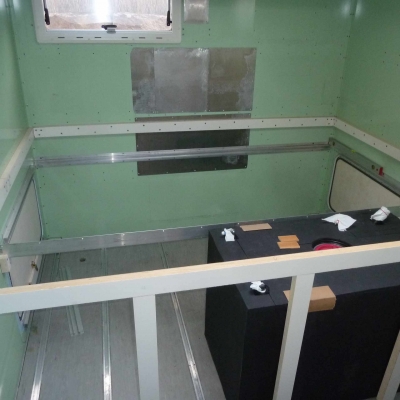

| Capacity of fresh water tank(s) | 2 x 200 l |
| Capacity of waste water tank(s) | 120l |
| Manufacturer and type of toilet | Zerhackertoilette (Yachtbau) |
|---|---|
| Capacity of black water tank | 117l |
| Rear carrier | noch nicht |
|---|---|
| Roof rack | Ja |

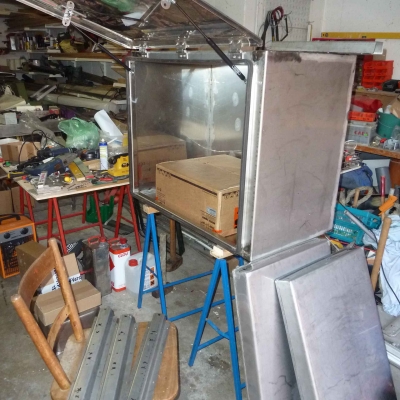

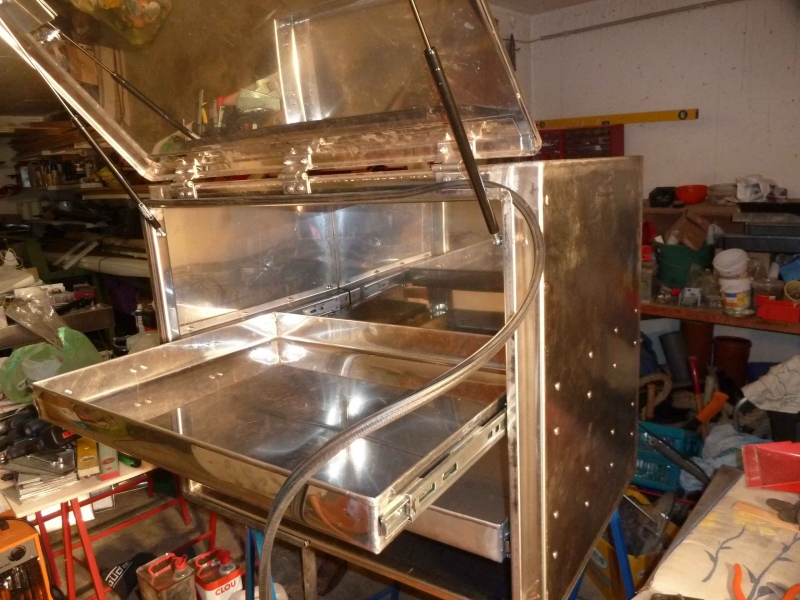

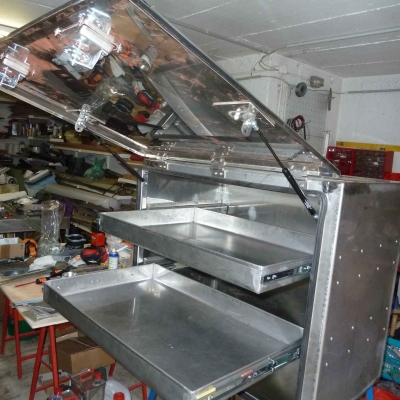

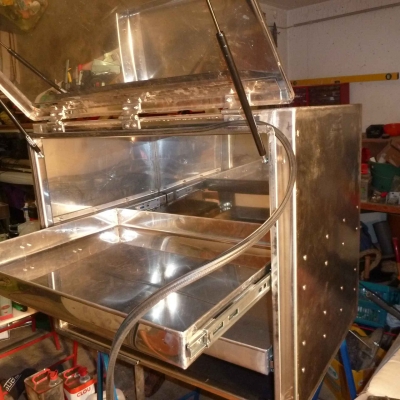

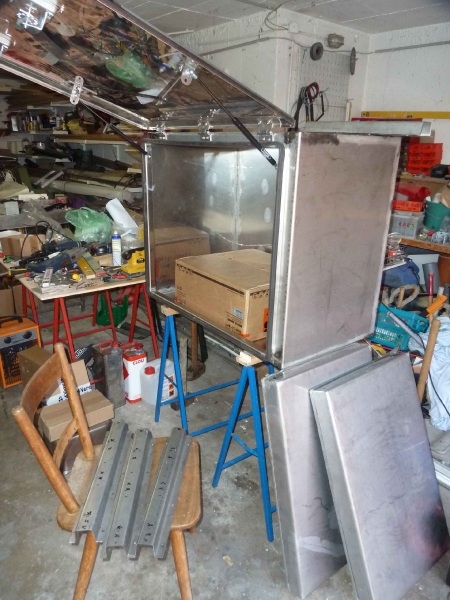

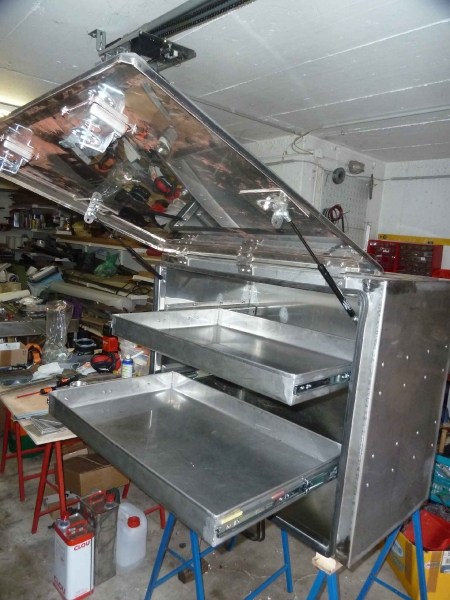

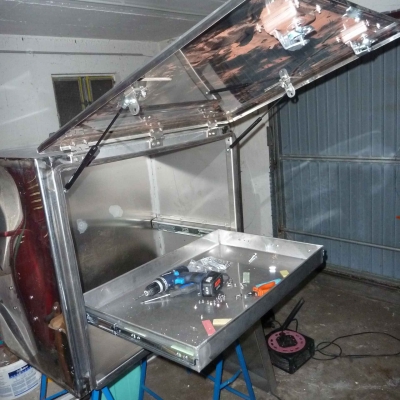

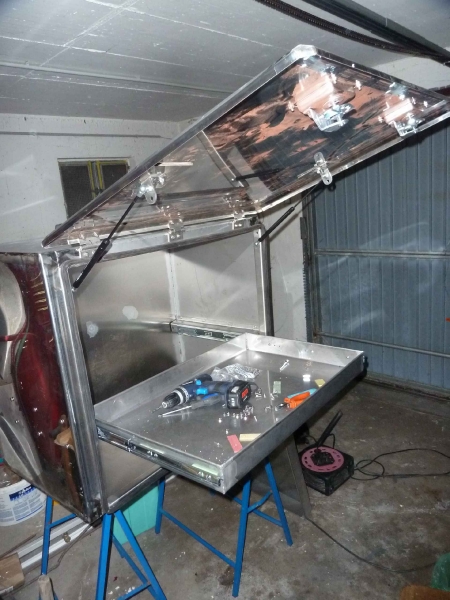

| Storage boxes | Ja |
| Outside cooking facilities | Ja |

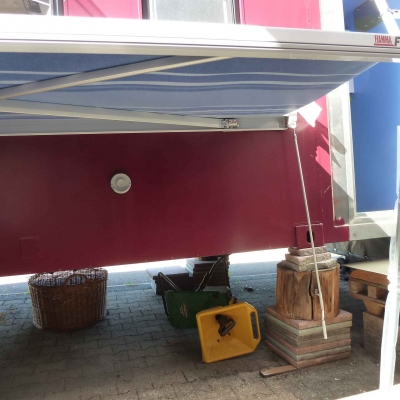

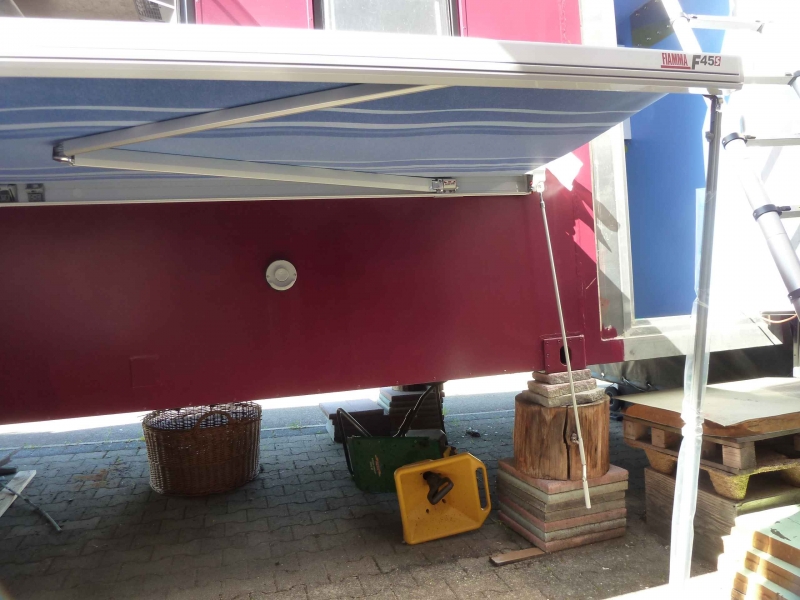

| Awning | Ja |
