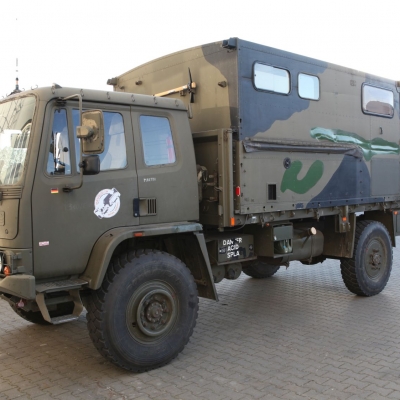

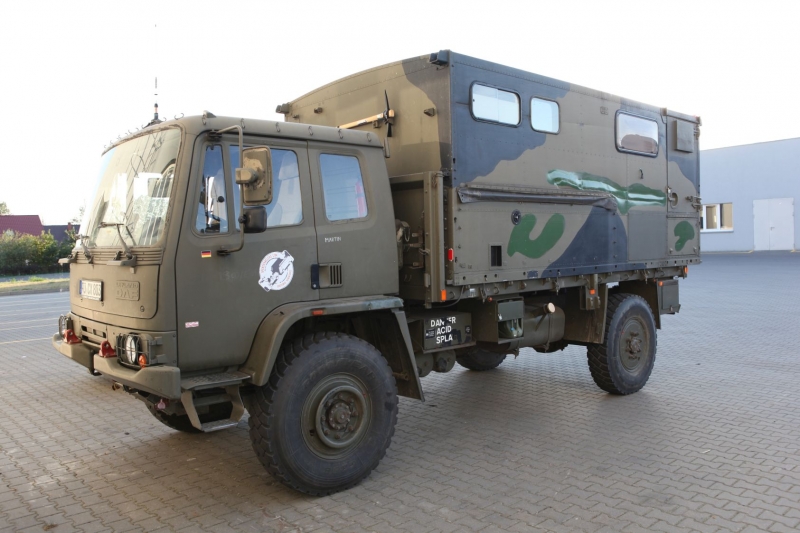

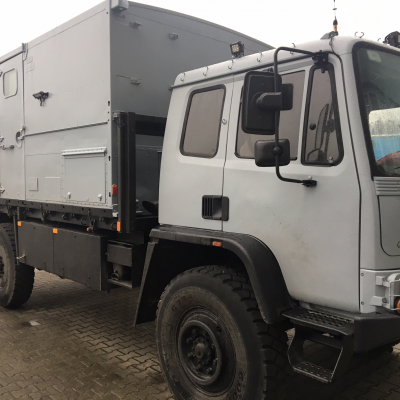

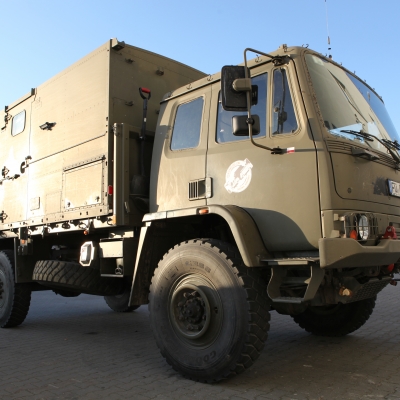

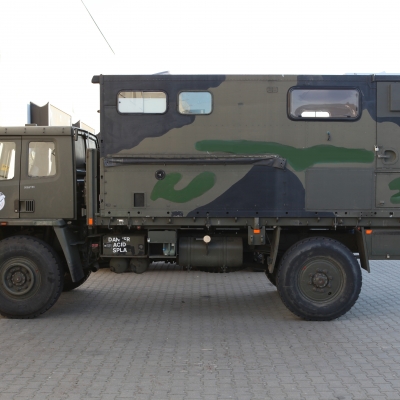

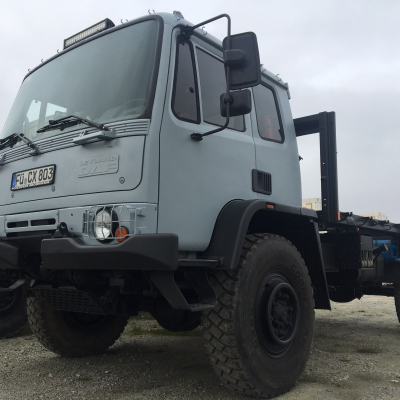

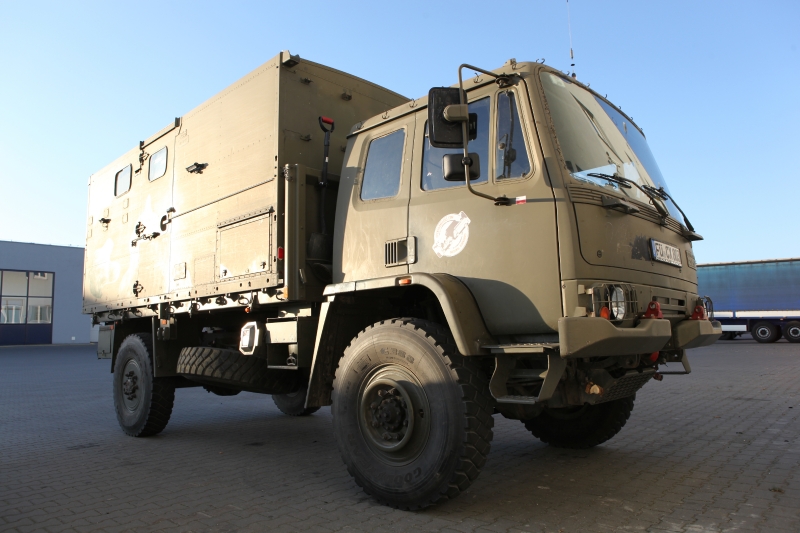

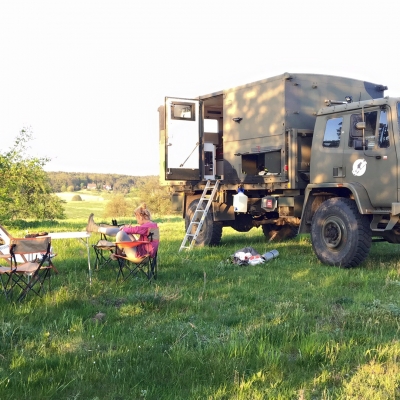

Leyland DAF 4x4 T244
| Manufacturer and model | Leyland DAF 4x4 T244 |
|---|---|
| Name | Leyland DAF |
| Country | Deutschland |
| Year of manufacture | 1991 |
| For sale? | no |
| Asking price? | Wagen ist nicht merh in meien Händen - ich kann aber gern mit Dokumentation helfen. |

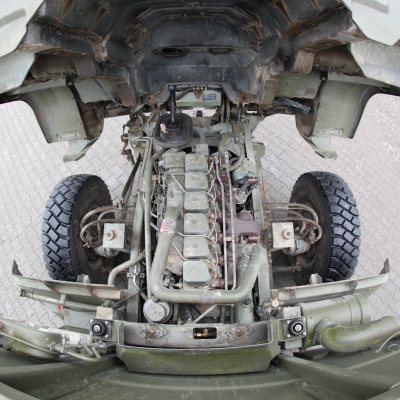

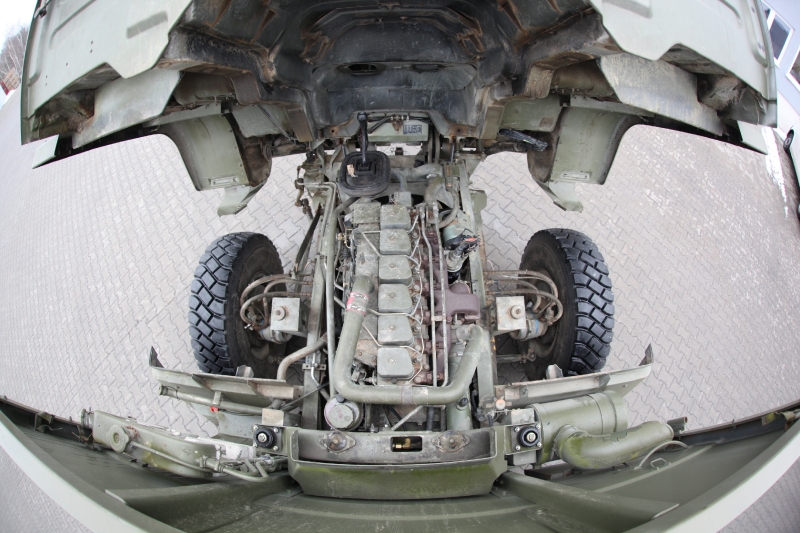

| Engine type | Cunmis, 5,9 Liters Engine 4-storke diesel 6 Cyl. Turbo charges |
|---|---|
| Cubic capacity | 5,9 L |
| Number of cylinders | 6 |
| Horsepower | 140 PS (108 KW) |
| Torque | 477Nm / 1600rpm |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|

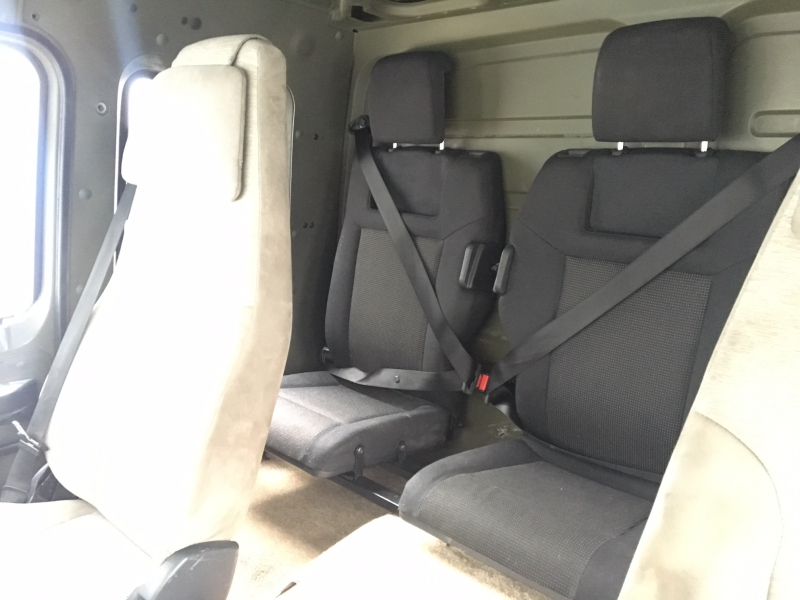

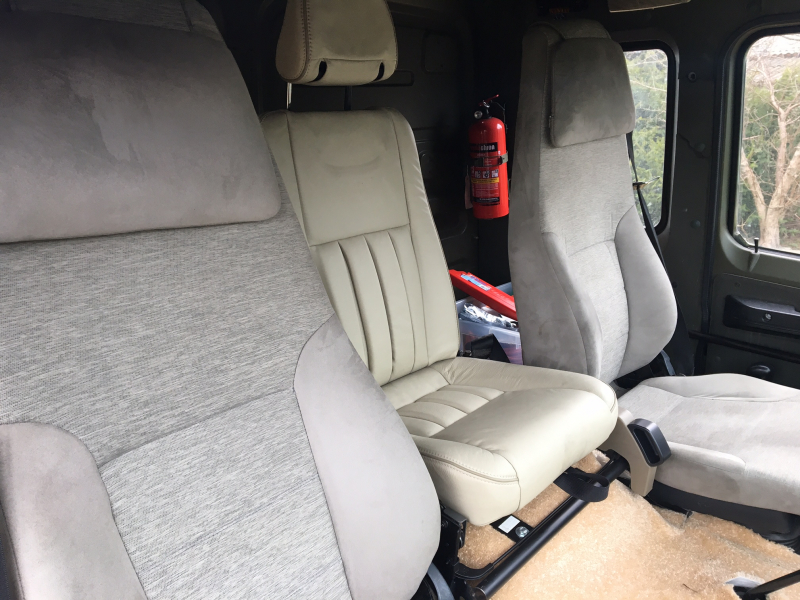

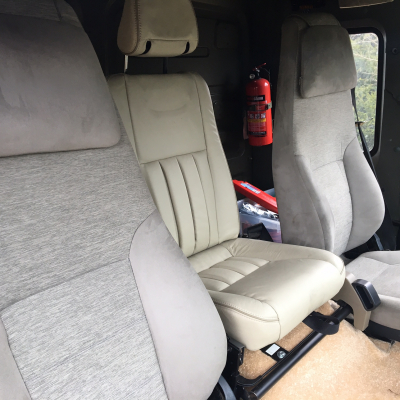

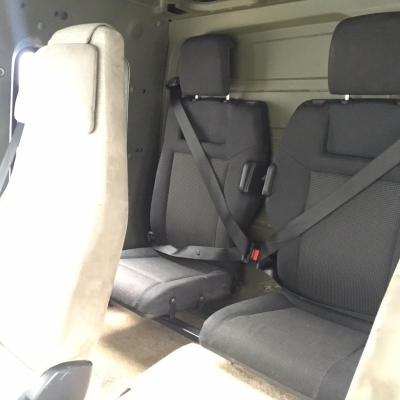

| Number of seats | 3 -> 4 (2x Opel Zafira B) |
| Tyre size | 12R20 |
| Rim size | 8 Loch |
| Type of tyre | mit Schlauch |
| Tank capacity | 135L, wird vergrößert auf 300L |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Mitte |

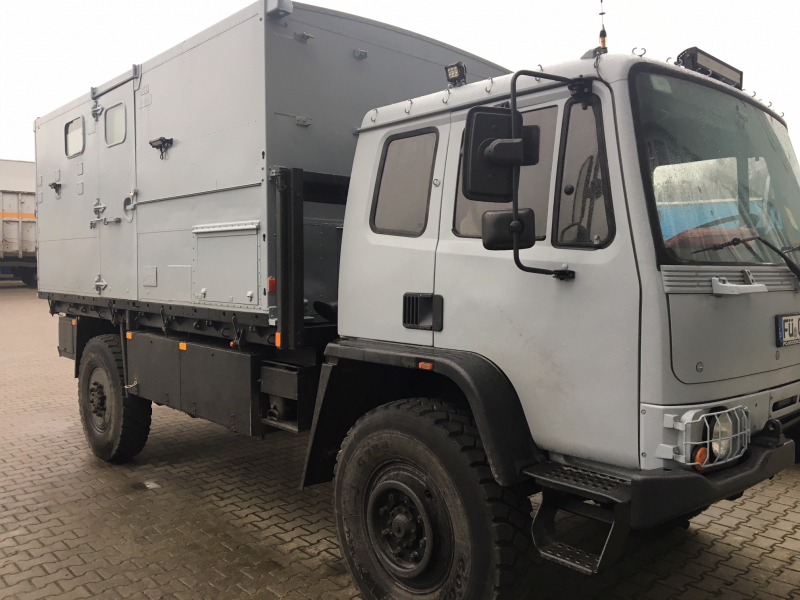

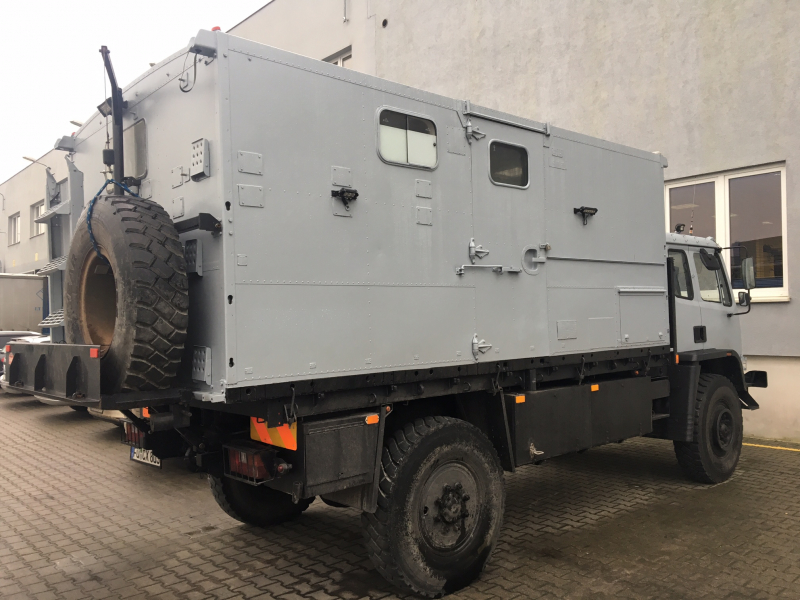

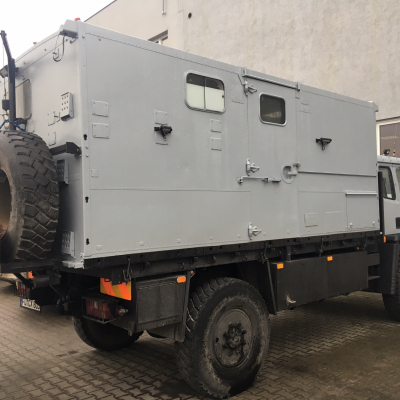

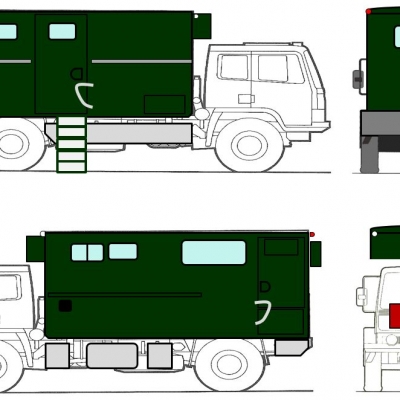

| Manufacturer of the cabin | Umbau des RAF Containers |
|---|---|
| Inner dimensions (LxWxH) | 4400 x 2350 x 1750 |

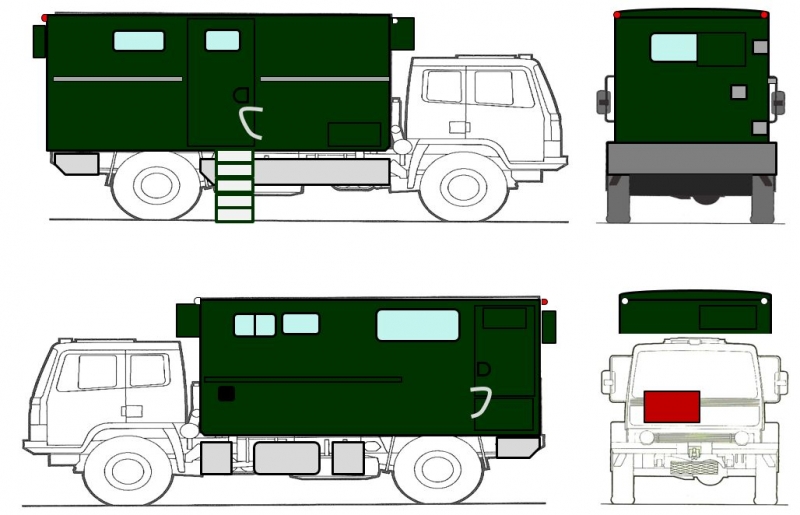

| Outer dimensions (LxWxH) | 4500 x 2450 x 1850 |
| Cabin material | Alu |

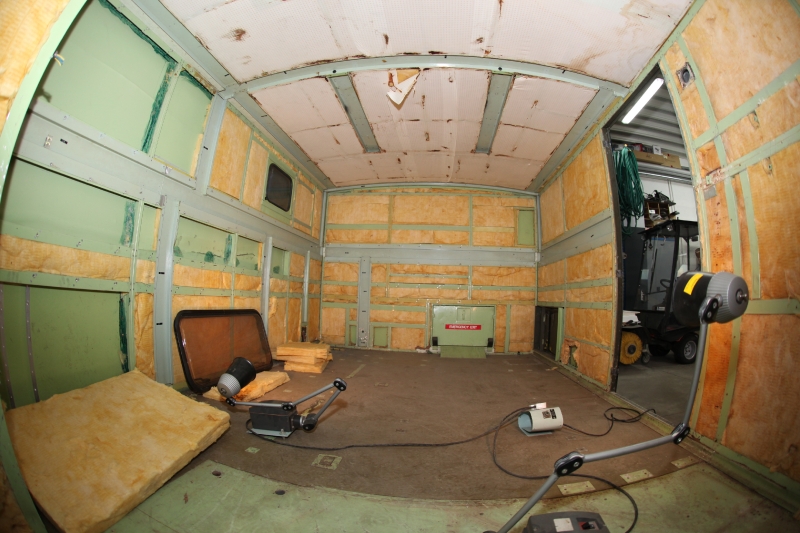

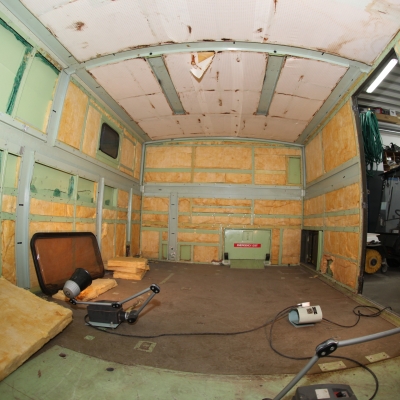

| Kind and thickness of insulation | Glaswolle, Folie als Dampfsperre, 3mm Platten |
| Number of beds | 2+2 |
| Windows | 5 |

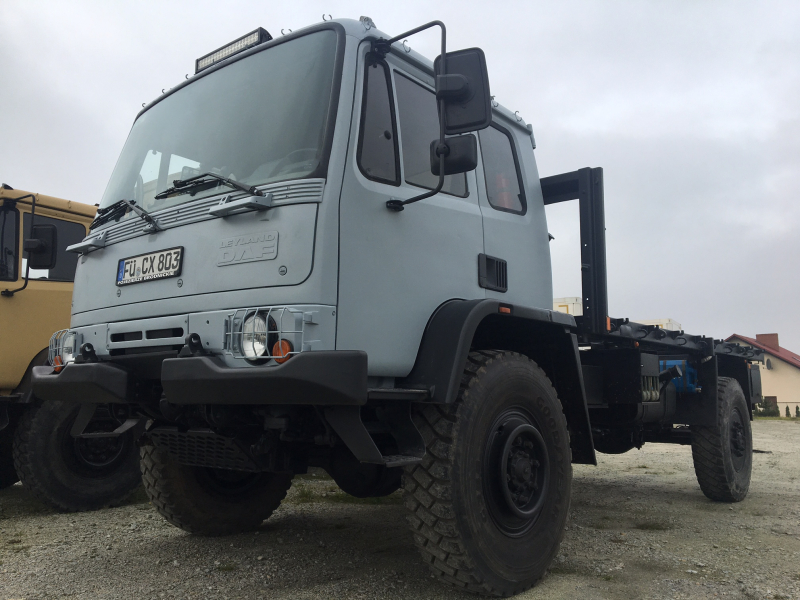

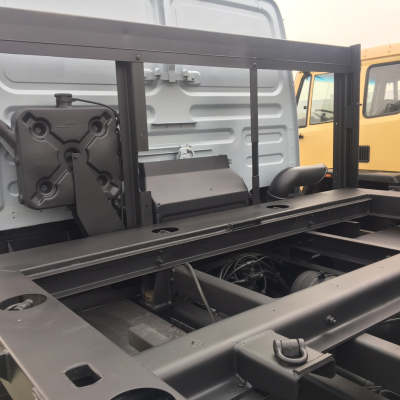

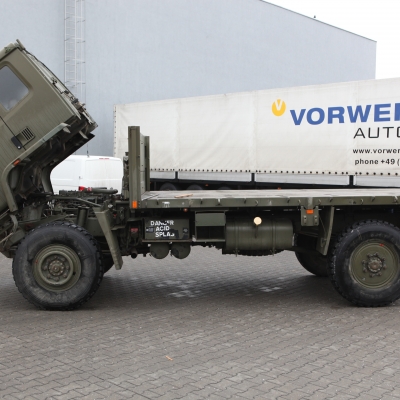

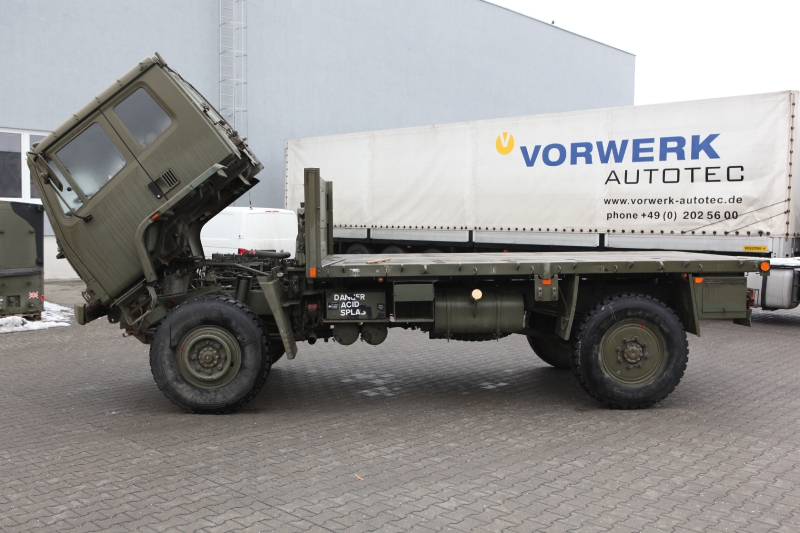

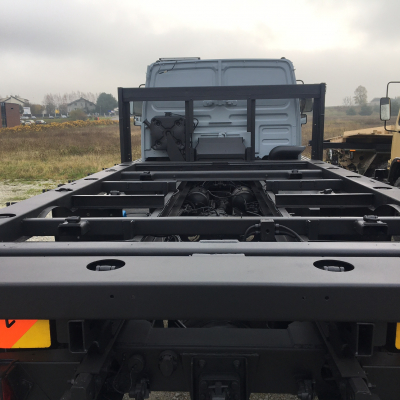

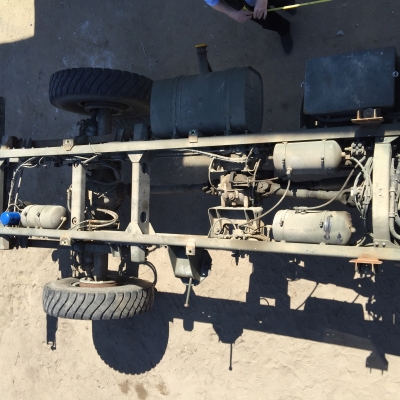

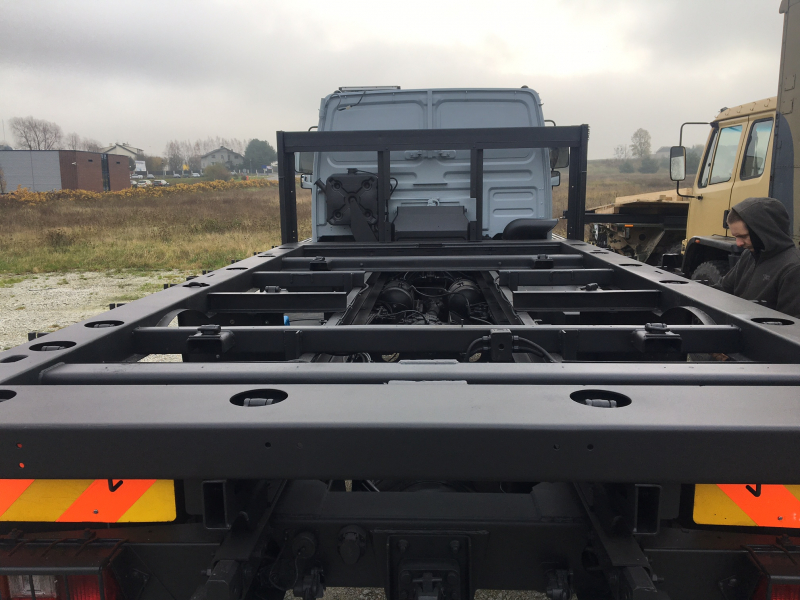

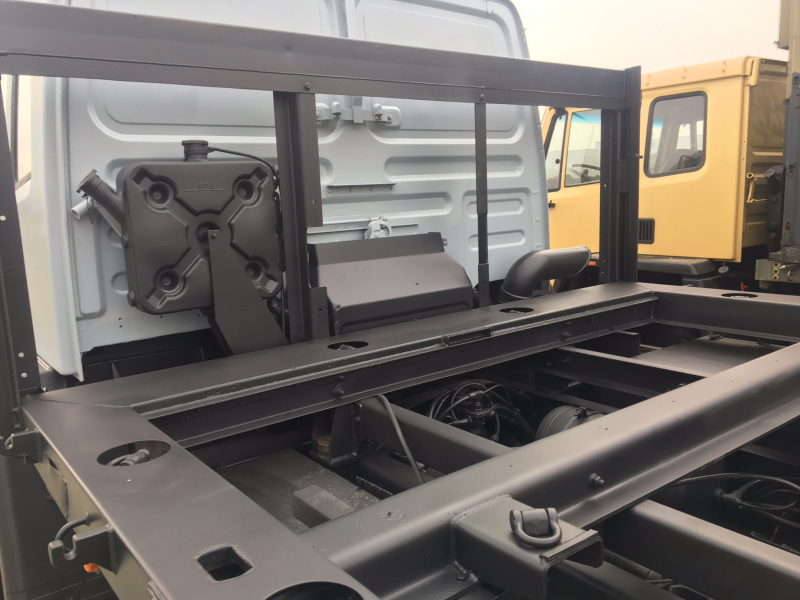

| Subframe | original Ladeplattform |

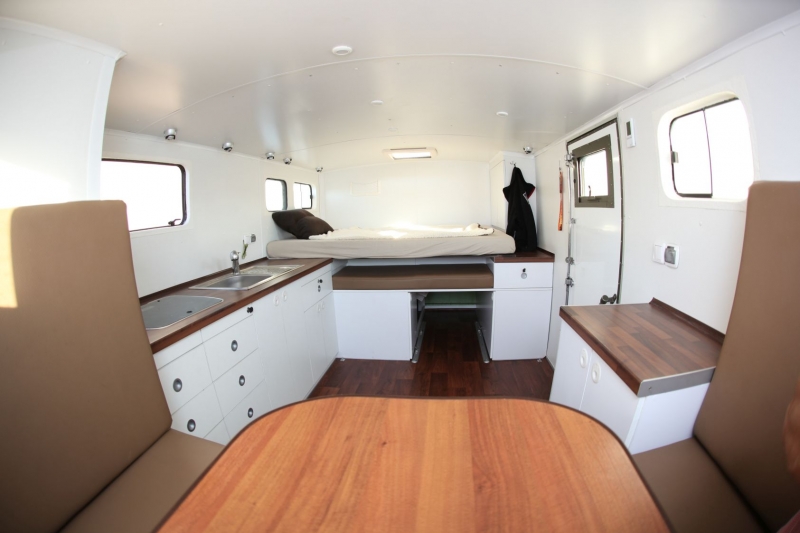

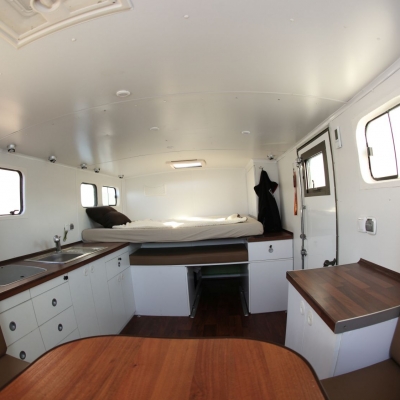

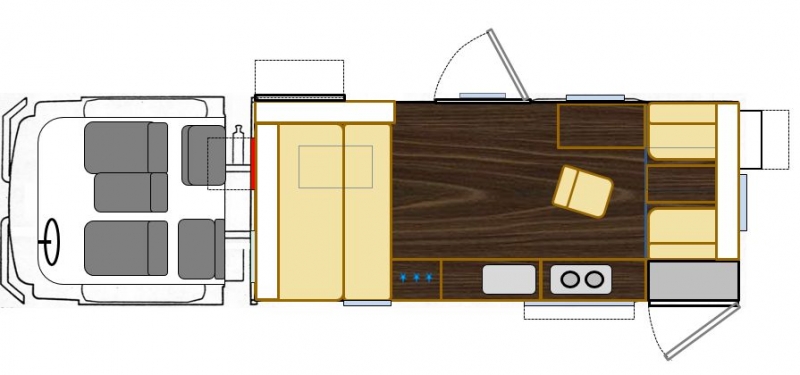

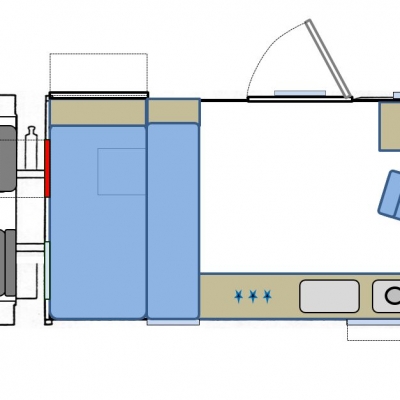

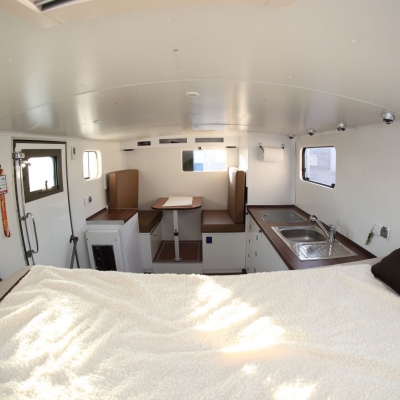

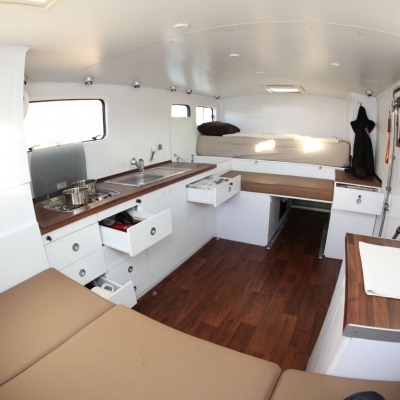

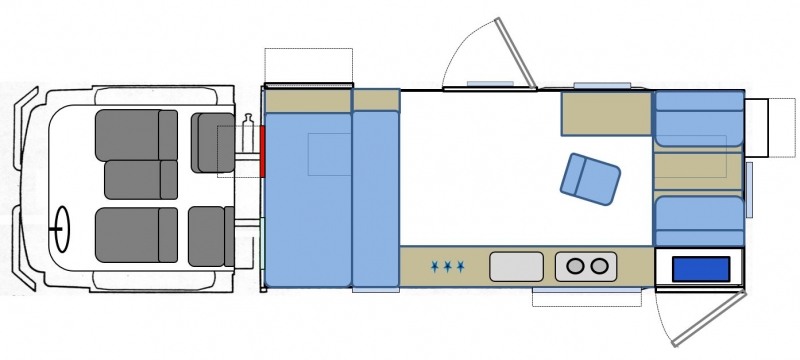

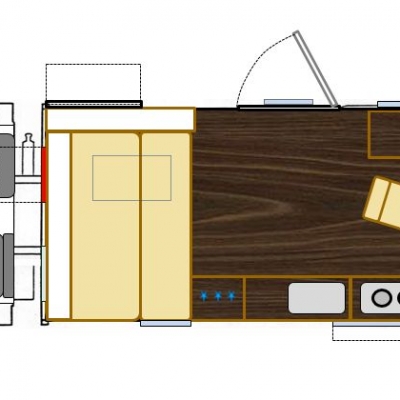

| Explanation of floor plan | |
|---|---|

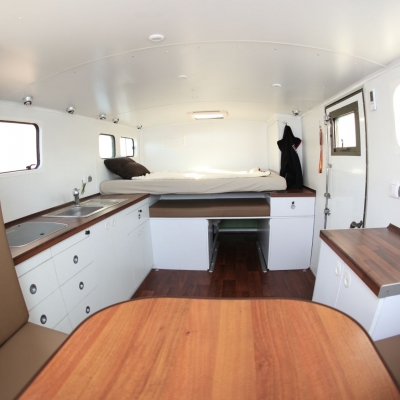

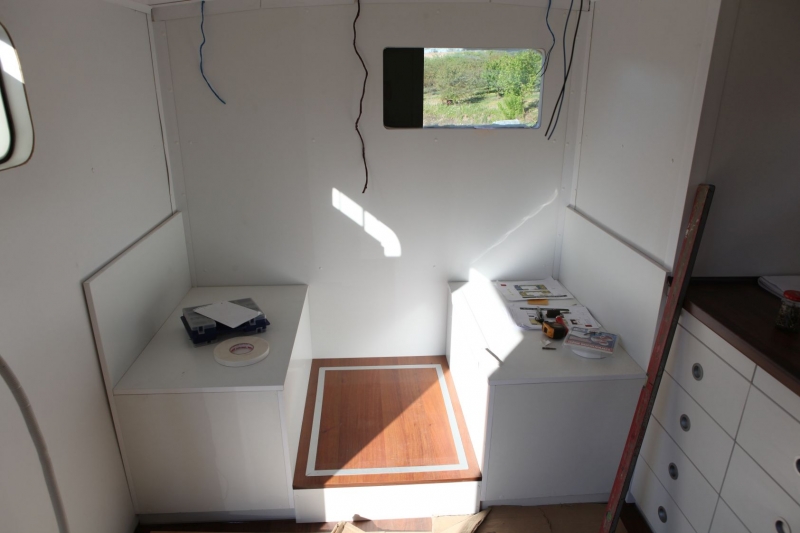

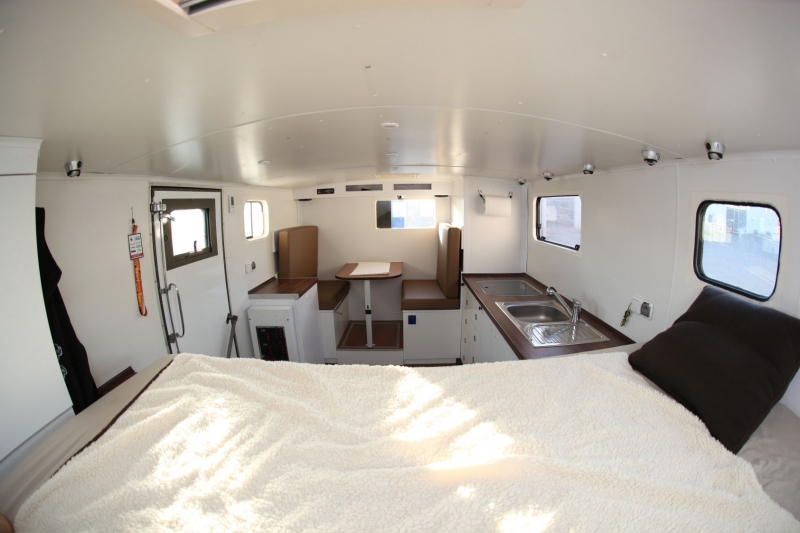

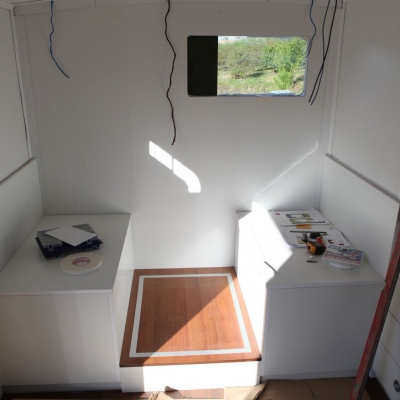

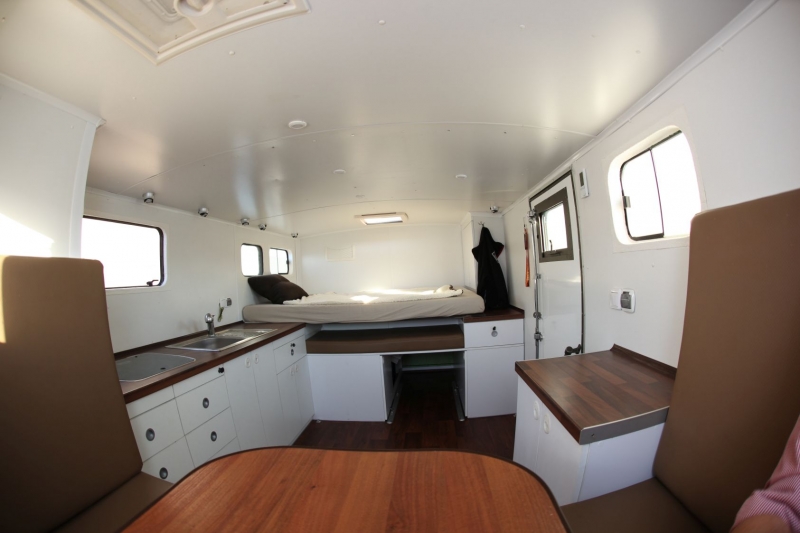

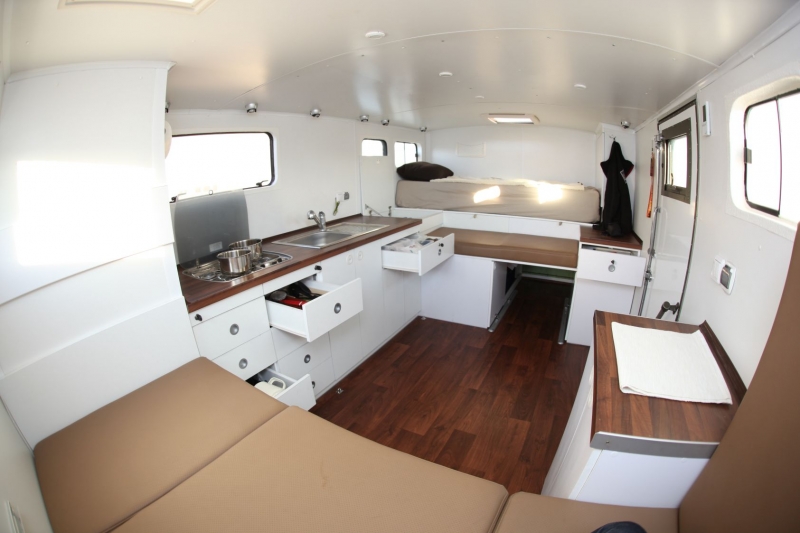

| Tisch klappbar, Bett 140x200 umbaubar zu 100x200 + Sitzbank |

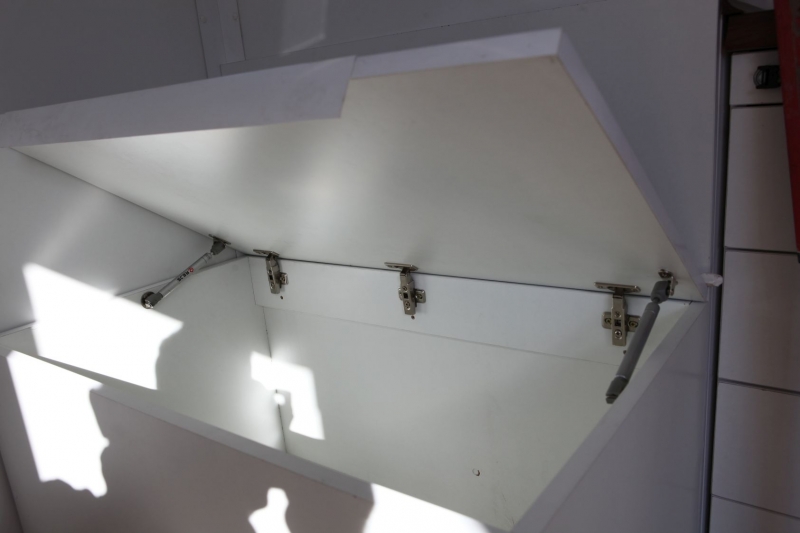

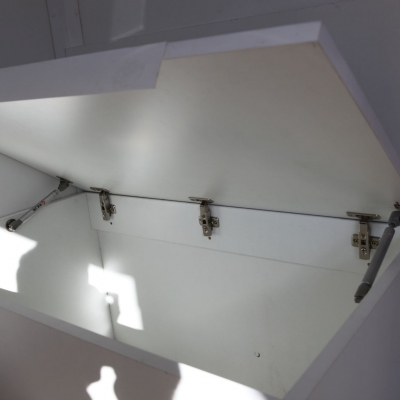

| Material of furniture | Spannplaten, solider Aufbau |
|---|
| Cooking stove | Gas 3-flammig |
|---|---|
| Gas installation | Flasche, Ventil, Reduktion, Verteiler 4-fach, Herd |
| Other | |
| Im Seitenstauraum getrennt | |
| Manufacturer and type of fridge / cooler | mobile Kühlbox 12 V, 30L |
|---|---|
| Other | |
| Kompressorkühlschrank in Vorbereitung 12V, 40L | |

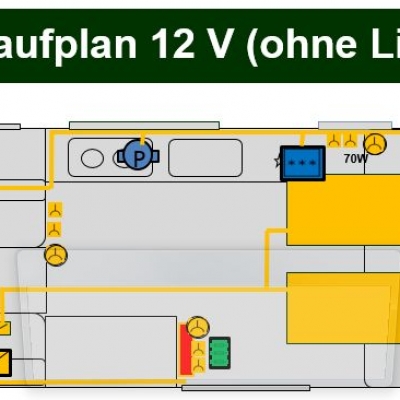

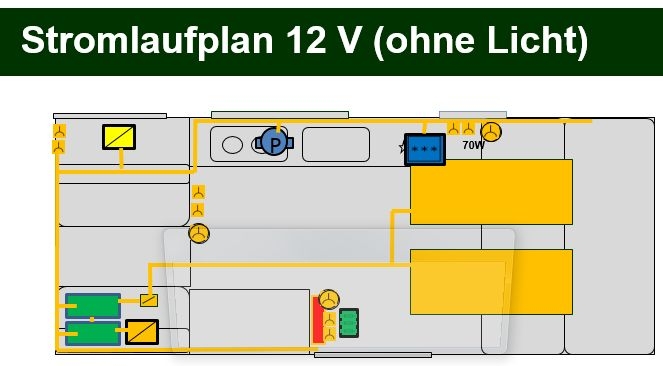

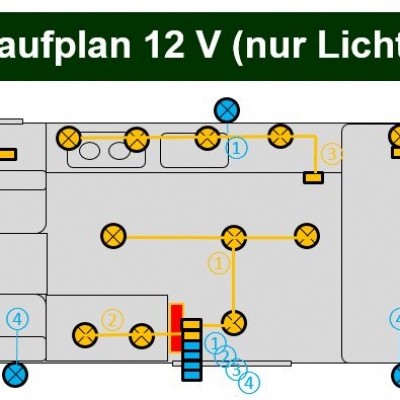

| Voltage in the chassis | Fahrzeug: 24v, 2x 100 Ah, getrennt vom Container, Solar 2x10W; Container: 12v, 2x 100 Ah, Solar 300W |
|---|---|

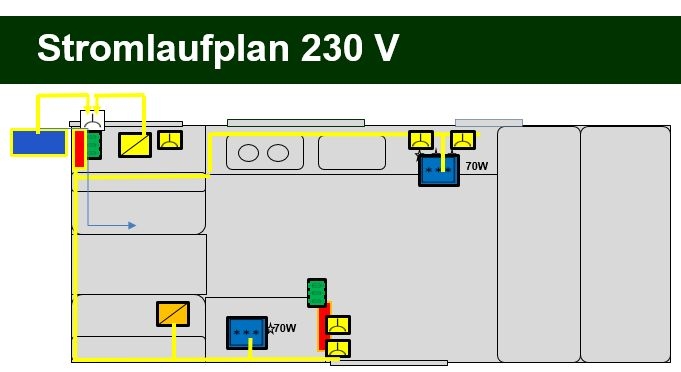

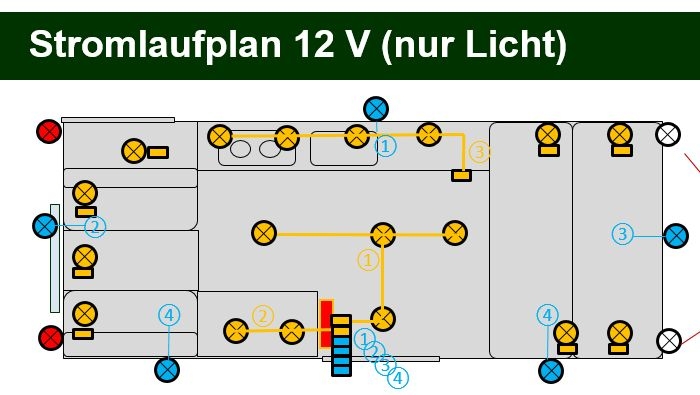

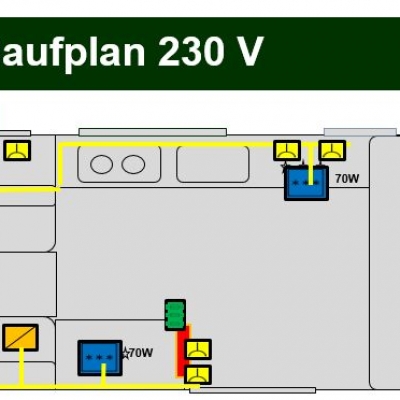

| Voltage in the cabin | 12V, 24V, 230V |
| Charging converter 24V-12V | 300W (in der Kabine) |
| 110V / 230V in the cabin? | yes |
| Inverter | 1500W; 12v-> 230V (Sinusförmig) |
| Other | |
| Generator 2,5 KW, Solar 300W + 20W, Getrennte Stromkreise | |
| Capacity of batteries in the cabin | 2x100Ah |
|---|---|
| Battery type | Gel |
| Battery charger for cabin batteries | Solar 300W |
| Battery management | 2 Anzeigen |
| Other | |
| getrennte Batterien 1/2/1+2/0, getrenntes laden über Solar 200W + 100W | |
| Solar capacity | 300W (Aufbau) + 20W (Fahrzueg) |
|---|---|
| Solar controller | 3 Stück + 2 Stück |
| Fuel cell | no |
| Power generator | 2,4 KW Honda |
| Manufacturer and type of heating system | Wabasto 5,2 KW Heisluft |
|---|---|
| Warm water processing | nein |
| Cab heating | in Planung 2KW Webasto |
| Explanation of gas system | |
|---|---|
| Kochstelle, Erweiterung Gasheizung möglich, Erweiterung Kühlschrank möglich |

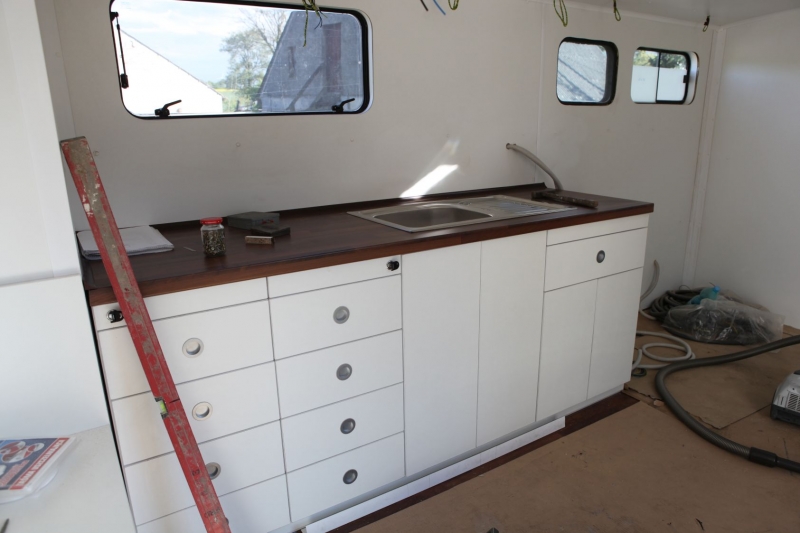

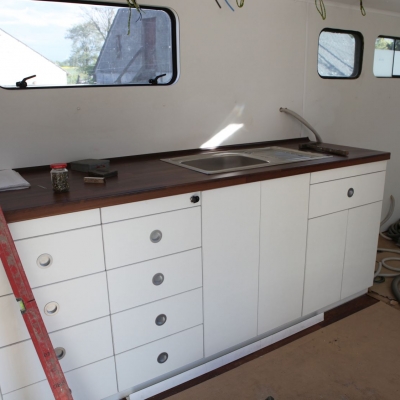

| water flow | Tank, Pumpe, Spüle |
|---|---|
| Water filtration system | keine |
| Capacity of fresh water tank(s) | 70L innenliegend, im Unterbau 150L (außen) geplant |
| Capacity of waste water tank(s) | noch ohne |
| Other | |
| Abwassertank als Reserve geplant | |
| Manufacturer and type of toilet | mobile |
|---|---|
| Capacity of black water tank | 18L |

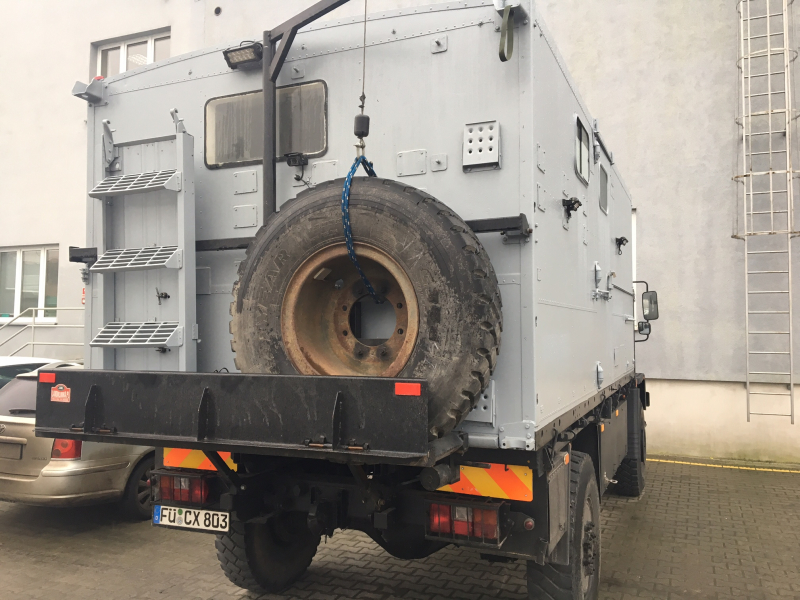

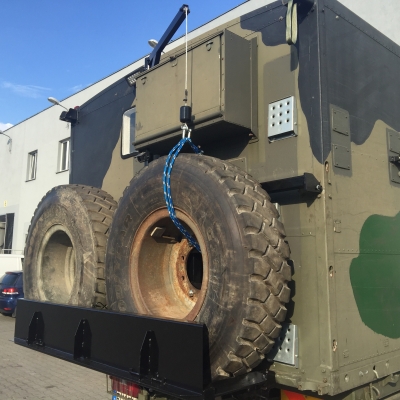

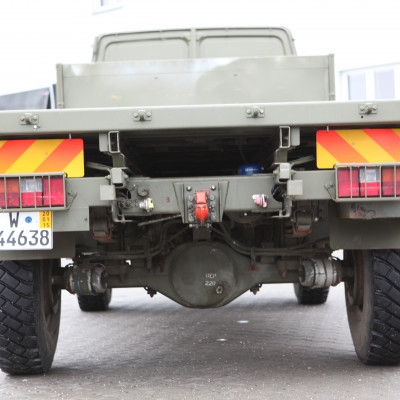

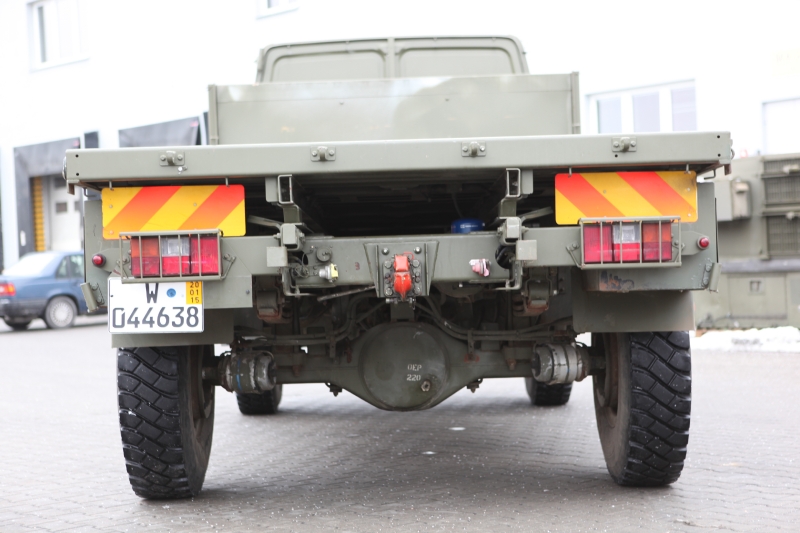

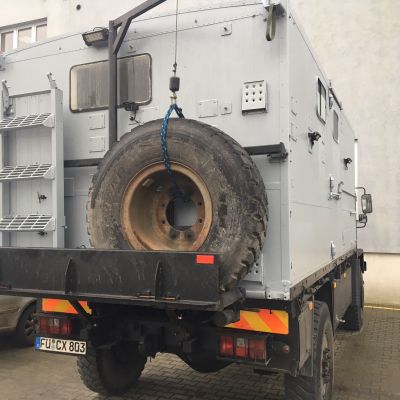

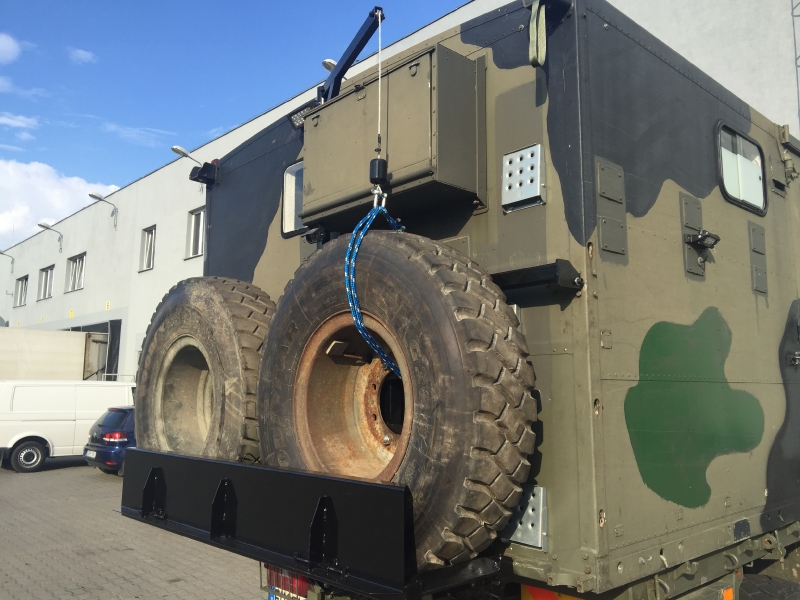

| Rear carrier | für 2 Räder 250kg und Motorrad, kippbar; Krananlage |
|---|---|
| Roof rack | über Airline-Schienen geklebt/ verschraubt auf dem Dach |
| Storage boxes | im Aufbau, im Unterbau |
| Outside cooking facilities | geplant |
| Awning | ja |
