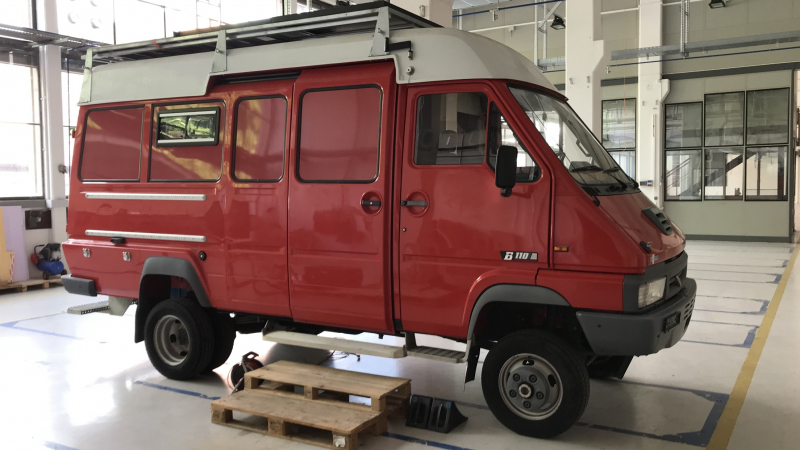

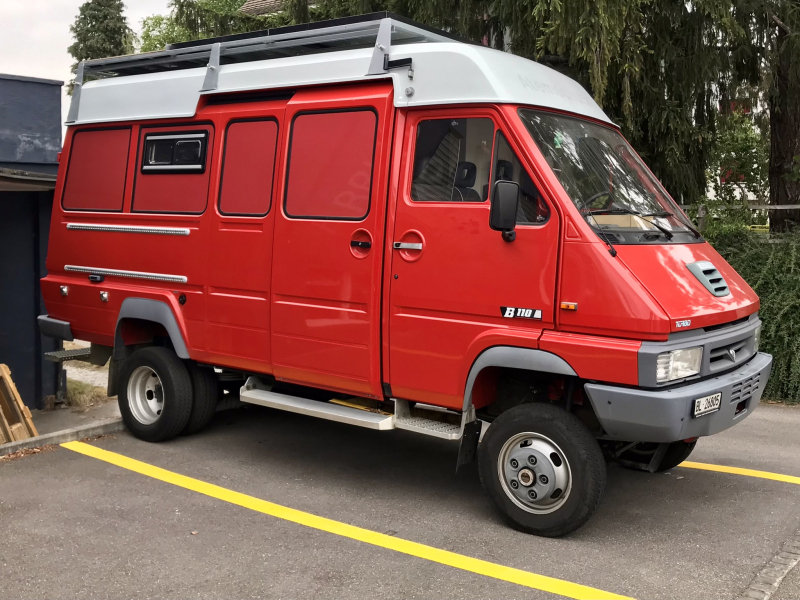

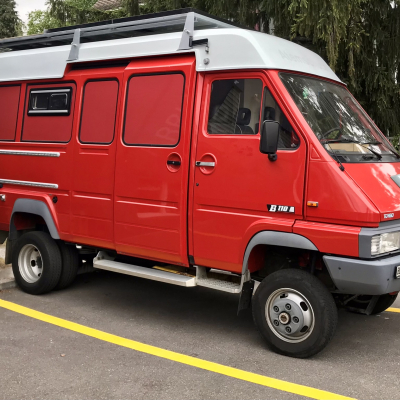

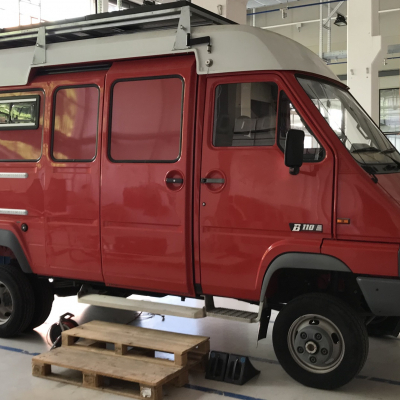

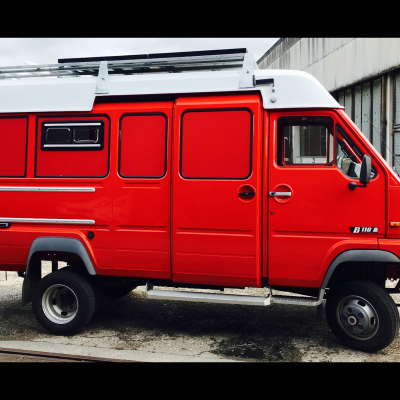

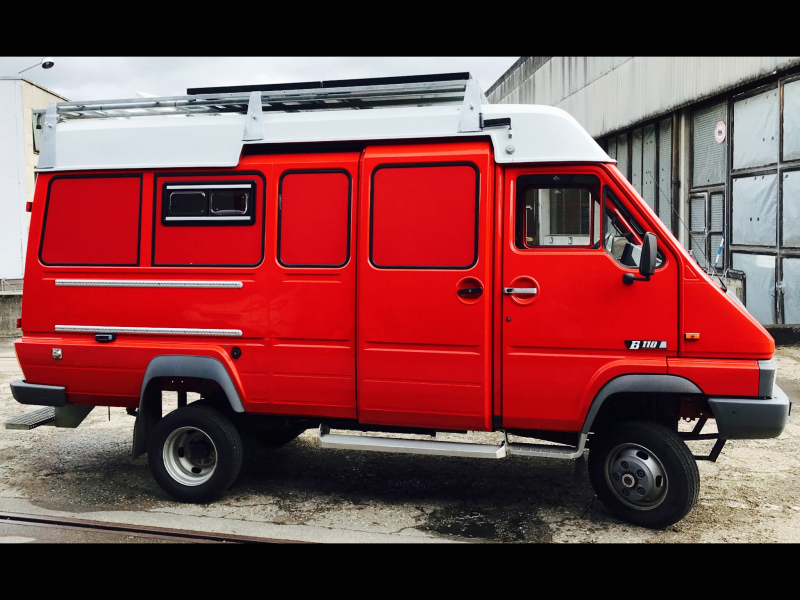

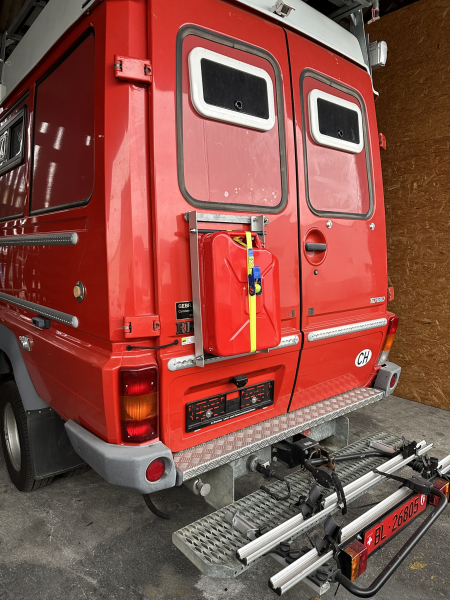

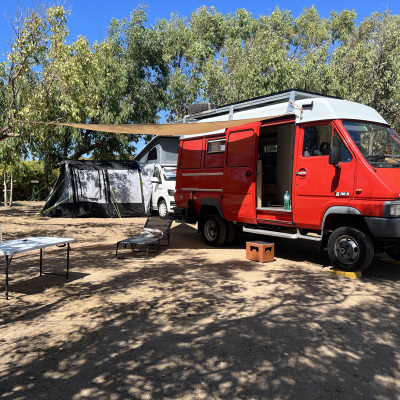

| Manufacturer and model | Renault B110 4x4 |
|---|---|
| Name | Bea u. Marco |
| Country | CH |
| Year of manufacture | 1992 |
| For sale? | no |
| Engine type | Diesel |
|---|---|
| Cubic capacity | 2490 cm3 |
| Number of cylinders | 4 |
| Horsepower | 100 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Number of seats | 2 |
| Tyre size | 205 75 R16 |
| Rim size | Stahl |
| Type of tyre | Universal |
| Tank capacity | 75 l |
| Diesel filter | no |
| Other | |

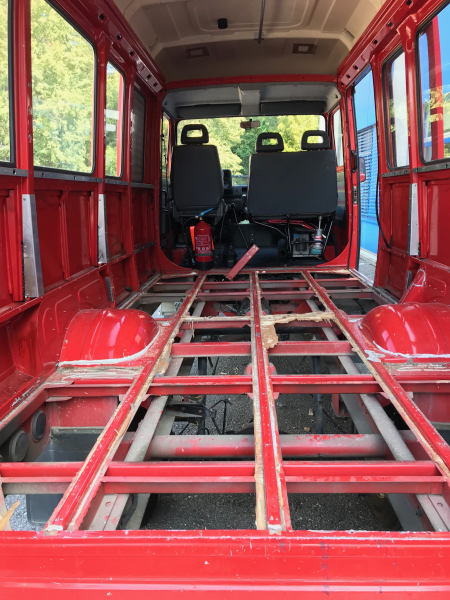

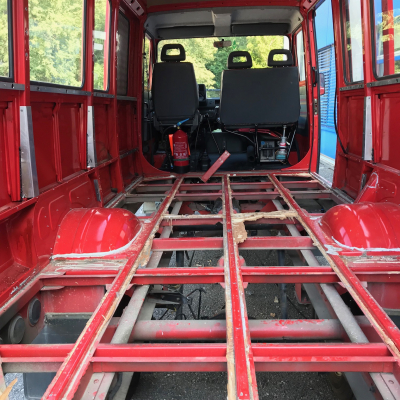

| Fahrgestell Ponticelli | |

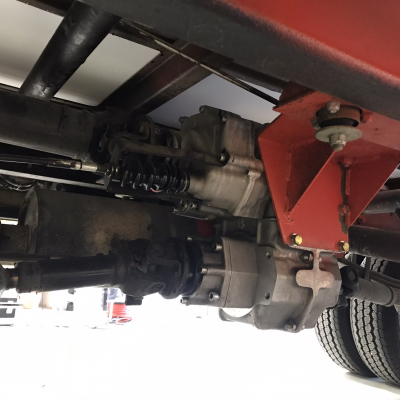

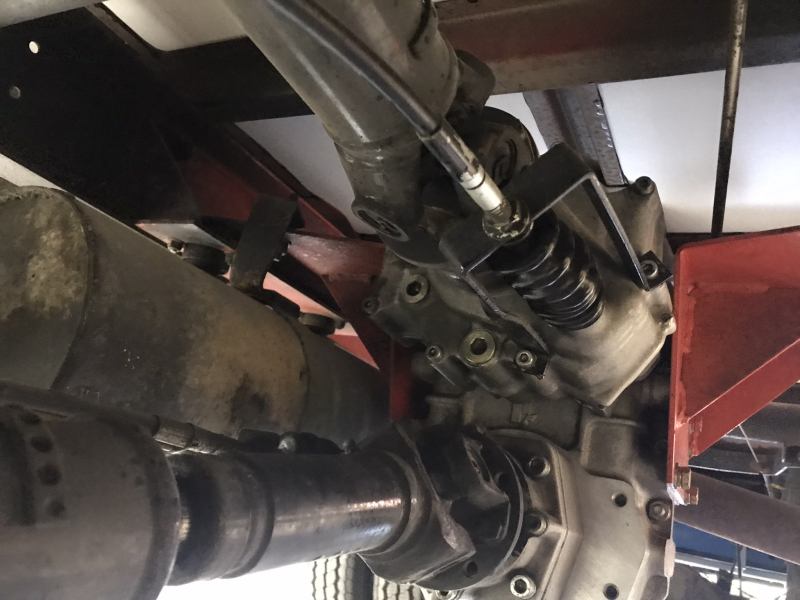

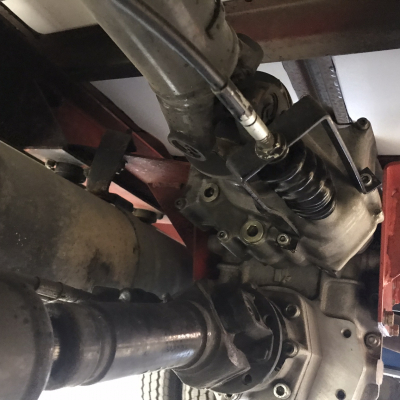

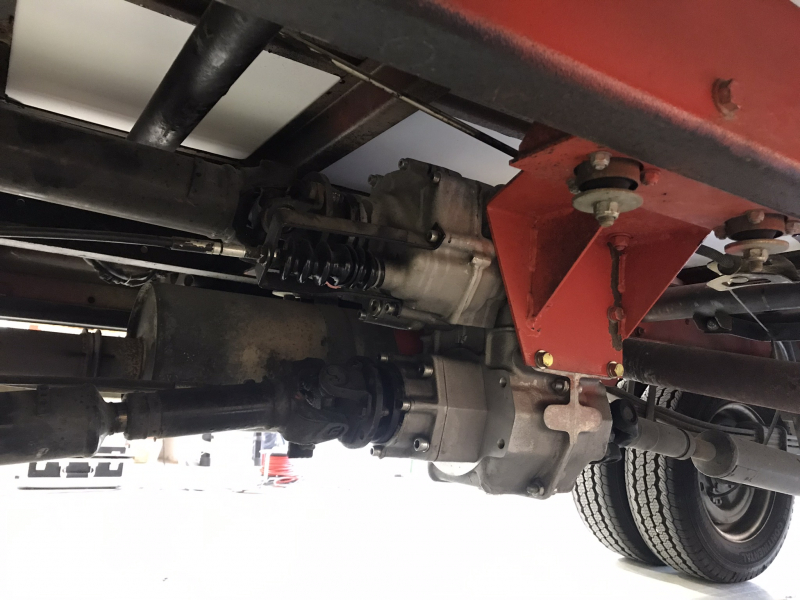

| Permanent or manually selectable 4-wheel drive | 4x4 und Reduziergetriebe zuschaltbar |
| Diff locks | Mitte |
| Inner dimensions (LxWxH) | 175x355cm |
|---|---|

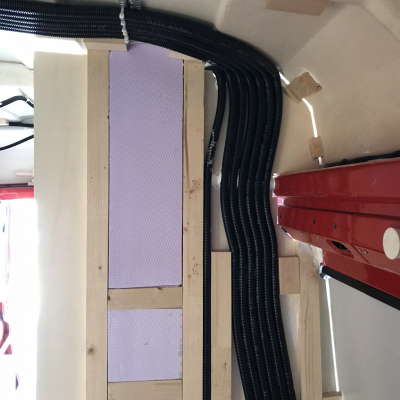

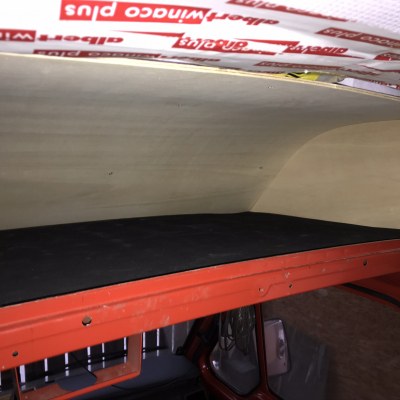

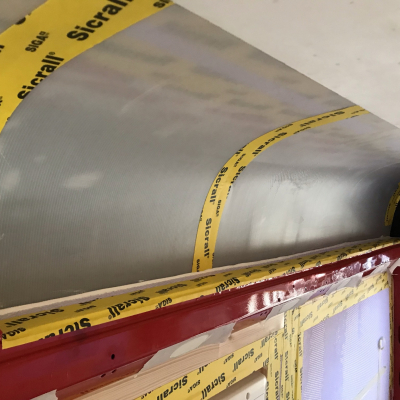

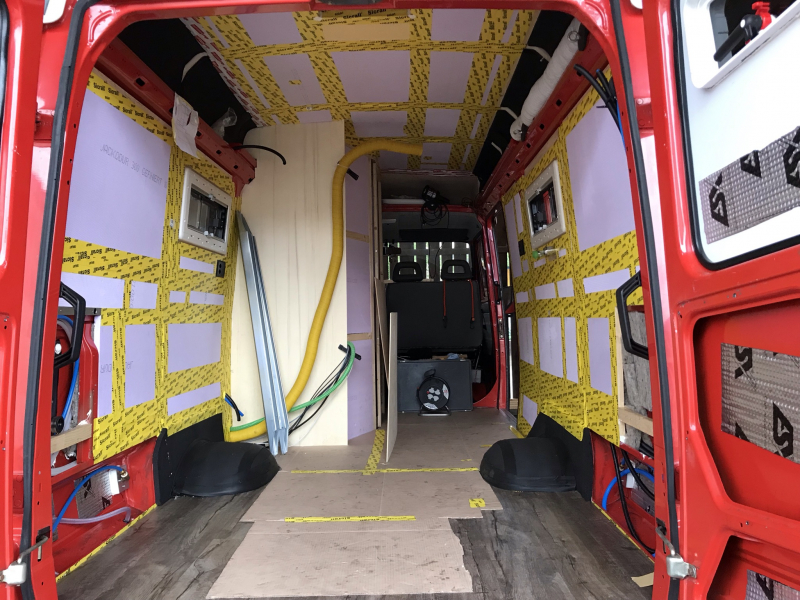

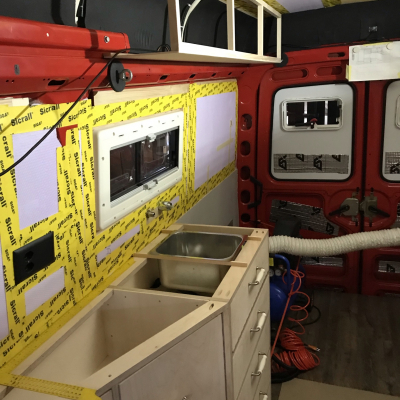

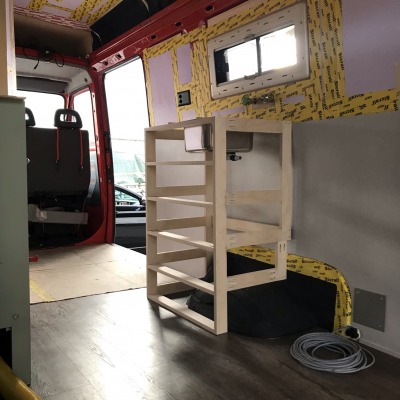

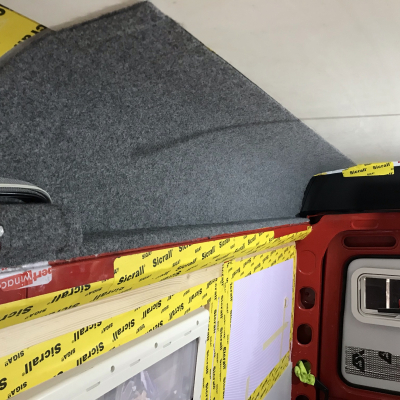

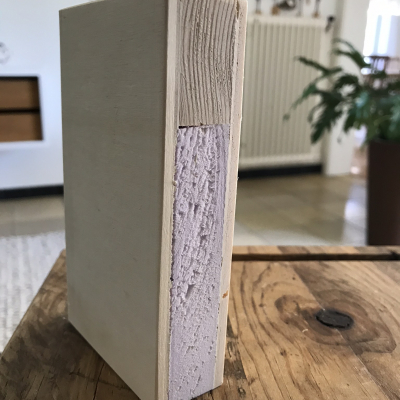

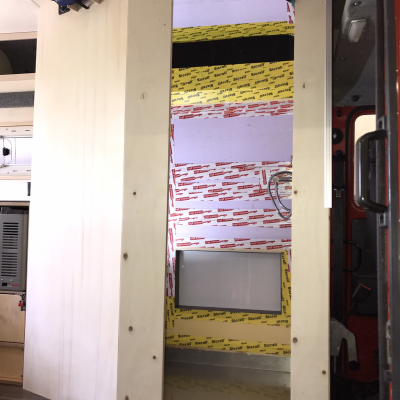

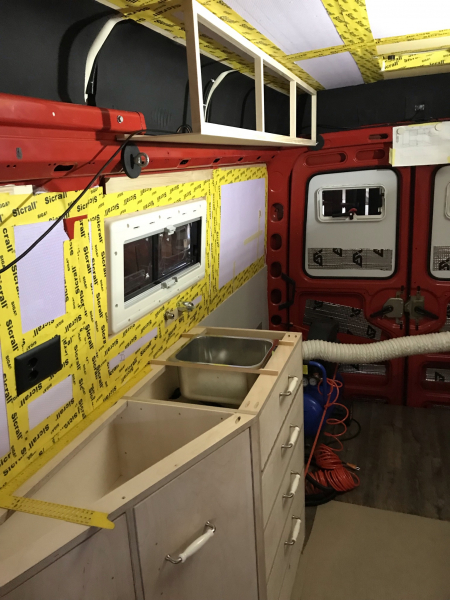

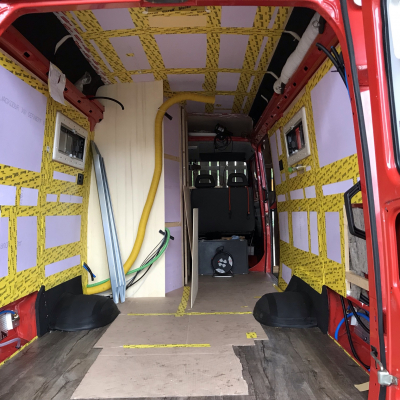

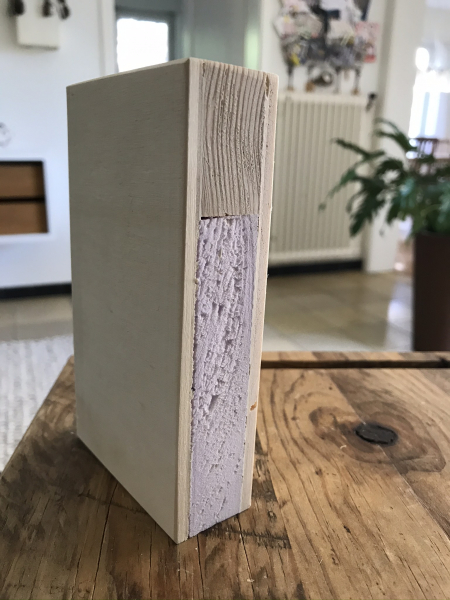

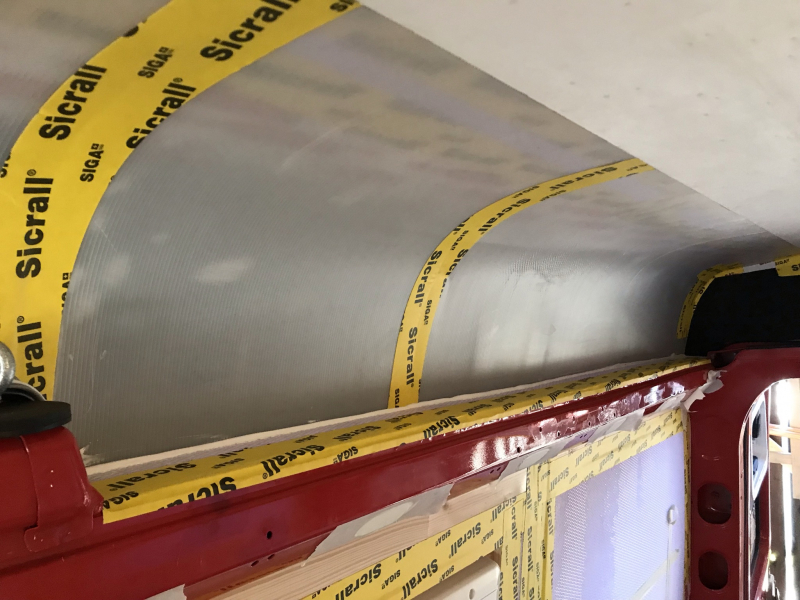

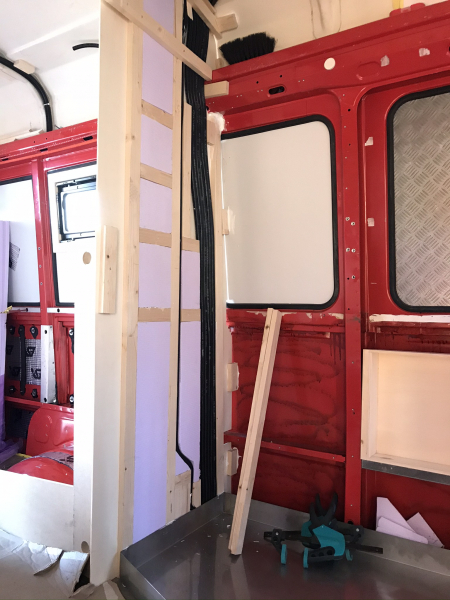

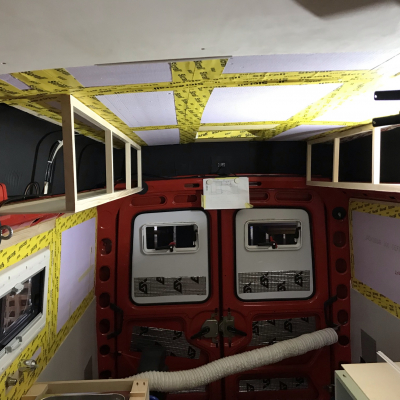

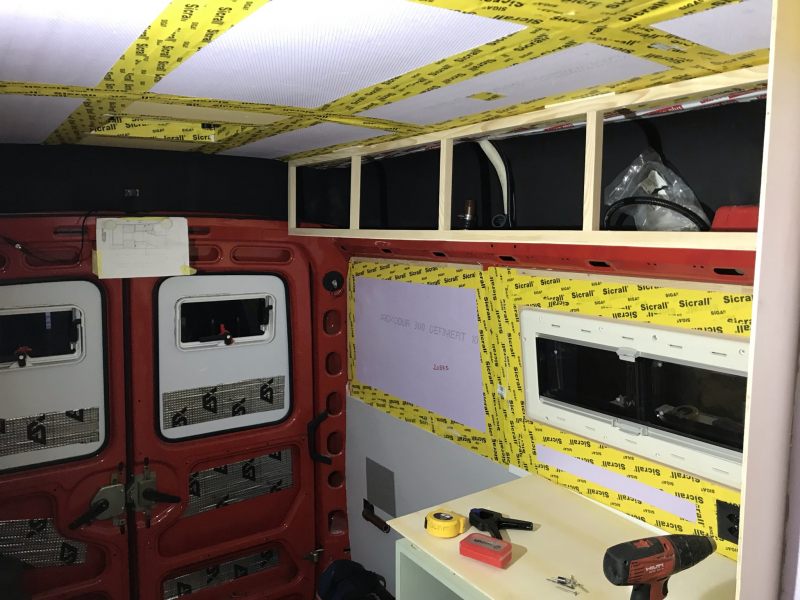

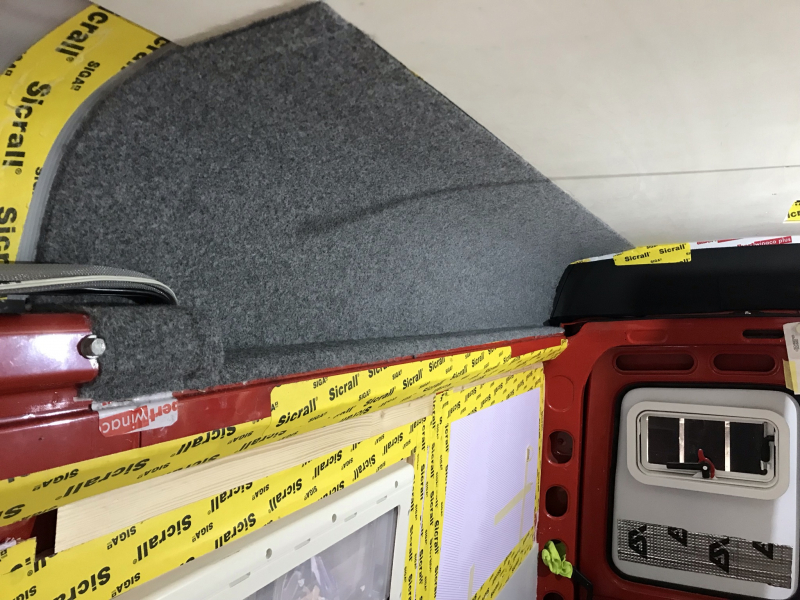

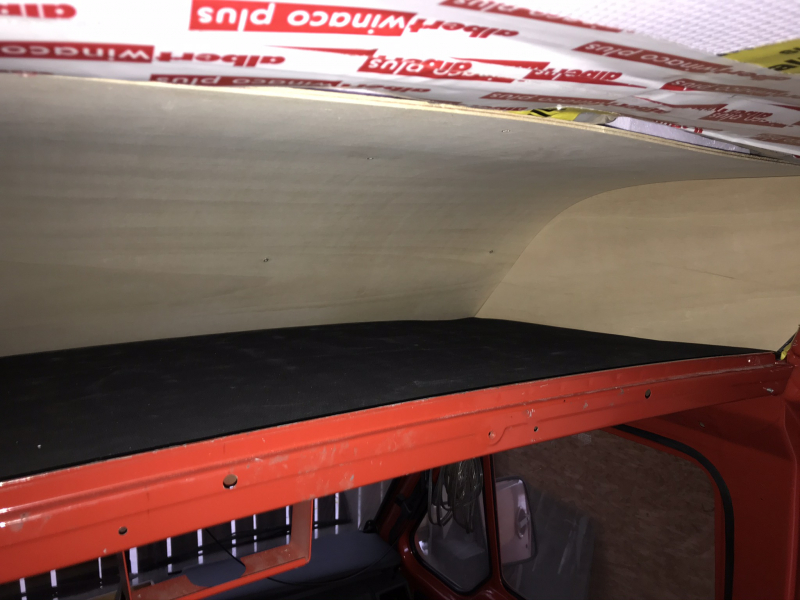

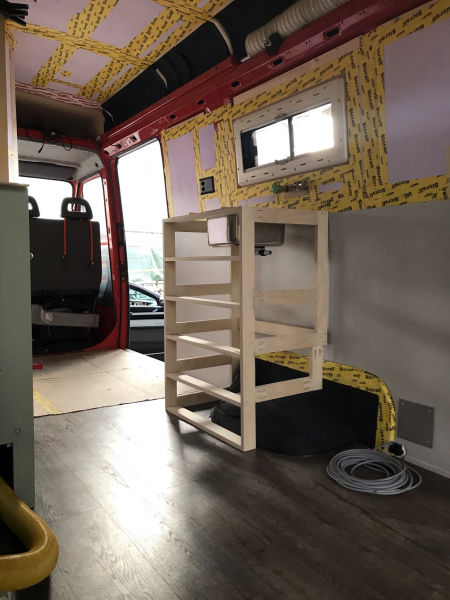

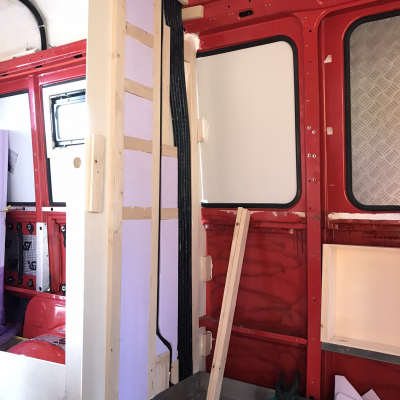

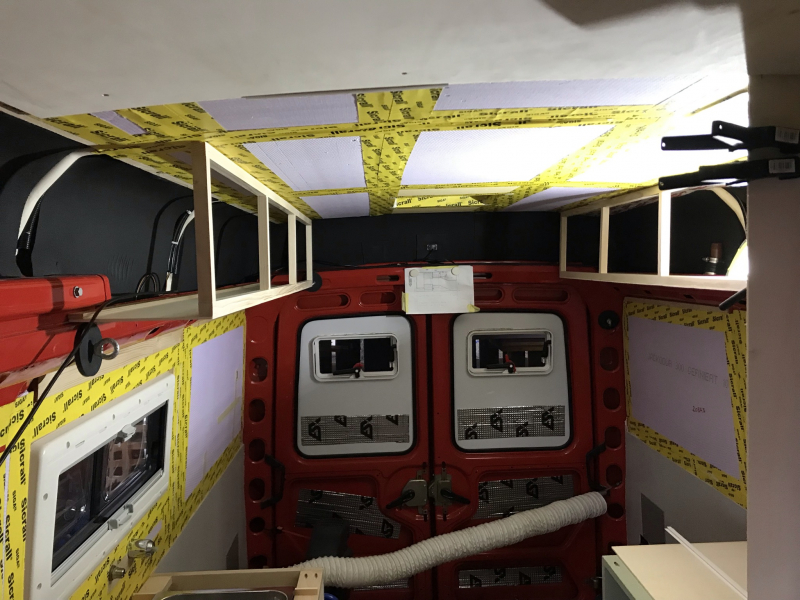

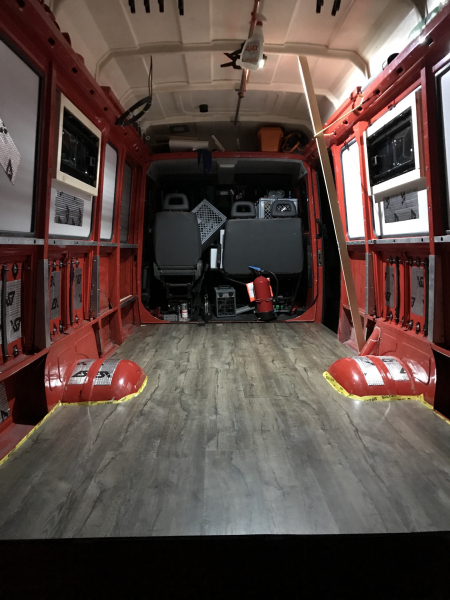

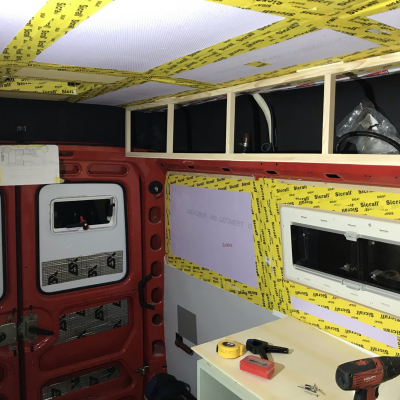

| Kind and thickness of insulation | 20-50mm XPS, Armaflex, Schafwolle |

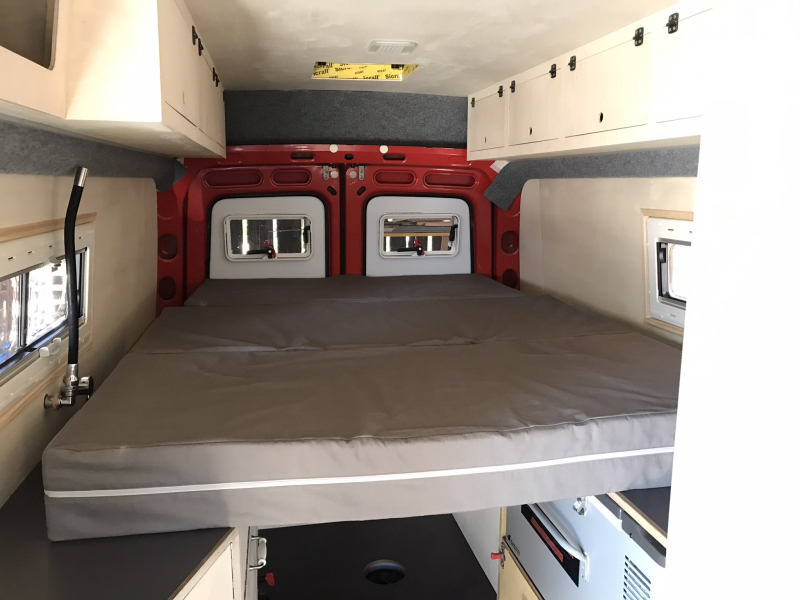

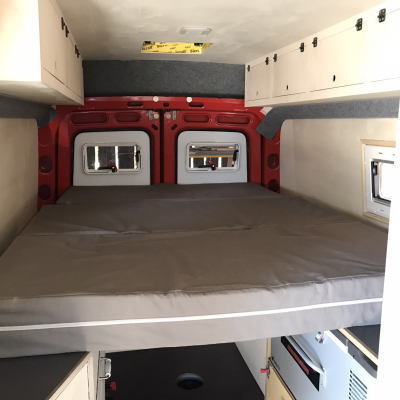

| Number of beds | 2 |

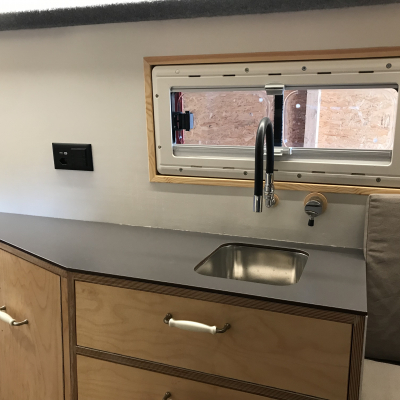

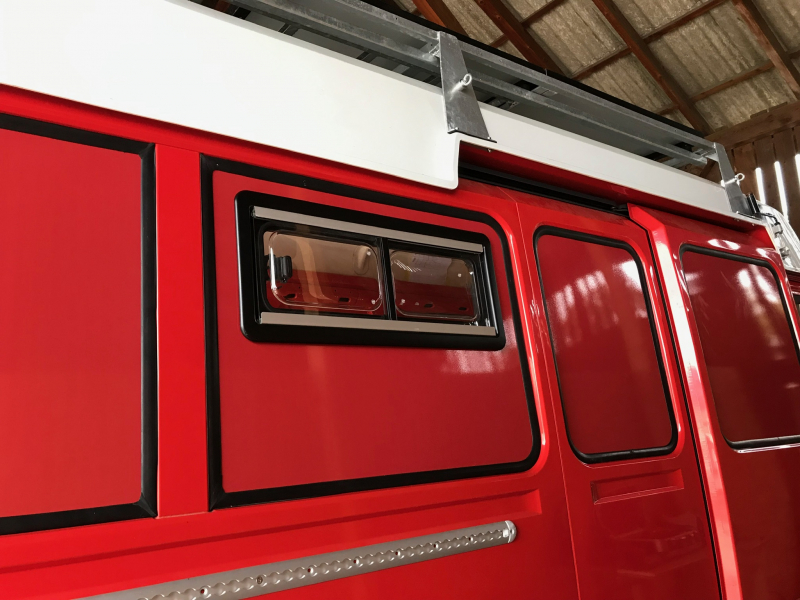

| Windows | Schiffsluken, Dometic Schiebefenster |

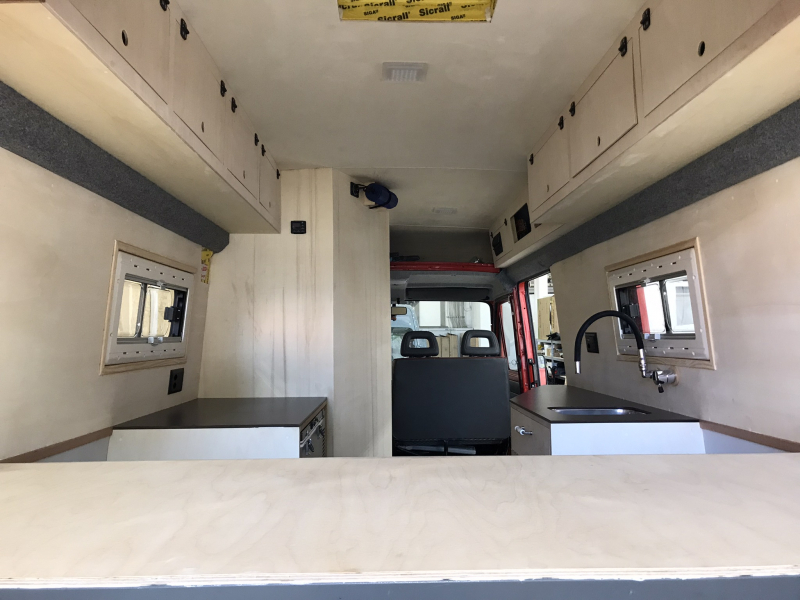

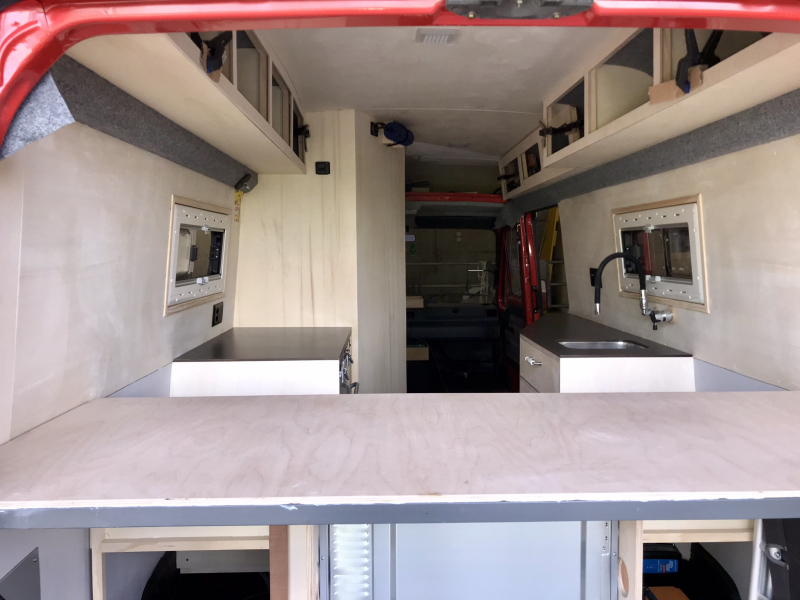

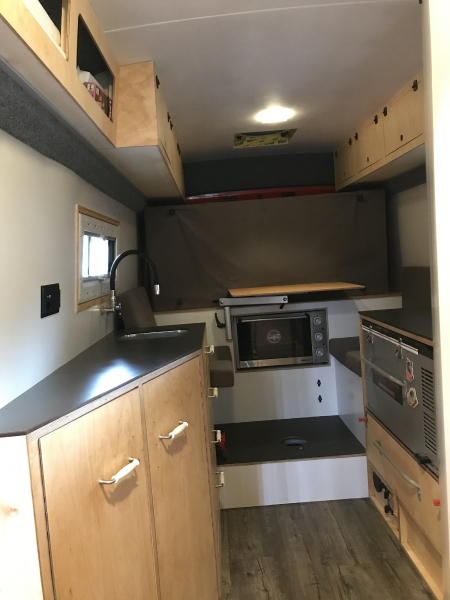

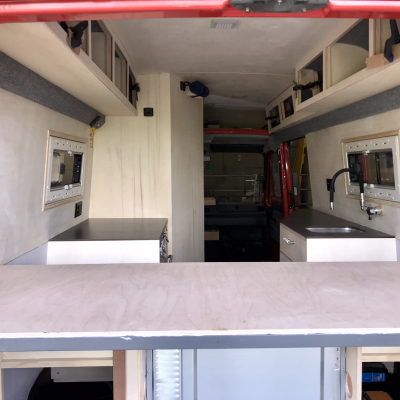

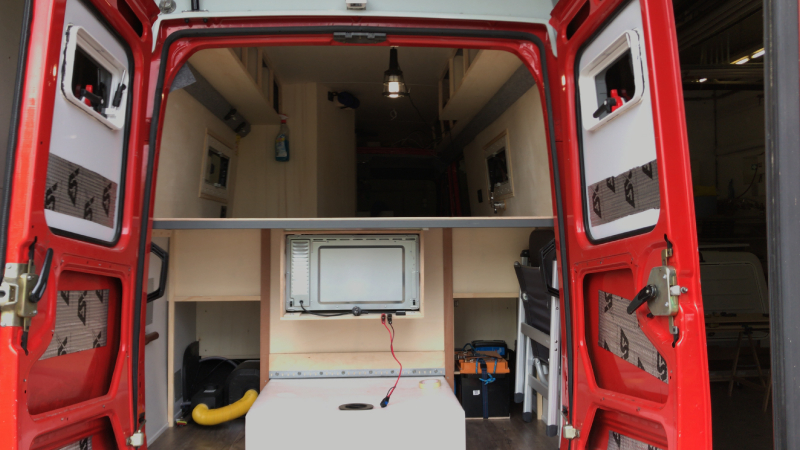

| Explanation of floor plan | |
|---|---|

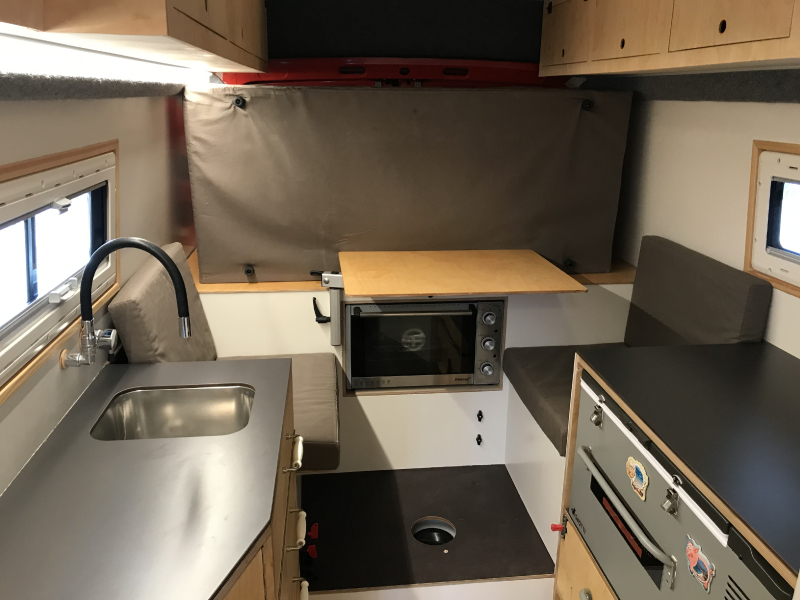

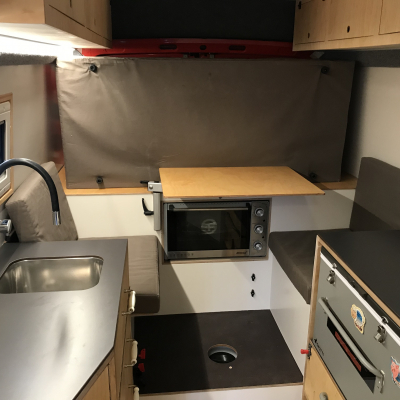

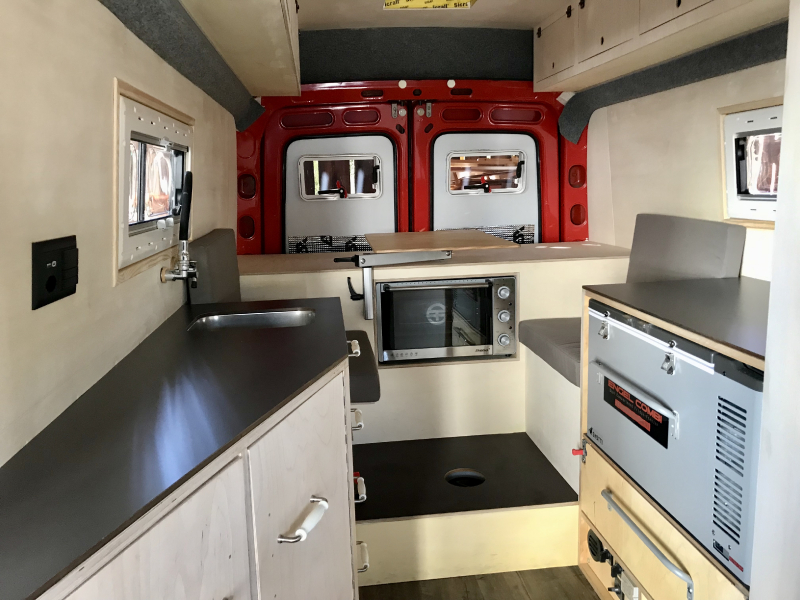

| Grundriss > Freestyle |

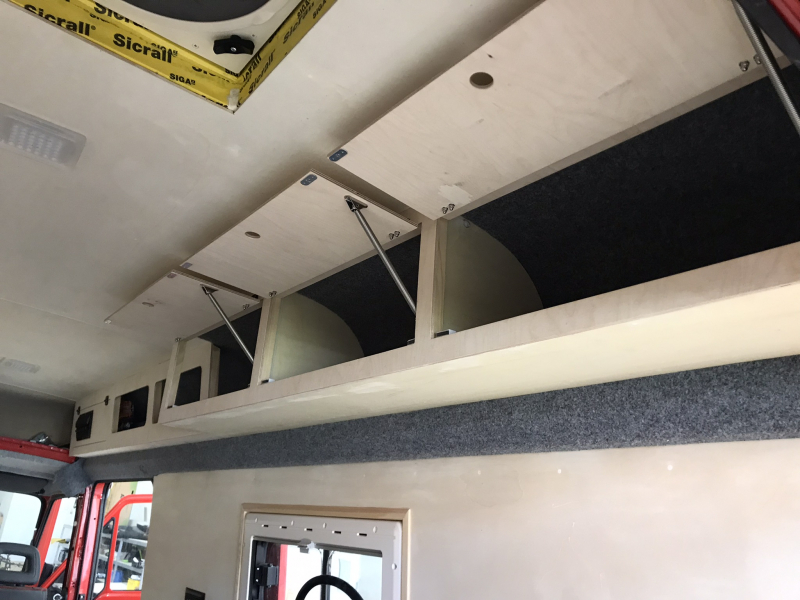

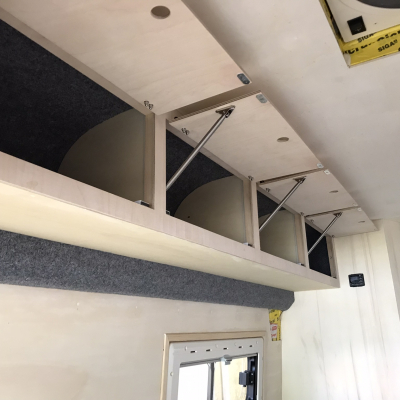

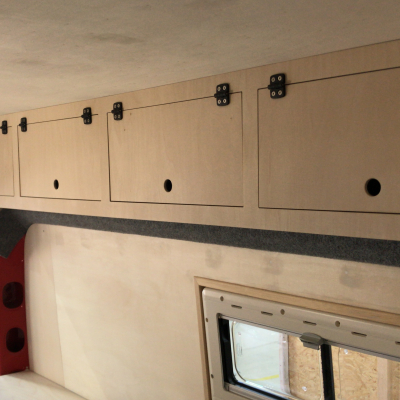

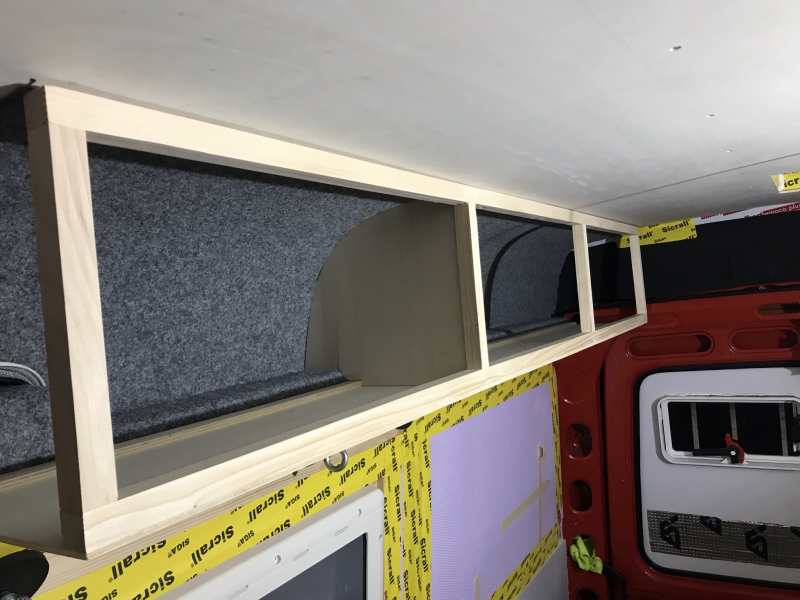

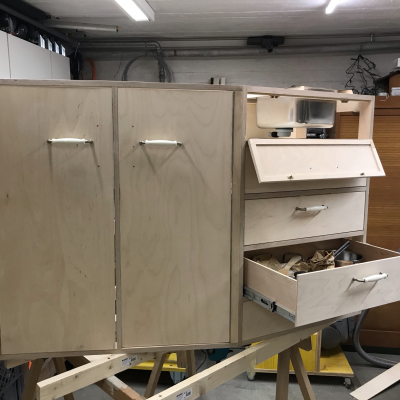

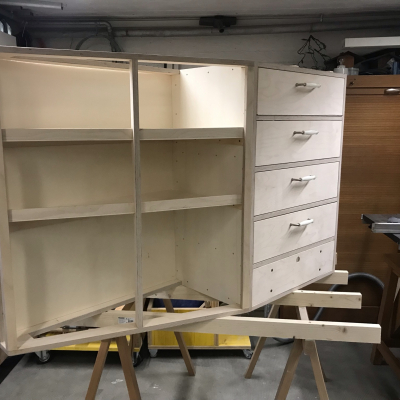

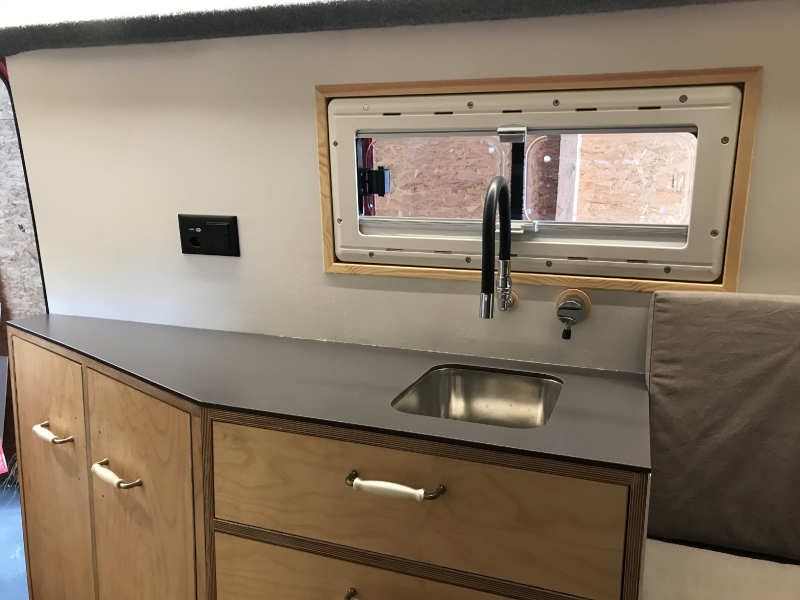

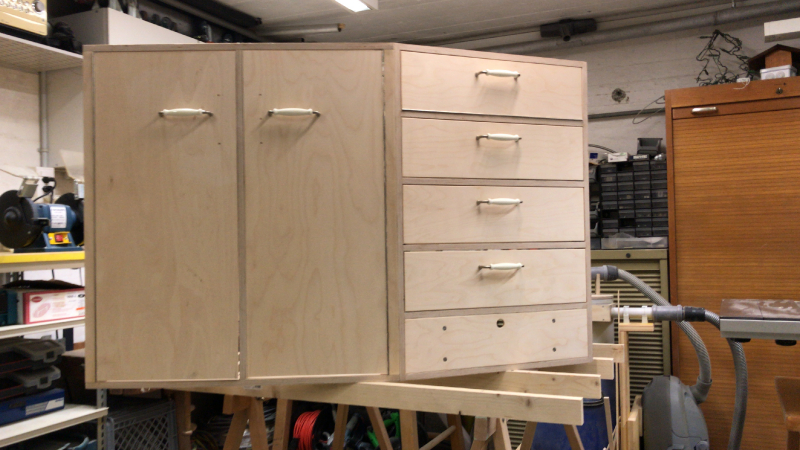

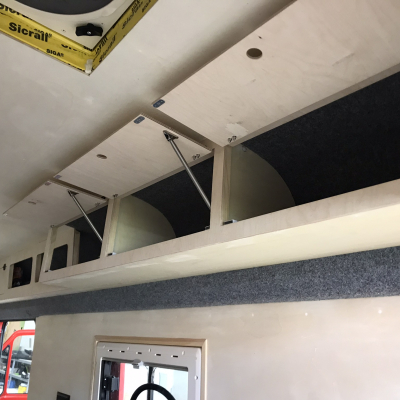

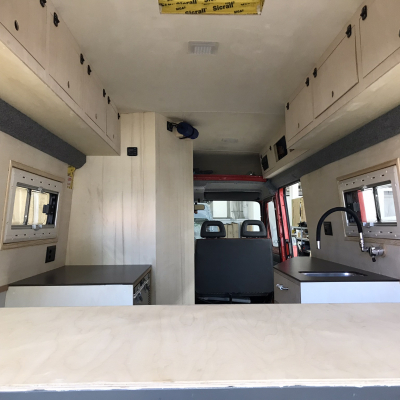

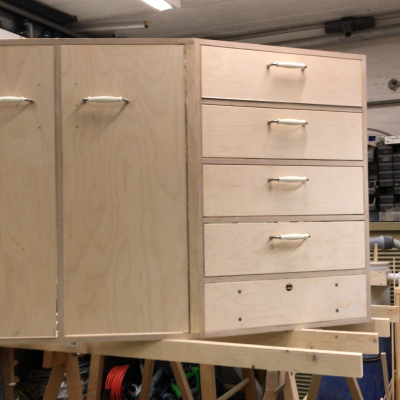

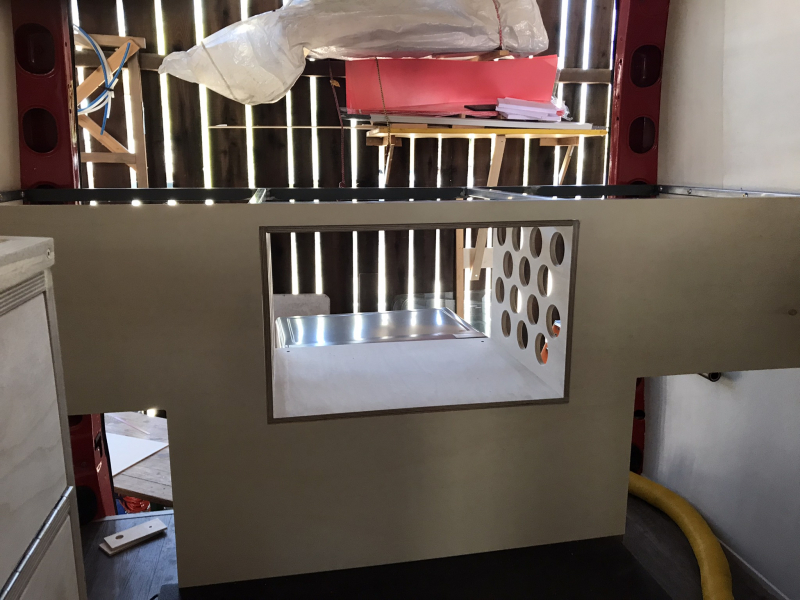

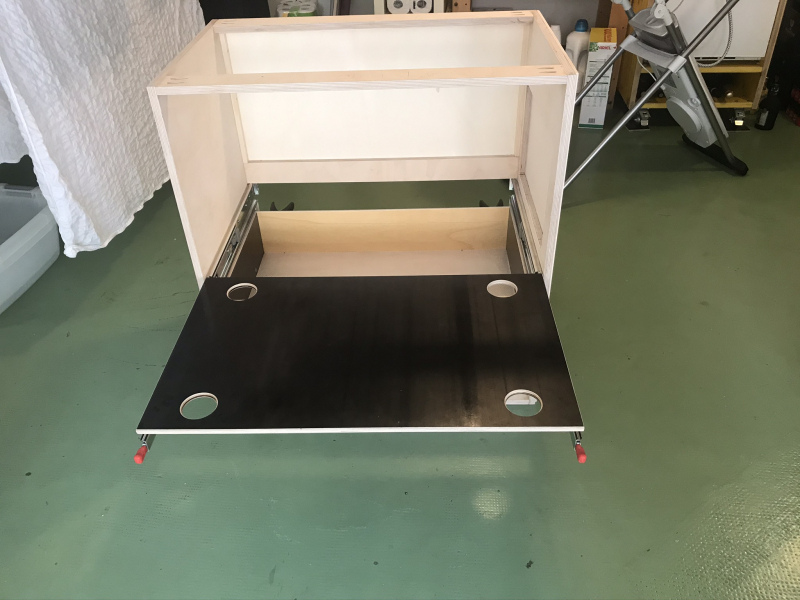

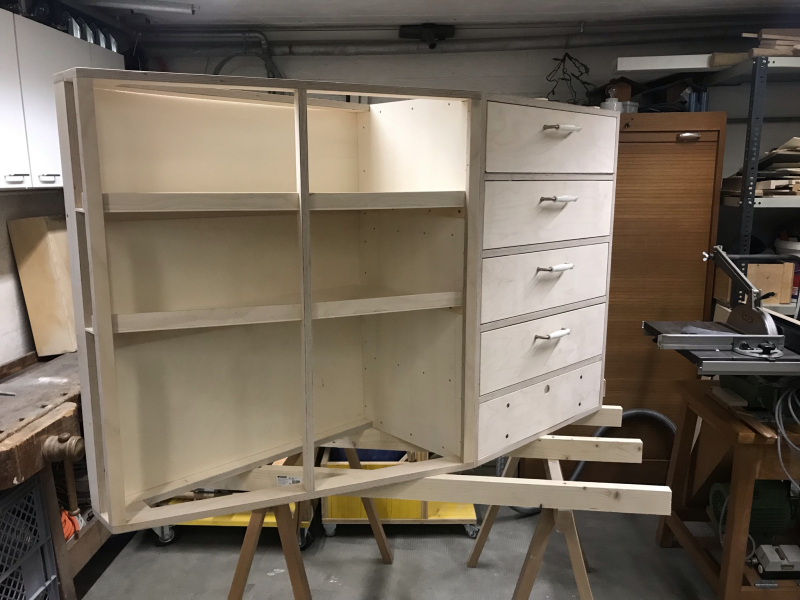

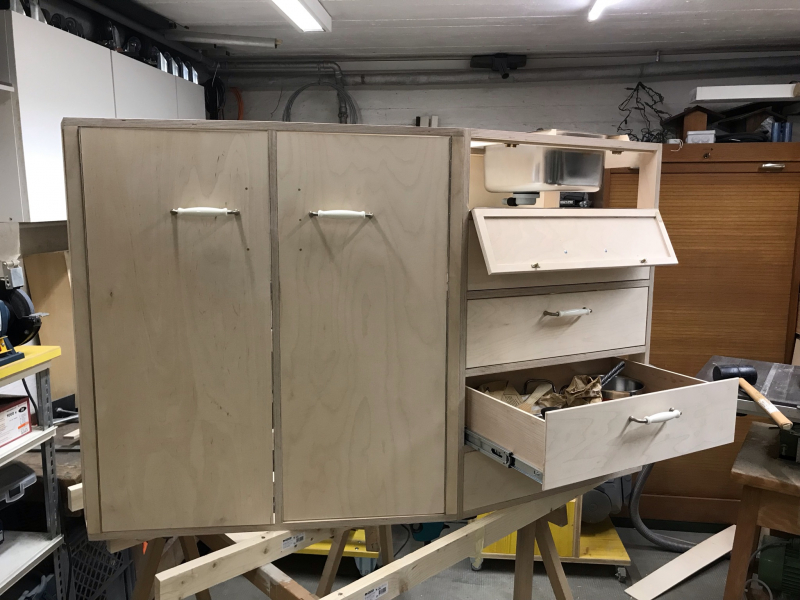

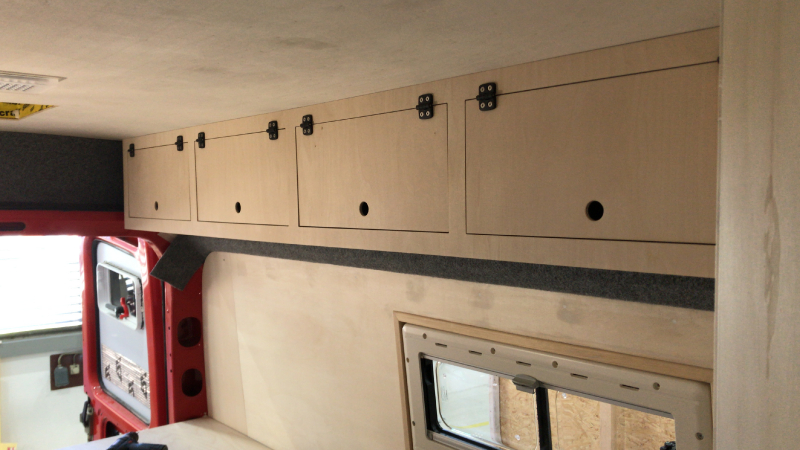

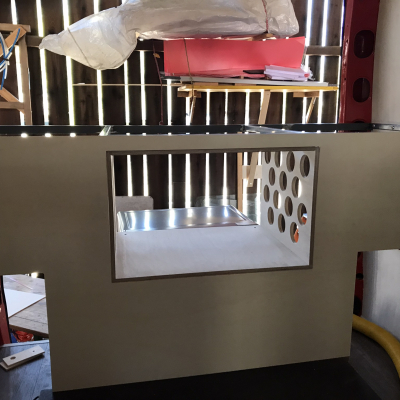

| Material of furniture | Birke-Multiplex / Pappelsperrholz |
|---|
| Cooking stove | Gaskocher transportabel |
|---|---|
| Gas installation | keine |
| Other | |

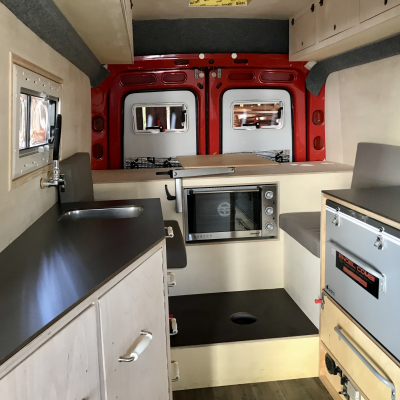

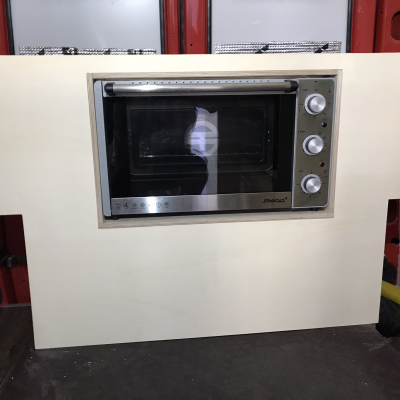

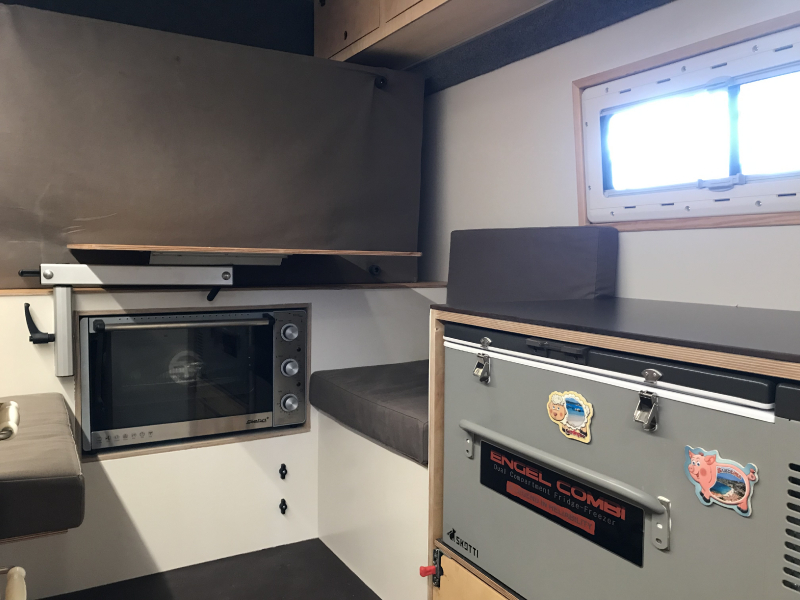

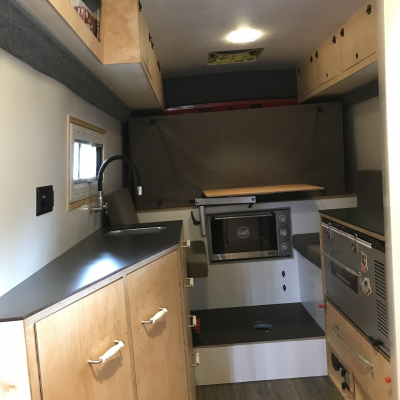

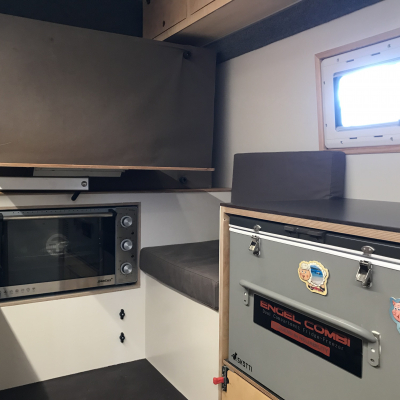

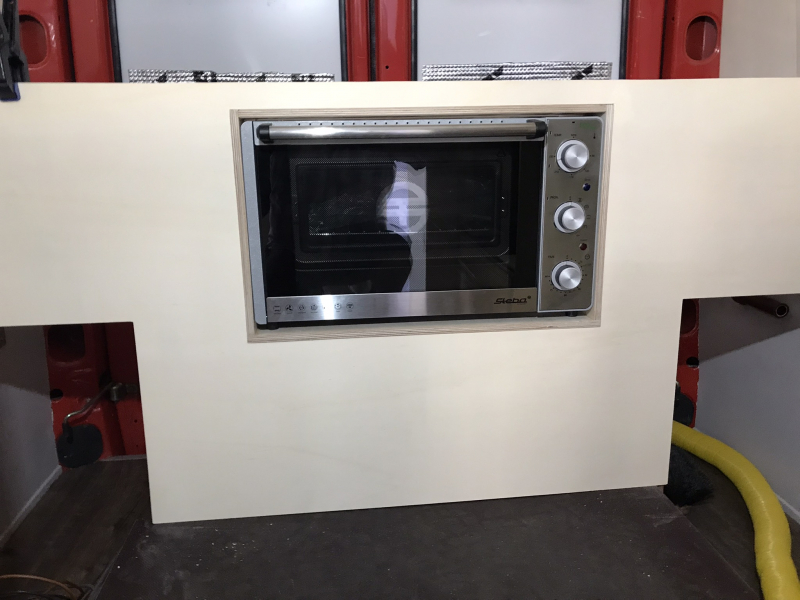

| Umluftbackofen 230V | |

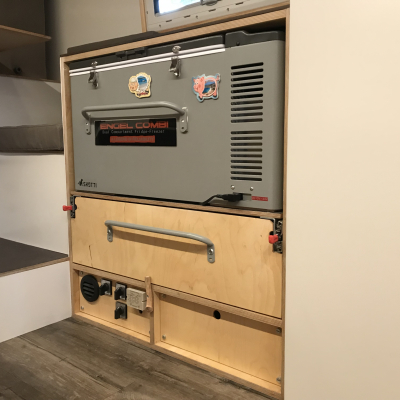

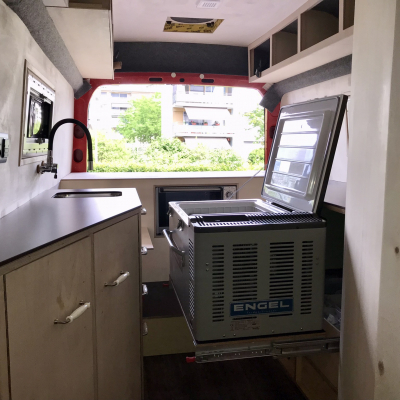

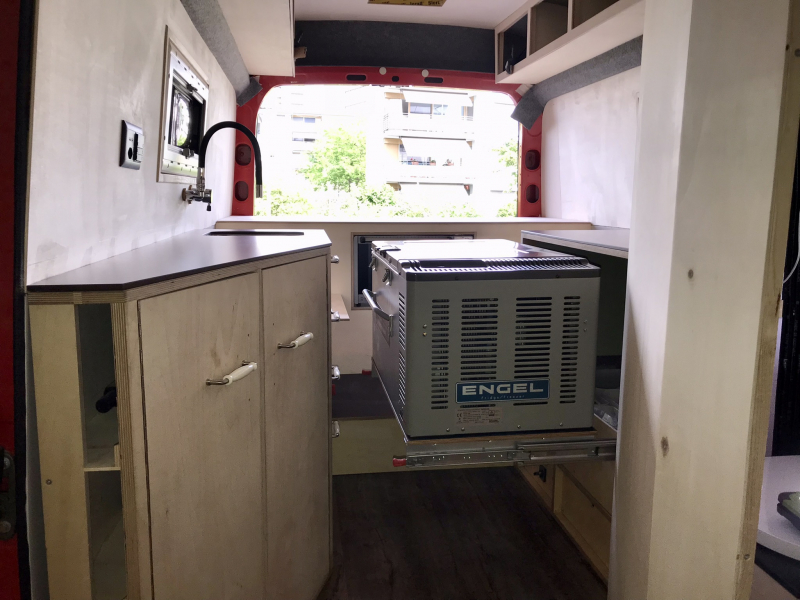

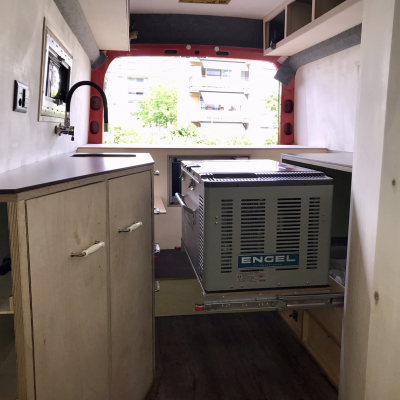

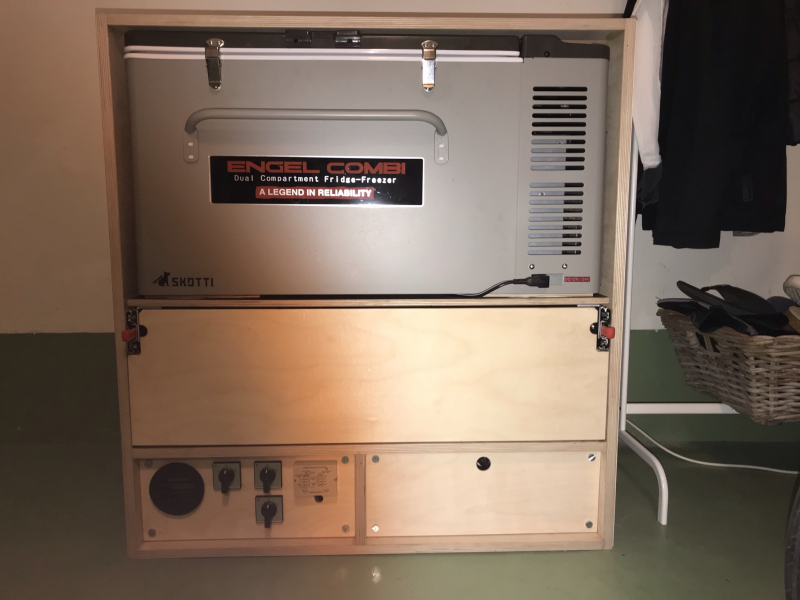

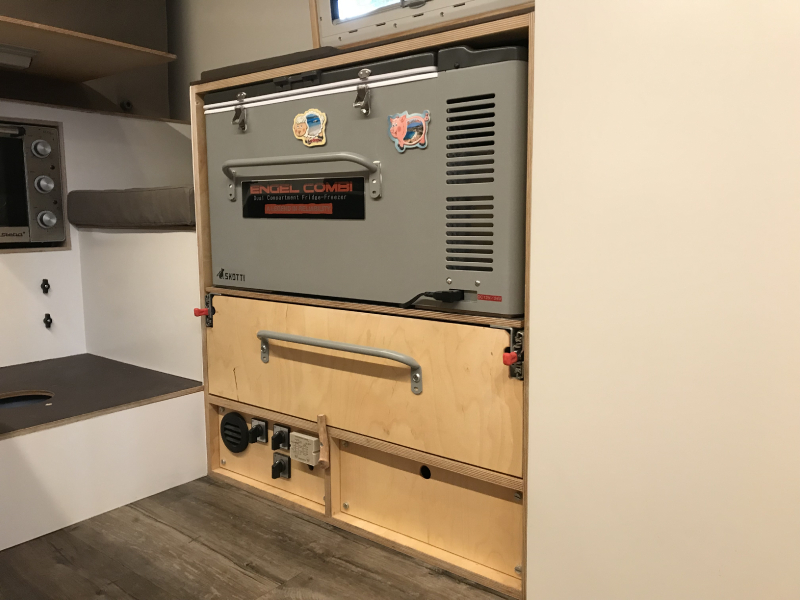

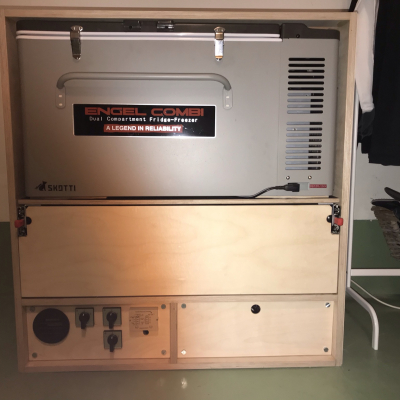

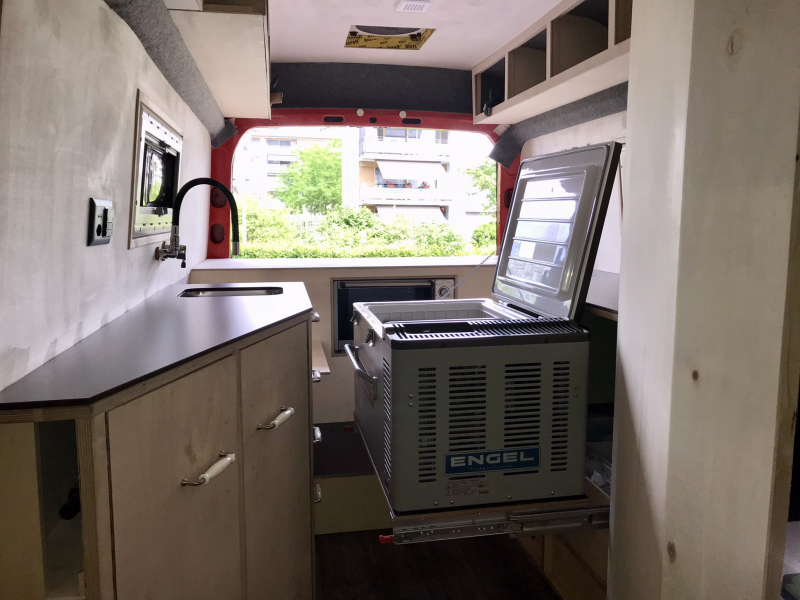

| Manufacturer and type of fridge / cooler | Engel MD 60 Fridge Freezer 24V Kompressor |
|---|

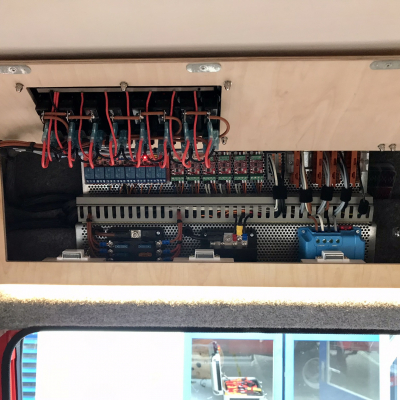

| Voltage in the chassis | 12 |
|---|---|
| Voltage in the cabin | 24 |
| 110V / 230V in the cabin? | yes |

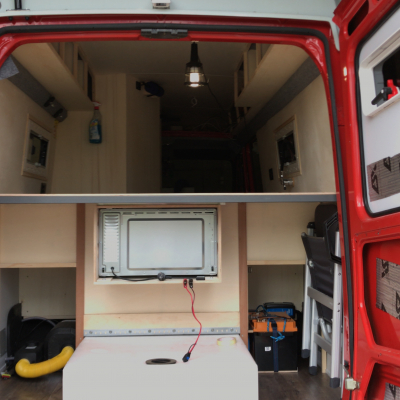

| Inverter | 1500 Watt |
| Other | |

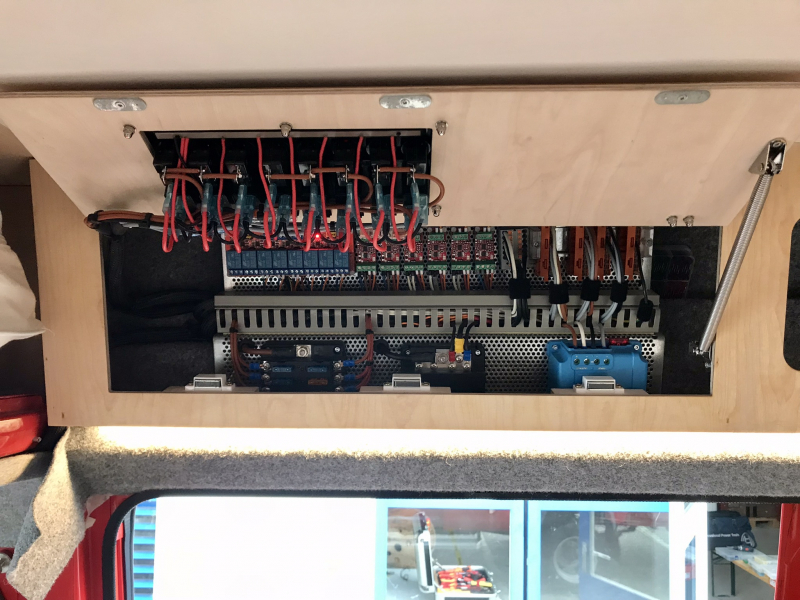

| Ladebooster Victron 12 > 24 / 15A | |
| Capacity of batteries in the cabin | ca. 2.4 kWh |
|---|---|
| Battery type | LiFePO4 |
| Battery charger for cabin batteries | Victron 230VAC > 24VDC 8A |
| Battery management | Smart BMS in der Batterie > Bluetooth |

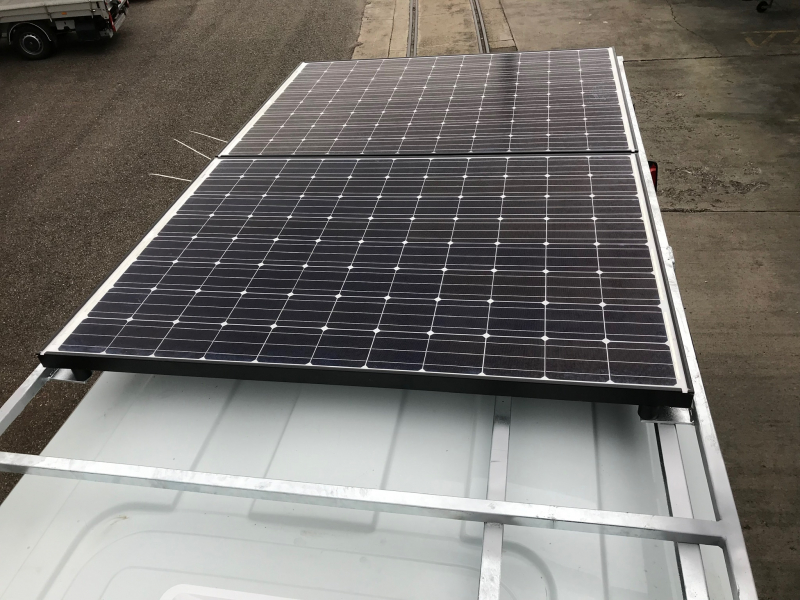

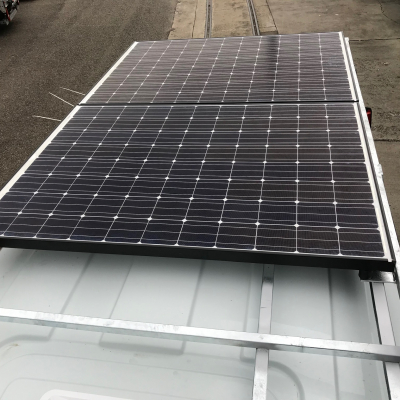

| Solar capacity | 580 Wp |
|---|---|
| Solar controller | 2xVictron MPPT 75 / 15 |
| Fuel cell | no |
| Manufacturer and type of heating system | Dieselstandheizung Planar 2D |
|---|---|

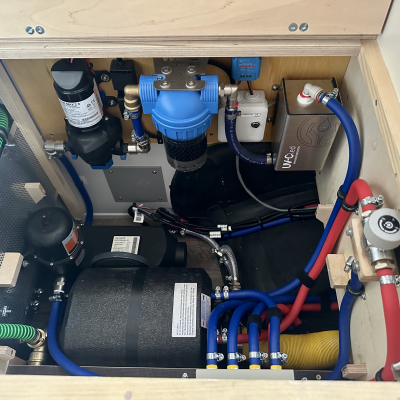

| Warm water processing | Elgena Nautic Compact LE 6 Liter |
| water flow | JRG Sanipex / Flex-Schläuche |
|---|---|

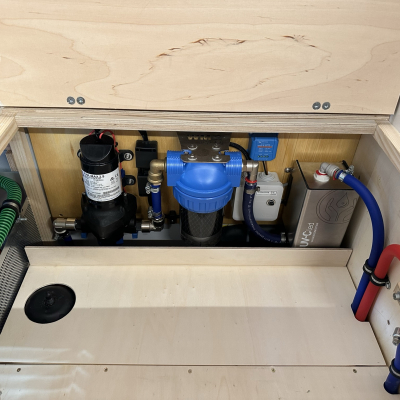

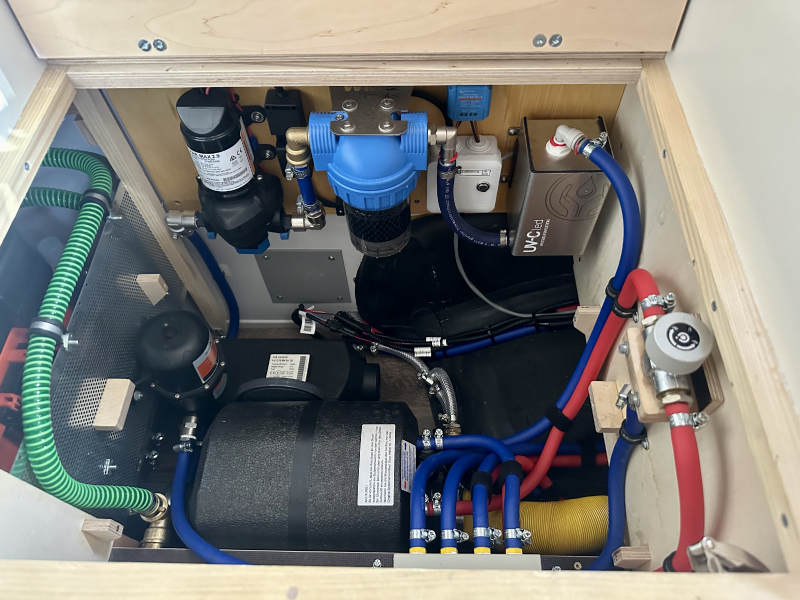

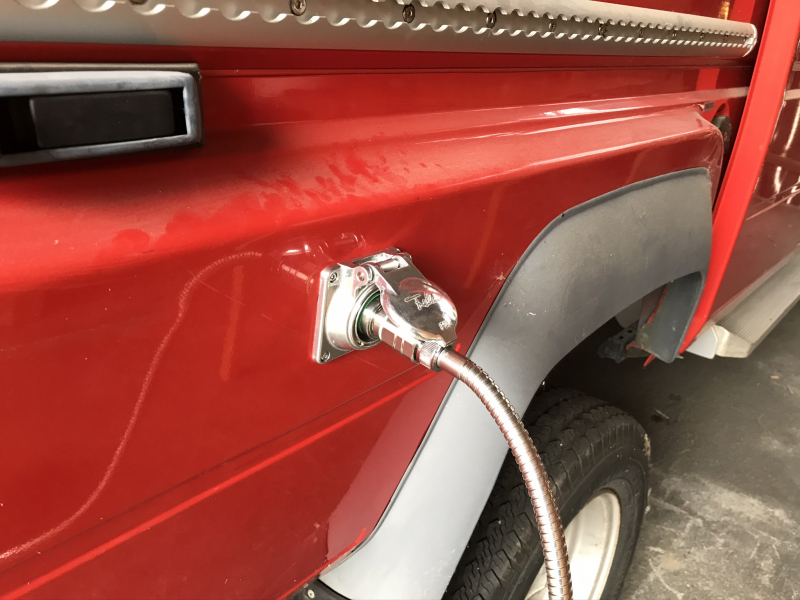

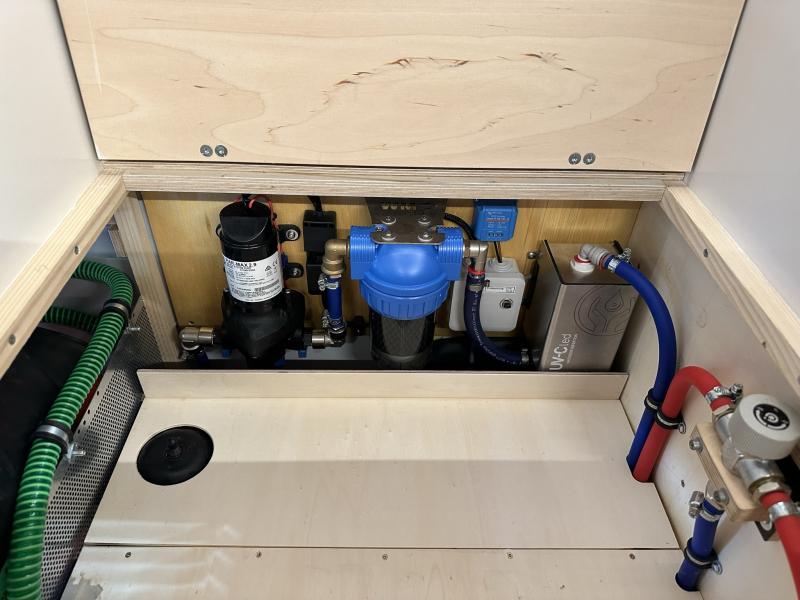

| Water filtration system | WM Aquatec > Schnurvorfilter für Betankung, Aktivkohlevilter u. UV-Filter im Fahrzeug |

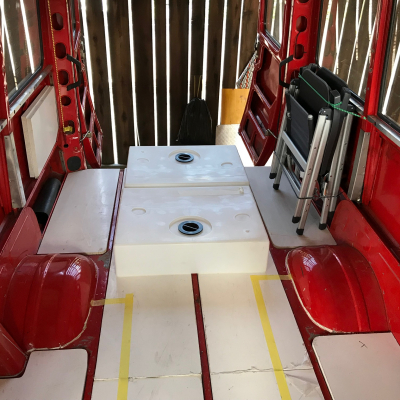

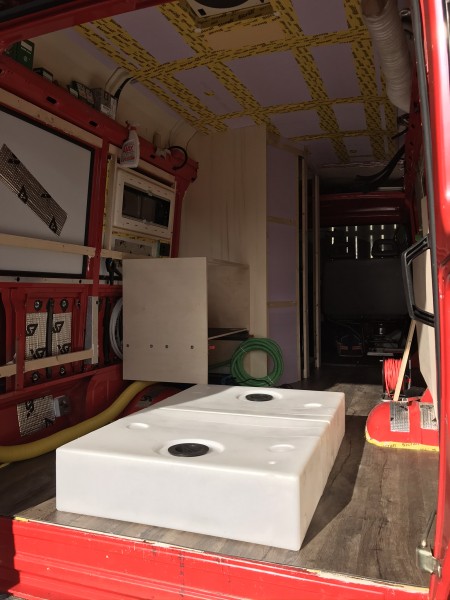

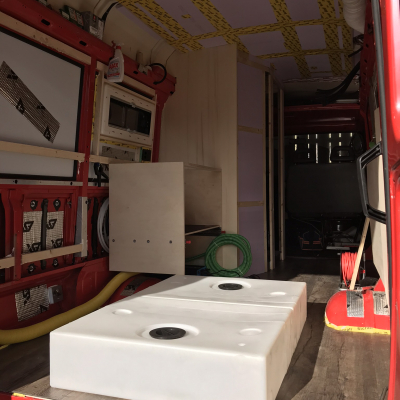

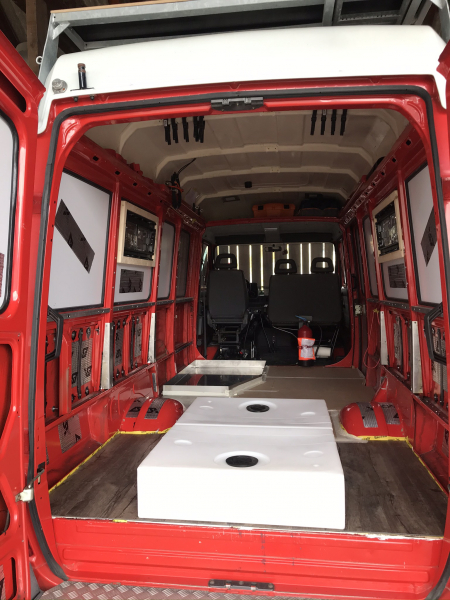

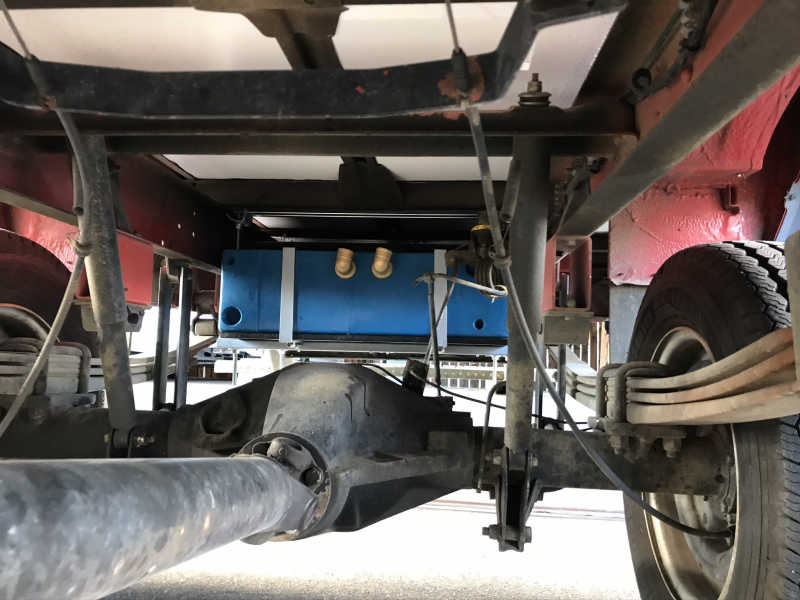

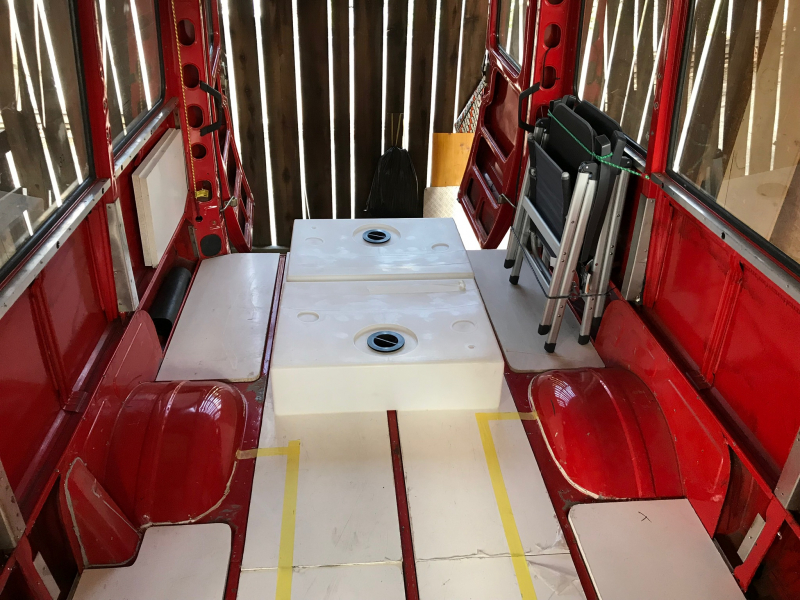

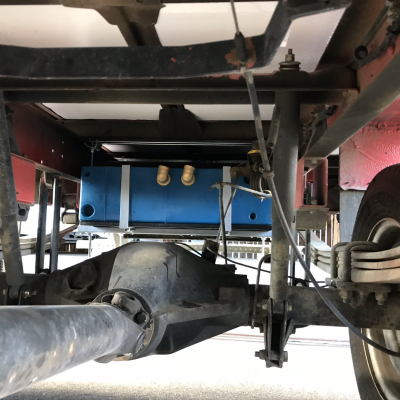

| Capacity of fresh water tank(s) | 2x100 Liter |
| Capacity of waste water tank(s) | 100 Liter |
| Other | |

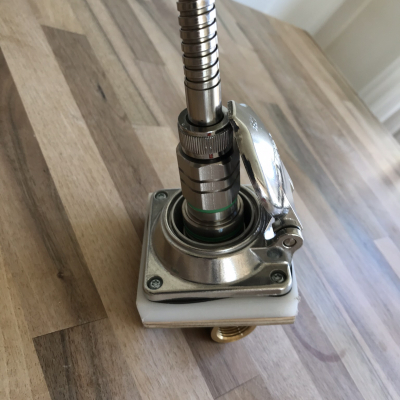

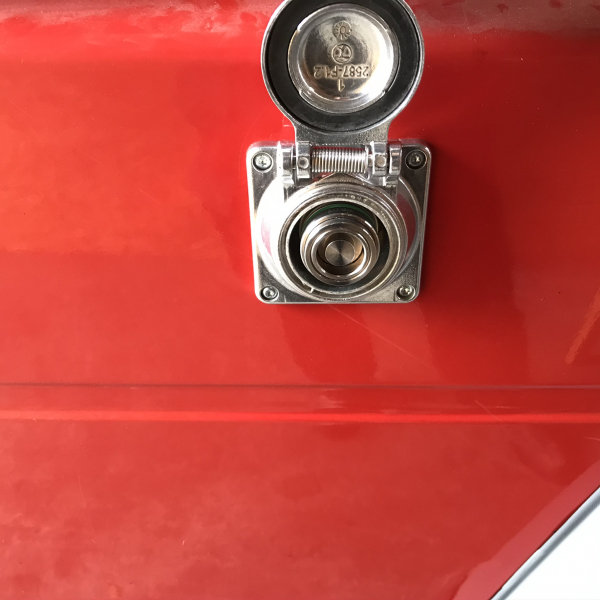

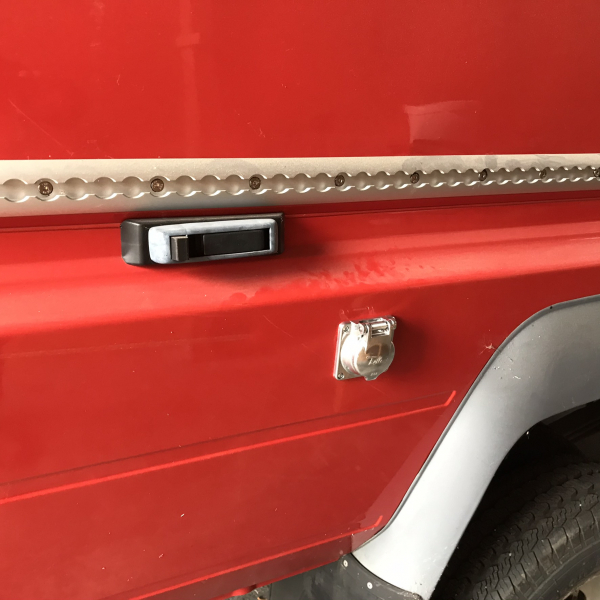

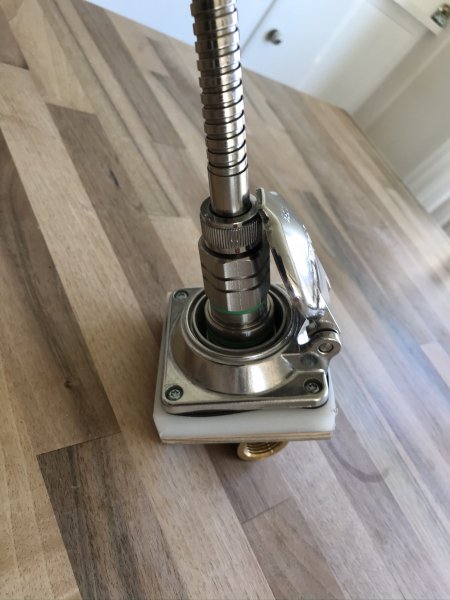

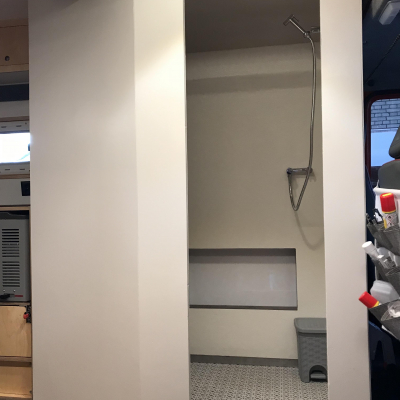

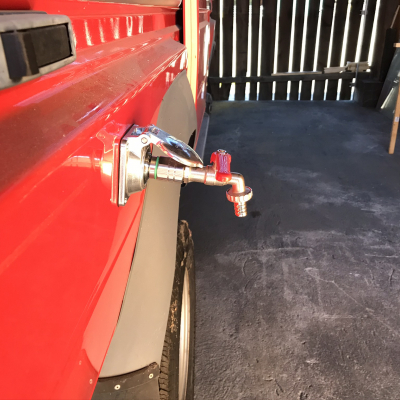

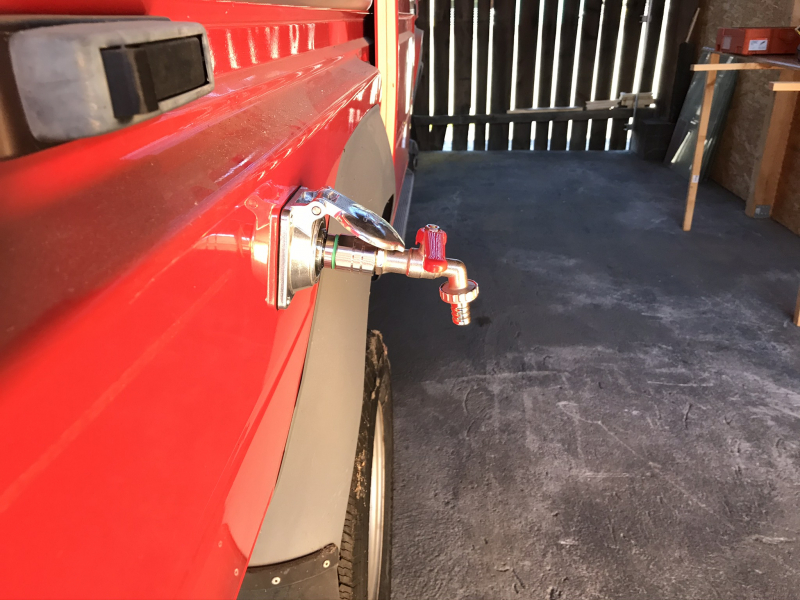

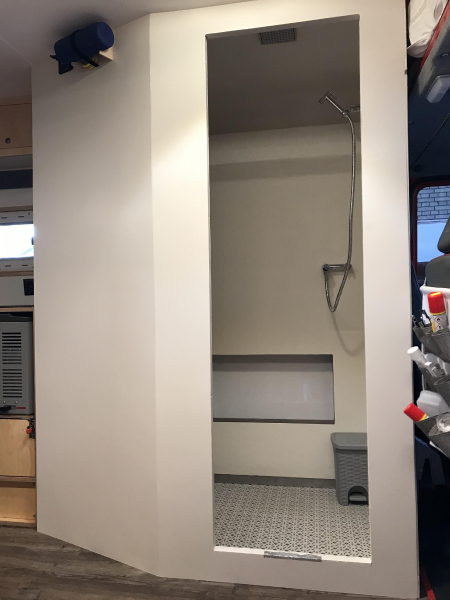

| 2x Anschlüsse für Aussendusche mit Bajonettkupplung | |

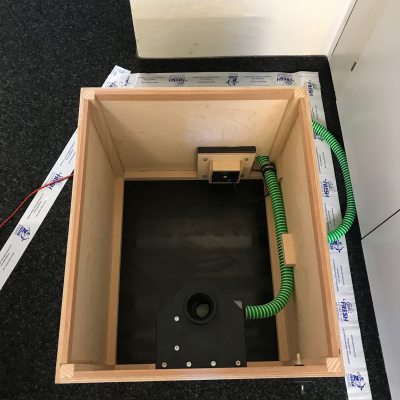

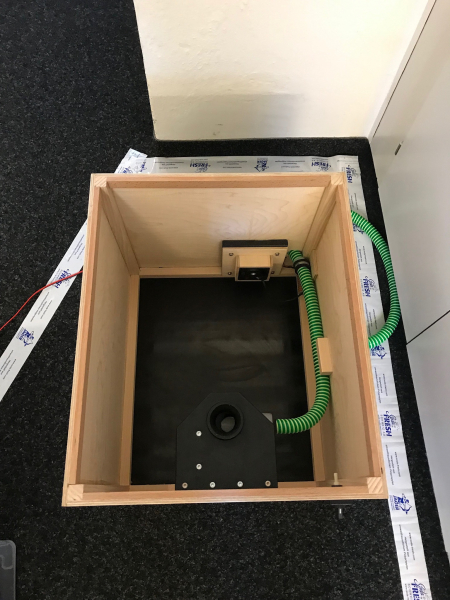

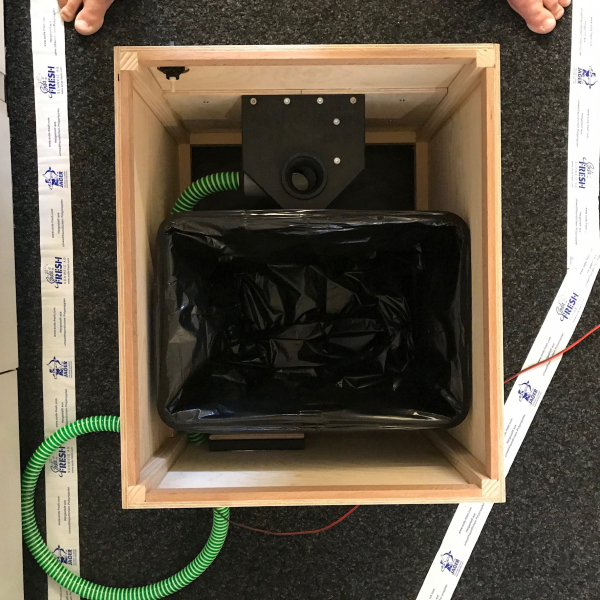

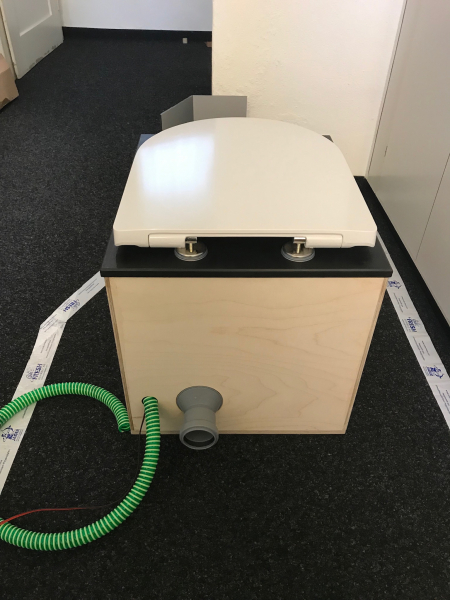

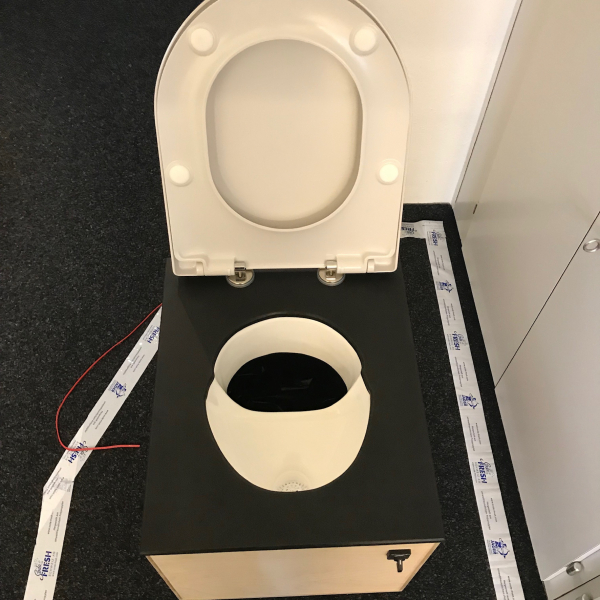

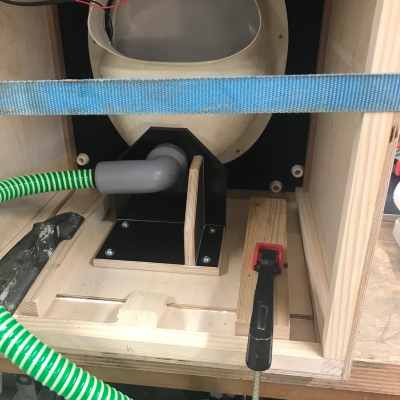

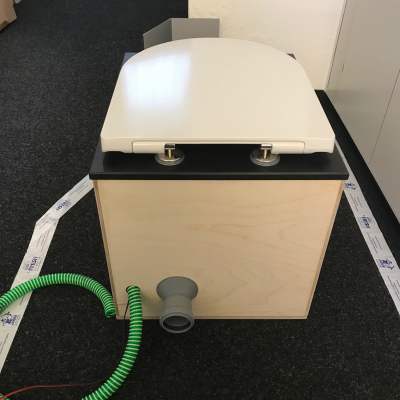

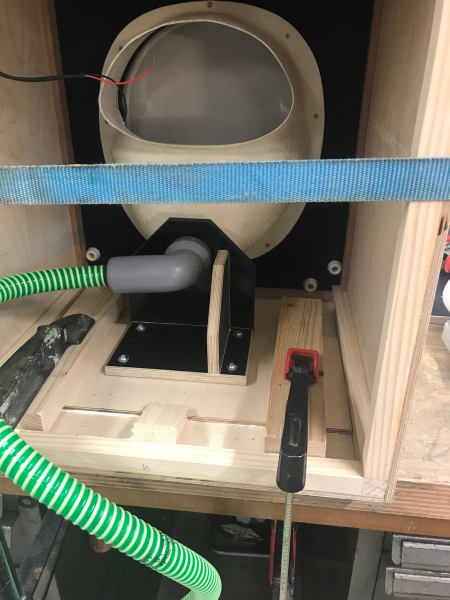

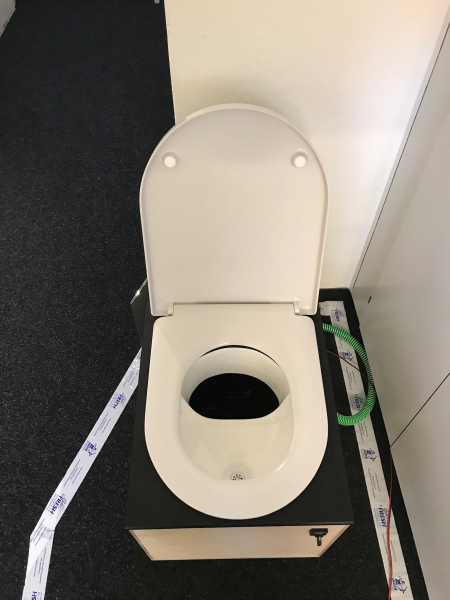

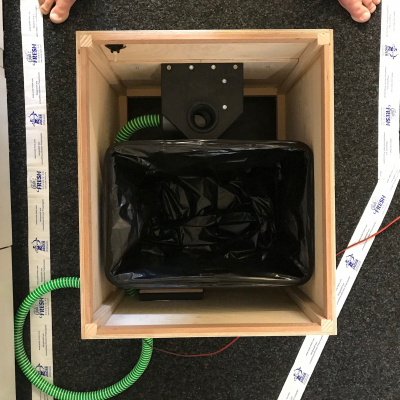

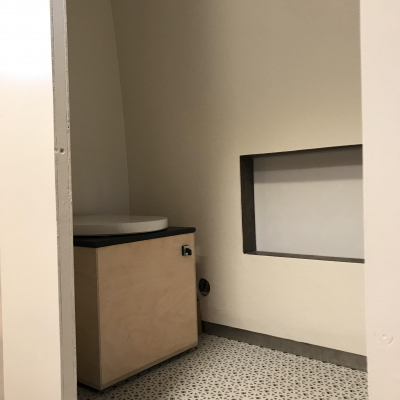

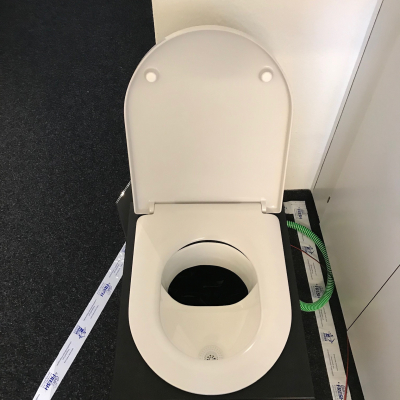

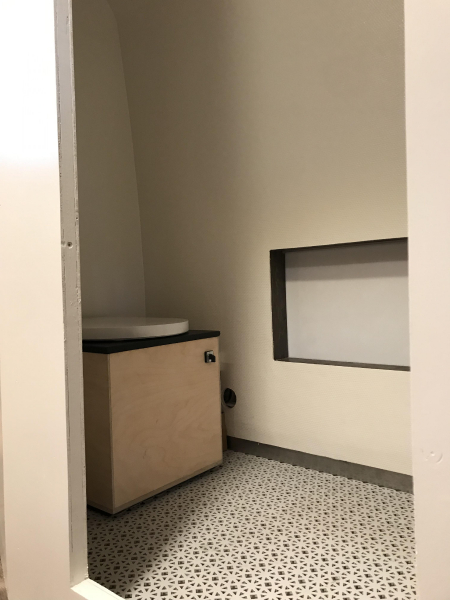

| Manufacturer and type of toilet | TTT |
|---|---|
| Other | |
| Urintank 20l unter dem Fahrzeug | |

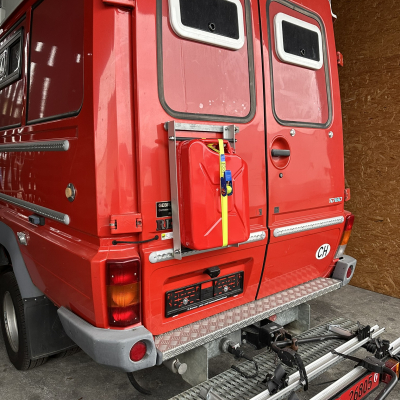

| Storage boxes | DIY Kanisterhalter |
|---|---|
| Outside cooking facilities | DIY zum anhängen |

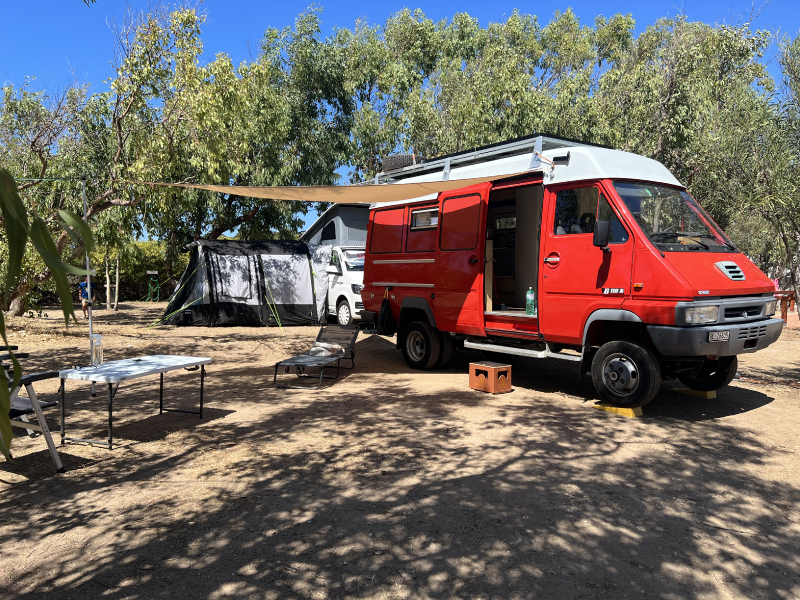

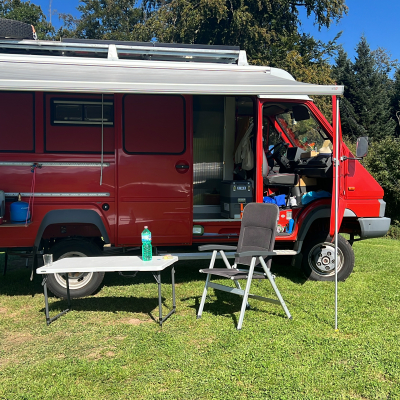

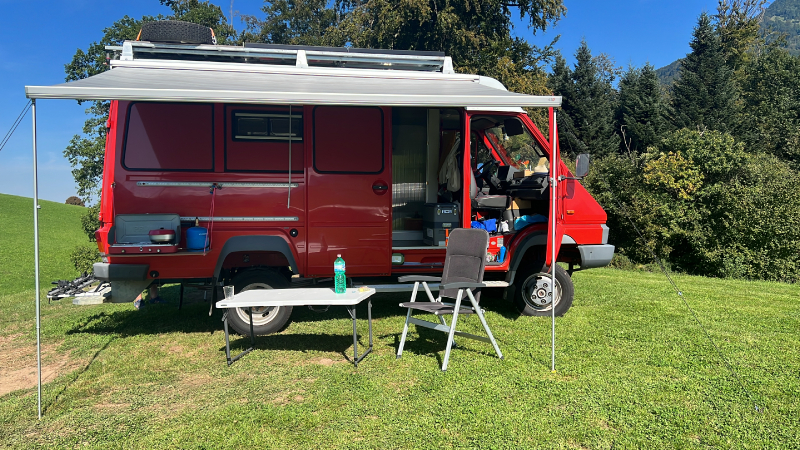

| Awning | Fiama F45 |
