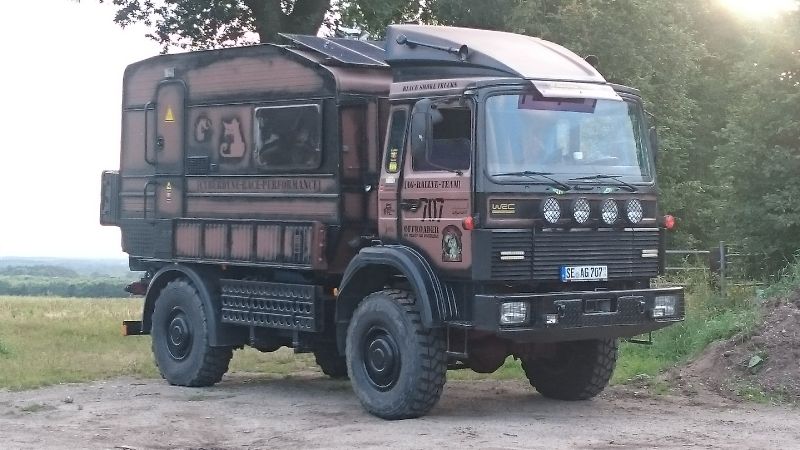

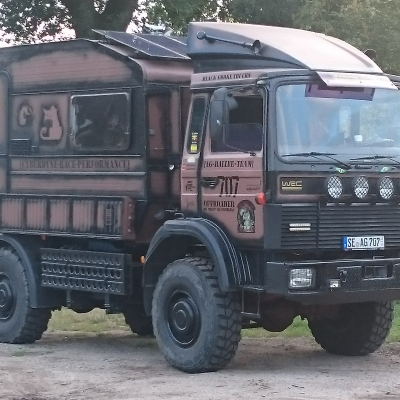

Unsere Baunummer Zwei. Leicht klein schnell und wendig.

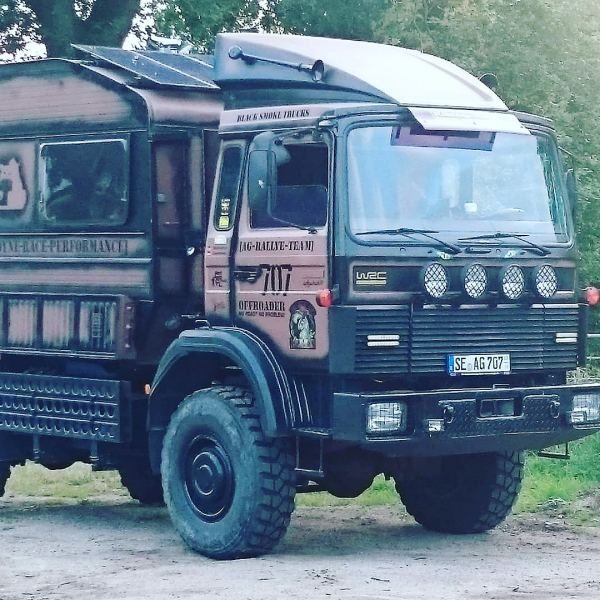

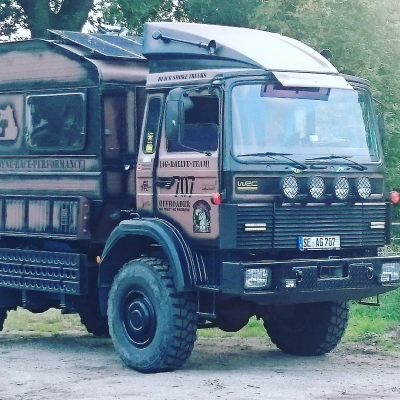

| Manufacturer and model | Iveco Magirus 80 16 |
|---|---|
| Name | Michael Pohl |
| Country | Deutschland |
| Year of manufacture | 1991 |
| For sale? | no |
| Engine type | Bf 6 l 913 |
|---|---|
| Number of cylinders | 6 |
| Horsepower | 170 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3.2m |
| Number of seats | 3 |
| Tyre size | 14 |
| Rim size | 11x20 |
| Type of tyre | 14.5R20 |
| Tank capacity | 200 |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | 2 |
| Manufacturer of the cabin | Knaus |
|---|---|
| Inner dimensions (LxWxH) | 3.60 |
| Outer dimensions (LxWxH) | 3.80m |
| Cabin material | Alu Holzrahmen |
| Kind and thickness of insulation | 40 |

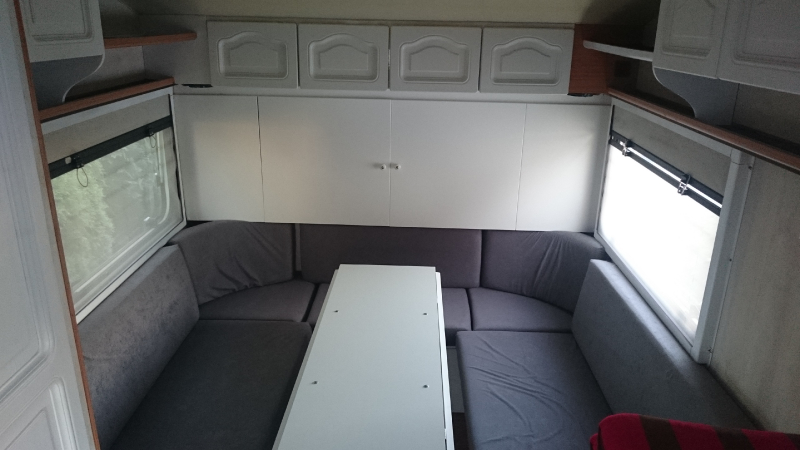

| Number of beds | 2-3 |
| Windows | Seitz |
| Subframe | Feder und Silentblocklagerung |
| Material of furniture | Holz |
|---|

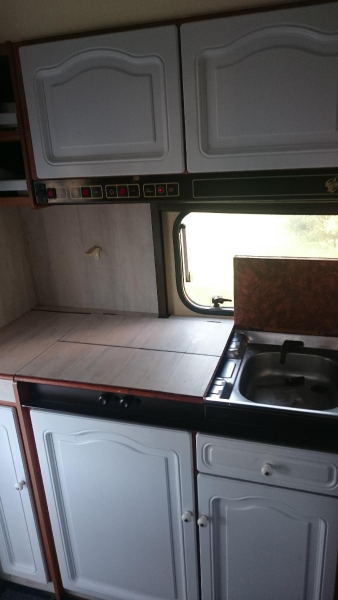

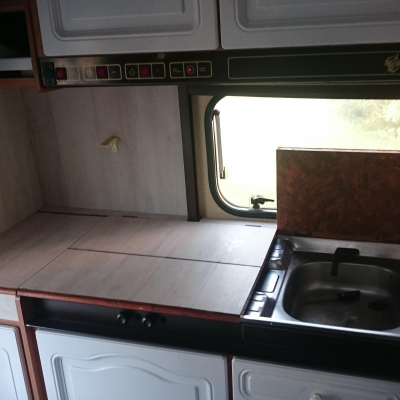

| Cooking stove | Dometic Gas |
|---|
| Manufacturer and type of fridge / cooler | Dometic |
|---|

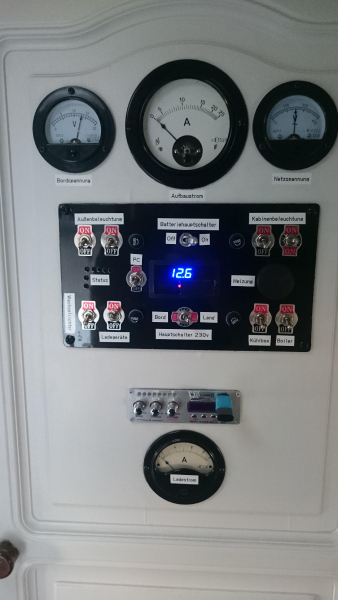

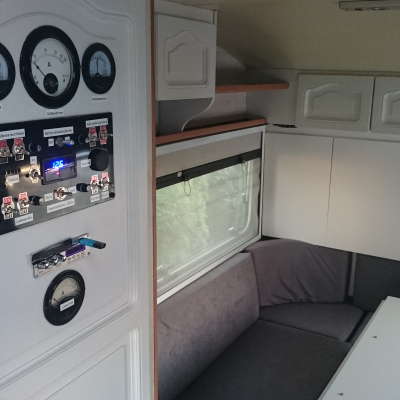

| Voltage in the chassis | 24v |
|---|---|
| Voltage in the cabin | 12v |
| 110V / 230V in the cabin? | yes |
| Inverter | 1000w |
| Capacity of batteries in the cabin | 2x110a |
|---|---|
| Battery type | Nato Block Gel |
| Battery charger for cabin batteries | 15a |

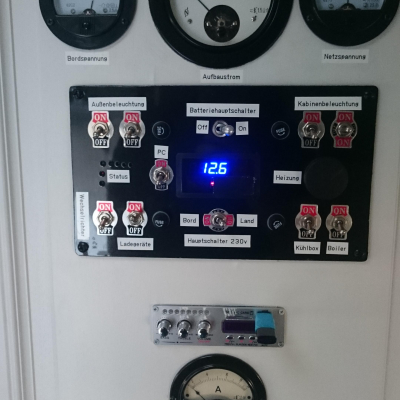

| Battery management | Amalog |
| Solar capacity | 300 |
|---|---|
| Solar controller | Pwm |
| Fuel cell | no |
| Power generator | 800w |
| Manufacturer and type of heating system | Truma 3002 |
|---|---|
| Warm water processing | Truma Boiler |
| Cab heating | Über Motorwärme |
| Explanation of gas system | |
|---|---|
| 11kg Gasflasche |
| water flow | Schlauch 10mm |
|---|---|
| Capacity of fresh water tank(s) | 80 |
| Capacity of waste water tank(s) | 20 |
| Manufacturer and type of toilet | Port Potti |
|---|
