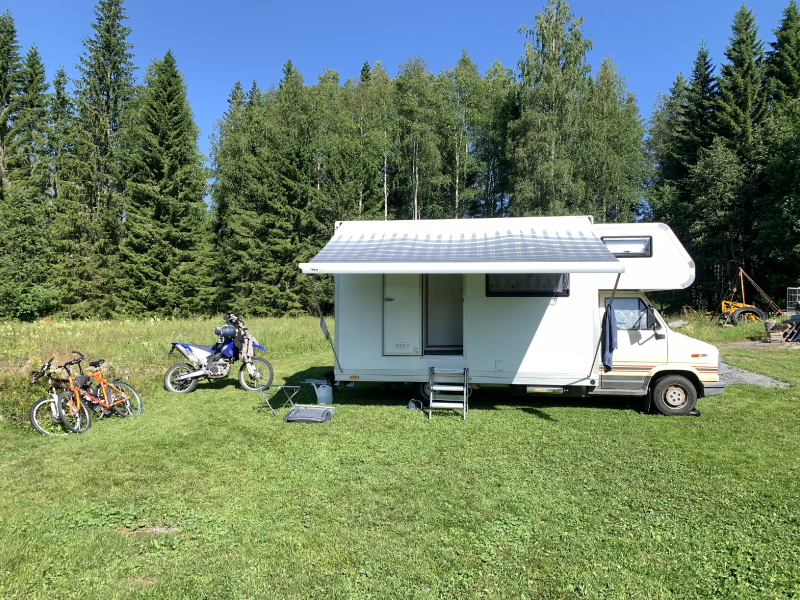

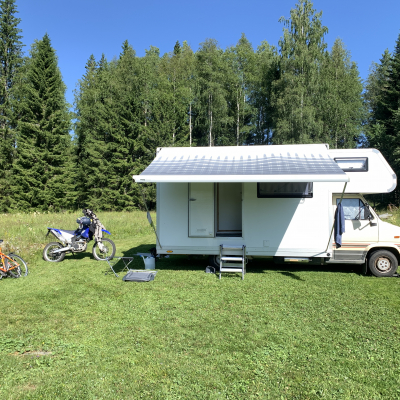

Frankia 570 TME (Ducato) resurrection (#2938)

Not yet finished.

General Information

Manufacturer and model Fiat Ducato/Frankia 570 TME
Country Sweden
Year of manufacture 1987
For sale? no


Engine type FIAT 2500D (280 NA7)
Cubic capacity 2499 cc
Number of cylinders 4
Horsepower 55kW (75 hp)
Torque 16.18 daNm


4x2, 4x4, 6x6, 8x8 4x2
Wheel base 3650 mm
Number of seats 2
Tyre size 185R14C
Rim size 14
Tank capacity 70 litres
Diesel filter no


Manufacturer of the cabin Self build
Outer dimensions (LxWxH) 5995x2300x
Cabin material Sandwich (skin: 2x LAMILUX High Impact 1.1 mm GRP). Roof panel with 8 mm honeycomb reinforcement.
Kind and thickness of insulation Jackon Super-XPS (expanded polyester) Roof and floor: 57.8 mm. Walls: 37.8 mm
Number of beds 2 (in alcove)
Subframe None
Sandwich panels manufactured, cut to shape and delivered to door by company
Double floor: Inner floor 25 mm thick (2x 1,8 mm GRP skin, distance material: 21,4 mm XPS).

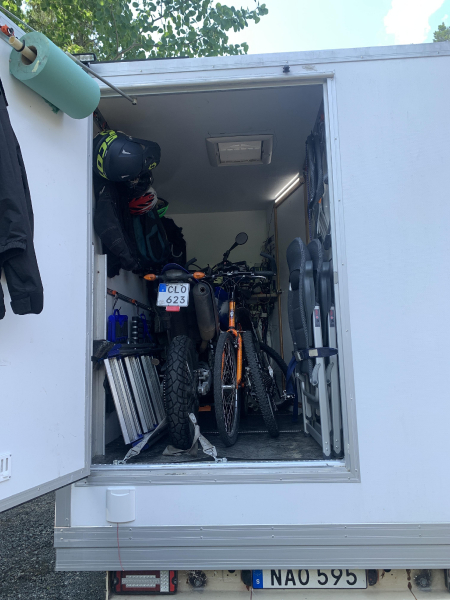

Garage for two dirt bikes.

Floor plan

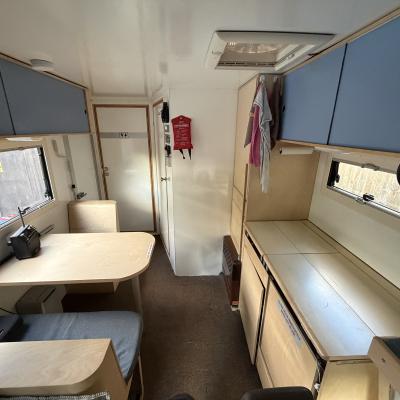

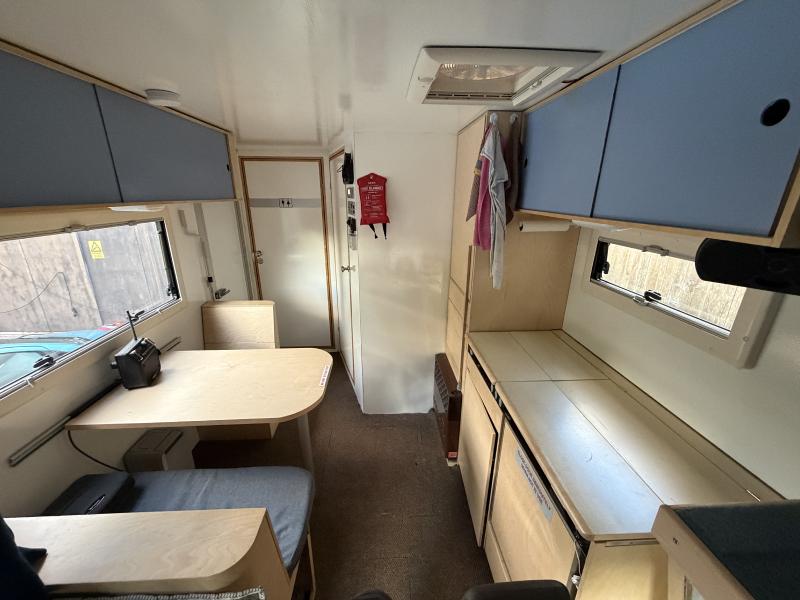

Material of furniture 12 mm Birch plywood

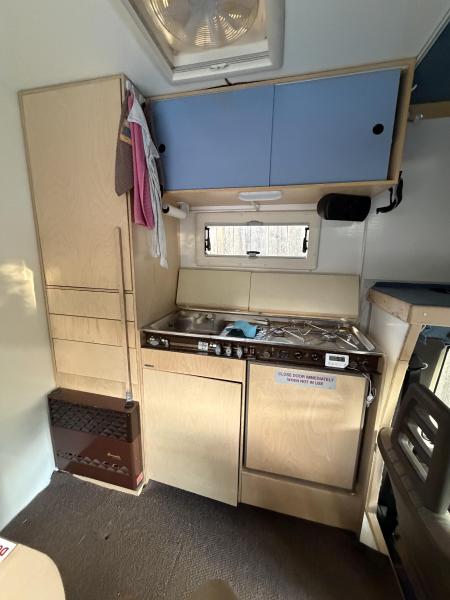

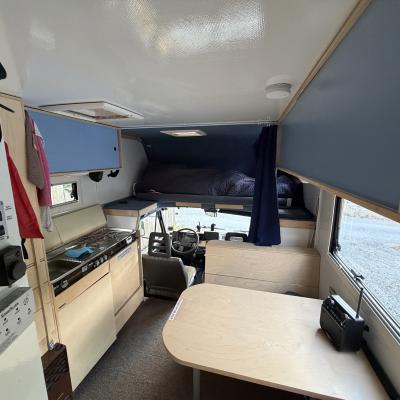

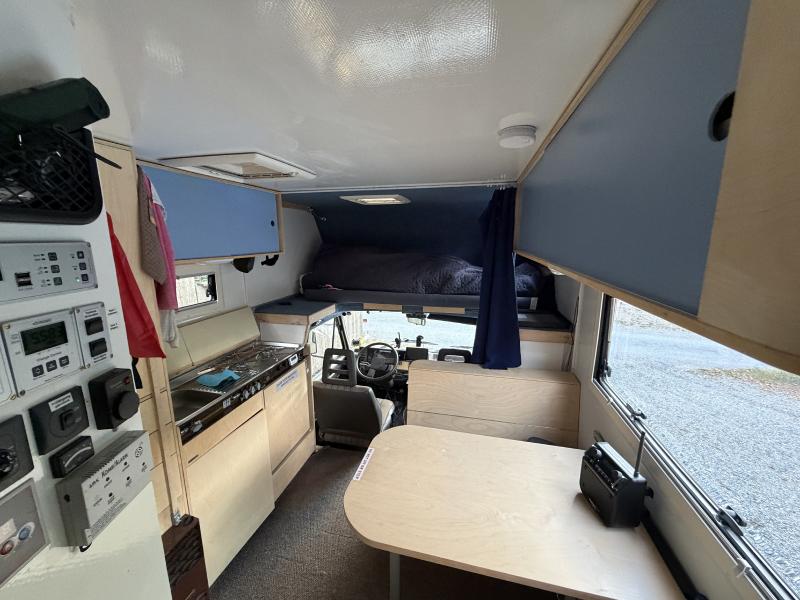

Cooking stove

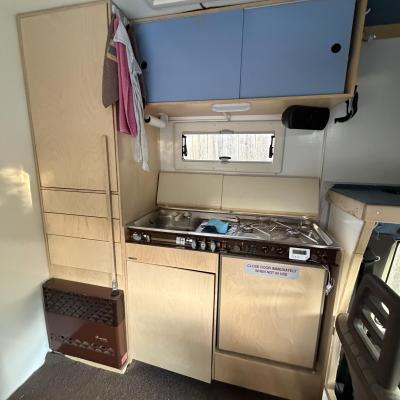

Cooking stove Cramer - 2 flame

Refrigerator; cool box

Manufacturer and type of fridge / cooler Electrolux RM 200 B

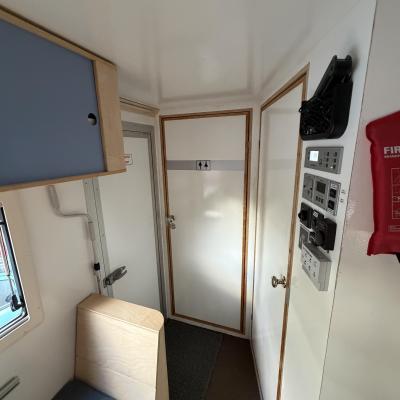

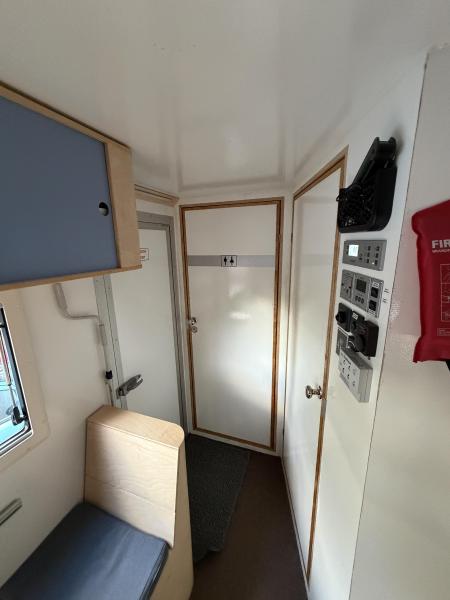

Power supply

Voltage in the chassis 12 volt
Voltage in the cabin 12 volt
110V / 230V in the cabin? yes
Inverter Votronic - MobilPOWER Inverter SMI 600 Sinus-NVS

Capacity of batteries in the cabin

Capacity of batteries in the cabin 100 Ah
Battery type Lead-Acid
Battery charger for cabin batteries Votronic - VBCS 30/20/250 Triple CI

Power generation

Solar capacity 2x 125 W
Solar controller Votronic - VBCS 30/20/250 Triple CI
Fuel cell no

Heating system

Manufacturer and type of heating system Truma - Trumatic SL3002 with fan.
Warm water processing TTulpe Indoor B-6 P37 Eco - Instantaneous water heater
Cab heating Std.
Hot air ducts run under floor.

Gas system

Explanation of gas system
90 Litre (36 kg) propane tank. Crash sensor.

Water system

Water filtration system Carbon filter for potable water.
Capacity of fresh water tank(s) 2x 108 litres
Capacity of waste water tank(s) 1x 108 litre
Tank-O3 Ozone generator

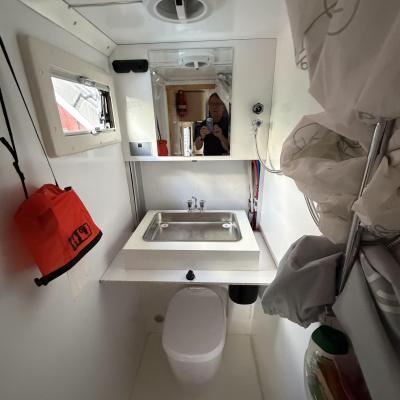

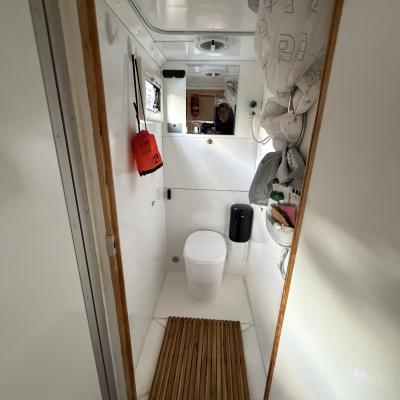

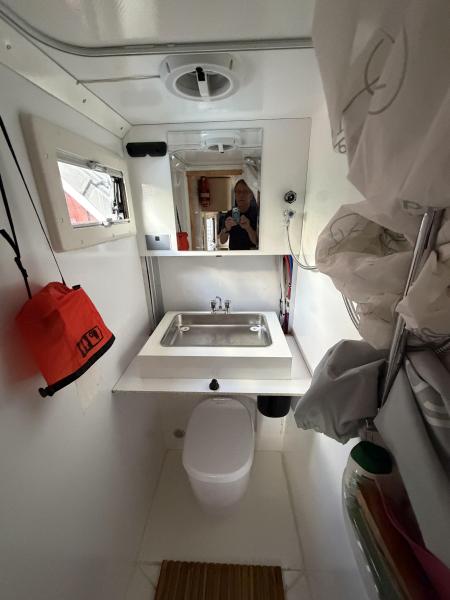

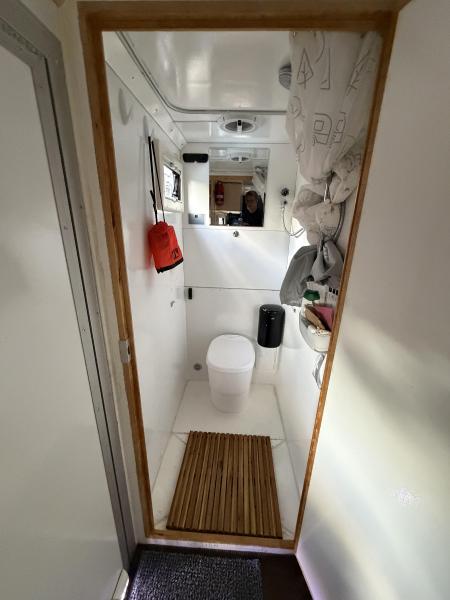

Manufacturer and type of toilet Cinderella - Travel (Motion)
Capacity of black water tank None

Vehicle accessories

Roof rack Thule - Omnistor Serie 6 & 9200 Mounting Rails
Awning Thule Omnistor 9200
released 13.02.22
owner Per Sjökvist
views 1101
filled out 81%
