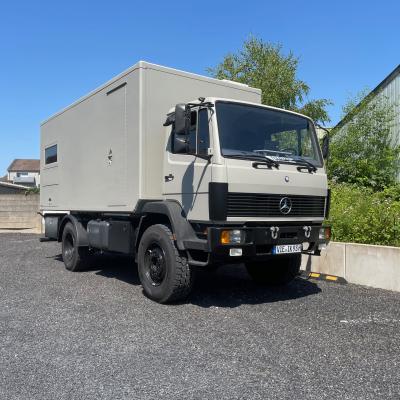

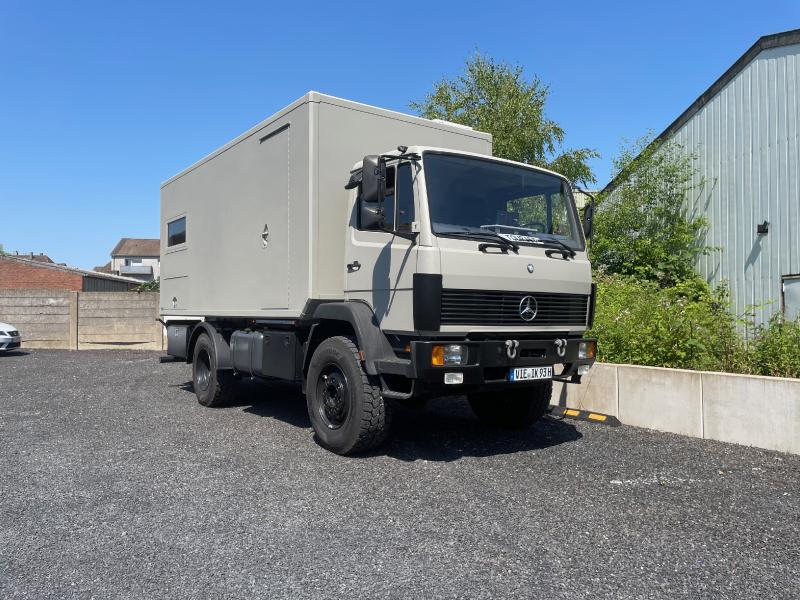

Umbau Mercedes 1124AF Rüstwagen zum Weltreisemobil
| Manufacturer and model | Mercedes Benz 1124 AF |
|---|---|
| Name | Ingo Laenen |
| Country | Deutschland |
| Website | keine |
| Year of manufacture | 1993 |
| For sale? | no |
| Engine type | OM 366 LA |
|---|---|
| Cubic capacity | 5958ccm |
| Number of cylinders | 6 |
| Horsepower | 240 |
| Torque | 810 |
| Other | |
| Mahle Watergate Turbolader nachgerüstet | |
| Zulässiges Gesamtgewicht | 12000kg |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
| Wheel base | 3640mm |
| Number of seats | 3 |
| Tyre size | 385/65R22.5 |
| Rim size | JMS 11.75x22,5 ET120, 8 Loch |
| Type of tyre | Hankook AM15 |
| Tank capacity | 560L (2x280L) |
| Diesel filter | yes |
| Other | |
| Edelstahl-Abgasanlage | |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | 2 |
| Manufacturer of the cabin | Kabinenschmiede |
|---|---|

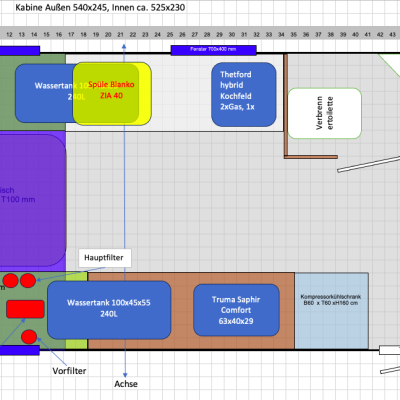

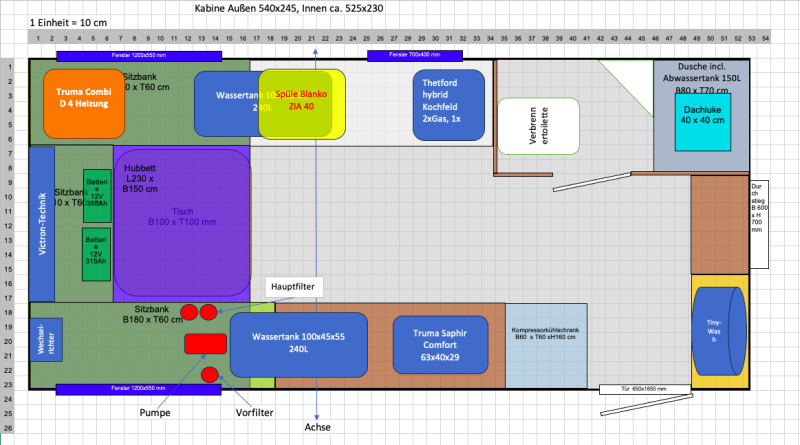

| Outer dimensions (LxWxH) | 540x245cm |

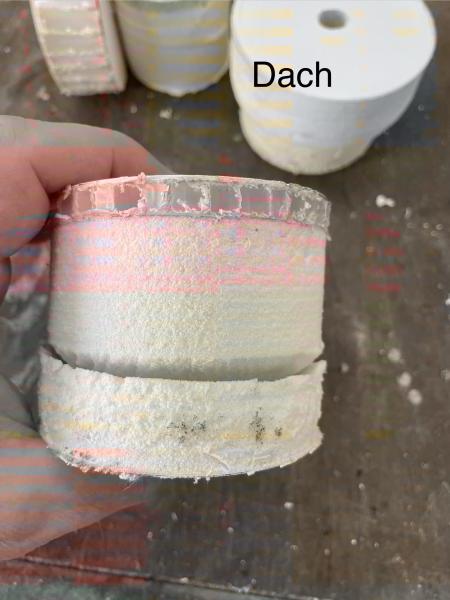

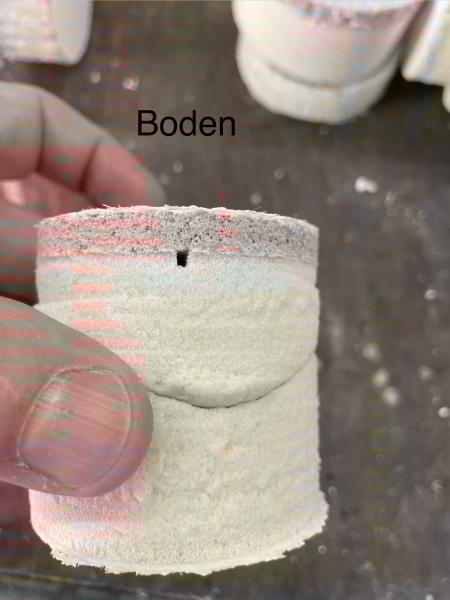

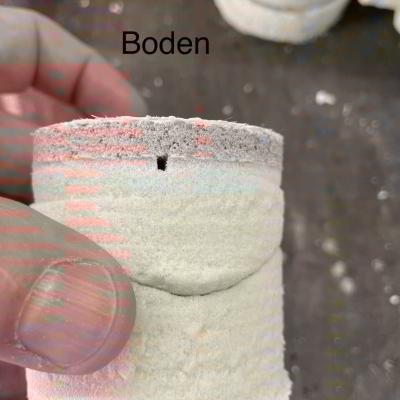

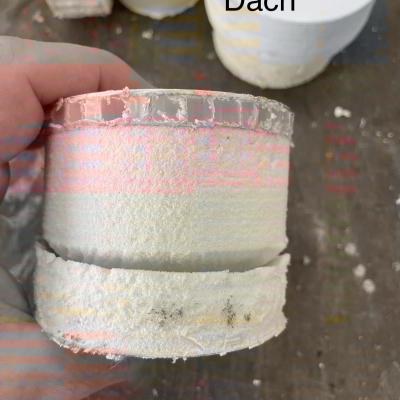

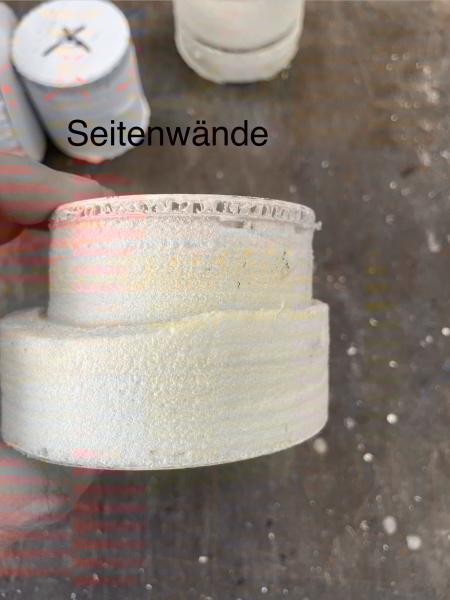

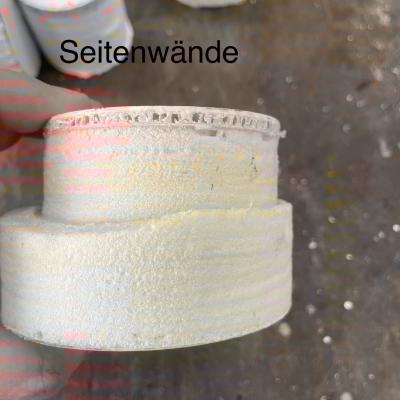

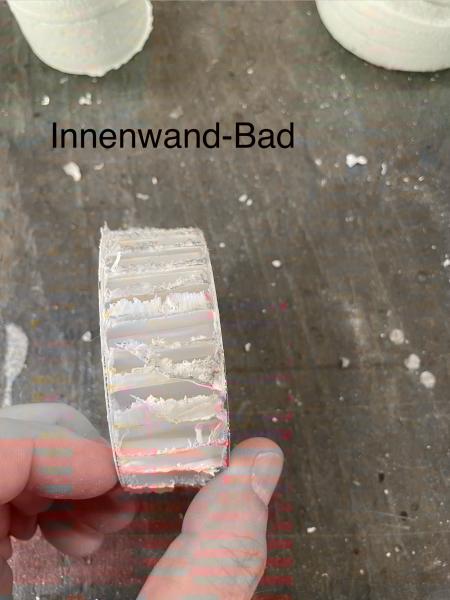

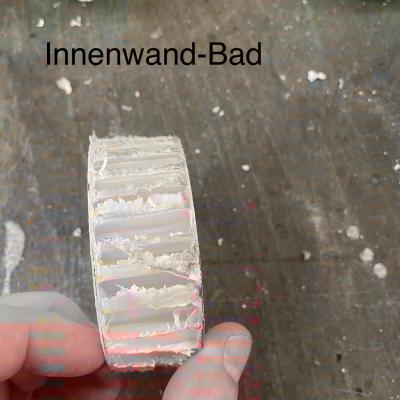

| Cabin material | GFK-Sandwich |
| Kind and thickness of insulation | 60mm |
| Number of beds | 2 |
| Windows | Optimal (3Stk. + Dachluke) |
| Subframe | federgelagerter Zwischenrahmen Eigenbau |

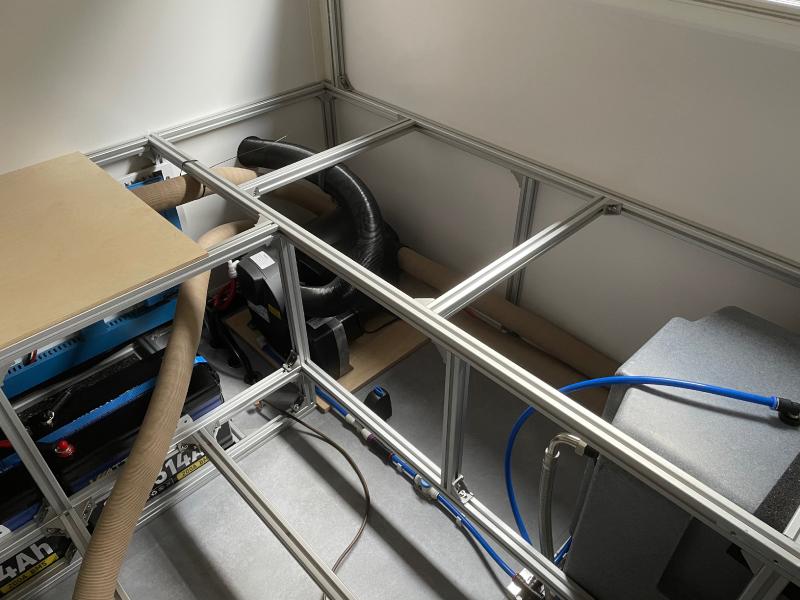

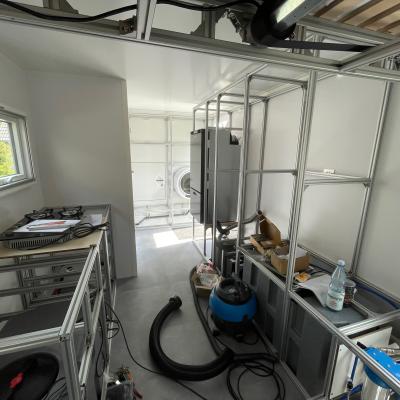

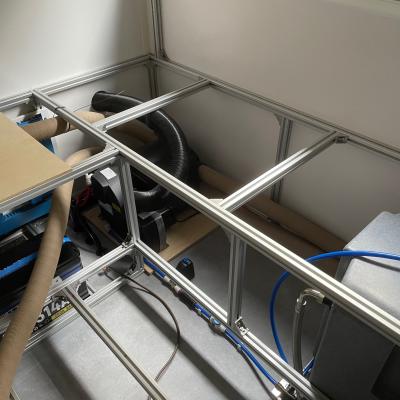

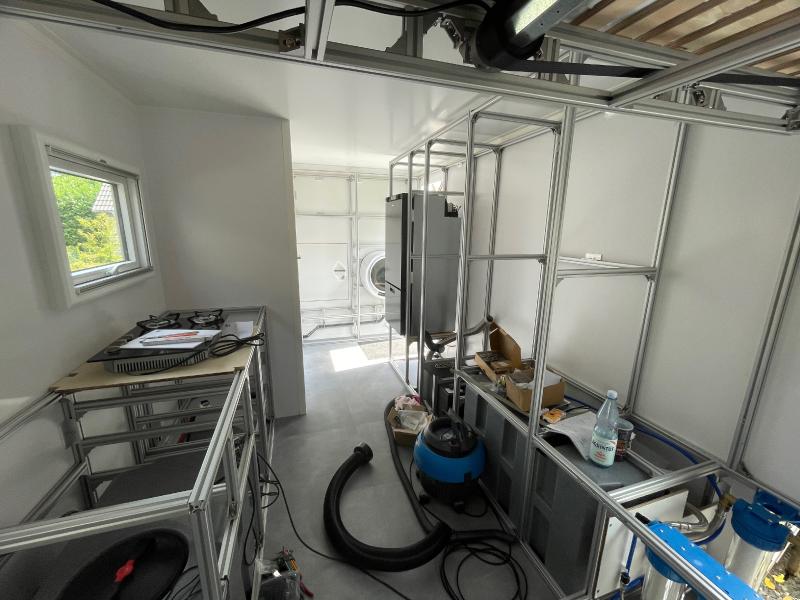

| Material of furniture | Unterkonstruktion 30x30mm Aluprofile, Holzverkleidung Queenply Lamitech |
|---|

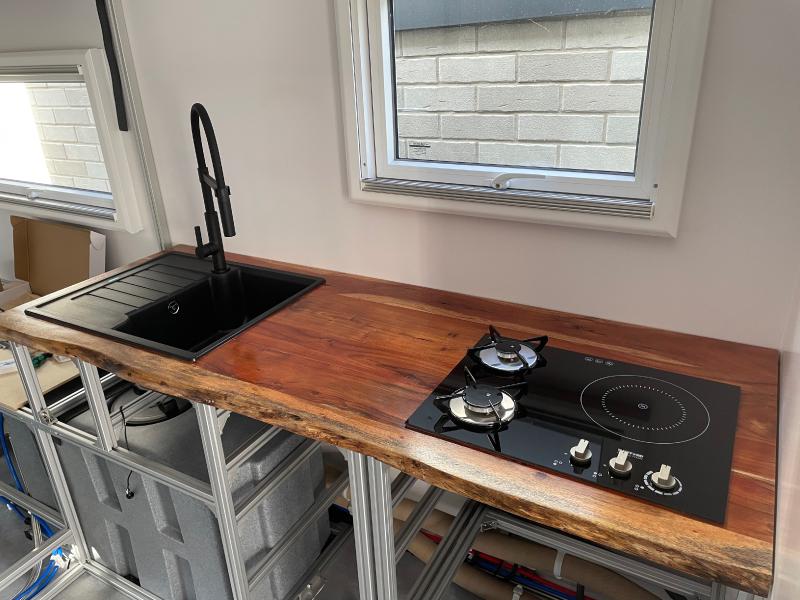

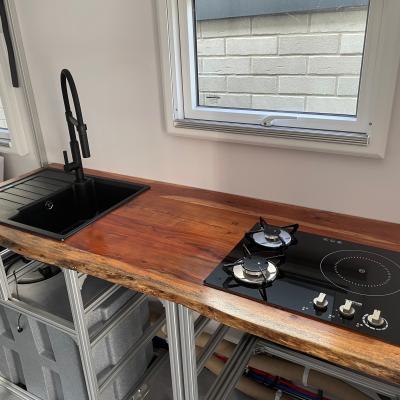

| Cooking stove | Thetford Topline 981 Hybrid-Kochfeld (2xGas 1xInduktion) |
|---|---|

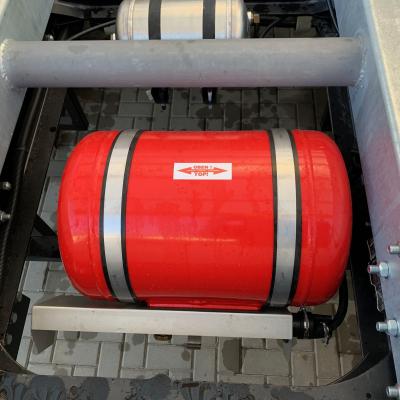

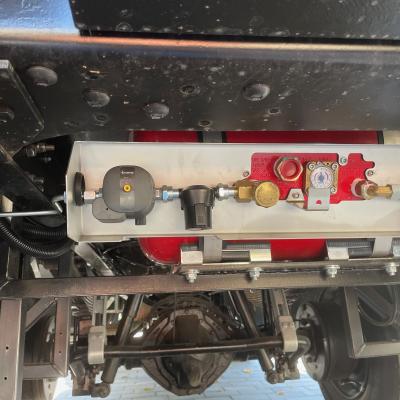

| Gas installation | 50L Gastank |
| Manufacturer and type of fridge / cooler | Belluna 176 Kompressor mit zwei Kühlkreisen |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 12V |
| Charging converter 24V-12V | Victron Orion-Tr Smart 24/12-30A |
| 110V / 230V in the cabin? | yes |

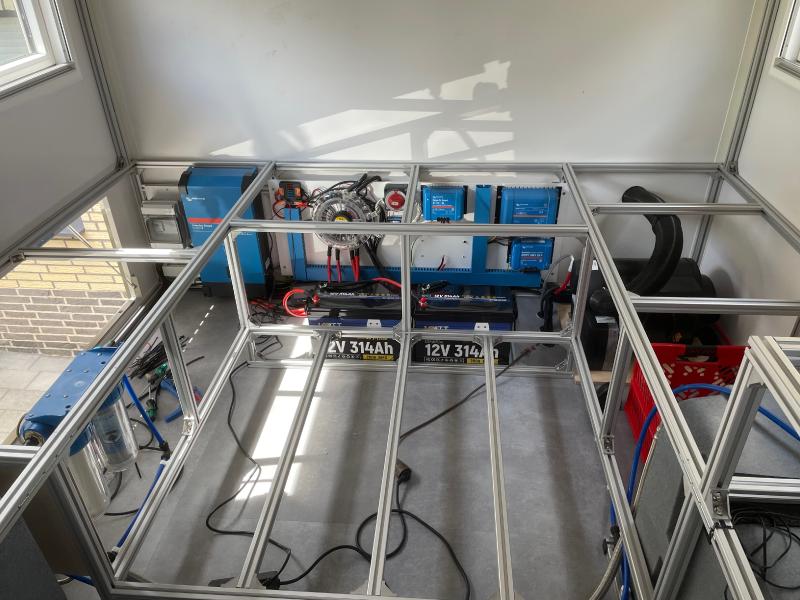

| Inverter | Victron Phoenix Smart 12-3000 |

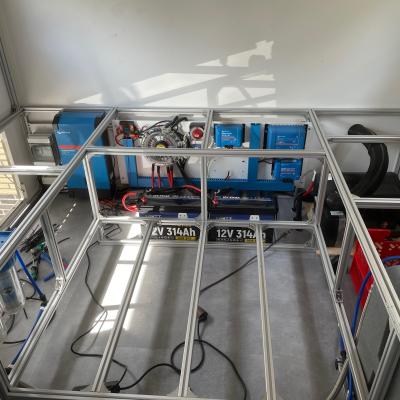

| Capacity of batteries in the cabin | 2x 12V 314Ah |
|---|---|
| Battery type | Lifepo4 |
| Battery charger for cabin batteries | Phoenix Smart IP43 Ladegerät 12/50A 120-240V |
| Battery management | Victron Shunt |
| Solar capacity | 2x AIKO 665WP und 1x AIKO 770Wp |
|---|---|
| Solar controller | Victron MPPT 100/50 und MPPT 150/100 |
| Fuel cell | no |
| Manufacturer and type of heating system | Truma Combi D6E |
|---|---|
| Warm water processing | Truma Combi D6E |
| Other | |
| zusätzlich Truma Saphir Klimaanlage | |
| Explanation of gas system | |
|---|---|

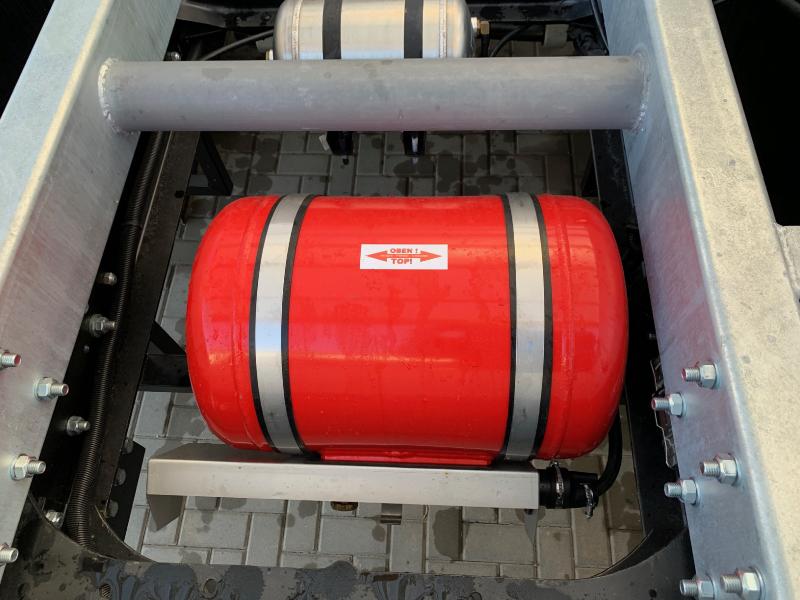

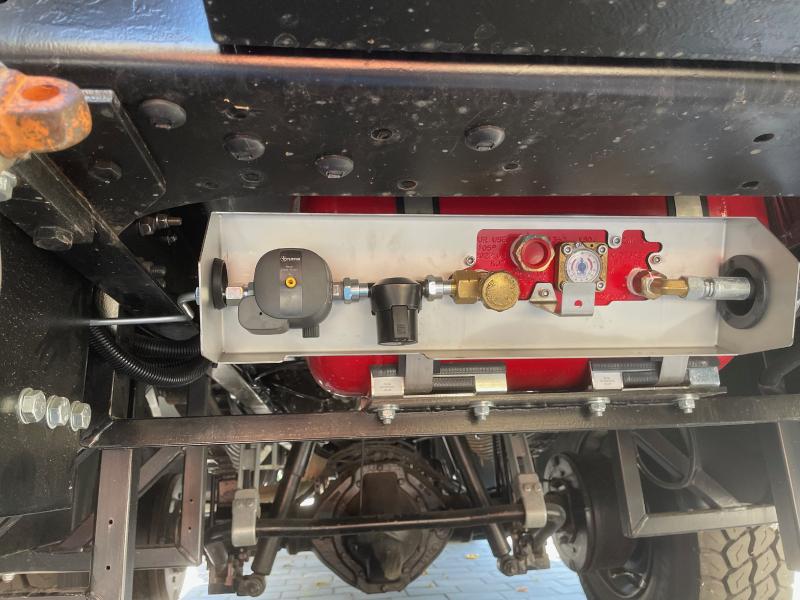

| 50L Gastank von Wynengas |
| water flow | John Guest System verwendet |
|---|---|
| Water filtration system | 3Stk. 10 |
| Capacity of fresh water tank(s) | 2x240L |
| Capacity of waste water tank(s) | 80L frostfrei unter der Dusche/Bad |

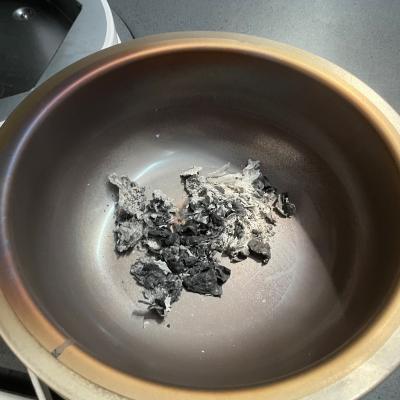

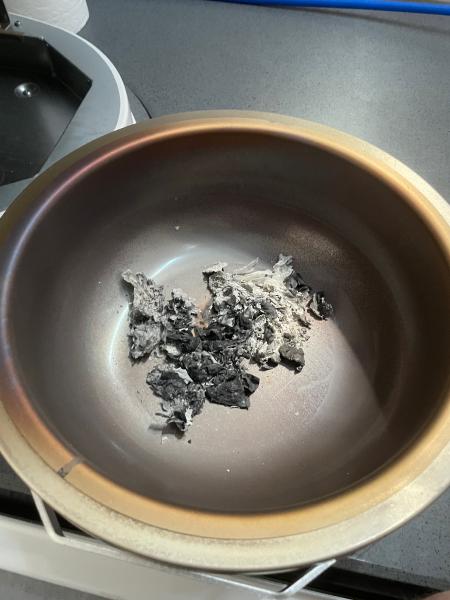

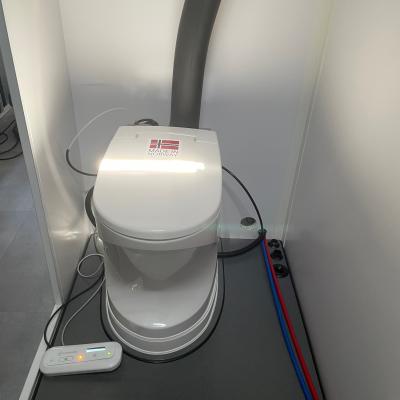

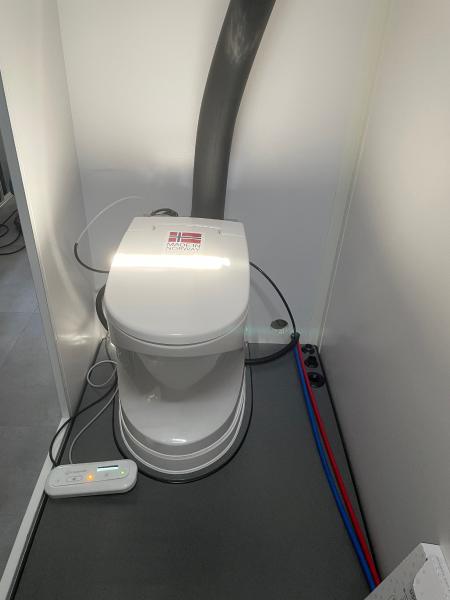

| Manufacturer and type of toilet | Cinderella Travel Diesel |
|---|---|
| Other | |
| Verbrennertoilette | |
| Rear carrier | geplant für Ersatzrad und Schiene für E-Bike |
|---|---|
| Outside cooking facilities | geplant mit Induktionskochfeld |
