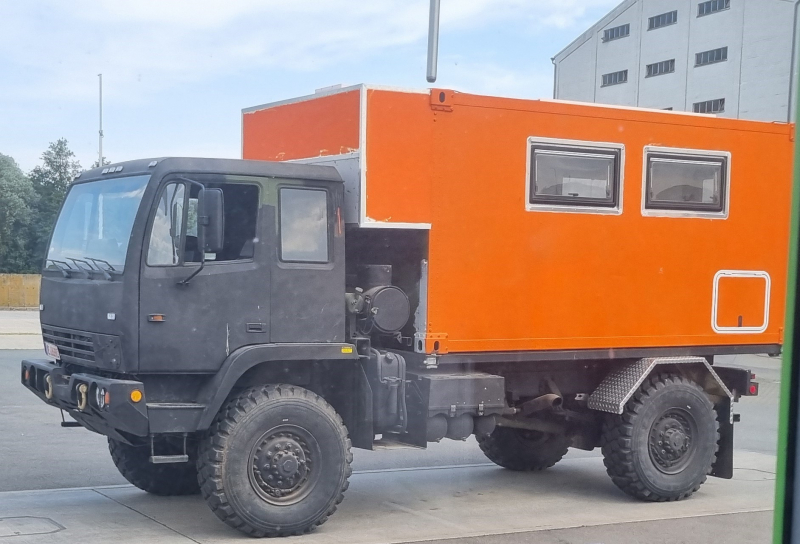

Ausbau eine Stewart & Stewenson mit Piaggio Shelter zum Wohnmobil
| Manufacturer and model | Stewart Steveson LMTV M1078 |
|---|---|
| Name | Markus Meyer |
| Year of manufacture | 1998 |
| For sale? | no |
| Engine type | Caterpillar |
|---|---|
| Cubic capacity | 6,6 Liter |
| Number of cylinders | 6 |
| Horsepower | 205 |
| Zulässiges Gesamtgewicht | 10.250 Kg |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
| Number of seats | 2 |
| Tyre size | 14.00 R20 |
| Type of tyre | MT |
| Tank capacity | 205 |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Mitte |
| Manufacturer of the cabin | Piaggio Shelter Selbstausbau |
|---|---|
| Inner dimensions (LxWxH) | 200 x 450 x 190 cm |
| Outer dimensions (LxWxH) | 210 x 460 x 200 cm |
| Cabin material | Alu |
| Kind and thickness of insulation | PU 60 mm |
| Number of beds | 2 |
| Windows | 4 |
| Subframe | Eigenbau |
| Material of furniture | Holz |
|---|
| Cooking stove | Elektrisch |
|---|
| Voltage in the chassis | 12/24 V |
|---|---|
| Voltage in the cabin | 230 V |
| 110V / 230V in the cabin? | yes |
| Inverter | 2 x 3000 W |
| Capacity of batteries in the cabin | 628 Ah |
|---|---|
| Battery type | LiFePO4 |
| Solar capacity | 1500 Watt |
|---|---|
| Fuel cell | no |
| Manufacturer and type of heating system | Autoterm Air 2D 12V inkl. Warmluftschalldämpfer |
|---|---|
| Warm water processing | combiBOIL 12l 230V 500W mit Comfort Boiler Control |
| Manufacturer and type of toilet | Biotoi Trockentrenntoilette |
|---|
