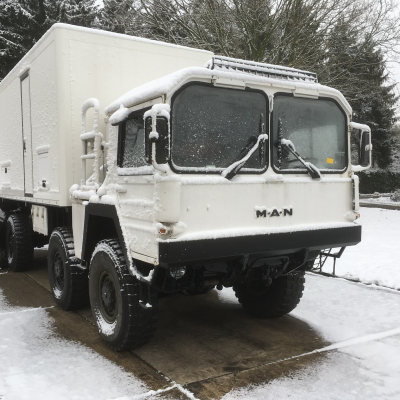

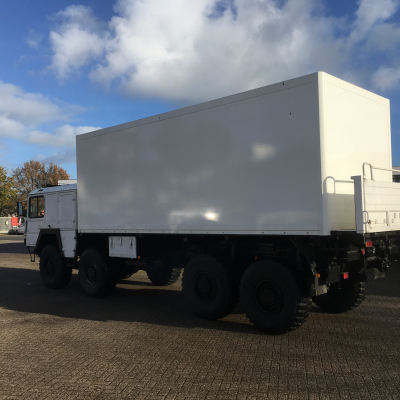

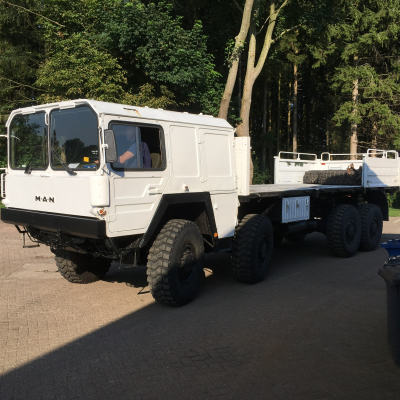

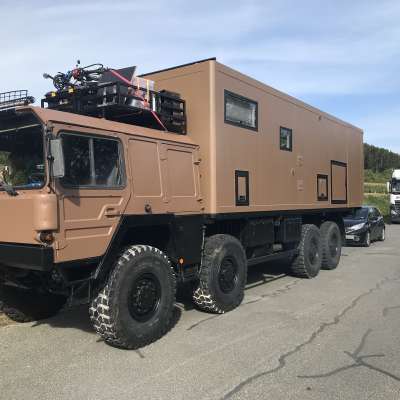

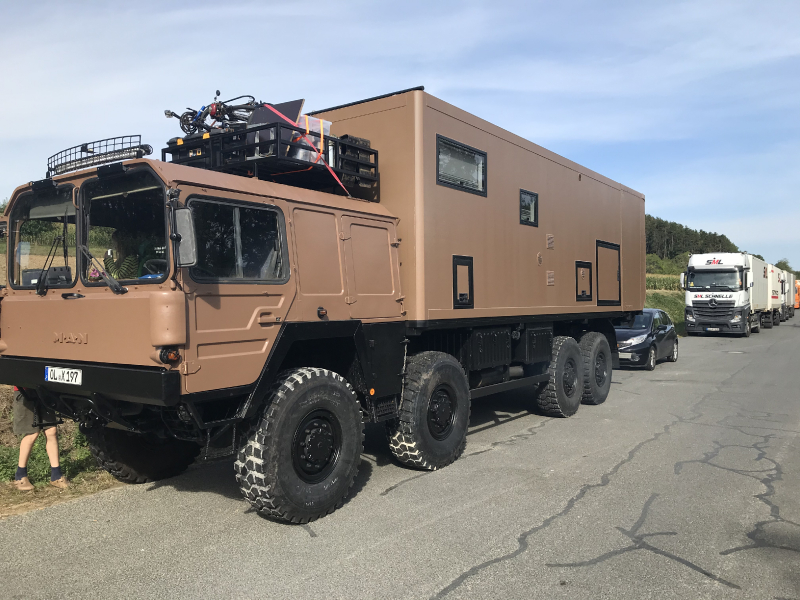

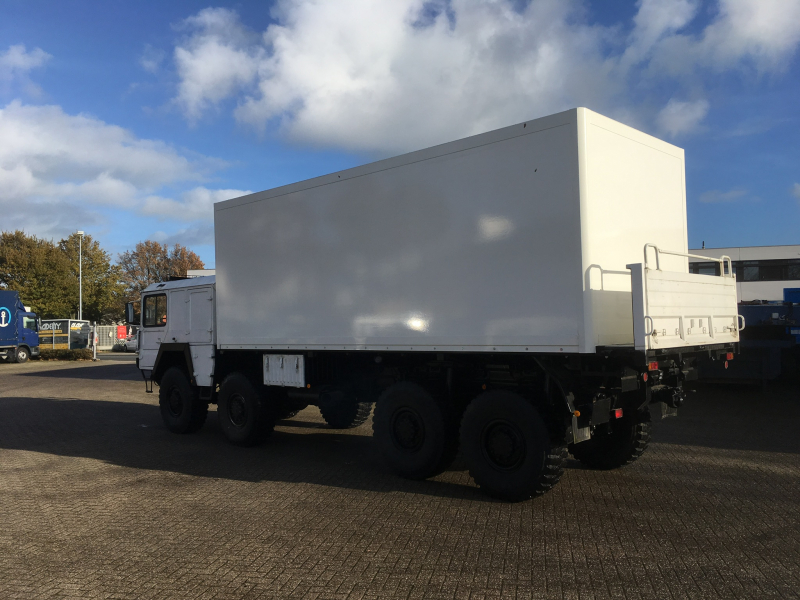

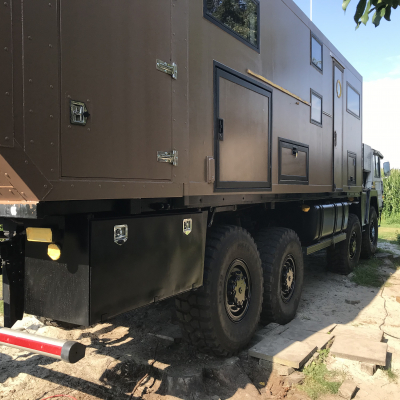

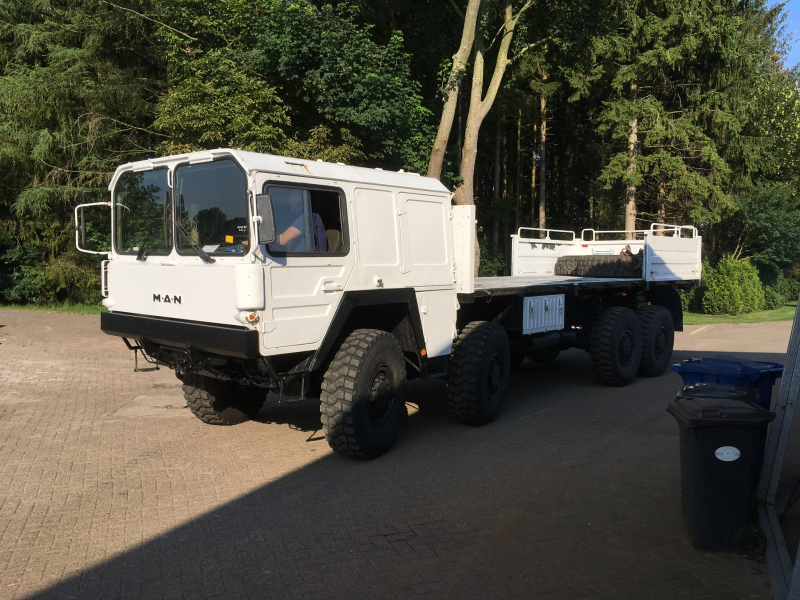

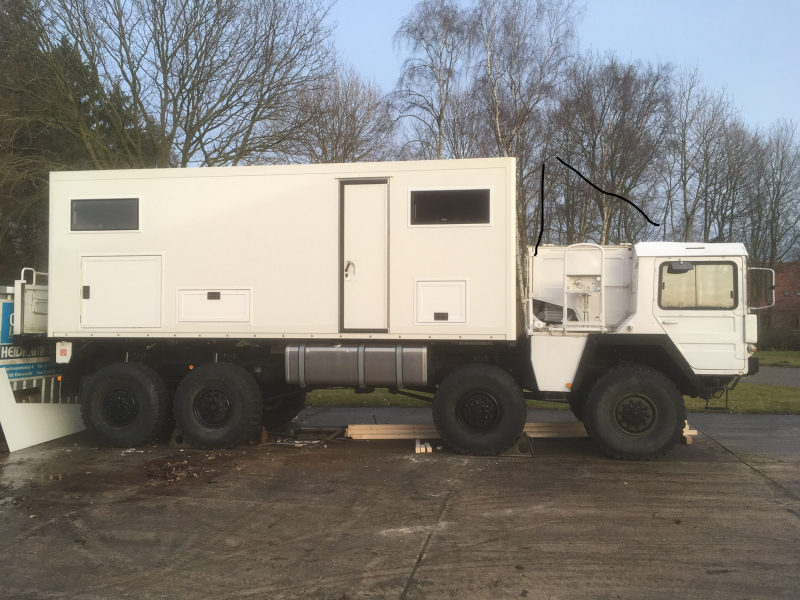

| Manufacturer and model | MAN Kat 1 |
|---|---|
| Name | Kai und Elke |
| Year of manufacture | 1977 |
| For sale? | no |
| Engine type | BF8L413F |
|---|---|
| Cubic capacity | 12,7 l |
| Number of cylinders | 8 |
| Horsepower | 350 |
| 4x2, 4x4, 6x6, 8x8 | 8x8 |
|---|---|
| Number of seats | 4 |
| Tyre size | 14.00 R 20 |
| Rim size | 20“ |
| Type of tyre | Pirelli Pista |

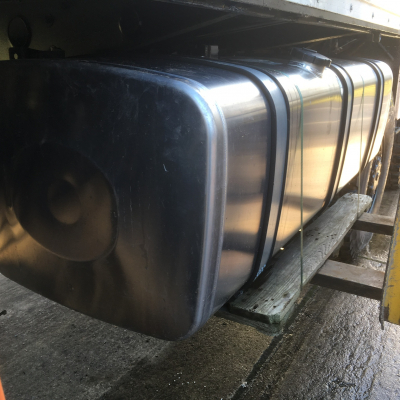

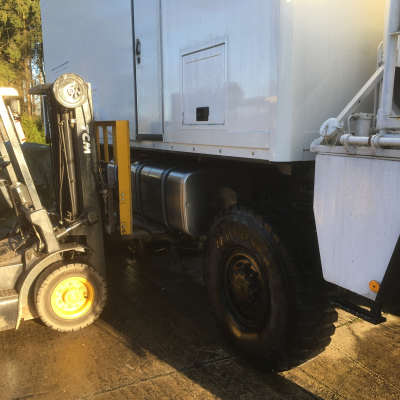

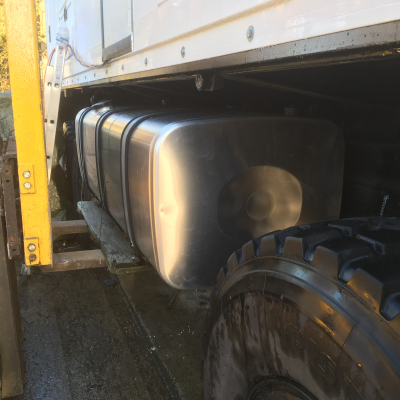

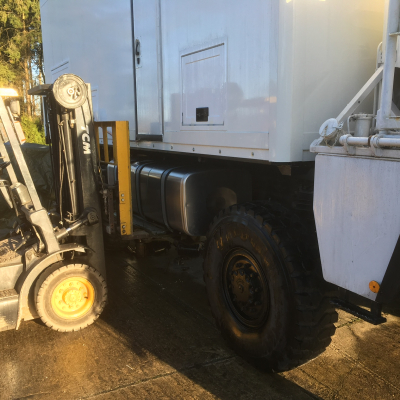

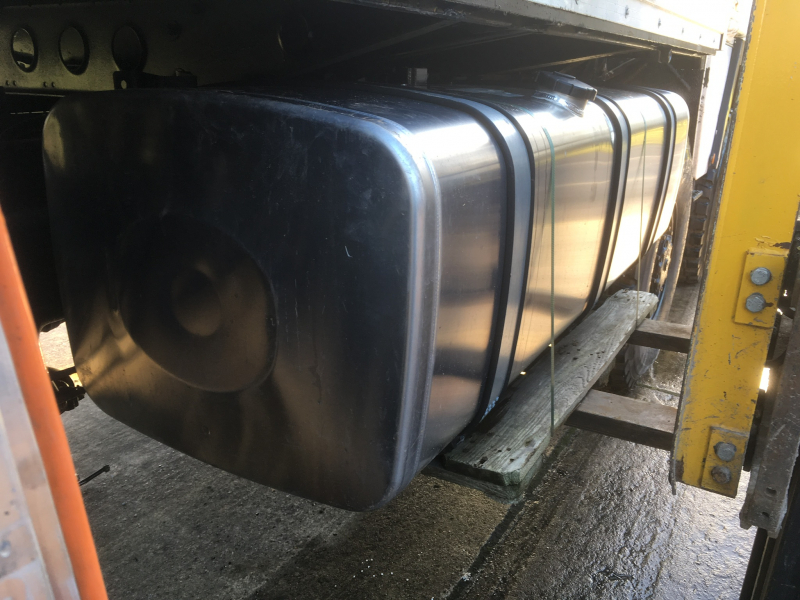

| Tank capacity | 970 |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Quer- und längs |

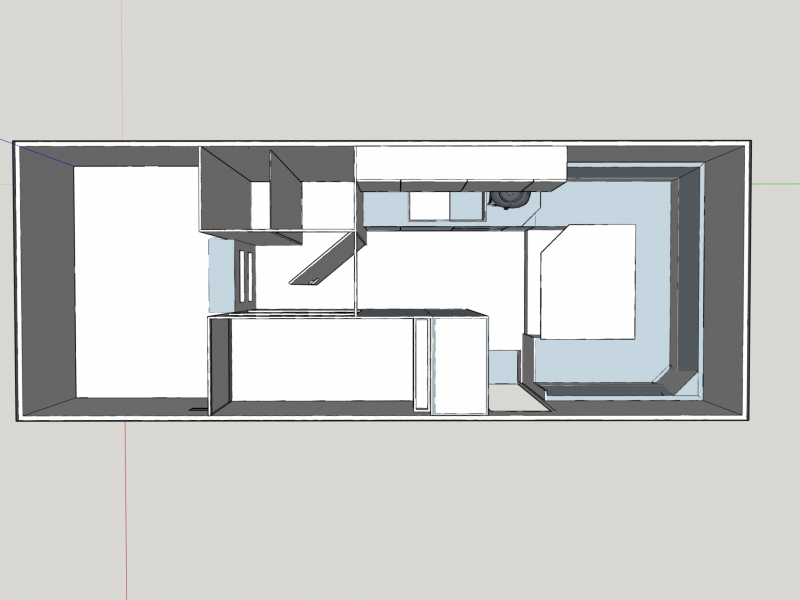

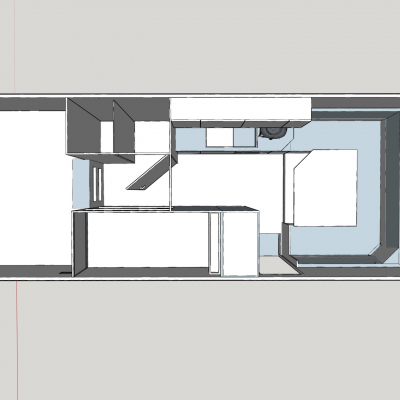

| Inner dimensions (LxWxH) | 6,5x2,43x2,25 |
|---|---|
| Cabin material | GfK |
| Kind and thickness of insulation | XPS 45mm |

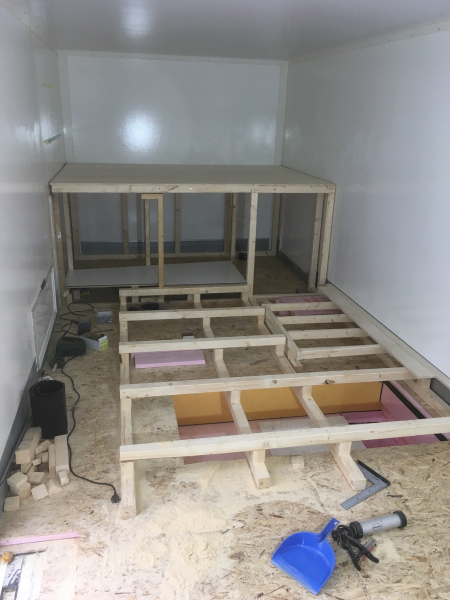

| Number of beds | 6 |
| Windows | Outbound |
| Subframe | Original |

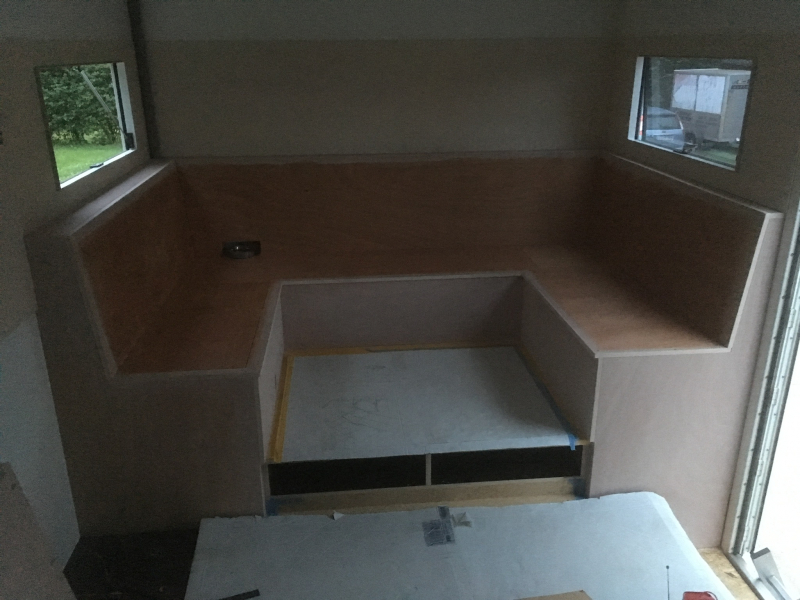

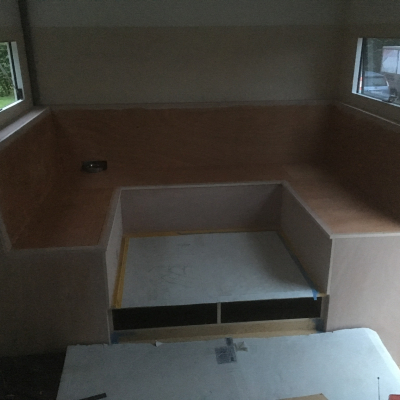

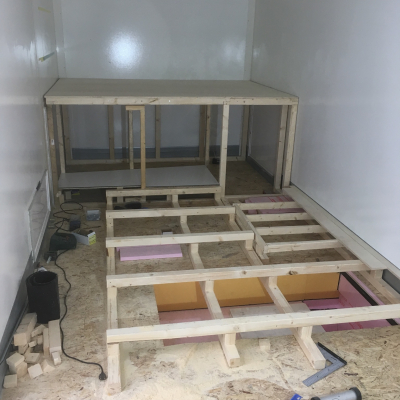

| Material of furniture | Okoume Sperrholz |
|---|
| Cooking stove | Zwei Flammen Ceran |
|---|---|
| Gas installation | LPG |
| Voltage in the chassis | 24 V |
|---|---|
| Voltage in the cabin | 12 V |
| Charging converter 24V-12V | 24–12 |
| 110V / 230V in the cabin? | yes |
| Inverter | Victron Energie |
| Capacity of batteries in the cabin | 1100 Ah |
|---|---|
| Battery type | AGM |
| Battery charger for cabin batteries | Multi Plus |

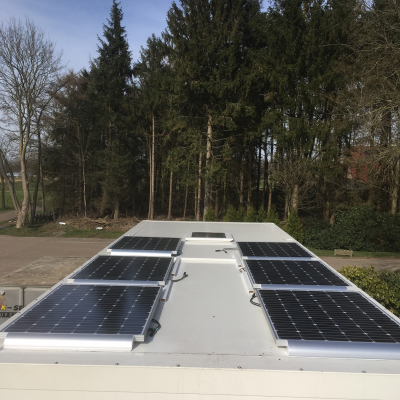

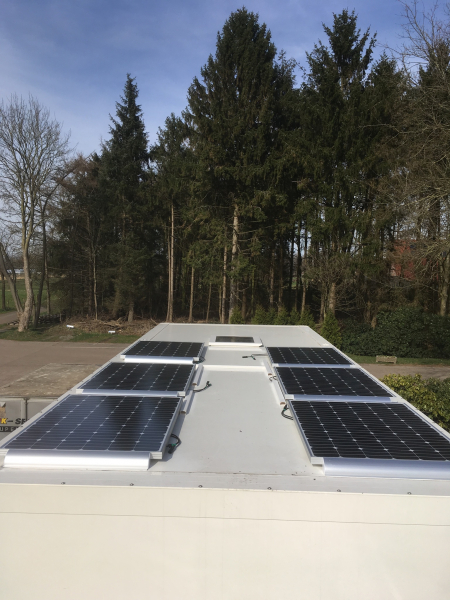

| Solar capacity | 950 W |
|---|---|
| Solar controller | MPPT Smart Solar |
| Fuel cell | no |
| Manufacturer and type of heating system | Eberspächer Diesel Standheizung |
|---|---|
| Cab heating | Eberspächer Diesel Standheizung |
| Water filtration system | Seagull |
|---|---|

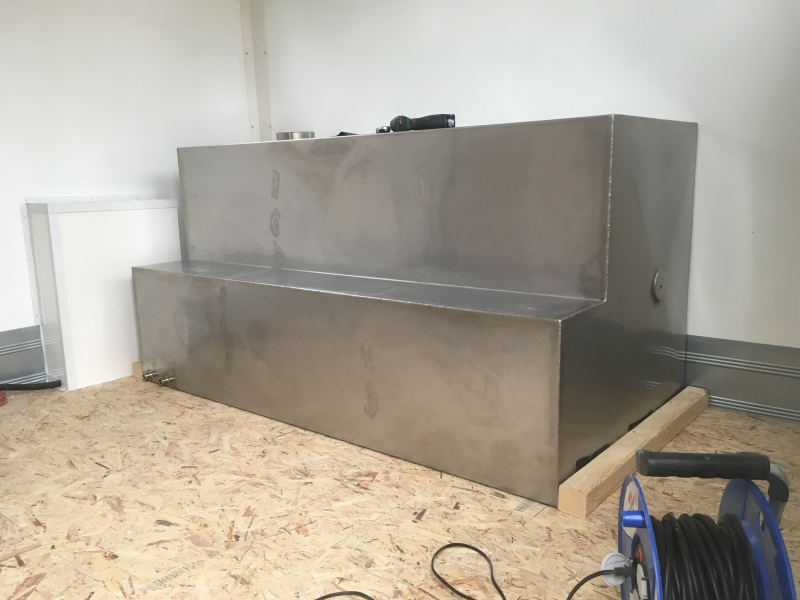

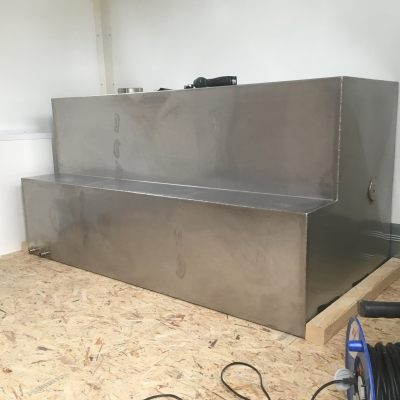

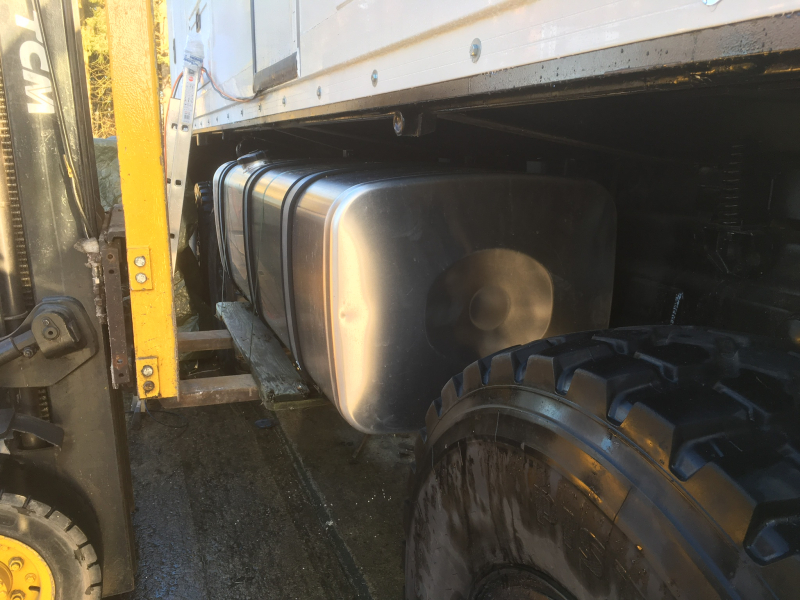

| Capacity of fresh water tank(s) | ~700 l |
| Capacity of waste water tank(s) | ~ 400 l |
| Manufacturer and type of toilet | Trocken Trenn Toilette Kildwik |
|---|

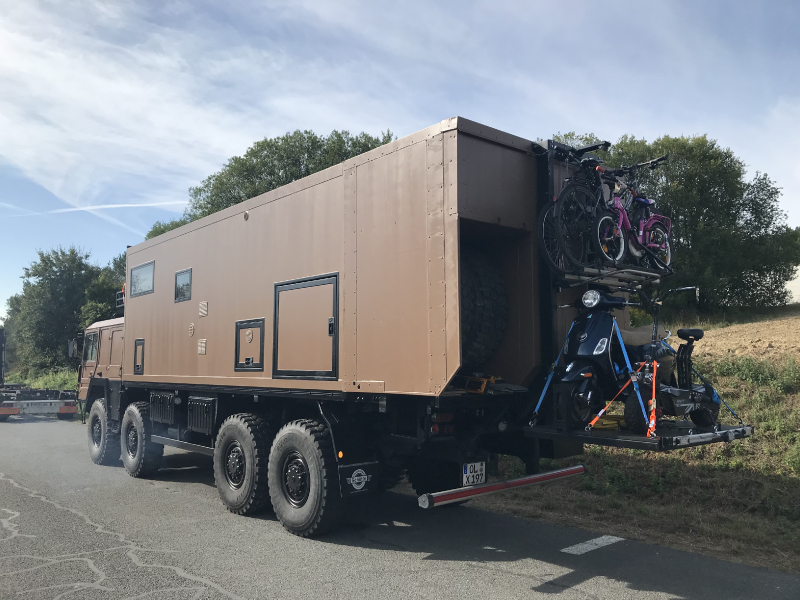

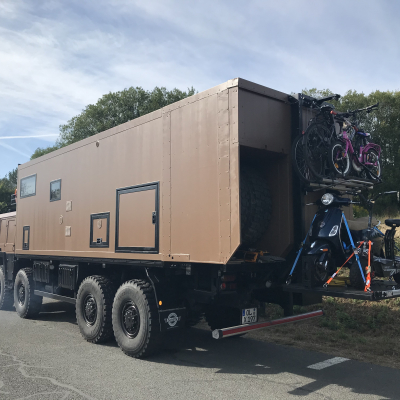

| Rear carrier | Selbstbau |
|---|---|
| Outside cooking facilities | 1 |
