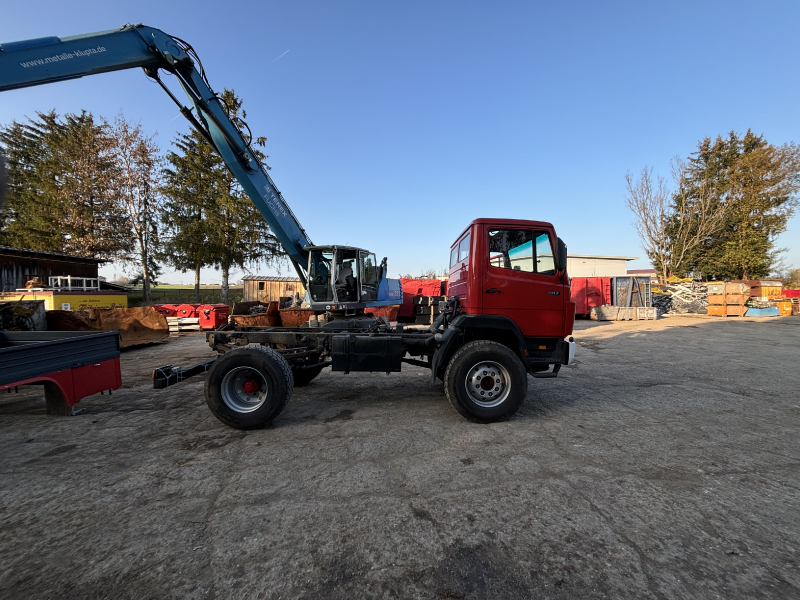

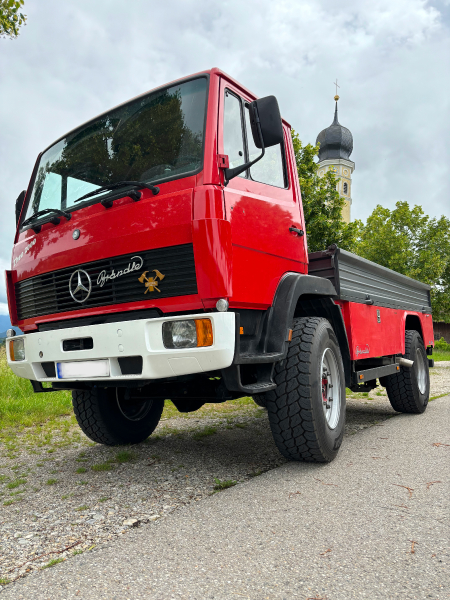

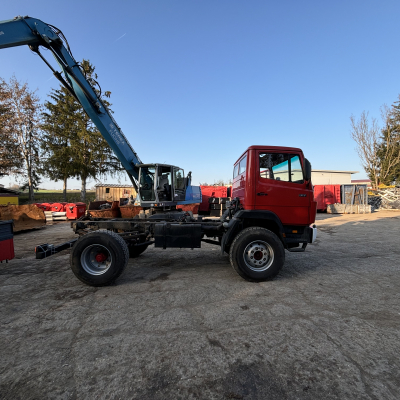

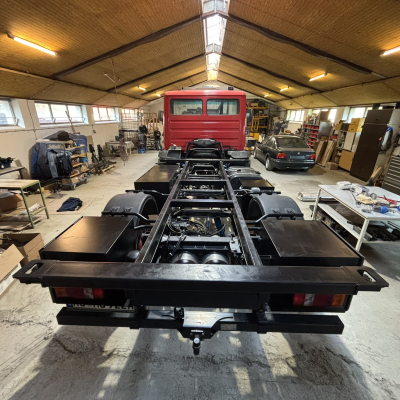

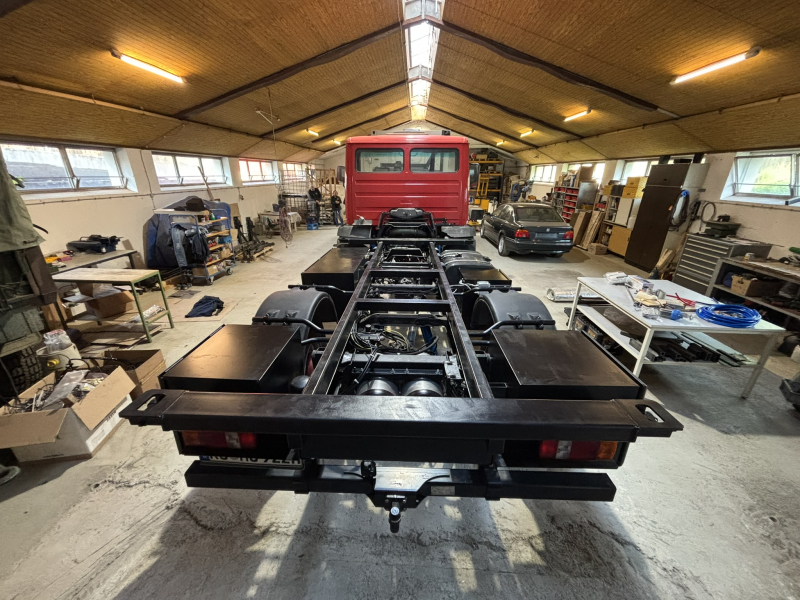

Aufbau eines Reisemobiles für zwei Personen bis 7.49t auf Basis eines MB 917 AF der Schweizer Feuerwehr. 2024 - Umbau Fahrgestell 2025 - Rahmen und Shetler Aufbau (Fenster, Tür, Durchgang) 2026 - Start Innenausbau in Eigenregie 2027 - Erste Europareisen ... wir werden sehen
| Manufacturer and model | Mercedes 917 AF |
|---|---|
| Name | Tom |
| Year of manufacture | 1989 |
| For sale? | no |
| Engine type | OM366A |
|---|---|
| Cubic capacity | 5955 |
| Number of cylinders | 6 Reihe |
| Horsepower | 170 PS |
| Torque | 645 Nm |
| Zulässiges Gesamtgewicht | 7,5t |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
| Wheel base | 3090mm |
| Number of seats | 2 |
| Tyre size | 385/65x22,5R |
| Type of tyre | Hankook Smart AM15+ |
| Tank capacity | 300l |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Mitte und Hinten |
| Manufacturer of the cabin | FM2 Zeppelin Shelter |
|---|---|
| Inner dimensions (LxWxH) | 4110x2060x1900mm |
| Outer dimensions (LxWxH) | 4250 x 2200 x 2075mm |
| Cabin material | Aluminium |
| Kind and thickness of insulation | 60mm |
| Number of beds | 2 |
| Windows | Belluna |
| Subframe | Federlagerung |
| Cooking stove | Induktion 2 flammig |
|---|---|
| Gas installation | keine |
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 24V / 230V |
| 110V / 230V in the cabin? | yes |
| Capacity of batteries in the cabin | 24V 200AH |
|---|
| Solar capacity | 600-1000W |
|---|---|
| Fuel cell | no |
| Capacity of fresh water tank(s) | 250l |
|---|---|
| Capacity of waste water tank(s) | 80l |
| Manufacturer and type of toilet | Trenntoilette |
|---|
| Roof rack | Nein |
|---|---|
| Storage boxes | 4 Stück |
| Outside cooking facilities | Geplant |
| Awning | Nein |
