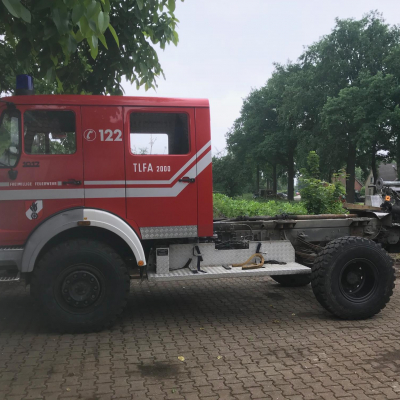

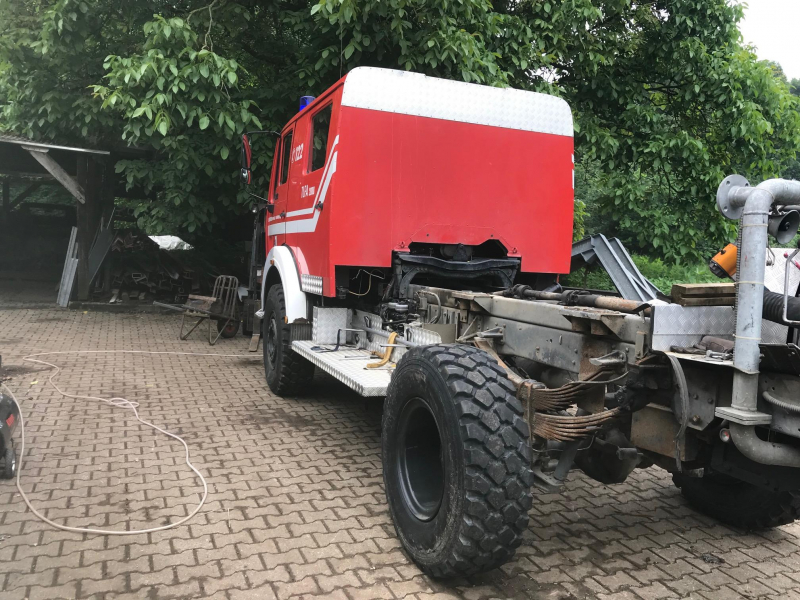

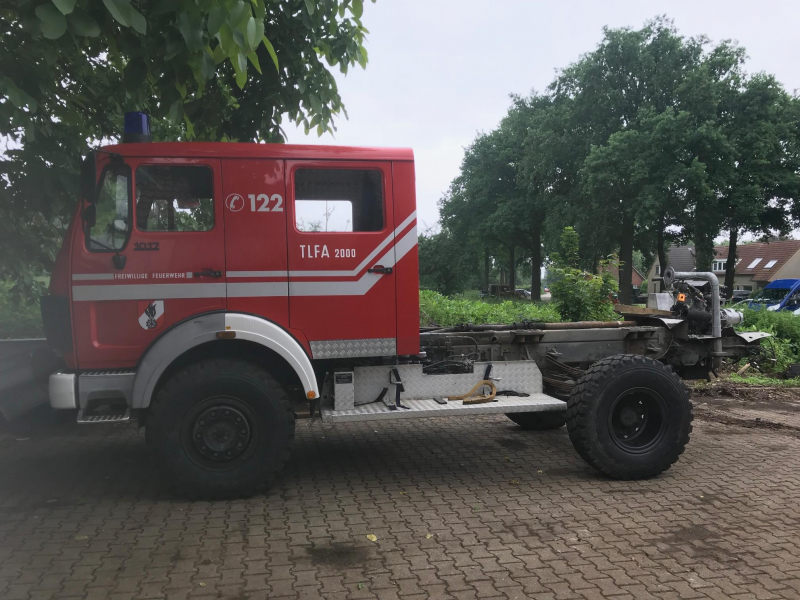

Mercedes 1017AF 36

I converted an Unimog 1300L into an Overland Camper. This Mercedes will be the next project. I am now busy with designing and buying the necessary parts, while the support frame for the shelter unit is being made.

General Information

Manufacturer and model	Mercedes-Benz
Name	1017AF
Country	the Netherlands
Year of manufacture	1986
For sale?	no

Engine

Engine type	OM352A
Cubic capacity	5,7
Number of cylinders	6
Horsepower	170 HP

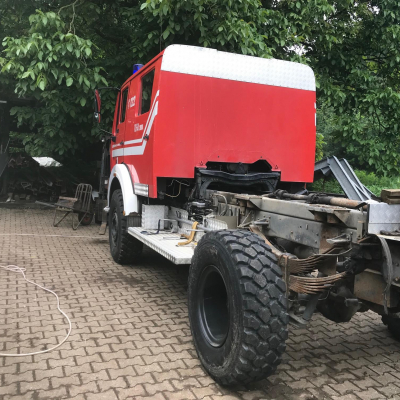

Chassis

4x2, 4x4, 6x6, 8x8	4x4
Wheel base	360
Tyre size	365/85r20
Rim size	10-20
Type of tyre	Michelin XZL
Tank capacity	105
Diesel filter	no
Permanent or manually selectable 4-wheel drive	manually selectable
Diff locks	Mid and rear

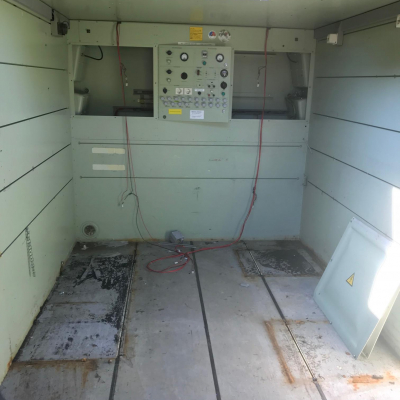

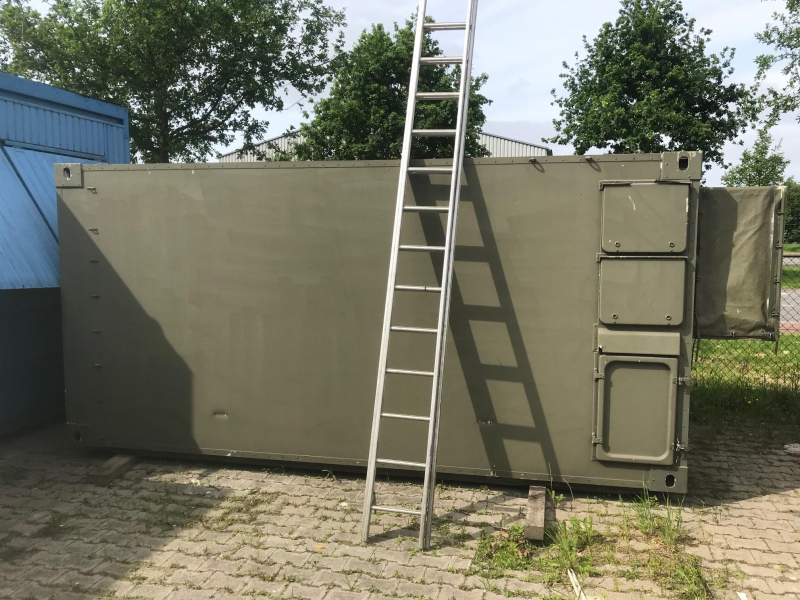

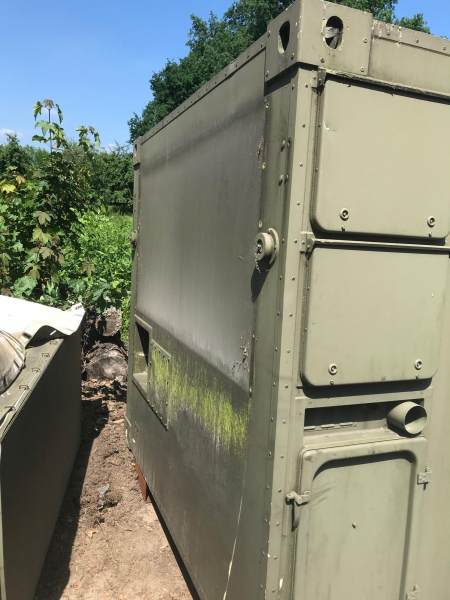

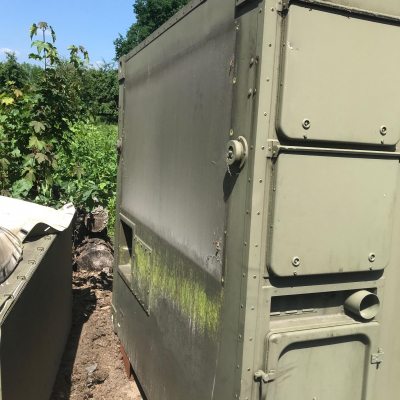

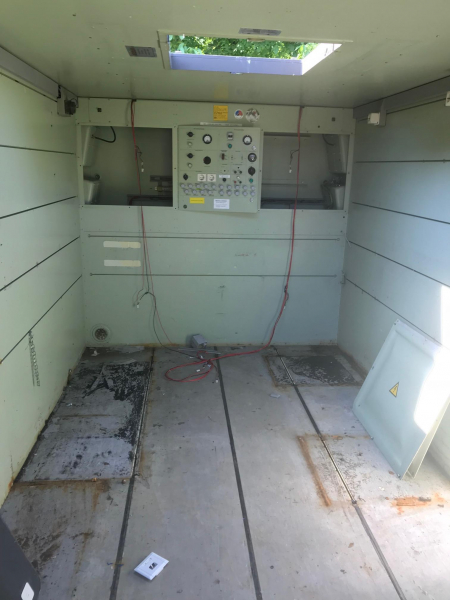

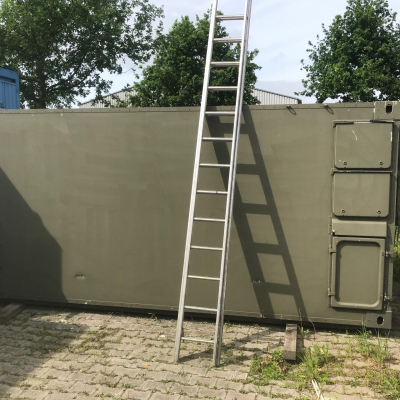

Cabin

Manufacturer of the cabin	Fokker
Outer dimensions (LxWxH)	425 x 219 x 208
Cabin material	Aluminium
Kind and thickness of insulation	50 mm 3-layer alu
Number of beds	3
Subframe	3-point

Power supply

Voltage in the chassis	24V
Voltage in the cabin	24V
110V / 230V in the cabin?	no

Heating system

Manufacturer and type of heating system	Webasto DBV 2010
Warm water processing	Webasto DBV 2010
Cab heating	Webasto DBV 2010
