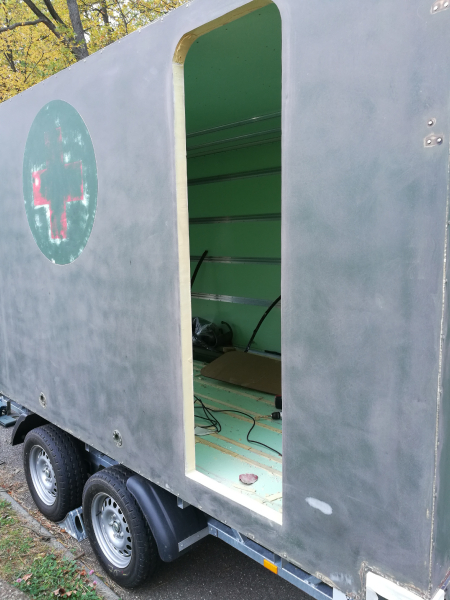

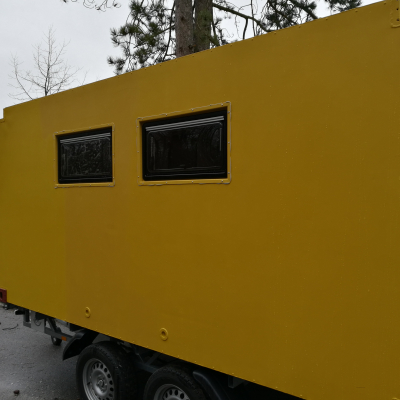

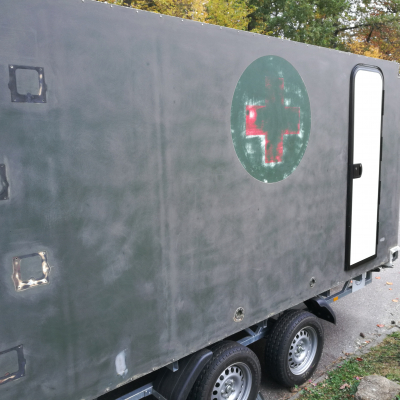

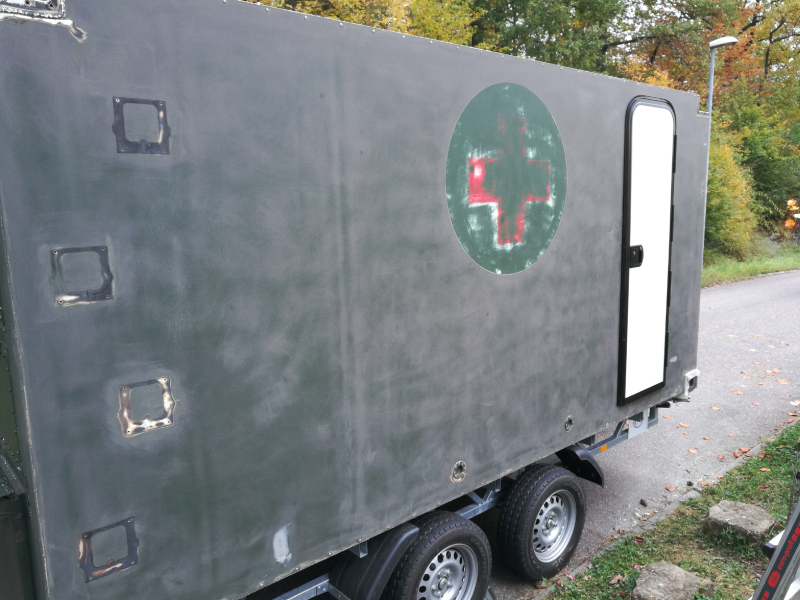

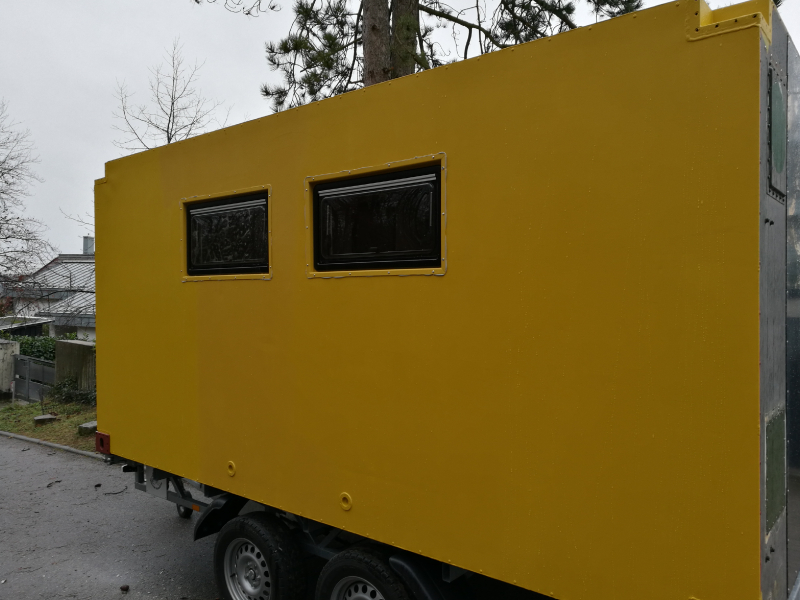

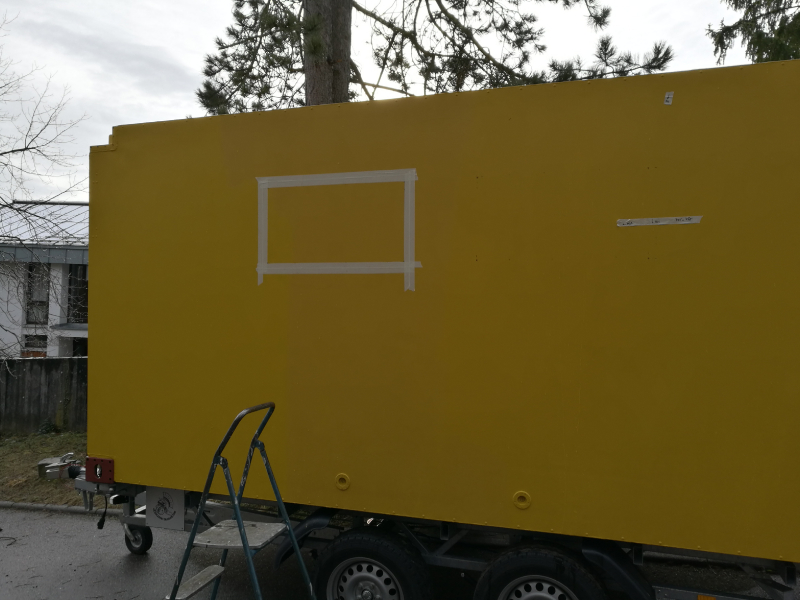

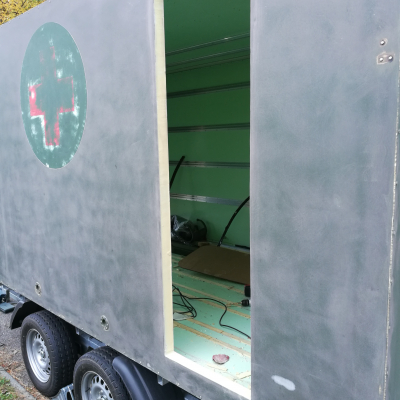

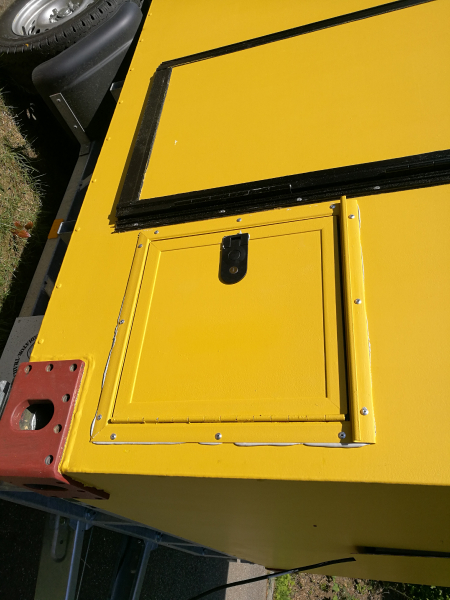

Zwischenschritt: Shelter FM2 auf einem extra angefertigten Gladiator-Trailer. Somit auch als Wohnwagen nutzbar Endausbau: Shelter FM2 auf einer DOKA (brauchen PLatz üfr 5 Personen)

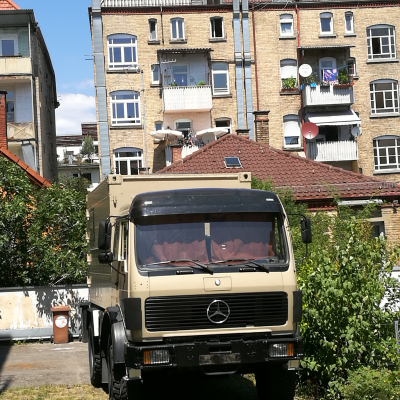

| Manufacturer and model | Mercedes 1217 |
|---|---|
| Name | Fabian |
| For sale? | no |
| Engine type | - |
|---|---|
| Cubic capacity | - |
| Number of cylinders | 6 |
| Horsepower | >170 |
| Torque | - |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Number of seats | 7 |
| Tank capacity | 125 |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | hinte, mitte |
| Manufacturer of the cabin | Zeppelin Shelter |
|---|---|
| Outer dimensions (LxWxH) | 4250 |
| Cabin material | Alu |
| Kind and thickness of insulation | 60 mm |
| Number of beds | 5 |

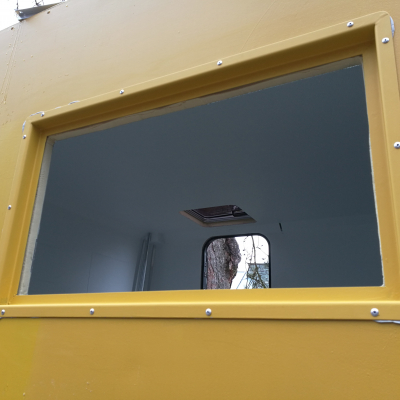

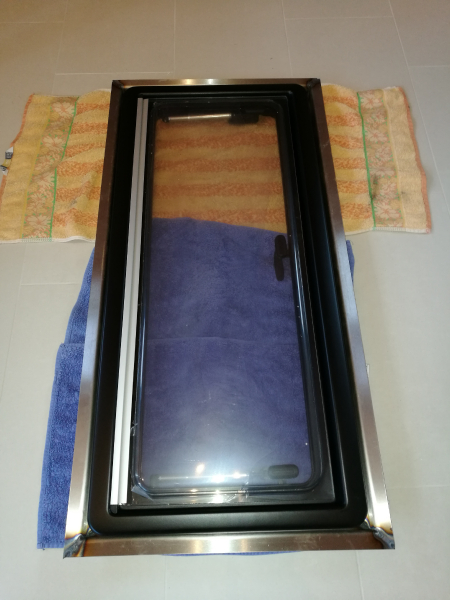

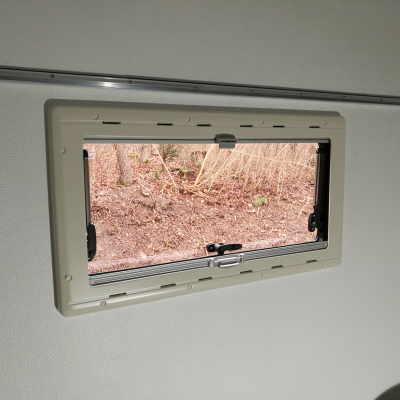

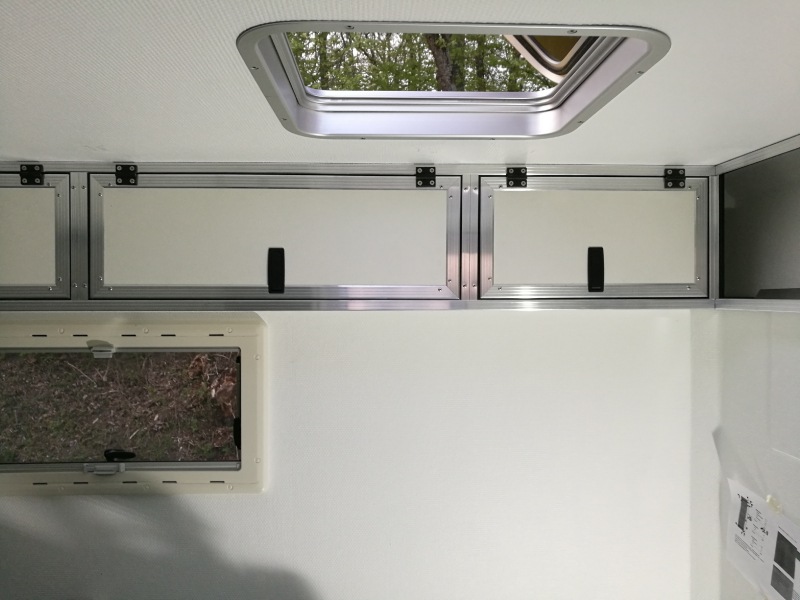

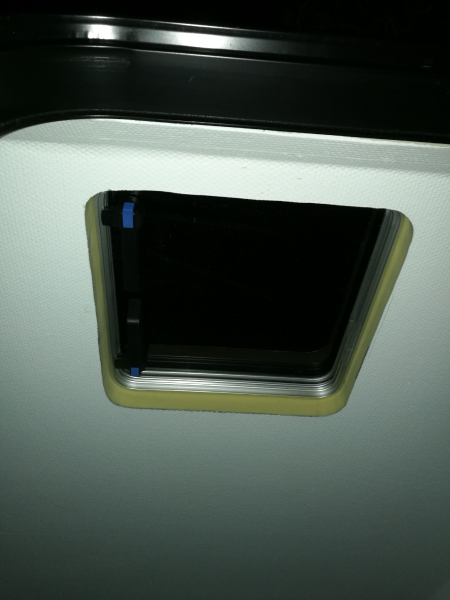

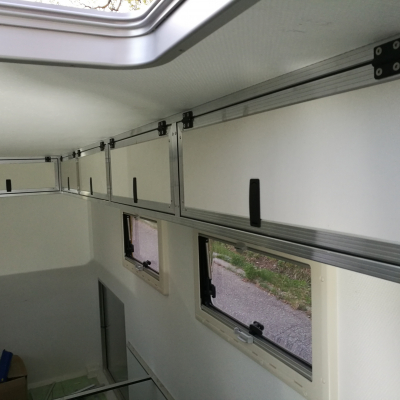

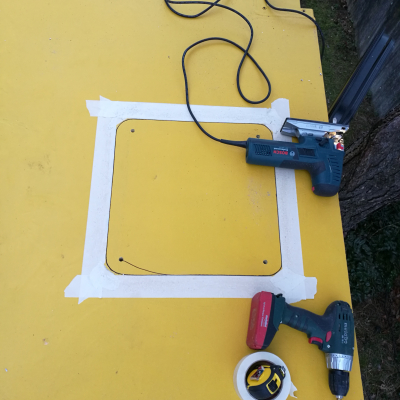

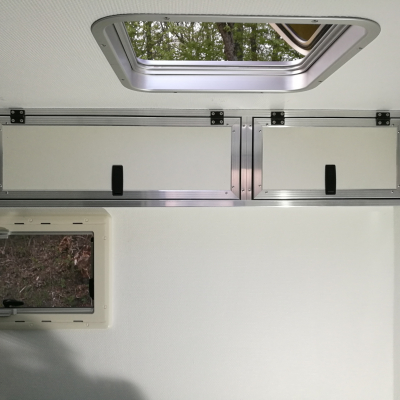

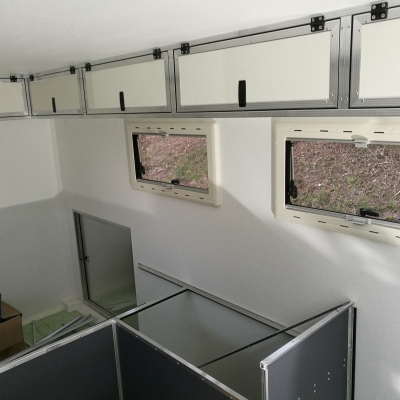

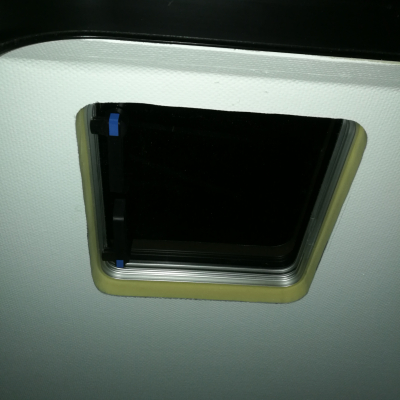

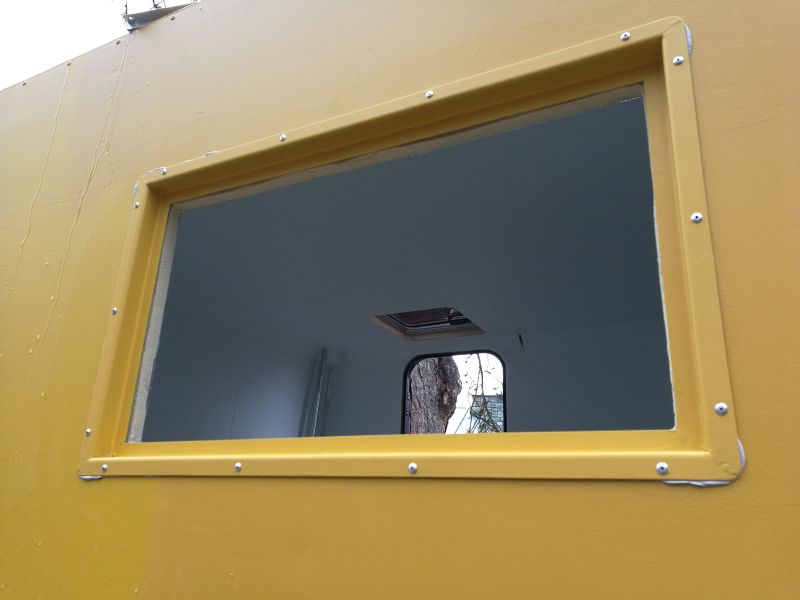

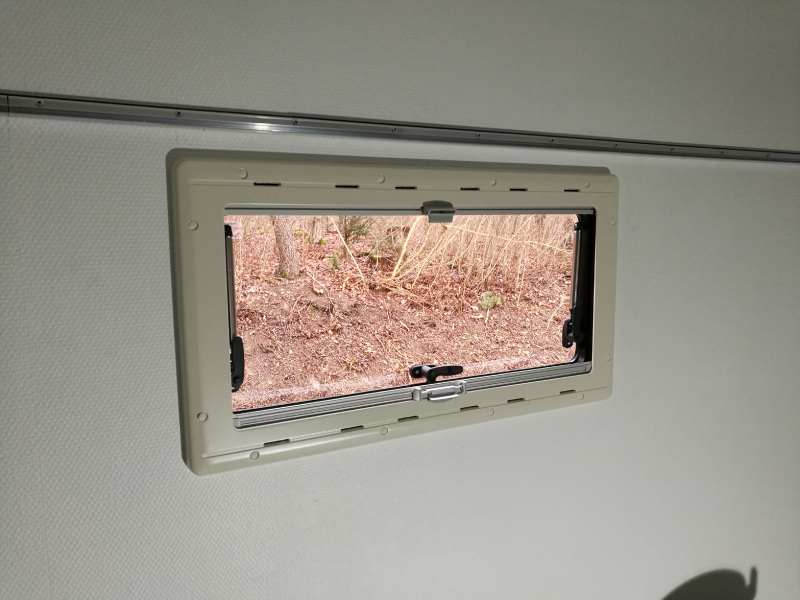

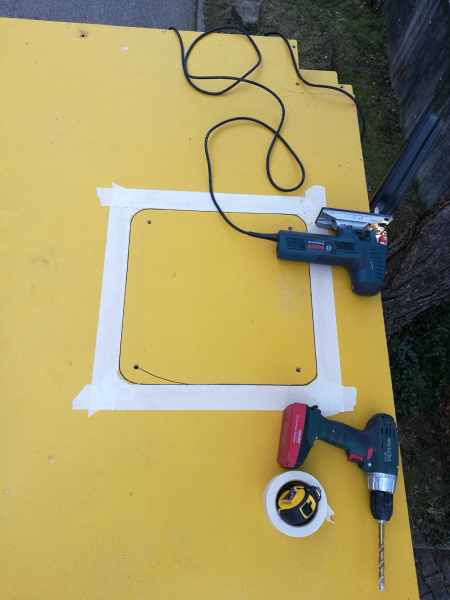

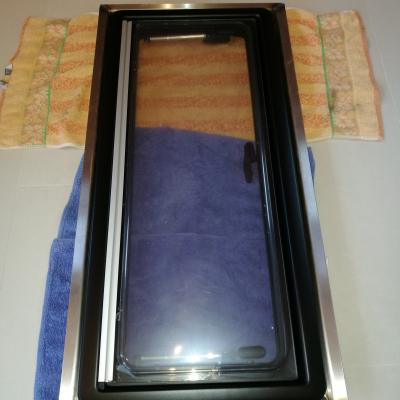

| Windows | 3 an der Seite, 2 Dachfenster |
| Subframe | 4-Punkt. Federglagert |

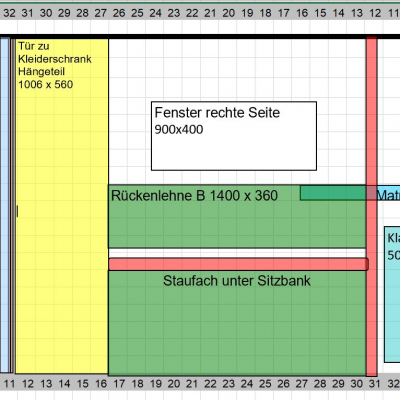

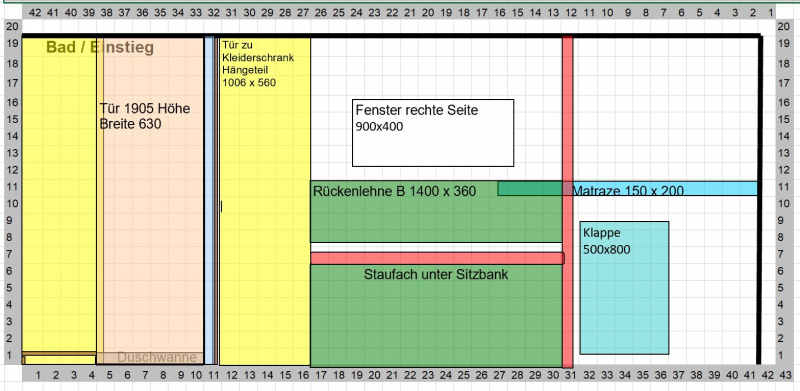

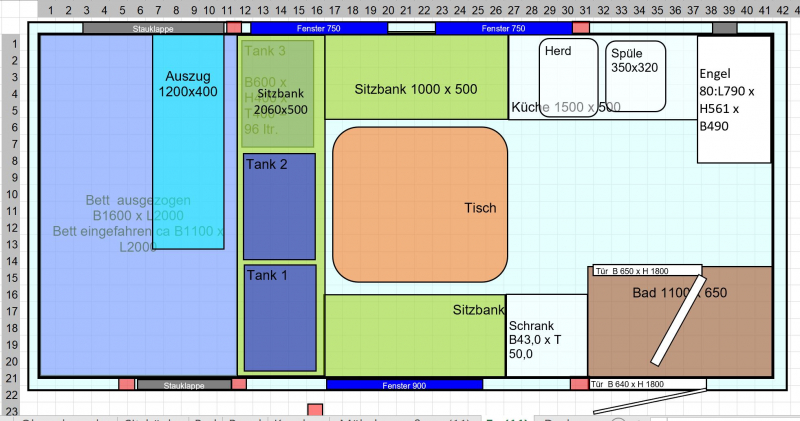

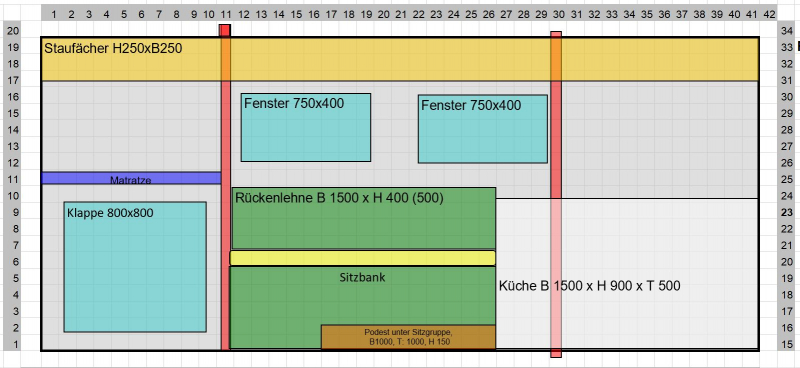

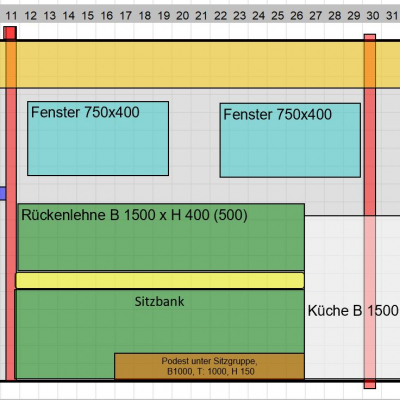

| Explanation of floor plan | |
|---|---|
|

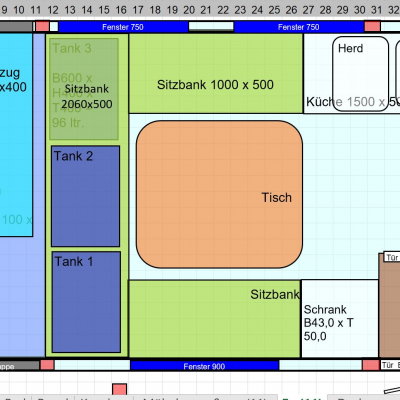

Schlafen und Leben für 5 Personen ( 2 Erwachsene und 3 Kinder). Essbereich kann für die Kinder zum Bett umgebaut werden. |
| Cooking stove | noch nicht festgelegt |
|---|
| Manufacturer and type of fridge / cooler | Engel MT-45G-P Kompressor-Kühlbox |
|---|
| Voltage in the cabin | 12 V |
|---|---|
| 110V / 230V in the cabin? | no |
| Capacity of batteries in the cabin | 230Ah |
|---|---|
| Battery type | GEL |
| Battery charger for cabin batteries | Solarladeregler |
| Battery management | ja, Victron |

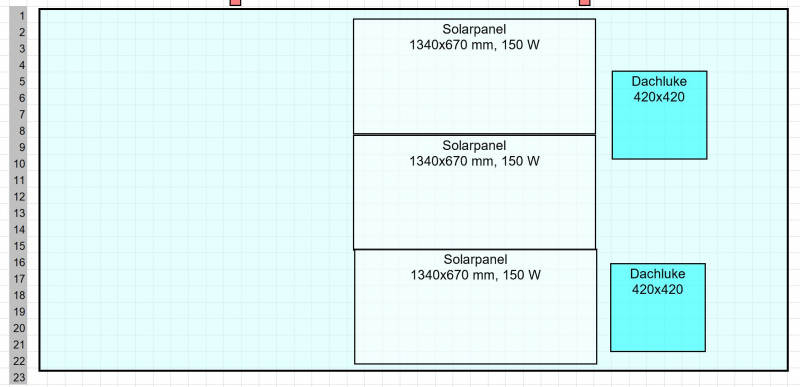

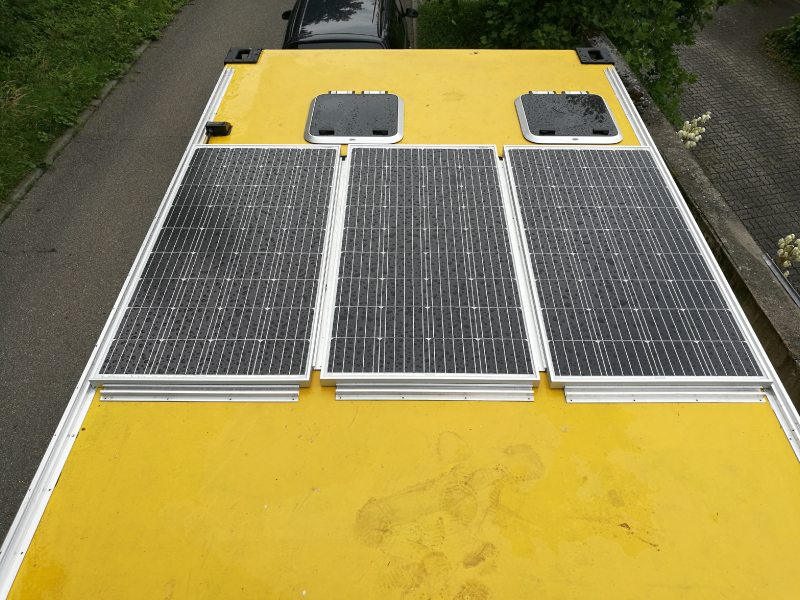

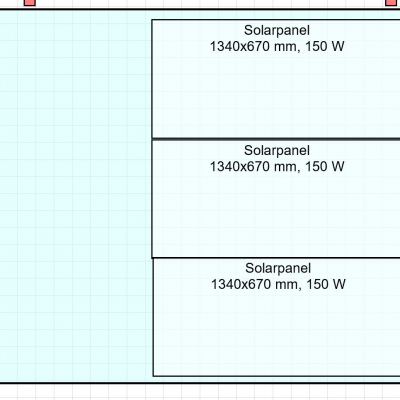

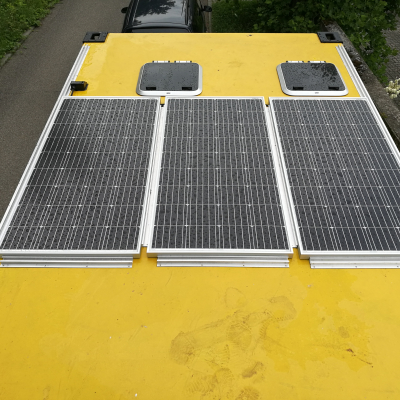

| Solar capacity | 450 Wp |
|---|---|
| Solar controller | Victron 100/50 |
| Fuel cell | no |
| Manufacturer and type of heating system | noch nicht festgelegt |
|---|---|
| Warm water processing | noch nicht festgelegt |
| water flow | noch nicht festgelegt |
|---|---|
| Water filtration system | noch nicht festgelegt |
| Capacity of fresh water tank(s) | 300l |
| Capacity of waste water tank(s) | noch nicht festgelegt |

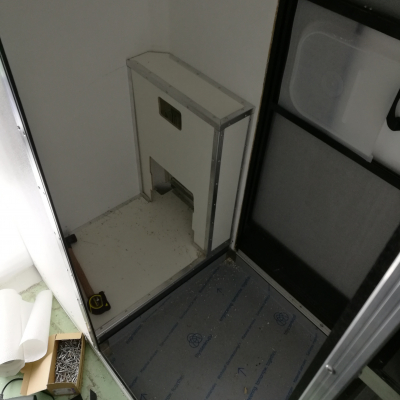

| Manufacturer and type of toilet | Thetford C263-S |
|---|
