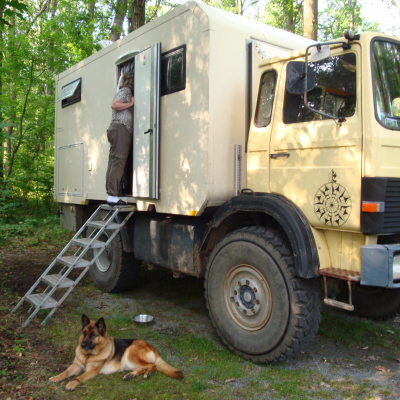

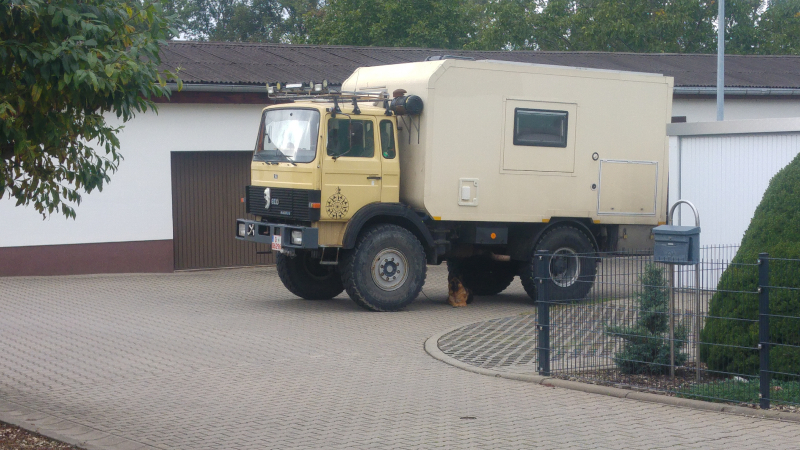

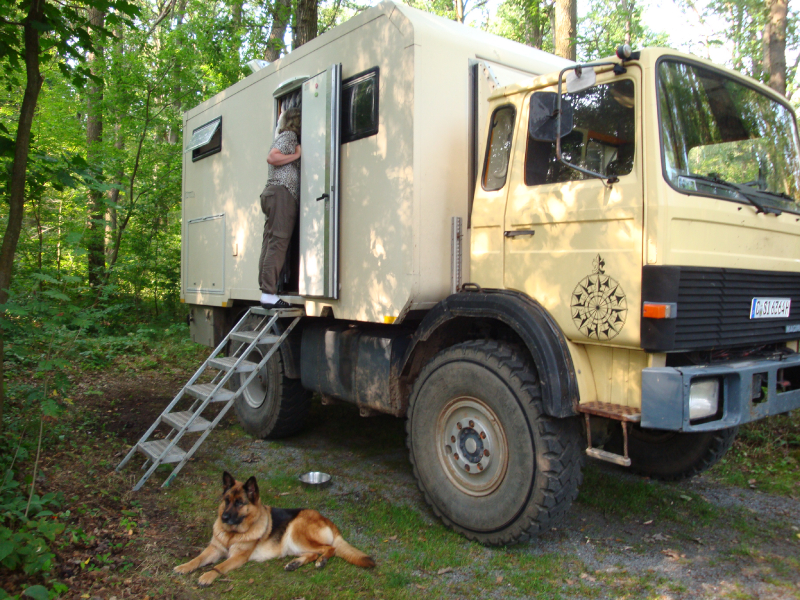

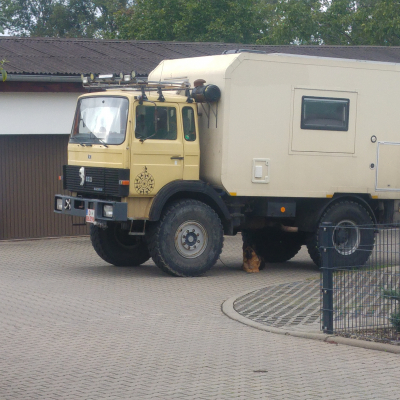

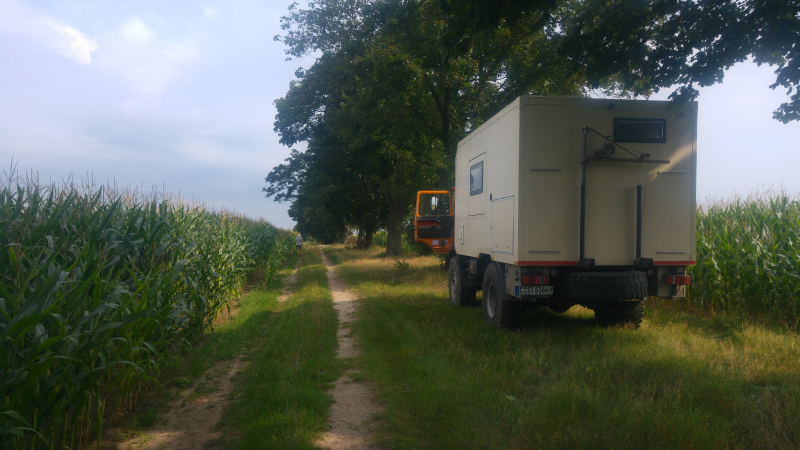

Hokasis Fahrzeug (#836)

Das Fahrzeug ist seit einem Jahr in unseren Besitz. Nach einigen Fahrten 2017 in Deutschland und kleineren und größeren Reparaturen ist jetzt Zeit für einige Umbauten. Beginnen will ich innerhalb der Aufbaukabine. Änderungen an der tech. Anlage und Reparaturen an bestehenden Einbauten. Da das Führerhaus nicht mehr im besten Zustand ist, überlege ich noch, ob Dieses komplett ersetzt werden sollte.

General Information

Manufacturer and model Iveco-Magirus
Name SM
Country Schweiz
Year of manufacture 1987
For sale? no

Engine

Engine type BF6L913T
Cubic capacity 6086
Number of cylinders 6
Horsepower 170

Chassis

4x2, 4x4, 6x6, 8x8 4x4
Wheel base 2800 mm
Number of seats 2
Tyre size 14.00 - R 20
Rim size 10.00 W
Type of tyre Conti MPT 81
Tank capacity 400 l
Diesel filter no
Permanent or manually selectable 4-wheel drive Permanent
Diff locks Mitte, Hinten

Cabin

Manufacturer of the cabin Ormocar
Cabin material GFK
Kind and thickness of insulation 49 mm
Number of beds 2
Subframe Unterrahmen mit Federn

Furniture

Material of furniture Sperrholz, Möbelplatten

Cooking stove

Cooking stove wird Eno KOS 3flammig
Gas installation flexibel, Gasrohr Stahl

Refrigerator; cool box

Manufacturer and type of fridge / cooler Eigenbau aus 130l Gefrierschrank
Other
mit neuen Verdampfer und externen Kompressor

Power supply

Voltage in the chassis 24 V
Voltage in the cabin 12V
Charging converter 24V-12V ja
110V / 230V in the cabin? no
Inverter ja, 1600W Victron 12/230V + Reserve 600W 24/230V
Other
im Umbau auf 12 V

Capacity of batteries in the cabin

Capacity of batteries in the cabin 4x 120 Ah
Battery type AGM Green Power
Battery charger for cabin batteries ja
Battery management Victron energy BMV-700
Other
geplant neu LiFePO4 mit BMS 280-420 Ah

Power generation

Solar capacity 2x 195 Wh
Solar controller Westech MPPT-2215RN
Fuel cell no
Power generator nein

Heating system

Manufacturer and type of heating system Webasto Dual Top RHA-100
Warm water processing 11 l über RHA-100
Cab heating Standard Luft-Öl Wärmetauscher

Gas system

Explanation of gas system
flexibeler Anschluss mit 11 kg Flasche in Innenbereich

Water system

water flow im Umbau
Water filtration system nein
Capacity of fresh water tank(s) 2x 150 l
Capacity of waste water tank(s) 60 l

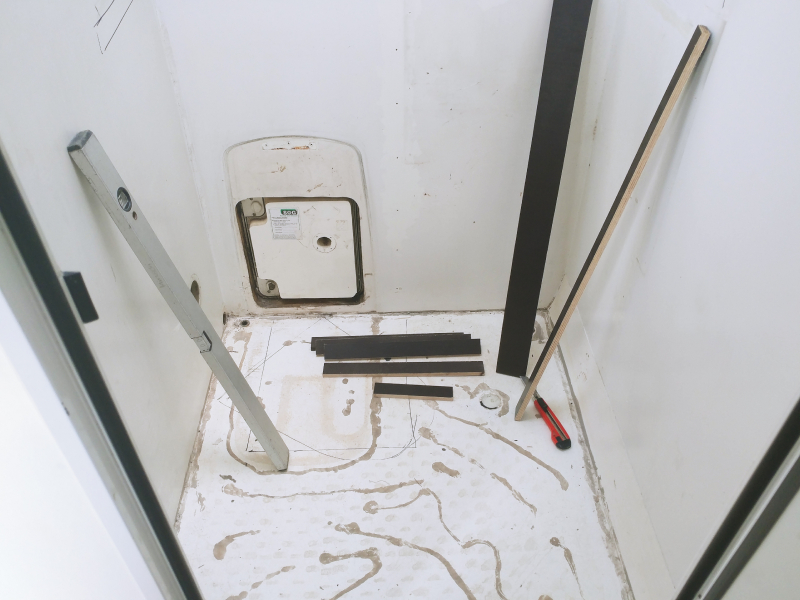

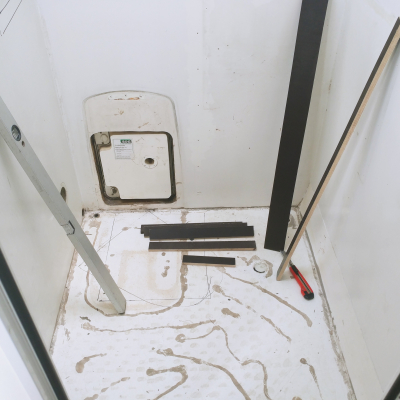

Toilet

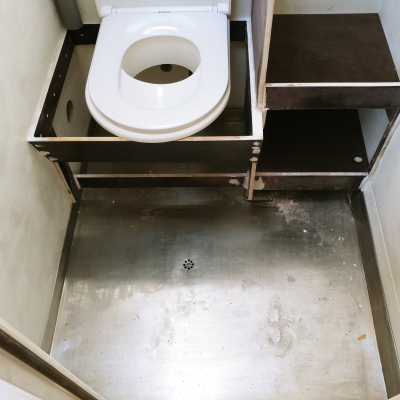

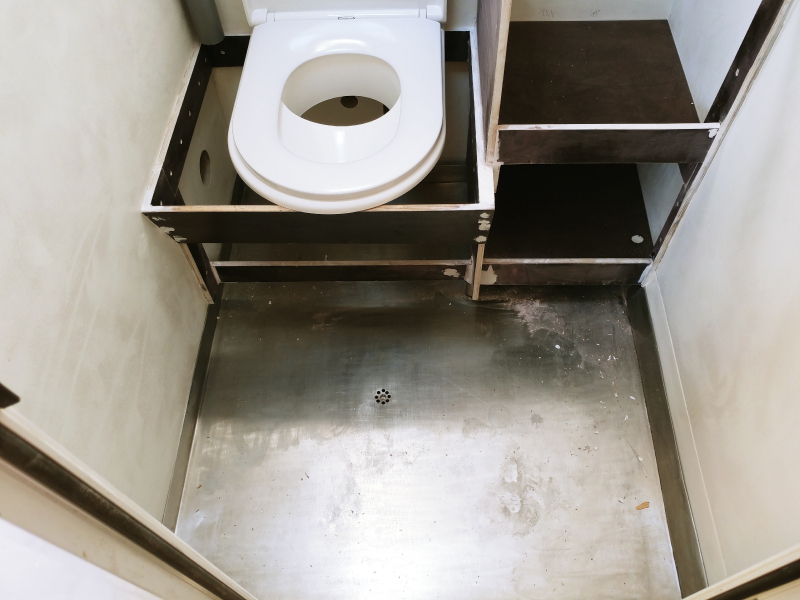

Manufacturer and type of toilet Eigenbau Trenntoilette
Capacity of black water tank 20l +20l
Other
im Umbau

Vehicle accessories

Rear carrier ja
Roof rack nein
Storage boxes 2 - hinter der Hinterachse
Outside cooking facilities nein
Awning nein
released 25.11.17
owner Hokasi
views 9536
filled out 98%
