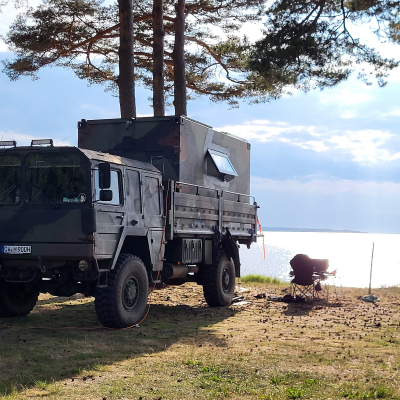

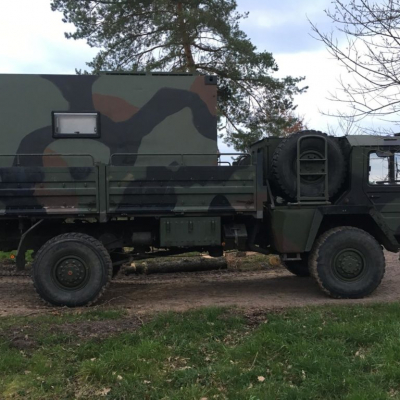

Geplant ist der Aufbau eines geländegängigen Familienwohnmobils für 2 Erwachsene und 2 Kinder. Aktuell erfolgt der Umbau des Shelters, dass er in Zukunft von 4 statt nur von 2 Personen genutzt werden kann. Daher ist dies hier work in progress. Ich versuchen den Baufortschritt auch in unregelmäßigen Abständen auch auf meinem Blog zu dokumentieren.

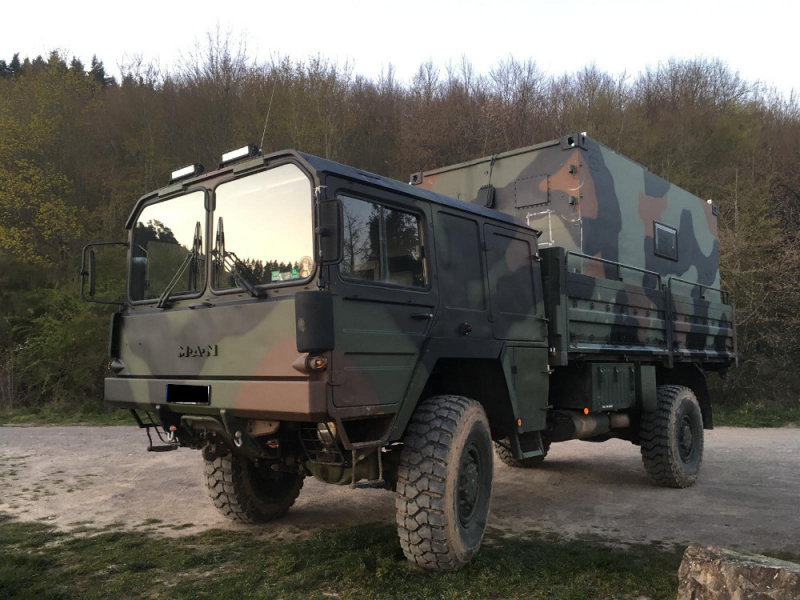

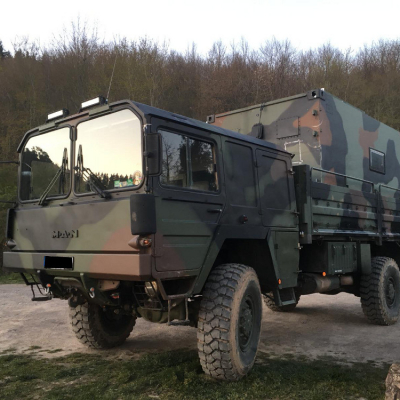

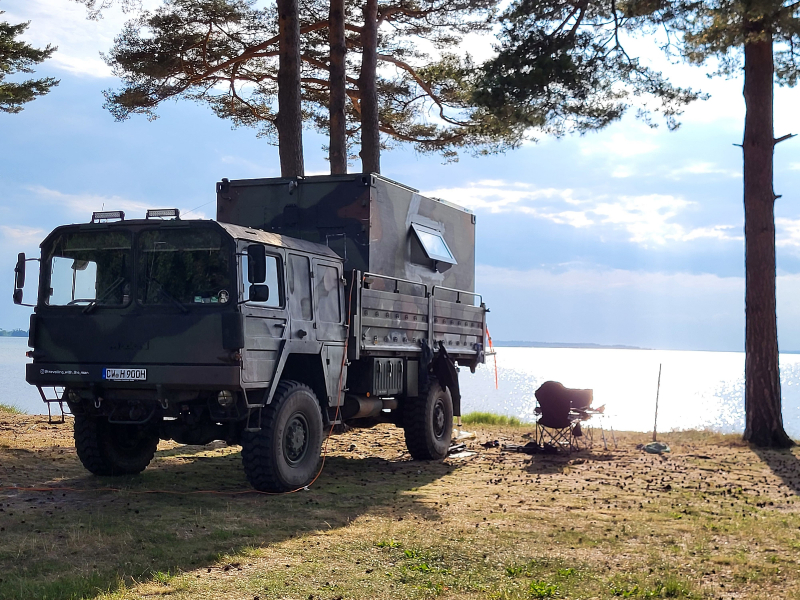

| Manufacturer and model | MAN Kat1 4x4 MIL 5 GL W |
|---|---|
| Name | Florian |
| Website | http://brikettwerfer.de |
| Year of manufacture | 1978 |
| For sale? | no |
| Engine type | Deutz F8L413 F - Luftgekühlter V8-Diesel-Direkteinspritzer |
|---|---|
| Cubic capacity | 12675 cm³ |
| Number of cylinders | 8 |
| Horsepower | 256 |
| Torque | 785 Nm |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 4.500 mm |
| Number of seats | 4 |
| Tyre size | 14R20 |
| Tank capacity | 270l |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Hinten, Mitte |

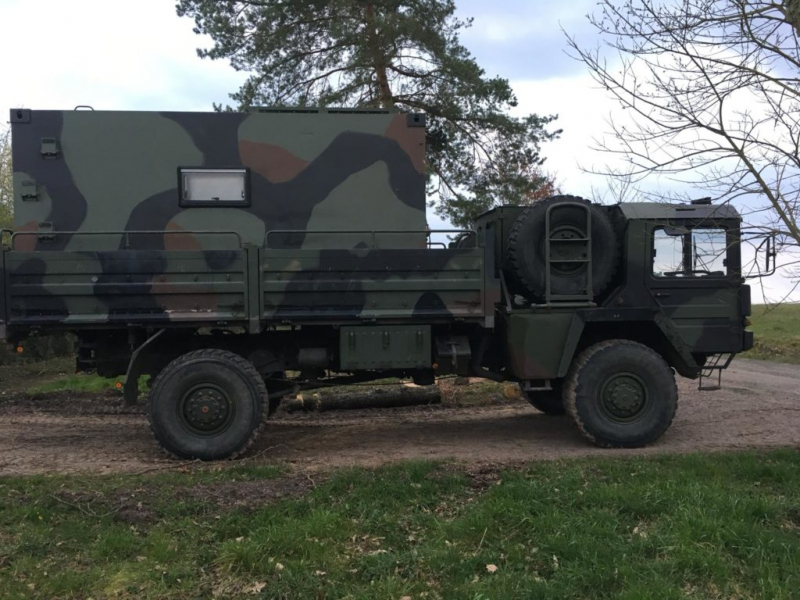

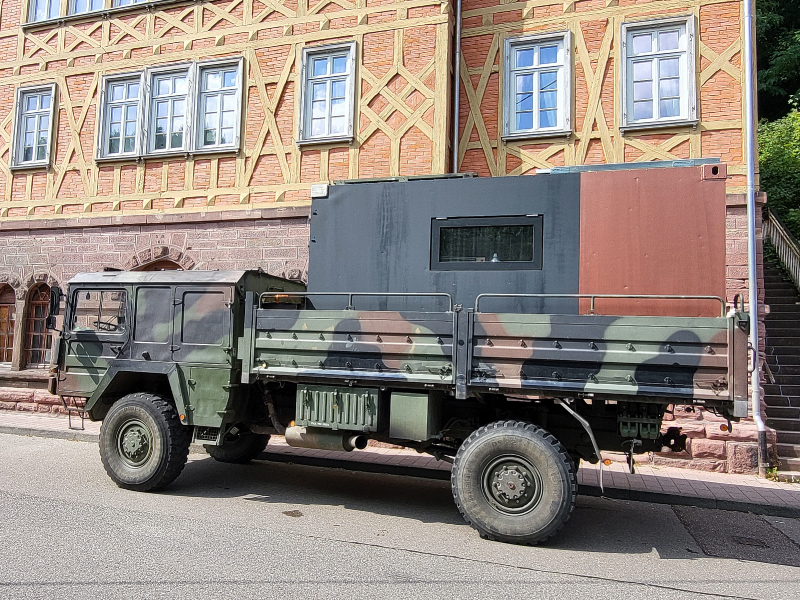

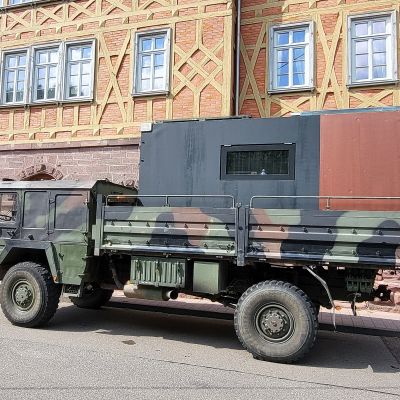

| Manufacturer of the cabin | Zeppelin FM2 Shelter |
|---|---|
| Cabin material | Alu - Dämmplatte - Alu |
| Kind and thickness of insulation | 6cm Shelter + zusätzlich 13 - 25mm Armaflex |
| Number of beds | 4. 1 Stockbett, 1 Doppelbett zum Ausziehen |
| Windows | 2 |
| Subframe | Shelter als Last auf dem original Pritsche |

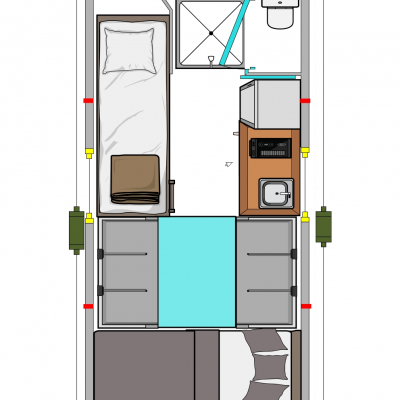

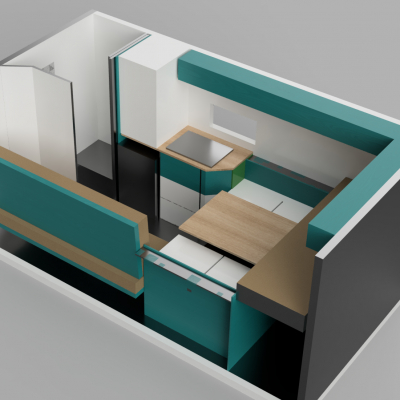

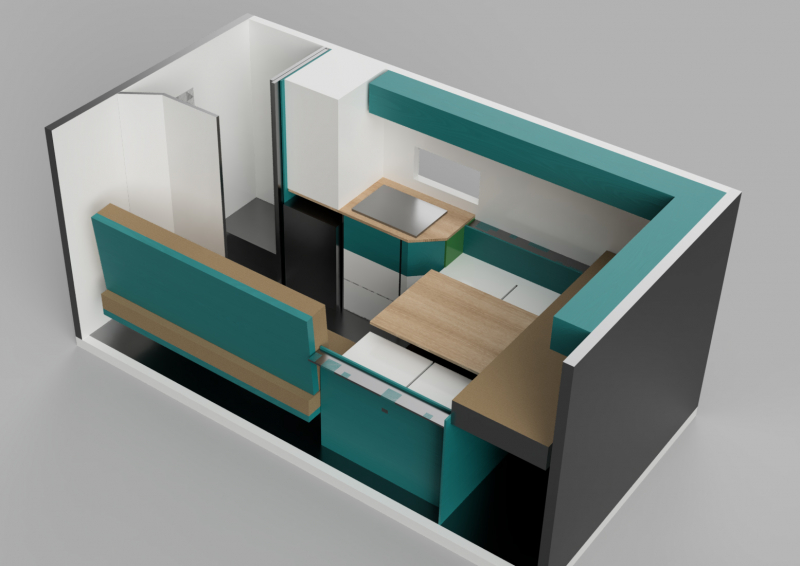

| Explanation of floor plan | |
|---|---|

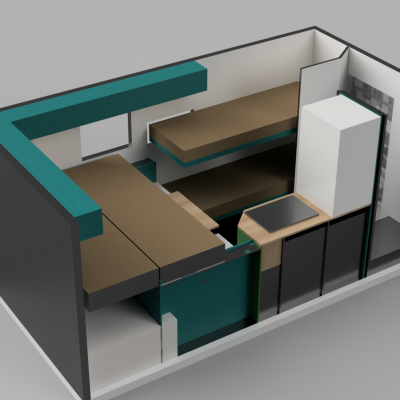

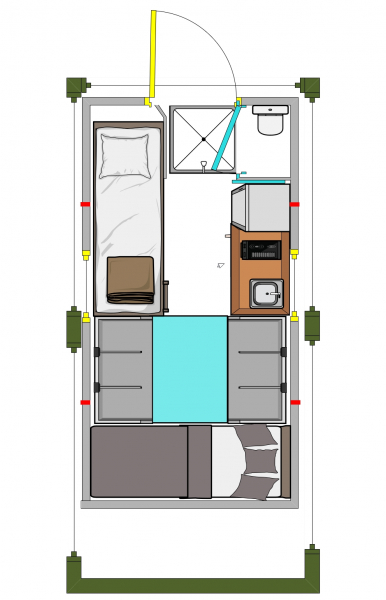

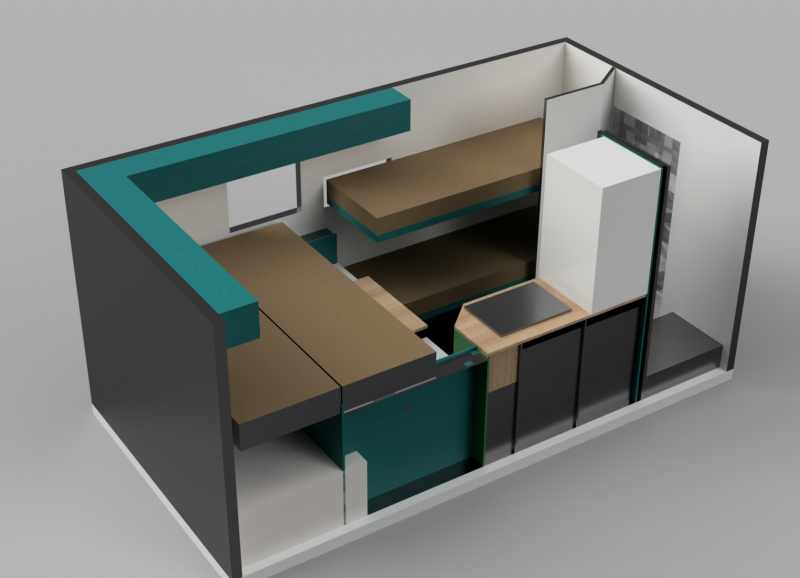

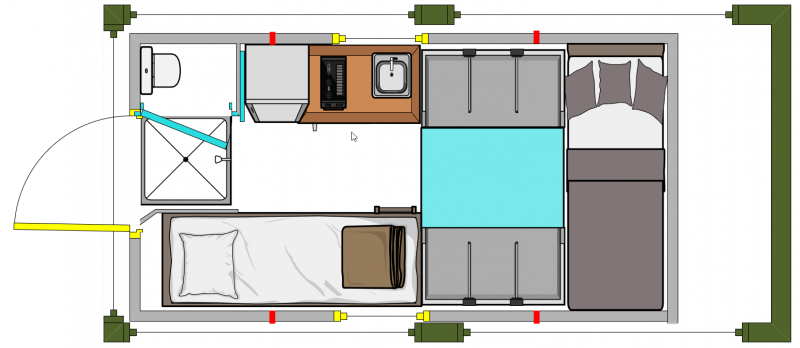

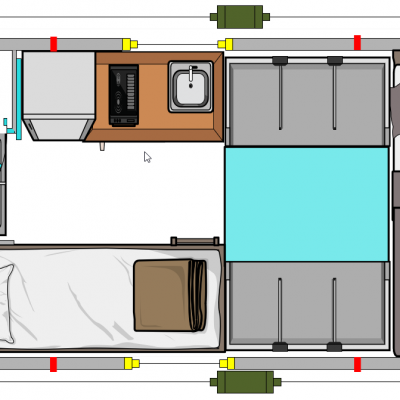

| Hauptbett 2x70x200cm wird über den Sitzplatz ausgezogen. Die anderen beiden Betten als 70x200cm Stockbett. Dusche als Schmutzschleuse im Durchgang. |
| Material of furniture | Aluprofile Nut8 30x30 + Leichtbau Holzplatten |
|---|

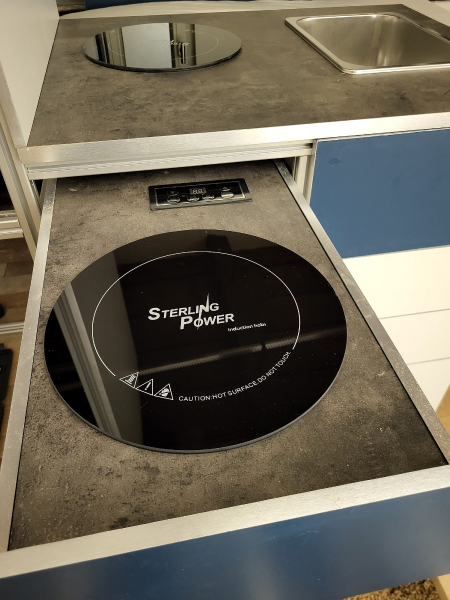

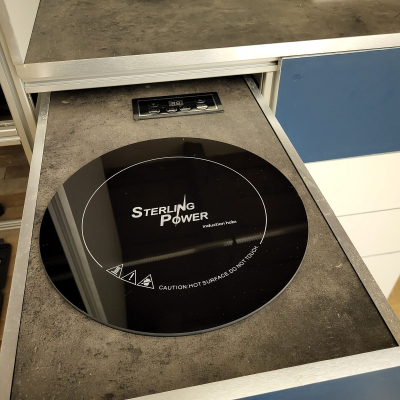

| Cooking stove | Induktion 2 x STERLING POWER 1500W |
|---|---|
| Gas installation | keine |
| Manufacturer and type of fridge / cooler | Dometic Coolmatic CRX110 |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 12,24V + 230V |
| 110V / 230V in the cabin? | yes |

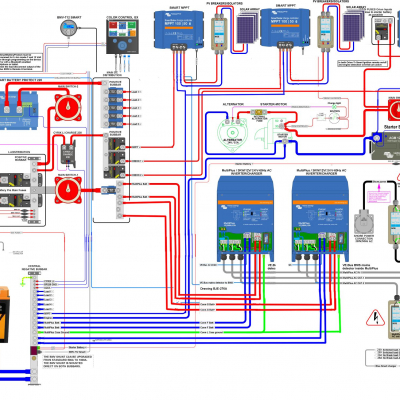

| Inverter | 2 x Victron Multiplus 24/3000/70-16 |
| Other | |
|

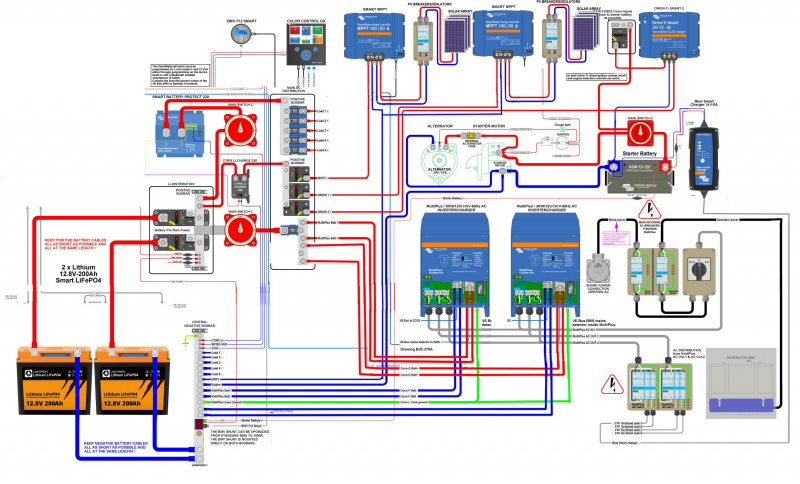

Tigerexped Zentralelektrik TEXU400 Keine Haftung für das Stromkonzept. Benutzung auf eigene Gefahr. | |
| Capacity of batteries in the cabin | 2x200Ah 24V |
|---|---|
| Battery type | LiFePo |
| Battery charger for cabin batteries | Victron Multiplus 24/3000 |
| Battery management | Daly BMS und PeKaWay System |
| Other | |
| Batterien selbst aufgebaut aus 16 CALB Zellen 200Ah | |

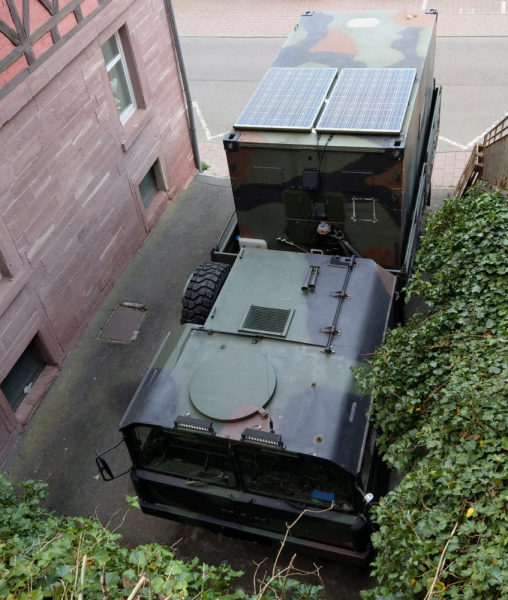

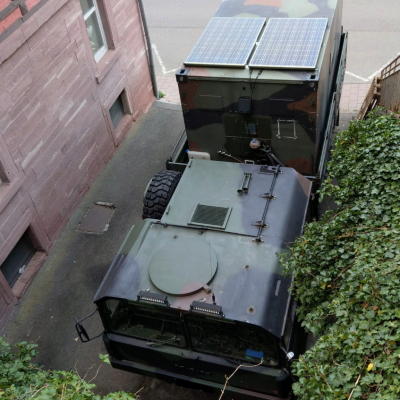

| Solar capacity | 2x240W Solarworld + 2x335W AE Solar AE335HM6-60 |
|---|---|
| Solar controller | Victron Smart Solar MPPT 100/30 + 100/20 |
| Fuel cell | no |
| Power generator | FME XG-SF 5600D Dieselgenerator 5,5kW |
| Manufacturer and type of heating system | Webasto Thermotop C Wasserheizung für Aufbau und Fahrerhaus mit einer Heizung |
|---|---|
| Warm water processing | Webasto Thermotop C |
| Other | |
| Zusätzlich Diesel Luftheizung aus China | |
| Explanation of gas system | |
|---|---|
| nicht verbaut |
| Water filtration system | WM Aquatec UV-C Klärer, Aktivkohle, Nanofilter, Grobfilter |
|---|---|
| Capacity of fresh water tank(s) | 2 x 200l |
| Manufacturer and type of toilet | Cuddy |
|---|
