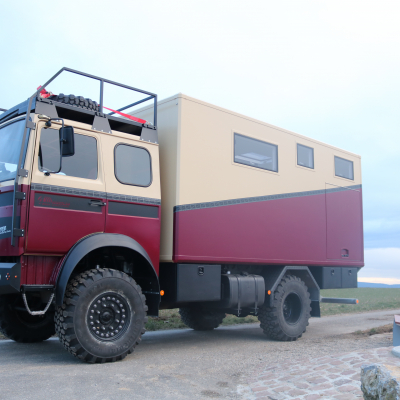

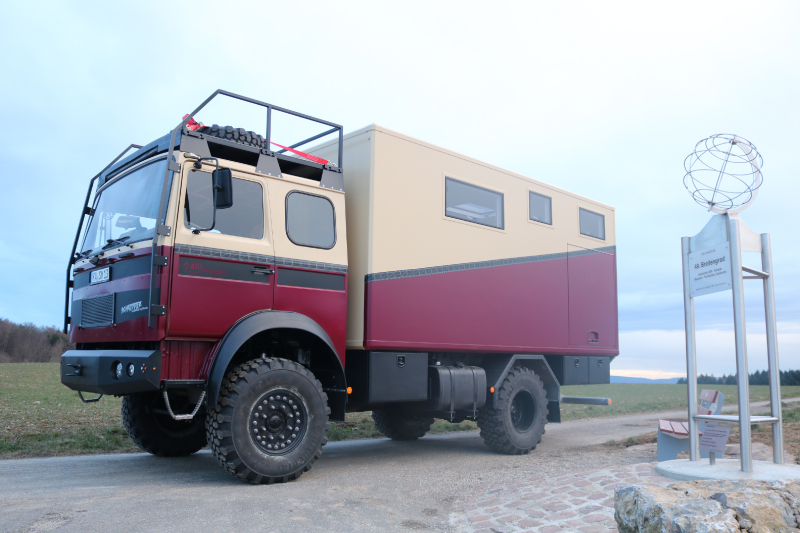

Iveco 75-19 mit Wohnkabine aus GFK und Heckgarage für Quad

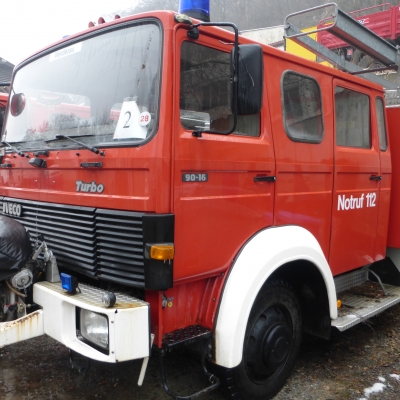

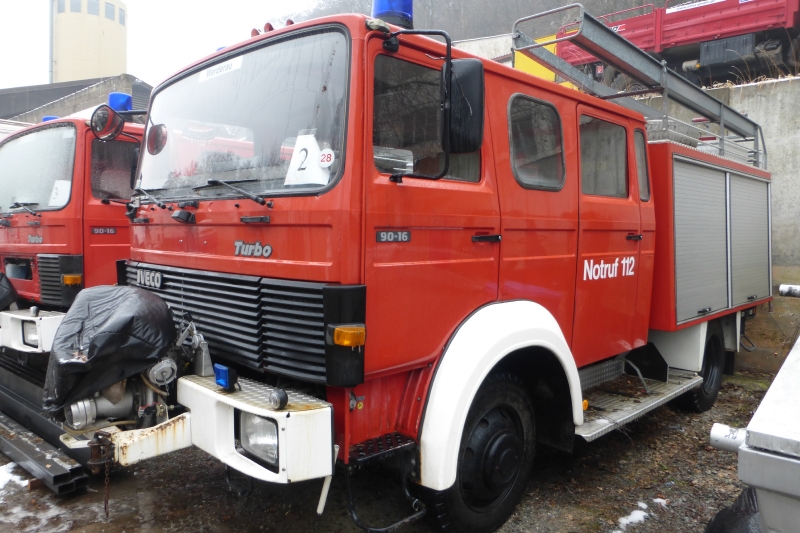

| Manufacturer and model | Iveco-Magirus 75-20 (Basis: Iveco-Magirus 90-16 AW Turbo) |
|---|---|
| Name | Michael Blömeke |
| Website | http://workandtravel20.de/ http://outdoorgpsnavigation.info |
| Year of manufacture | 1988 |
| For sale? | no |
| Engine type | Sechszylinder-Viertakt-Reihendieselmotor mit Turbolader |
|---|---|
| Cubic capacity | 6128 cm3 |
| Number of cylinders | 6 |
| Horsepower | 160 |
| Torque | 557 Nm bei 1600 min |
| Other | |
| wird noch aufgehübscht bei 4Wheel24 | |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3500 mm |
| Number of seats | 4 |
| Tyre size | 365/80 R20 |
| Rim size | Hutchinson |
| Tank capacity | 600l |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Hinten und mitte |
| Manufacturer of the cabin | 4Wheel24 |
|---|---|
| Inner dimensions (LxWxH) | 2,35 x 4,7 m |
| Outer dimensions (LxWxH) | 2,45 x 4,8 m |
| Cabin material | GFK Sandwich |
| Kind and thickness of insulation | 60 mm |
| Number of beds | 2 bis 5 |
| Windows | Outbound |
| Subframe | 4wheel24 |
| Other | |

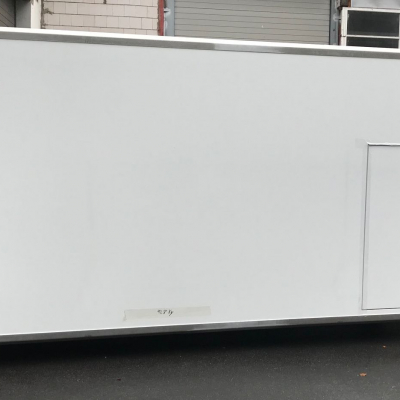

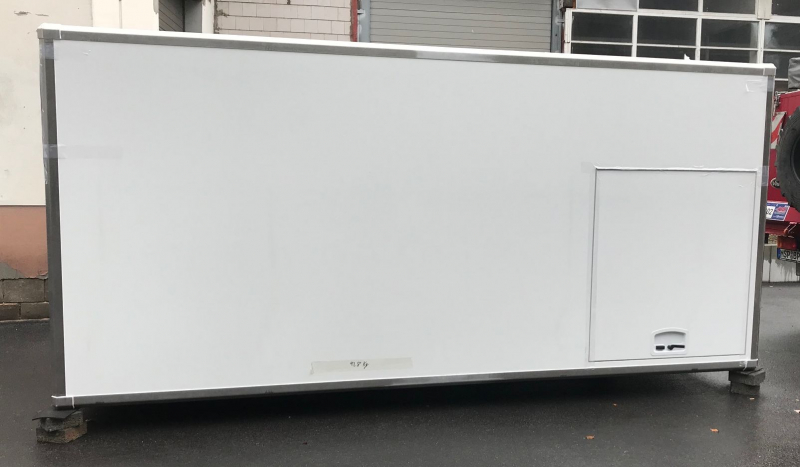

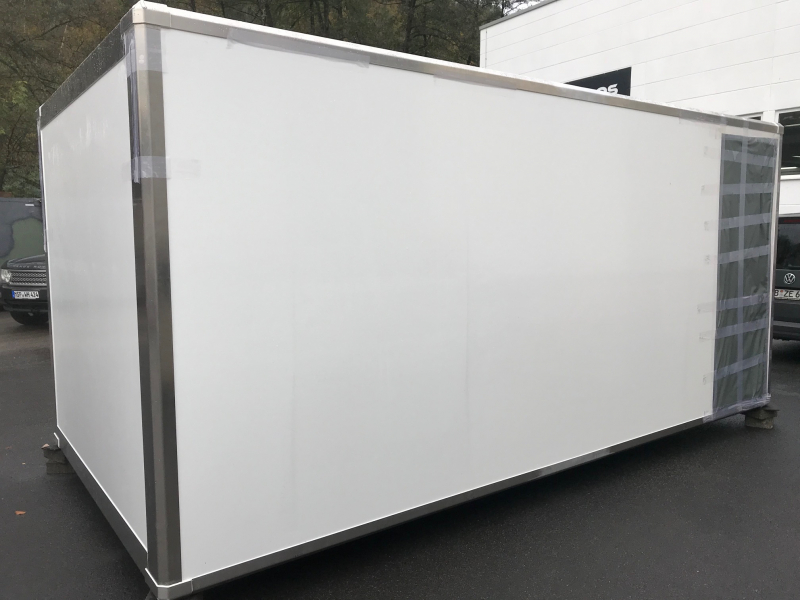

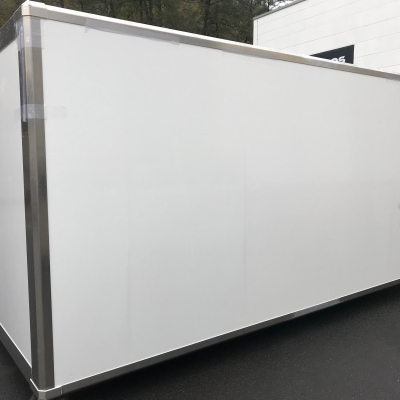

| 24.10.17: Mein Koffer steht auf dem Werkstatt-Hof bei 4Wheel24 :-) | |

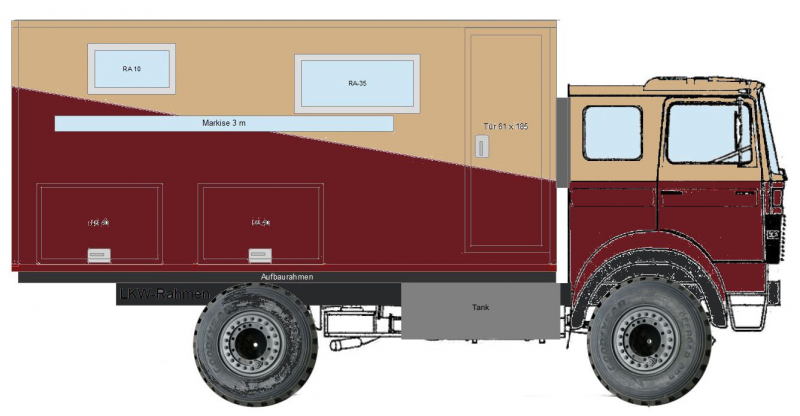

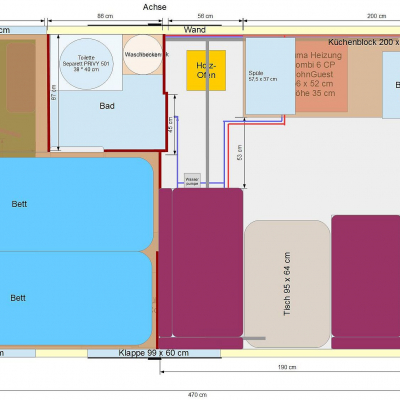

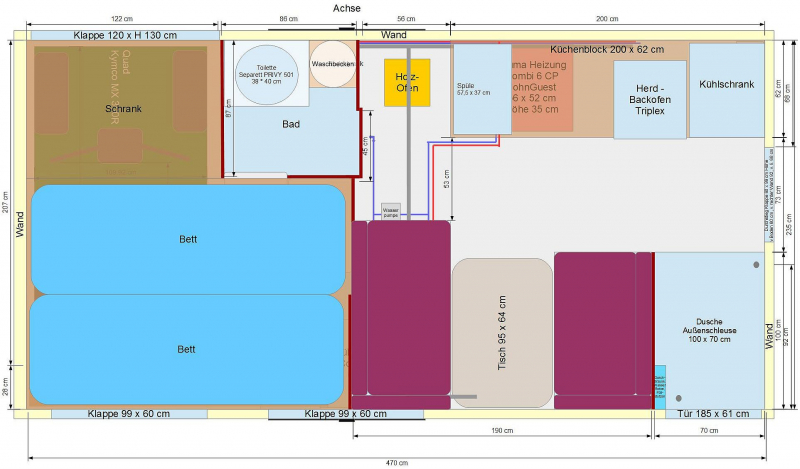

| Explanation of floor plan | |
|---|---|
| Heckgarage mit Quad, Heizung Gas und Holzofen, Eingang ist Wetterschleuse und Dusche. Doppelter Boden mit Tanks und Installation im Boden. Winterfester Ausbau geplant. |
| Cooking stove | Kocher, Backofen und Grill 'Triplex' - 36 Liter Volumen |
|---|---|
| Gas installation | Eigenbau |
| Voltage in the chassis | 24 V |
|---|---|
| Voltage in the cabin | 24 V |
| Charging converter 24V-12V | B2B Ladebooster Victron |
| 110V / 230V in the cabin? | yes |
| Inverter | Victron EasySolar 24/1600/40 macht 230 V 1600 W |
| Other | |
| Ca. 600 W Solar geplant | |
| Capacity of batteries in the cabin | min 150 AH |
|---|
| Manufacturer and type of heating system | Holzofen Cubic Mini Stove und Planar Standheizung |
|---|---|
| Warm water processing | Elgena |
| Cab heating | Serie + Ebespächer Standheizung |
| Manufacturer and type of toilet | Separette Bausatz Eigenbau |
|---|---|
| Capacity of black water tank | 10l |
| Rear carrier | Fahrradträger |
|---|---|
| Roof rack | Alu-Dachträger mit Tropendachfunktion |
| Storage boxes | mal sehen |
| Outside cooking facilities | geplant |
| Awning | Markise Omnistor 5200 3,0m |
