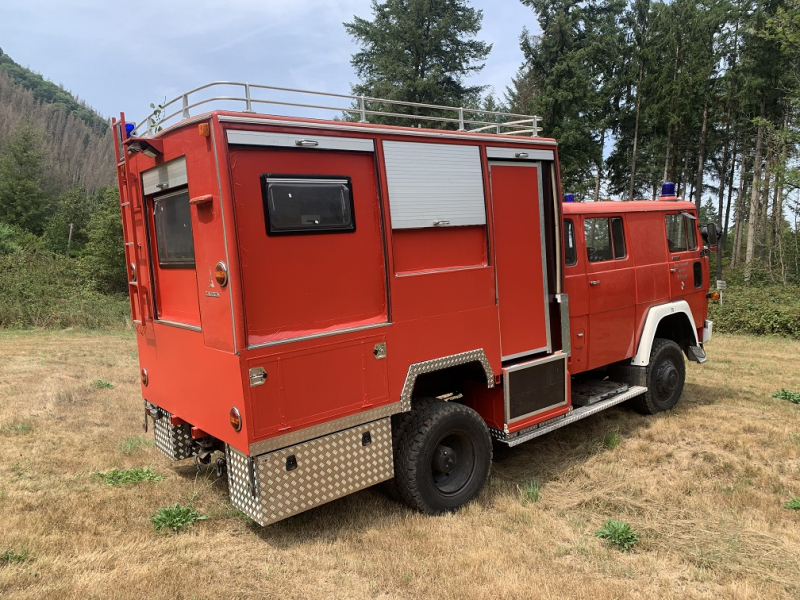

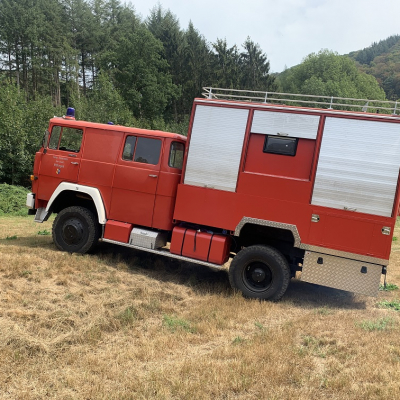

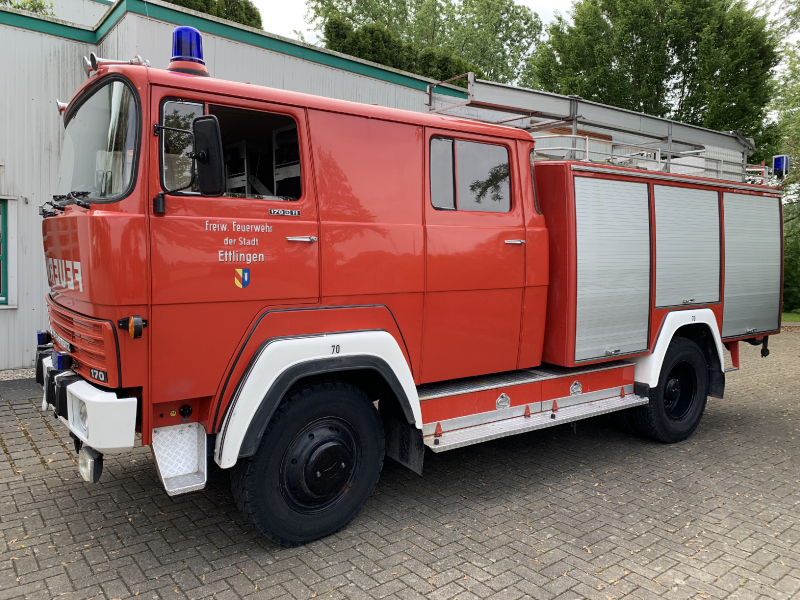

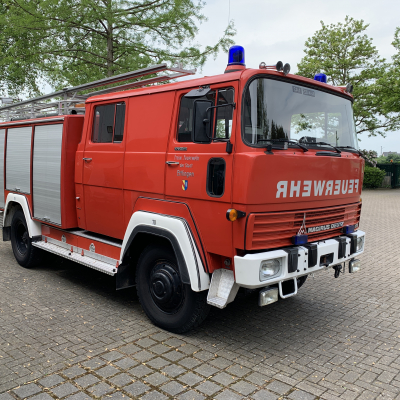

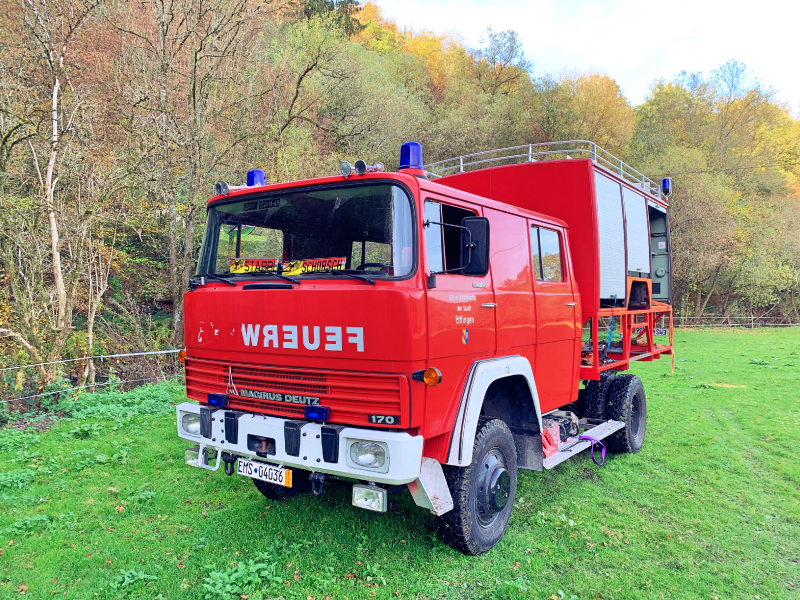

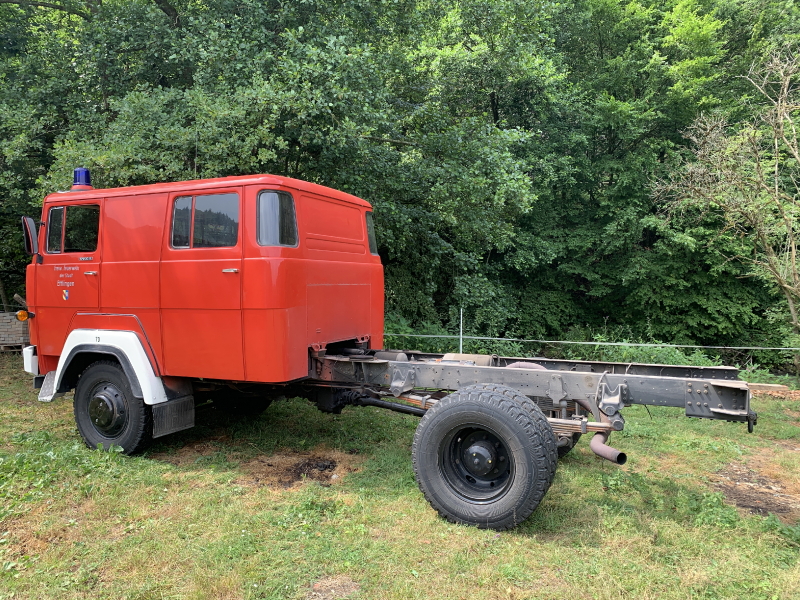

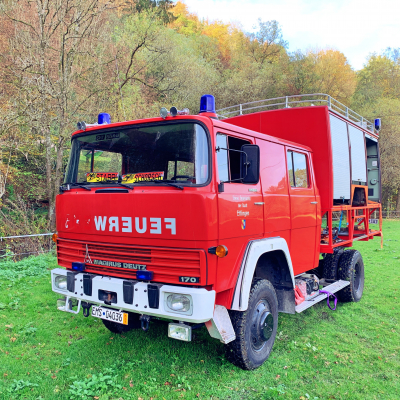

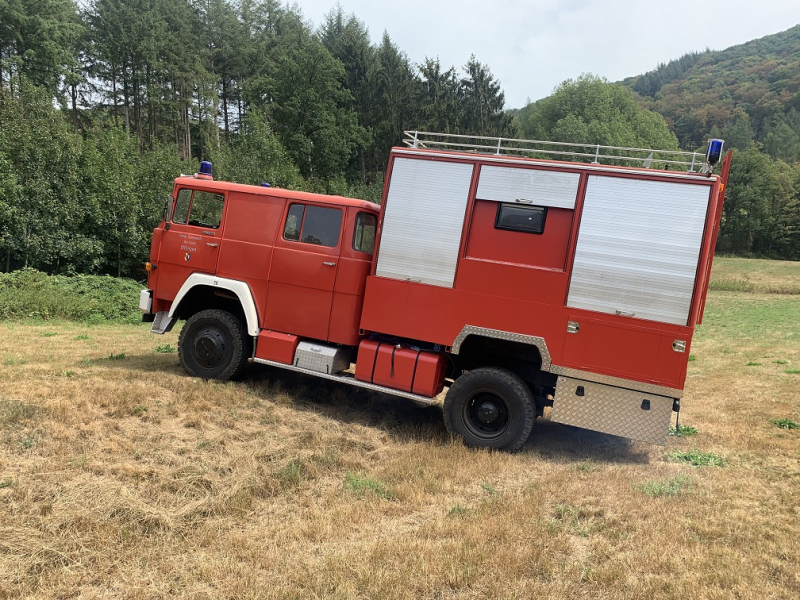

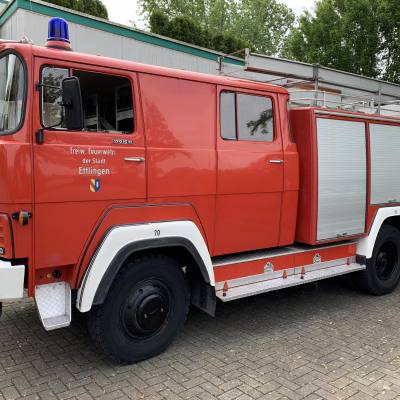

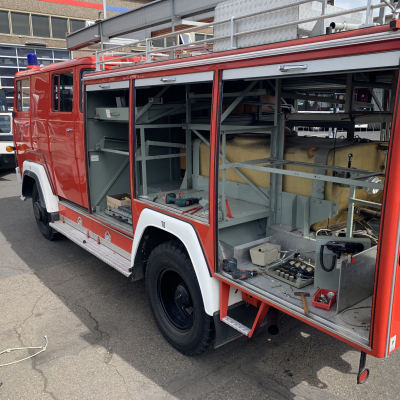

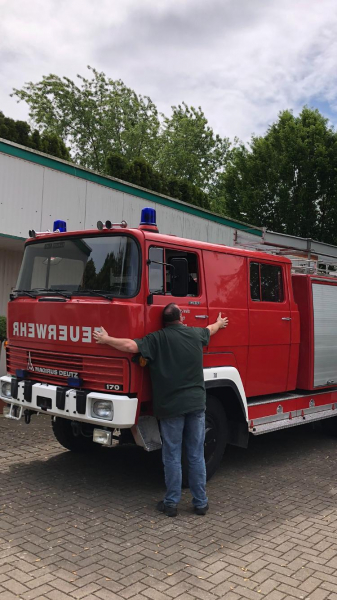

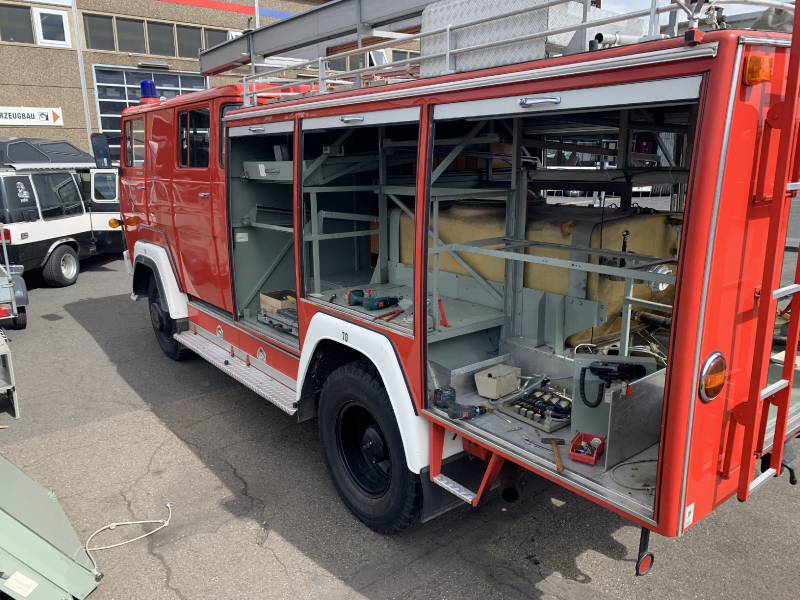

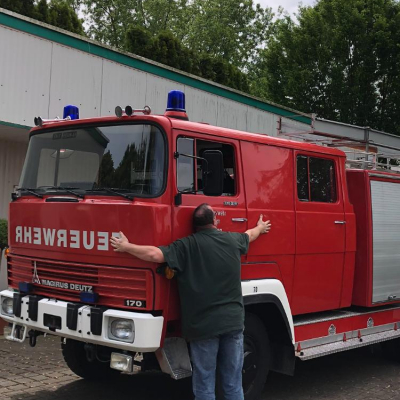

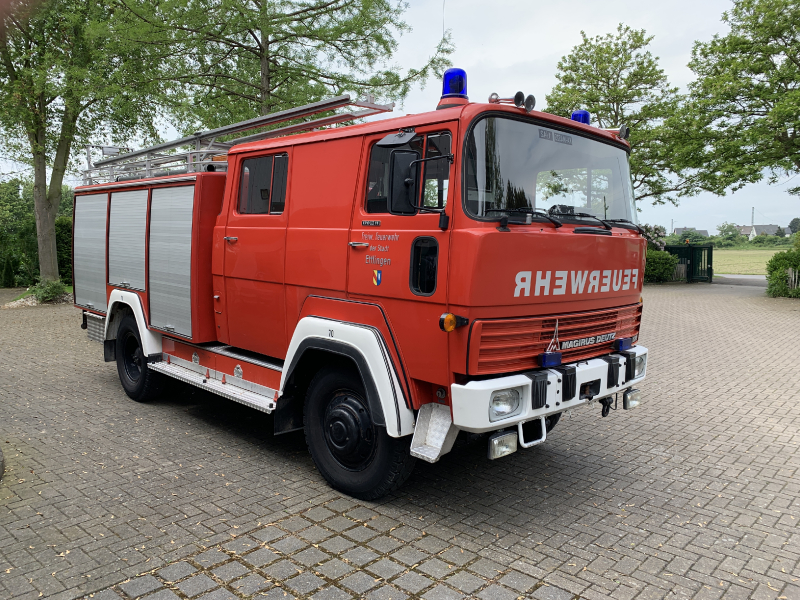

Wir haben den Entschluss gefasst uns einen alten Magirus Deutz 170D11 zu unserm Traum umzubauen.
| Manufacturer and model | Magirus Deutz 170D11 |
|---|---|
| Name | Sylvia Stabbert & David Schuh |
| Country | Deutschland |
| Year of manufacture | 1976 |
| For sale? | no |

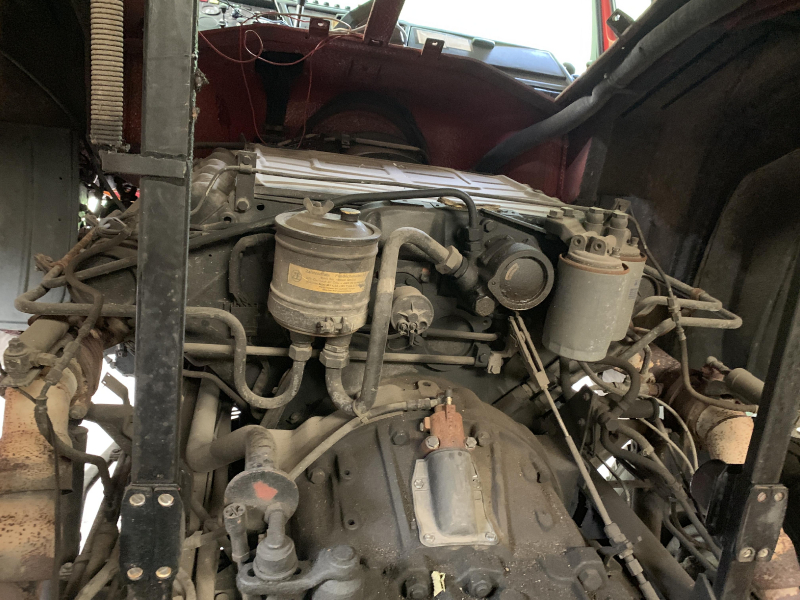

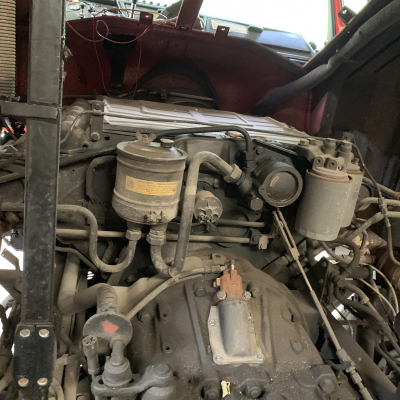

| Engine type | F6413 V |
|---|---|
| Cubic capacity | 8482 |
| Number of cylinders | 6 |
| Horsepower | 179 |
| Torque | 535 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|

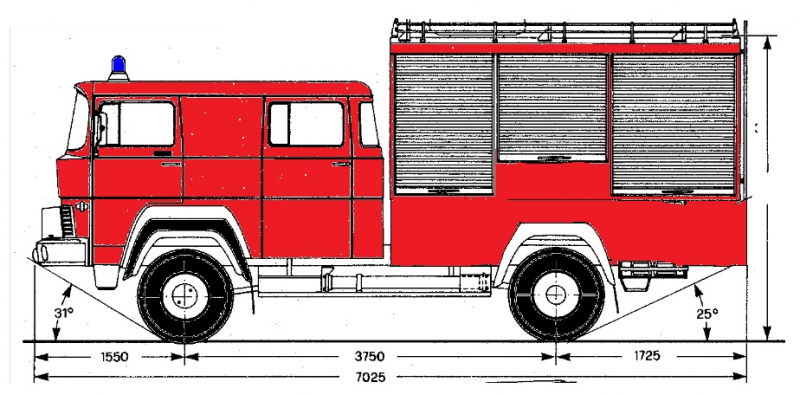

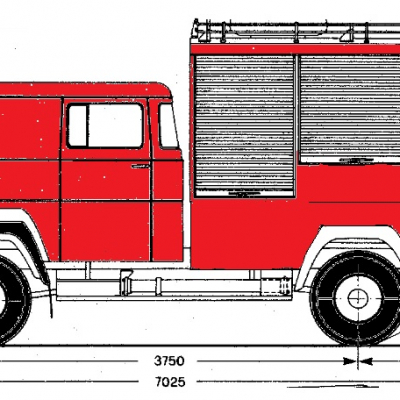

| Wheel base | 3750 mm |
| Number of seats | noch 9 |
| Tyre size | noch 9.00 x 20 |
| Rim size | Stahl |
| Type of tyre | Glaube Schlauchreifen |
| Tank capacity | noch 110 l |
| Diesel filter | yes |
| Other | |

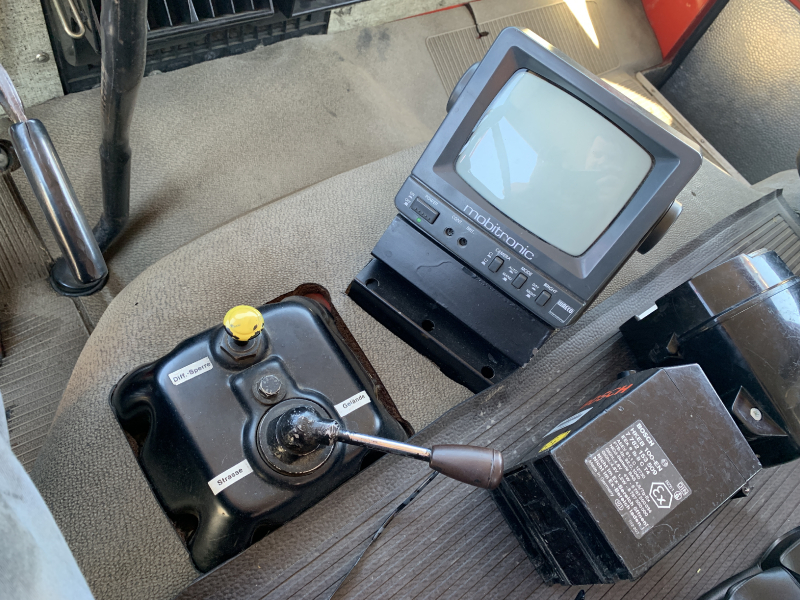

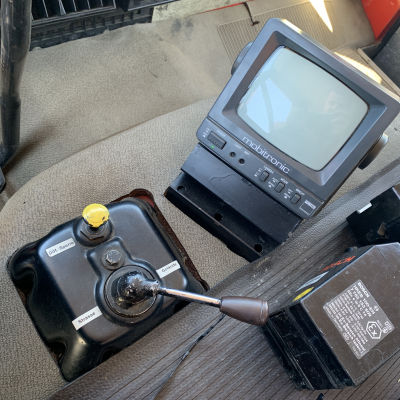

| Diesel-Standheizung, Geländegang, Rückfahrkamera | |
| Permanent or manually selectable 4-wheel drive | Permanter Allradantrieb |
| Diff locks | Hinterachse |
| Manufacturer of the cabin | Magirus |
|---|---|
| Inner dimensions (LxWxH) | noch zu messen |
| Outer dimensions (LxWxH) | 3,60 x 2,50 x 2,00 |
| Cabin material | Stahl |
| Kind and thickness of insulation | PU, Styrodur und Armaflex |
| Number of beds | wird 2 haben |

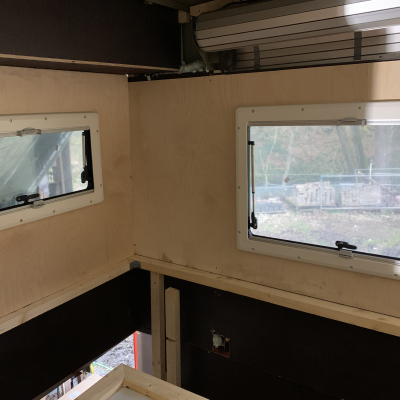

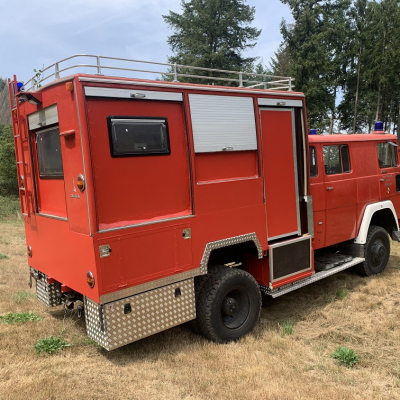

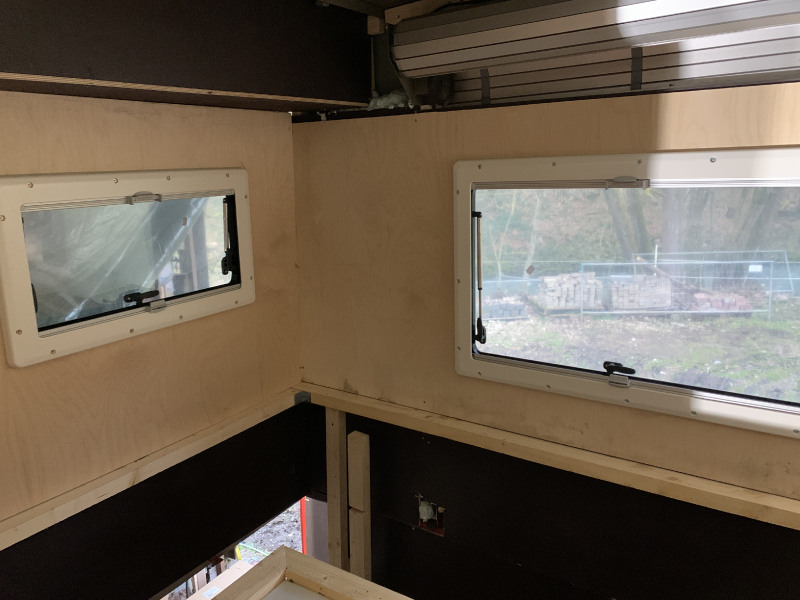

| Windows | 3 Stück Seitz S4 |

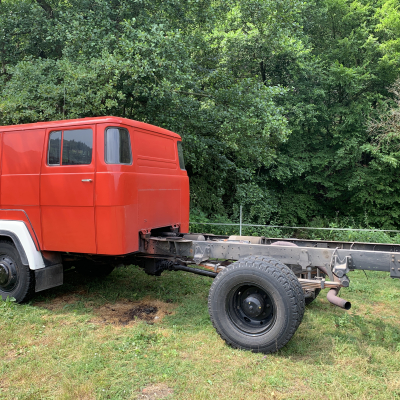

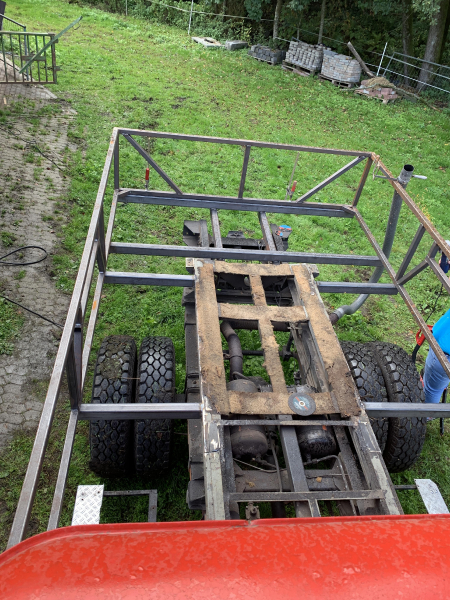

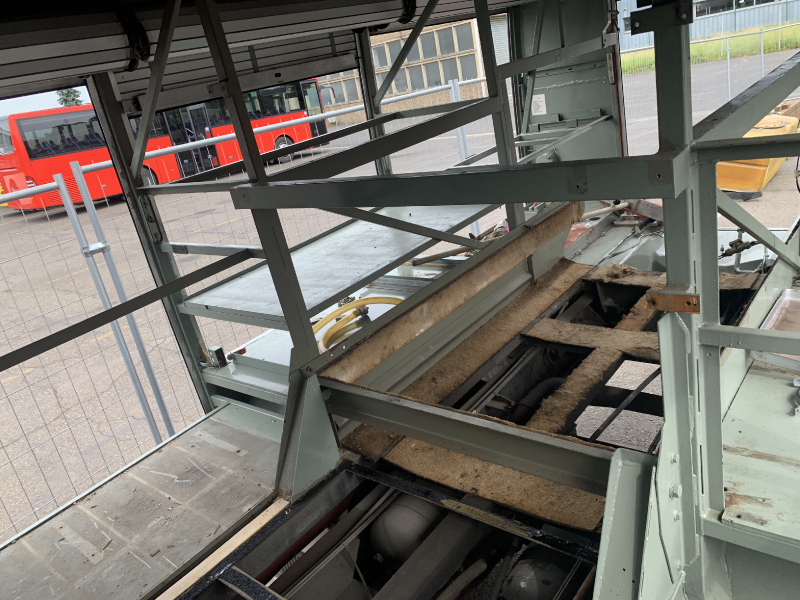

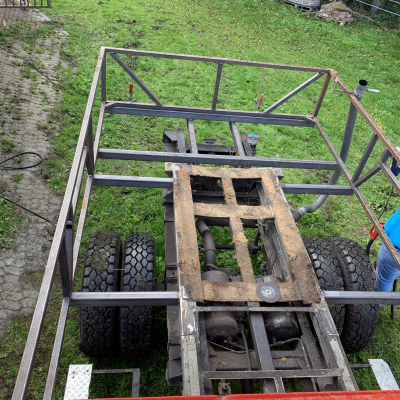

| Subframe | Magirus |
| Other | |

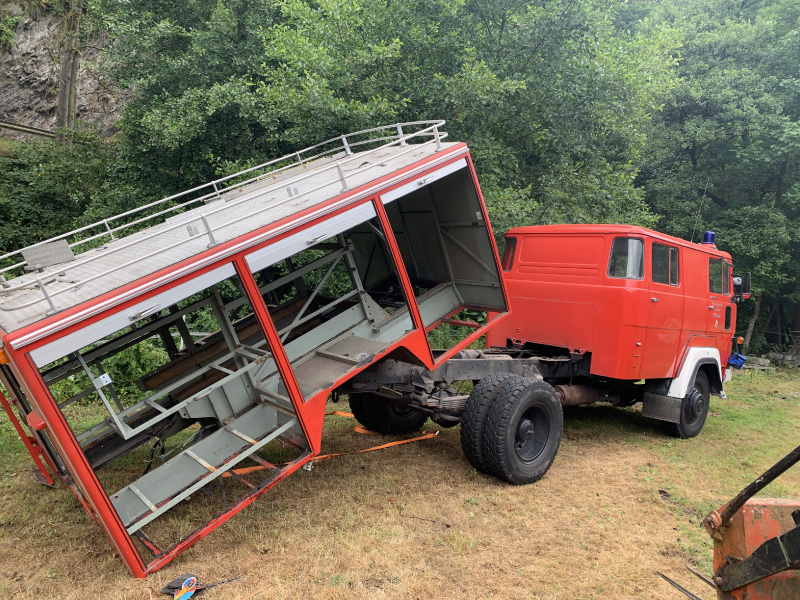

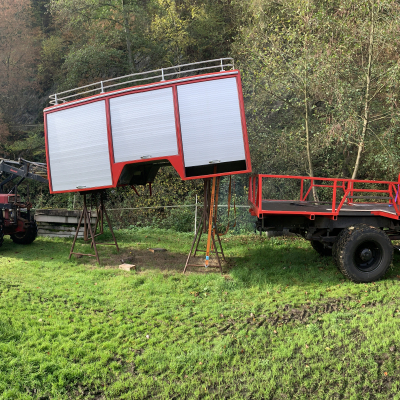

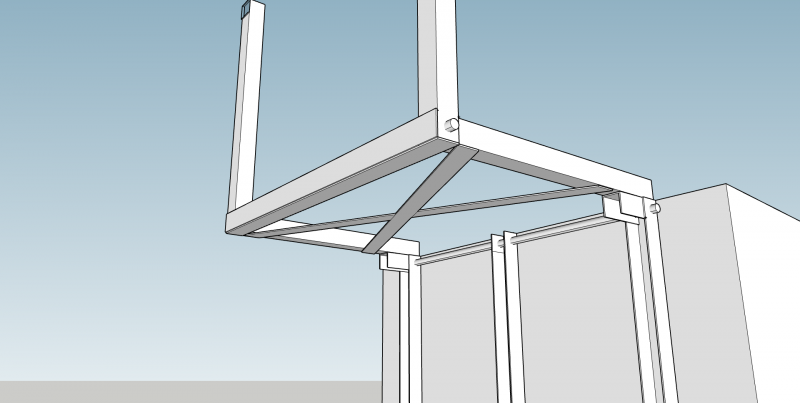

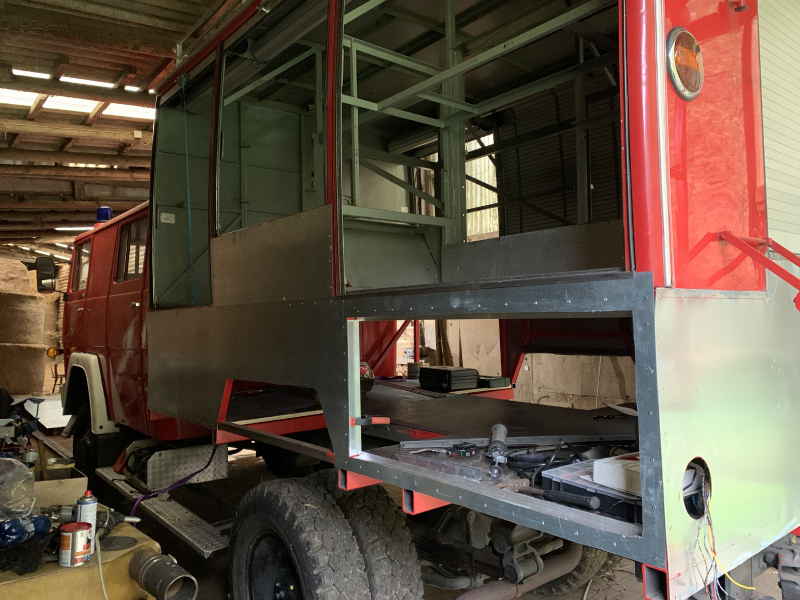

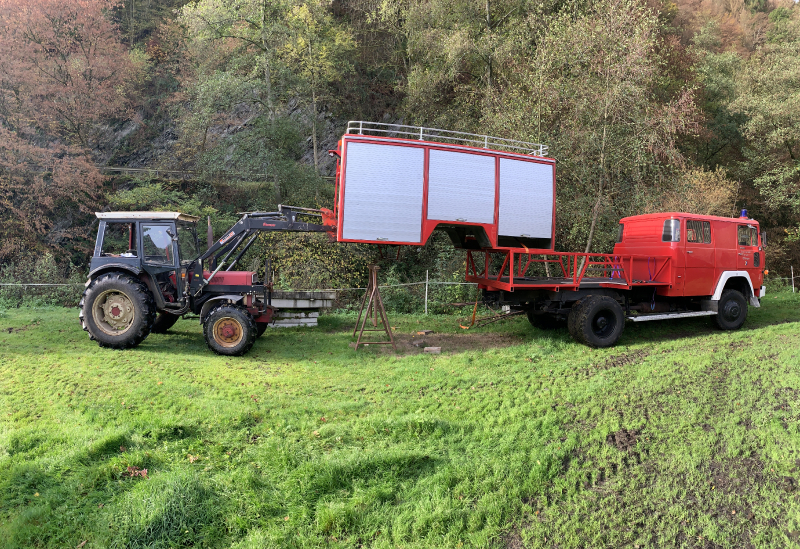

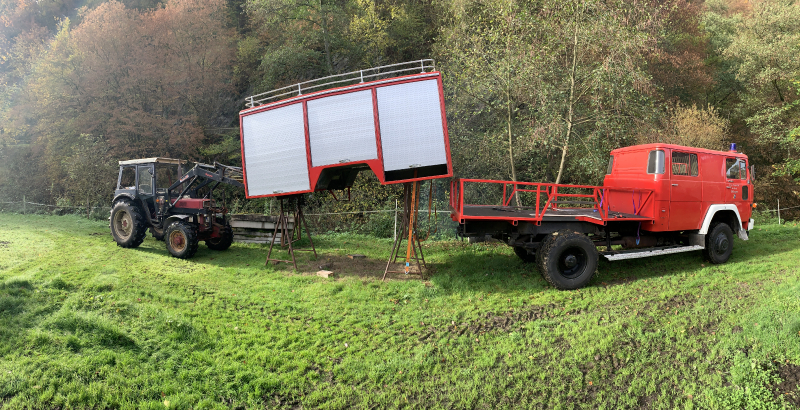

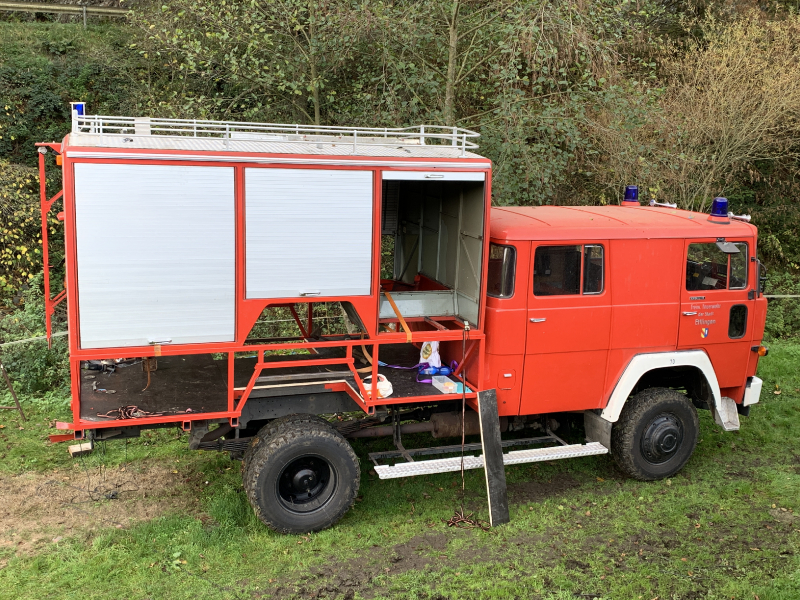

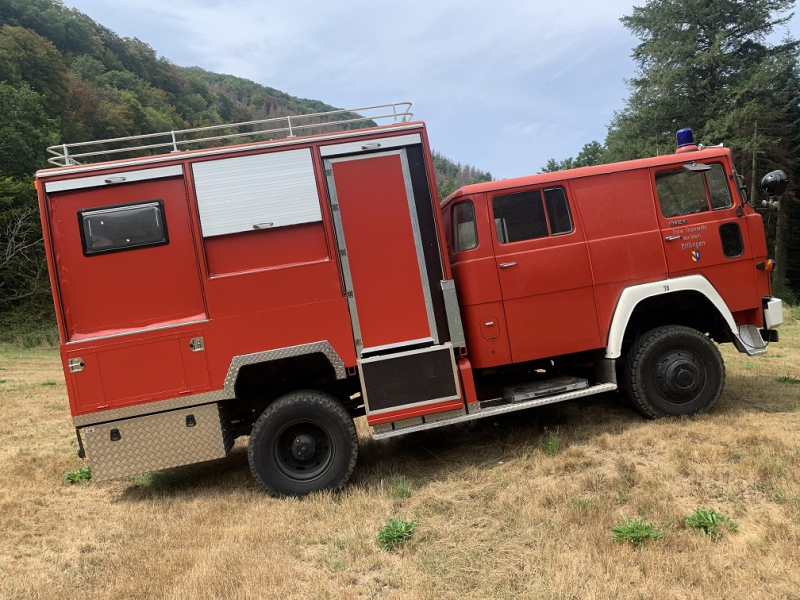

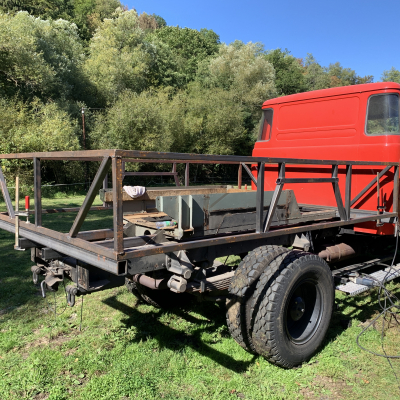

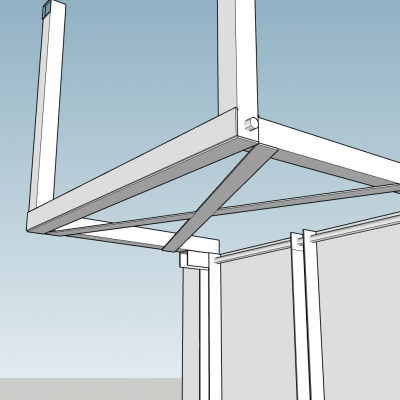

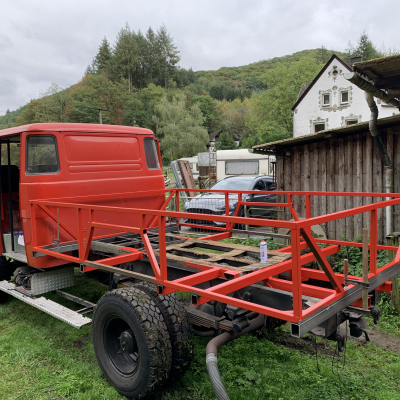

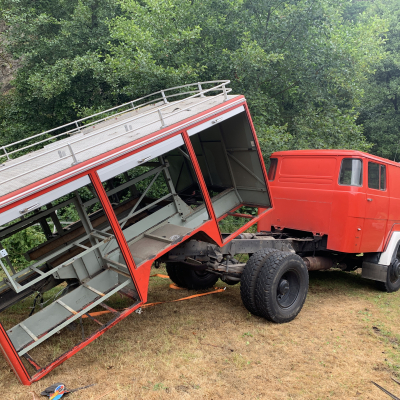

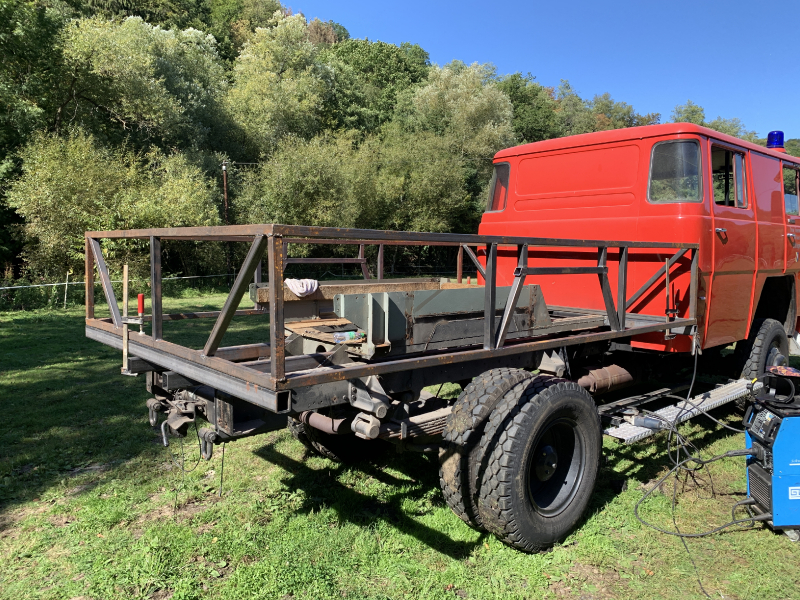

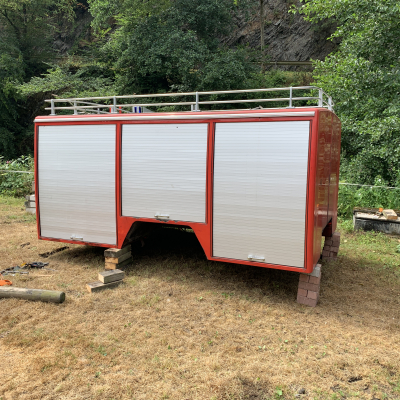

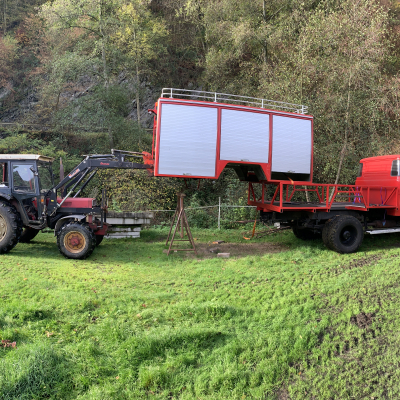

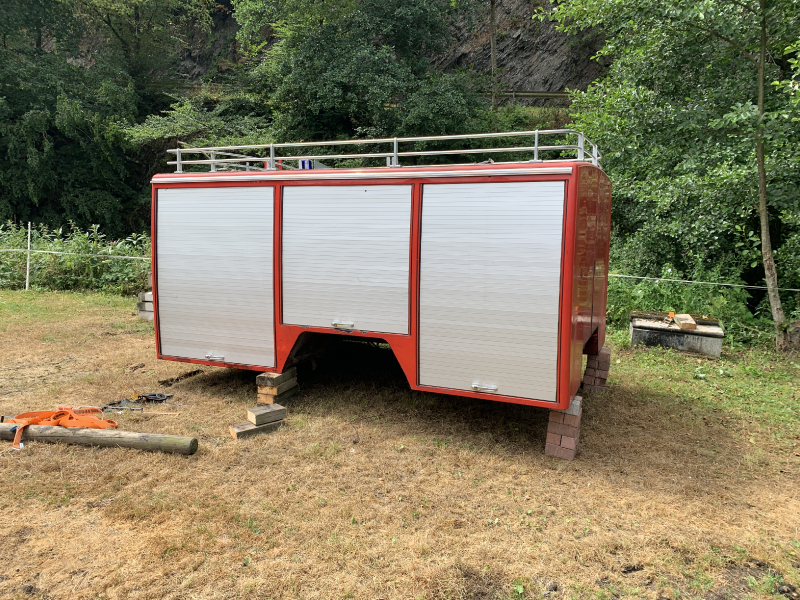

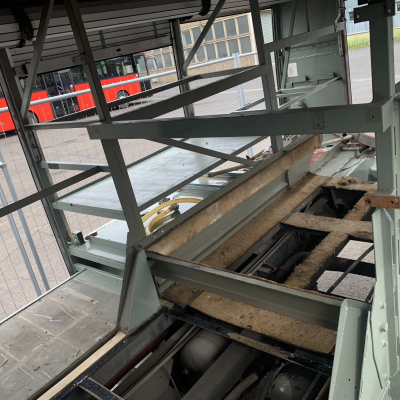

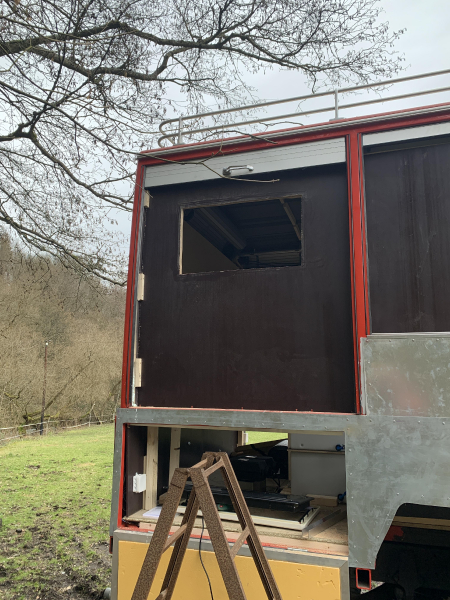

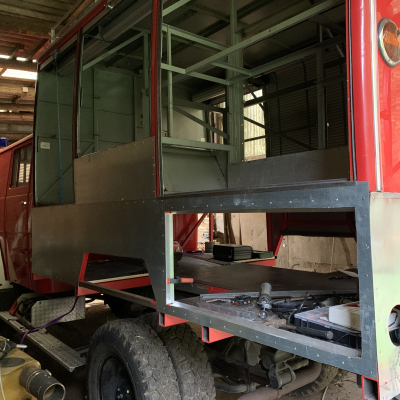

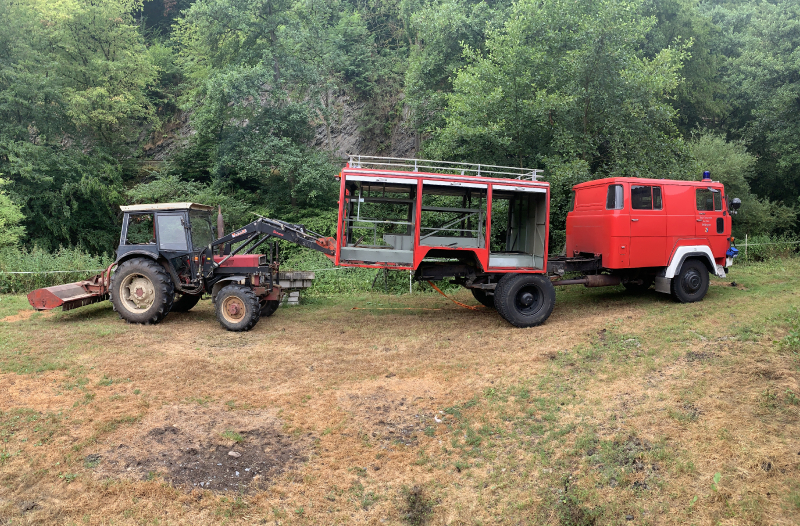

| Der Aufbau soll erhalten bleiben und "nur" erhöht werden unten das Stehhöhe erreicht wird. Die Rollläden sollen zum Schutz und der Optik erhalten bleiben. | |

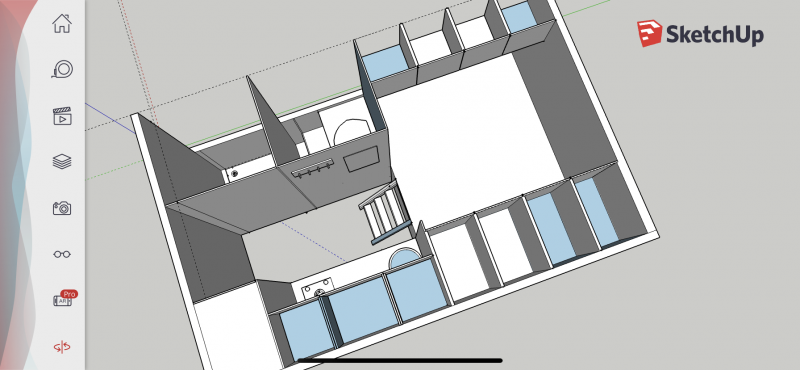

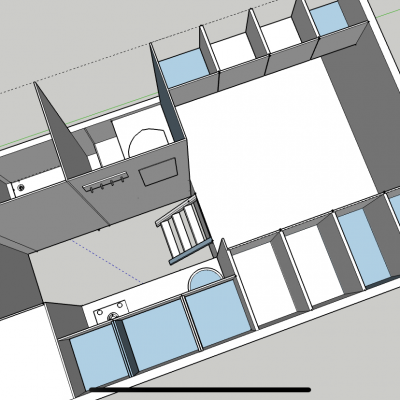

| Explanation of floor plan | |
|---|---|

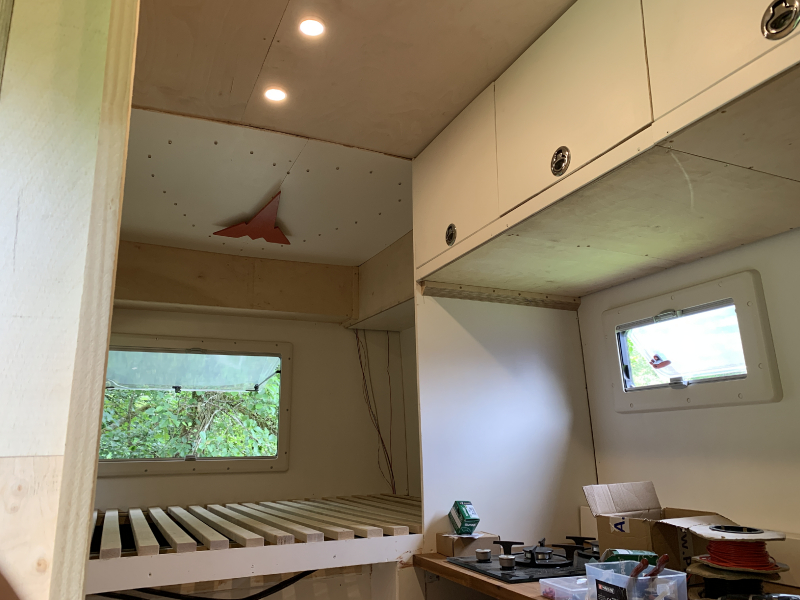

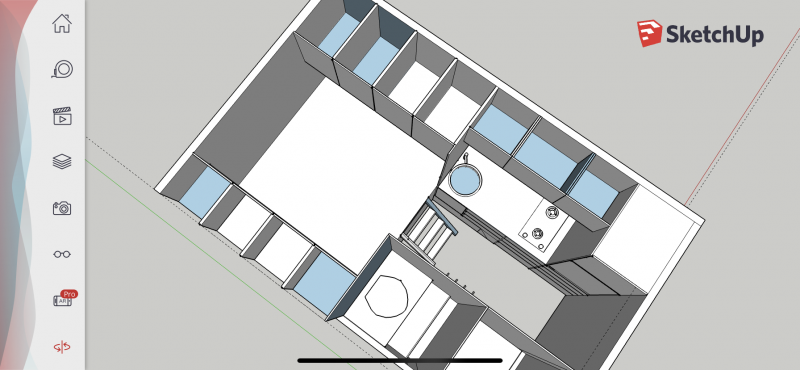

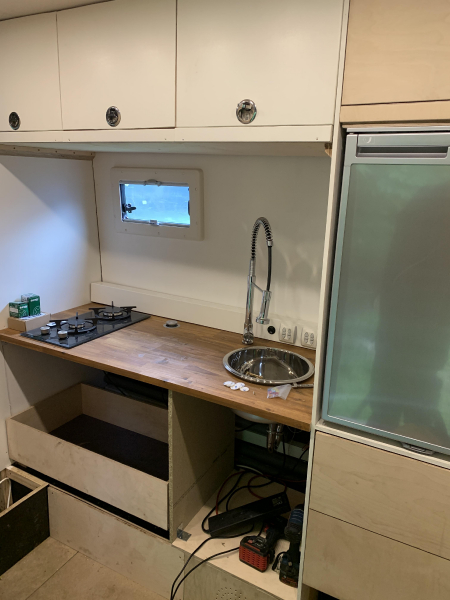

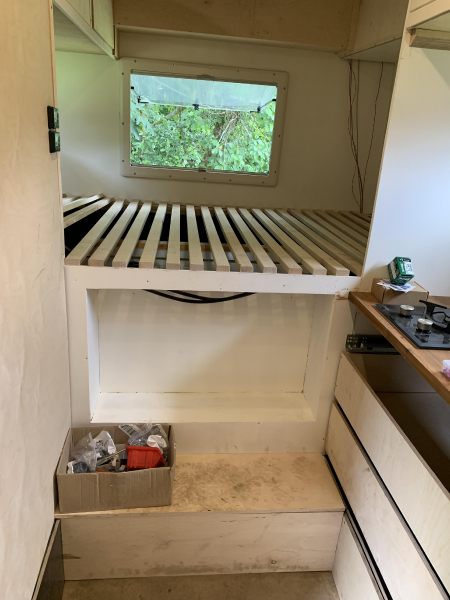

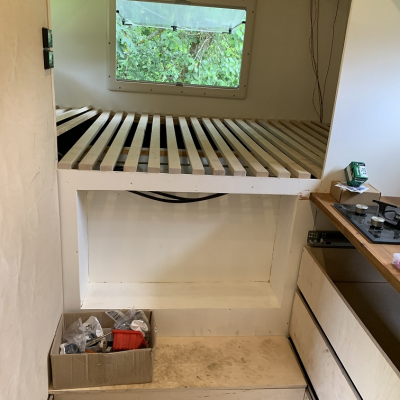

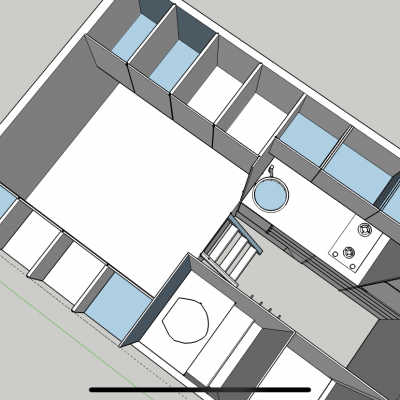

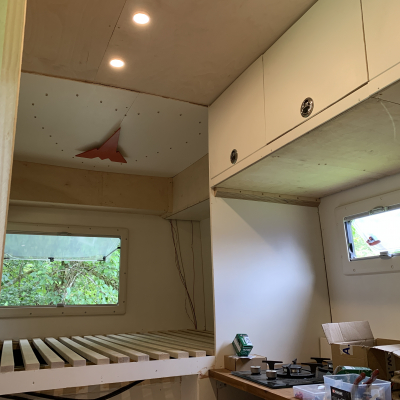

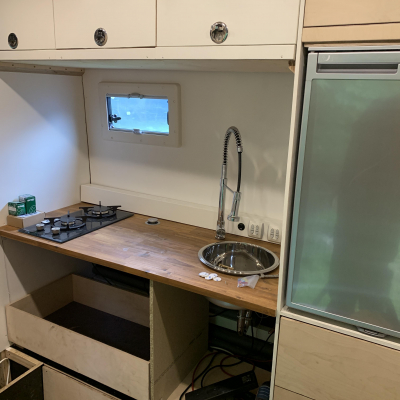

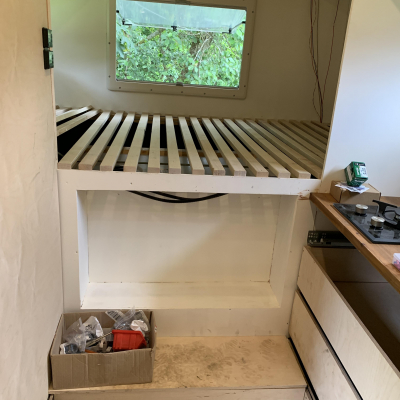

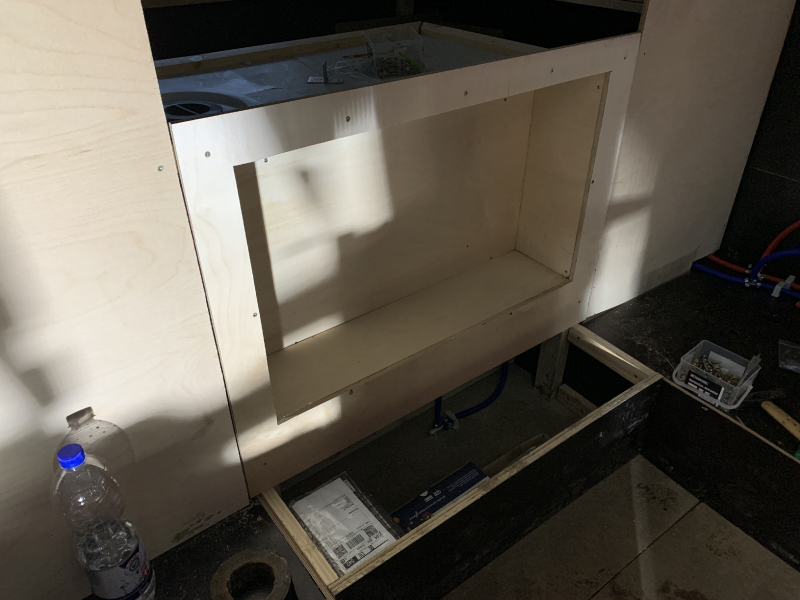

| Das Bett wird 140x215 m, eine Trenntoilette, im Eingang die Dusche und eine Küche. Sitzecke ist im Fahrerhaus |

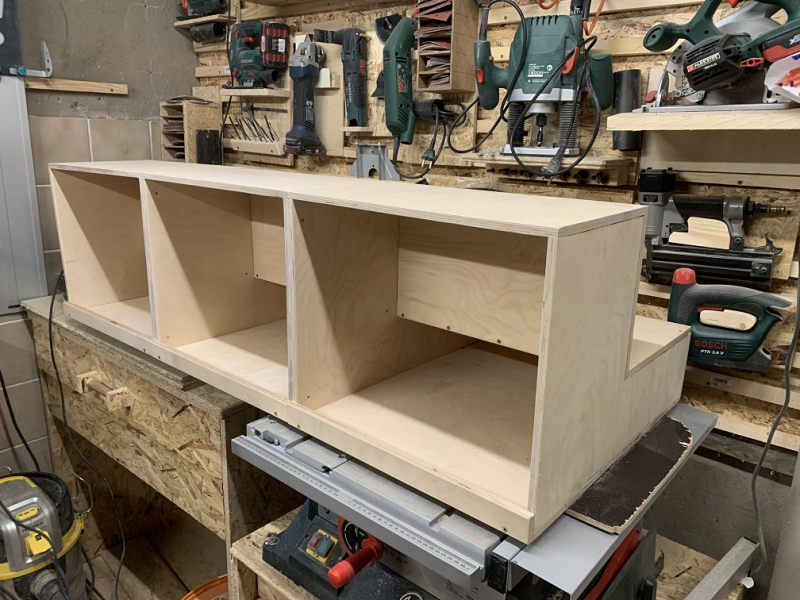

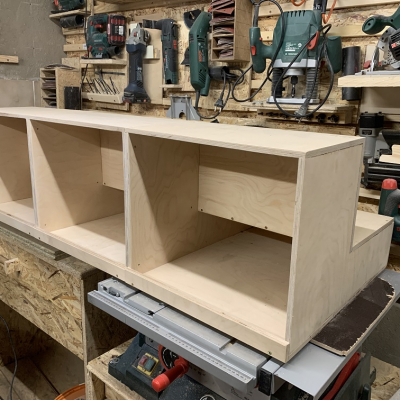

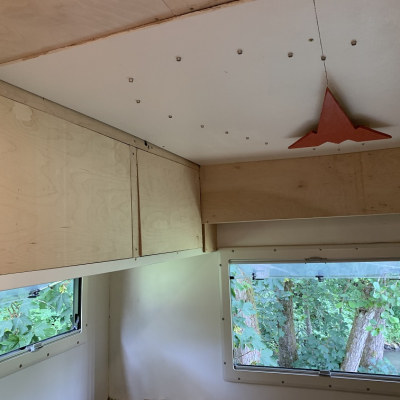

| Material of furniture | Holz |
|---|---|
| Other | |

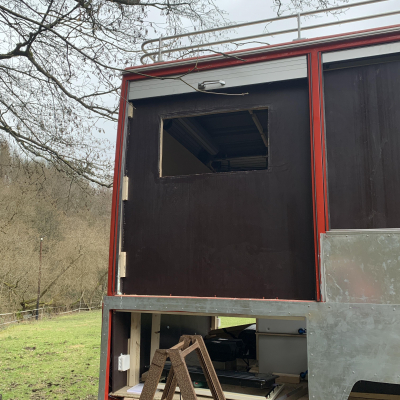

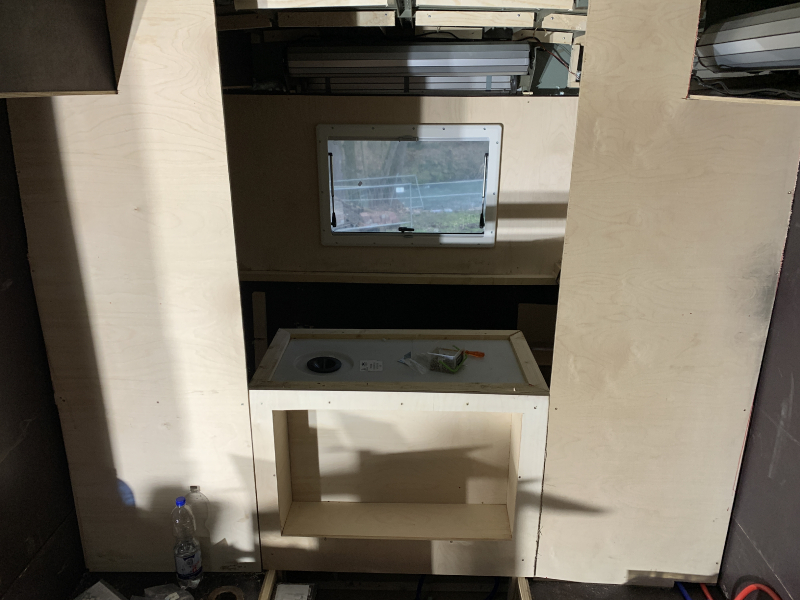

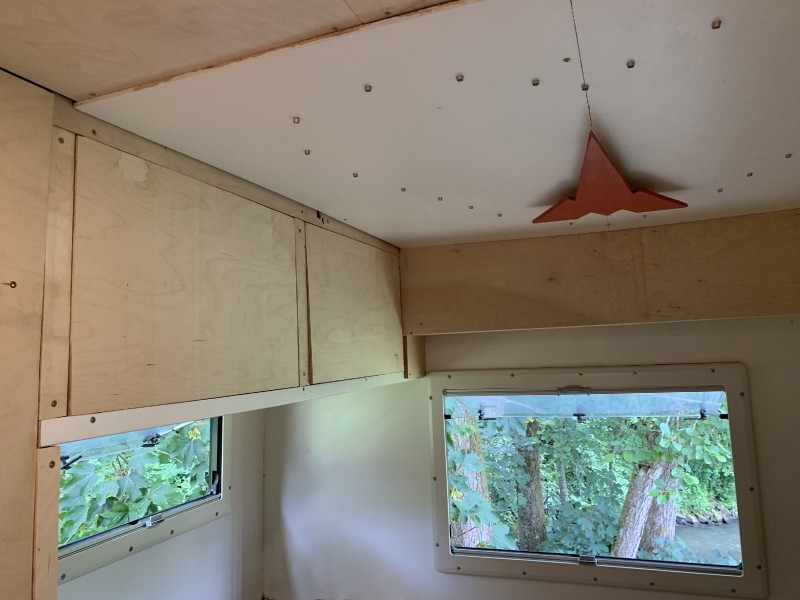

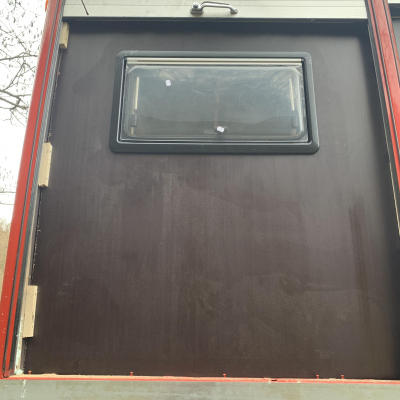

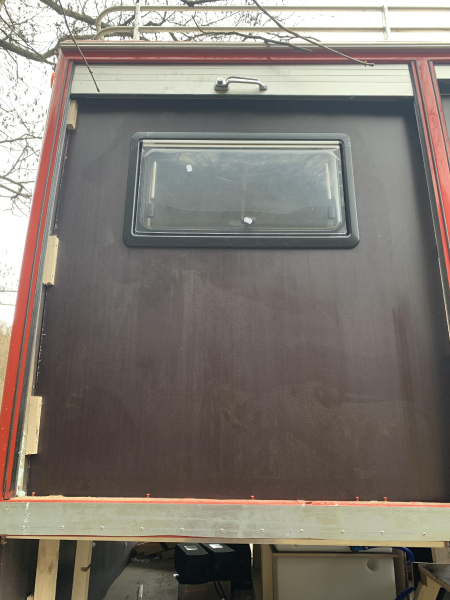

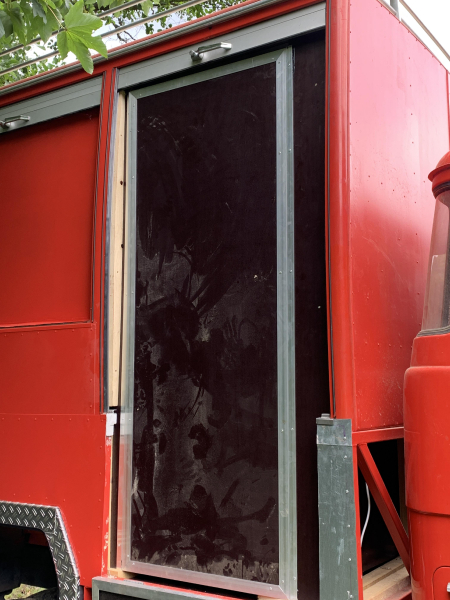

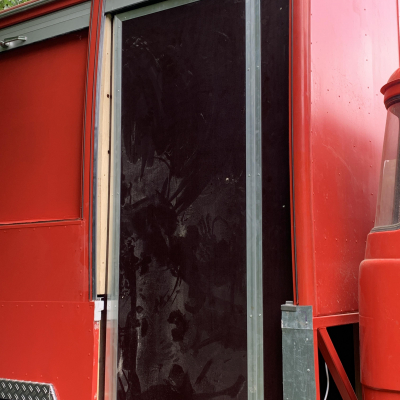

| Äüßere Verkleidung ist 9 mm Siebdruck, innen 12 mm Birke Multiplex. | |

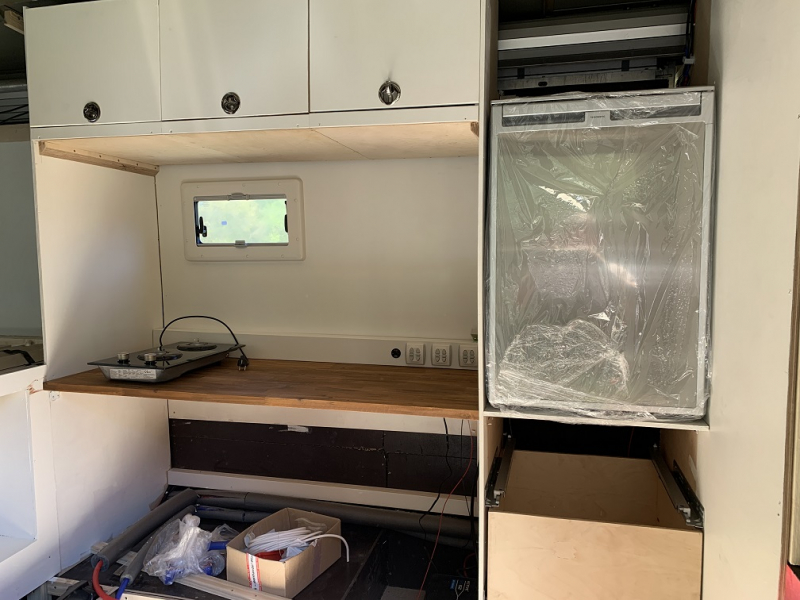

| Cooking stove | Gas |
|---|---|
| Gas installation | Selbst mit Fachbetrieb |
| Other | |

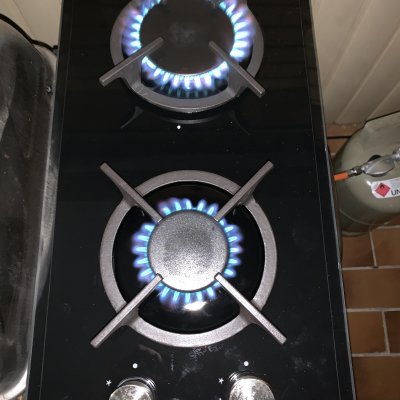

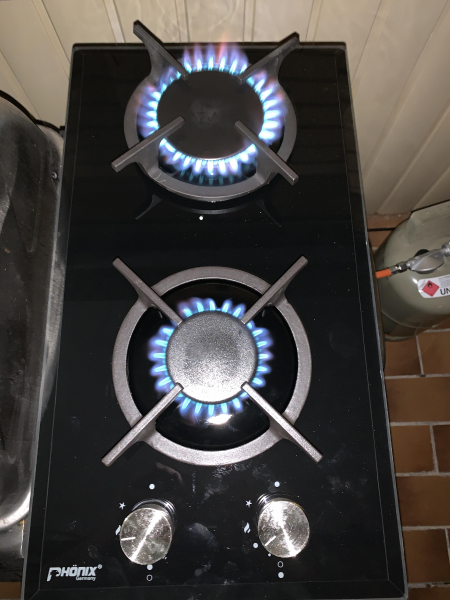

| Phönix 2 Platten Gaskochfeld | |

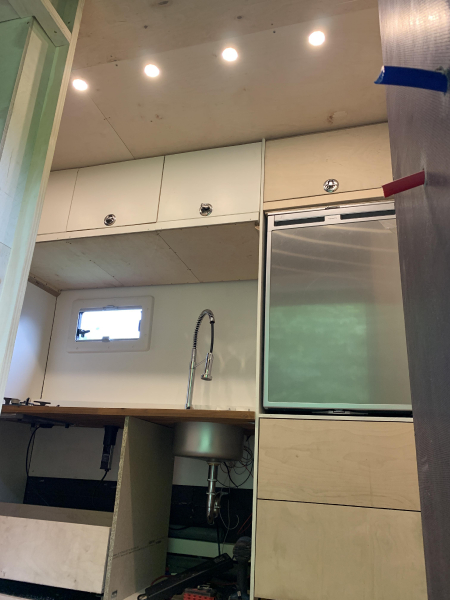

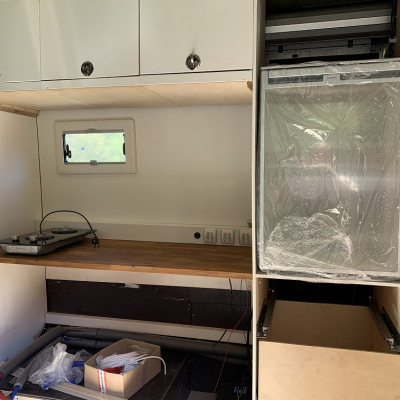

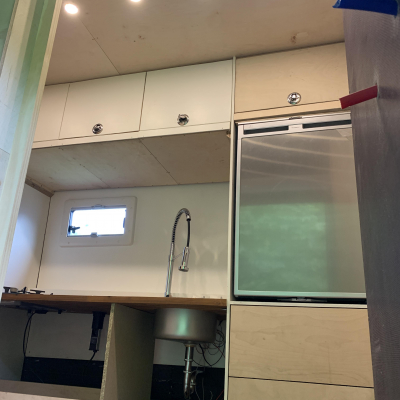

| Manufacturer and type of fridge / cooler | Dometic 140 L |
|---|
| Voltage in the chassis | 24 V |
|---|---|
| Voltage in the cabin | 12 V |
| 110V / 230V in the cabin? | yes |
| Inverter | ECTIVE 1500W 12V zu 230V SSI-Serie Reiner Sinus Wechselrichter mit Ladegerät MPPT-Solarladeregler und NVS |
| Other | |
| Wir haben uns hier für ein 4 in 1 Gerät entschieden da wir nicht soviel Verständnis für elektrik haben und erst einmal schauen wollen das alles funktioniert | |
| Capacity of batteries in the cabin | 3 x 12V 69 AH |
|---|---|
| Battery type | Lithium Ionen |
| Battery charger for cabin batteries | ECTIVE |
| Battery management | ECTIVE |
| Solar capacity | 300 Watt |
|---|---|
| Solar controller | ECTIVE |
| Fuel cell | no |
| Manufacturer and type of heating system | Planar D2 2 Stück |
|---|---|
| Warm water processing | 10 l Boiler |
| Cab heating | Standheizung |
| water flow | Schlauch |
|---|---|
| Water filtration system | in Planung |

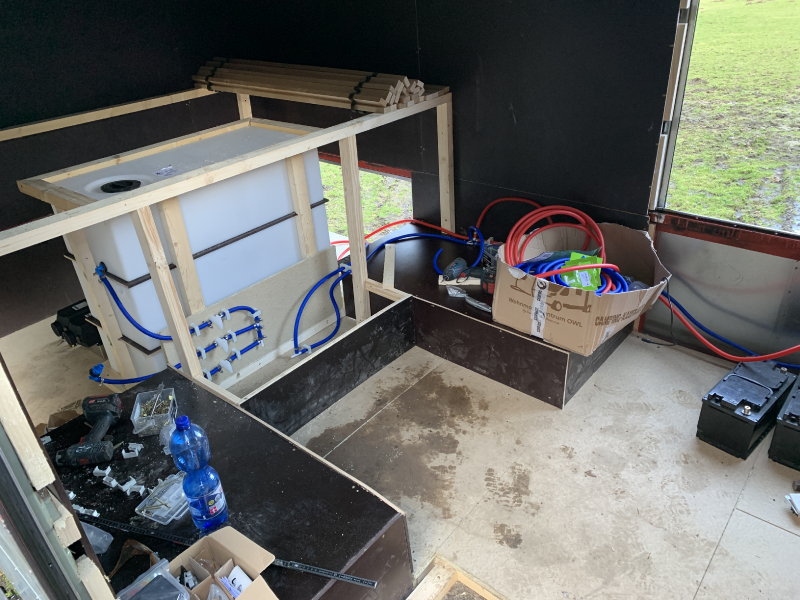

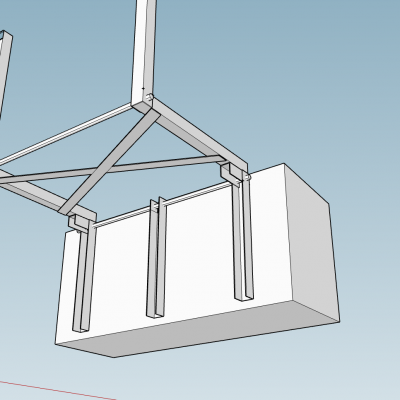

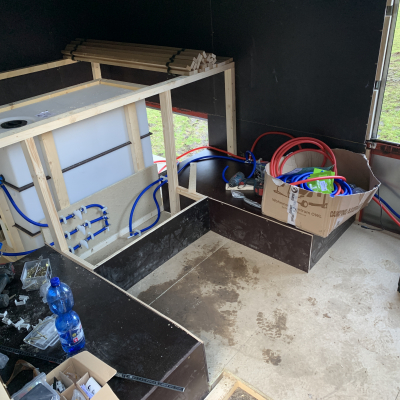

| Capacity of fresh water tank(s) | 3x 120 L |
| Capacity of waste water tank(s) | 1 X 50 L |
| Manufacturer and type of toilet | Trenntoilette |
|---|
| Rear carrier | (Noch in Planung) |
|---|---|
| Roof rack | Ja wird sicher kommen |

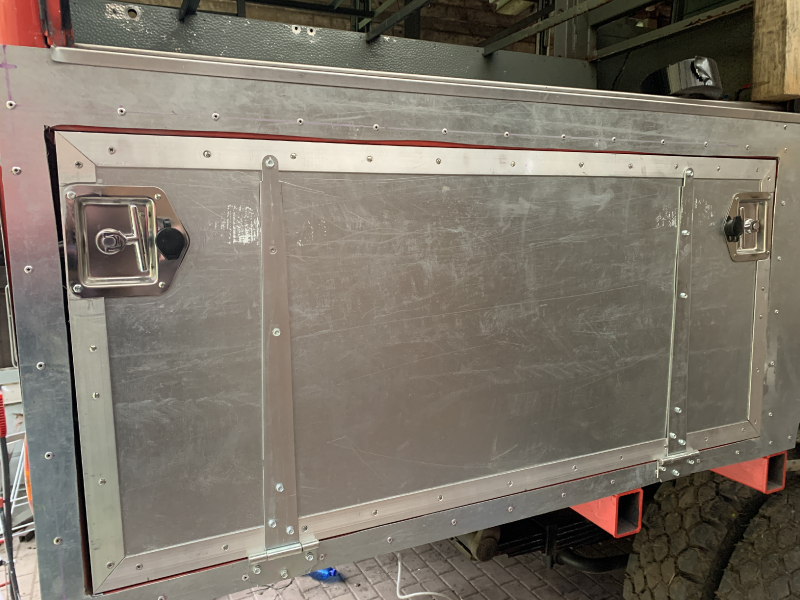

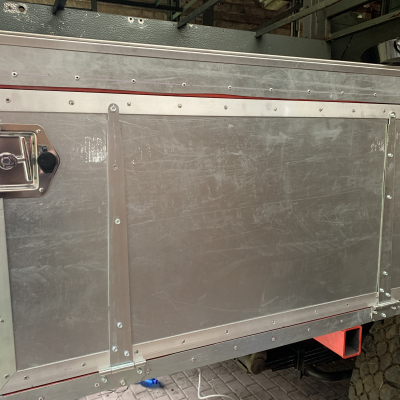

| Storage boxes | Ja (Alu wird kommen) |
| Outside cooking facilities | Ja |
| Awning | Fiamma |
