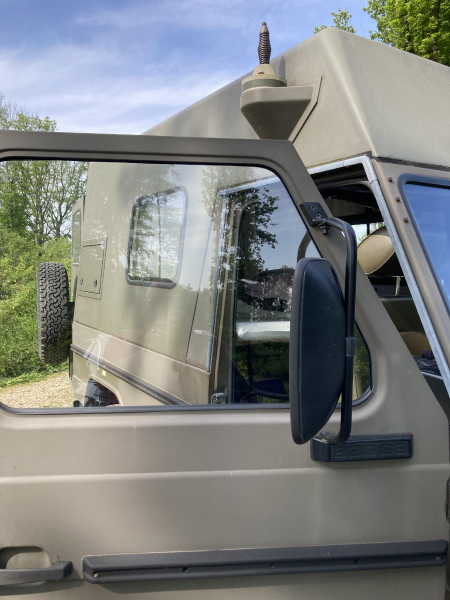

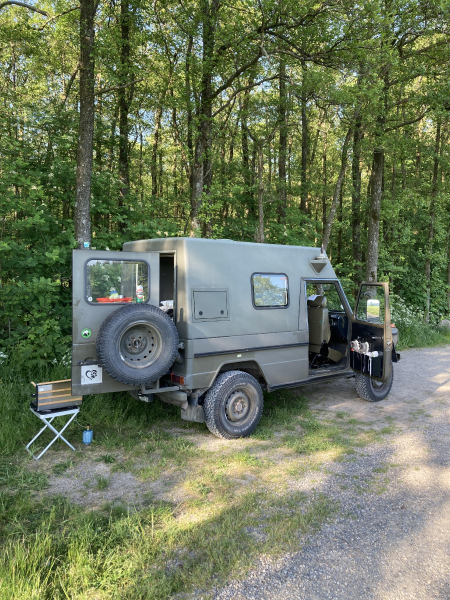

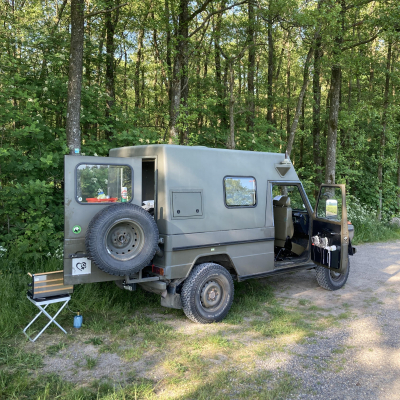

Opjoecks Fahrzeug (#3092) Ausbau eines Steyr Puch 230 GE Funkwagen zum leichten zweieinhalb Jahreszeiten Mobil
| Manufacturer and model | Steyr Puch 230 GE |
|---|---|
| Name | Josef Horstmann |
| Year of manufacture | 1993 |
| For sale? | no |

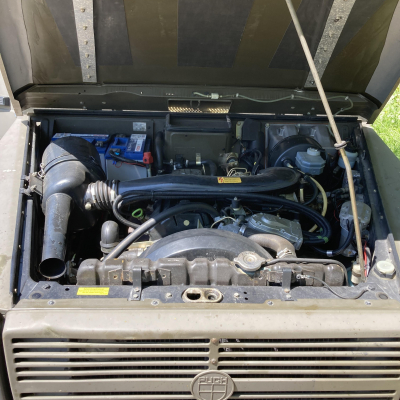

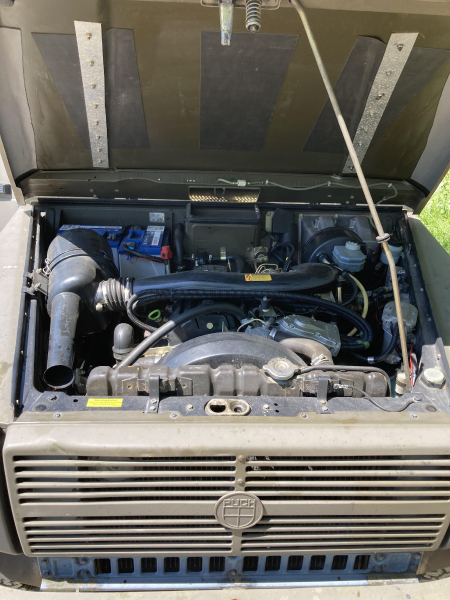

| Engine type | M102.997 |
|---|---|
| Cubic capacity | 2298 |
| Number of cylinders | 4 |
| Horsepower | 125 |
| Torque | 188 Nm/4000 Upm |
| Other | |
| 4 Gang Automatik | |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 2850 mm |
| Number of seats | 4 |

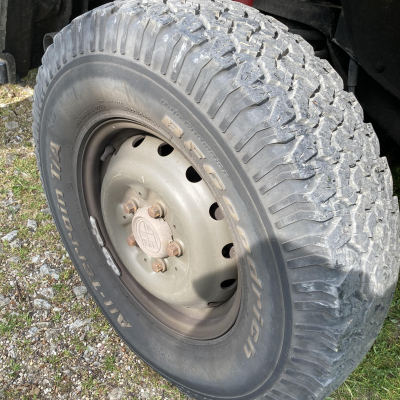

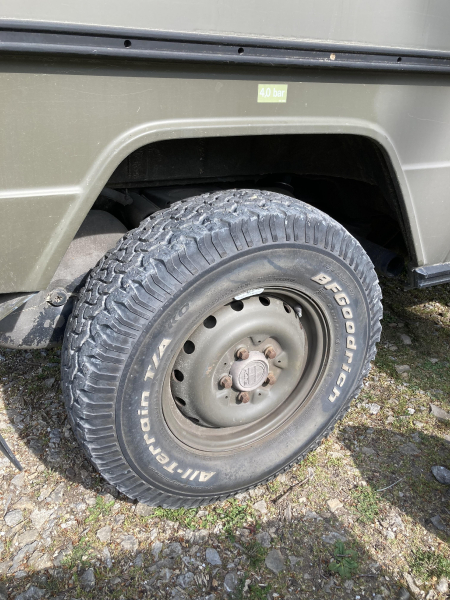

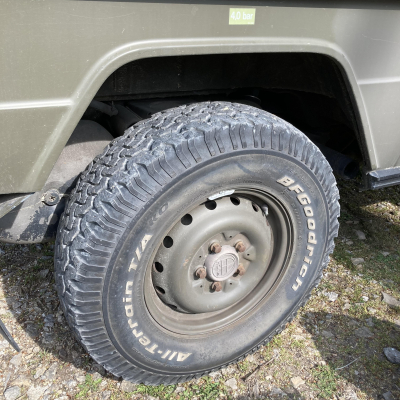

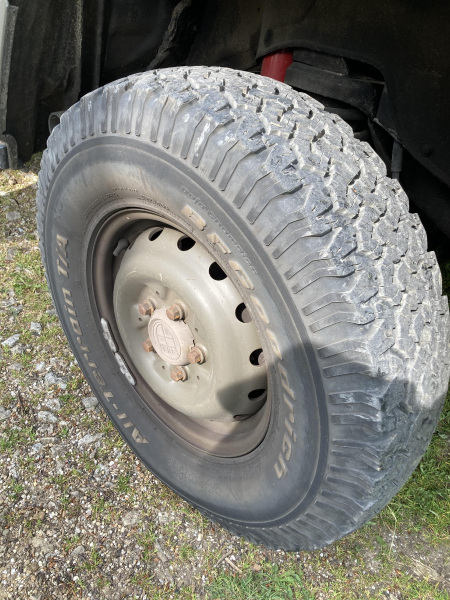

| Tyre size | 235/85 R 16 |
| Rim size | 5.5J16 |
| Type of tyre | BF Goodrich AT2 |
| Tank capacity | 93 Liter |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | zuschaltbar |
| Diff locks | hinten |

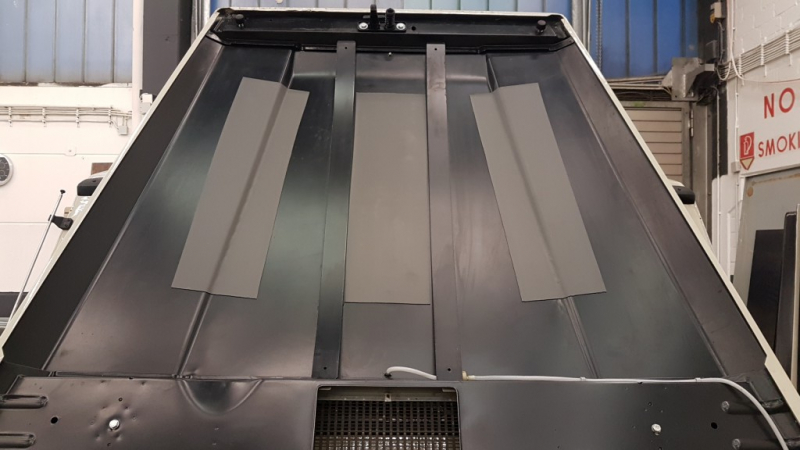

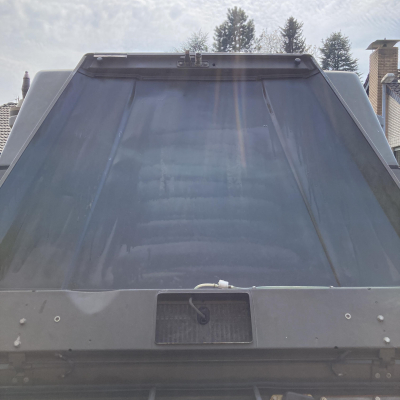

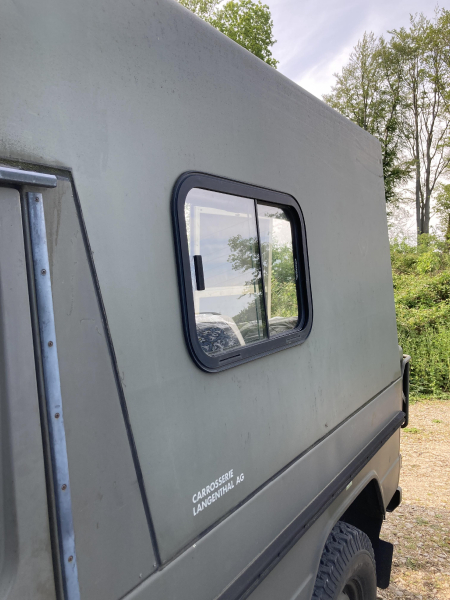

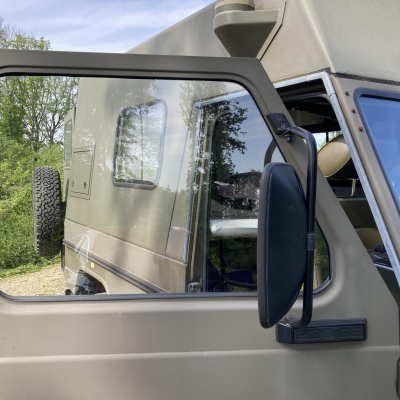

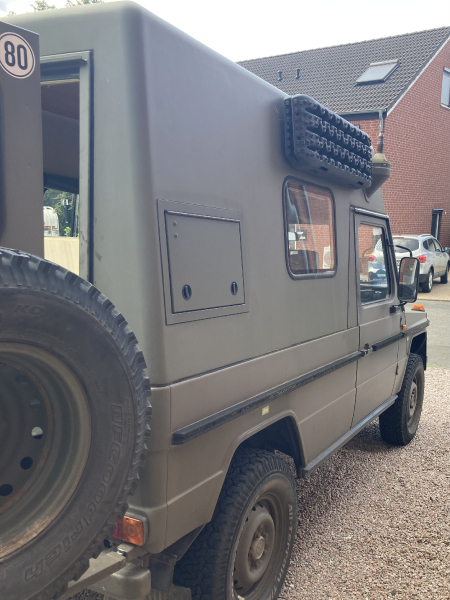

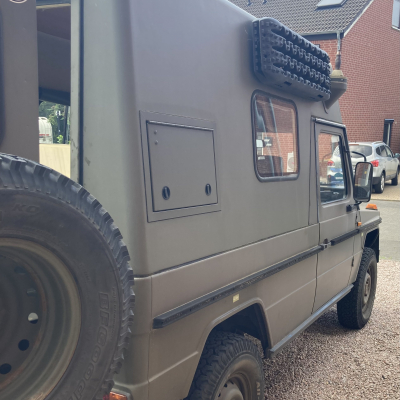

| Manufacturer of the cabin | Langenthal Carosserie AG |
|---|---|
| Inner dimensions (LxWxH) | 1111 x 1500 x 1600 mm (LxBxH) |
| Outer dimensions (LxWxH) | 4630 x 1700 x 2360 mm (LxBxH) |
| Cabin material | GFK |
| Kind and thickness of insulation | 20 mm |
| Number of beds | 2 |

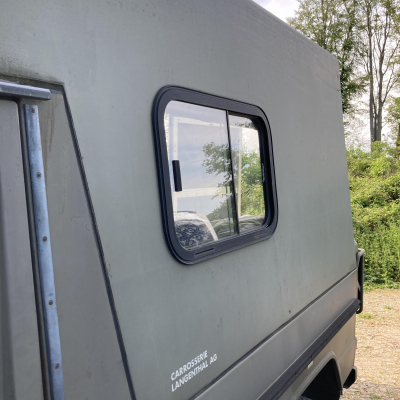

| Windows | 3 |
| Other | |
|
Steyr Puch 230 GE, FKW SE-235/m2+ HT 4x4 gl Details: https://militaerfahrzeuge.ch/unterkategorie_11_21_563.html | |
| Explanation of floor plan | |
|---|---|

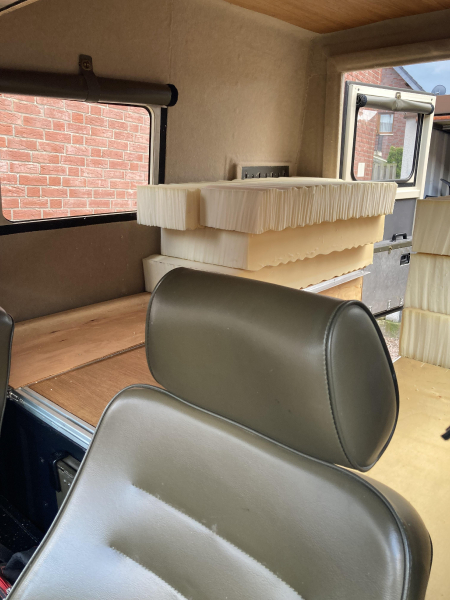

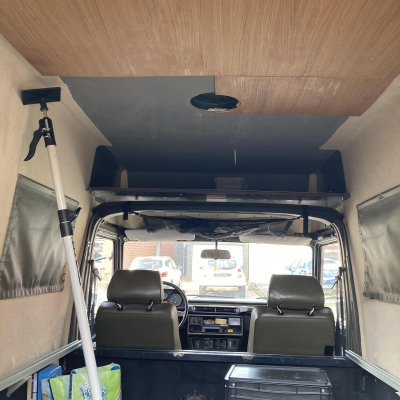

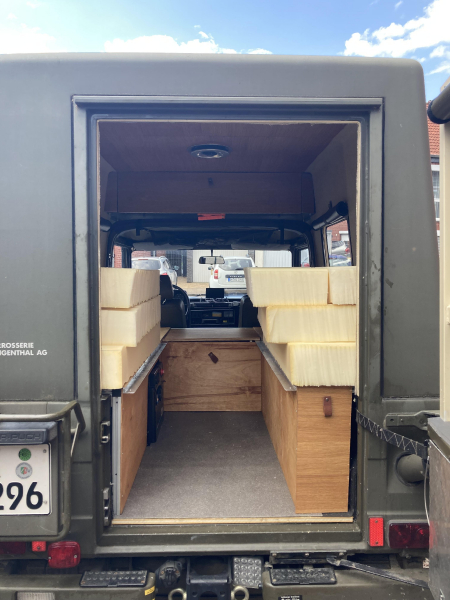

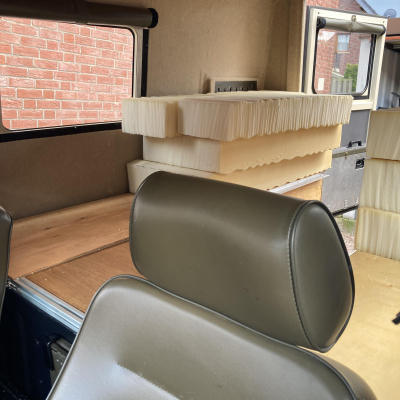

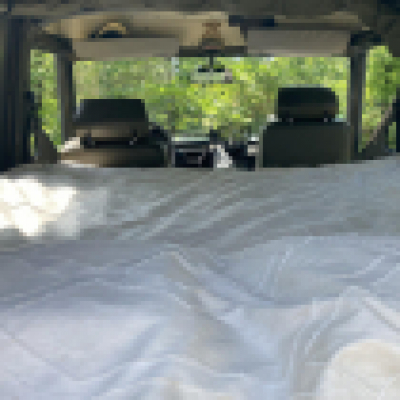

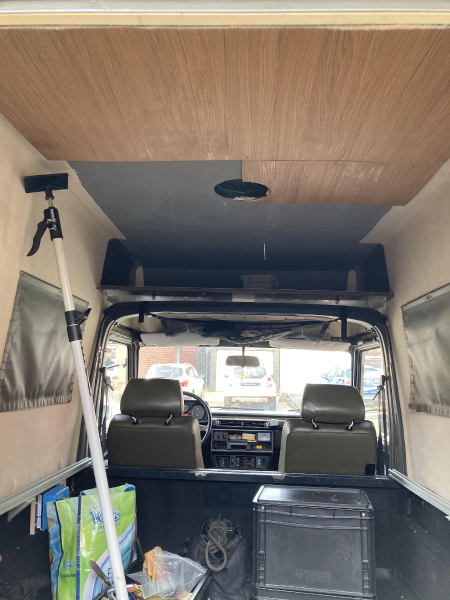

| Liegefläche 140 x 195 cm, Wasser, Strom, Kühlschrank und Stauraum unter Bett, Alkoven über Fahrerhaus für Klamotten und Decke, Kaltschaummatratze zugeschnitten, |

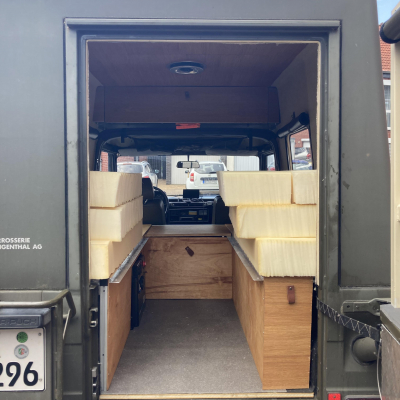

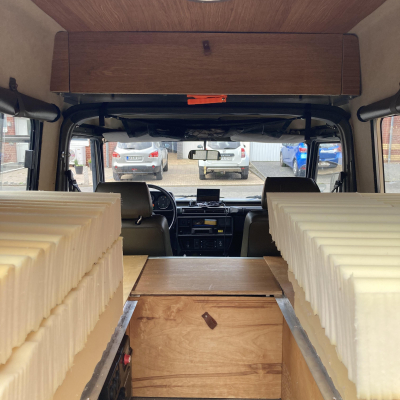

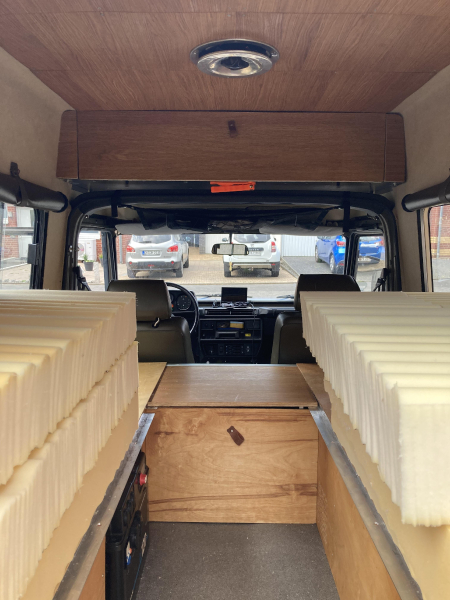

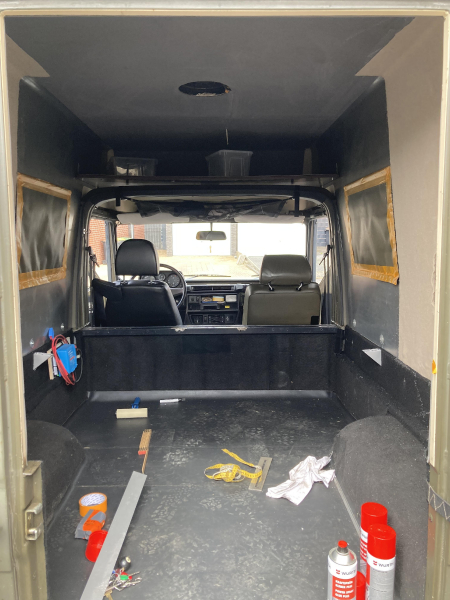

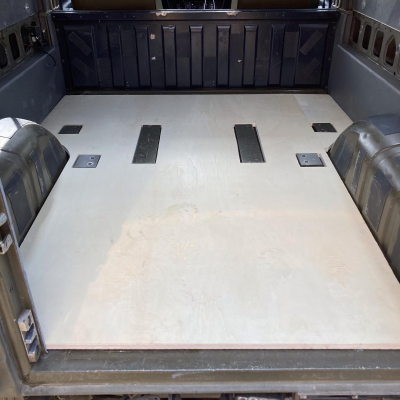

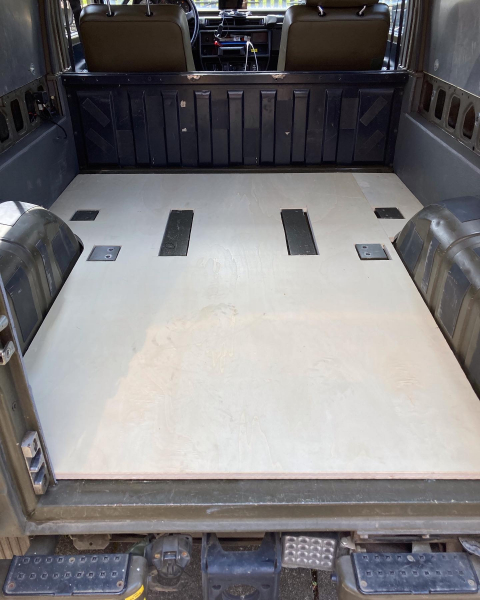

| Material of furniture | Aluminiumprofil 30x30, Queenply, Sperrholz, Isolierung IsoproQ, Filz |
|---|---|
| Other | |
|

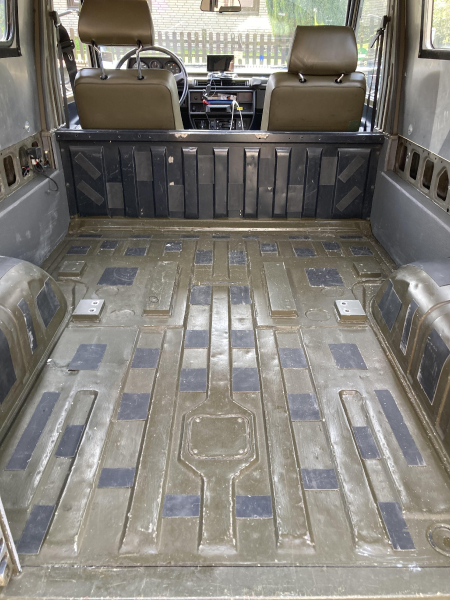

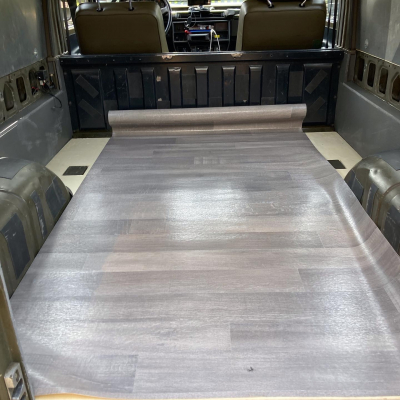

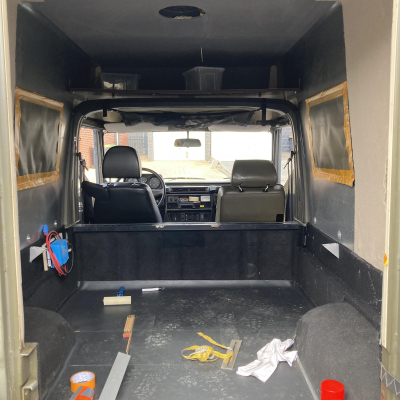

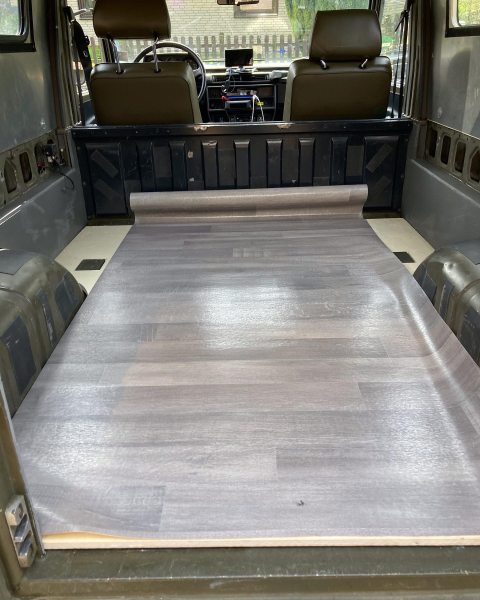

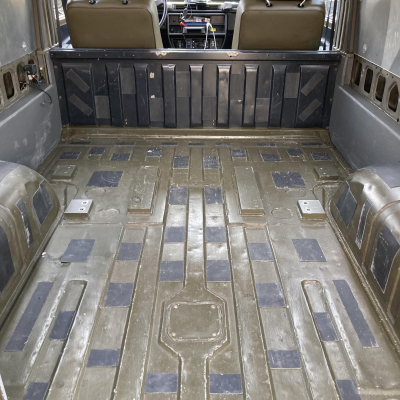

Bilder sind vomUmbau 05\2024:, Zuvor: Aluminiumprofil 40x40, Queenply, Rolllattenrost, Isolierung IsoproQ (www.isoproq.de) | |

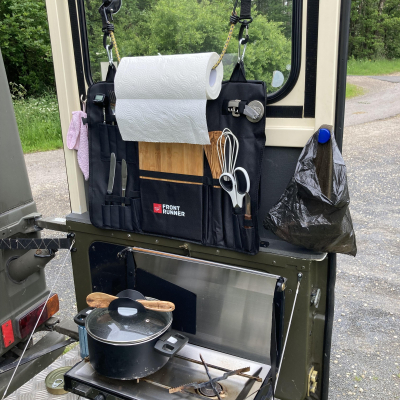

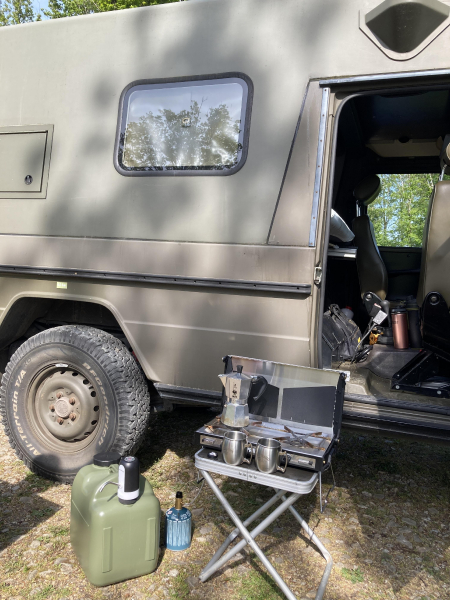

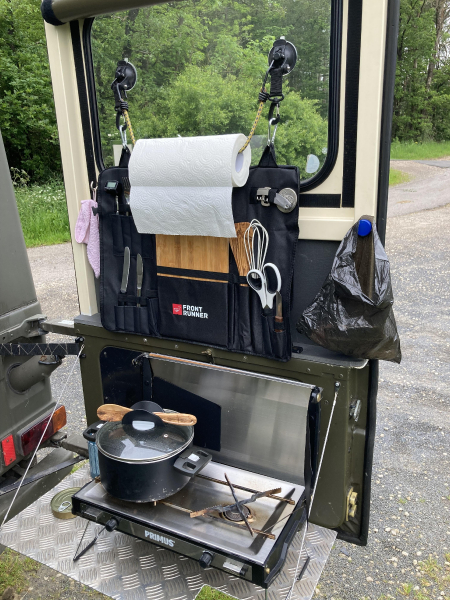

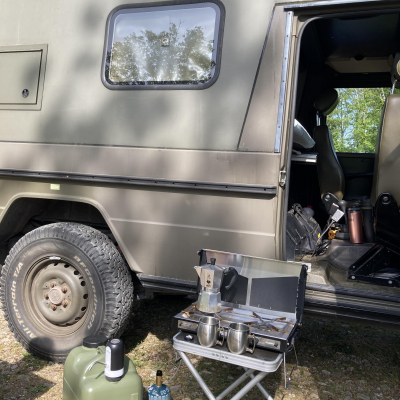

| Cooking stove | Primus Tupike 2 Flammen Kocher mit Piezozündung |
|---|---|
| Gas installation | Kartusche |

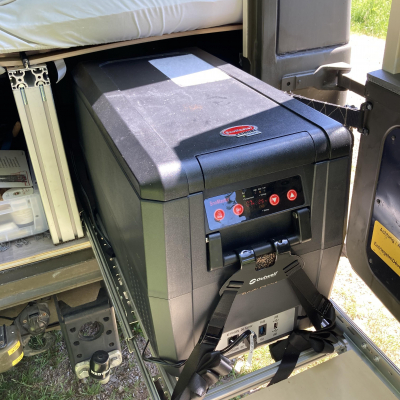

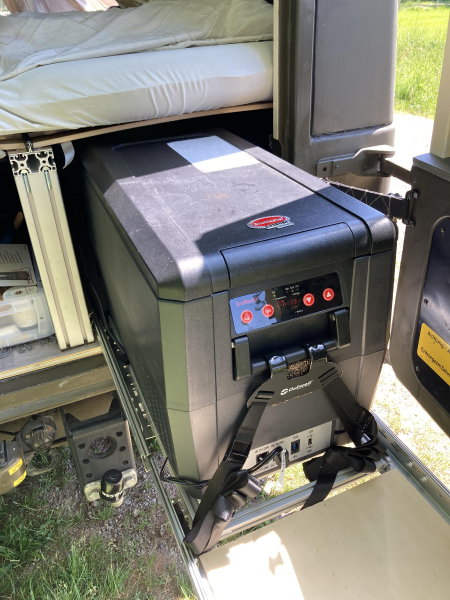

| Manufacturer and type of fridge / cooler | SnoMaster SMDZ-LS35 35L COMPACT FRIDGE FREEZER |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 12V |
| Charging converter 24V-12V | Victron DC Wandler 24/12V 20Ah- |
| 110V / 230V in the cabin? | yes |

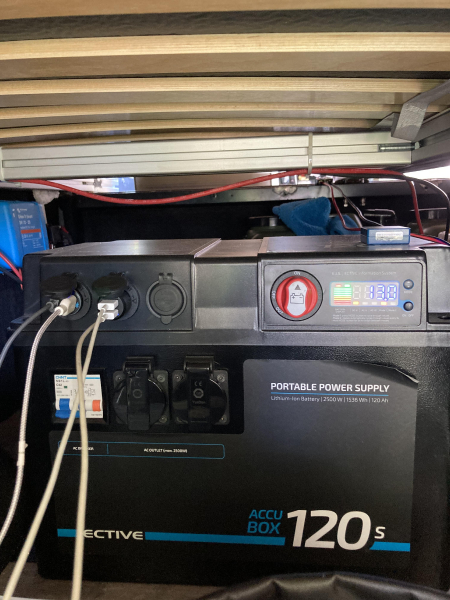

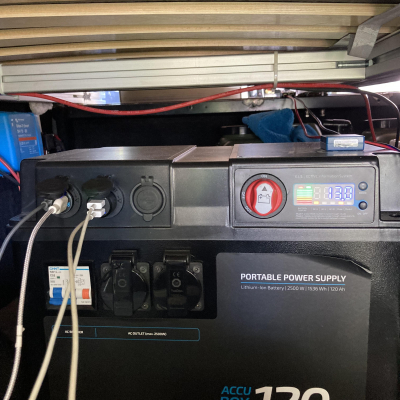

| Inverter | Ective 120S |
| Capacity of batteries in the cabin | 120Ah |
|---|---|
| Battery type | LiFePO4 |
| Battery charger for cabin batteries | Victron DC Wandler 24/12V 20Ah |
| Battery management | Victron App |

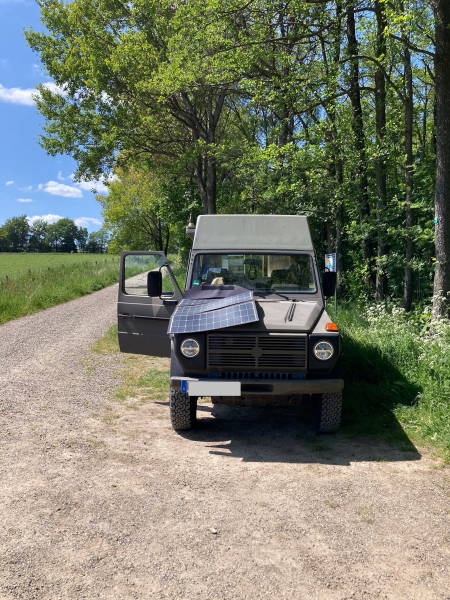

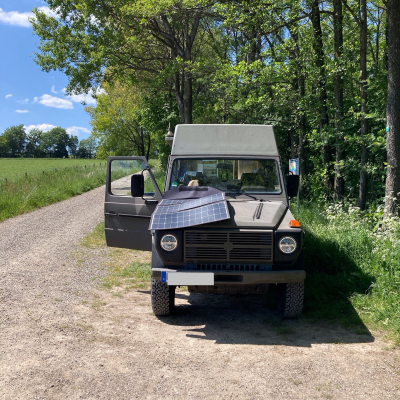

| Solar capacity | Wattstunde Faltpanel 180Wp |
|---|---|
| Solar controller | Integriert |
| Fuel cell | no |
| Manufacturer and type of heating system | Wolldecke :) |
|---|---|
| Warm water processing | Wasserkocher |
| Cab heating | Original |

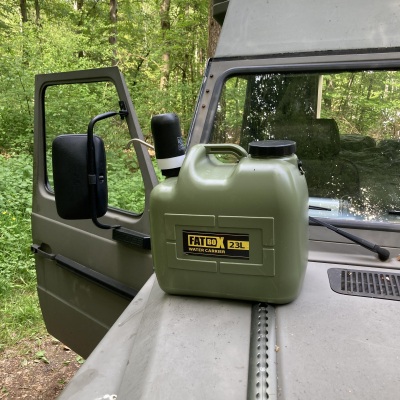

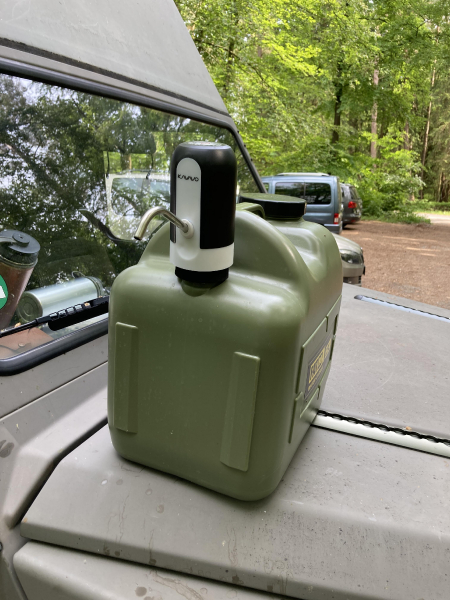

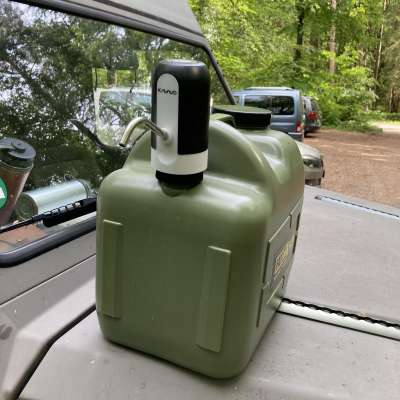

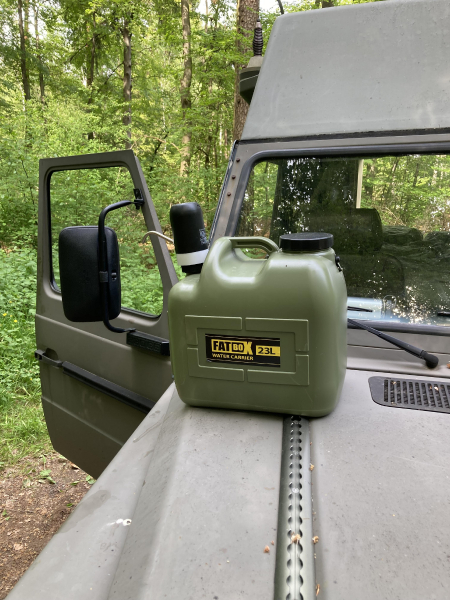

| water flow | Kanister |
|---|---|
| Water filtration system | Alb Travel mit Sedimentfilter |
| Capacity of fresh water tank(s) | 51 Liter |
| Capacity of waste water tank(s) | 15 Liter |

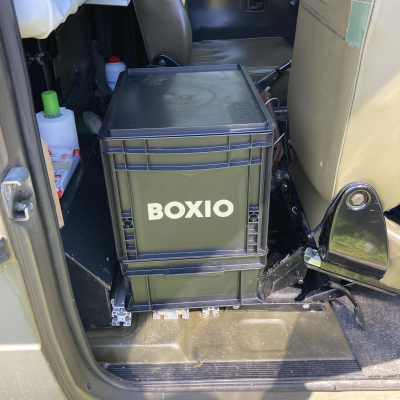

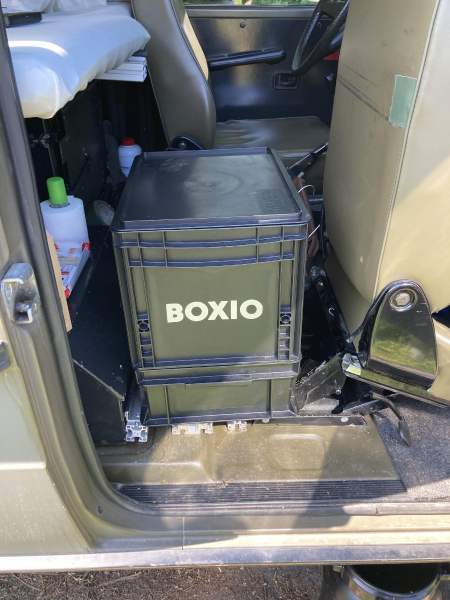

| Manufacturer and type of toilet | Boxio |
|---|---|
| Capacity of black water tank | 5/5 Liter (fest/flüssig) |
