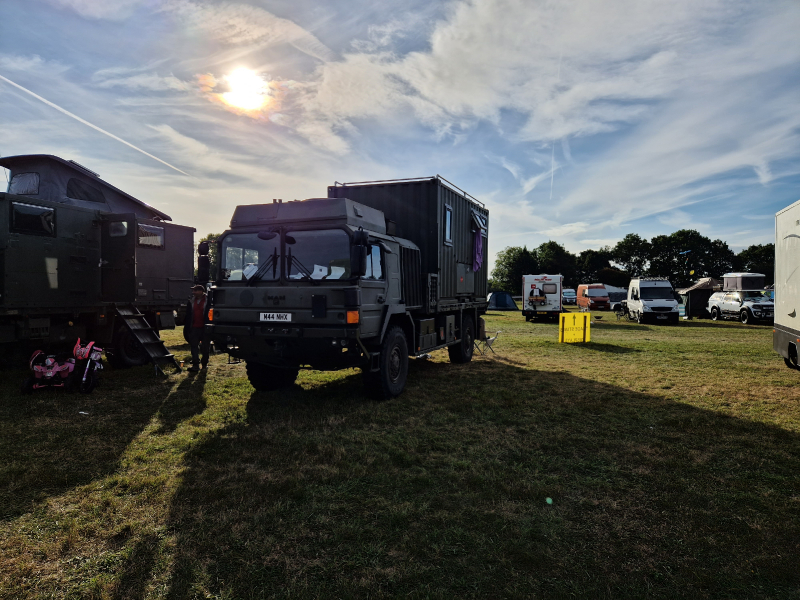

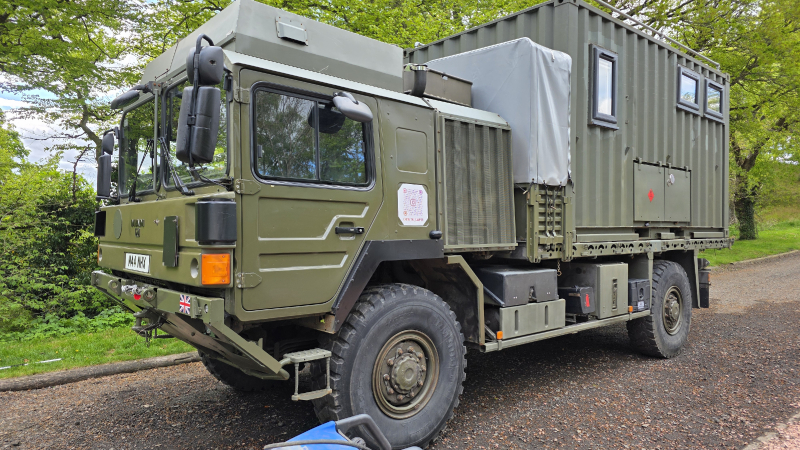

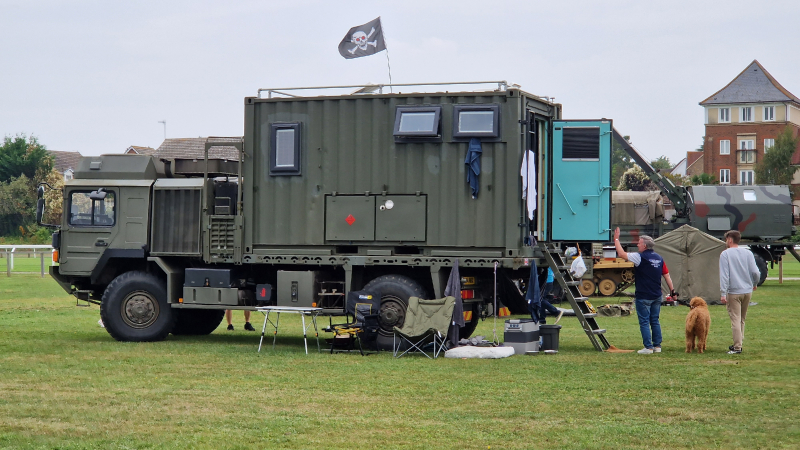

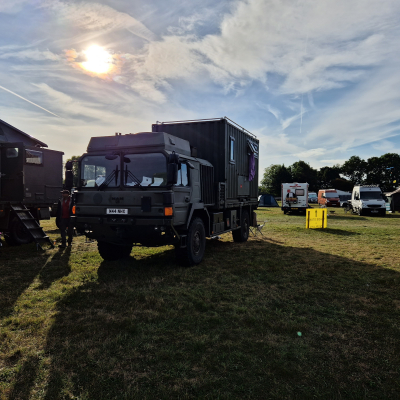

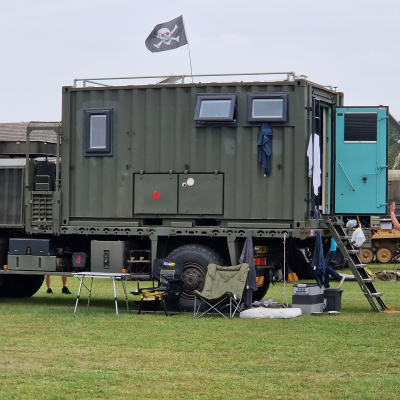

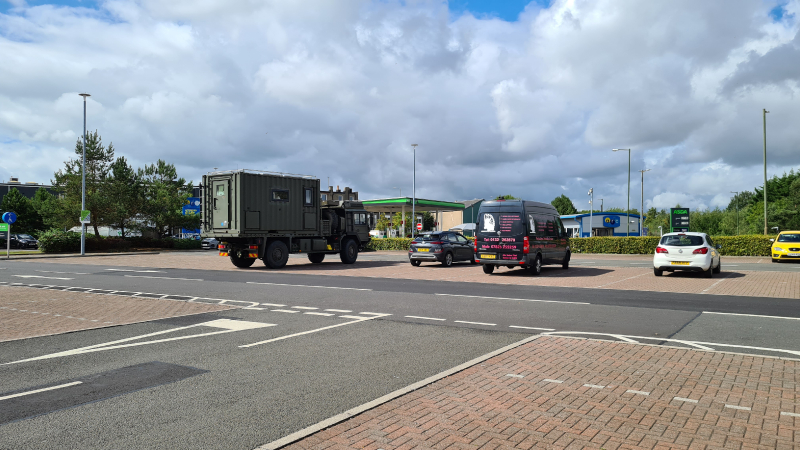

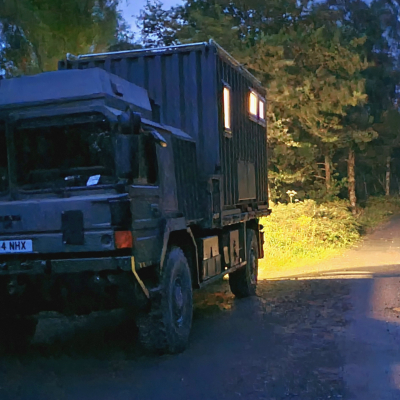

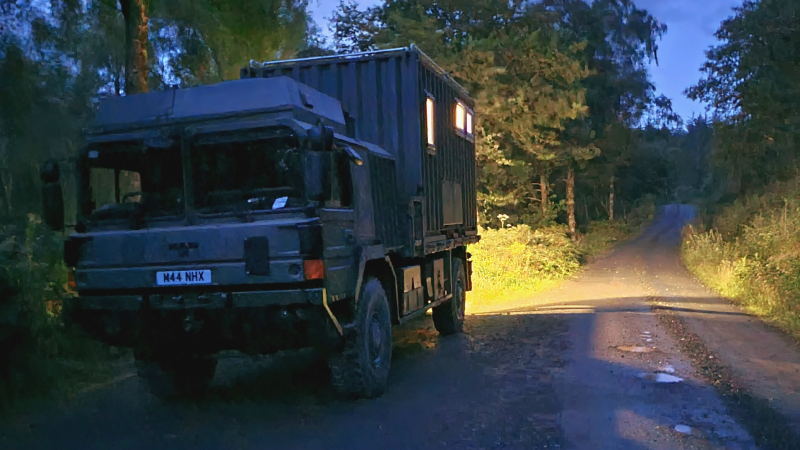

Ex - UK Army MAN HX60 utility with TCOPO (transportable containerised ops office
| Manufacturer and model | MAN HX 18.330SV 6Te |
|---|---|
| Name | CHOW |
| Country | UK |
| Year of manufacture | 2007 |
| For sale? | no |
| Engine type | MAN DO836 LFG50 |
|---|---|
| Cubic capacity | 6.87ltr |
| Number of cylinders | 6 |
| Horsepower | 326 |
| Torque | 1250 |
| Other | |
| water cooled, common rail, turbocharged, euro 4 | |
| Zulässiges Gesamtgewicht | 16te max, running at 12.5te |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
| Number of seats | 3 |
| Tank capacity | 300ltr |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | selectable |
| Diff locks | front and rear axles |
| Manufacturer of the cabin | MOD |
|---|---|
| Outer dimensions (LxWxH) | 4mtrx2.5mtr |
| Cabin material | corten steel |
| Kind and thickness of insulation | celotex (mainly) 70mm |
| Number of beds | 3 |
| Windows | domestic |
| Subframe | mounted on body - sprung mounts to chassis |
| Explanation of floor plan | |
|---|---|

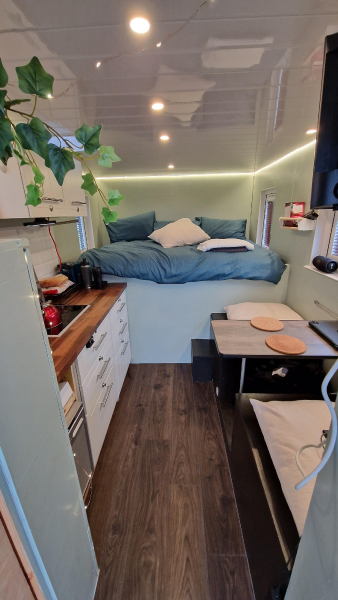

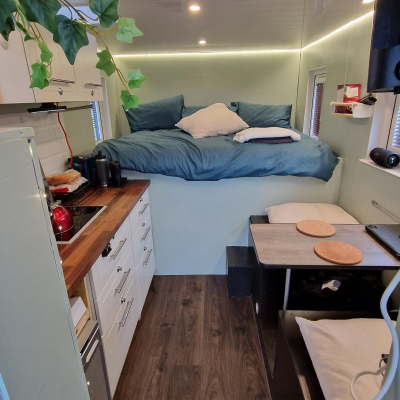

| bunk forward with full size counter top and cabin seating. full size shower and separate toilet space |

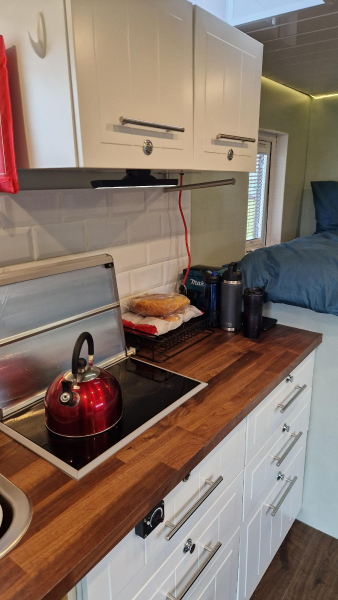

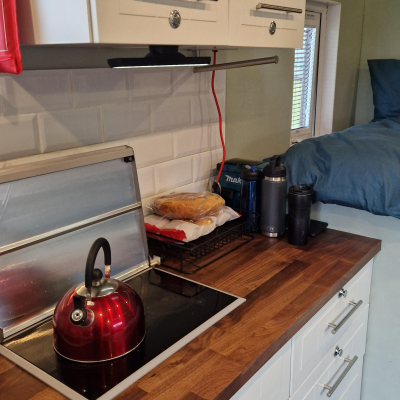

| Cooking stove | JP heater diesel hob |
|---|
| Manufacturer and type of fridge / cooler | LG |
|---|
| Voltage in the chassis | 24v |
|---|---|
| Voltage in the cabin | 12/230V |
| Charging converter 24V-12V | no |
| 110V / 230V in the cabin? | no |
| Inverter | 2kW |
| Other | |
| No connections between lorry and cabin - cabin may be removed from body | |

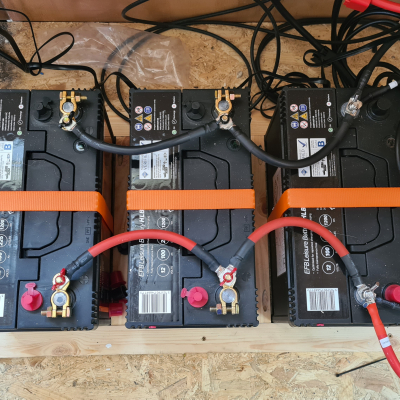

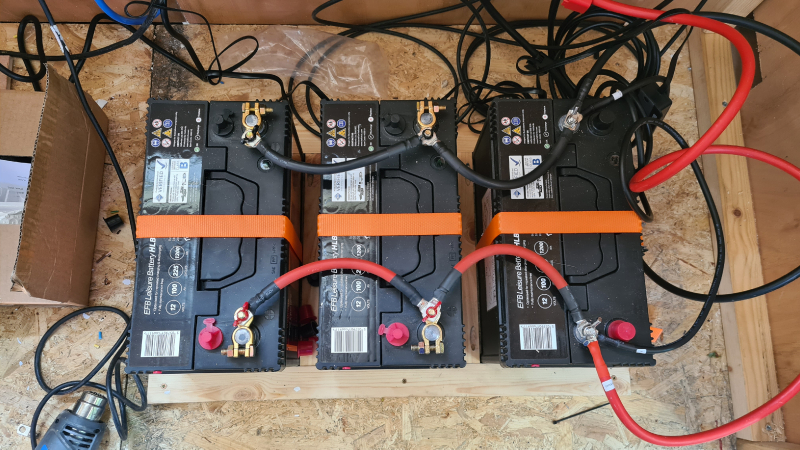

| Capacity of batteries in the cabin | 300Ah |
|---|---|
| Battery type | lead acid gel |
| Battery charger for cabin batteries | durite 20A automatic |
| Battery management | Renogy |

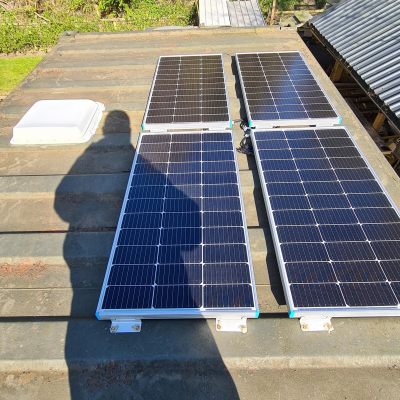

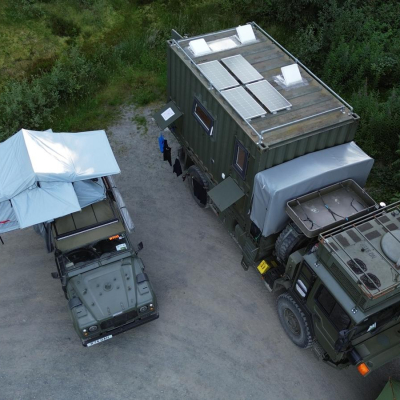

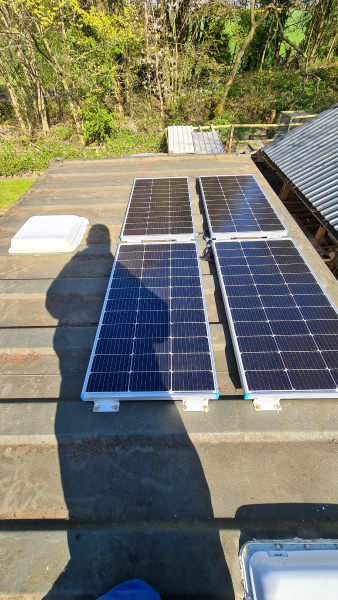

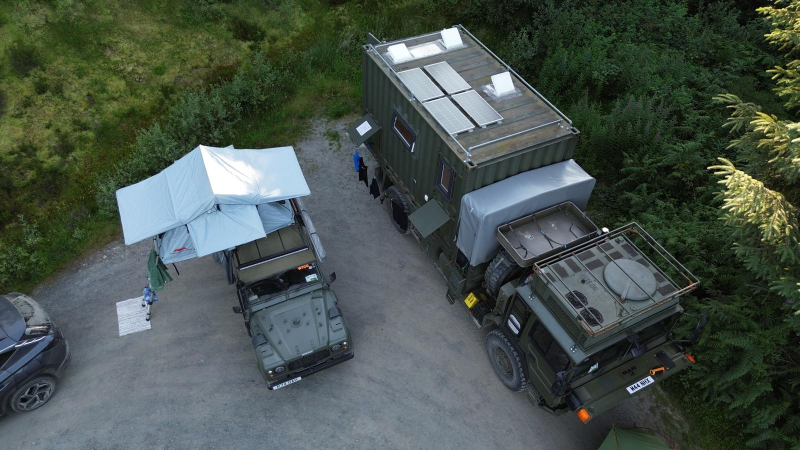

| Solar capacity | 4x 150W mono |
|---|---|
| Solar controller | Renogy MPPT |
| Fuel cell | no |
| Power generator | Honda eu22i in storage locker |
| Manufacturer and type of heating system | JP heater diesel/electric combi |
|---|---|
| Warm water processing | yes, combi |
| Cab heating | warm air from hob/combi |
| Explanation of gas system | |
|---|---|
| nil |
| water flow | auto |
|---|---|
| Capacity of fresh water tank(s) | 200ltrs |
| Capacity of waste water tank(s) | 200ltrs grey |
| Manufacturer and type of toilet | nature's head composting |
|---|---|
| Capacity of black water tank | nil |
| Roof rack | yes, above cab (not yet fitted) |
|---|---|
| Storage boxes | along chassis rail and on roof rack |
