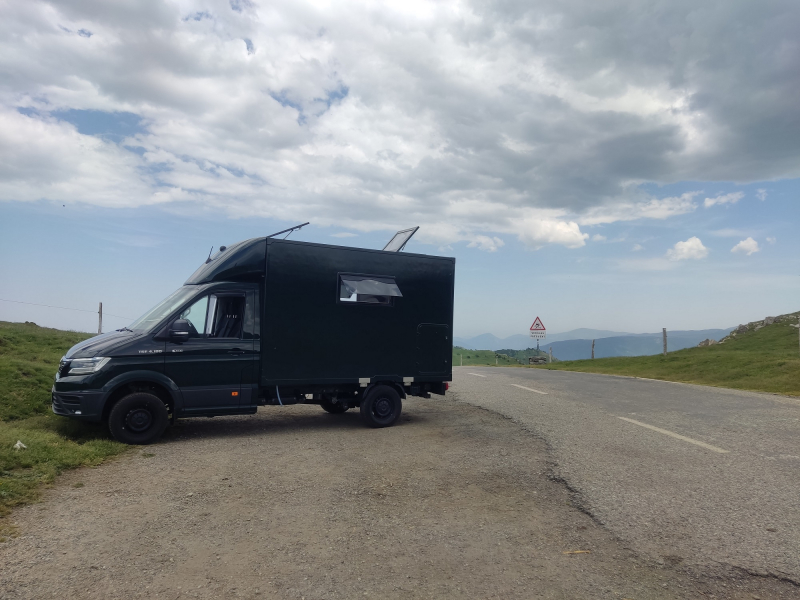

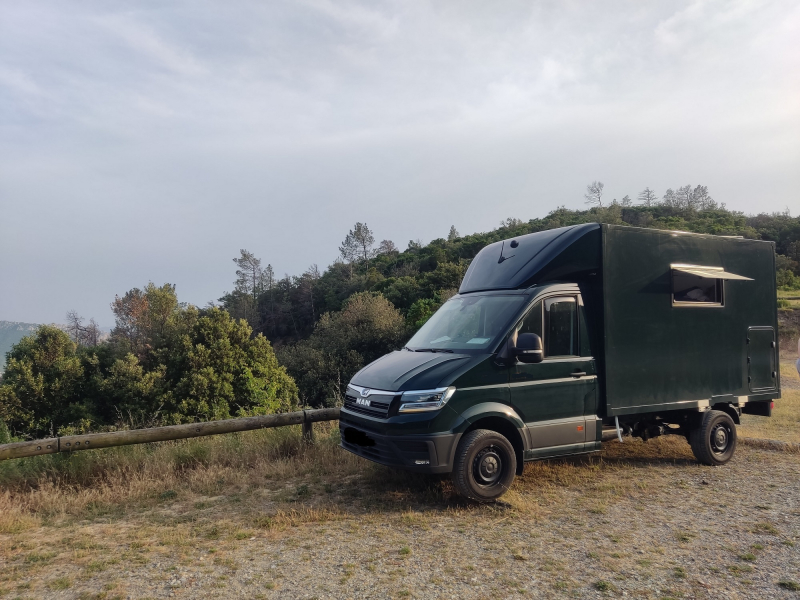

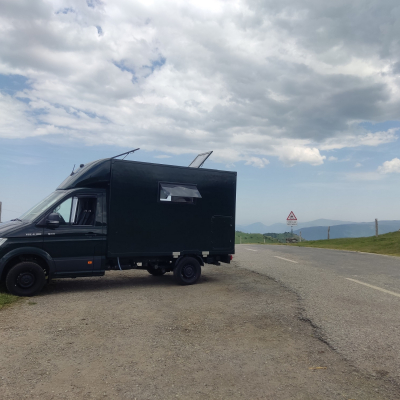

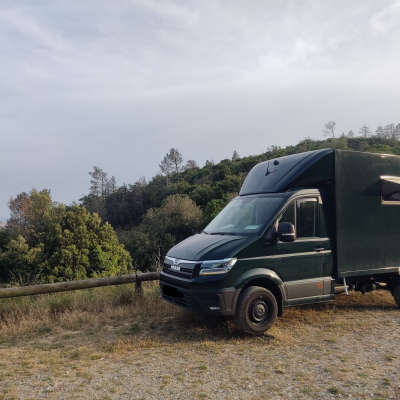

Bau eines kompakten Allradmobils, Gfk Kabine mit 5 Sitzplätzen (M1G)
| Manufacturer and model | MAN TGE |
|---|---|
| Name | V.B. |
| Year of manufacture | 2023 |
| For sale? | no |
| Engine type | Diesel |
|---|---|
| Cubic capacity | 1968 |
| Number of cylinders | 4 |
| Torque | 410 |
| Zulässiges Gesamtgewicht | 3,5 (Achslast 2 x 2,1 t) |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
| Wheel base | 3640 |
| Number of seats | 5 |
| Tyre size | akt. 235/65 R 16 |
| Rim size | Stahl |
| Type of tyre | Ganzjahres- bzw. AT Reifen |
| Tank capacity | n.n. |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | zuschaltbar (elektr.) |
| Diff locks | Heck |
| Manufacturer of the cabin | nomadcamper |
|---|---|
| Inner dimensions (LxWxH) | 3,4 x 2,01 x 2,05 (L x B x H) |
| Outer dimensions (LxWxH) | 3,5 x 2,1 x 2,17 (L x B x H) |
| Cabin material | GFK |
| Kind and thickness of insulation | 42 mm / Boden 76 mm |
| Number of beds | 2 (4) |
| Subframe | -- |
| Material of furniture | Sandwich Leichtbauplatten |
|---|
| Cooking stove | Induktion mit 2 Kochfeldern |
|---|---|
| Gas installation | -- |
| Manufacturer and type of fridge / cooler | Haushaltskühlschrank 124 l (15 l ***) |
|---|
| Voltage in the chassis | 12 |
|---|---|
| Voltage in the cabin | 12 |
| Charging converter 24V-12V | -- |
| 110V / 230V in the cabin? | yes |
| Inverter | 2000 W |
| Capacity of batteries in the cabin | 480 Ah |
|---|---|
| Battery type | Lipofe4 |
| Battery management | 2 x BMS - Bluetooth |
| Solar capacity | 420 (+ 340) |
|---|---|
| Solar controller | 40A (30A) |
| Fuel cell | no |
| Power generator | Lima 250 A (2 x 30 A Ladebooster) |
| Manufacturer and type of heating system | Diesel Luft 2Kw |
|---|---|
| Warm water processing | 15 l 230 V + Motorabwärme |
| Cab heating | Zusatzheizer (Serie) + DEFA 1400 W 220 V |
| Explanation of gas system | |
|---|---|
| -- |
| Water filtration system | n.n. |
|---|---|
| Capacity of fresh water tank(s) | ca. 140 |
| Capacity of waste water tank(s) | ca. 120 |
| Manufacturer and type of toilet | TTT |
|---|---|
| Capacity of black water tank | --- |
| Rear carrier | an Airlineschienen |
|---|---|
| Roof rack | --- |
| Storage boxes | evtl. auf Heckträger |
| Outside cooking facilities | Gas 2 Flammen |
| Awning | --- |
| Other | |
| Radträger ggf. mit AHK Träger | |
