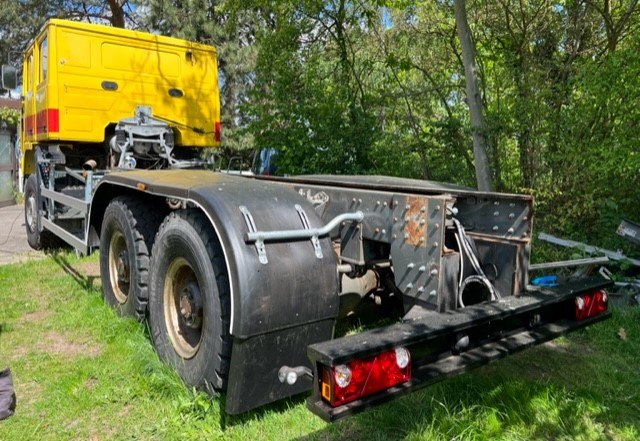

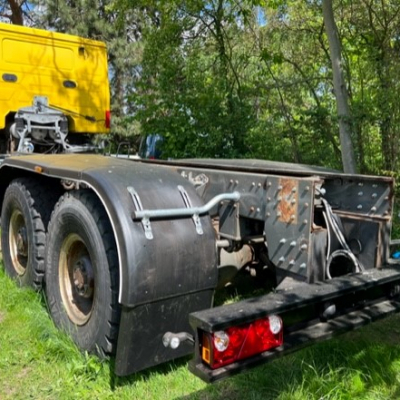

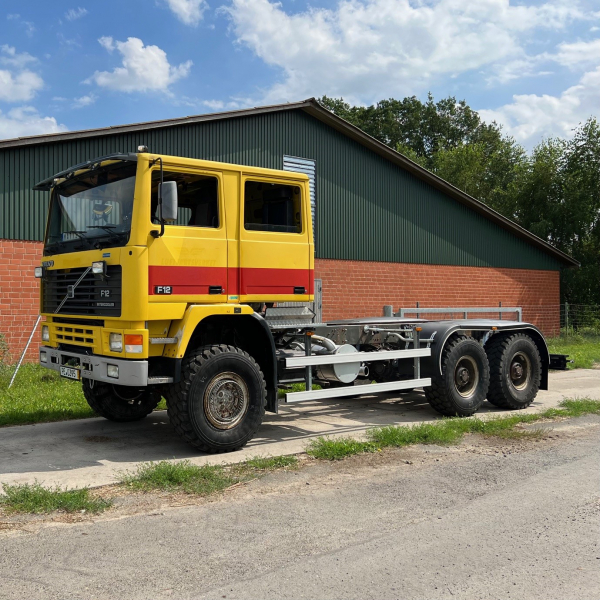

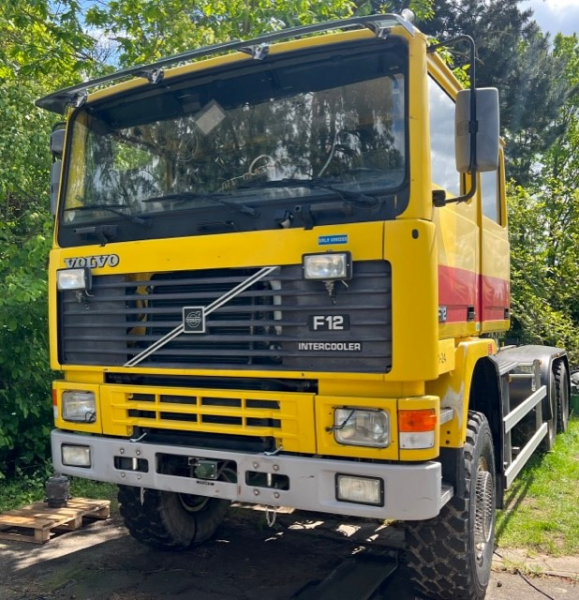

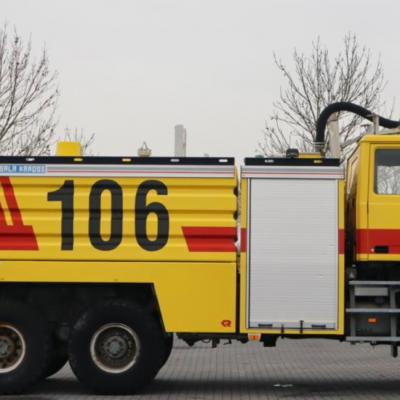

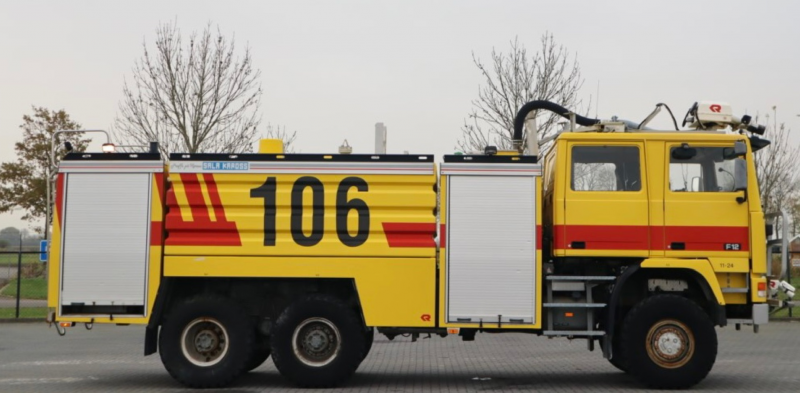

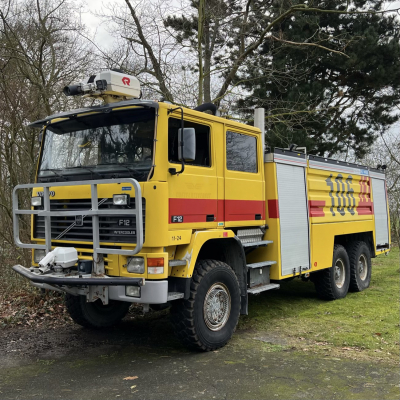

Ein Volvo F12 von der schwedischen Flughafen-Feuerwehr zum Familien-Welt-Reisemobil. Aktuelle Bilder gibt es in diesem Profil, auf Instagram unter matchbox.family und später auch auf YouTube
| Manufacturer and model | Volvo F12 400 6x6 |
|---|---|
| Name | Carina & Wido Mattern |
| Country | Deuschland |
| Website | matchbox.family |
| Year of manufacture | Fahrzeug 1993, Aufbau 1994, Umbau 2022 - 2024 |
| For sale? | no |

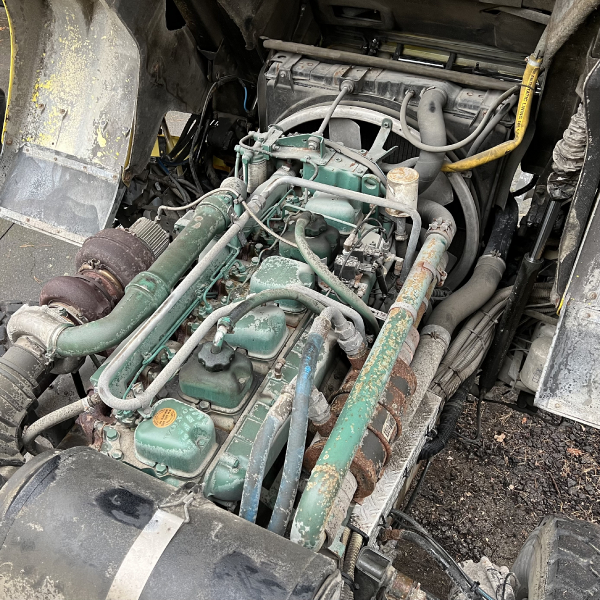

| Engine type | Volvo TD 122 TS (HAV) |
|---|---|
| Cubic capacity | 11.863 |
| Number of cylinders | 6 Reihe |
| Horsepower | 422 PS bei 2.350 U/min |
| Torque | 1.670 Nm bei 1.200 U/min |
| Other | |
| Volvo 6-Gang Automatik-Getriebe PT1660 | |
| 4x2, 4x4, 6x6, 8x8 | 6x6 |
|---|---|

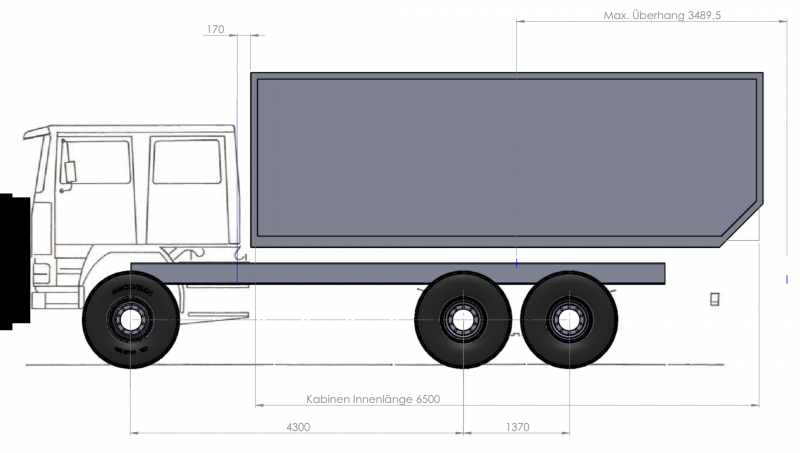

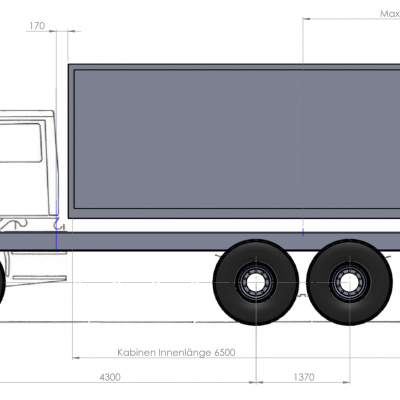

| Wheel base | 4.985 mm (4.300, 1.370 mm) |
| Number of seats | aktuell 4, später 6 |
| Tyre size | 395 / 85 R 20 |
| Rim size | R20-10,00 Sprengring-Stahlfelgen |
| Type of tyre | Gelände |
| Tank capacity | aktuell 130 Liter, später 600+ Liter |
| Diesel filter | yes |
| Other | |
| - geplant halbautomatische Reifenluftdruckregelanlage | |
| Permanent or manually selectable 4-wheel drive | zwei Hinterachsen permanent, eine Vorderachse zuschaltbar |
| Diff locks | eine Mittel-, zwei Hinterachs- und eine Vorderachssperre |

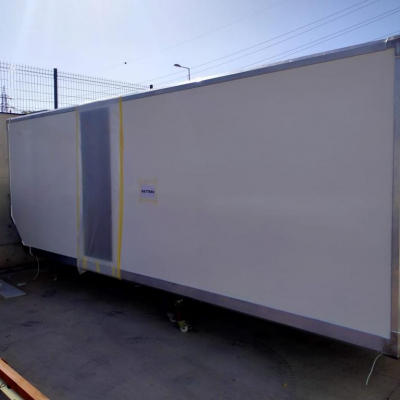

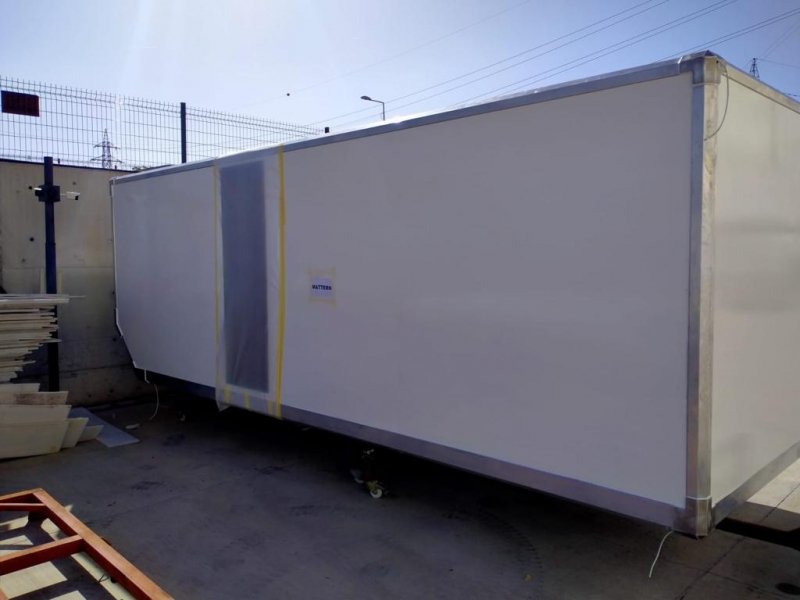

| Manufacturer of the cabin | früher SALA KAROSS (Rosenbauer), neue Kabine von 4wheel24 |
|---|---|
| Inner dimensions (LxWxH) | 6.500 mm lang, 2.300 mm breit, 2.100 mm hoch |
| Outer dimensions (LxWxH) | 6.620 mm lang, 2.420 mm breit, 2.245 mm hoch |
| Cabin material | GFK Sandwich-Panele |
| Kind and thickness of insulation | 60 mm Wand und Decke, 85 mm Boden |
| Number of beds | ein Doppelbett (2), ein Doppelstockbetten (2) und eine Dinette (2) |

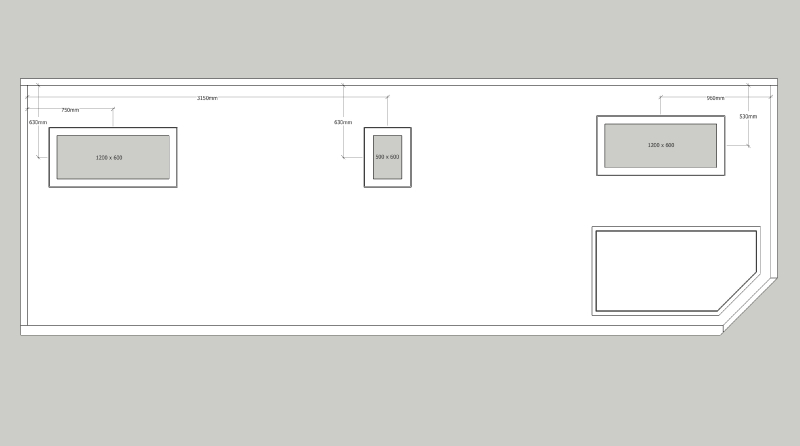

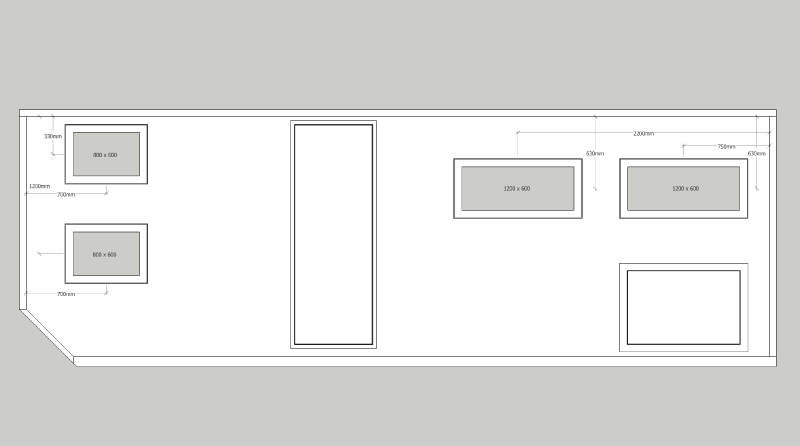

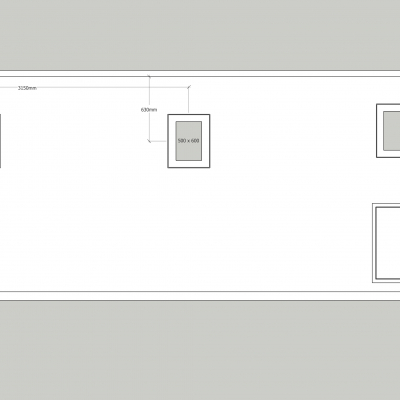

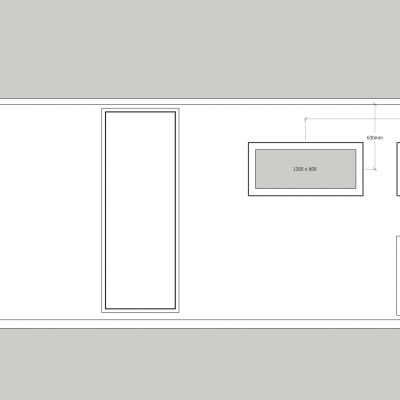

| Windows | OPTIMAL Fenster (7), 4wheel24 Türen (2) und Klappen (2) |
| Subframe | neuer Zwischenrahmen von 4wheel24 |

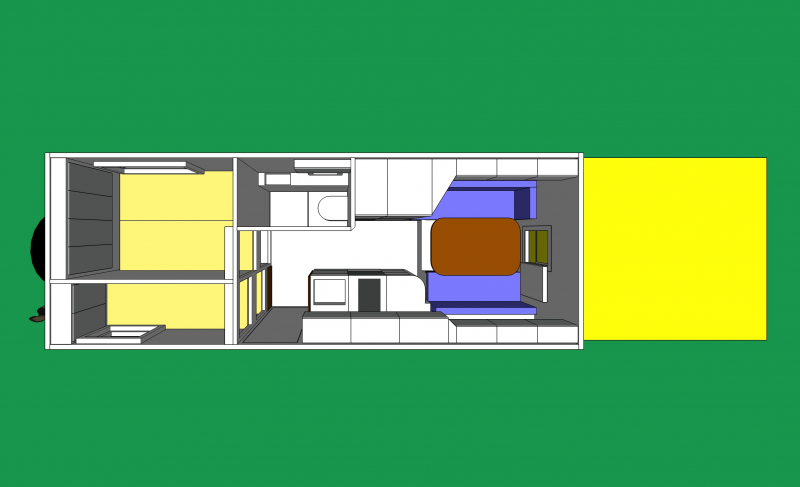

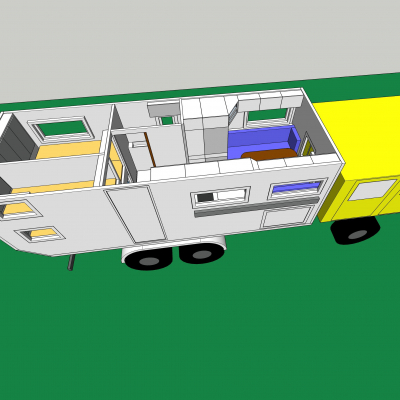

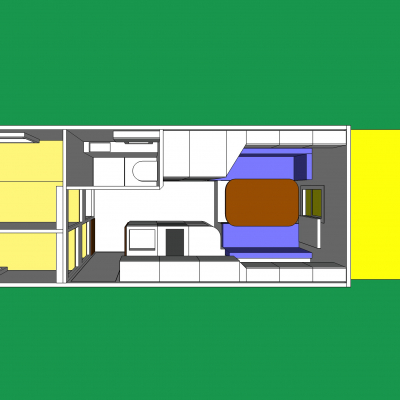

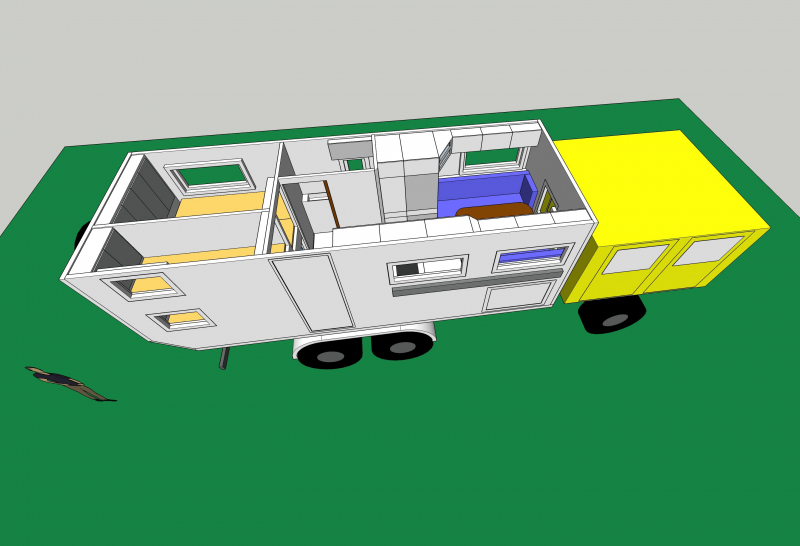

| Explanation of floor plan | |
|---|---|
| noch in Planung |
| Material of furniture | geplant 18 mm Multiplex |
|---|
| Cooking stove | Induktion, Backofen und Mikrowelle |
|---|---|
| Gas installation | nur als Backup mit Gasflache |
| Manufacturer and type of fridge / cooler | WEMO 106 F Kühlschrank und WEMO 110 GS Gefrierschrank |
|---|---|
| Other | |
| mit ausgelagerten Kompressoren | |
| Voltage in the chassis | 24 V |
|---|---|
| Voltage in the cabin | 48 V |
| Charging converter 24V-12V | Ja |
| 110V / 230V in the cabin? | yes |
| Inverter | 2x Victron 3.000 VA (ca. 5.000 W) |
| Capacity of batteries in the cabin | 25 kWh (48 V, 580 Ah) |
|---|---|
| Battery type | 8x Pylontech US 3000 C (LiFePO4) |
| Battery charger for cabin batteries | 2x Victron 1.500 W (48 V, 32 A) |
| Battery management | 8x Pylontech BMS und Victron Cerbo GX |
| Other | |
| tigerexped TEXU400 | |
| Solar capacity | geplant 2.500 kWp |
|---|---|
| Solar controller | Victron MPPT |
| Fuel cell | no |
| Power generator | zweite Lichtmaschine vom LKW (24 V) |
| Other | |
| geplant 230V Stromgenerator vom Nebenabtrieb des Motors | |
| Manufacturer and type of heating system | geplant Scheer MH 10 / 17 Diesel-Wasser-Heizung |
|---|---|
| Warm water processing | mit Diesel, Strom und Motorwärme |
| Cab heating | mit Diesel, Strom und Motorwärme |
| Other | |
| geplant Klimaanlage im Aufbau und im Fahrerhaus | |
| Explanation of gas system | |
|---|---|
| keine feste Gasanlage |
| water flow | geplant John Guest Schlauchsystem |
|---|---|
| Water filtration system | geplant WM aquatec Filtersystem |
| Capacity of fresh water tank(s) | geplant 800 Liter |
| Capacity of waste water tank(s) | geplant 400 Liter |
| Manufacturer and type of toilet | Tiny by Separett Trocken-Trenn-Toilette |
|---|---|
| Capacity of black water tank | geplant mehrere Kanister für Trocken-Trenn-Toilette |
| Rear carrier | geplant für ein Ersatzrad und evtl. ein Motorrad |
|---|---|
| Roof rack | geplant auf Doka als Terrasse |
| Storage boxes | geplant rund ums Fahrzeug |
| Outside cooking facilities | geplant in Staubox |
| Awning | geplant |
