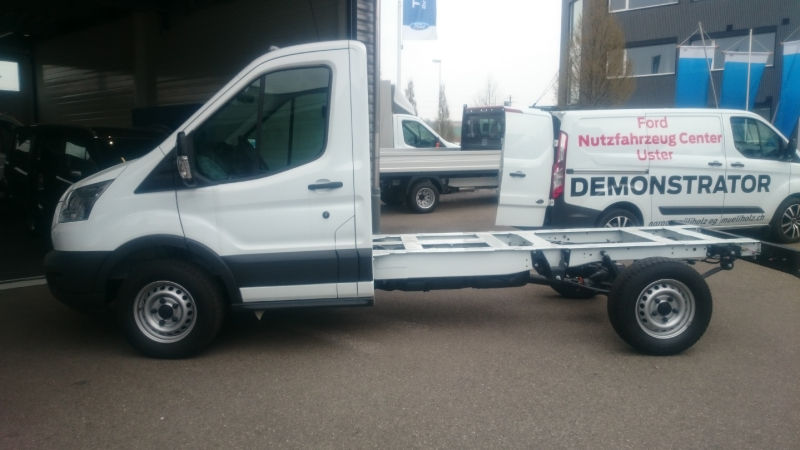

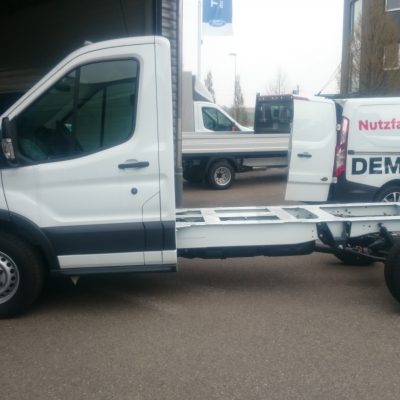

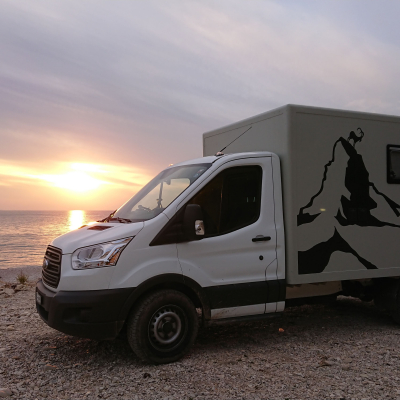

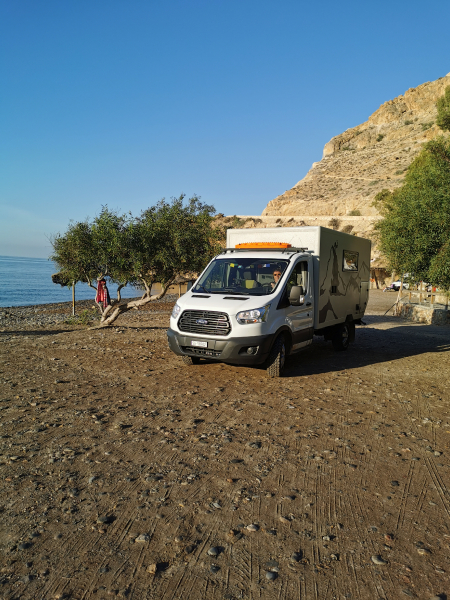

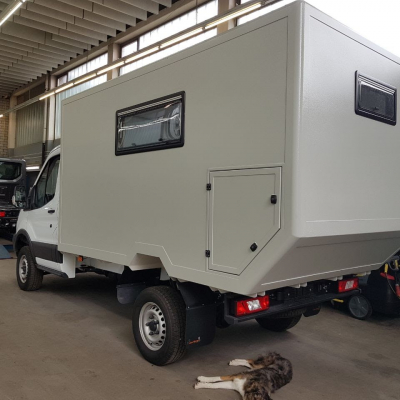

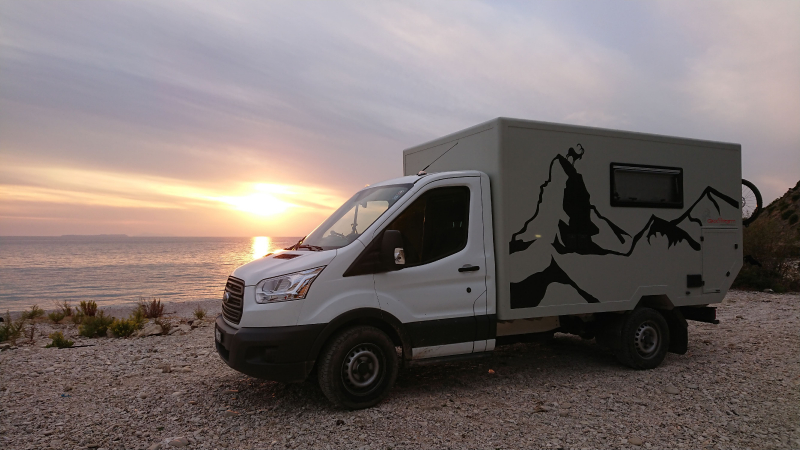

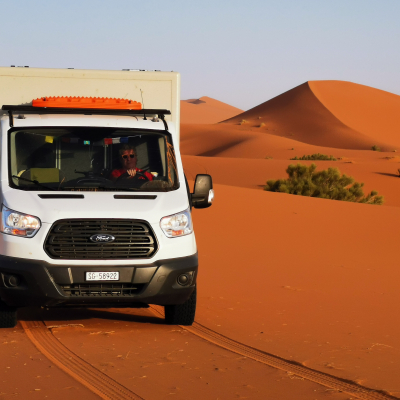

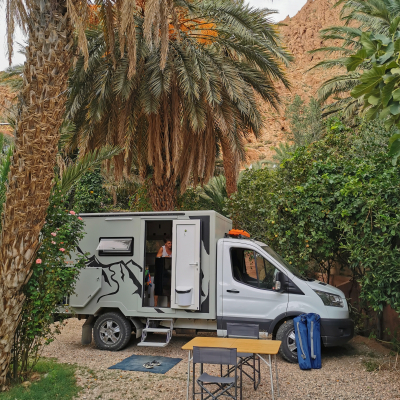

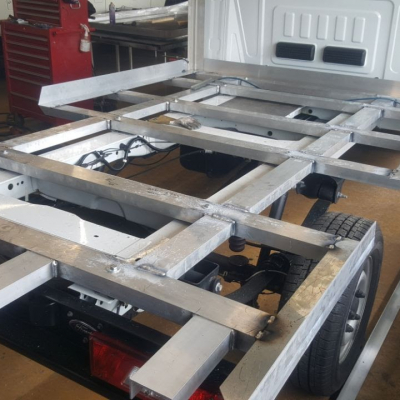

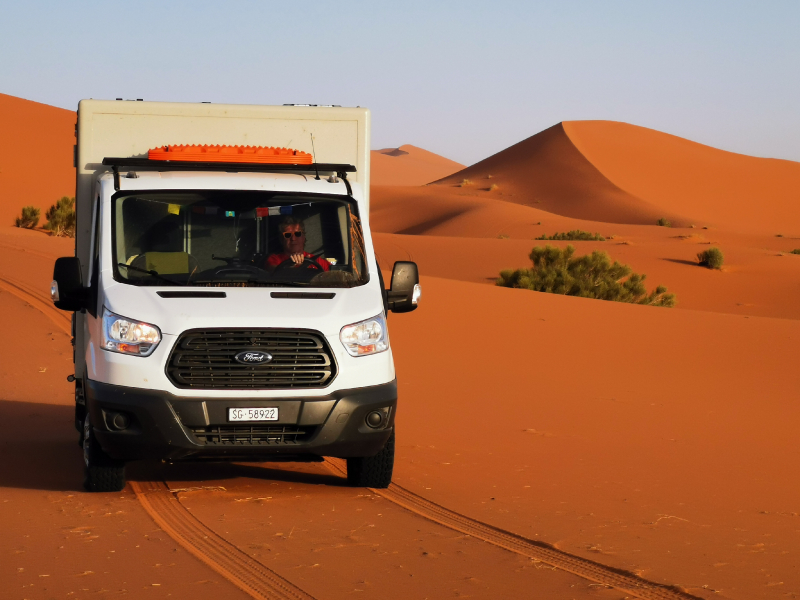

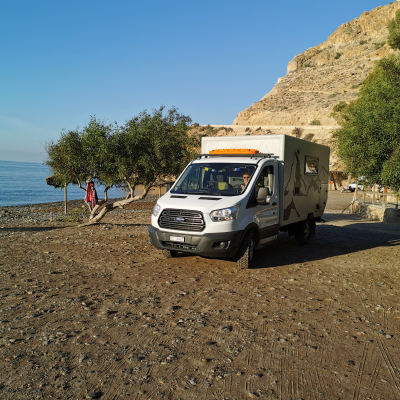

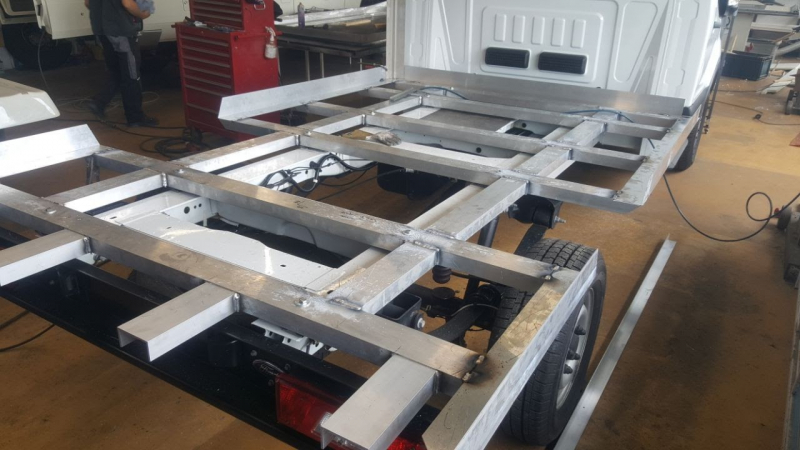

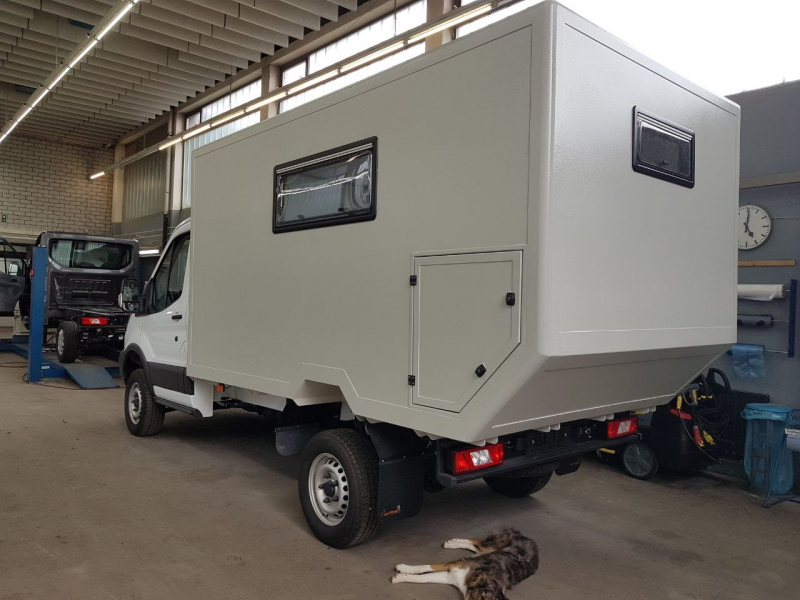

Berta III beruht auf einem Ford Transit 4x4 Chassis und einem nach unseren Plänen erstellte Kabine welche wir selbst ausgebaut haben
| Manufacturer and model | Ford Transit 4x4 |
|---|---|
| Name | Jürg und Doris Litscher |
| Country | Schweiz |
| Year of manufacture | 2016 |
| For sale? | no |

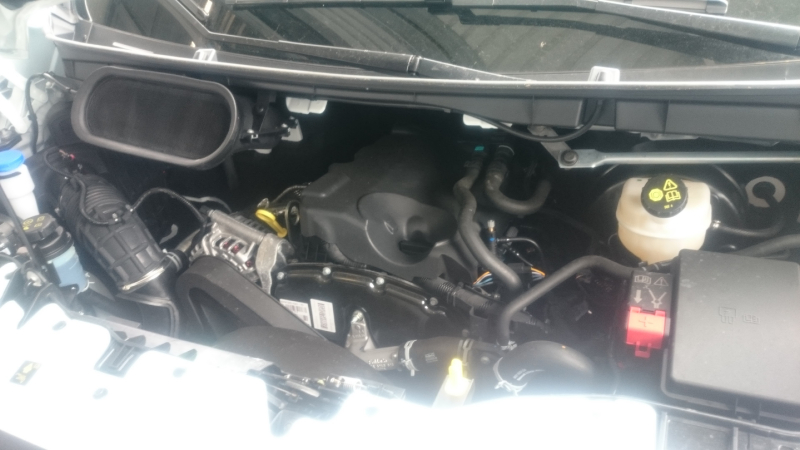

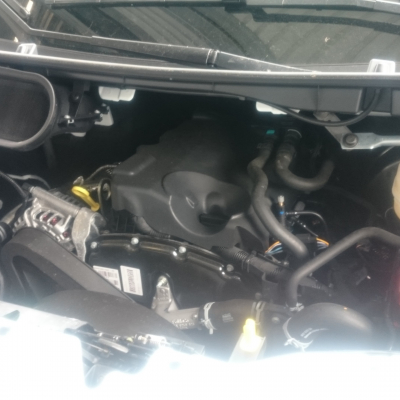

| Engine type | Diesel |
|---|---|
| Cubic capacity | 2193 cm3 |
| Number of cylinders | 4 |
| Horsepower | 155 |
| 4x2, 4x4, 6x6, 8x8 | 4 x 4 |
|---|---|
| Number of seats | 2 |
| Type of tyre | Good Reach all Terain |
| Tank capacity | 90l |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | zuschaltbar |
| Diff locks | nein |

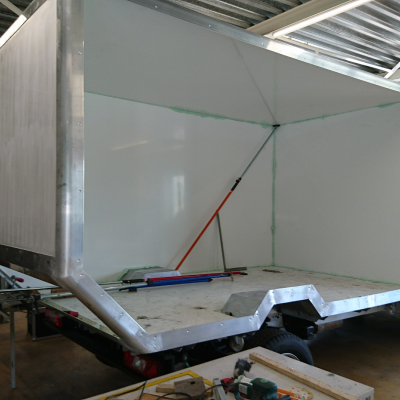

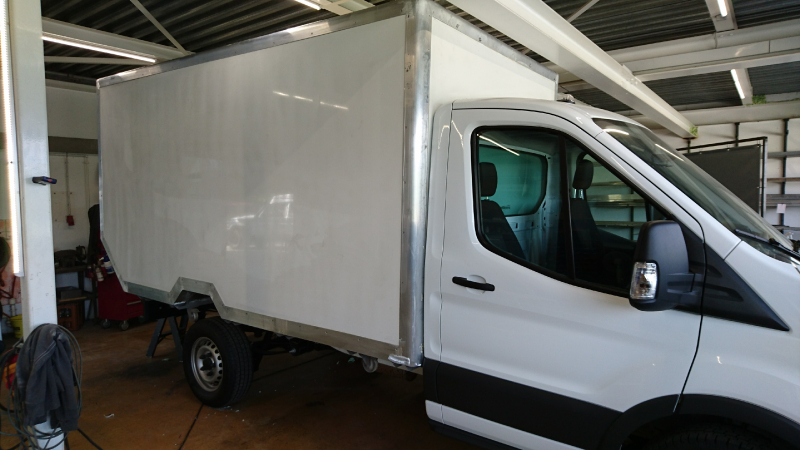

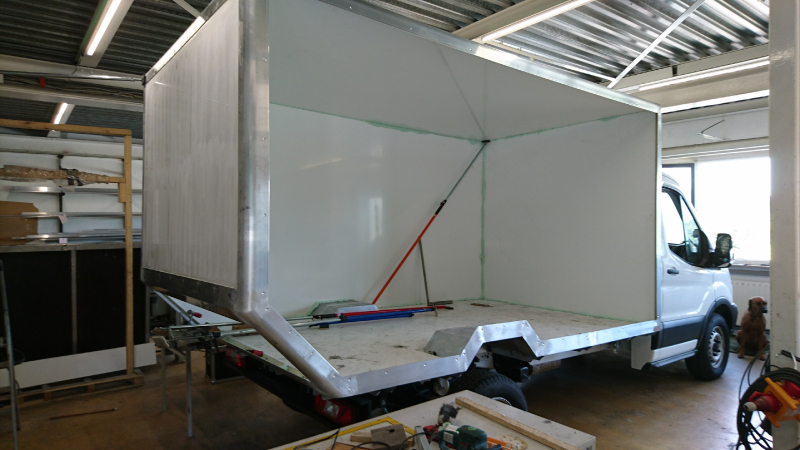

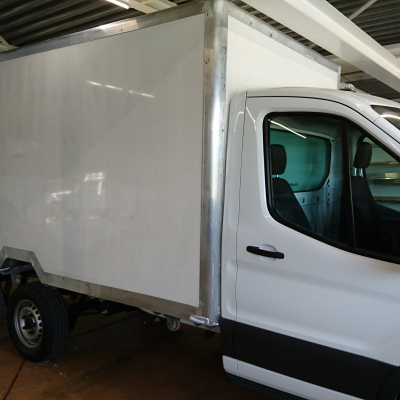

| Manufacturer of the cabin | Extrem Fahrzeuge Gmbh |
|---|---|
| Inner dimensions (LxWxH) | 3650x2020x1900mm |
| Outer dimensions (LxWxH) | 3730x2100x1980mm |
| Cabin material | Alu-Sandwich |
| Kind and thickness of insulation | 40mm PU Schaum |

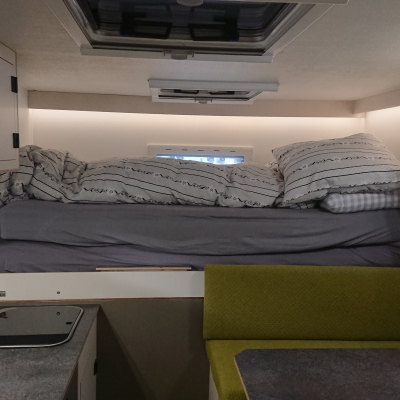

| Number of beds | 2 |
| Windows | 3 Fenster 3 Dachluken |

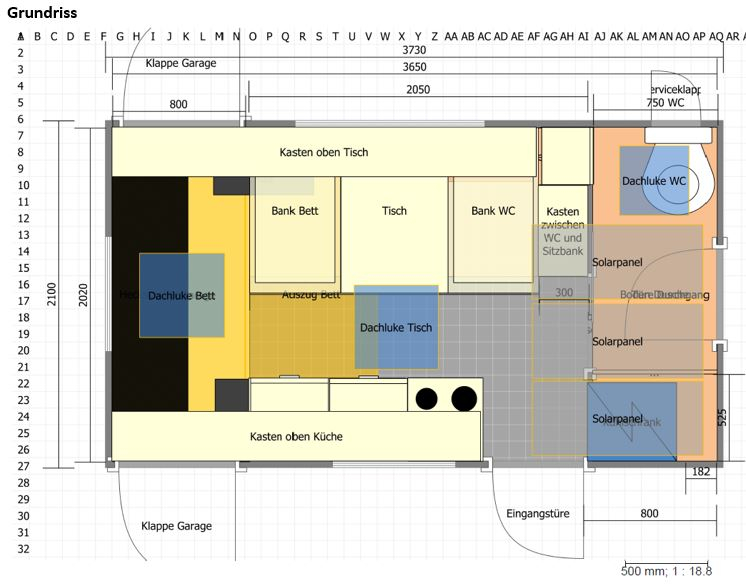

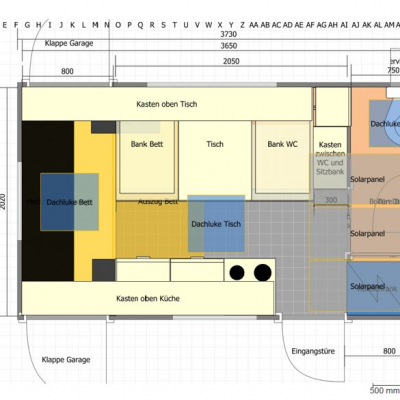

| Explanation of floor plan | |
|---|---|
| Breite des Aufbaus 210 cm aussen / innen 204 cm |

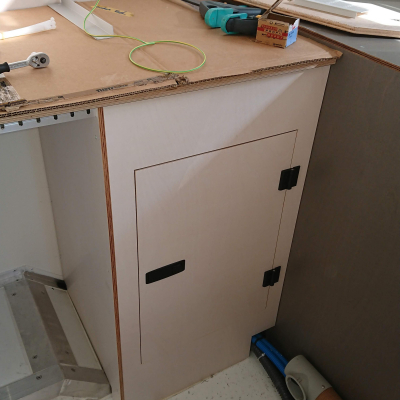

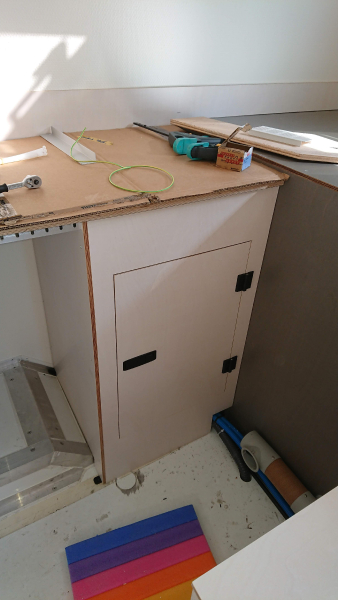

| Material of furniture | Birkensperrholz 9mm / Balssperrholz 12mm |
|---|---|
| Other | |

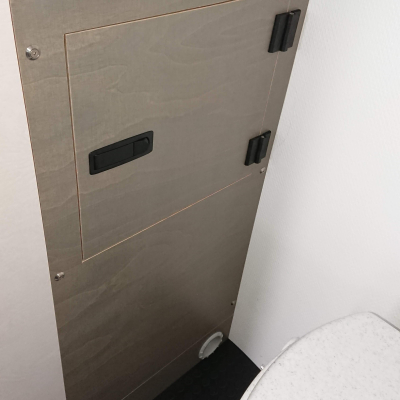

| Kompressionsverschlüsse | |

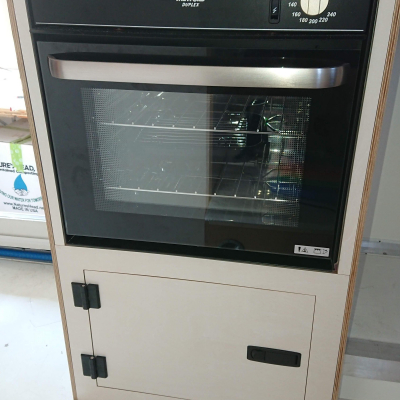

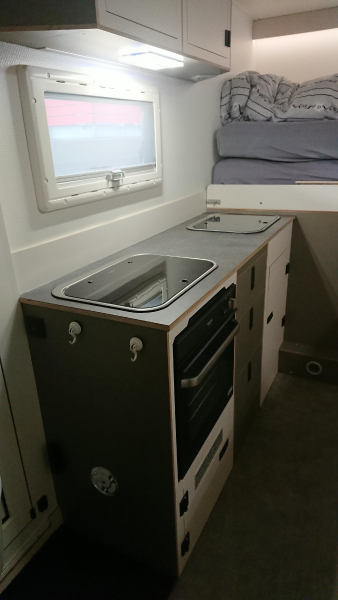

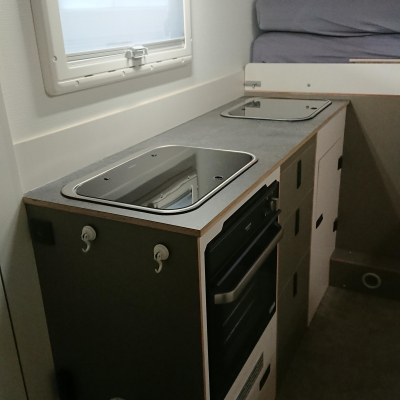

| Cooking stove | Dometic Kocher 2 Flammen |
|---|---|
| Gas installation | 8mm |

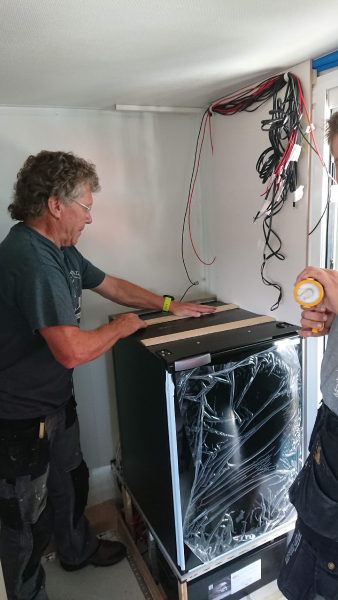

| Manufacturer and type of fridge / cooler | Wemo |
|---|---|
| Other | |

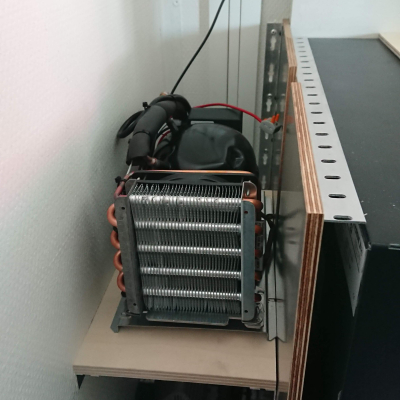

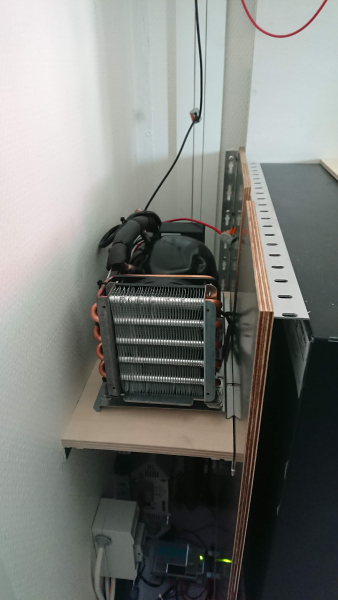

| externer Kompressor | |

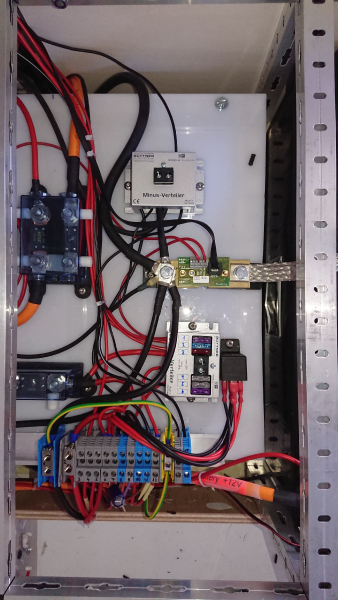

| Voltage in the chassis | 12V |
|---|---|
| Voltage in the cabin | 12V |
| Charging converter 24V-12V | Nein |
| 110V / 230V in the cabin? | no |
| Inverter | Ja, 1700Watt |
| Capacity of batteries in the cabin | 155 |
|---|---|
| Battery type | GEL |

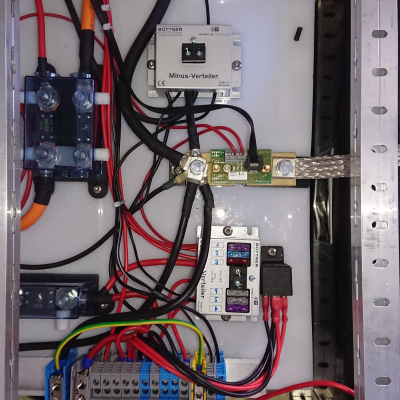

| Battery charger for cabin batteries | Büttner Lade Booster |
| Battery management | Büttner Info Panel |
| Solar capacity | 140Watt |
|---|---|
| Fuel cell | no |

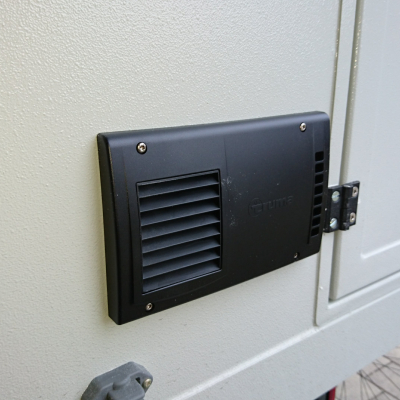

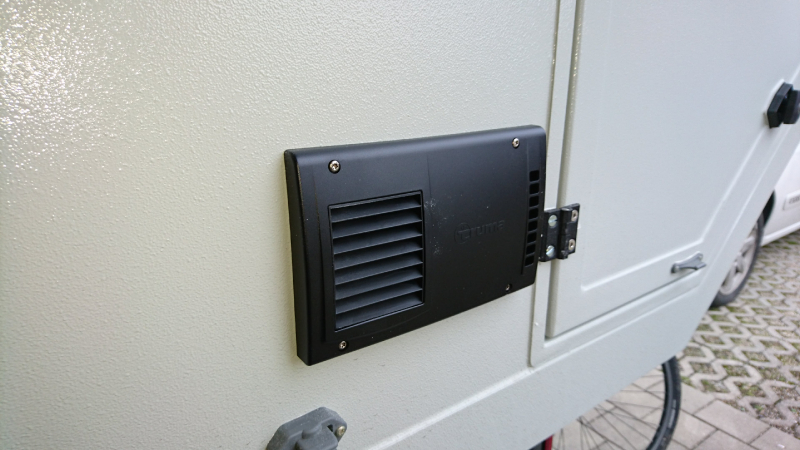

| Manufacturer and type of heating system | Truma Combi D 6 E CP plus |
|---|---|
| Warm water processing | Truma Combi D 6 E CP plus |
| Cab heating | Truma Combi D 6 E CP plus |

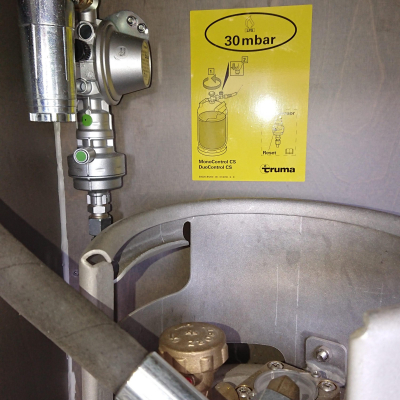

| Explanation of gas system | |
|---|---|

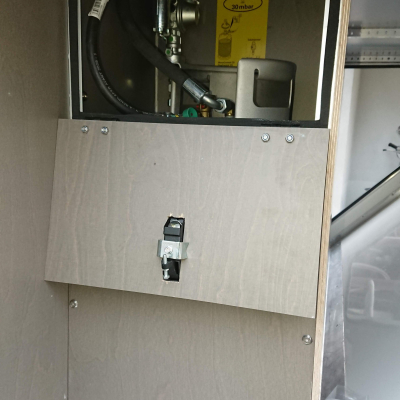

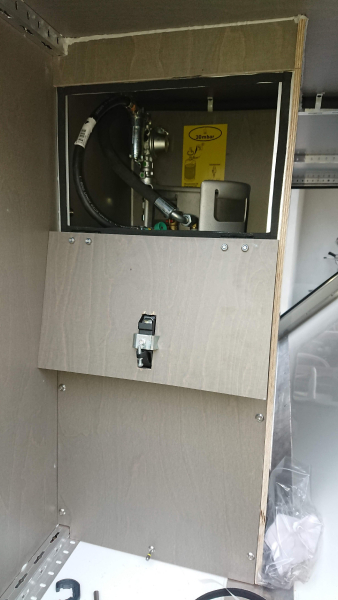

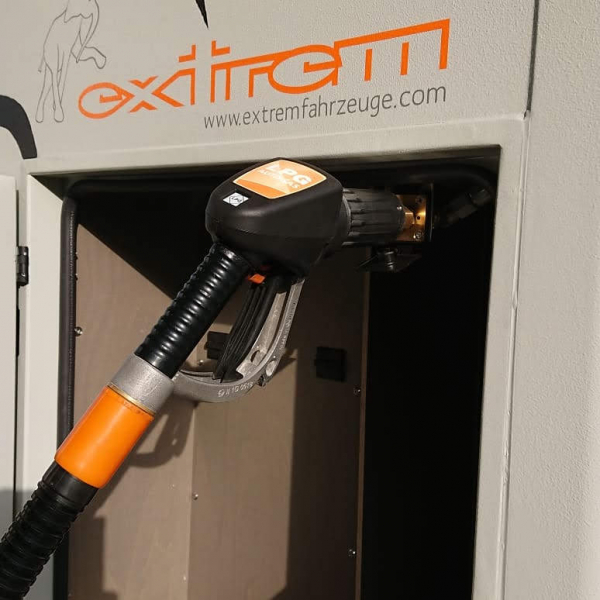

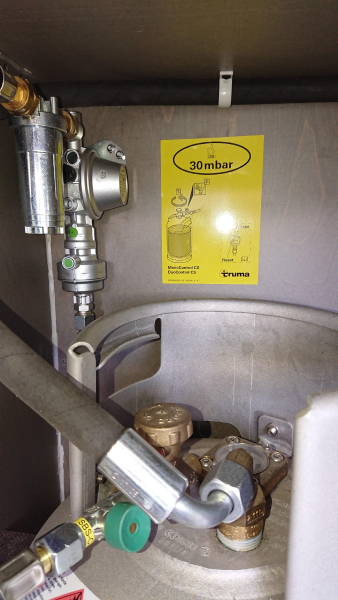

| Alugasflasche mit LPG / Autogasanschluss für externe Befüllung |

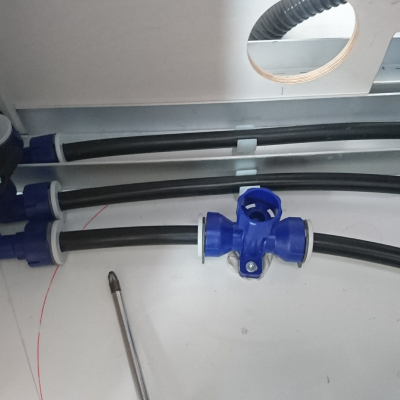

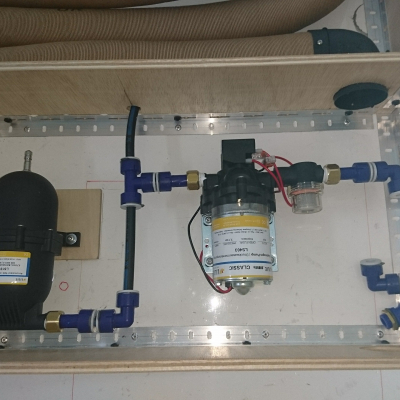

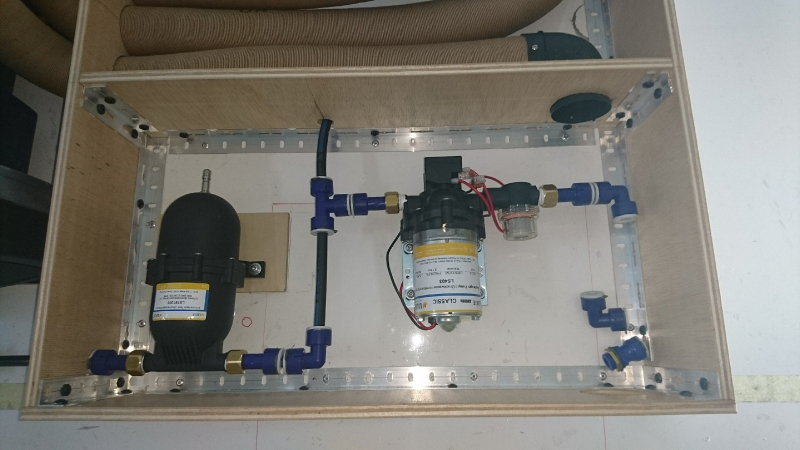

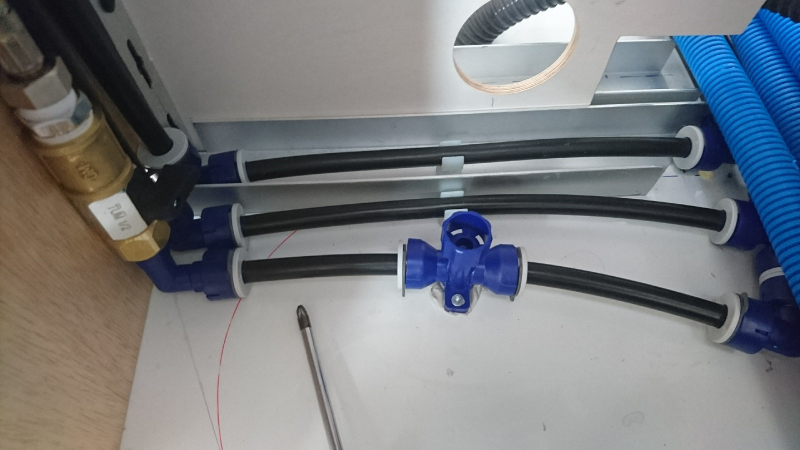

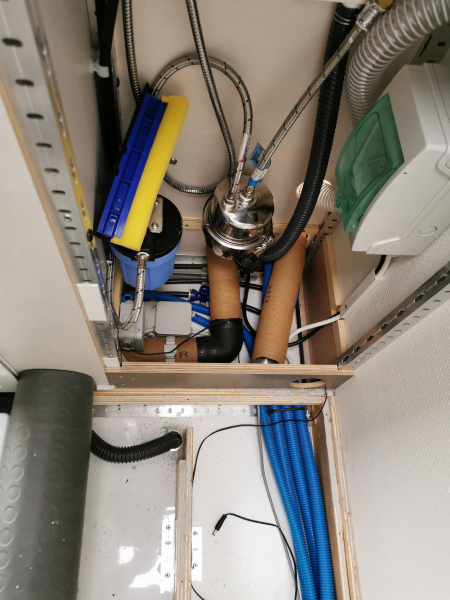

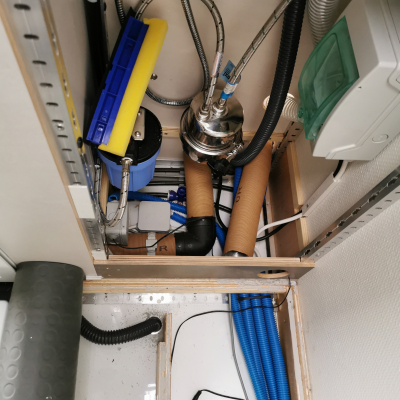

| water flow | Uniclick System |
|---|---|

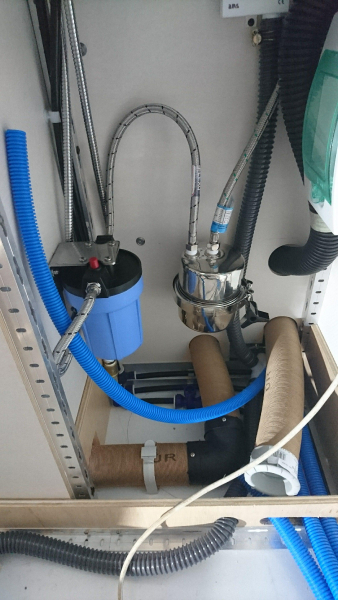

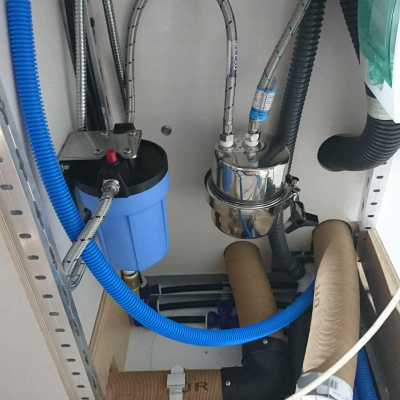

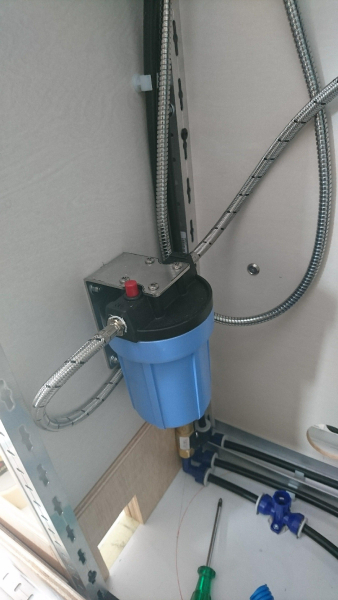

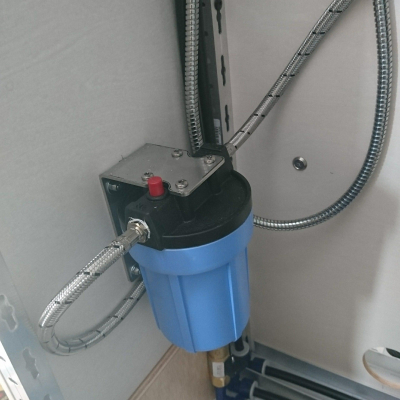

| Water filtration system | ja Kohle / Katadyn |
| Capacity of fresh water tank(s) | 80l |

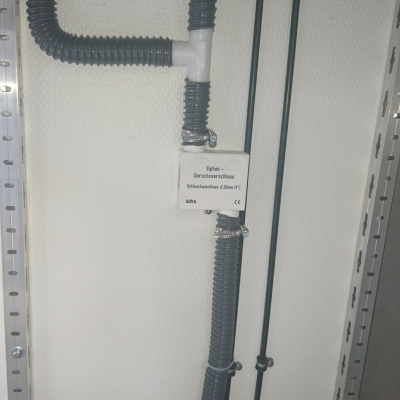

| Capacity of waste water tank(s) | 100l |

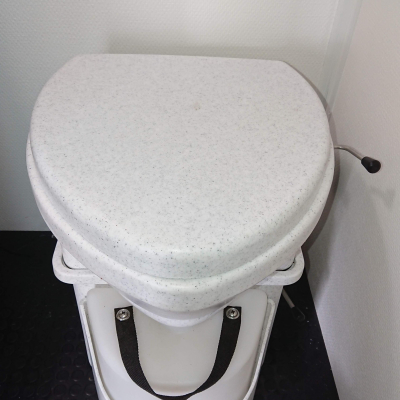

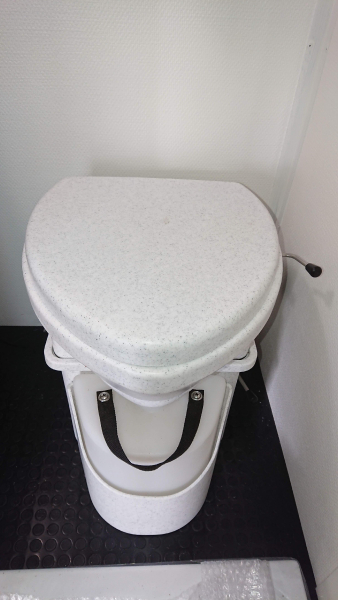

| Manufacturer and type of toilet | Trenntoilette Nature s Head |
|---|
| Rear carrier | Thule Lift V16 |
|---|---|
| Outside cooking facilities | Gassteckdose |
| Awning | Zurrschiene |
