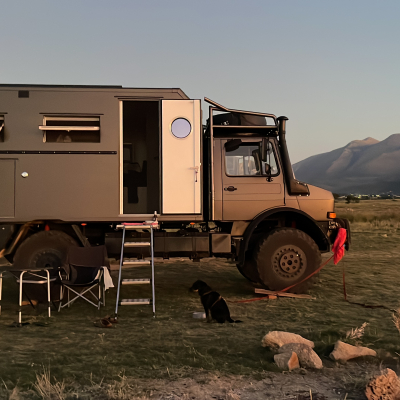

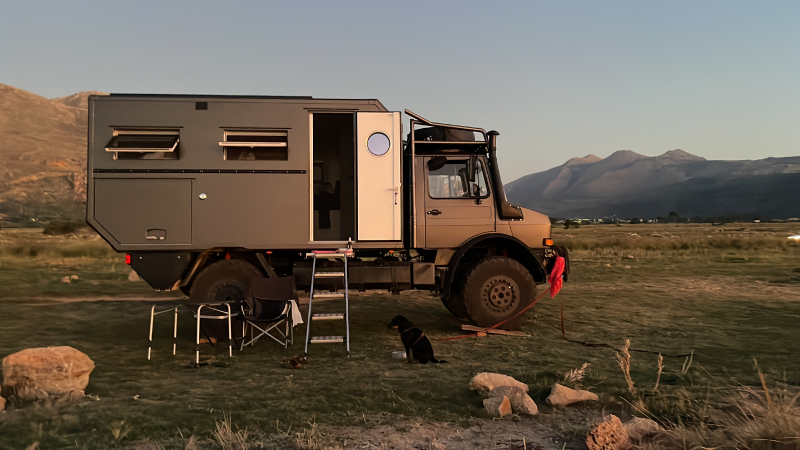

Auf- und Umbau zum Reisefahrzeug

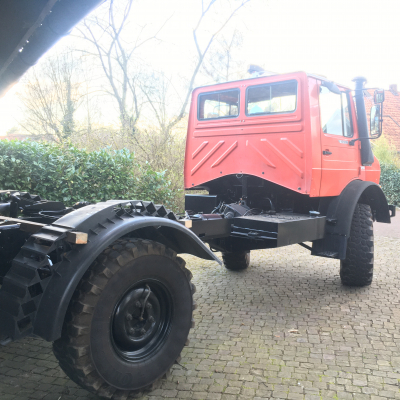

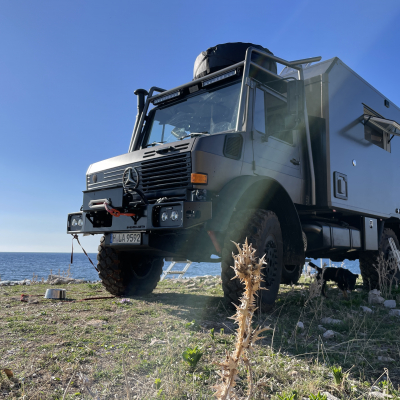

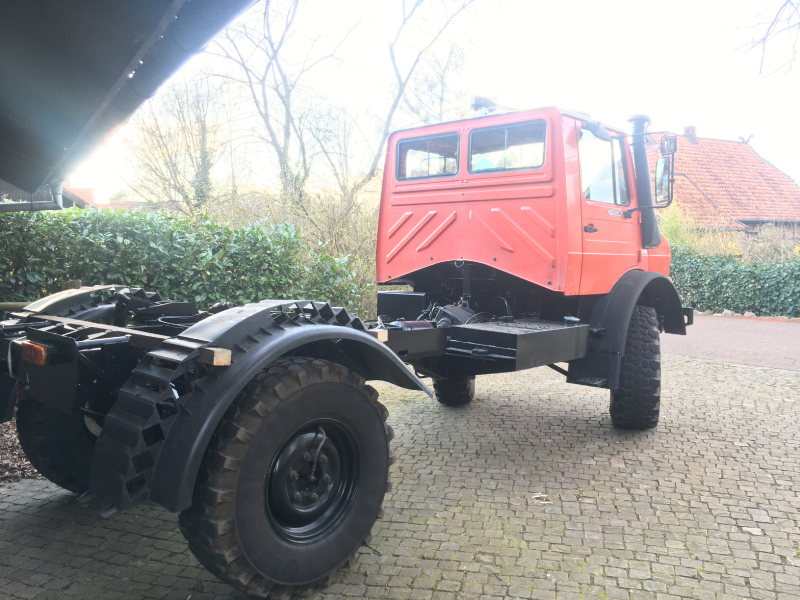

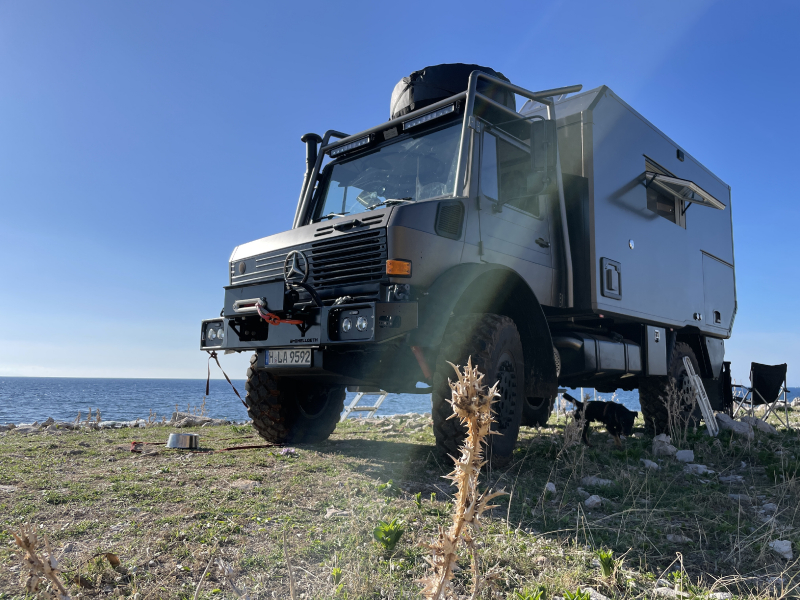

| Manufacturer and model | Unimog U1550L/37 |
|---|---|
| Name | Thomas Eggers |
| Year of manufacture | 1997 / 2022 |
| For sale? | no |
| Cubic capacity | 6 Liter |
|---|---|
| Number of cylinders | 6 |
| Horsepower | 290 |
| 4x2, 4x4, 6x6, 8x8 | 4*4 |
|---|---|
| Wheel base | 3,70 |
| Number of seats | 3 |
| Tyre size | 365/80R20 |
| Rim size | Hutchinson |
| Type of tyre | Pirelli |

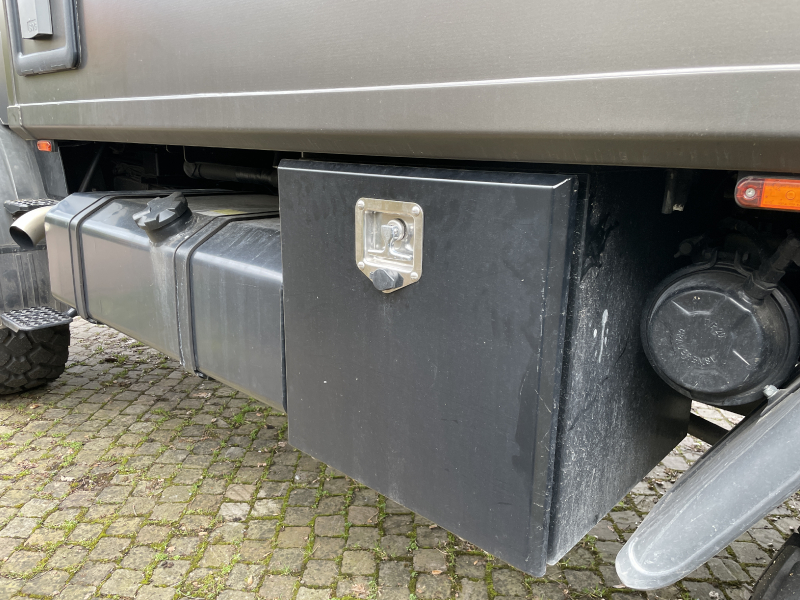

| Tank capacity | 580 Liter (250 + 185 + 145) |

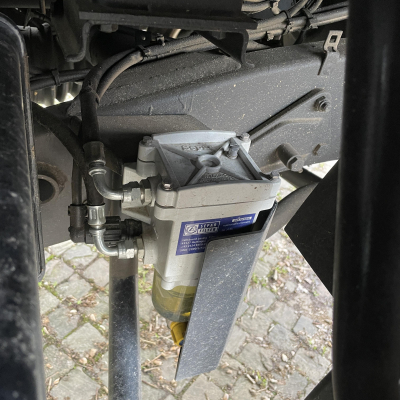

| Diesel filter | yes |
| Other | |
|

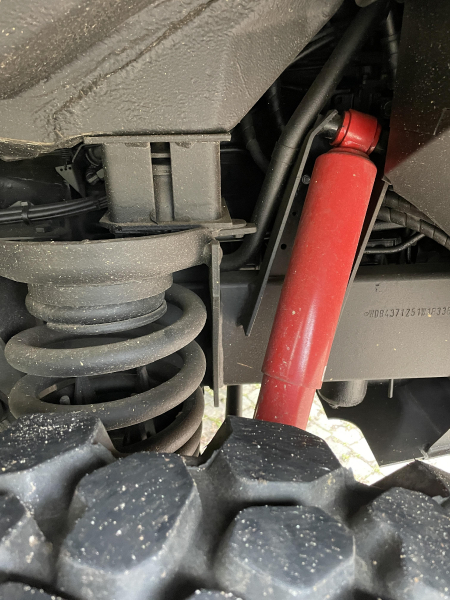

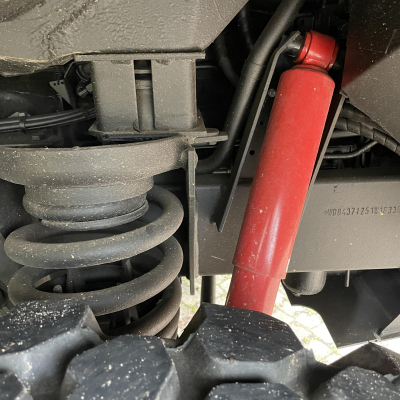

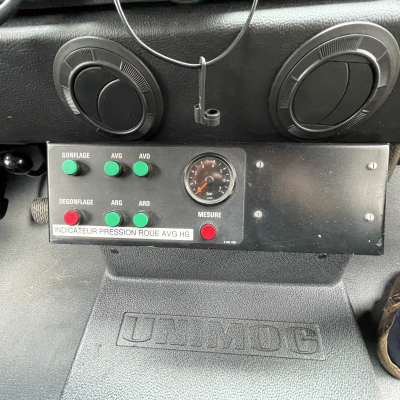

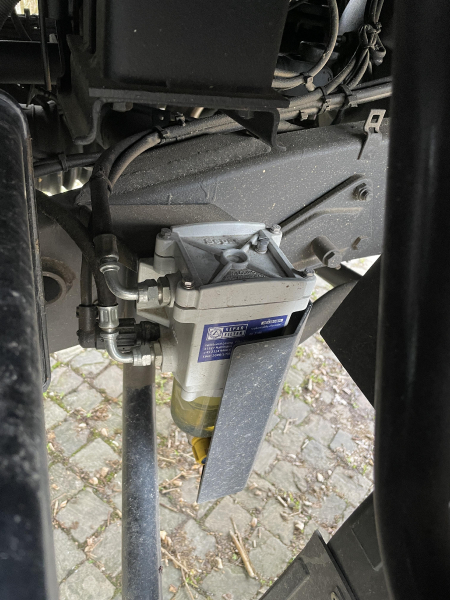

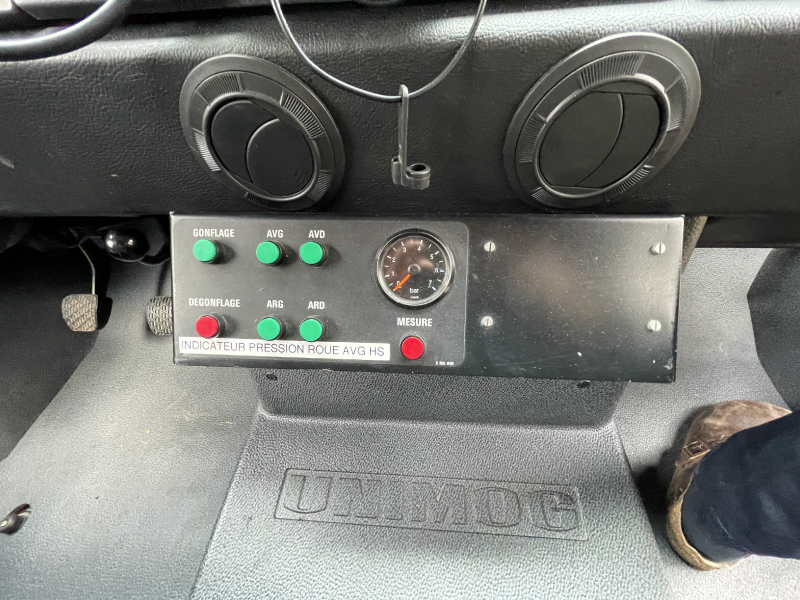

Reifendruckregelanlage. Radweise im Fahrerhaus bedienbar. Koni-Dämpfer. Beheizbarer Dieselfilter. | |
| Permanent or manually selectable 4-wheel drive | zuschaltbar |
| Diff locks | Ja, original |

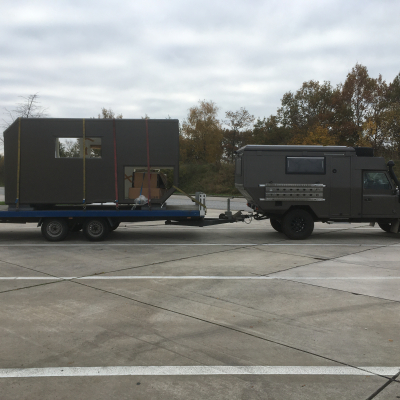

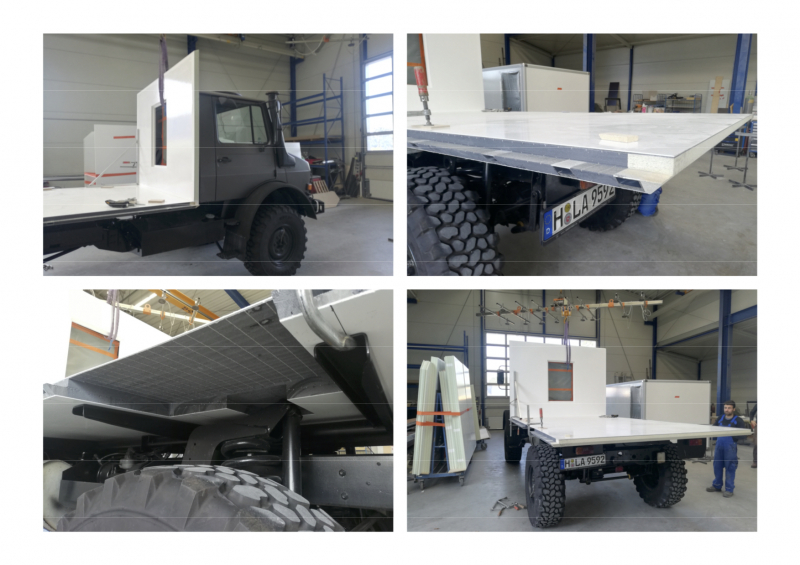

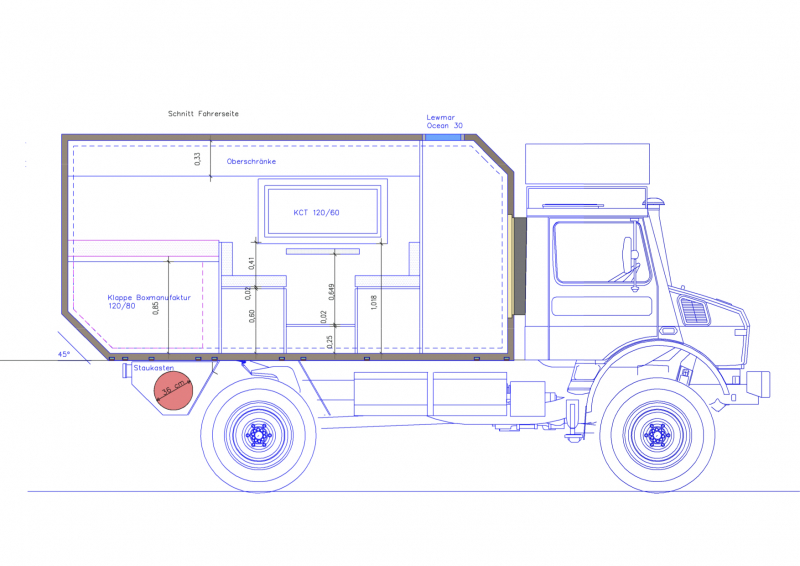

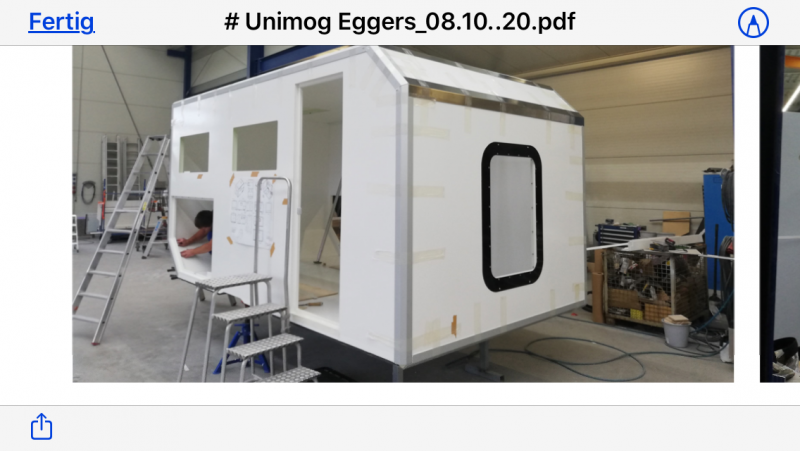

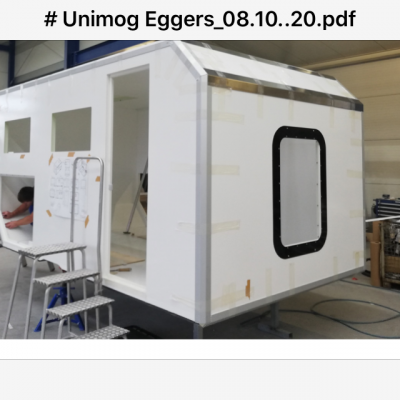

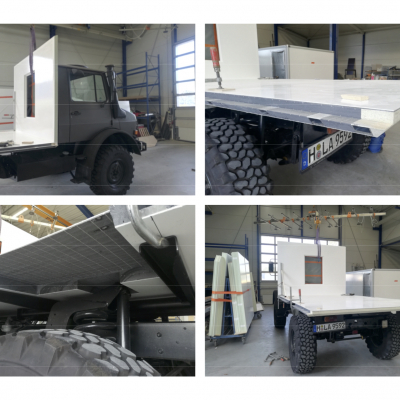

| Manufacturer of the cabin | BoxManufaktur |
|---|---|

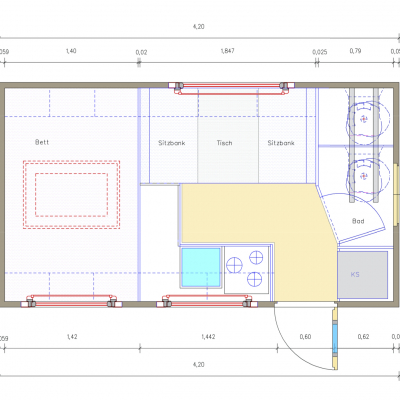

| Inner dimensions (LxWxH) | 4,082 m |
| Outer dimensions (LxWxH) | 4,20 m |
| Cabin material | PU mit GK-Deckschicht |
| Kind and thickness of insulation | 55 mm |
| Number of beds | 3 |
| Windows | KCT |

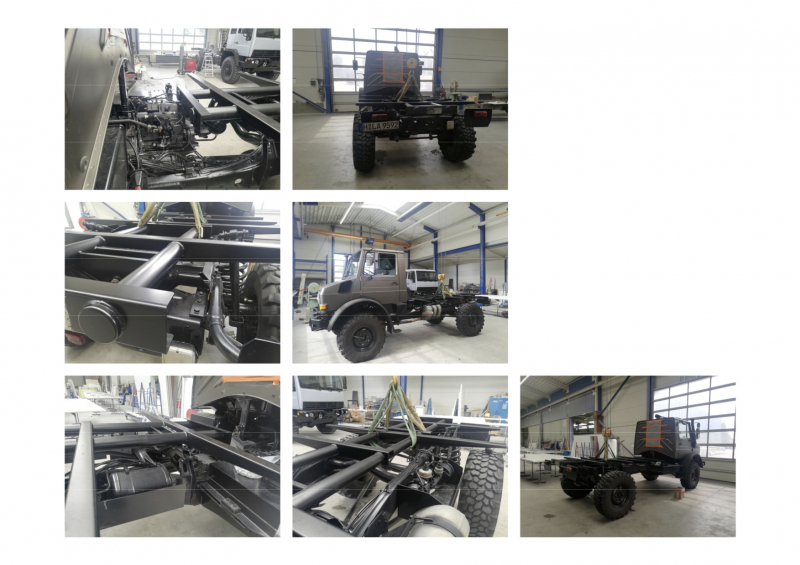

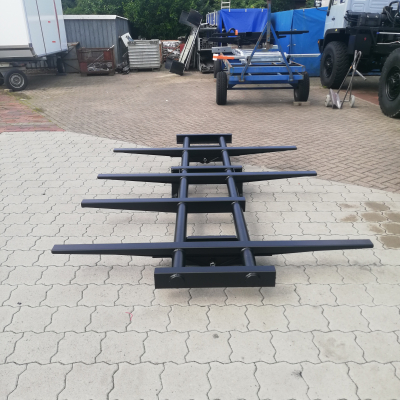

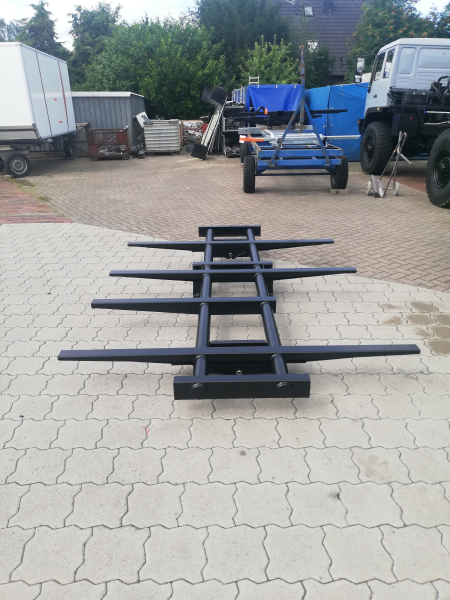

| Subframe | Hellgeth |
| Other | |
| KCT Dachfenster | |

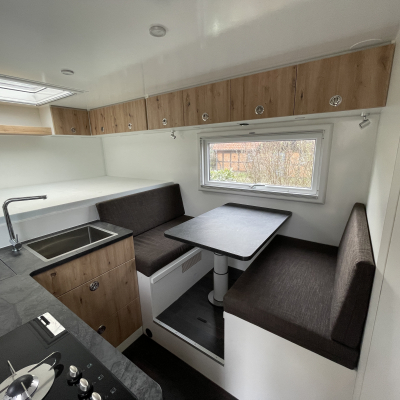

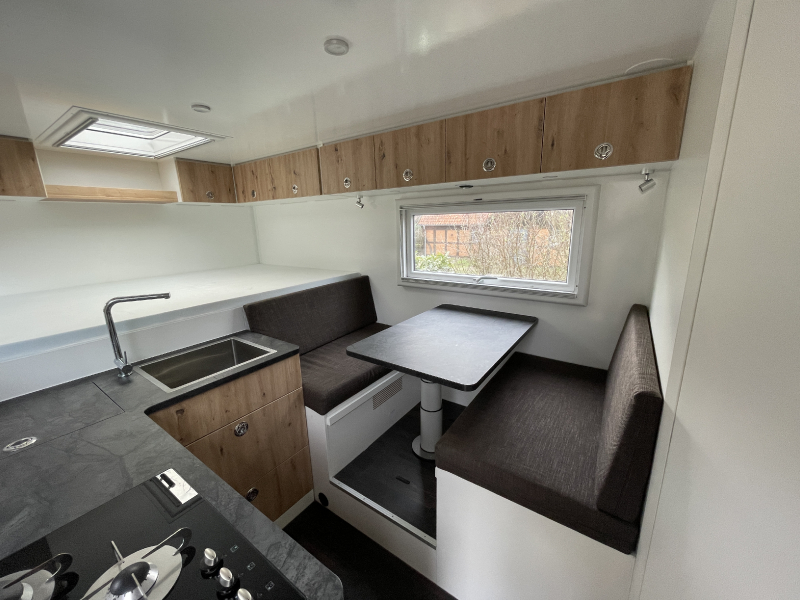

| Material of furniture | Pappelsperrholz mit HPL-Oberflächen |
|---|---|
| Other | |
| Schubladen mit selbstanziehenden Vollauszügen und Southco-Kompressionsverschlüssen. | |

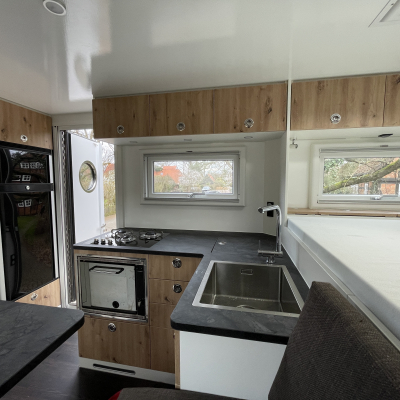

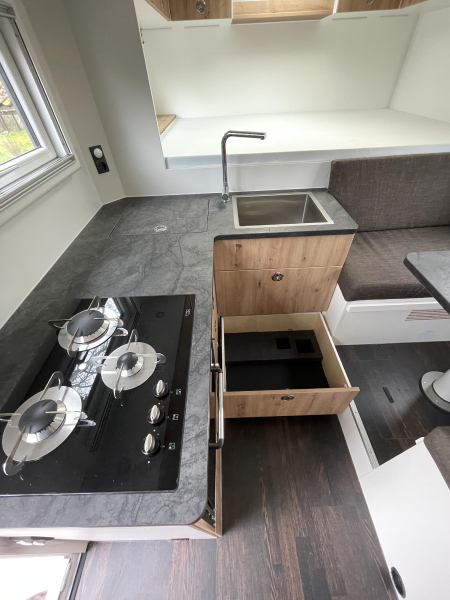

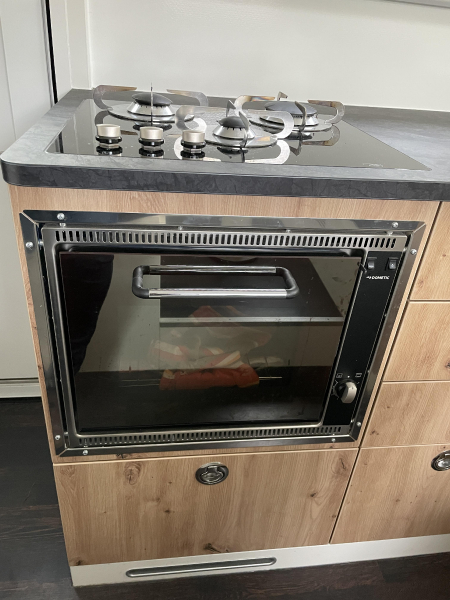

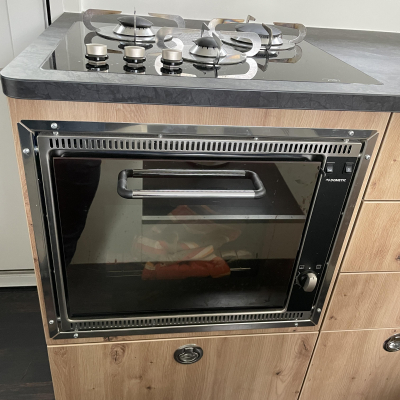

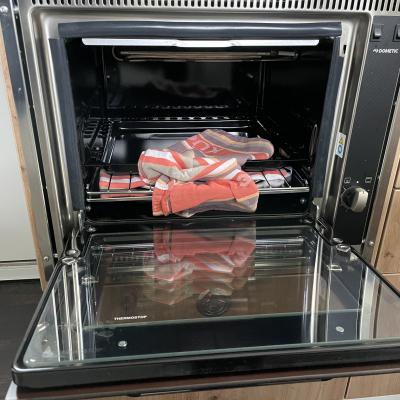

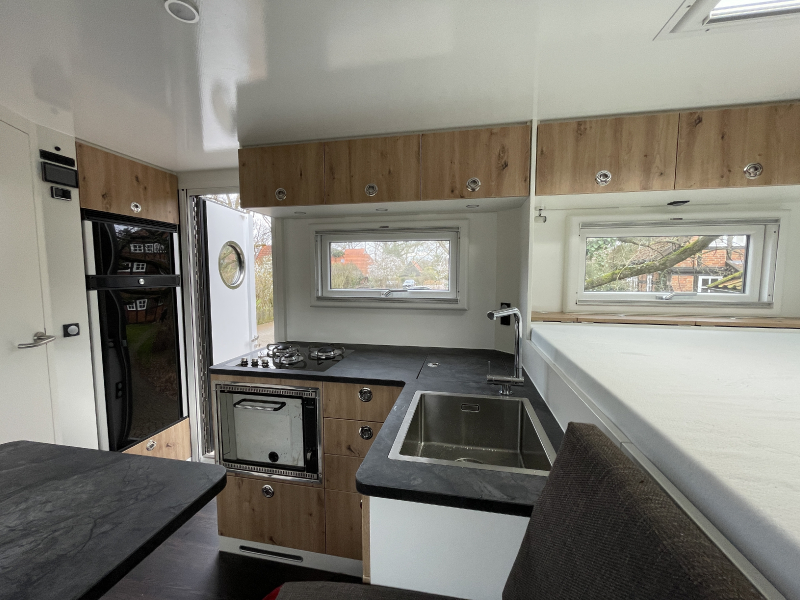

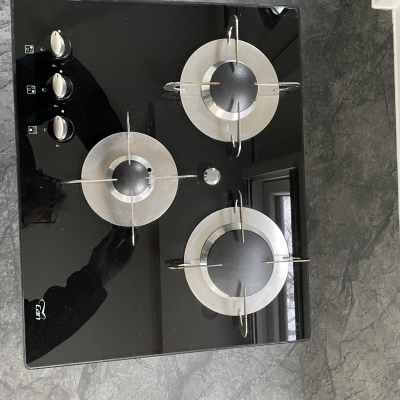

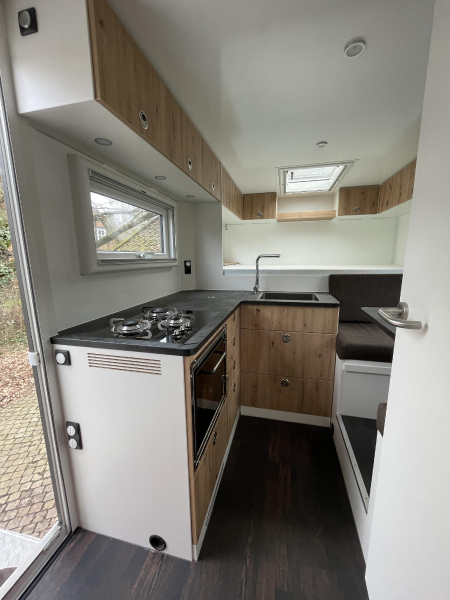

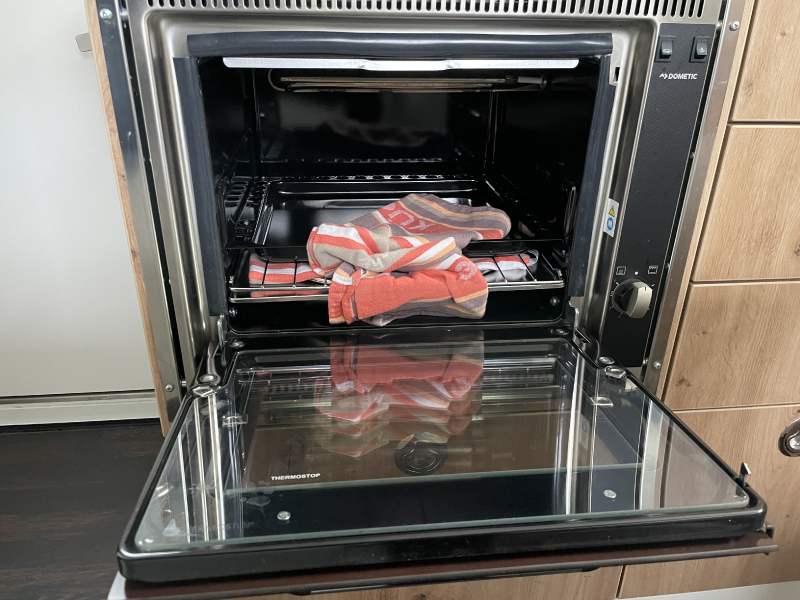

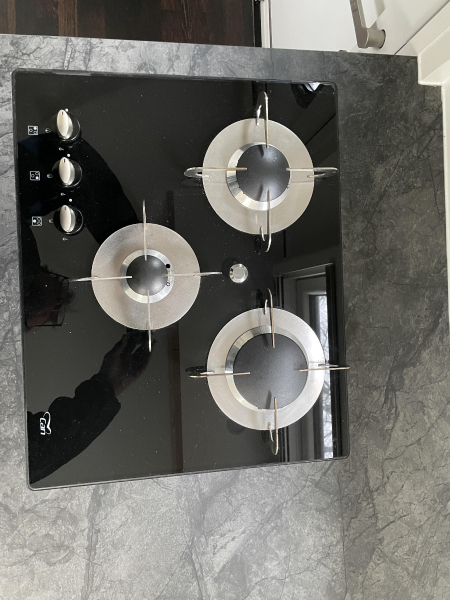

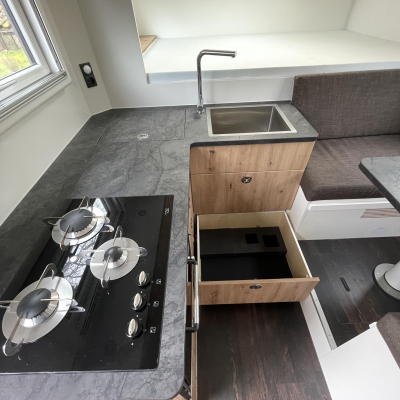

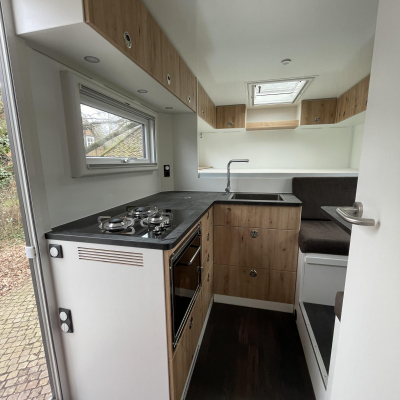

| Cooking stove | CAN PV 355 + Backofen Dometic OG 3000 |
|---|---|

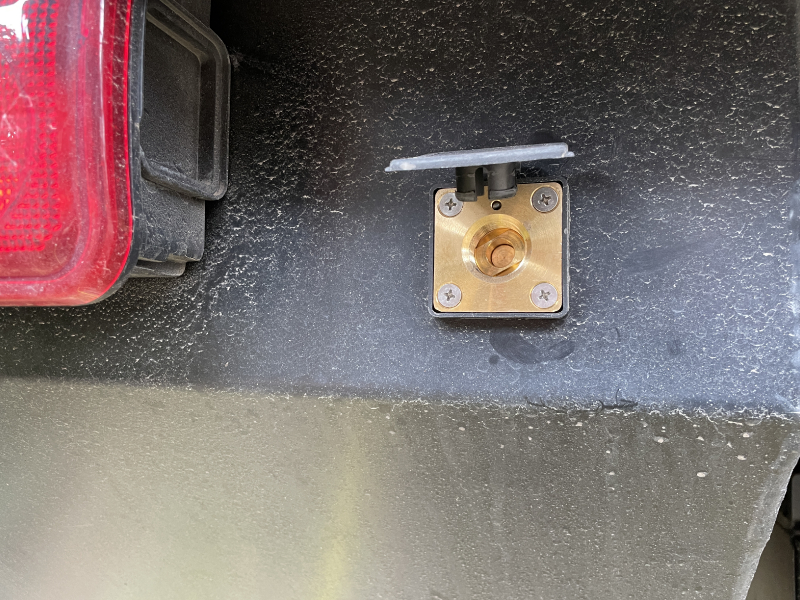

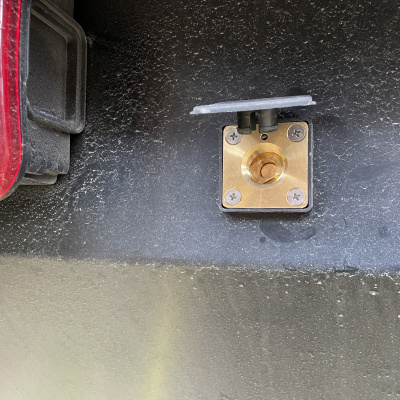

| Gas installation | 50 Liter Gastank im Radstaukasten mit Fernbetankungsanschluss. |
| Other | |
| Ausziehbare Außenküche mit Grill und Gasanschluss im Radstaukasten | |

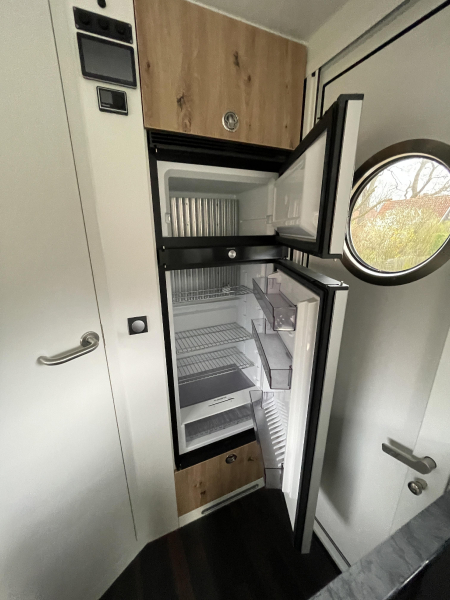

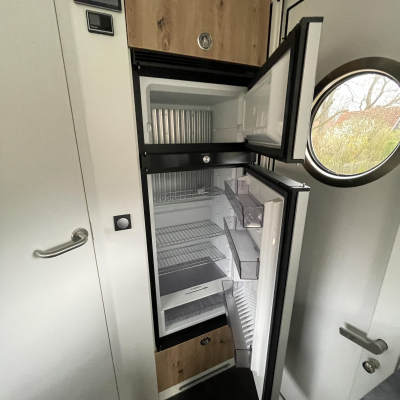

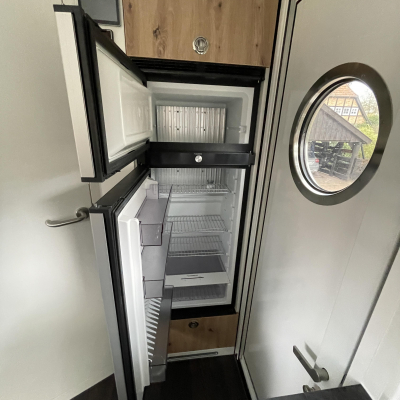

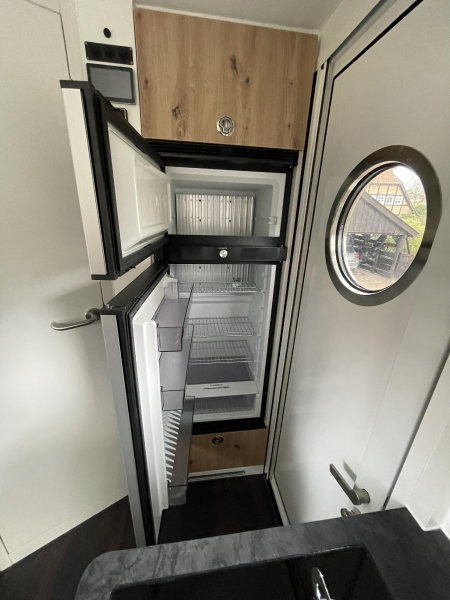

| Manufacturer and type of fridge / cooler | Dometic RCD 10.5T, 160 Liter mit sep. Tiefkühlteil. Türen sowohl links als auch rechts zu öffnen. |
|---|
| Voltage in the chassis | 24 V |
|---|---|
| Voltage in the cabin | 12 V + 230 V + 110 V |
| Charging converter 24V-12V | Votronic 12 V / 45 A |
| 110V / 230V in the cabin? | yes |

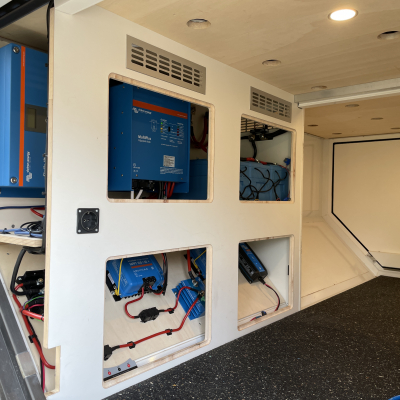

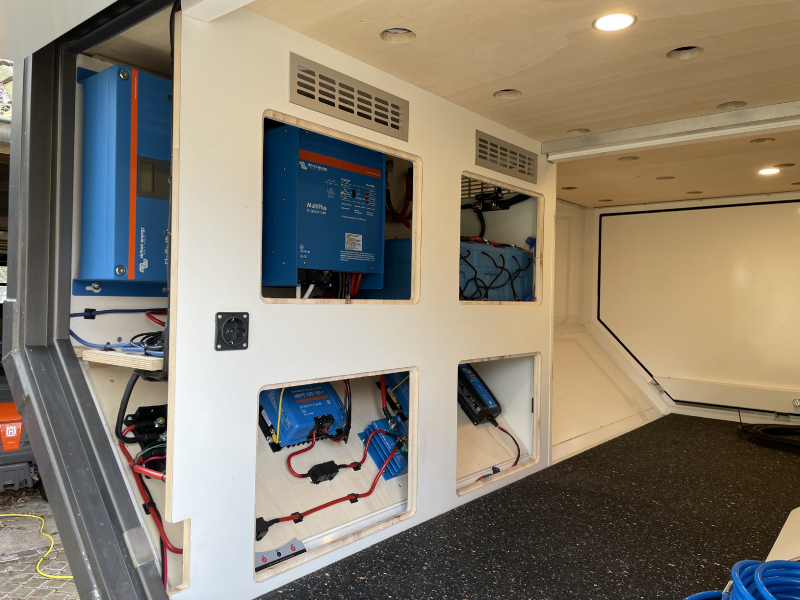

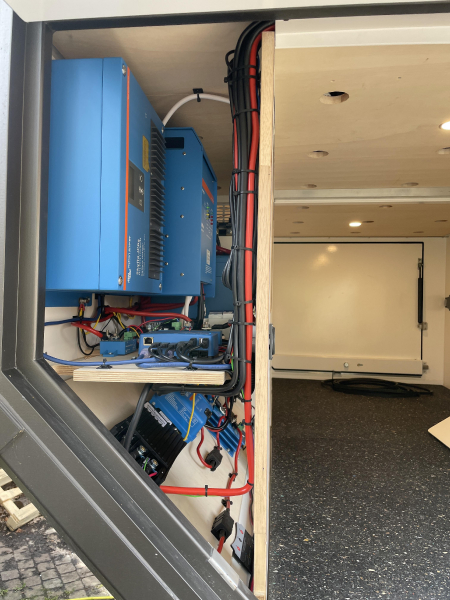

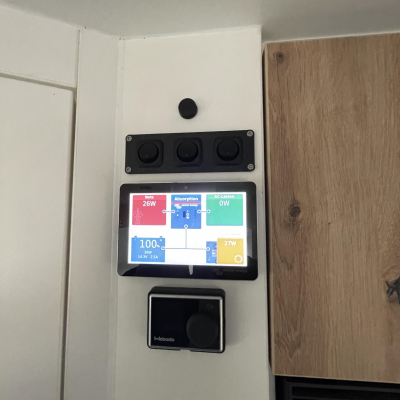

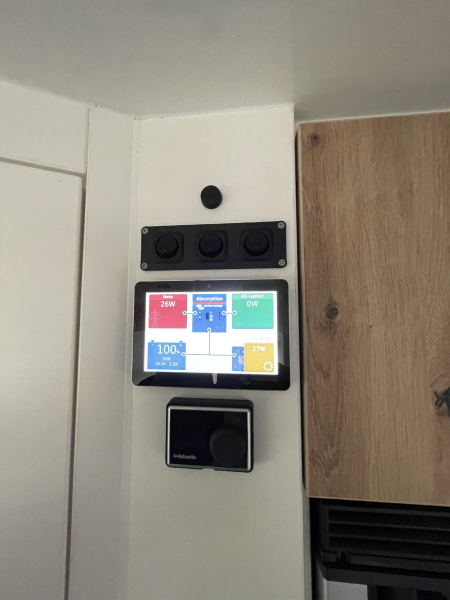

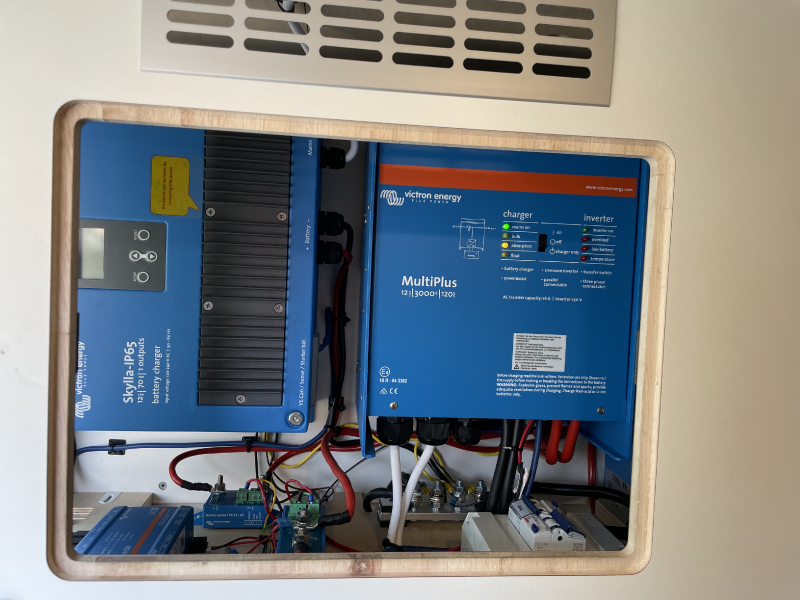

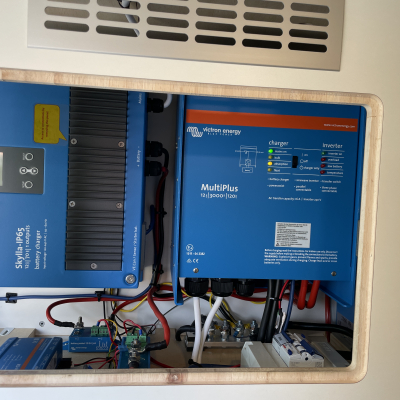

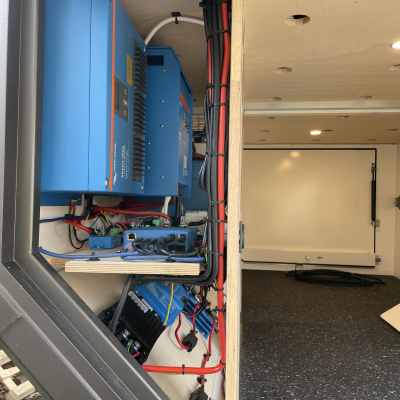

| Inverter | Victron Multiplus 12/3000/120-16 |
| Other | |

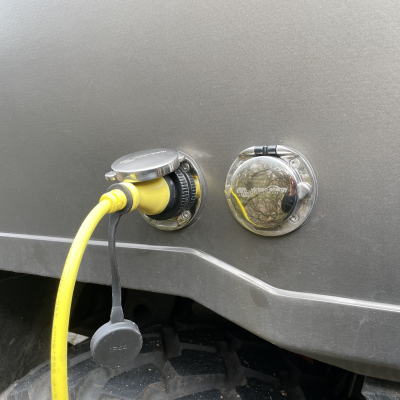

| Sowohl 110 V ls auch 230 V Außenanschluss. | |

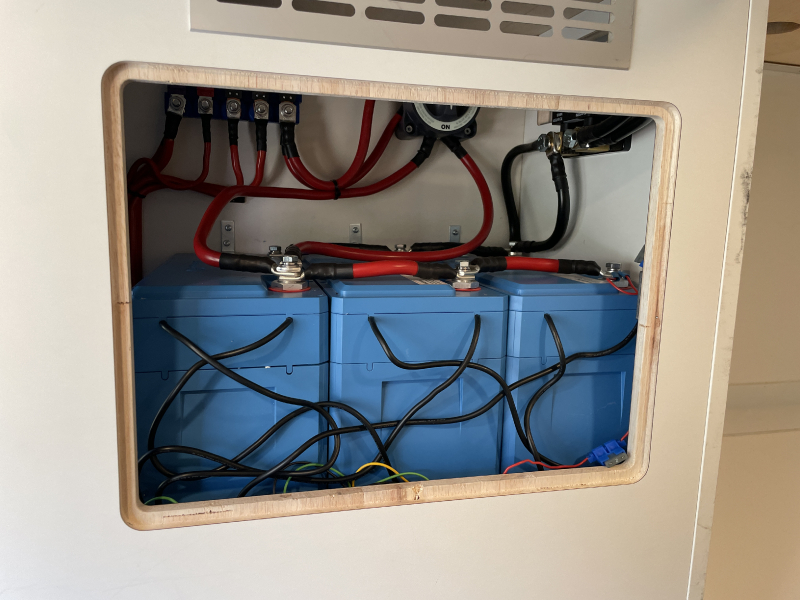

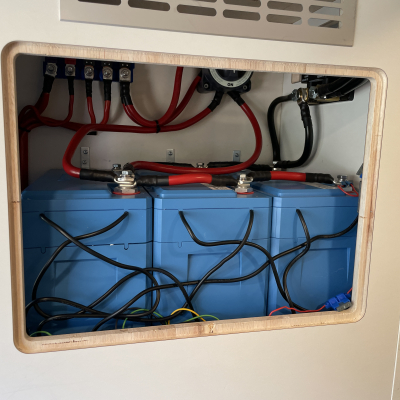

| Capacity of batteries in the cabin | Victron 600 Ah (3 * 200Ah) |
|---|---|
| Battery type | LiFePo4 |
| Battery charger for cabin batteries | Victron Scylla IP44 12/60 |

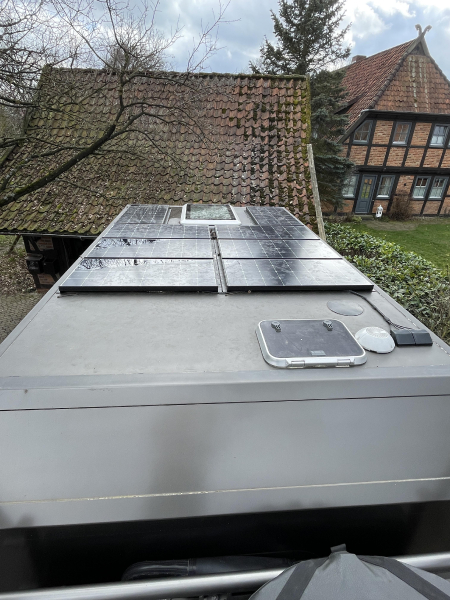

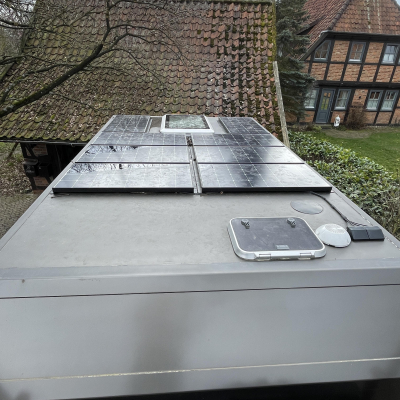

| Solar capacity | 960 Wp (8 * 120 Wp) |
|---|---|
| Fuel cell | no |
| Power generator | nein |
| Manufacturer and type of heating system | Webasto Evo 40 |
|---|---|
| Warm water processing | Elgena 20 Liter |
| Cab heating | Webasto Wasserheizung |
| Explanation of gas system | |
|---|---|

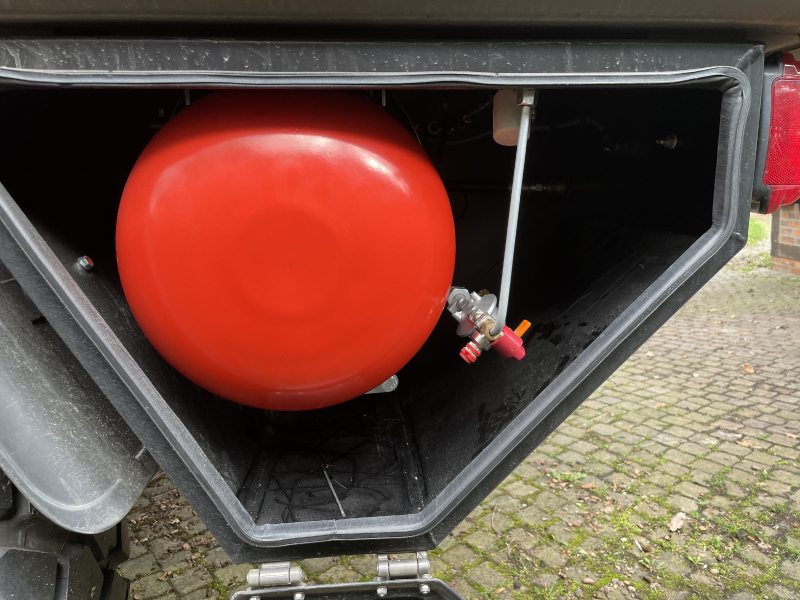

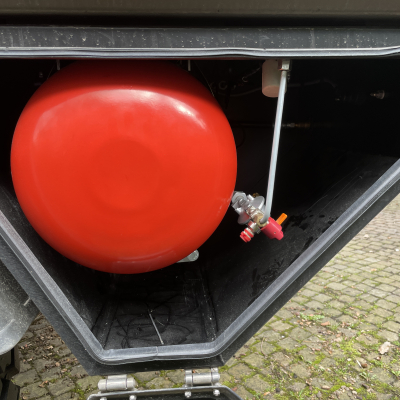

| Wynen 50 Liter Gastank im fahrerseitigen Radstaukasten mit Gasfernbetankung. |

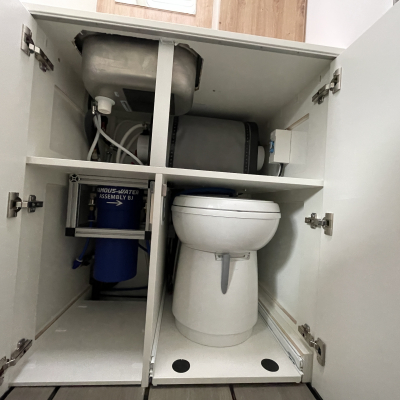

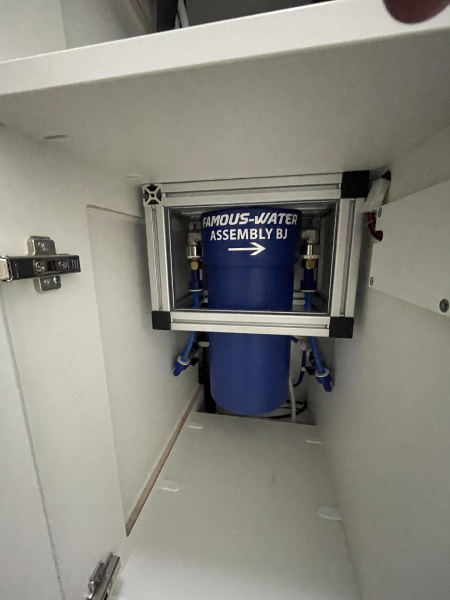

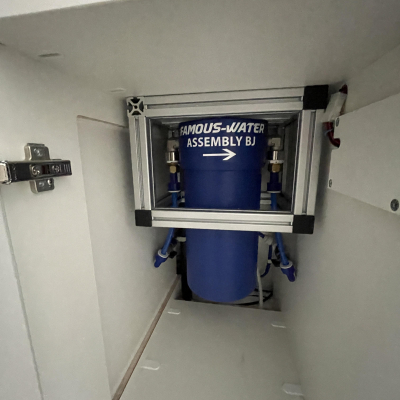

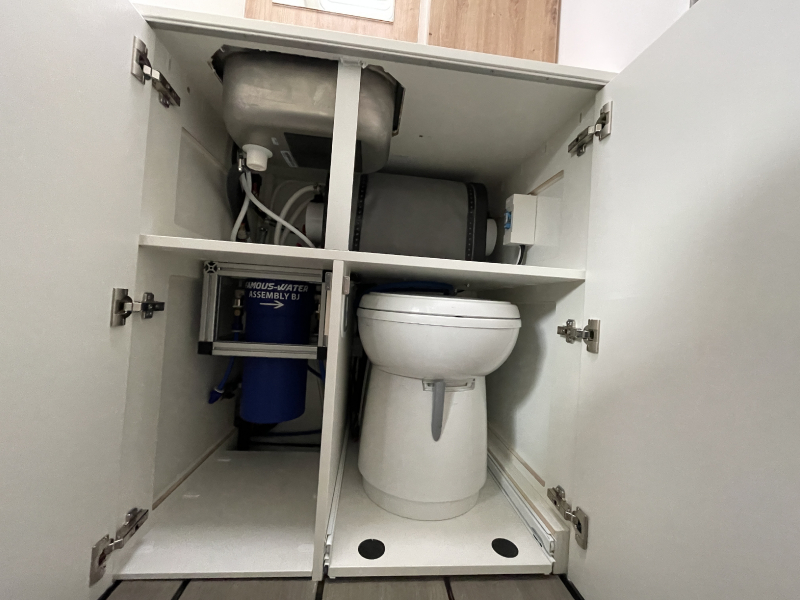

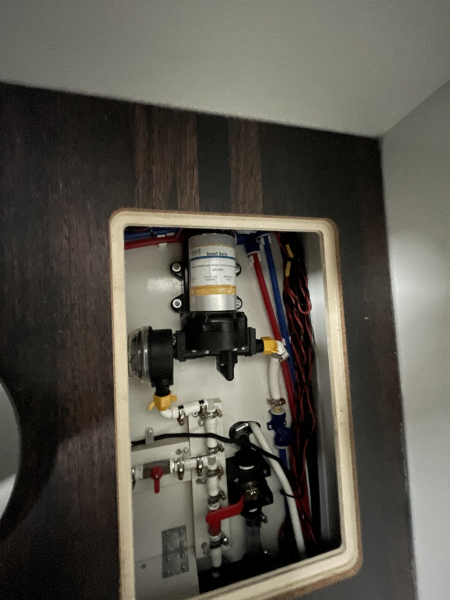

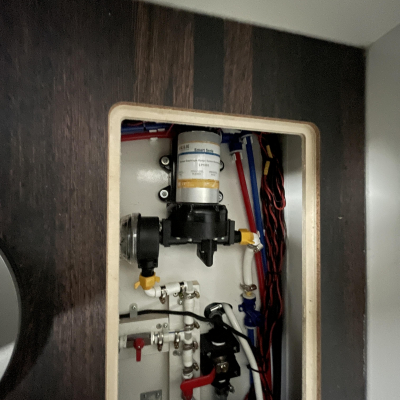

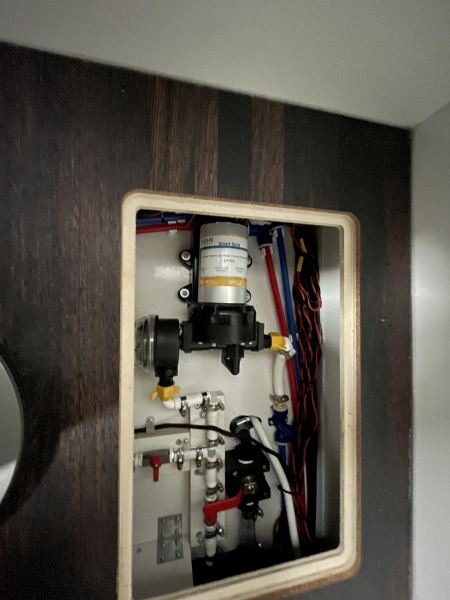

| Water filtration system | Famous Water, Water Jack Fresh Assembly BJ |
|---|---|
| Capacity of fresh water tank(s) | 225 Liter + 160 Liter |

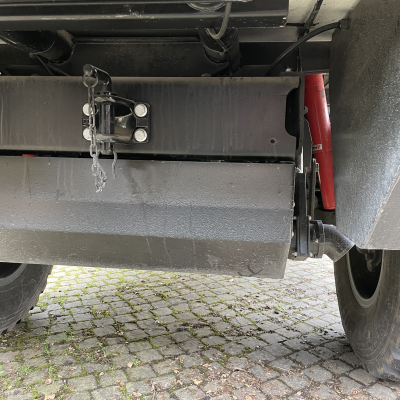

| Capacity of waste water tank(s) | 70 Liter beheizt, vom Fahrerhaus aus elektrischen. hydraulisch zu öffnen. |
| Other | |
| Außenwasseranschluss (kalt/warm) mit Dusche | |

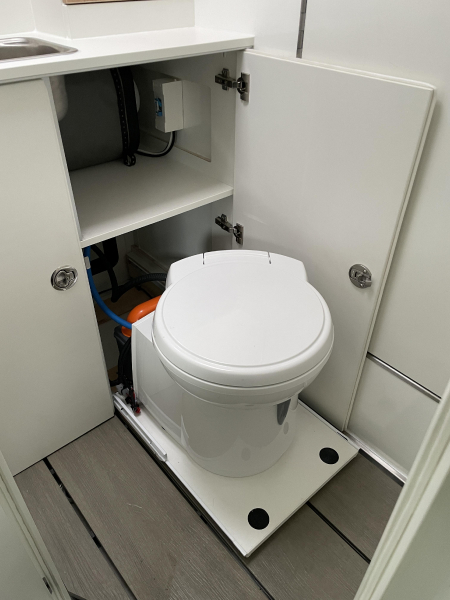

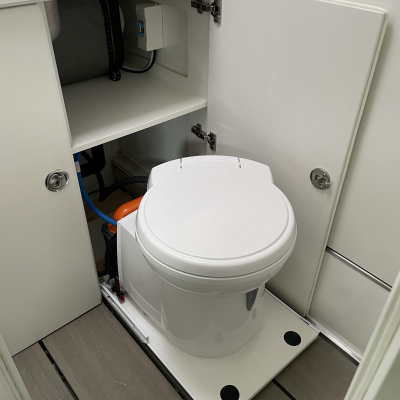

| Manufacturer and type of toilet | Thetford C 263 S mit SOG |
|---|
| Rear carrier | Motorradträger als Schlosserarbeit |
|---|---|

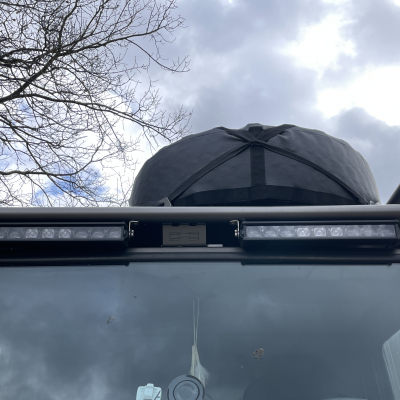

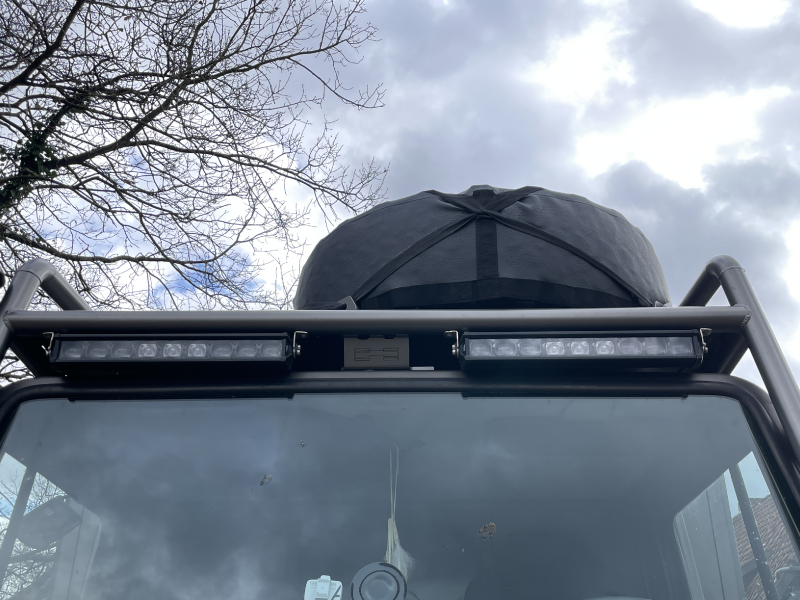

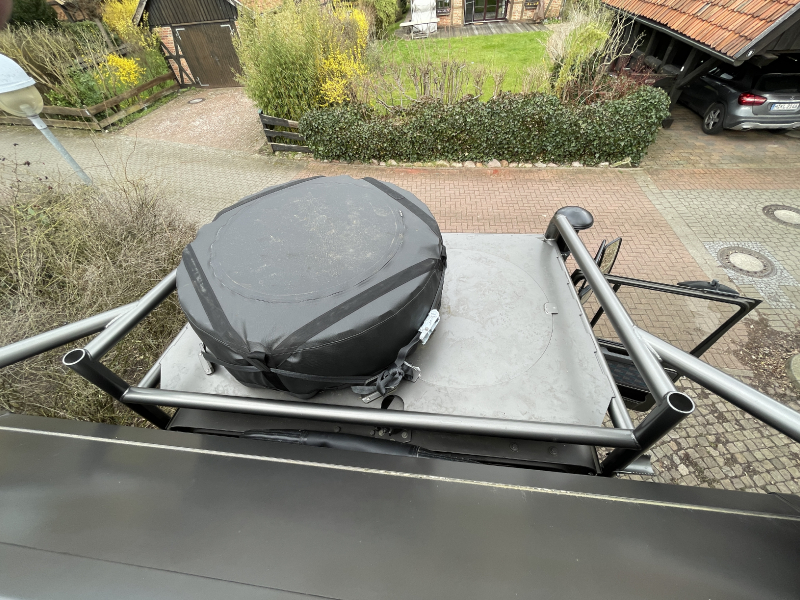

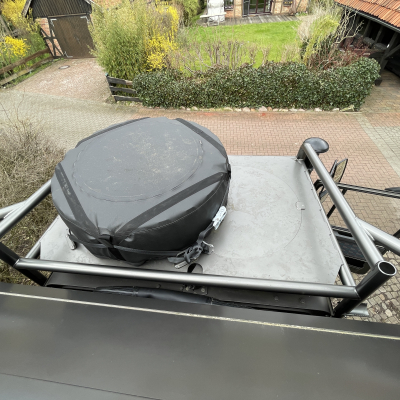

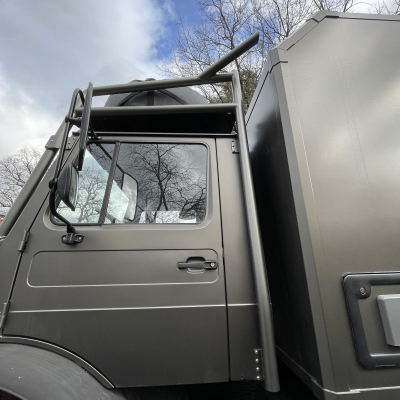

| Roof rack | Hellgeth |

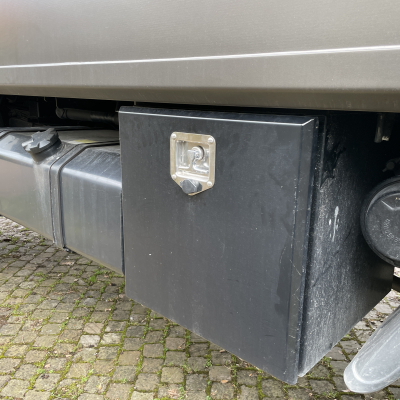

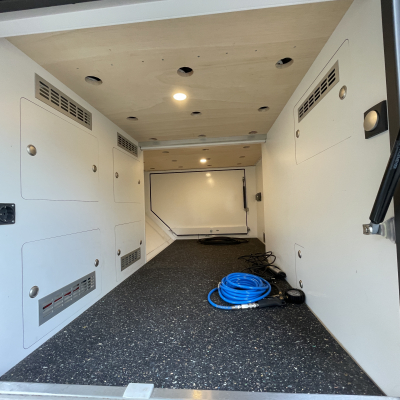

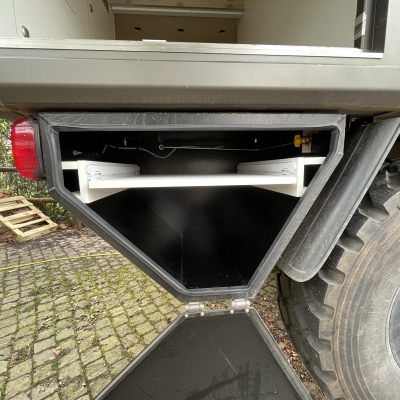

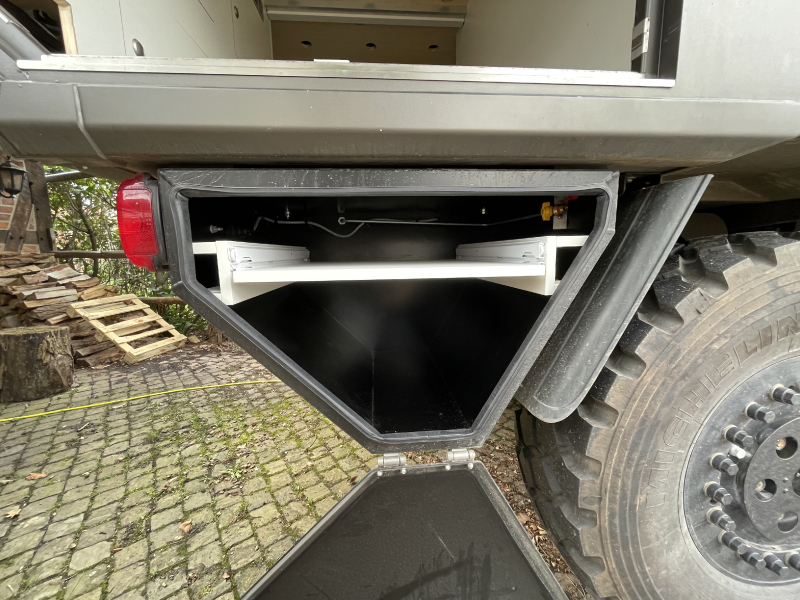

| Storage boxes | 2 Rad-Staukästen |
| Outside cooking facilities | Im beifahrerseitigen Rad-Staukasten. |
| Other | |
|

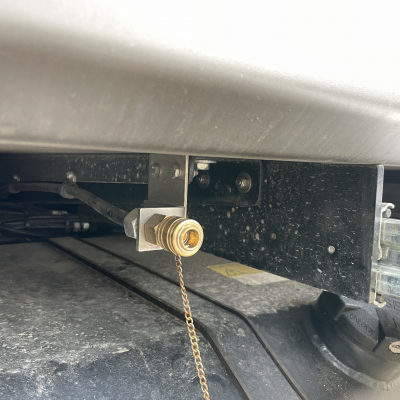

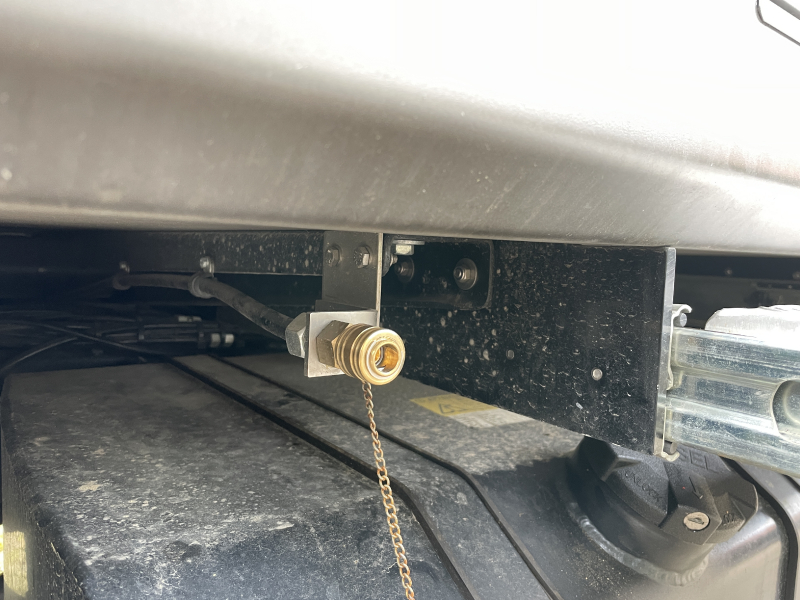

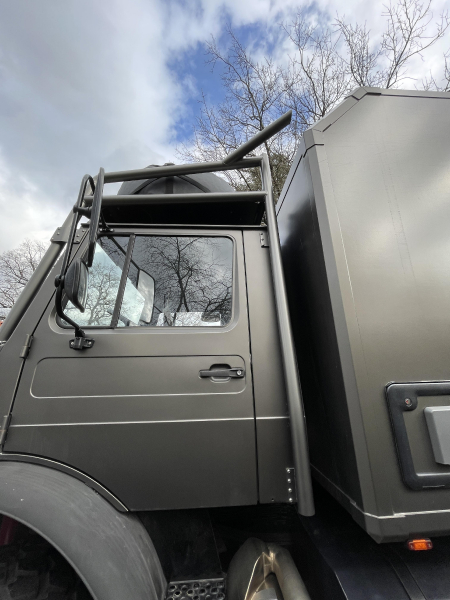

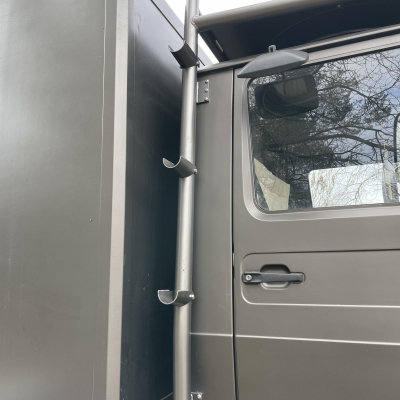

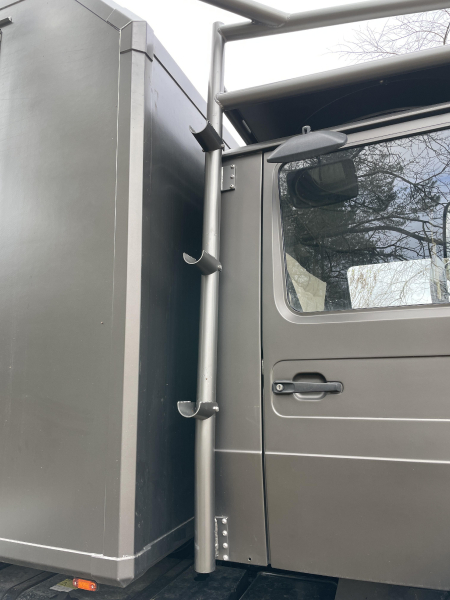

Rückfahrkamera Warn Hydra. Winde 8,5 t mt Cevlar Seil Hellgeth Alu-Dachträger mit Aufstiegsleiter und Windenaufsatz Klimaanlage Hellgeth. Druckluft-Service-Anschluss. | |
