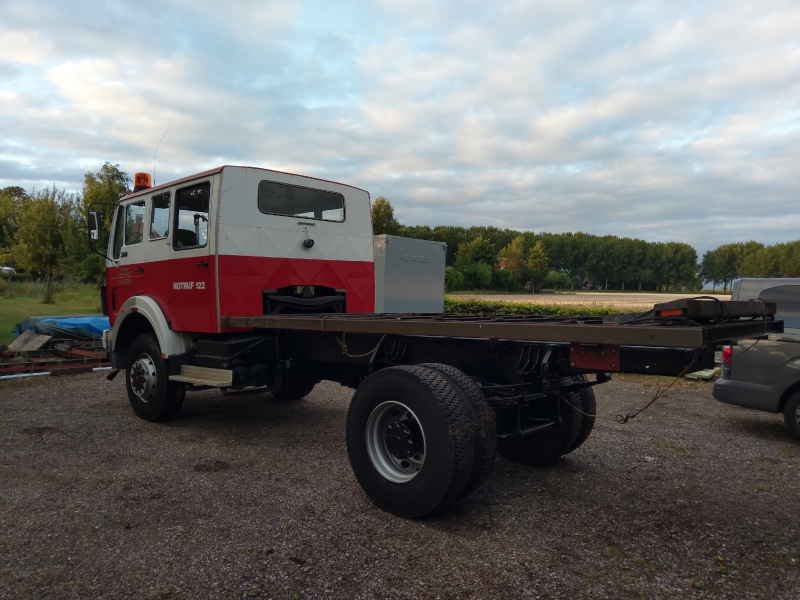

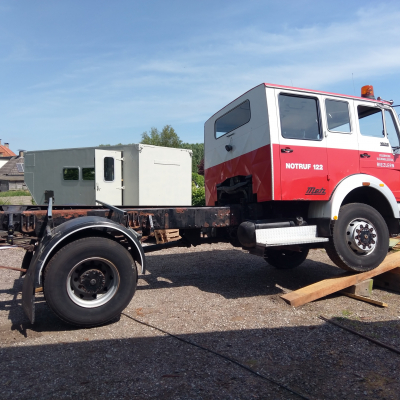

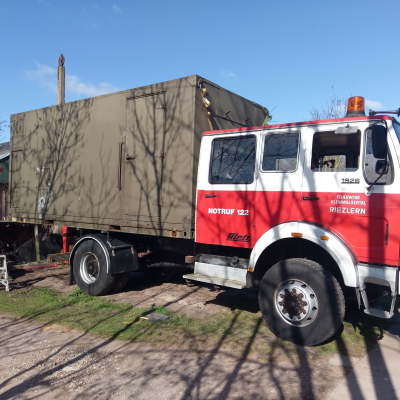

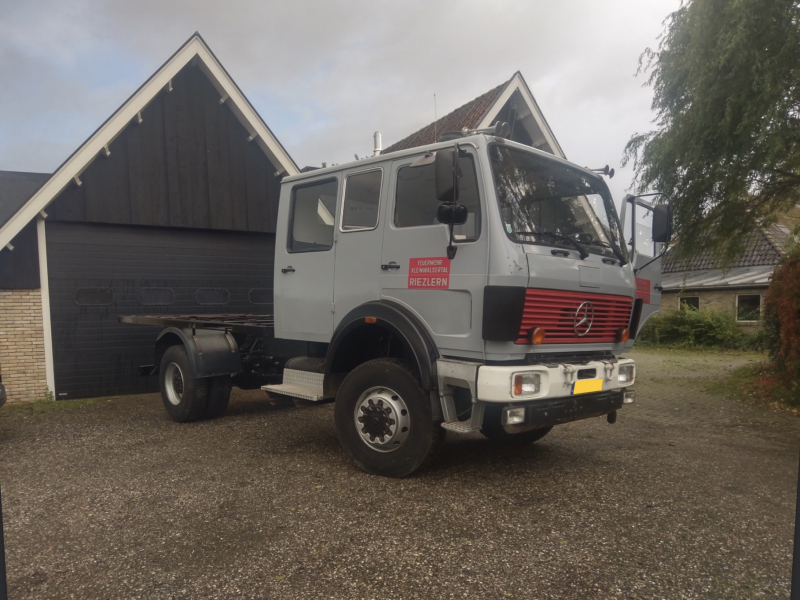

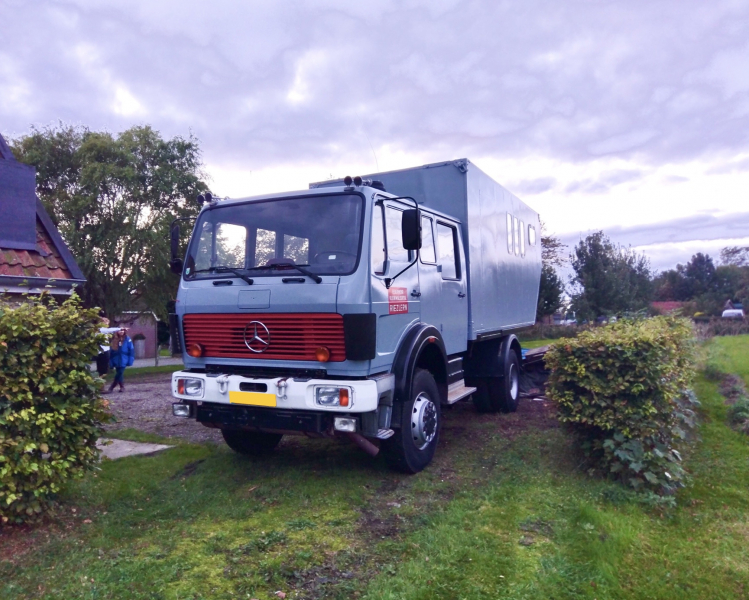

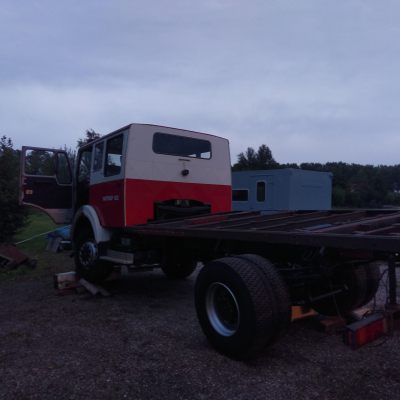

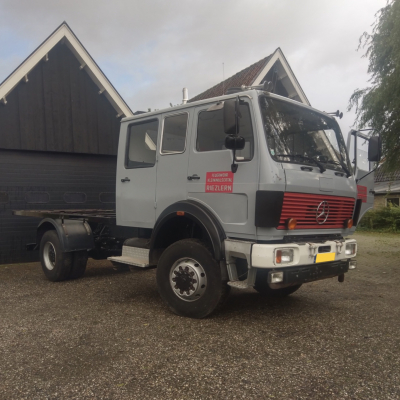

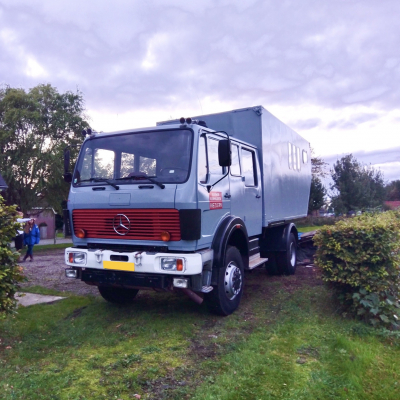

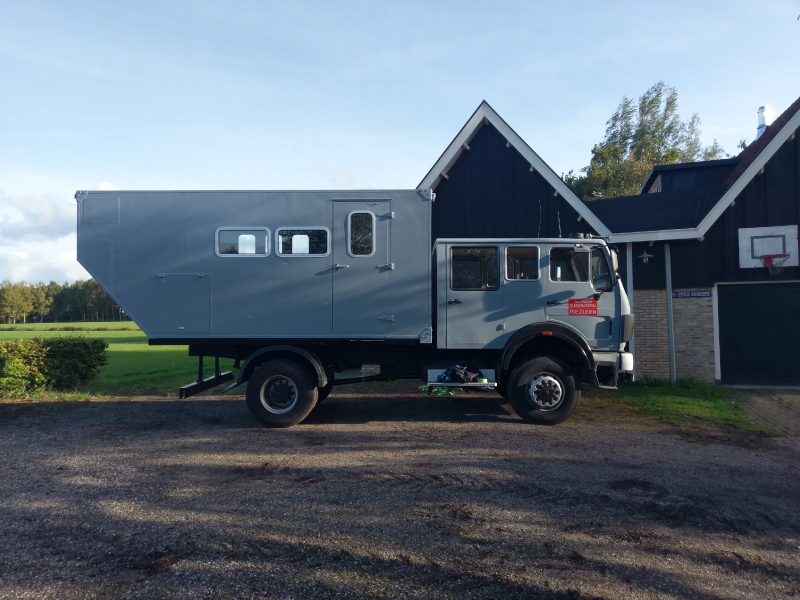

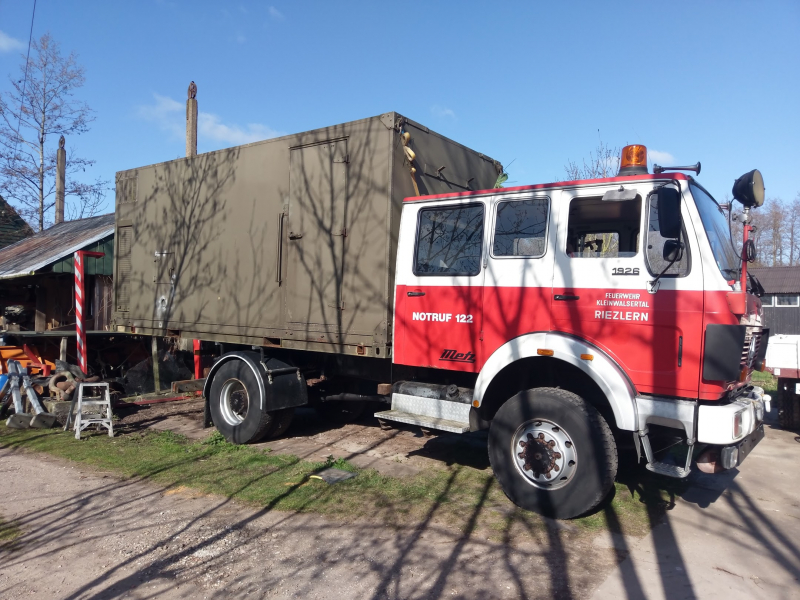

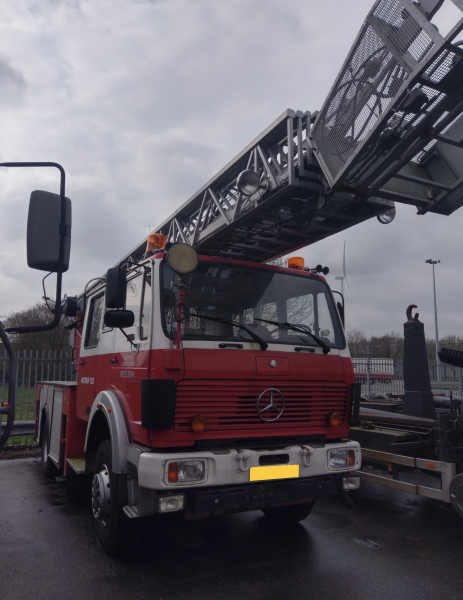

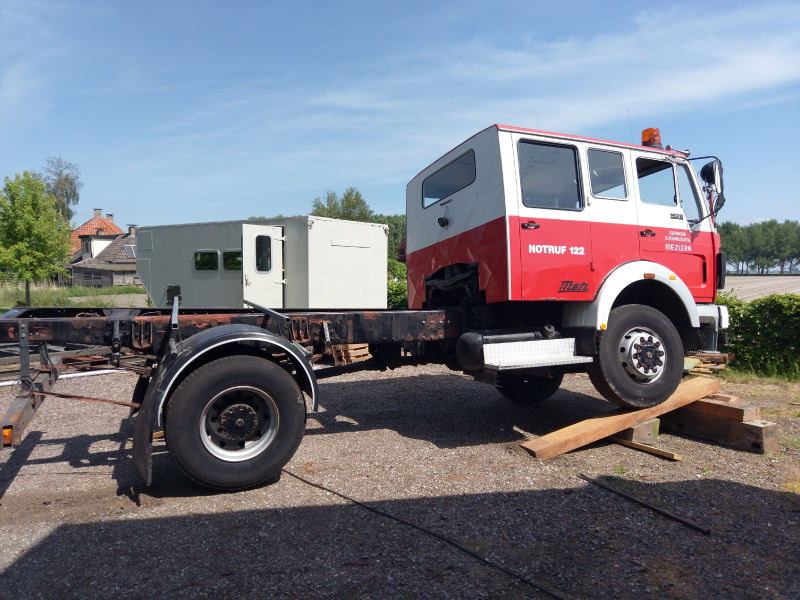

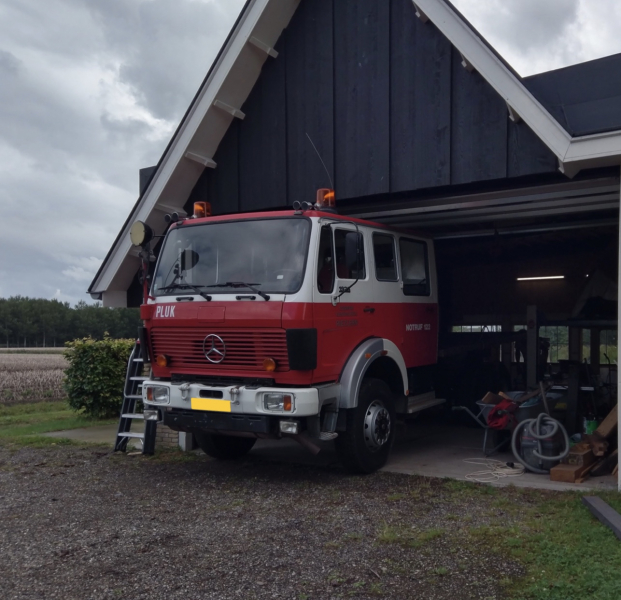

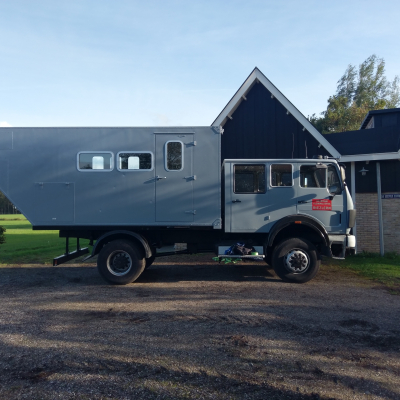

| Manufacturer and model | Mercedes-Benz 1926A |
|---|---|
| Name | Pluk |
| Country | Netherlands |
| Year of manufacture | 1981 |
| For sale? | no |

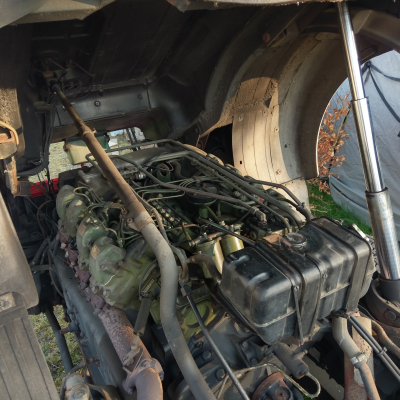

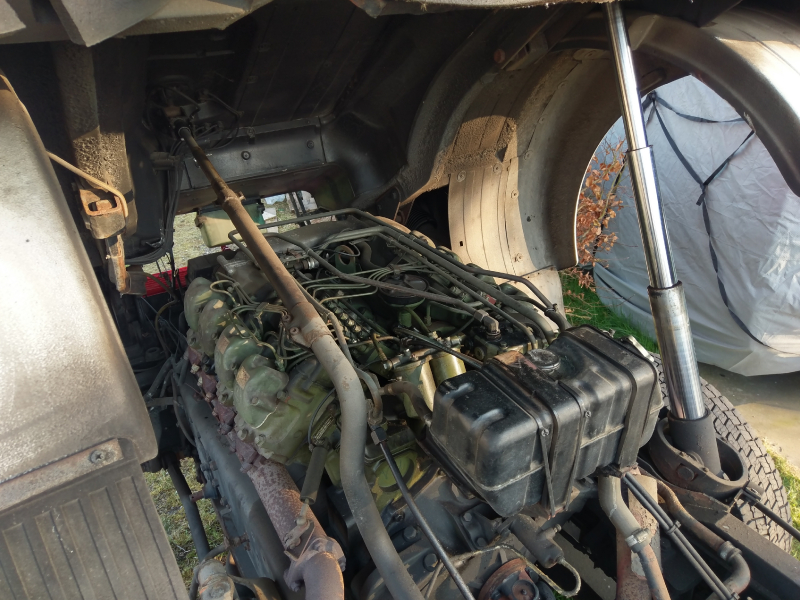

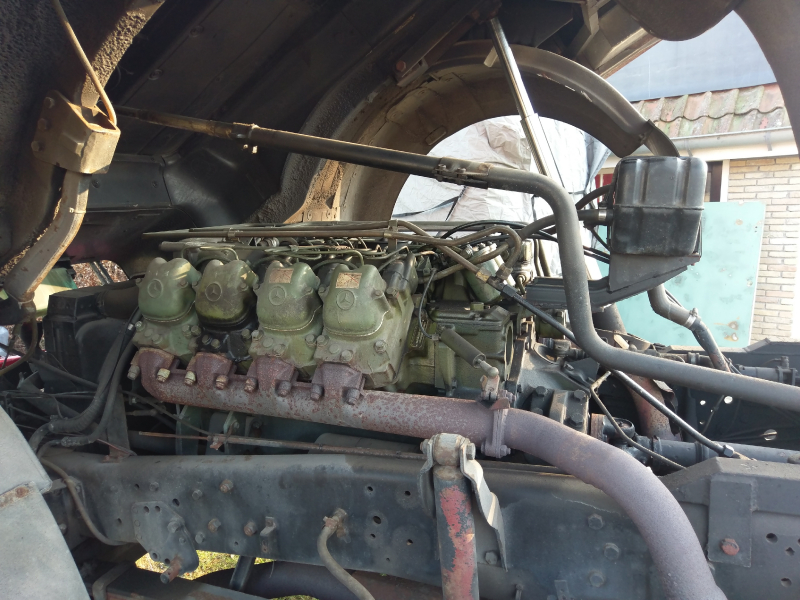

| Engine type | OM402 |
|---|---|
| Cubic capacity | 12.7 l |
| Number of cylinders | V8 |
| Horsepower | 256 PS |
| Torque | 834Nm |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 4.12 m |
| Number of seats | 9 |
| Tyre size | 12.00r22.5 to be replaced |
| Tank capacity | 135l. |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | Permanent |

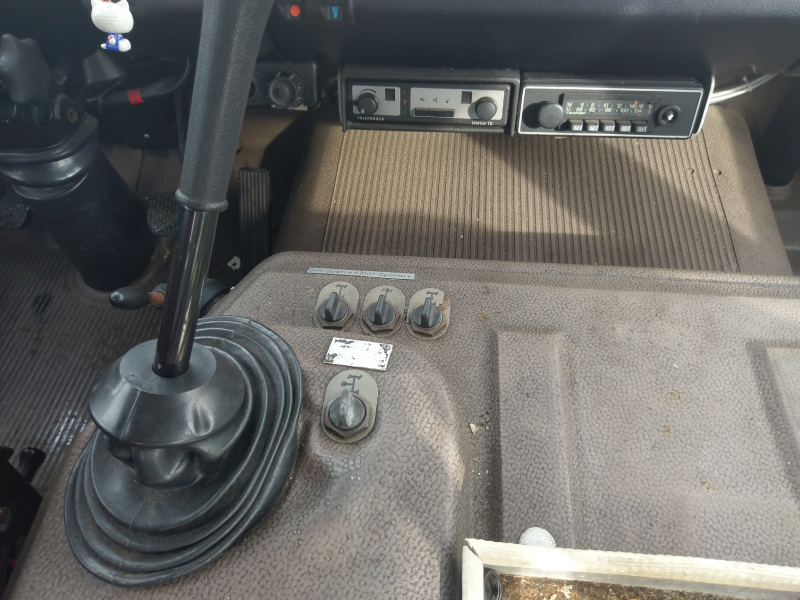

| Diff locks | Front, rear and centre diff locks. |

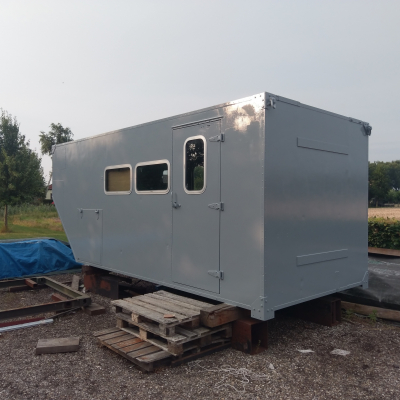

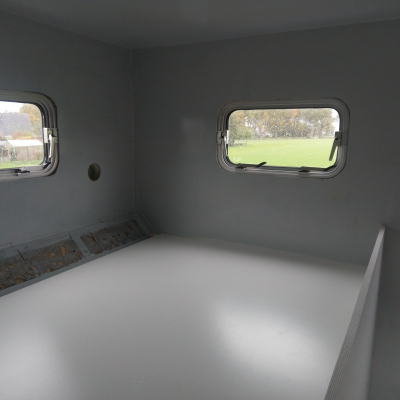

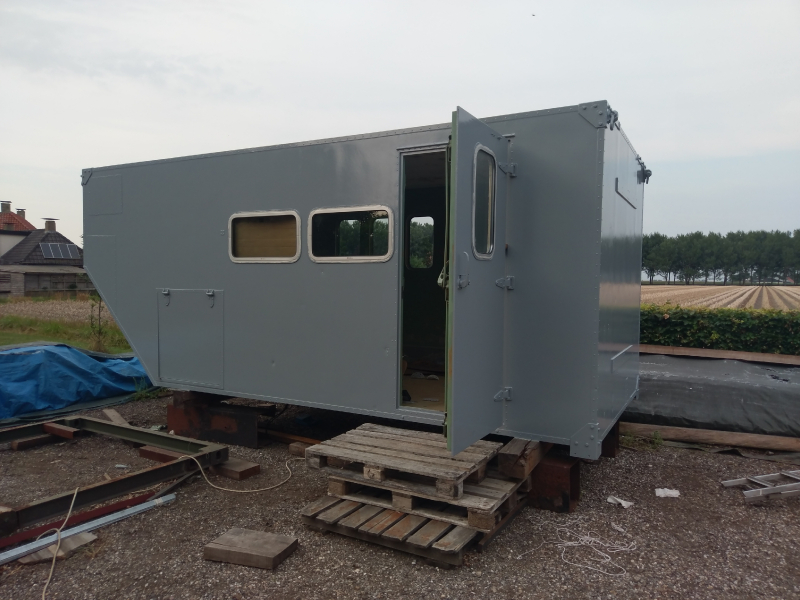

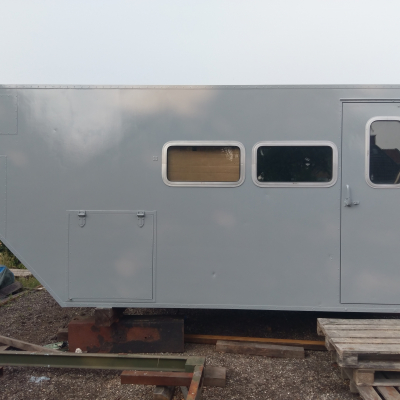

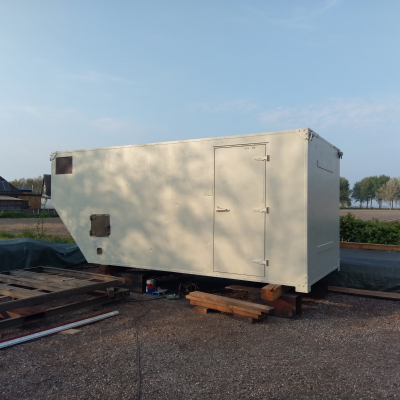

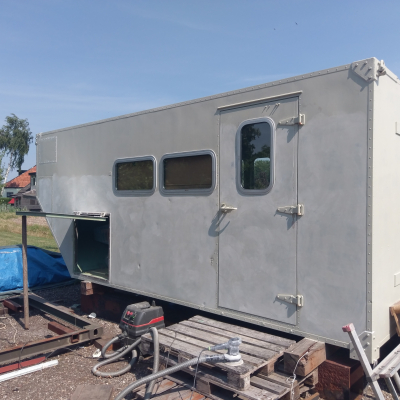

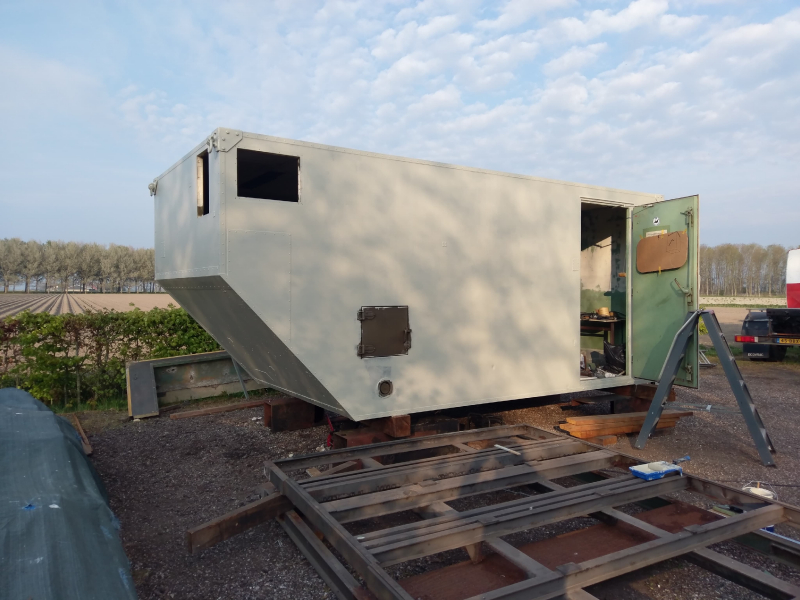

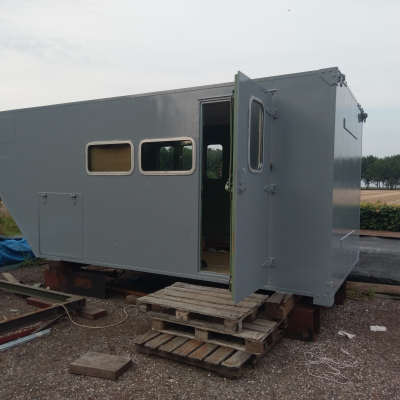

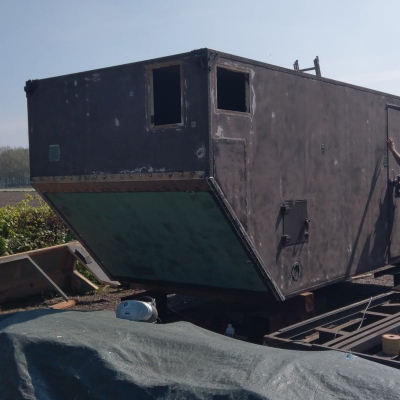

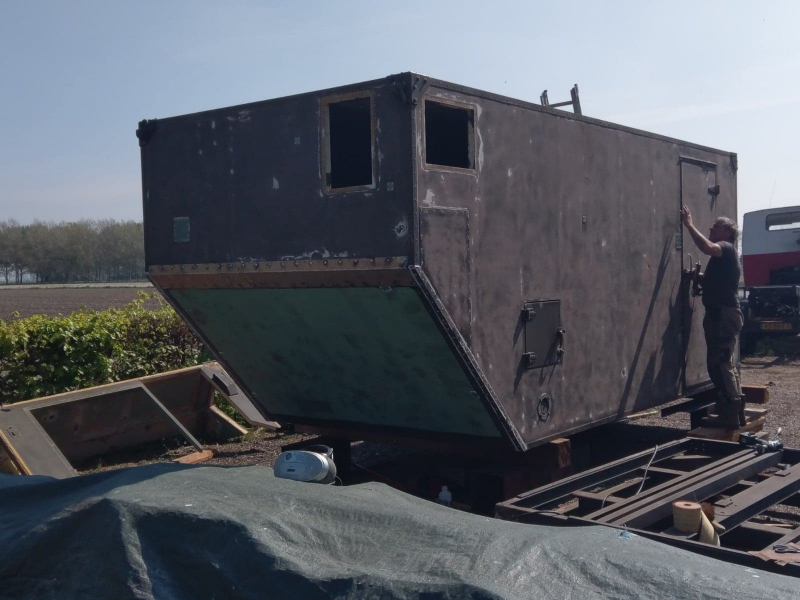

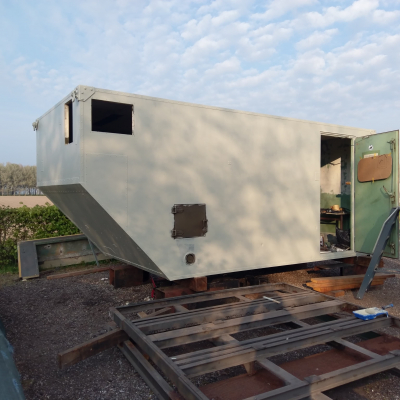

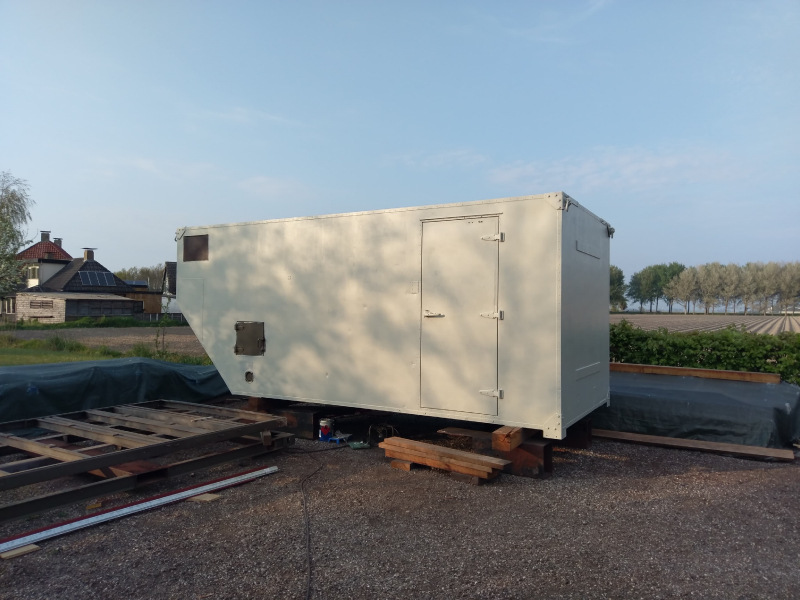

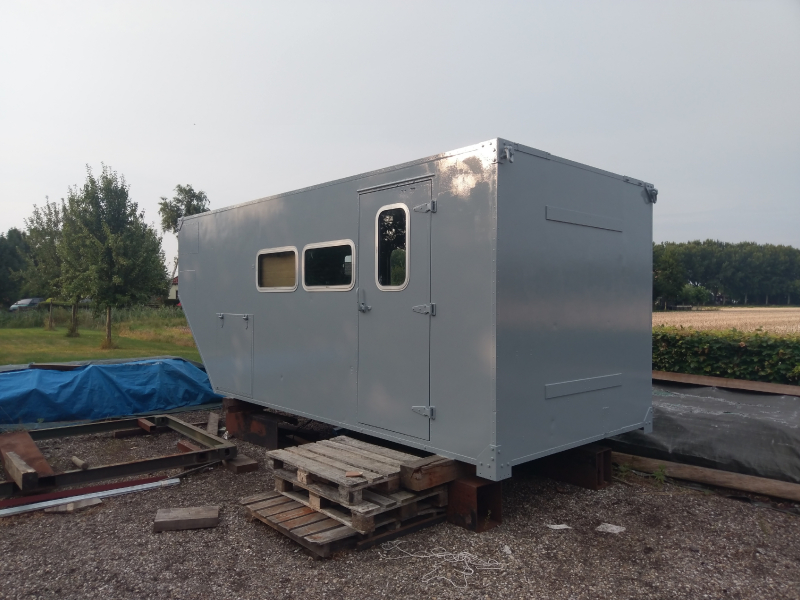

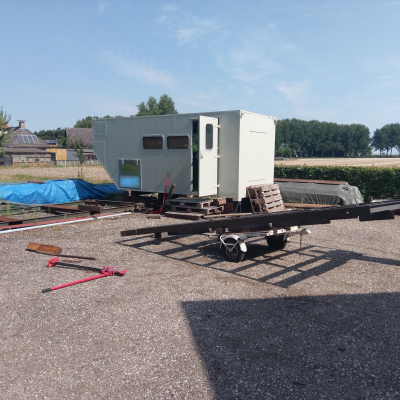

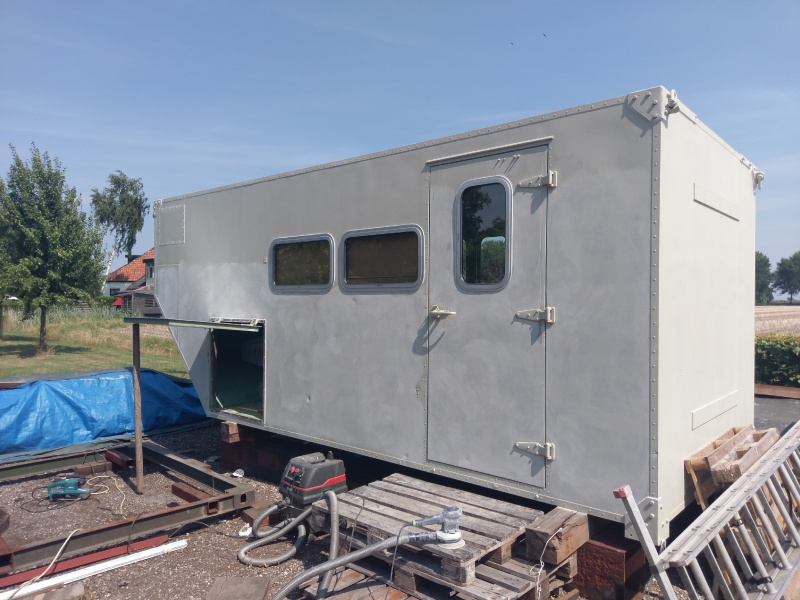

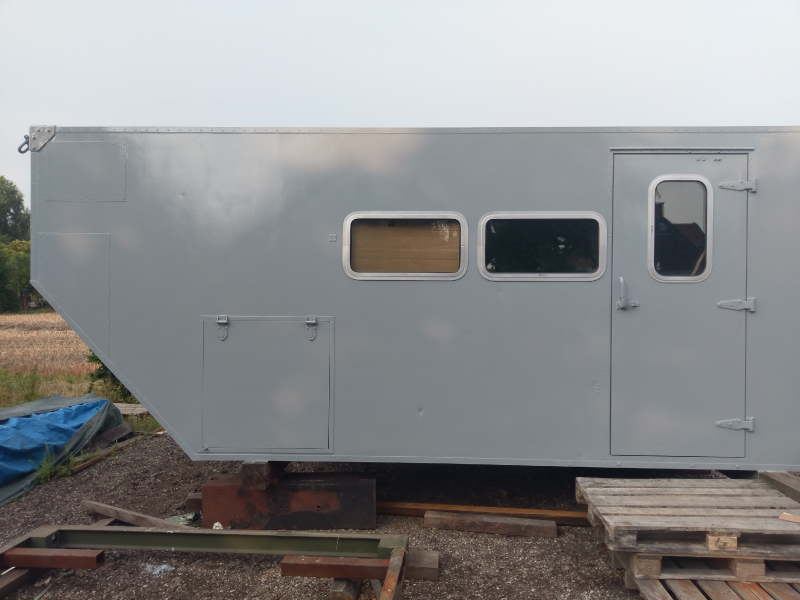

| Manufacturer of the cabin | Fokker Dordrecht |
|---|---|

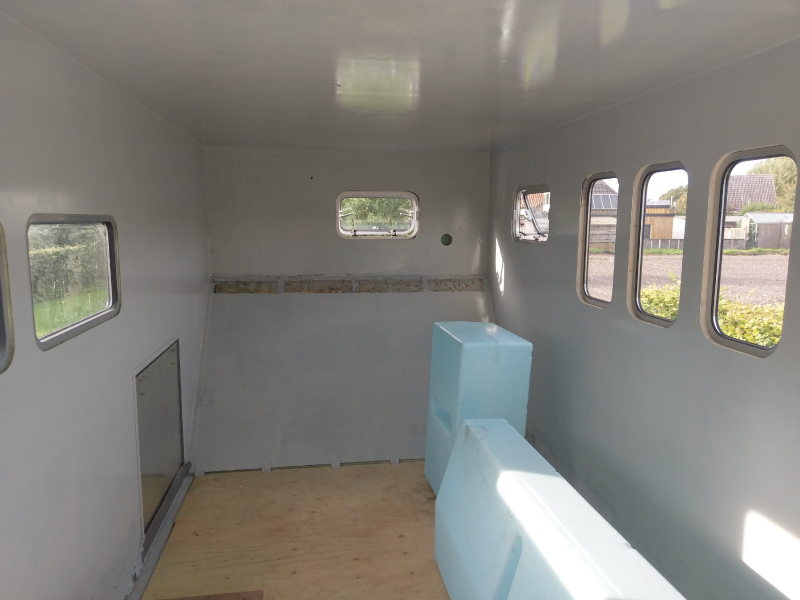

| Inner dimensions (LxWxH) | 550x230x220 |
| Outer dimensions (LxWxH) | 560x240x230 |
| Cabin material | Aluminium |
| Kind and thickness of insulation | 50mm |

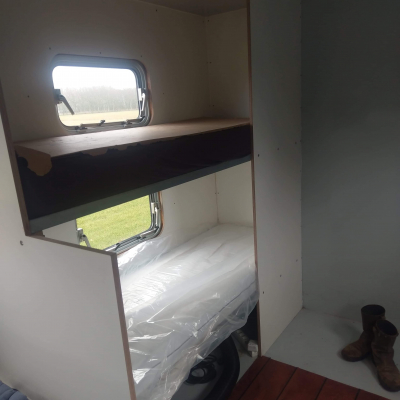

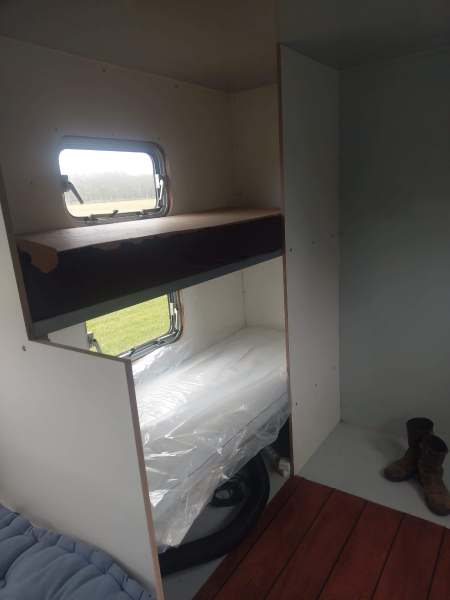

| Number of beds | 4 |

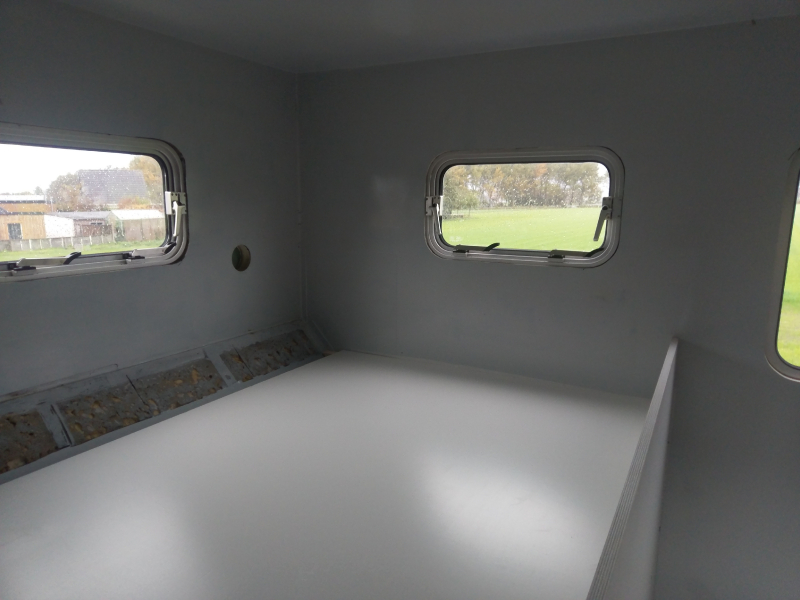

| Windows | Rafa. Hardened and double glazed ship windows. |

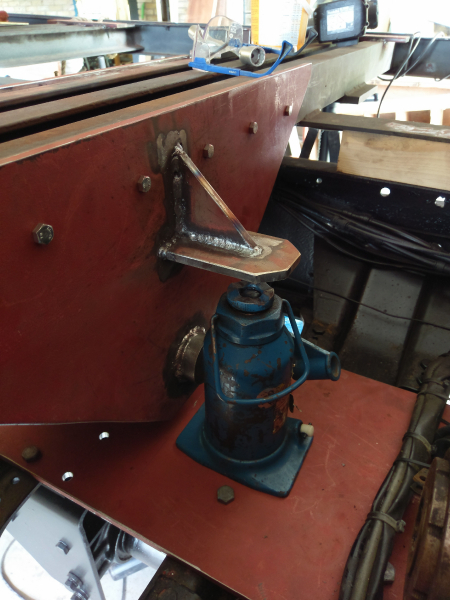

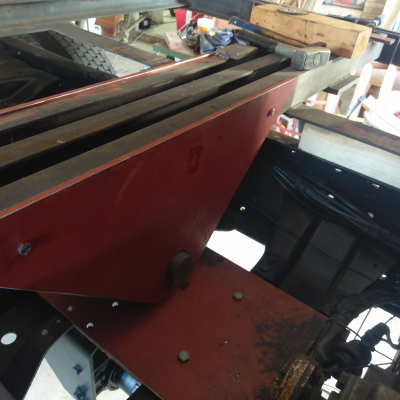

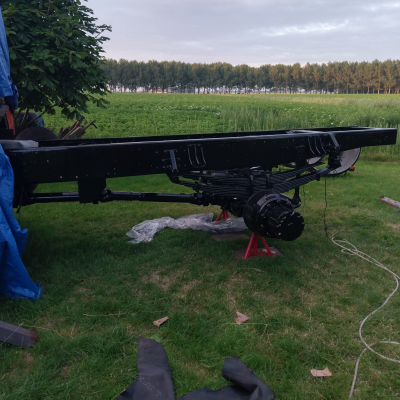

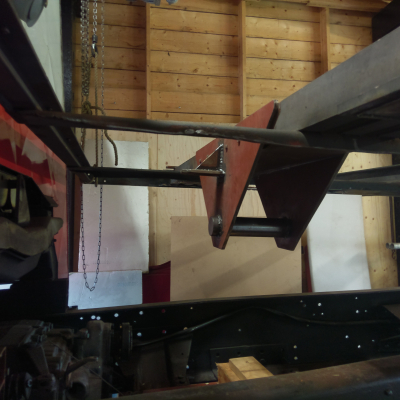

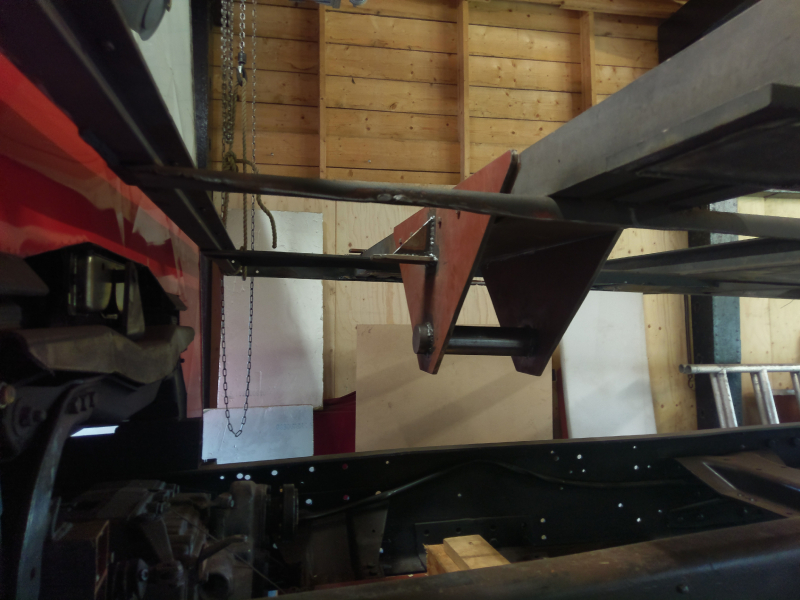

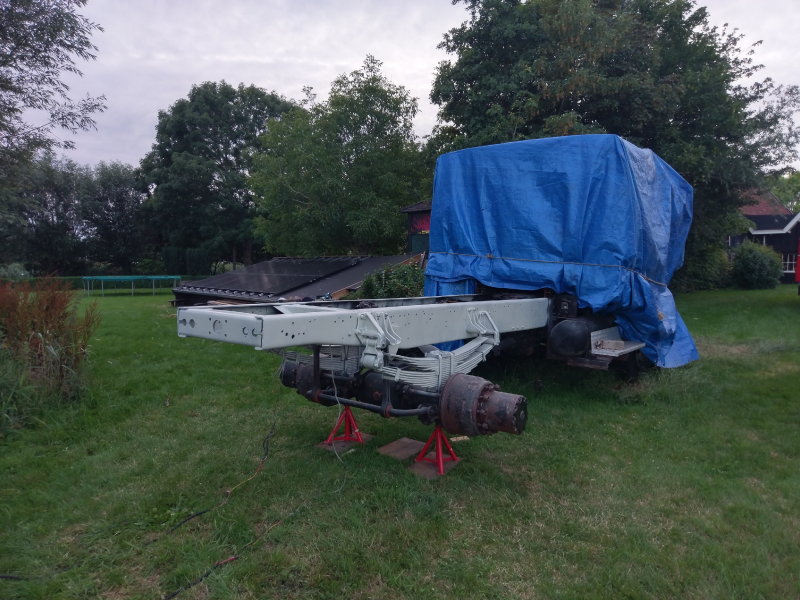

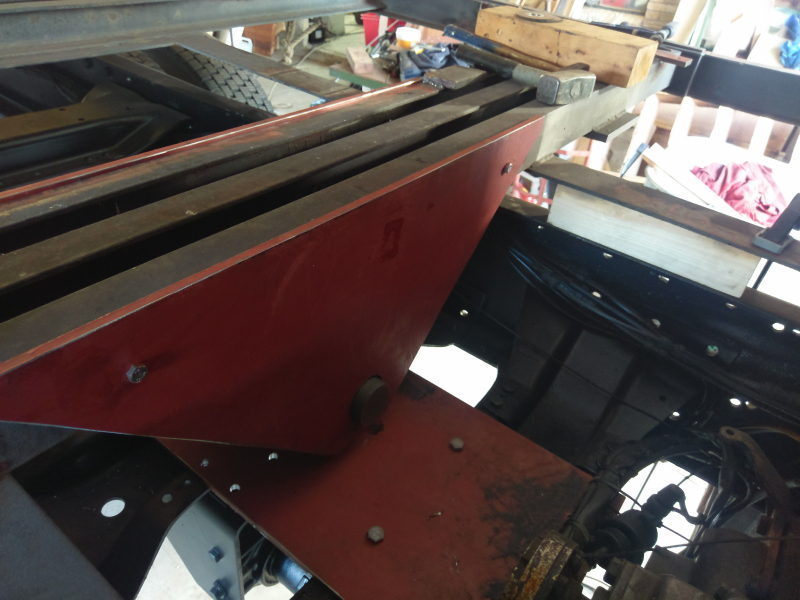

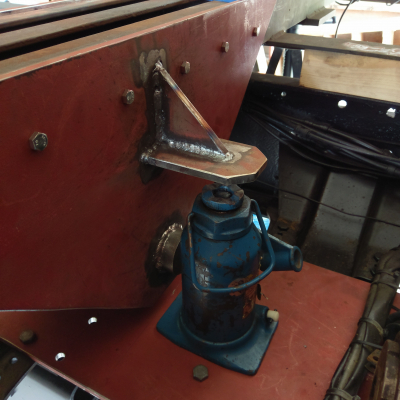

| Subframe | Self made 3 point |

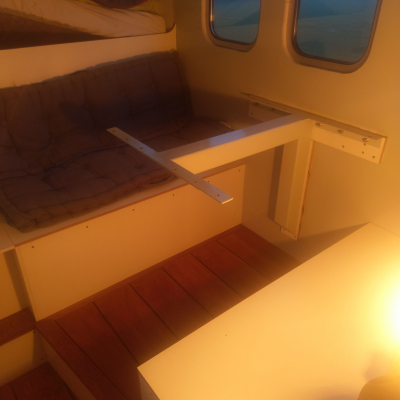

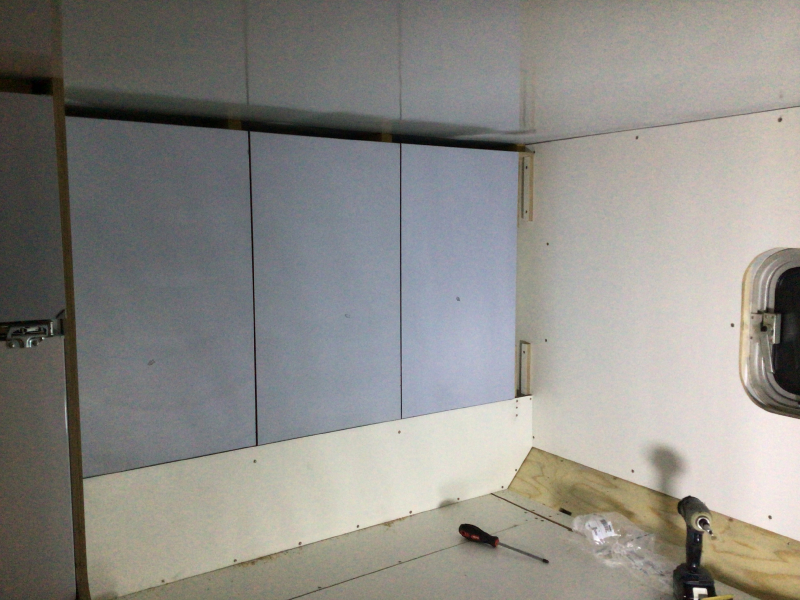

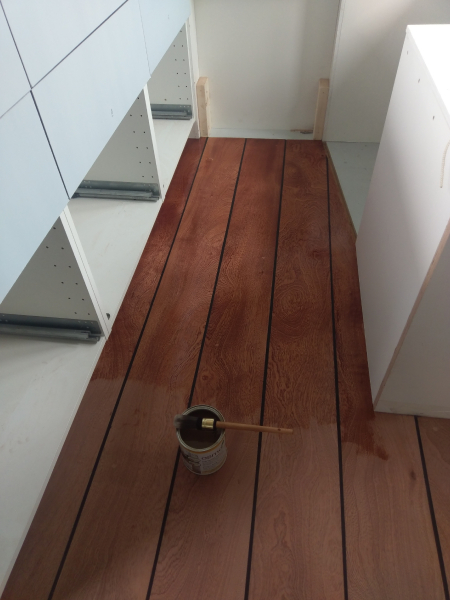

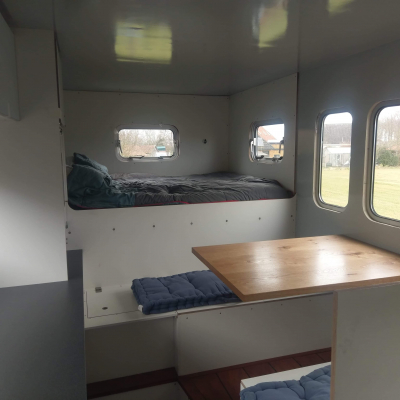

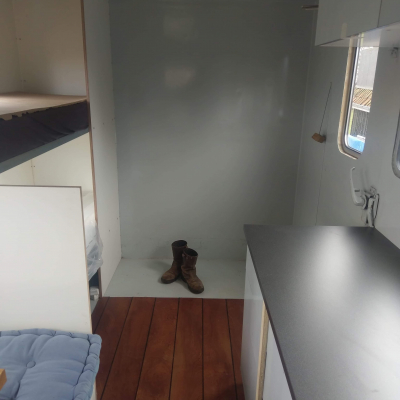

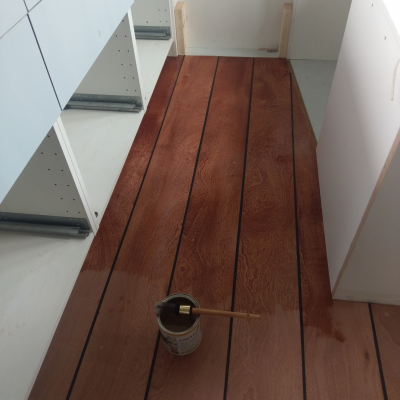

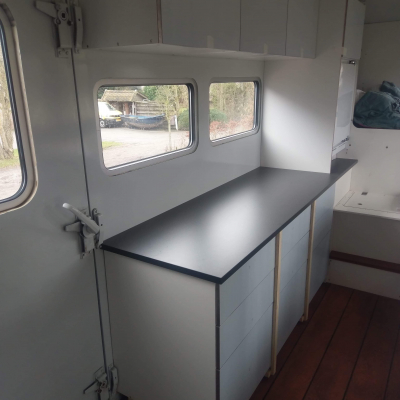

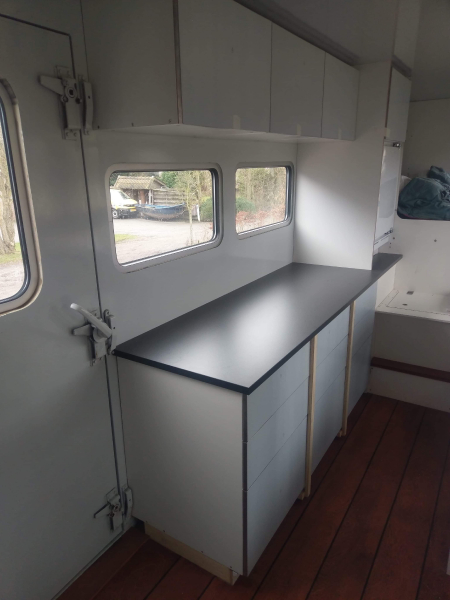

| Material of furniture | 12 and 18mm white birch concrete plywood |
|---|
| Manufacturer and type of fridge / cooler | Ikea Huttra 220v |
|---|
| Voltage in the chassis | 24v |
|---|---|
| Voltage in the cabin | 24v |
| 110V / 230V in the cabin? | no |
| Capacity of batteries in the cabin | 200Ah 24v planned |
|---|---|
| Battery type | AGM |
| Solar capacity | 670w |
|---|---|
| Solar controller | Victron MPPT 100/20 |
| Fuel cell | no |
| Manufacturer and type of heating system | Autoterm 4D 24v diesel heater |
|---|---|
| Warm water processing | 220v |
| Cab heating | Mercedes heated and Webasto diesel heater from 1981 |
| Capacity of fresh water tank(s) | 335l. |
|---|---|
| Capacity of waste water tank(s) | 215l. |
