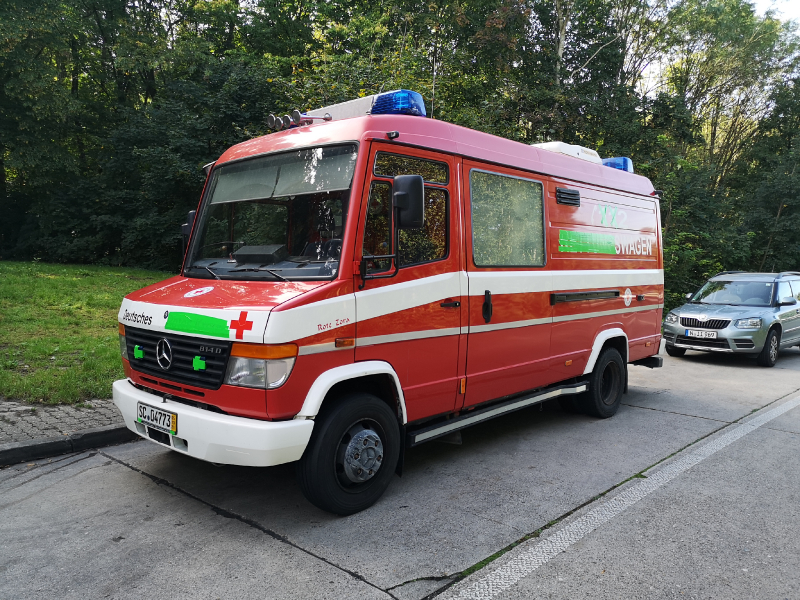

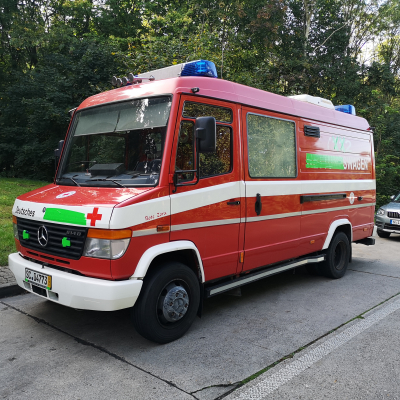

Am 3.10.2021 als Krankenwagen gekauft. Fahrzeug befindet sich noch im Aufbau.

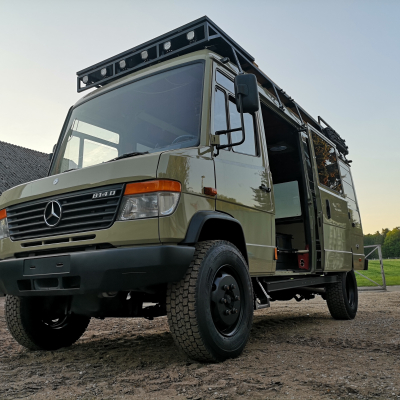

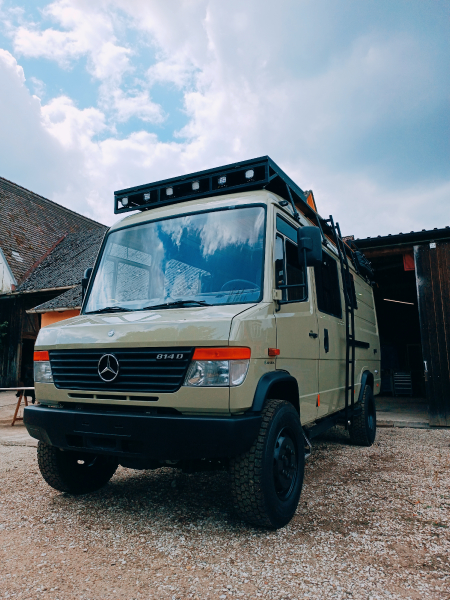

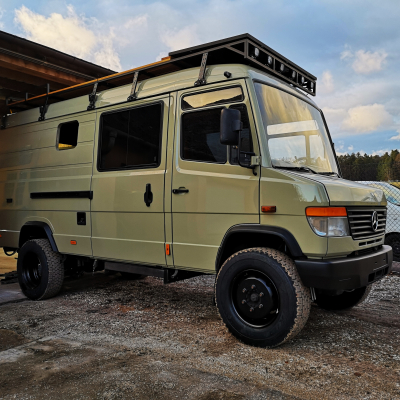

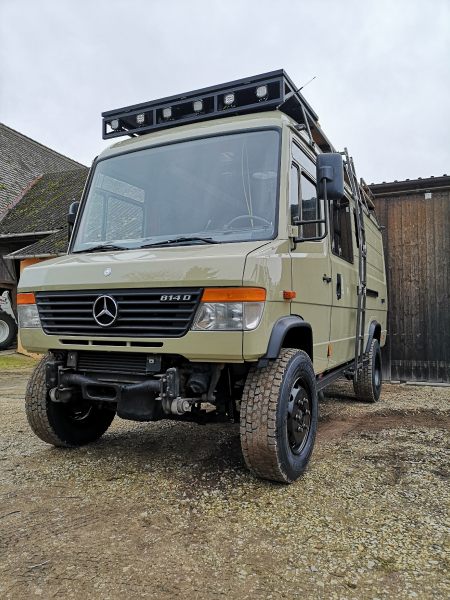

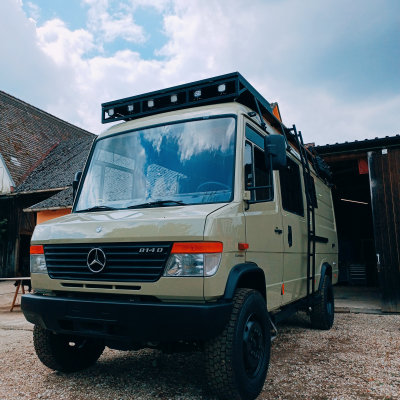

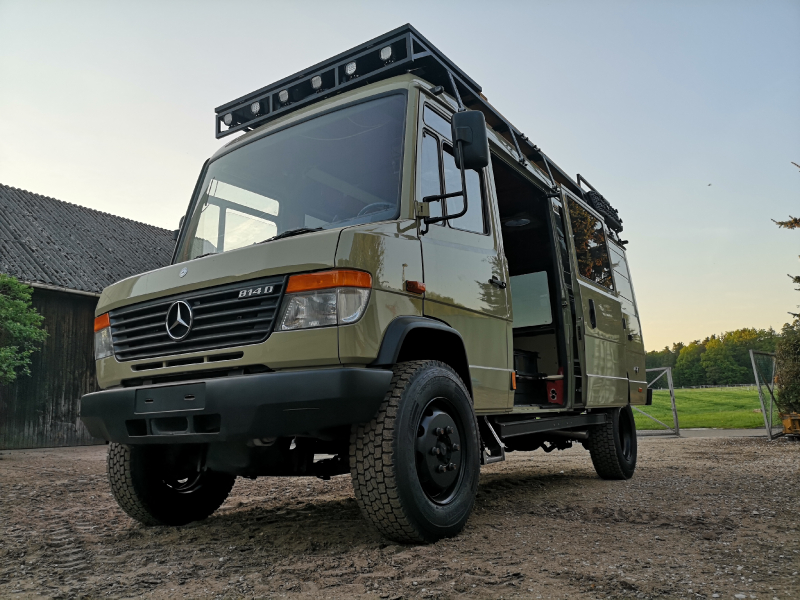

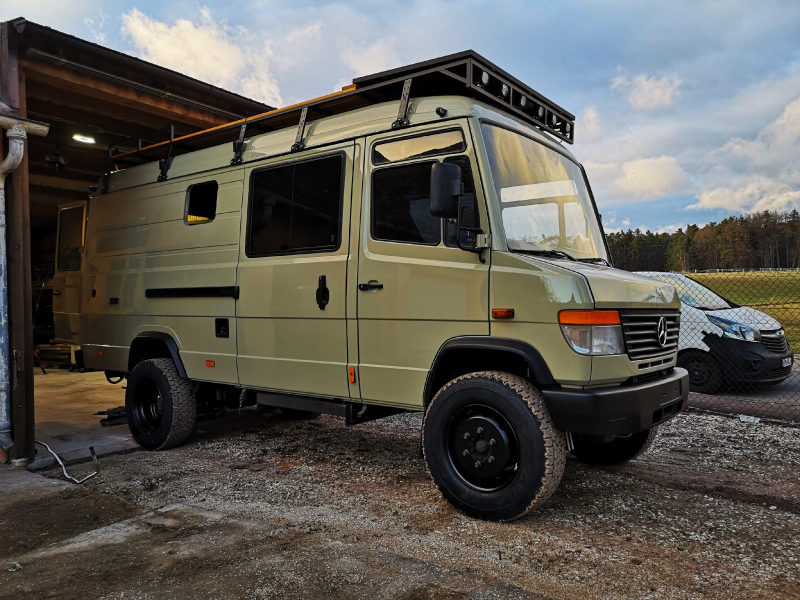

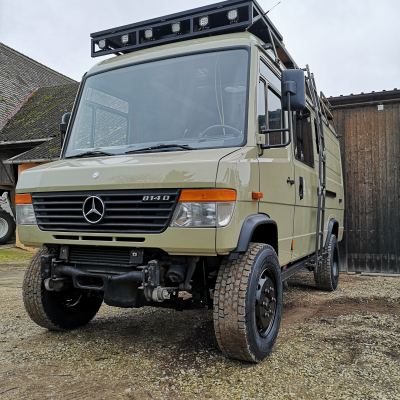

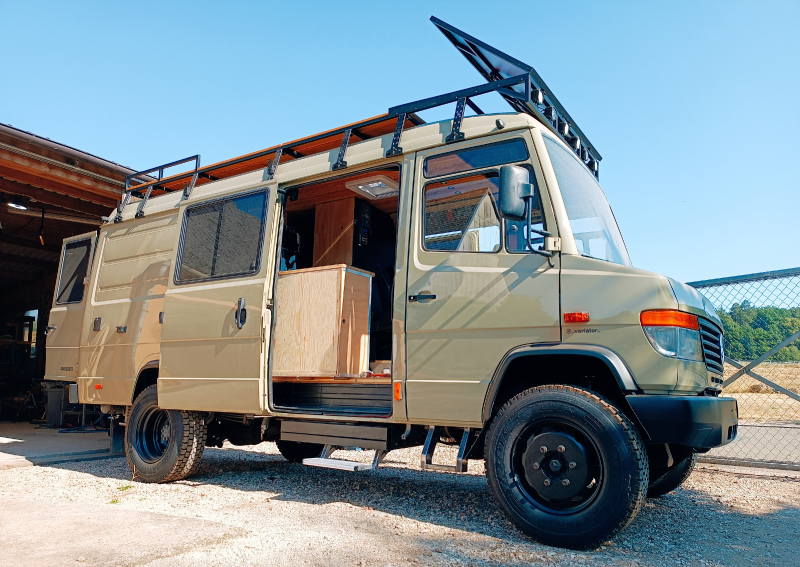

| Manufacturer and model | Mercedes Benz Vario 818 (814) |
|---|---|
| Name | Alex G. |
| Year of manufacture | 1998 |
| For sale? | no |
| Engine type | OM 904 |
|---|---|
| Cubic capacity | 4300 |
| Number of cylinders | 4 |
| Horsepower | 180 |
| Torque | 600 |
| Other | |
| Leistungssteigerung | |
| 4x2, 4x4, 6x6, 8x8 | 4x2 |
|---|---|
| Wheel base | 3700 |

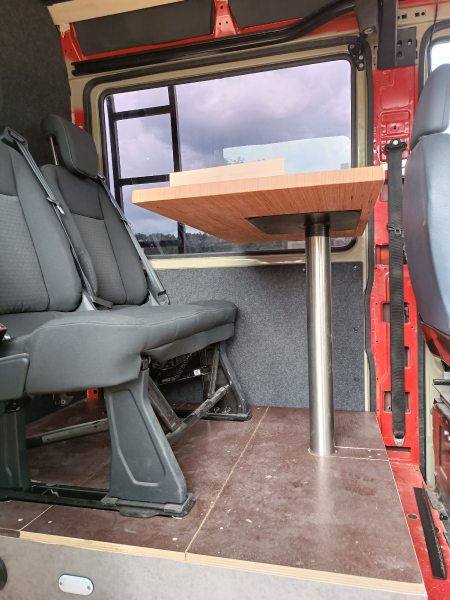

| Number of seats | 4 |

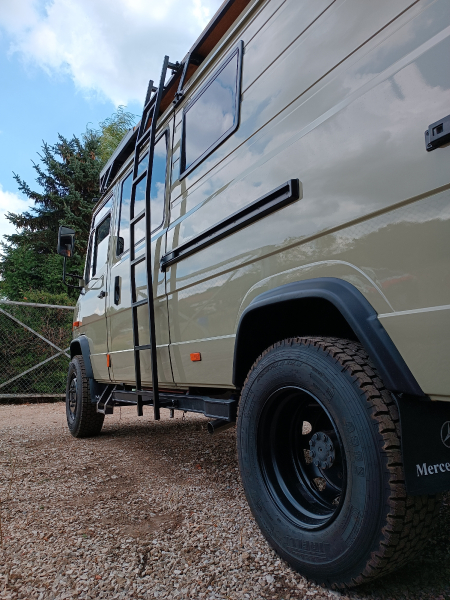

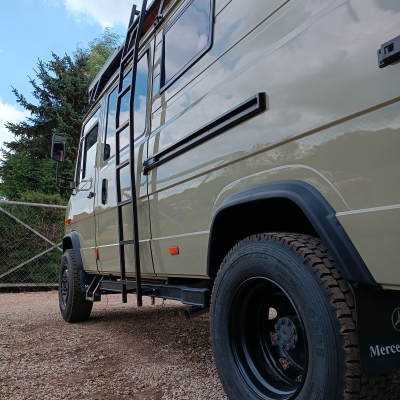

| Tyre size | 285 70 19.5 |
| Rim size | Gabo |
| Type of tyre | Pirelli TR 01 |
| Tank capacity | 110l |
| Diesel filter | no |
| Diff locks | HA |
| Manufacturer of the cabin | Kastenwagen |
|---|---|
| Inner dimensions (LxWxH) | Original |
| Outer dimensions (LxWxH) | Original |
| Cabin material | Original |
| Kind and thickness of insulation | 2x 19mm Armaflex |
| Number of beds | 4 |
| Windows | 2 zusätzlich |
| Other | |
| 2x Dachhaube Maxxfan | |

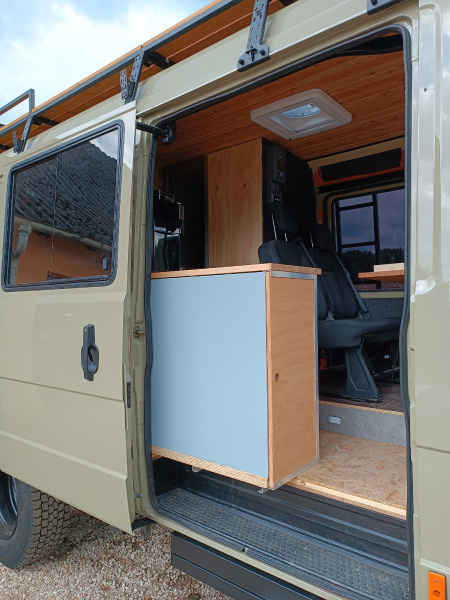

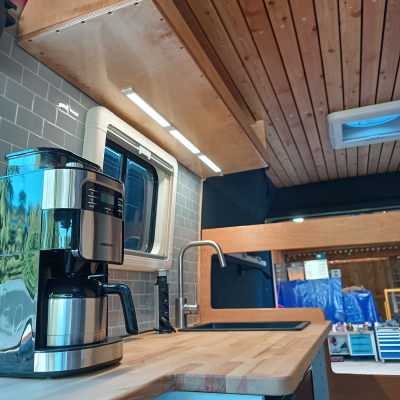

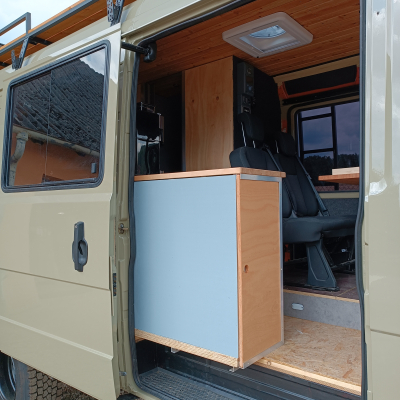

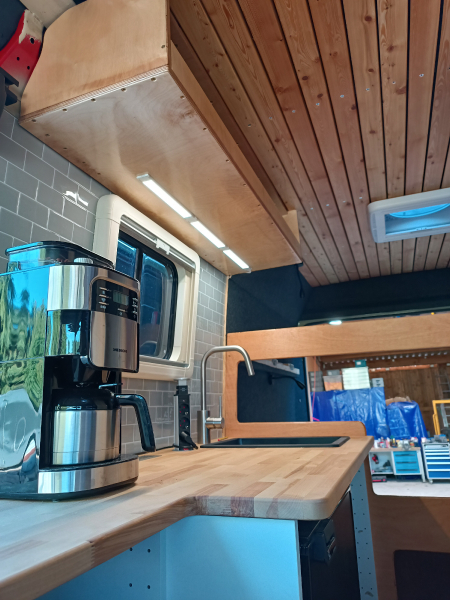

| Material of furniture | 6-20mm Multiplex in Birke/Buche |
|---|

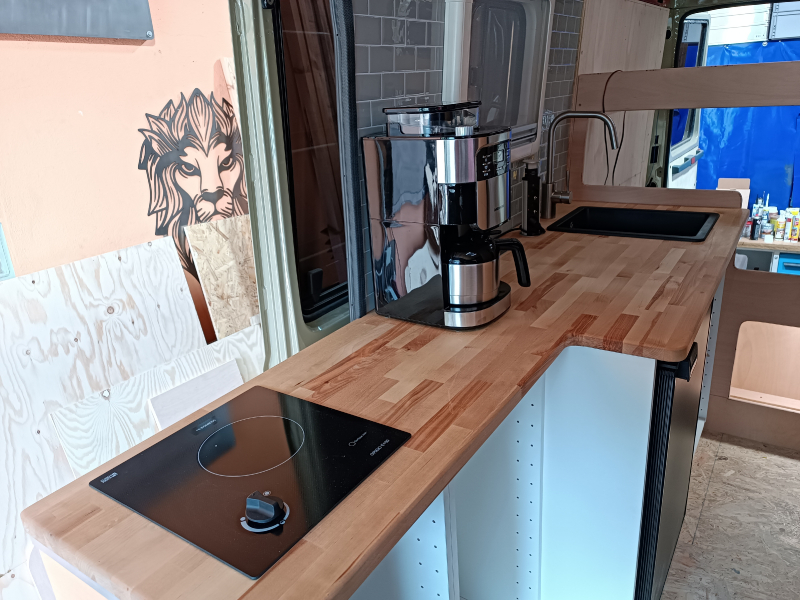

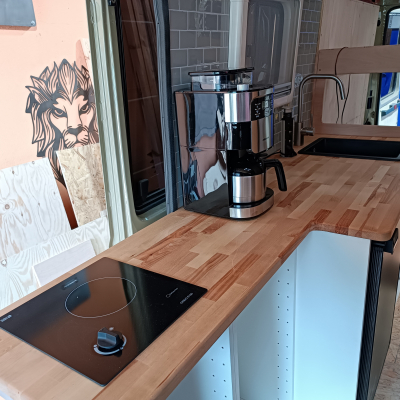

| Cooking stove | Dometic Ceranfeld 1200 Watt |
|---|---|
| Gas installation | Gasfrei |

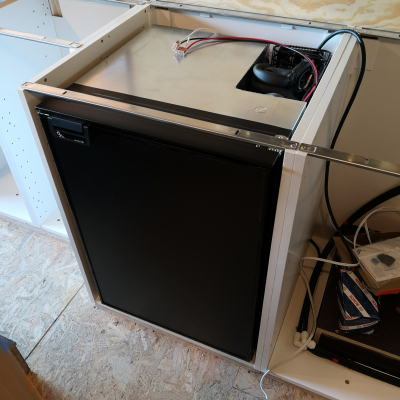

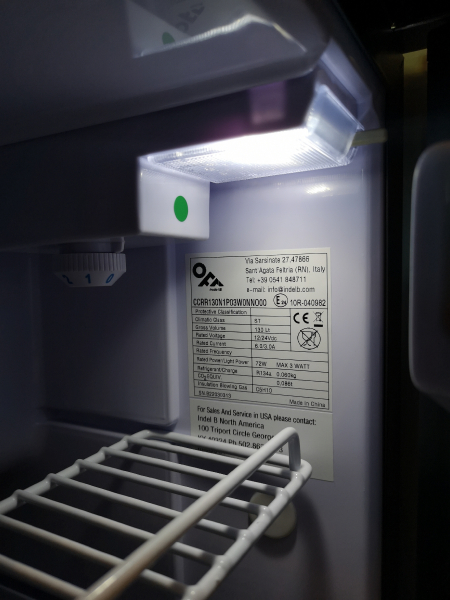

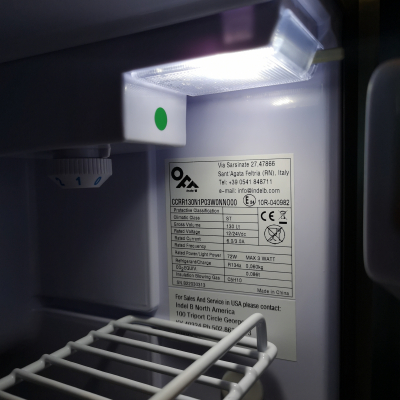

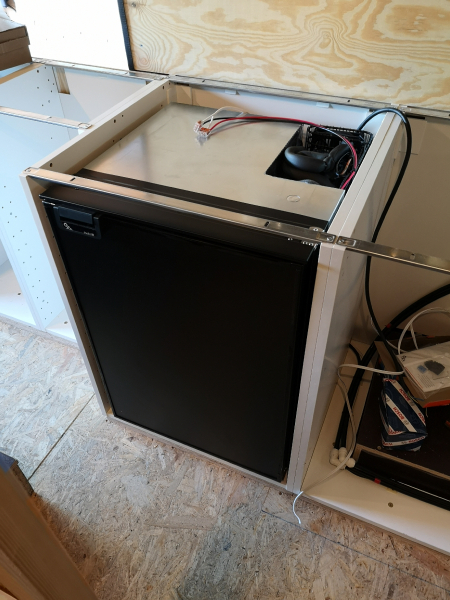

| Manufacturer and type of fridge / cooler | IndelB 130 |
|---|---|
| Other | |
| 12V Kompressor | |
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 12H |
| 110V / 230V in the cabin? | yes |

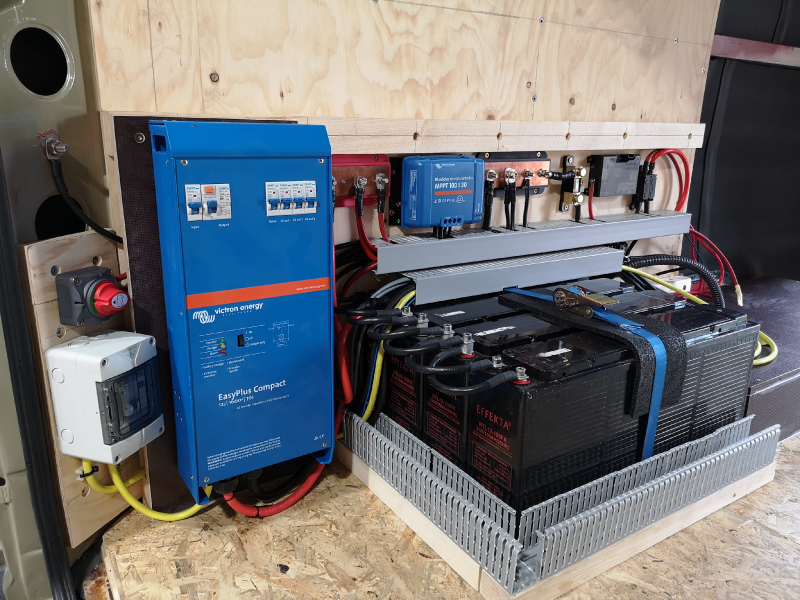

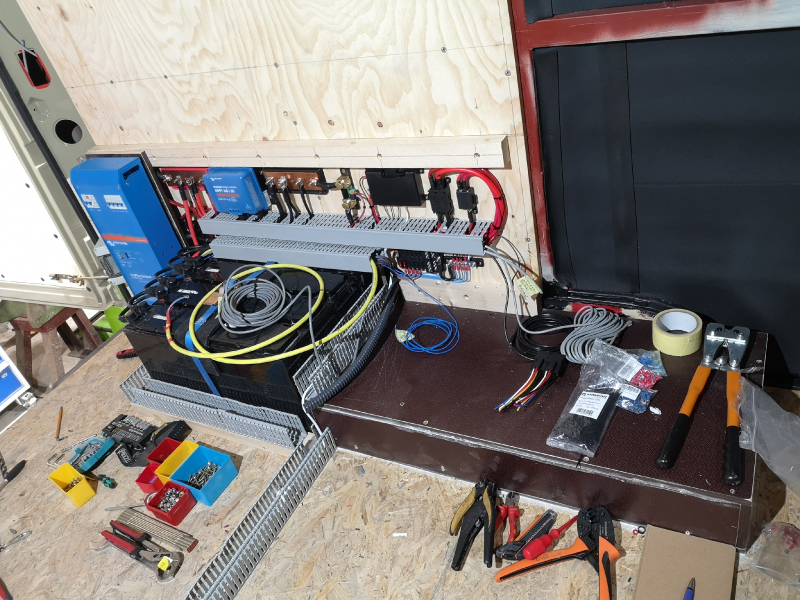

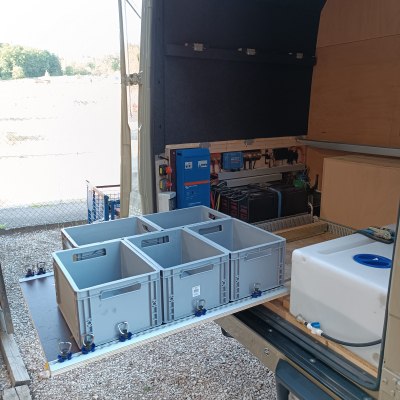

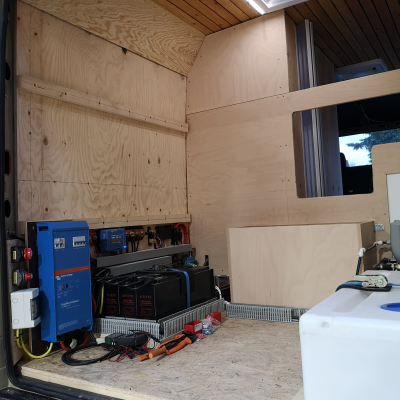

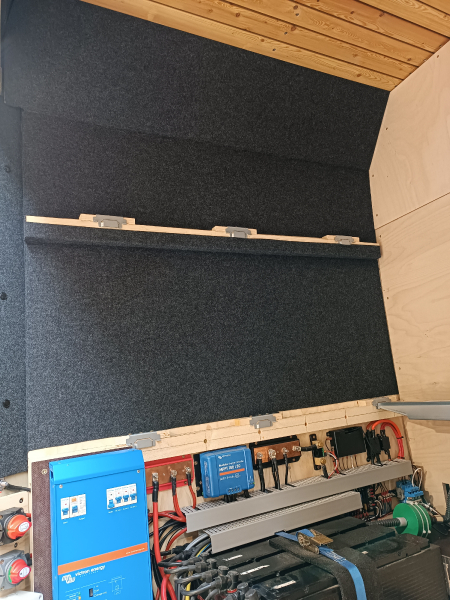

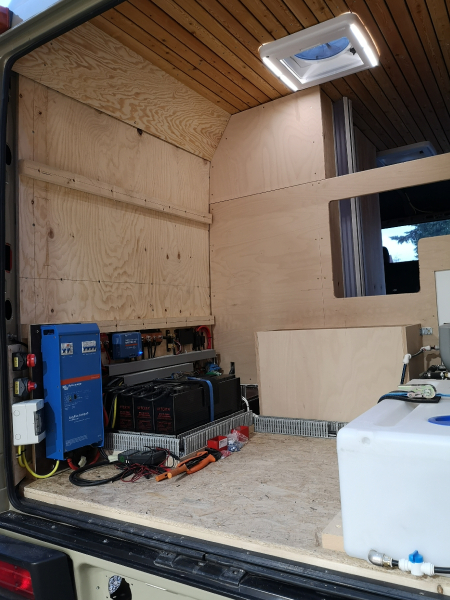

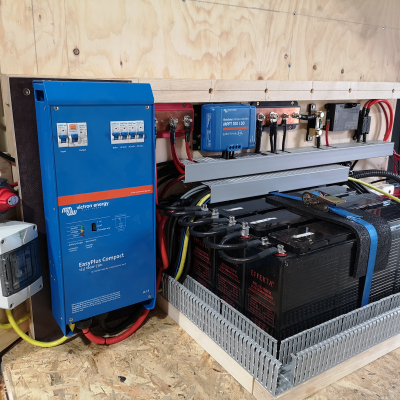

| Inverter | Victron Easyplus Compact 1600 |

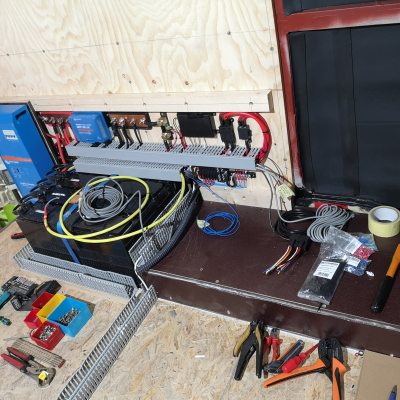

| Capacity of batteries in the cabin | 600Ah |
|---|---|
| Battery type | AGM |
| Battery charger for cabin batteries | Victron Easyplus Compact 1600 / 70A |

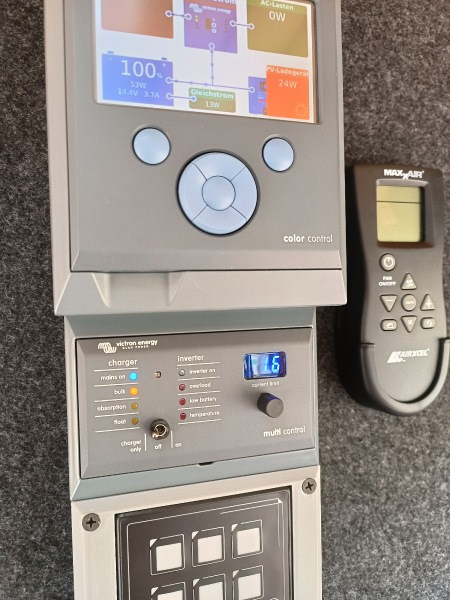

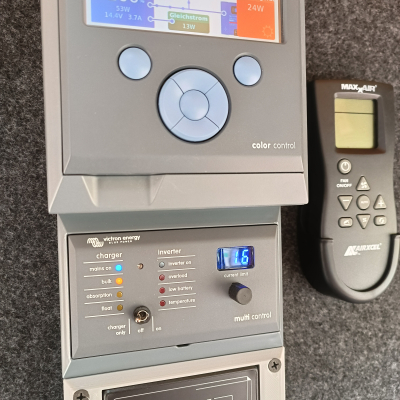

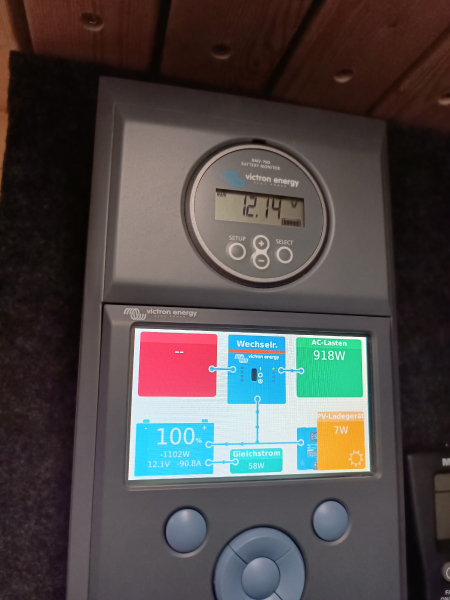

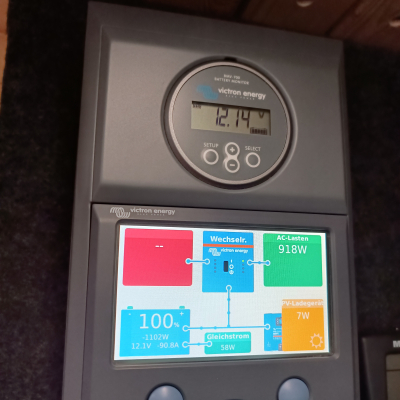

| Battery management | Victron Color Control + BMS 702 |

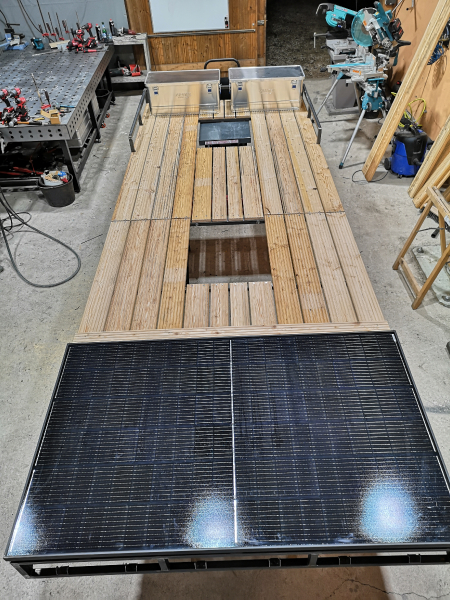

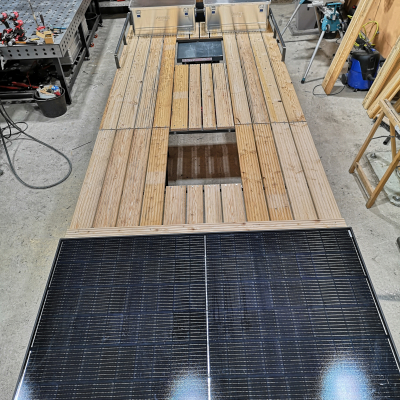

| Solar capacity | 370 Watt |
|---|---|
| Solar controller | Victron MPPT 100/30 |
| Fuel cell | no |
| Power generator | 90A |
| Other | |

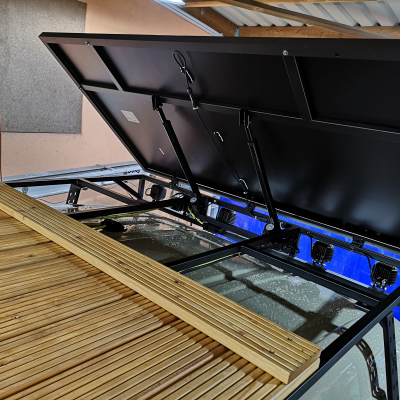

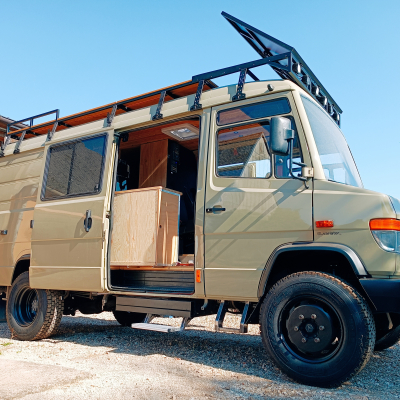

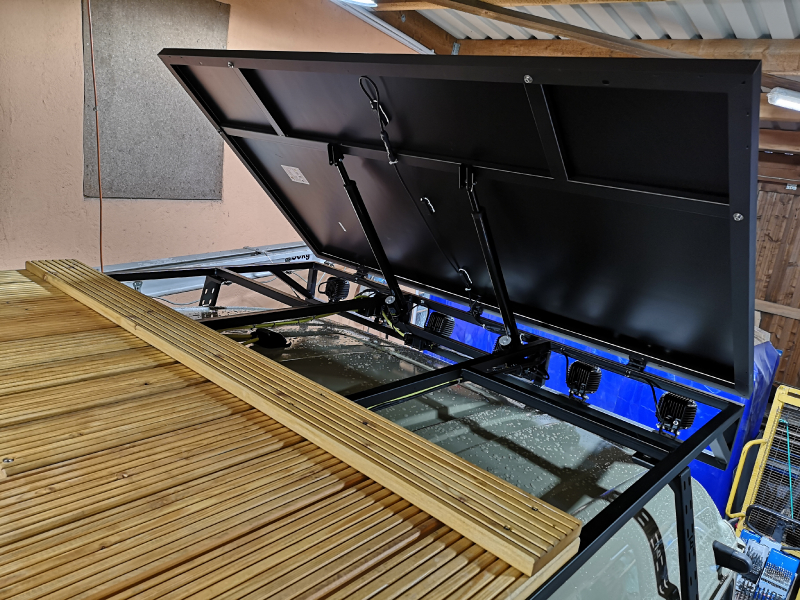

| Panel ist mit 2 Linearmotoren verstellbar. | |

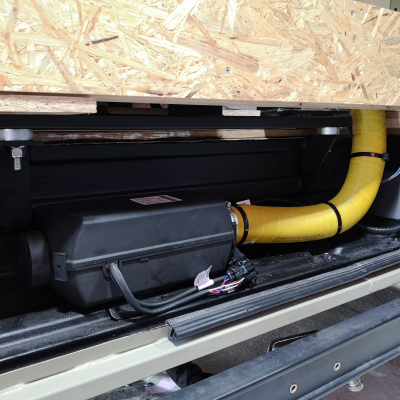

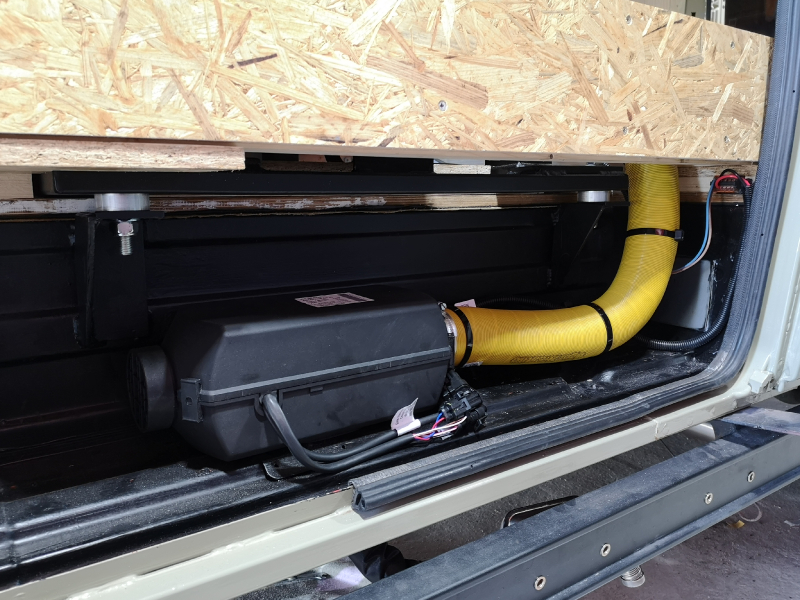

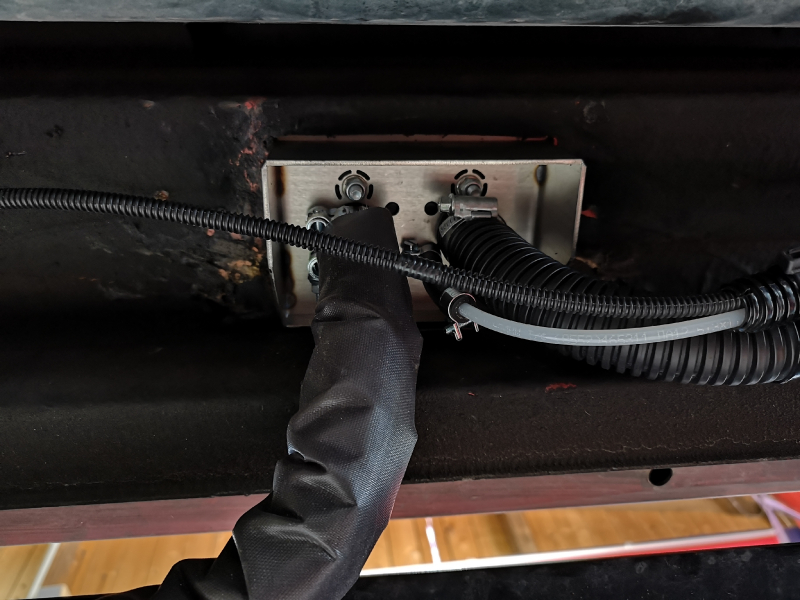

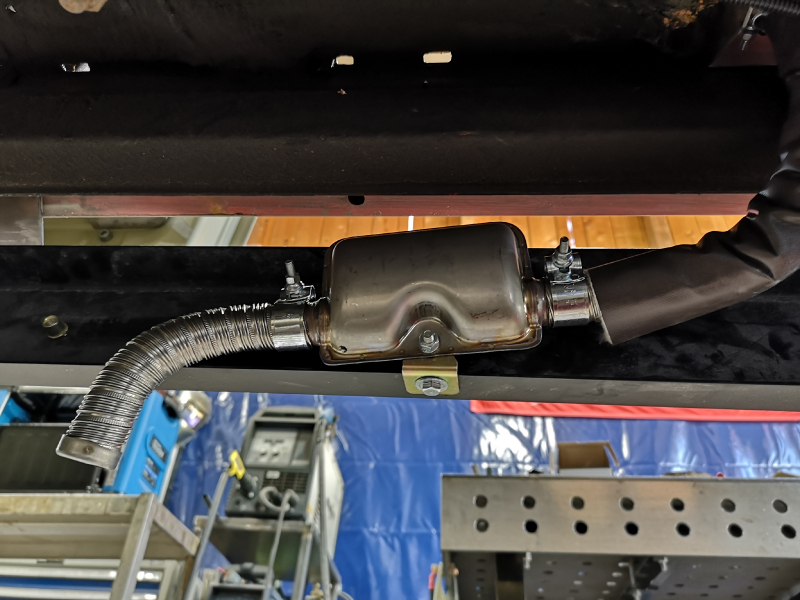

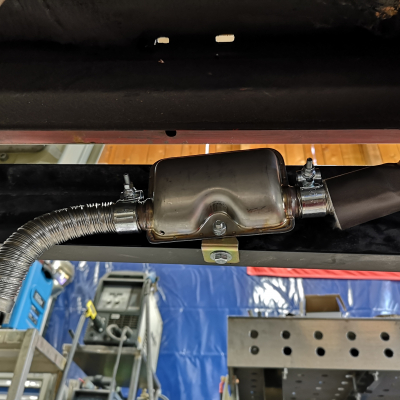

| Manufacturer and type of heating system | Planar 2D |
|---|---|

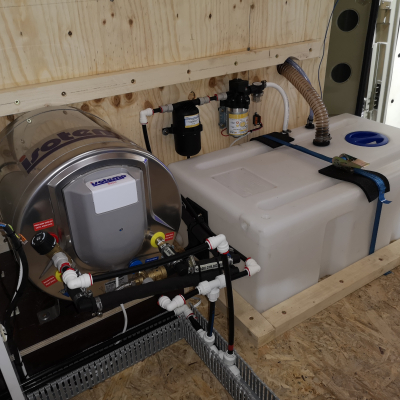

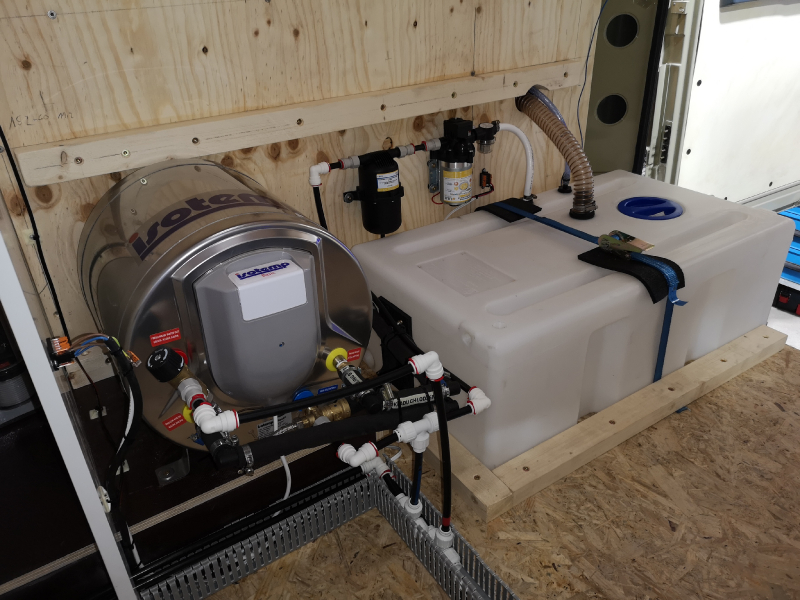

| Warm water processing | Isotemp Boiler 25l Wärmetauscher Fahrzeug |
| Explanation of gas system | |
|---|---|
| Gasfrei |

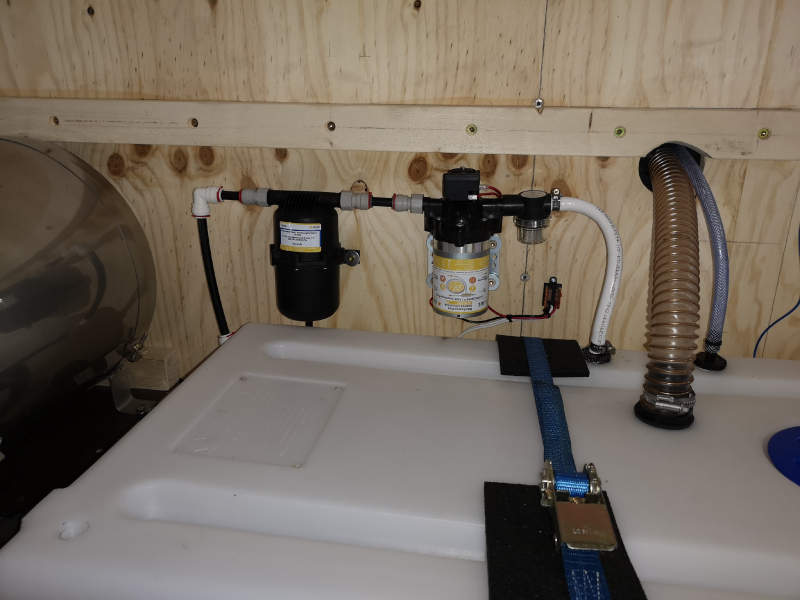

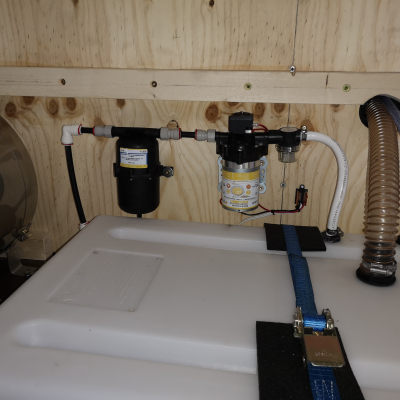

| water flow | Uniquick 12mm |
|---|---|
| Water filtration system | Ohne |

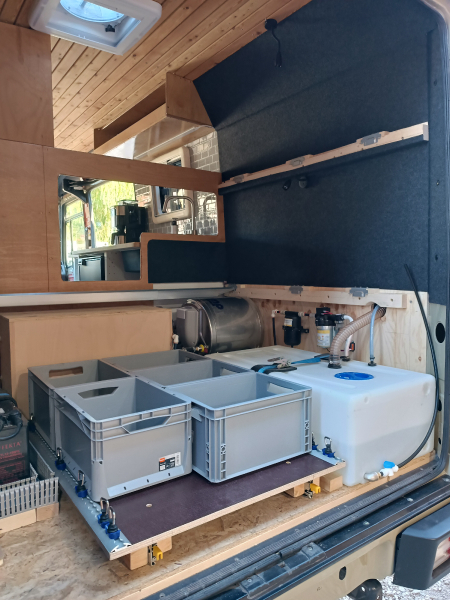

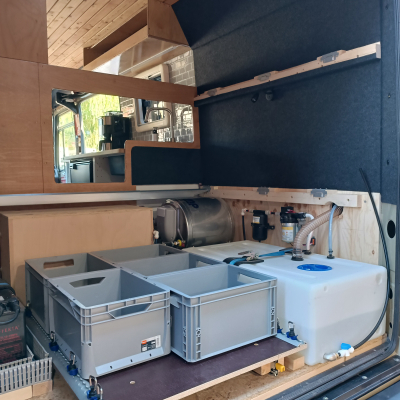

| Capacity of fresh water tank(s) | 160l |
| Capacity of waste water tank(s) | 90l |

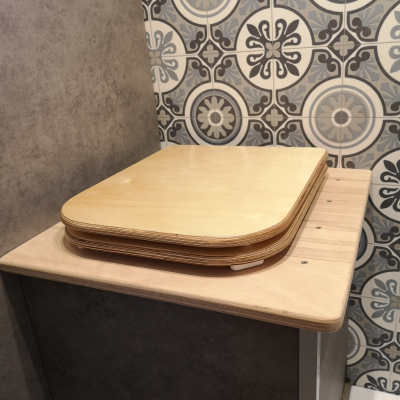

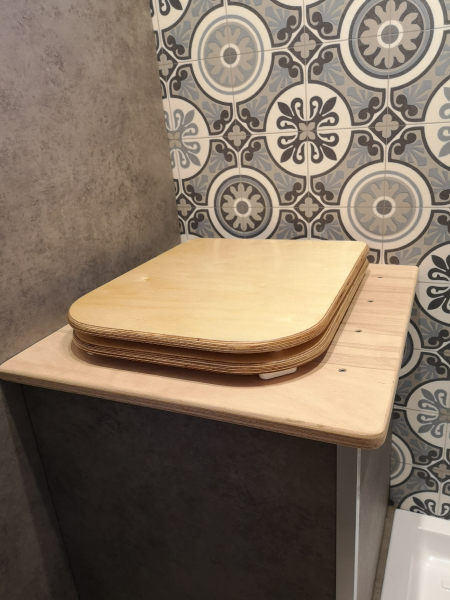

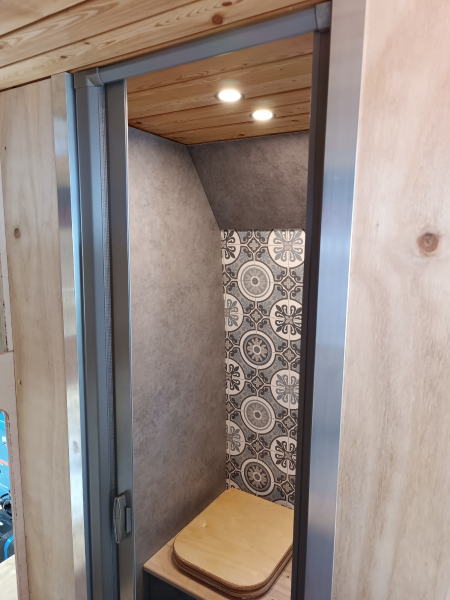

| Manufacturer and type of toilet | TTT |
|---|

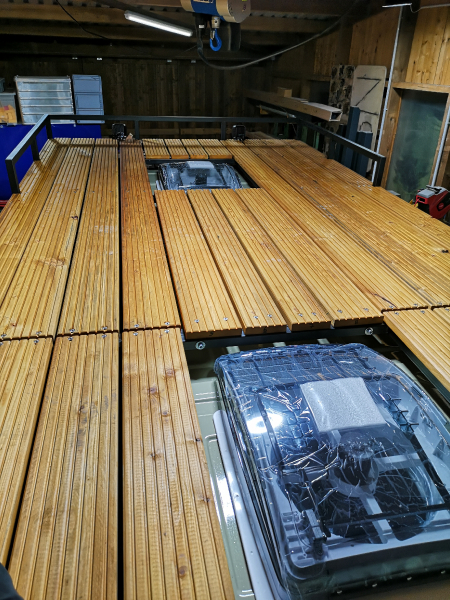

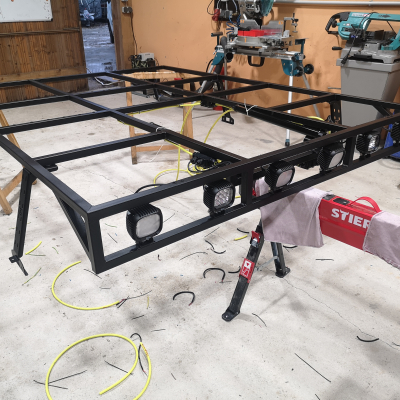

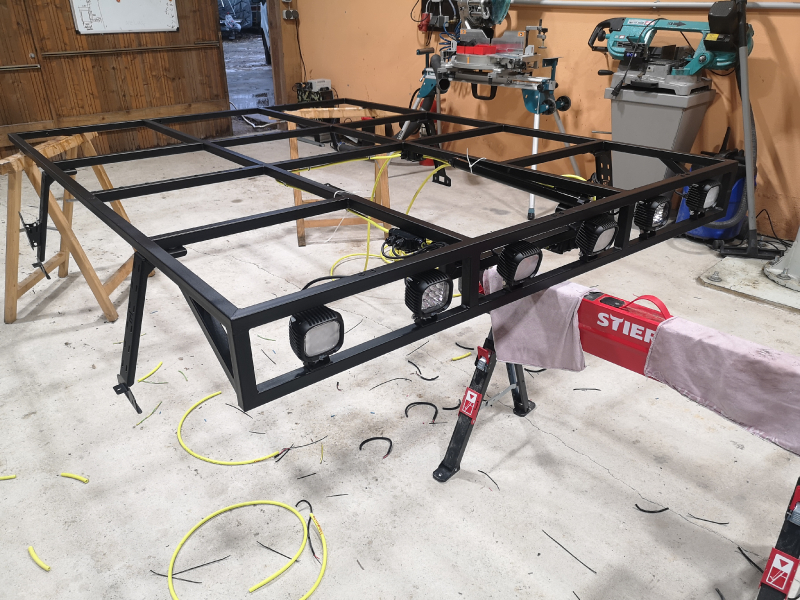

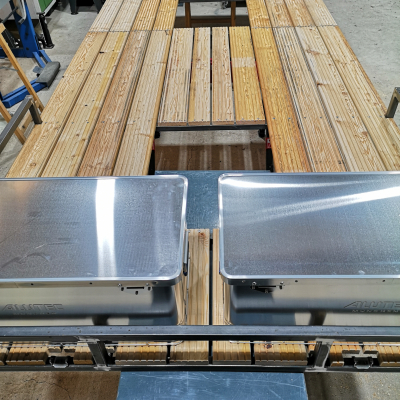

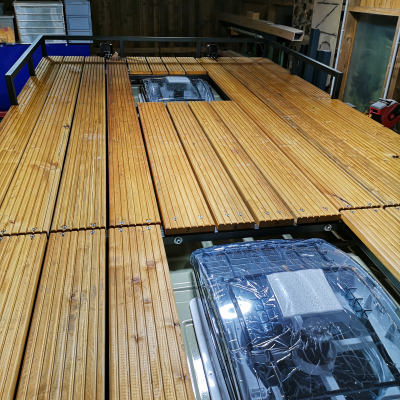

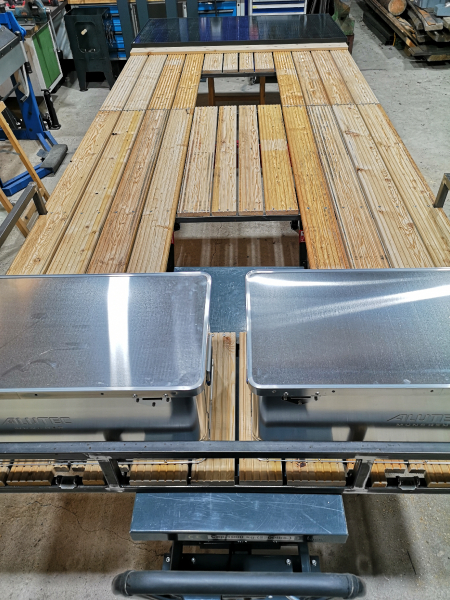

| Roof rack | Eigenbau |
|---|---|

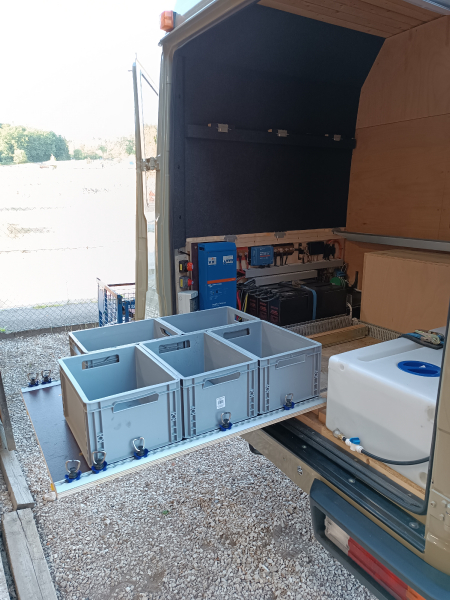

| Storage boxes | Fiamma Ultra |
| Outside cooking facilities | Gaskocher |
| Awning | Dometic PW1100 4m |
