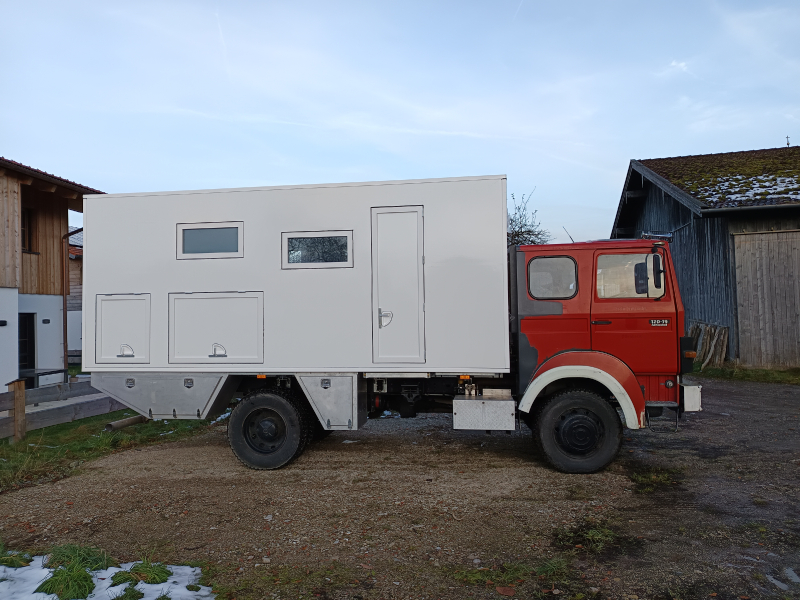

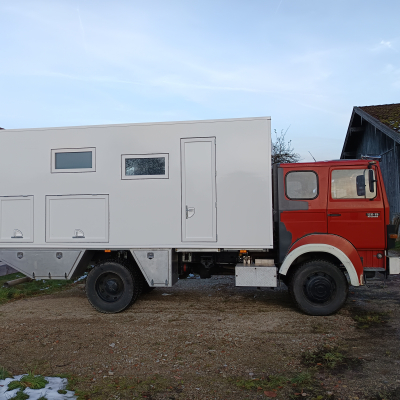

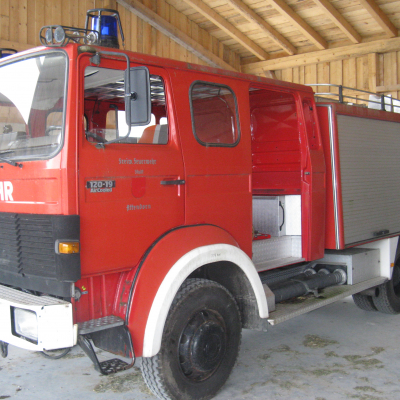

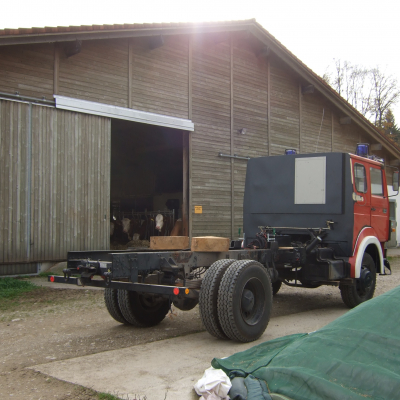

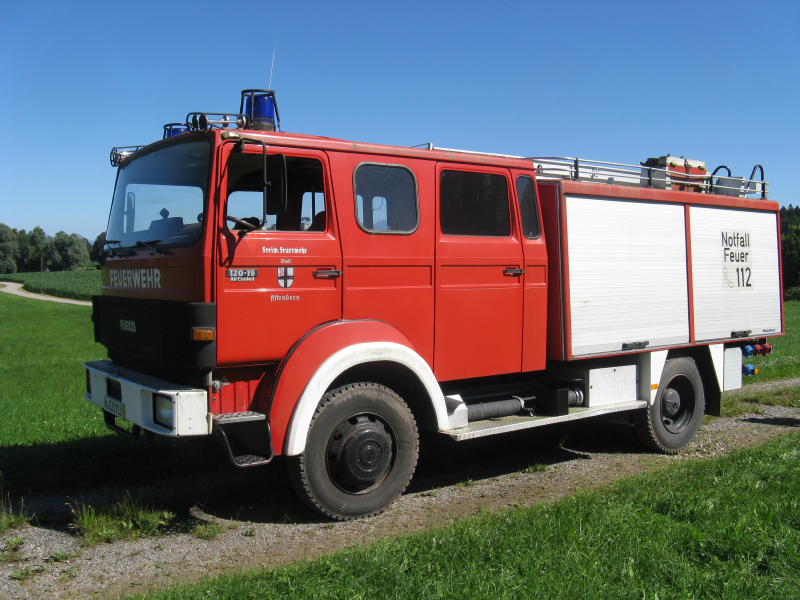

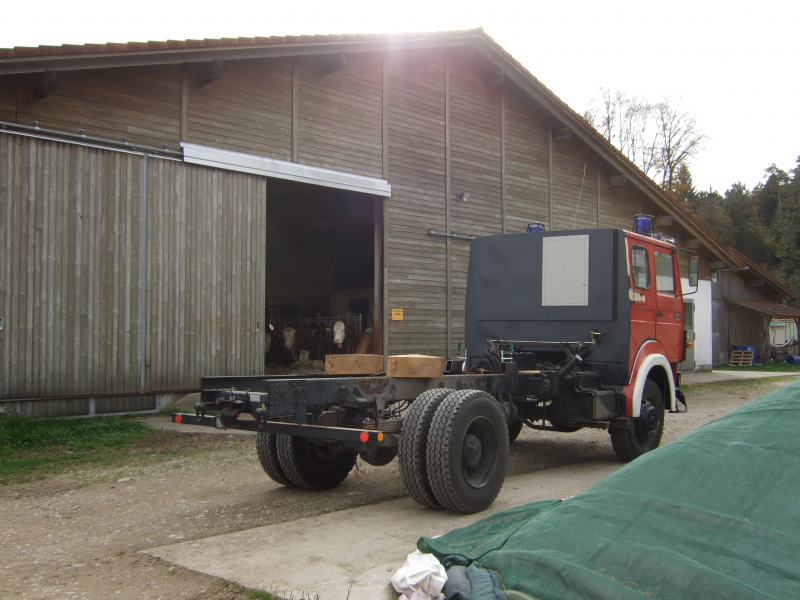

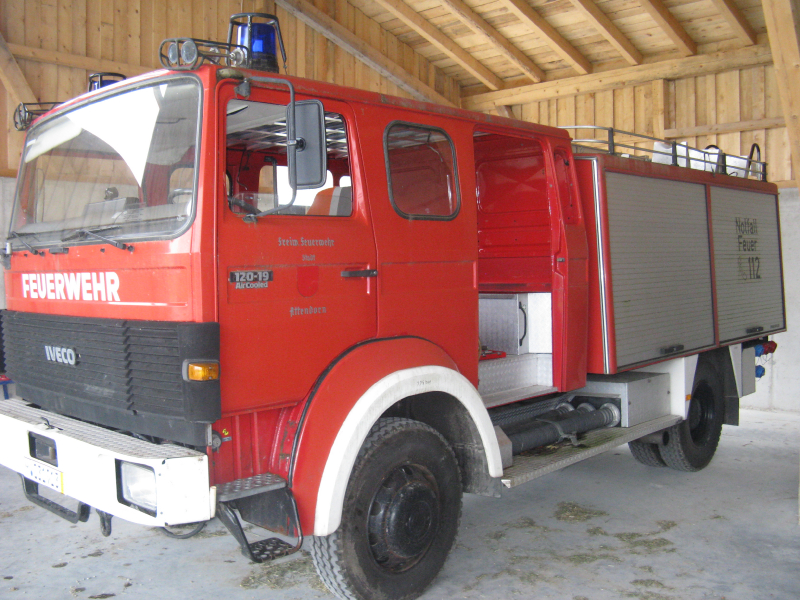

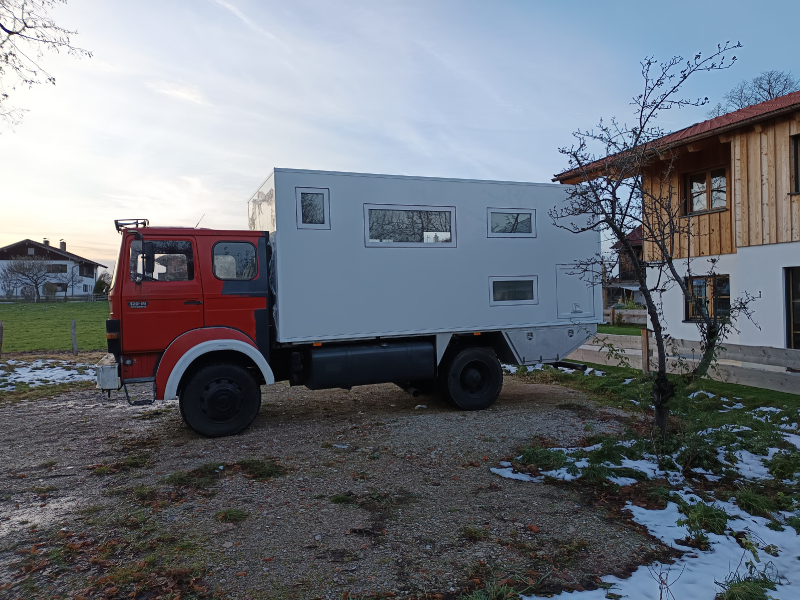

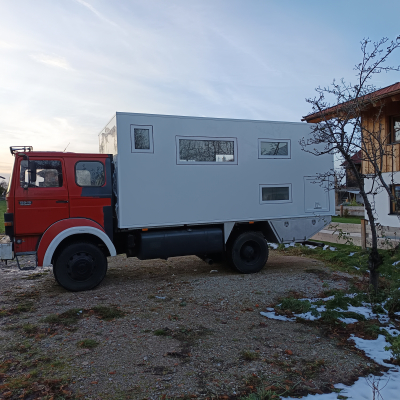

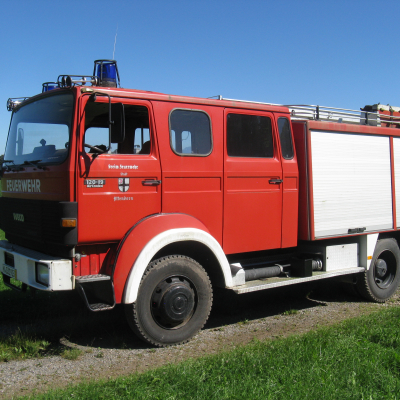

Wir bauen seit 2 Jahren an unserem Iveco 120 -19aw Lf 16 zum Exmo um
| Manufacturer and model | Iveco 120 19 AW |
|---|---|
| Name | Iveco |
| Country | Deutschland |
| Website | www.reisemobilplanung.de www.youtube.com/@OttosWeltreise |
| Year of manufacture | 1985 |
| For sale? | no |
| Engine type | luftgekühlt |
|---|---|
| Number of cylinders | V6 |
| Horsepower | 190 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3750 |
| Number of seats | momentan 4 Später 4+2 |
| Tyre size | geplant 385x65x r22,5 |
| Rim size | 11,75x22,5 ET 120 |
| Type of tyre | Baustellenbereifung |
| Tank capacity | 570L |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Heck und Mitteldifferenzial |
| Manufacturer of the cabin | Eingenproduktion |
|---|---|
| Inner dimensions (LxWxH) | 5,3 |
| Outer dimensions (LxWxH) | 5,4m |
| Cabin material | 2,4 |
| Kind and thickness of insulation | 50mm XPS Schaum |
| Number of beds | 4 |
| Subframe | Elastomer gelagert |
| Other | |

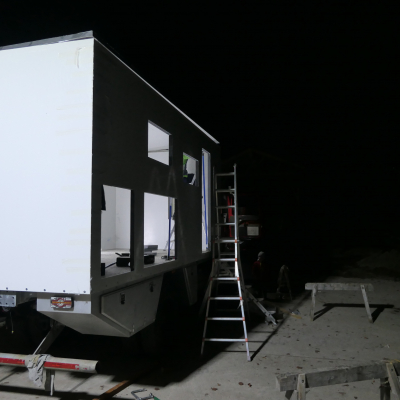

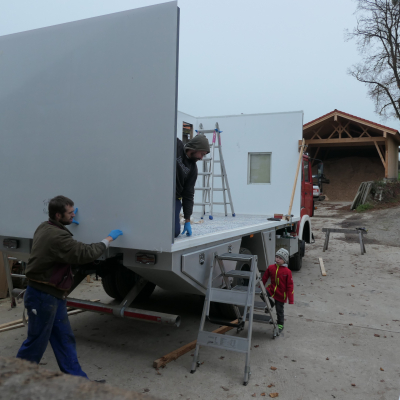

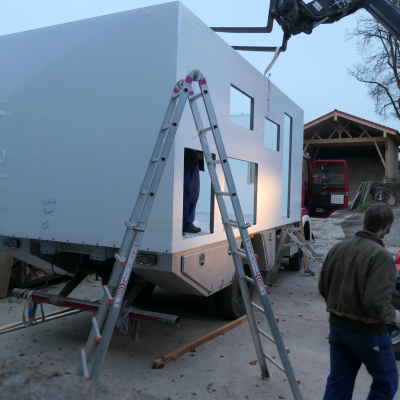

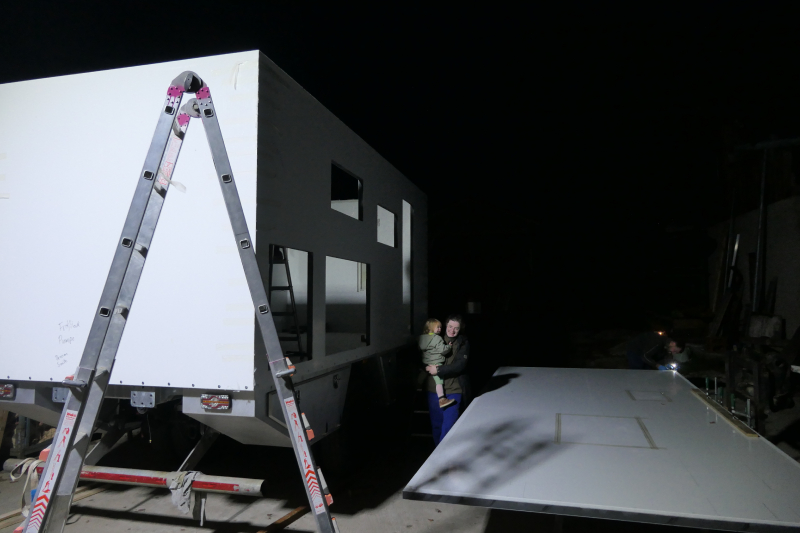

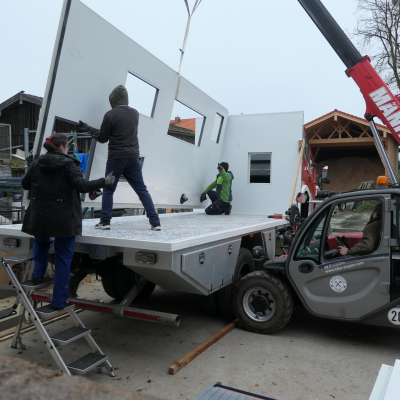

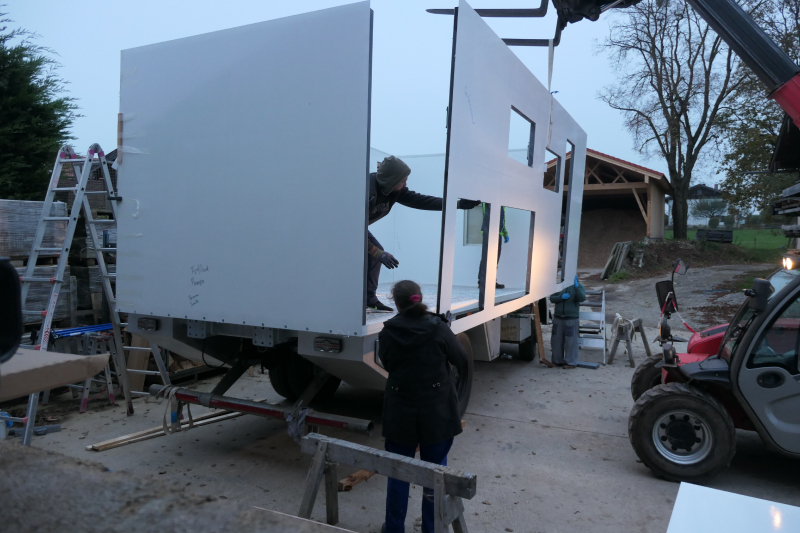

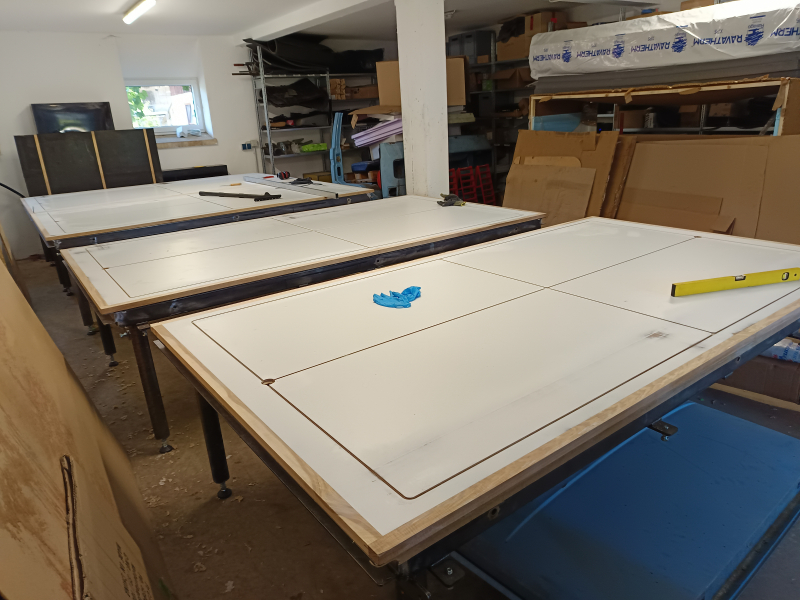

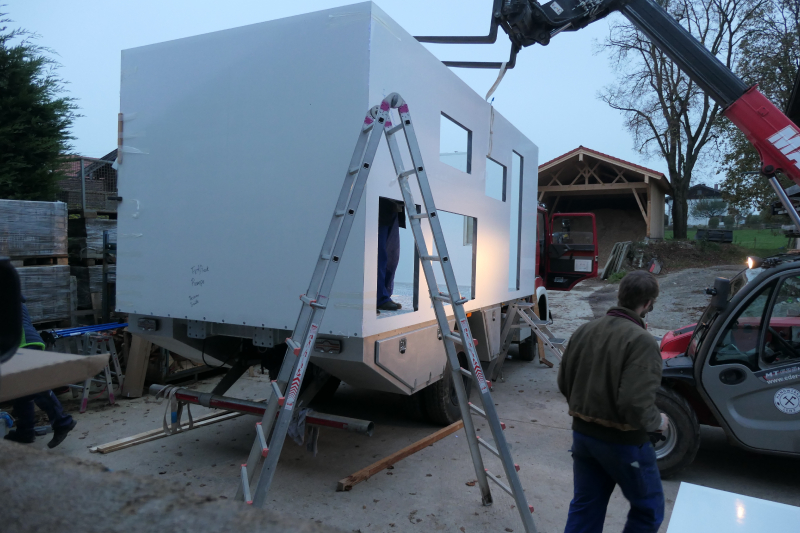

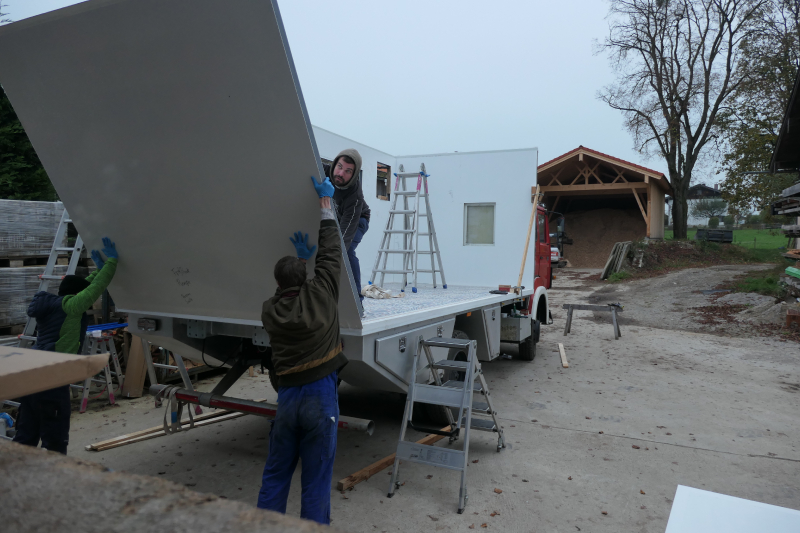

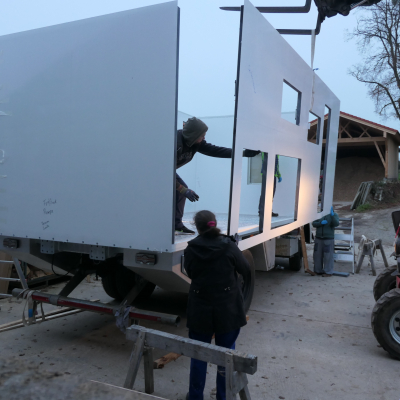

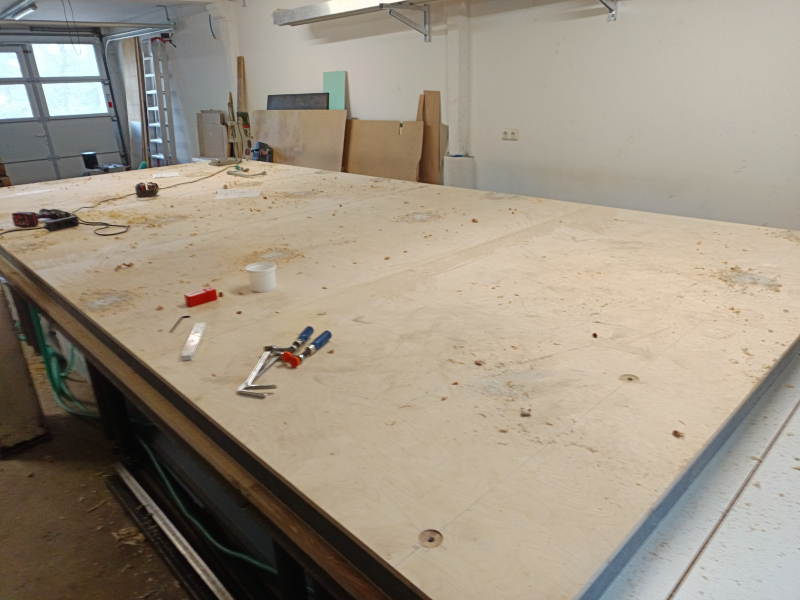

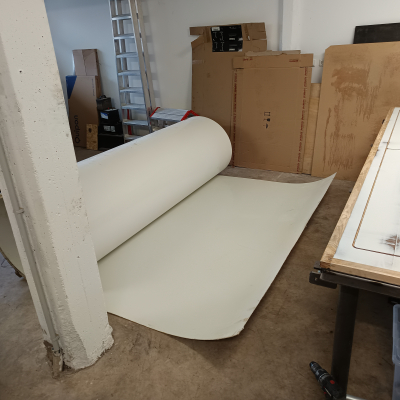

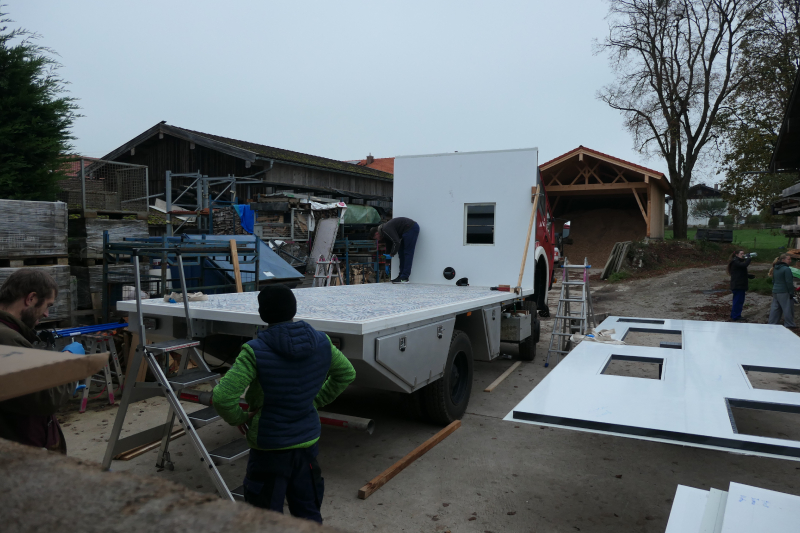

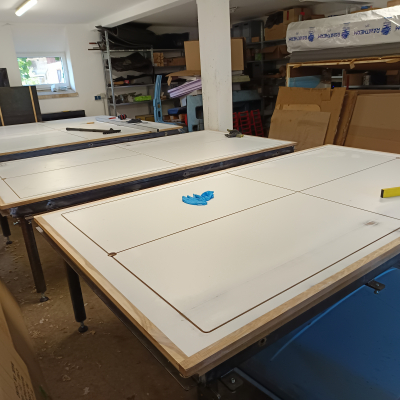

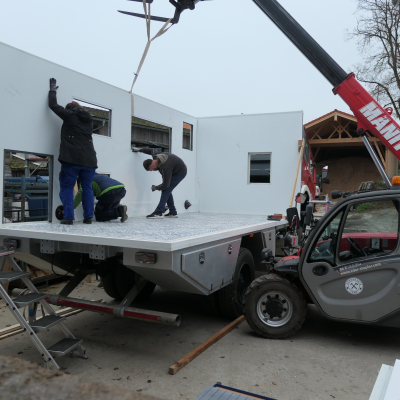

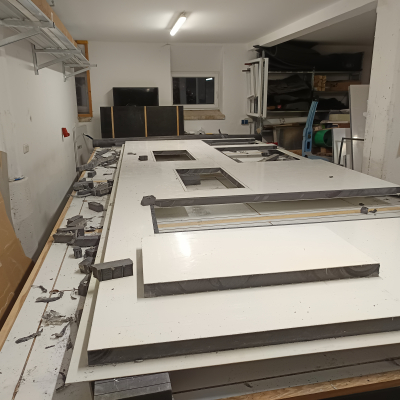

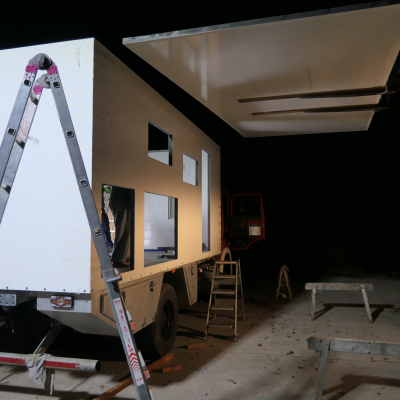

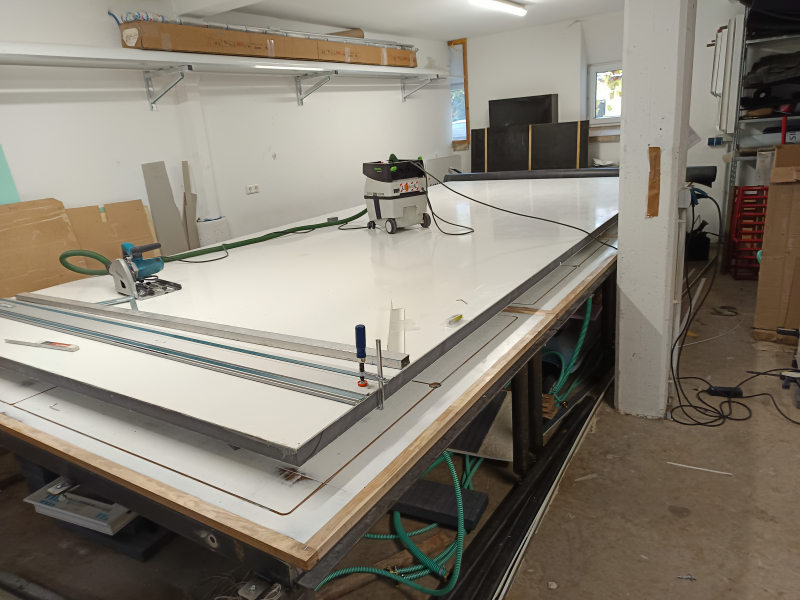

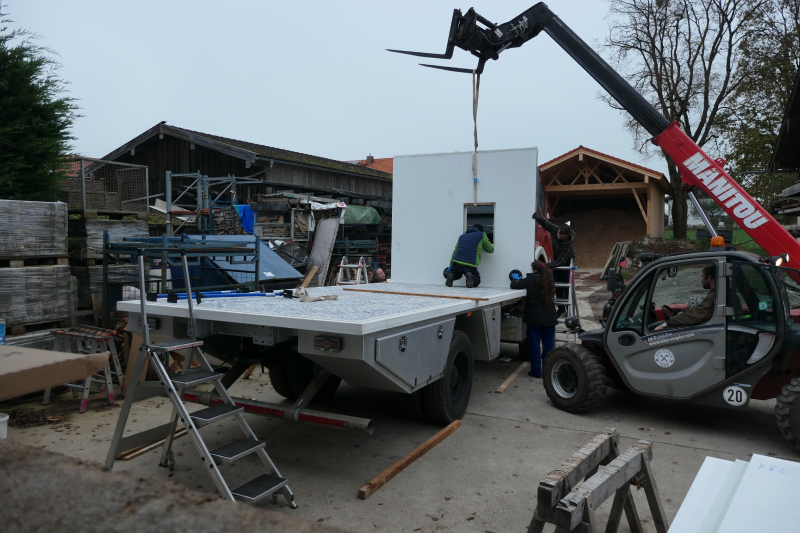

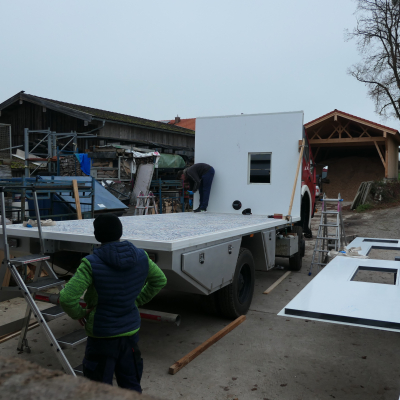

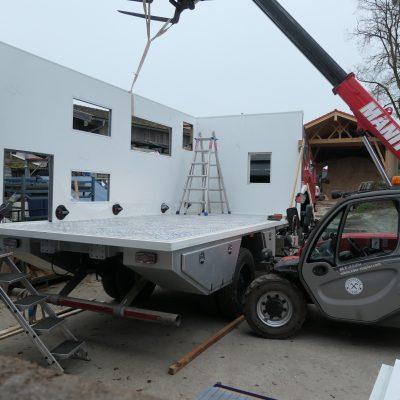

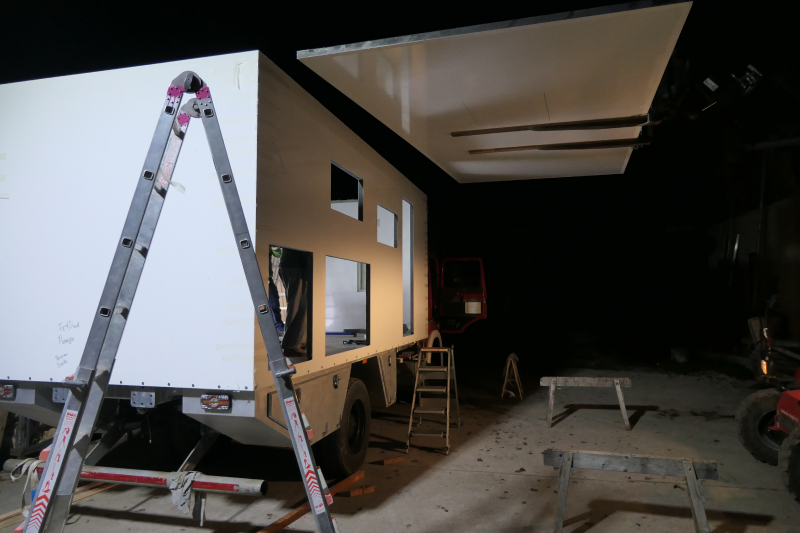

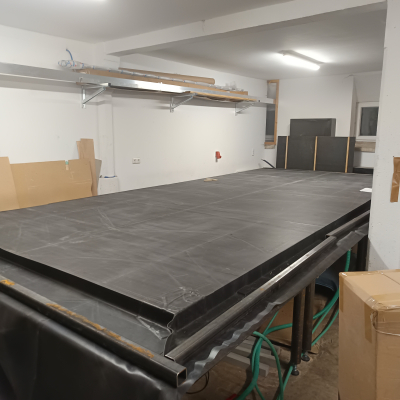

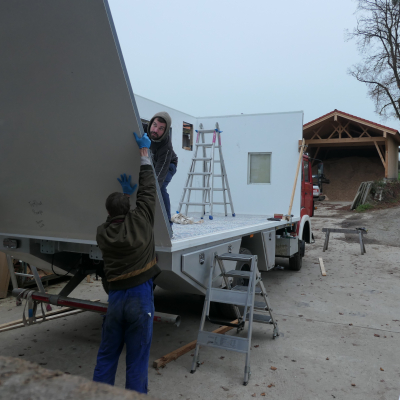

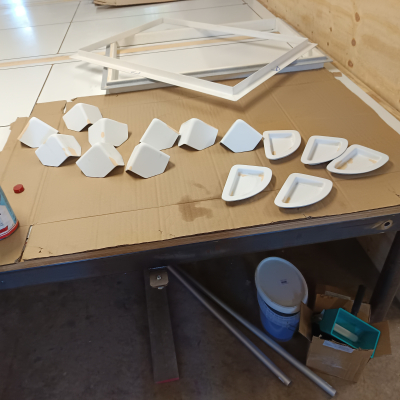

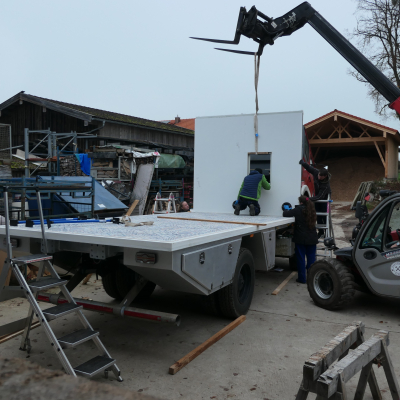

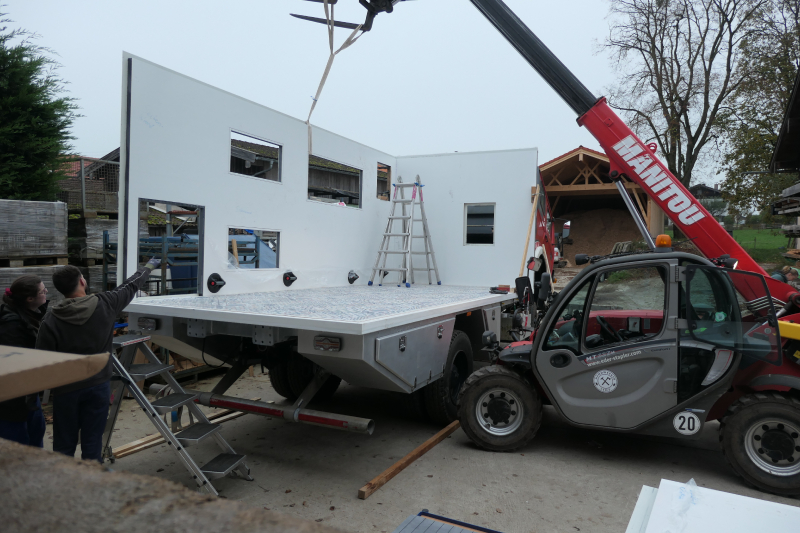

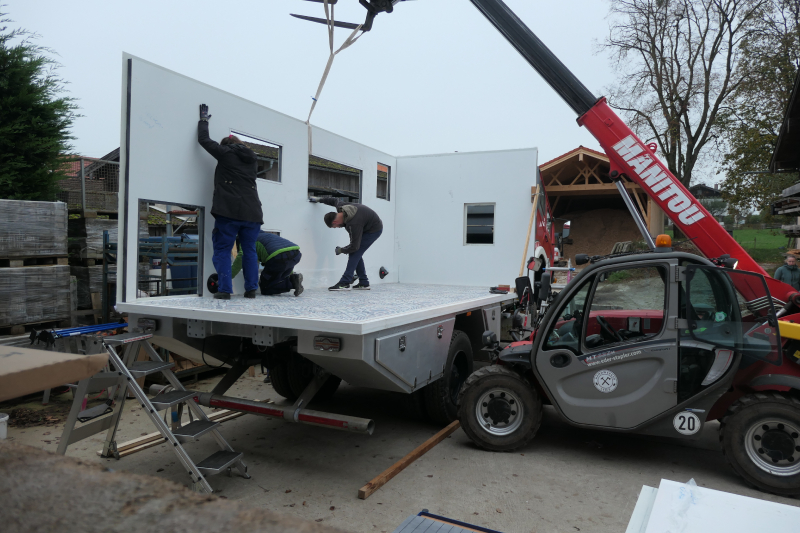

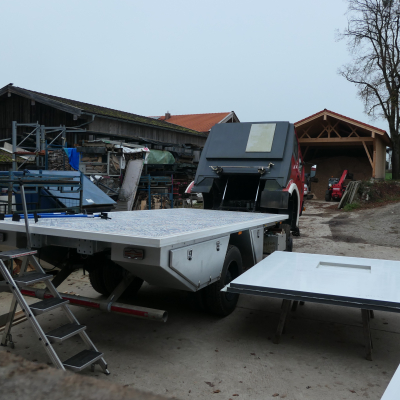

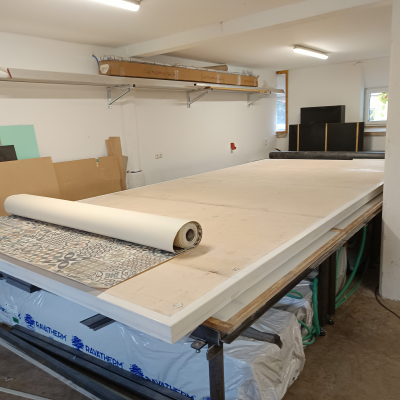

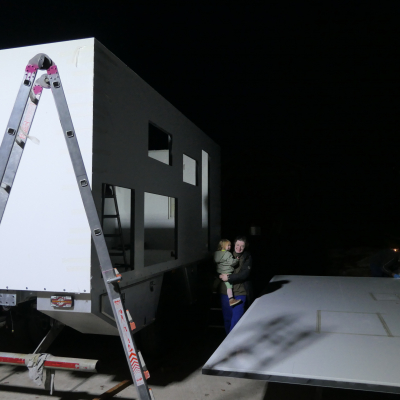

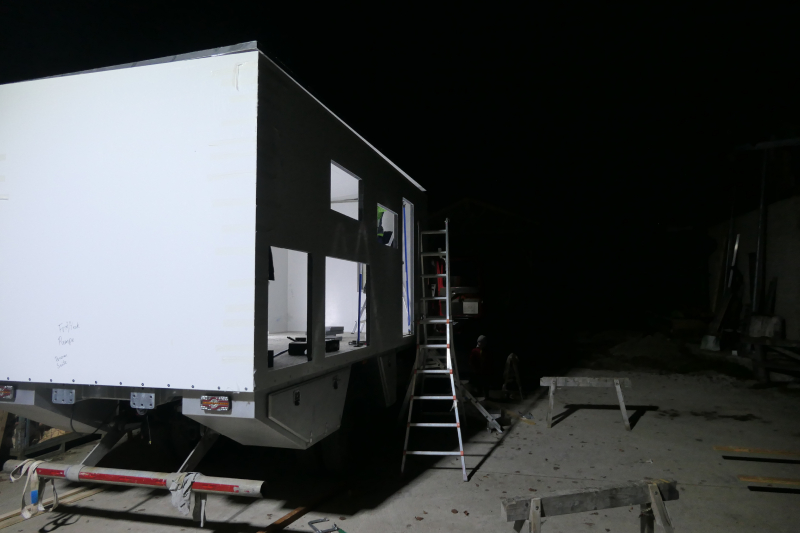

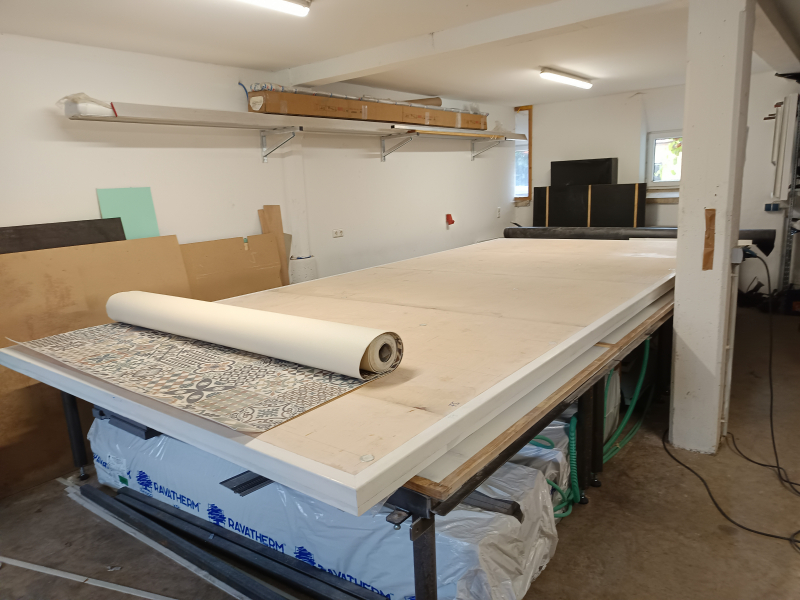

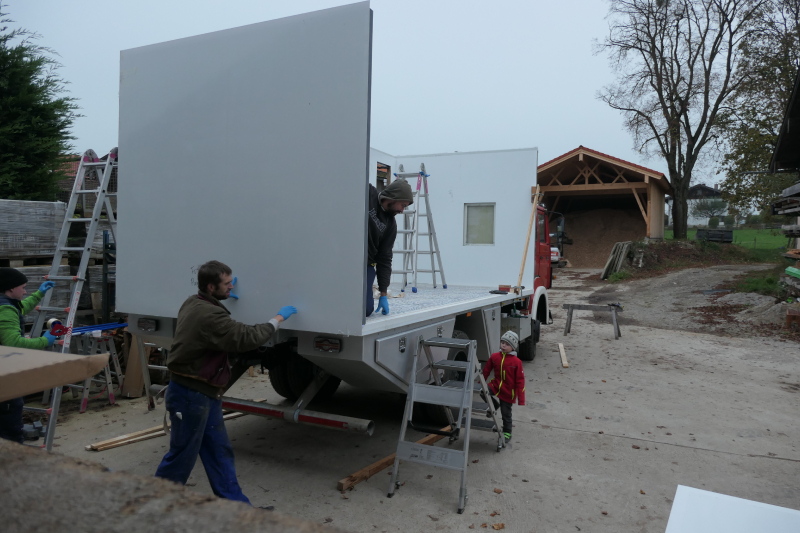

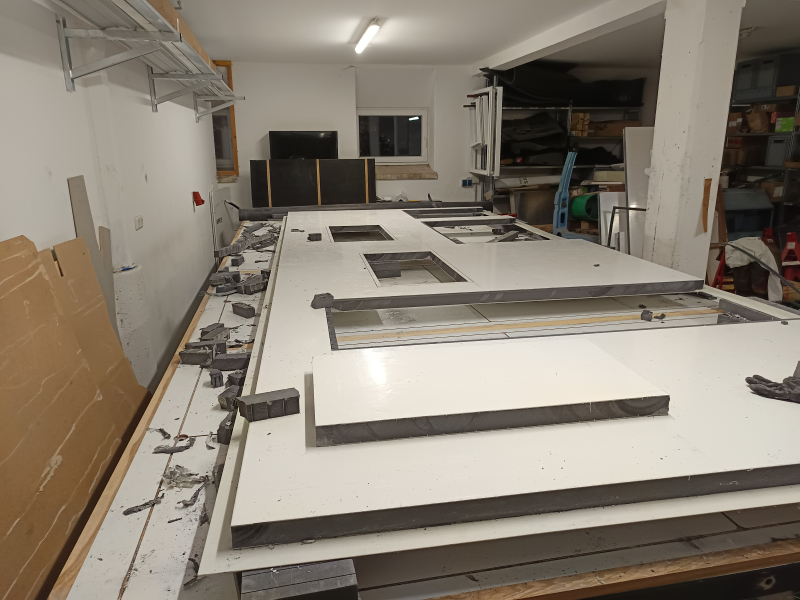

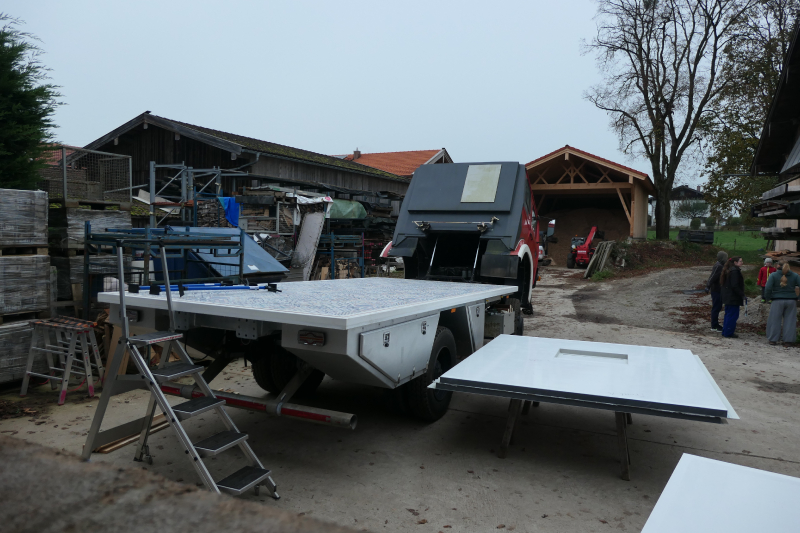

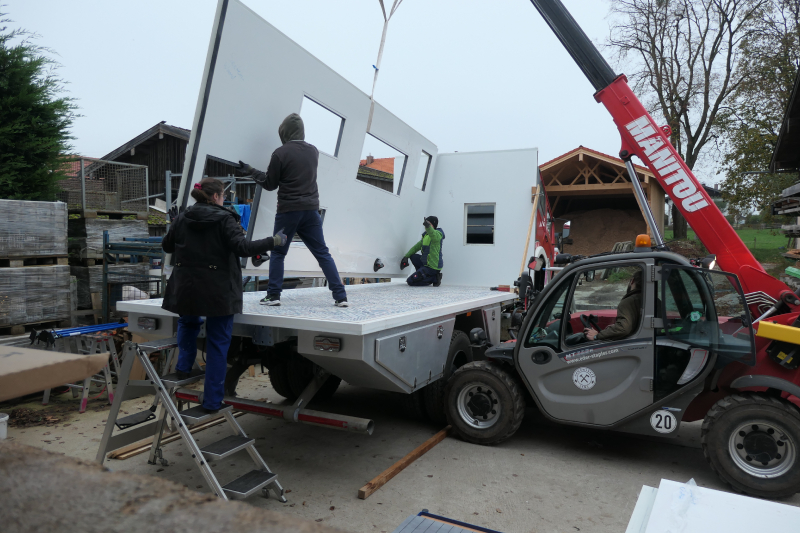

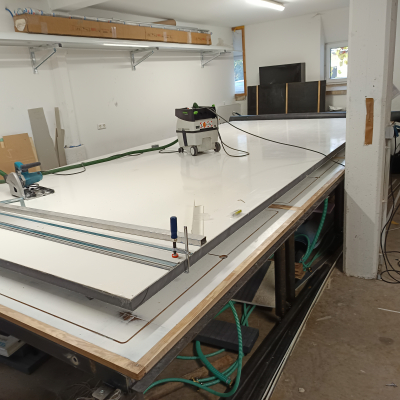

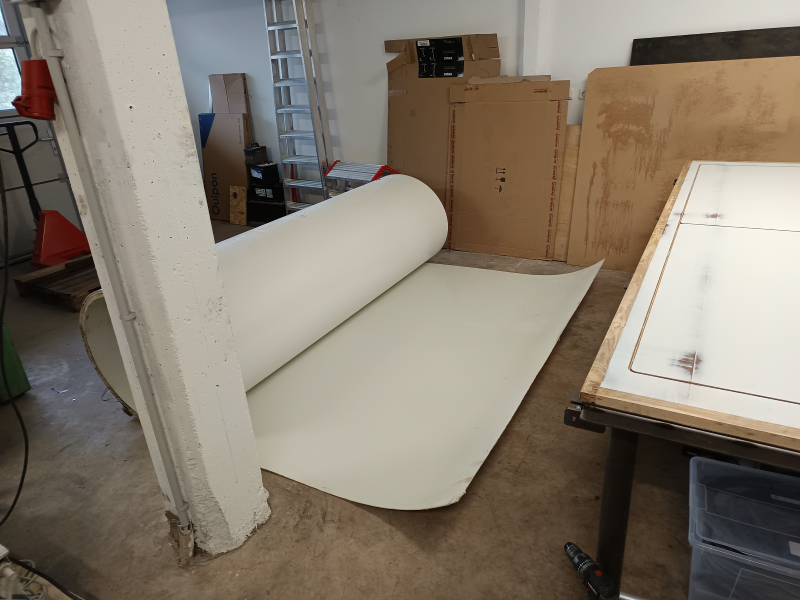

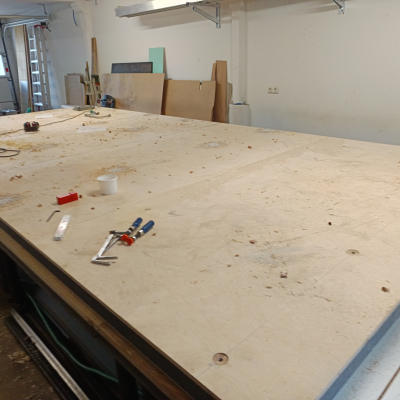

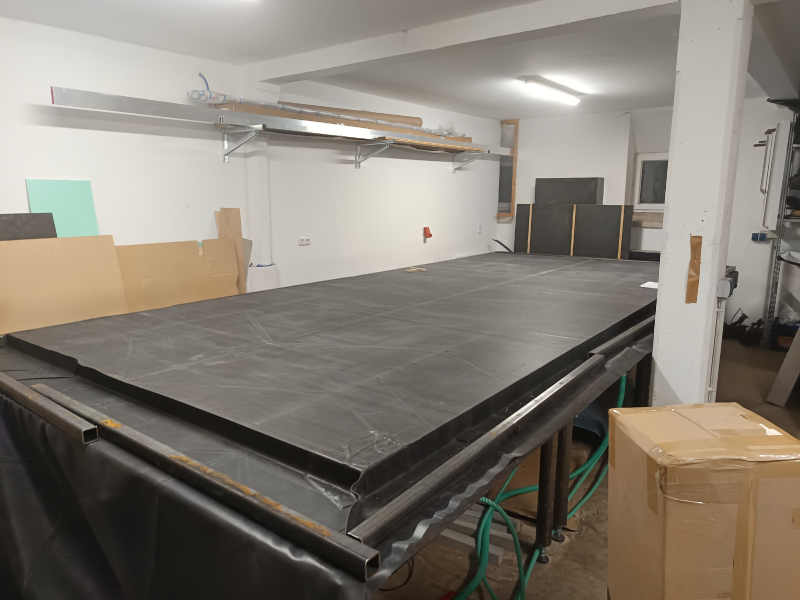

| Der Kabinenbau ist komplett in Eigenregie passiert, vom Kauf der Materialien übers zuschneiden, Pressen, Konfektionierung und Zusammenbauen. | |

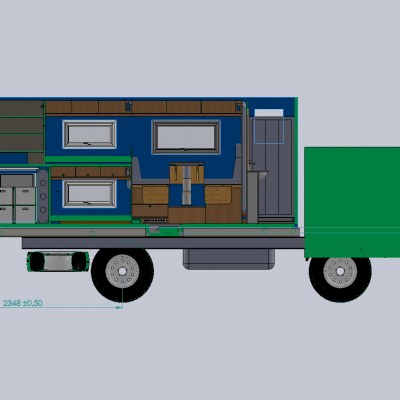

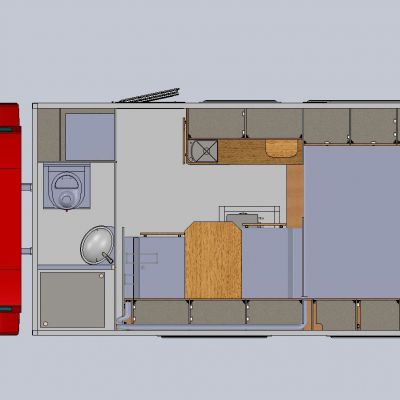

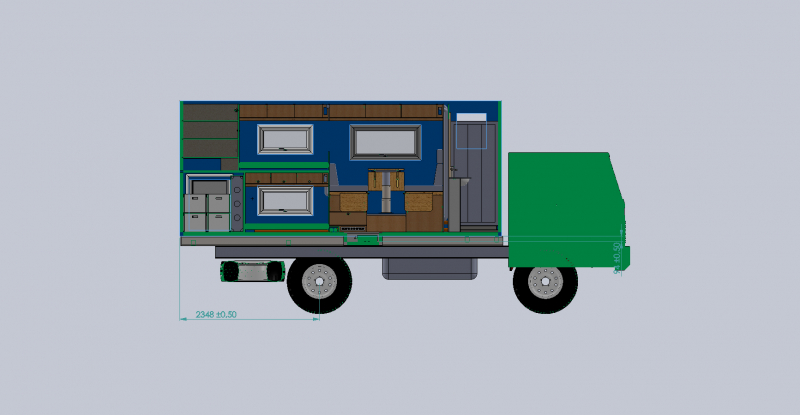

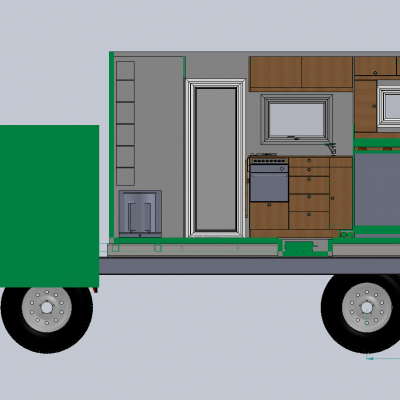

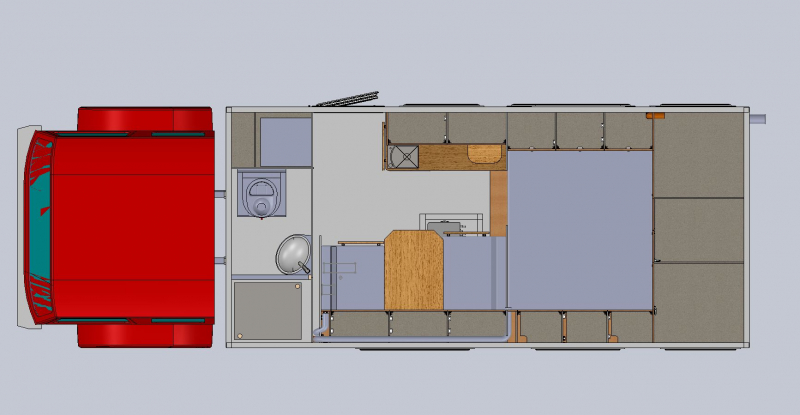

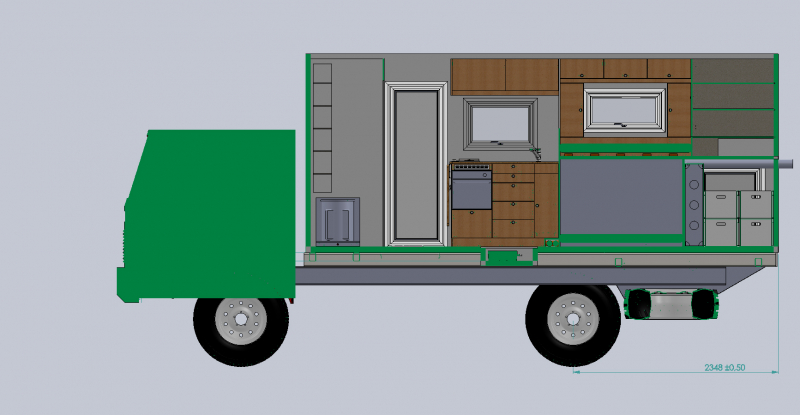

| Explanation of floor plan | |
|---|---|
| Doppel Stockbett im Heck und Durchgangstoilette ins Fahrrerhaus |
| Material of furniture | 15 Dekorpappelsperrholz |
|---|
| Cooking stove | Eno Kos 3 Flammen |
|---|---|
| Gas installation | 50l Gastank |
| Other | |
| Warmwasser und Backofen Eno Perigord | |
| Manufacturer and type of fridge / cooler | Haushaltskühlschrank |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 24V |
| 110V / 230V in the cabin? | yes |
| Inverter | Must PV1800 Plus 3KW |
| Capacity of batteries in the cabin | 400AH 24V |
|---|---|
| Battery type | Lifepo |
| Battery charger for cabin batteries | Must PV1800 Plus 3KW |
| Solar capacity | ca. 2000WP |
|---|---|
| Solar controller | Must PV1800 Plus 3KW |
| Fuel cell | no |
| Power generator | 24V Lichmaschiene 100AH |
| Manufacturer and type of heating system | Autotherm 2D Twimkit |
|---|---|
| Warm water processing | Gas Durchlauferhitzer |
| Cab heating | ohne Standheizung |
| Explanation of gas system | |
|---|---|
| Siehe Kocher |
| water flow | Aluverbundrohr |
|---|---|
| Water filtration system | Bluefilters Newline Ultrafiltration |
| Capacity of fresh water tank(s) | 400l |
| Capacity of waste water tank(s) | 200l |

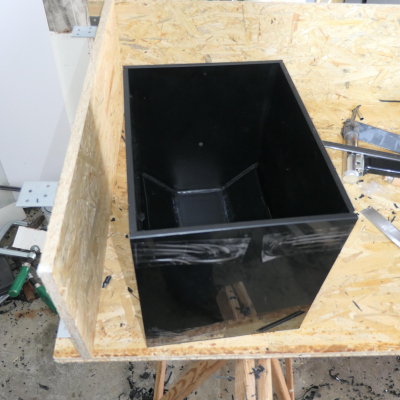

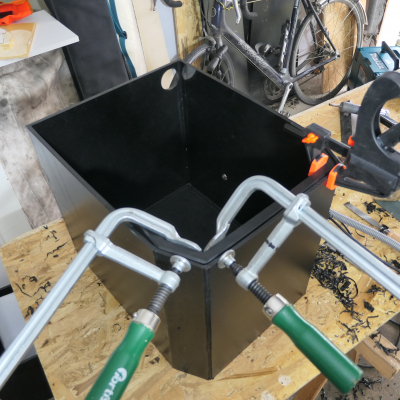

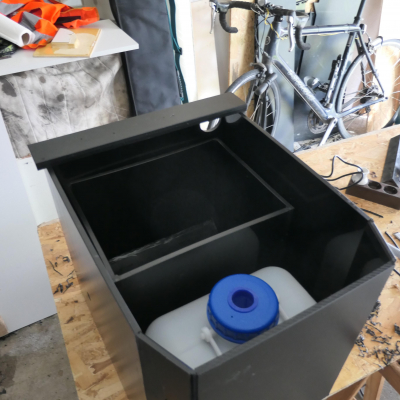

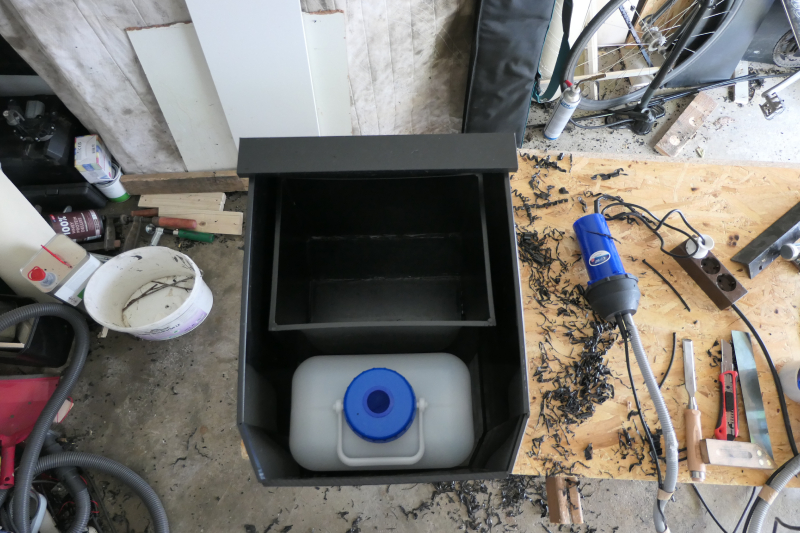

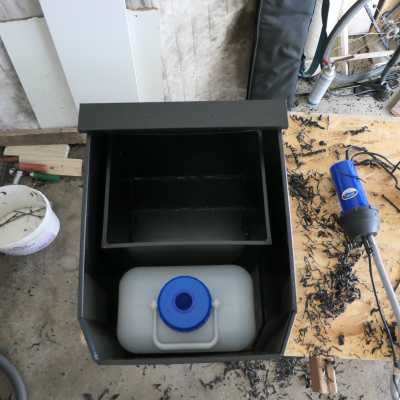

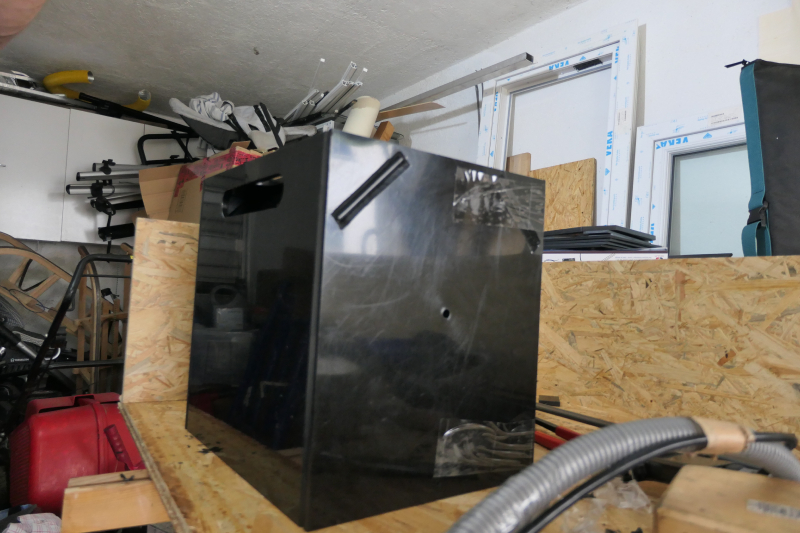

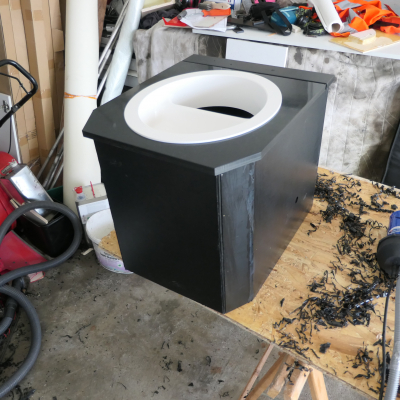

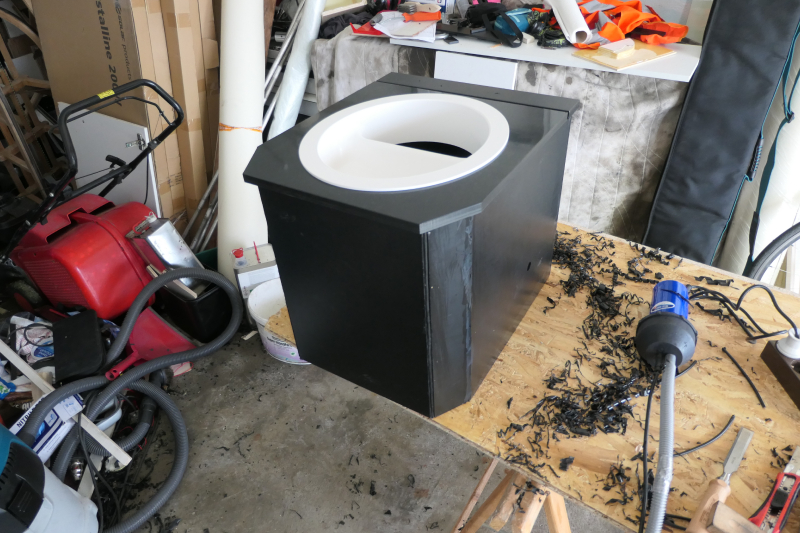

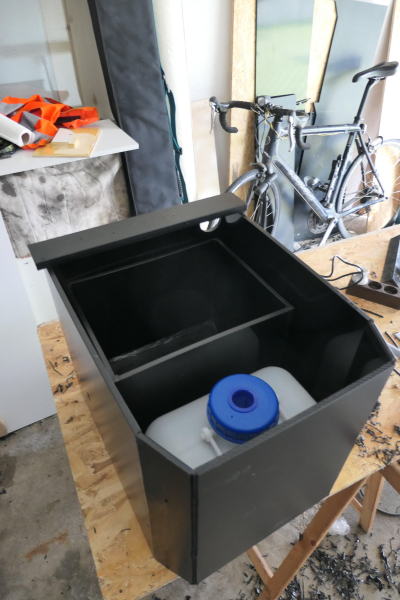

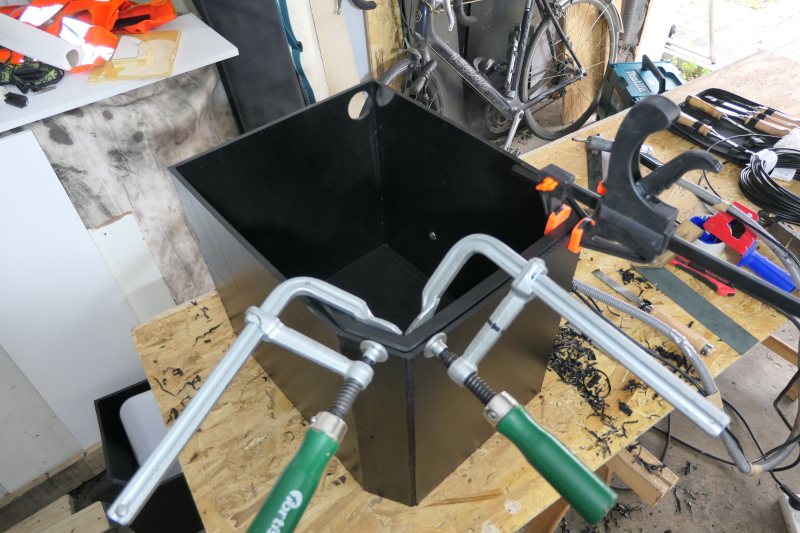

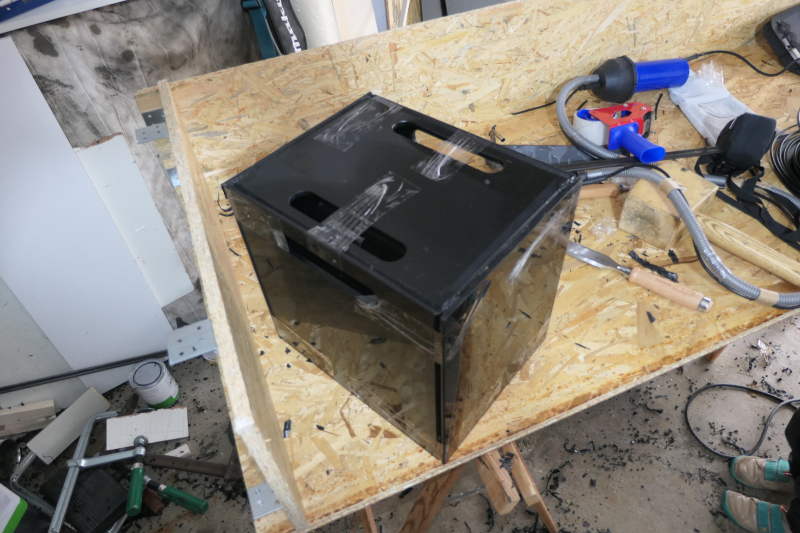

| Manufacturer and type of toilet | Eigenbau Komposttoilette |
|---|
| Rear carrier | Fahrradträger 4 Fahrräder Eigenkonstruktion |
|---|---|
| Outside cooking facilities | Im Staukasten |
| Awning | Tarp |
