Unicorn (#247)

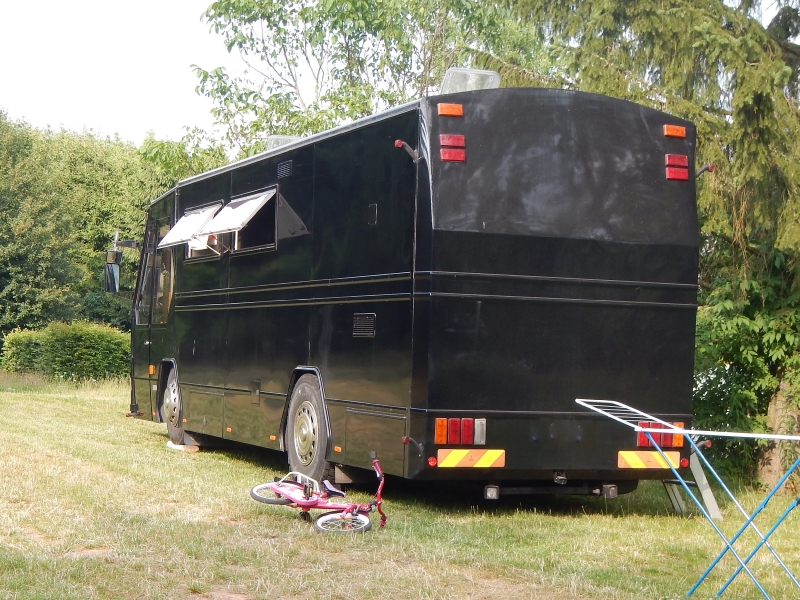

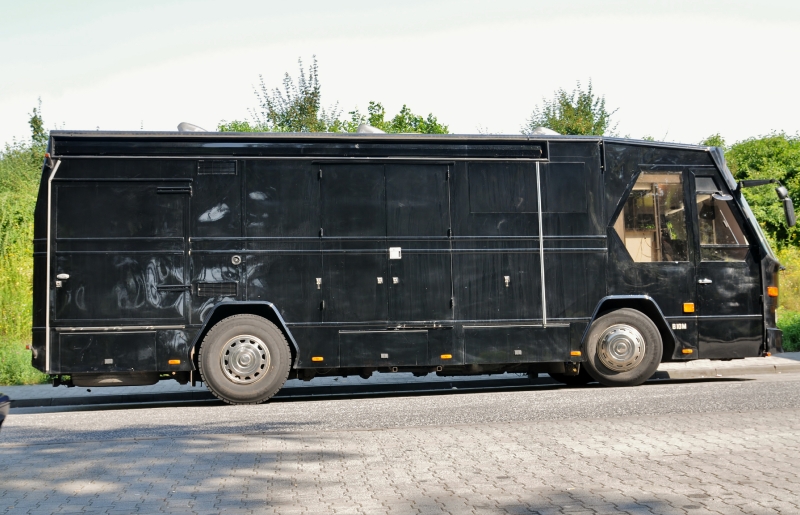

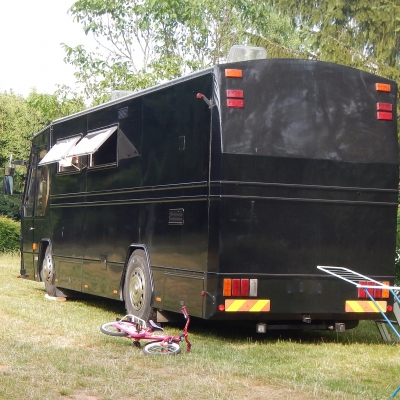

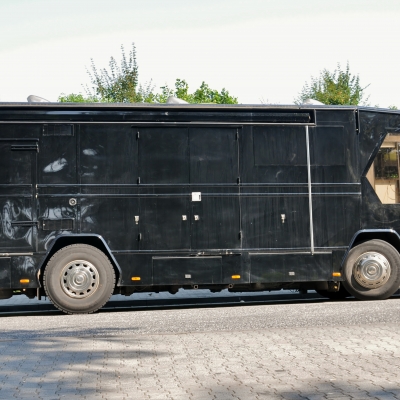

Former moving truck/bus. Converted into Mobilhome. Fixed full size beds for 5 persons.

General Information

Manufacturer and model	Volvo B10M
Name	Robert
Country	Netherlands
Website	-
Year of manufacture	1984
For sale?	no

Engine

Engine type	THD100
Cubic capacity	9.6 liter
Number of cylinders	6
Horsepower	265
Torque	900 Nm

Chassis

4x2, 4x4, 6x6, 8x8	4 x 2
Number of seats	5
Type of tyre	Standard
Tank capacity	180 liter
Diesel filter	yes
Permanent or manually selectable 4-wheel drive	-
Diff locks	-

Cabin

Manufacturer of the cabin	Van Rooijen / Oddyssee
Outer dimensions (LxWxH)	9.60 m x 2.50 m x 3.60 m
Cabin material	Outside Stainless Steel / Polyester
Kind and thickness of insulation	20 mm Reimo X-Trem Isolator
Number of beds	5
Subframe	None

Cooking stove

Cooking stove	Induction
Gas installation	None

Power supply

Voltage in the chassis	24 V
Voltage in the cabin	12 V / 24 V / 230 V
Charging converter 24V-12V	30 amp
110V / 230V in the cabin?	yes
Inverter	Sterling Pro Combi S Pure Sine Wave Inverter 3500 Watt

Capacity of batteries in the cabin

Capacity of batteries in the cabin	4 x 200 Ah (2+2)
Battery type	AGM
Battery charger for cabin batteries	50 Amp (Sterling Pro Combi)

Heating system

Warm water processing	Elgena Waterheater 45 liter

Gas system

Explanation of gas system
None

Water system

Other
water flow	Copper
Water filtration system	0.2 mu filter + charcoal
Capacity of fresh water tank(s)	2 x 125 liter
Capacity of waste water tank(s)	150 liter
24 V Hydrofor Pump

Toilet

Manufacturer and type of toilet	Thetford Bravura
Capacity of black water tank	100 liter

Vehicle accessories

Outside cooking facilities	Seperate 2 stove Induction cooker

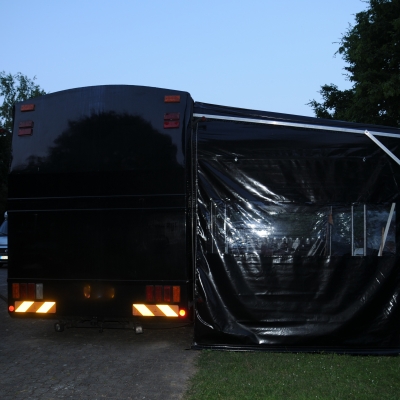

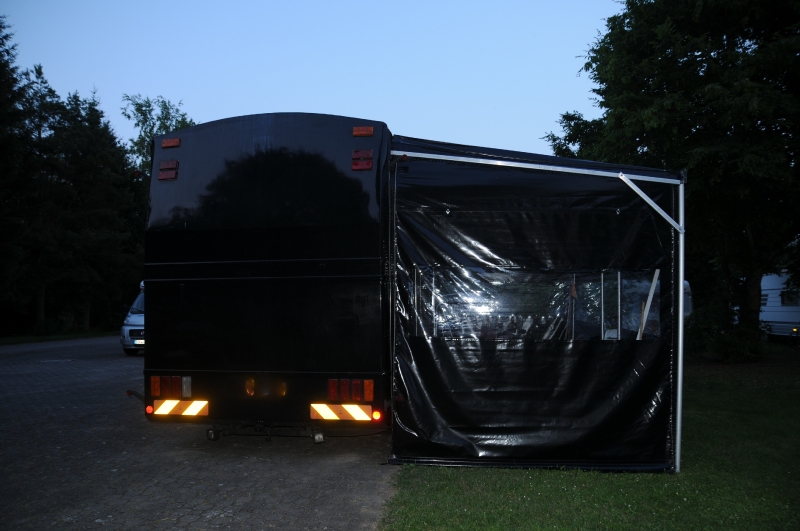

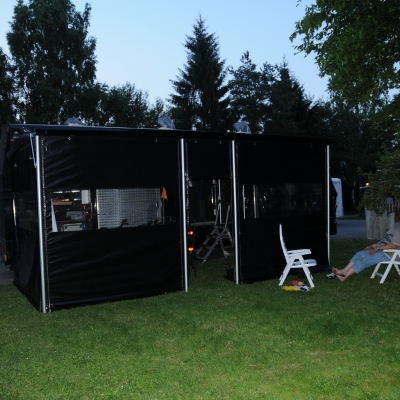

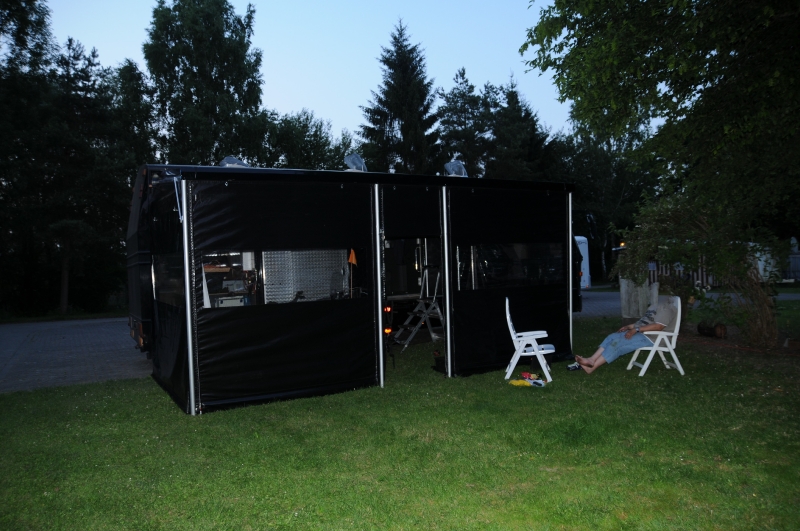

Awning	3 m x 6 m
