| Manufacturer and model | Mercedes Benz Vario 815DA |
|---|---|
| Name | Ralf Tepper |
| Year of manufacture | 2006 LKW, Aufbau 2024 / 2025 |
| For sale? | no |
| Engine type | Diesel |
|---|---|
| Cubic capacity | 4298 |
| Number of cylinders | 4 |
| Horsepower | 150 |
| Torque | 650 |
| Zulässiges Gesamtgewicht | 7,495 |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
| Wheel base | 3,75 |
| Number of seats | 5 |
| Tyre size | 405/70 R20 Y157 |
| Tank capacity | 400 |
| Diesel filter | yes |
| Other | |
| Fahrgestell wurde sandgestrahlt und neu lackiert 3Punkt Lagerung | |
| Permanent or manually selectable 4-wheel drive | zuschaltbar |
| Diff locks | ja |
| Manufacturer of the cabin | Selbstbau mit Sandwichplatten von Nomadcamper |
|---|---|
| Inner dimensions (LxWxH) | 230x262x623 |
| Outer dimensions (LxWxH) | 255x274x645 |
| Cabin material | GFK |
| Kind and thickness of insulation | Sandwichplatten 55 mm |
| Number of beds | 5 |
| Windows | 7 + 1 Dachfesnter |
| Subframe | Selbstbau 3Punkt Lagerung |
| Other | |
| 1 Dachfenster von Widebird, Klappen und Türe von Nomadcamper | |
| Explanation of floor plan | |
|---|---|
| Längsbett im Alkoven, hinten große Sitzecke, Garage durchgängig, Dusche und Toilette seperat aber in einem Raum |

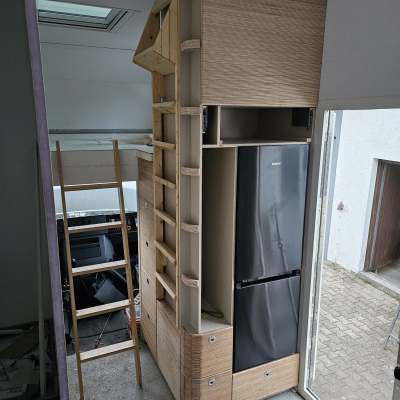

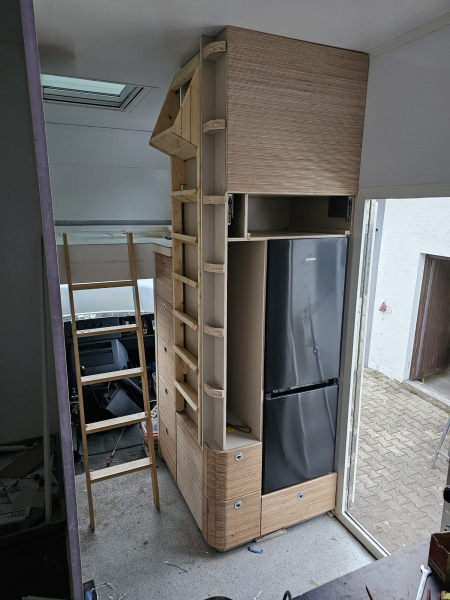

| Material of furniture | Queenply Leichtbauplatten 12 und 16 mm |
|---|
| Cooking stove | 2 Platten Induktionsfeld |
|---|---|
| Gas installation | Gasfrei |
| Manufacturer and type of fridge / cooler | Bomann Kühlschrank mit Gefrierfach |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 220 |
| 110V / 230V in the cabin? | yes |
| Manufacturer and type of heating system | Webasto P 90 Wasser Heizung |
|---|---|
| Warm water processing | Pundmann Thermo Boiler 30 Liter |
| Explanation of gas system | |
|---|---|
| Gasfrei |
| Water filtration system | Autarx S und Aquatec Vorfilter |
|---|---|
| Capacity of fresh water tank(s) | 240 |
| Capacity of waste water tank(s) | 240 |
| Manufacturer and type of toilet | Separett Tiny Lite Trenntoilette |
|---|
| Rear carrier | nein |
|---|---|
| Roof rack | nein |
| Storage boxes | Garage durchgängig mit 2 großen Klappen |
| Outside cooking facilities | nein |
