917er

...alles steht erst am Anfang! Aus- und Umbau unseres 917er zum Womo.

General Information

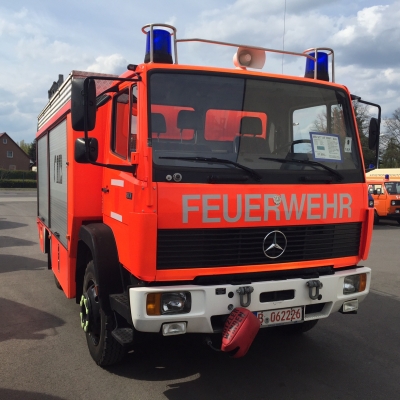

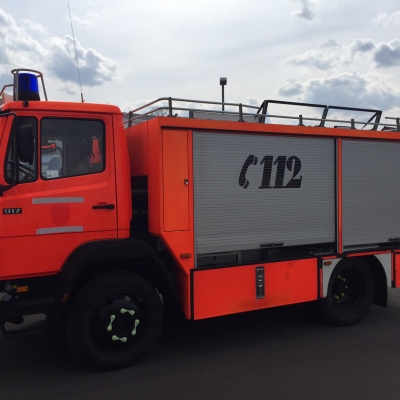

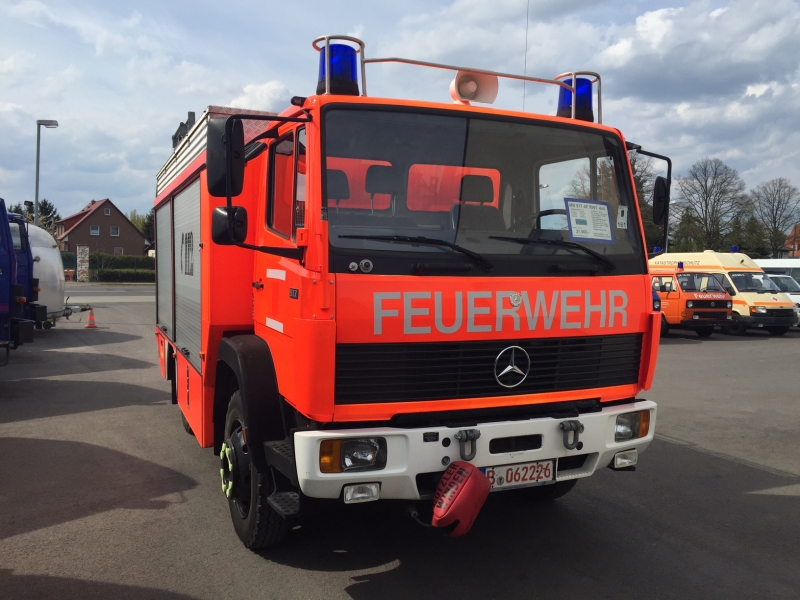

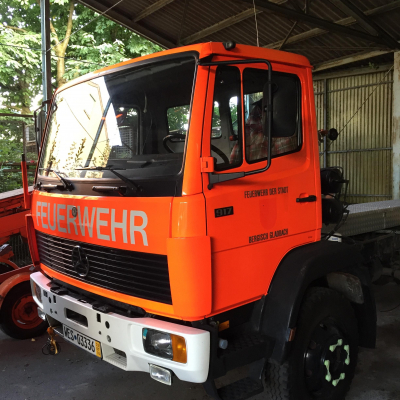

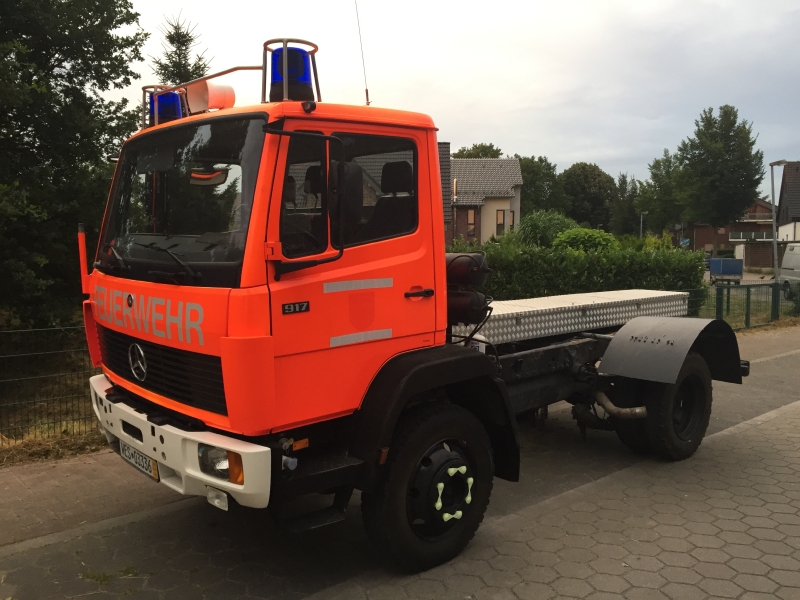

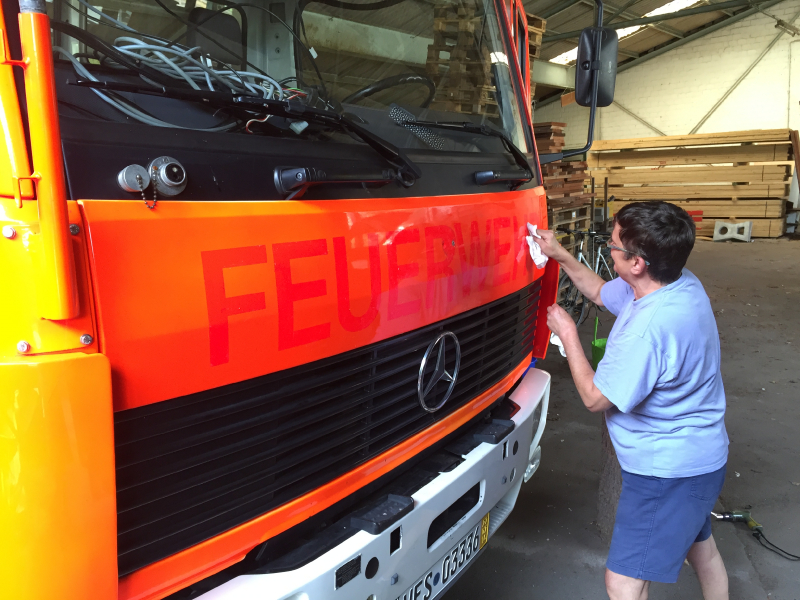

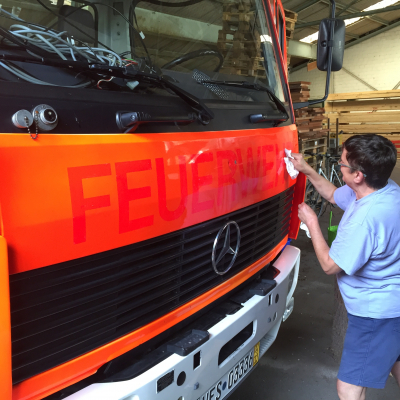

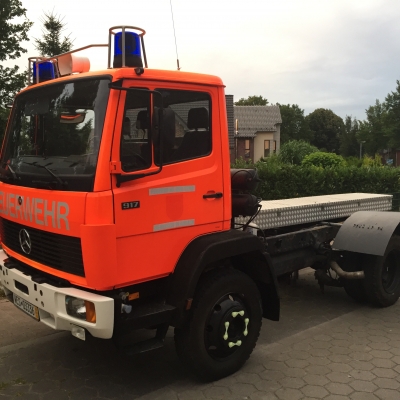

Manufacturer and model MB 917
Name Beate und Dieter
Country Deutschland
Website www.mb917ontour.wordpress.com
Year of manufacture 1994
For sale? no

Engine

Cubic capacity 5958
Number of cylinders 6
Horsepower 165

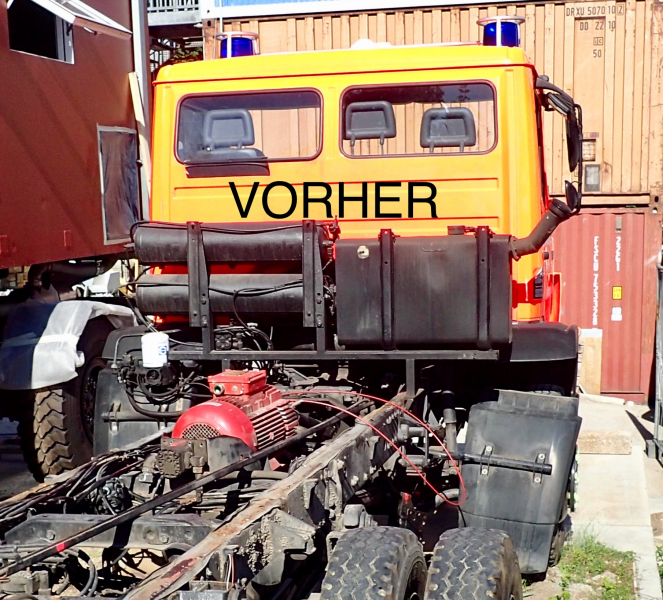

Chassis

4x2, 4x4, 6x6, 8x8 4x4
Wheel base 3050
Number of seats noch 3
Tyre size 9R22,5
Diesel filter no
Permanent or manually selectable 4-wheel drive zuschaltbar
Diff locks 2

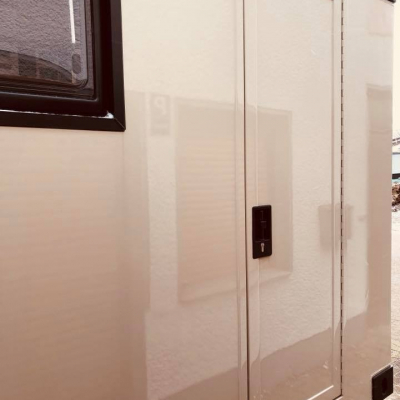

Cabin

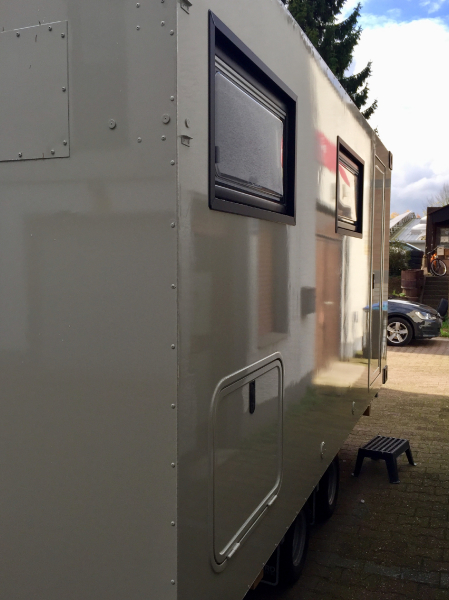

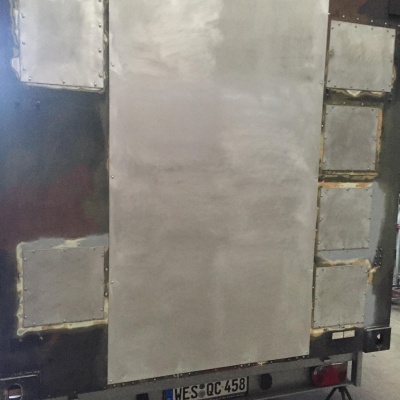

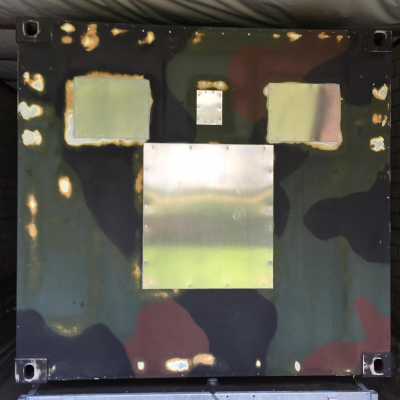

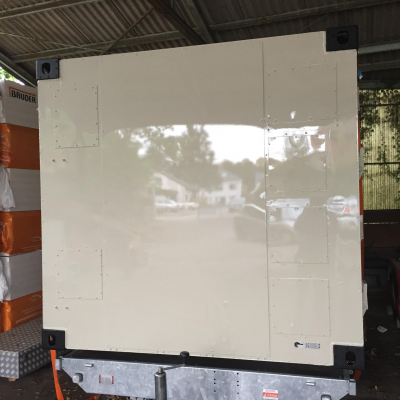

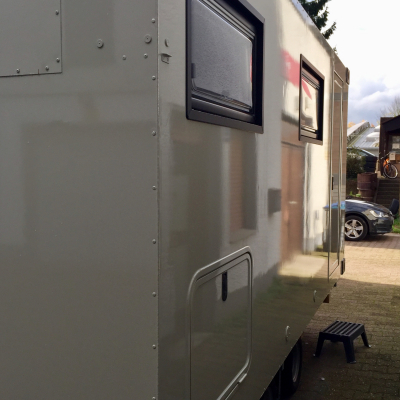

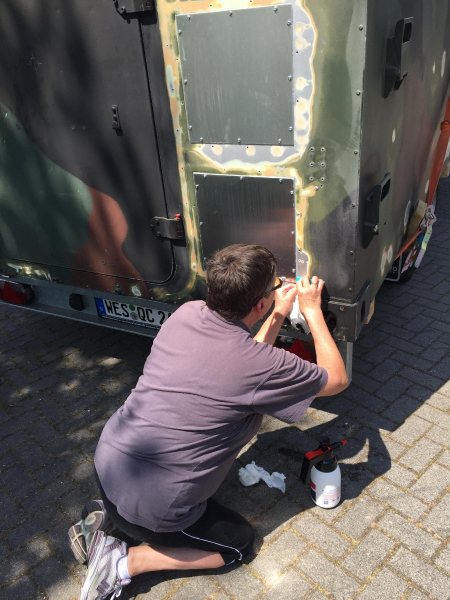

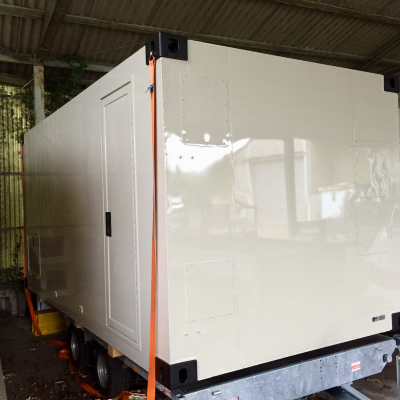

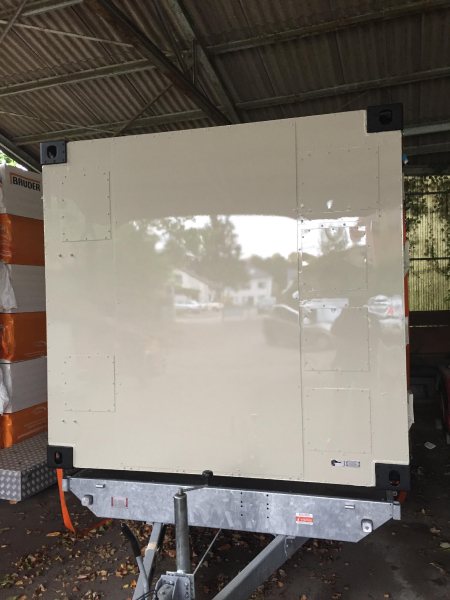

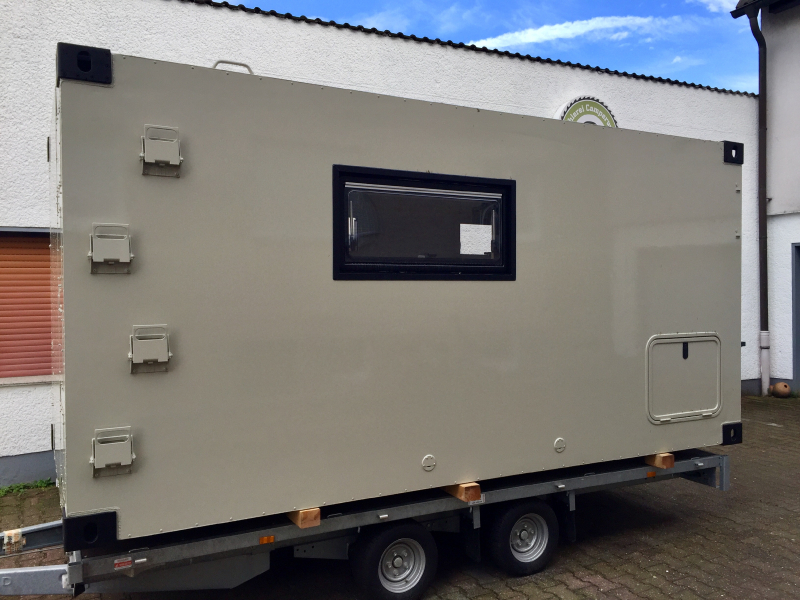

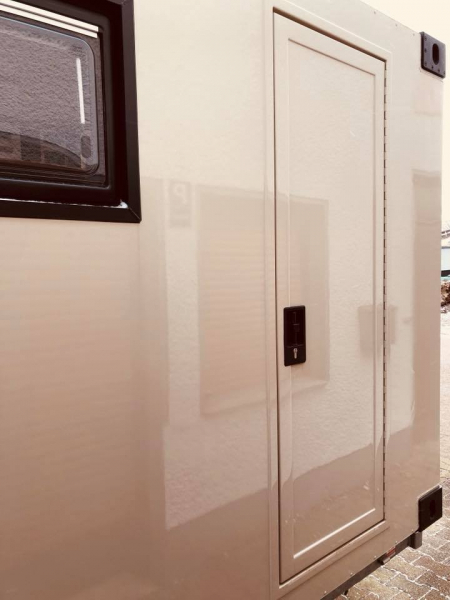

Manufacturer of the cabin Zeppelin FM 2 Shelter
Outer dimensions (LxWxH) 4.250 mm * 2.200 mm * 2.075 mm
Cabin material Alusandwich
Kind and thickness of insulation 2mm Alu 54mm Schaum 2mm Alu

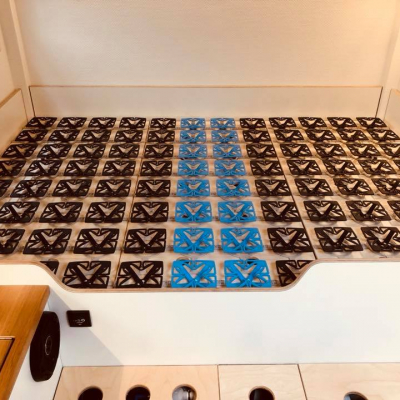

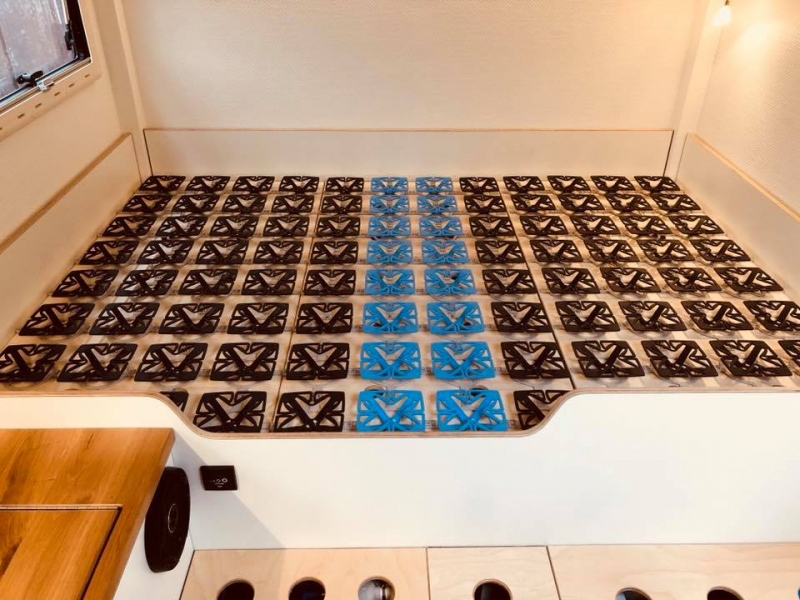

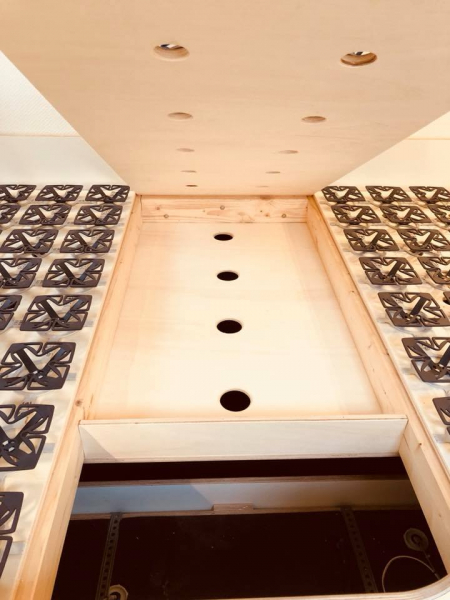

Number of beds 2

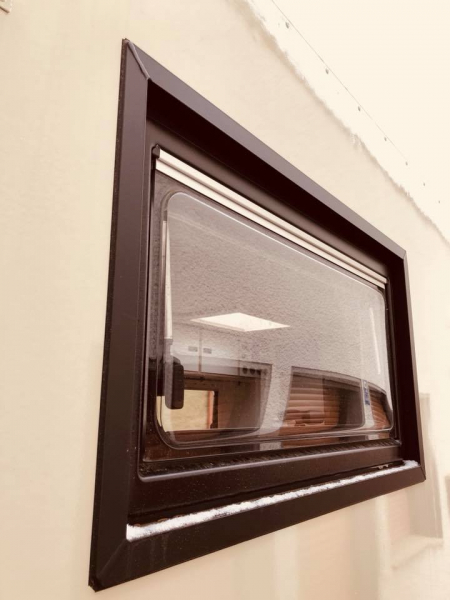

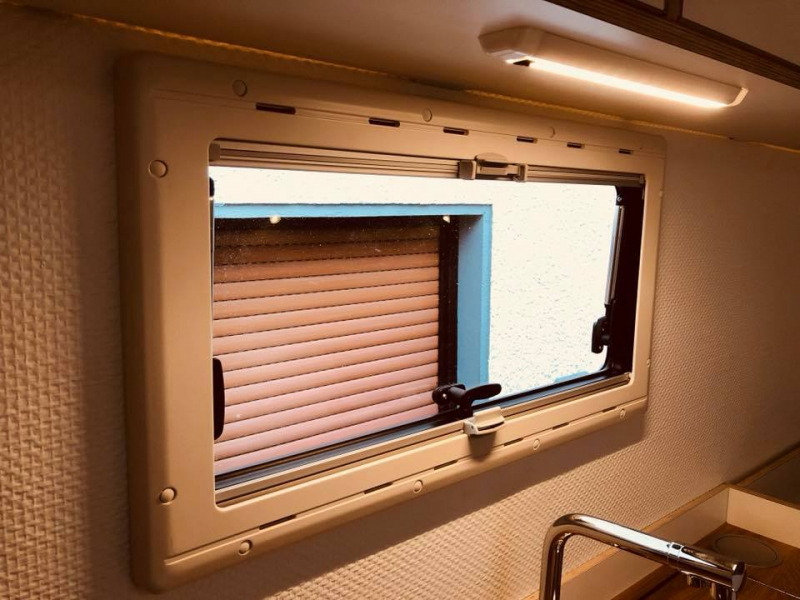

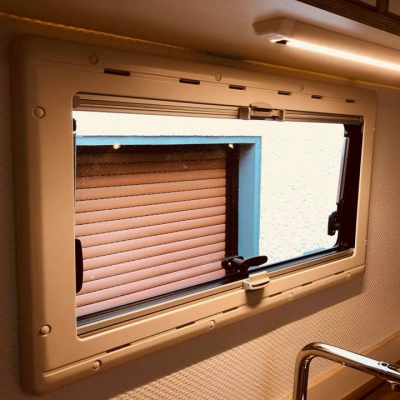

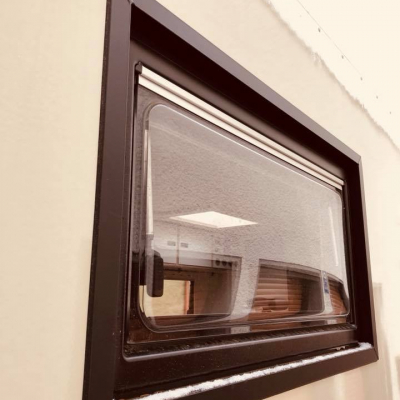

Windows 3
Subframe Federlagerung
Other

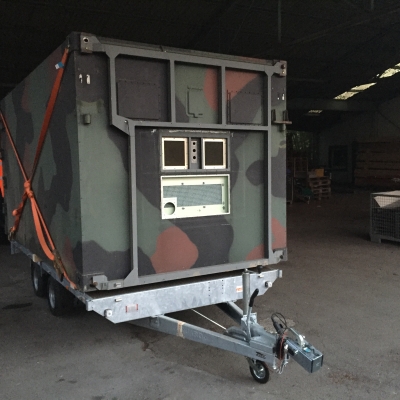

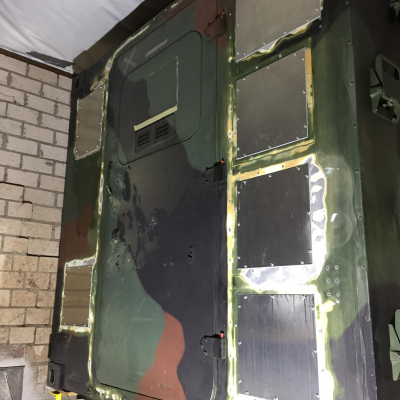

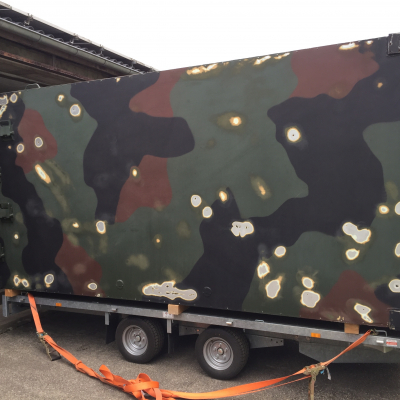

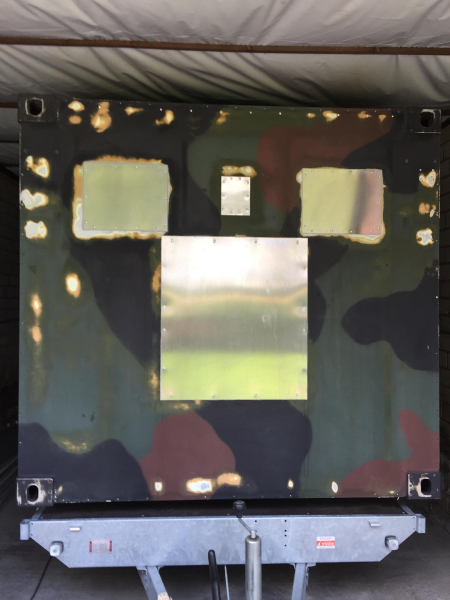

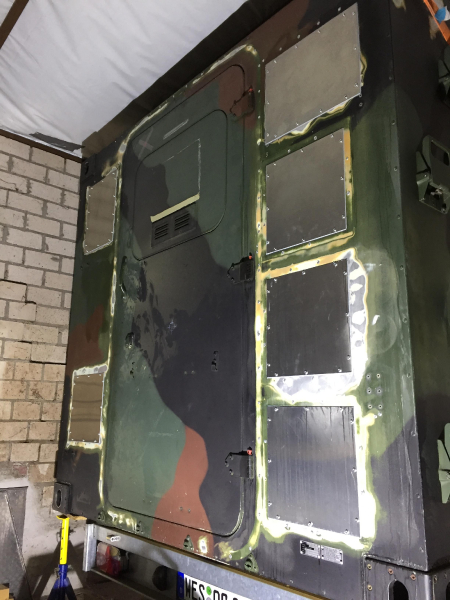

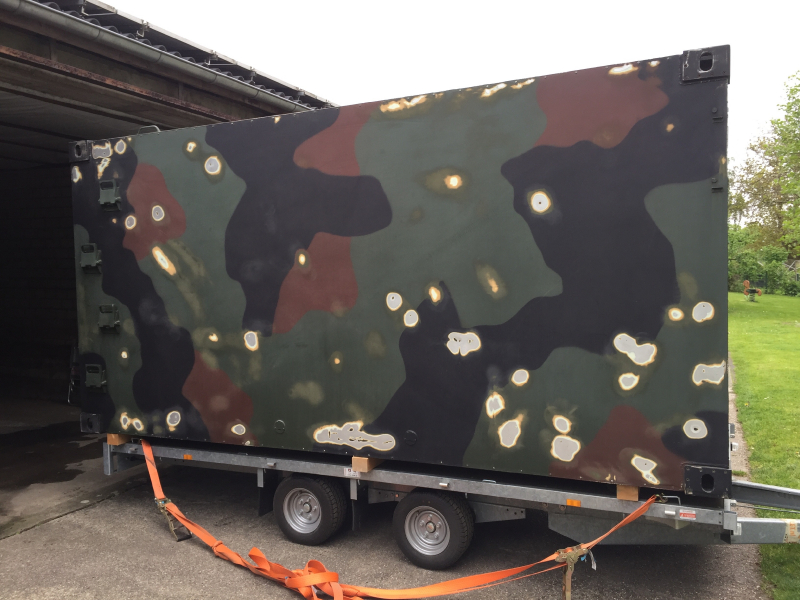

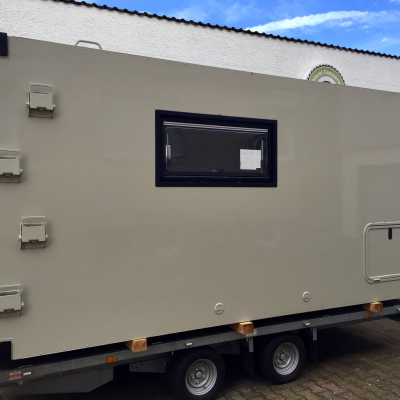

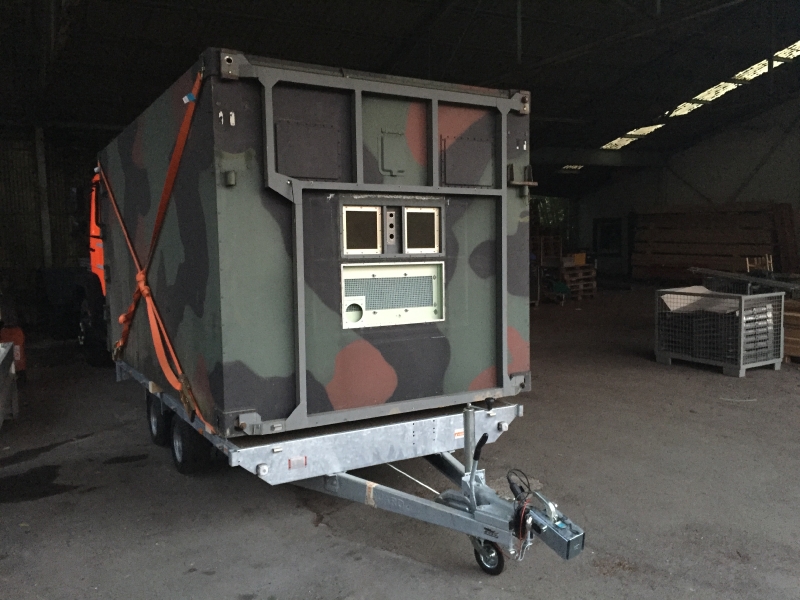

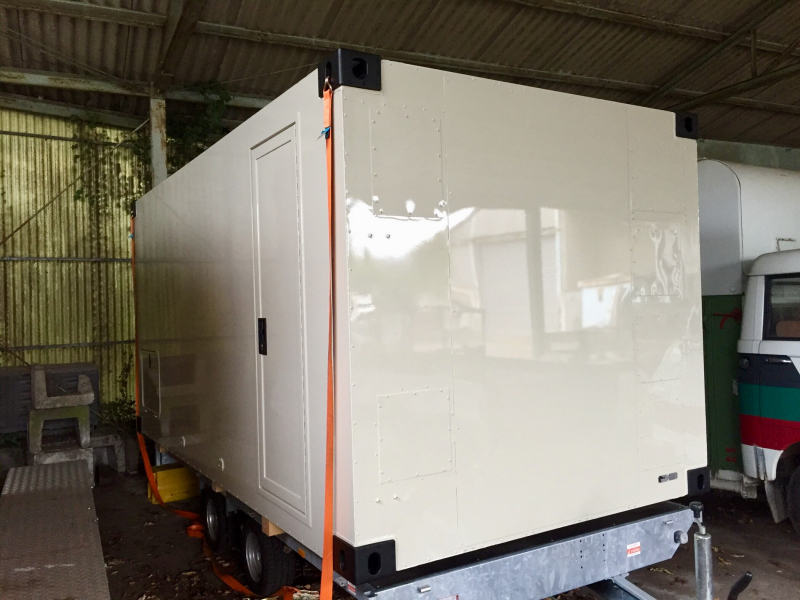

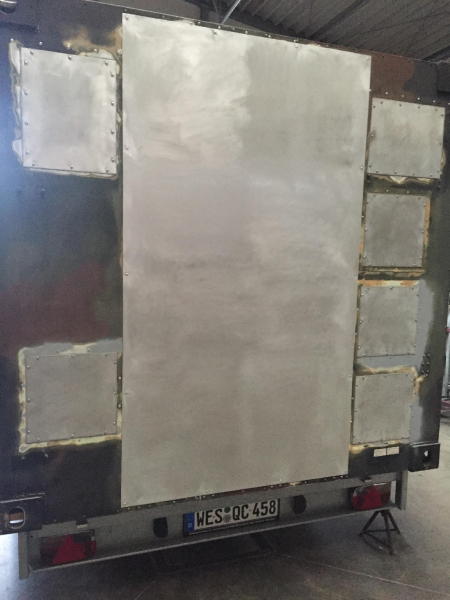

Jetzt haben wir endlich einen Zeppelin FM 2 Shelter ergattern können :-)

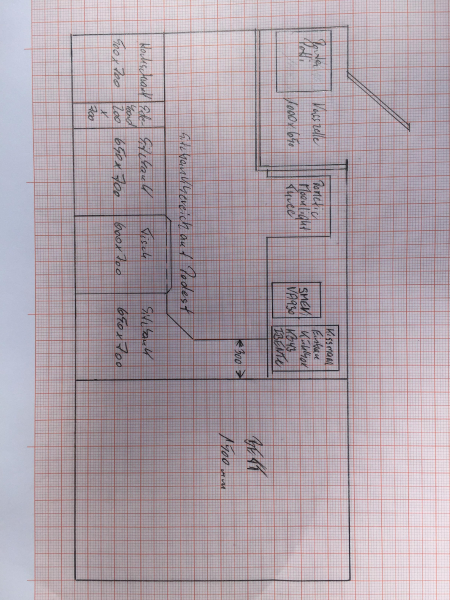

Floor plan

Explanation of floor plan

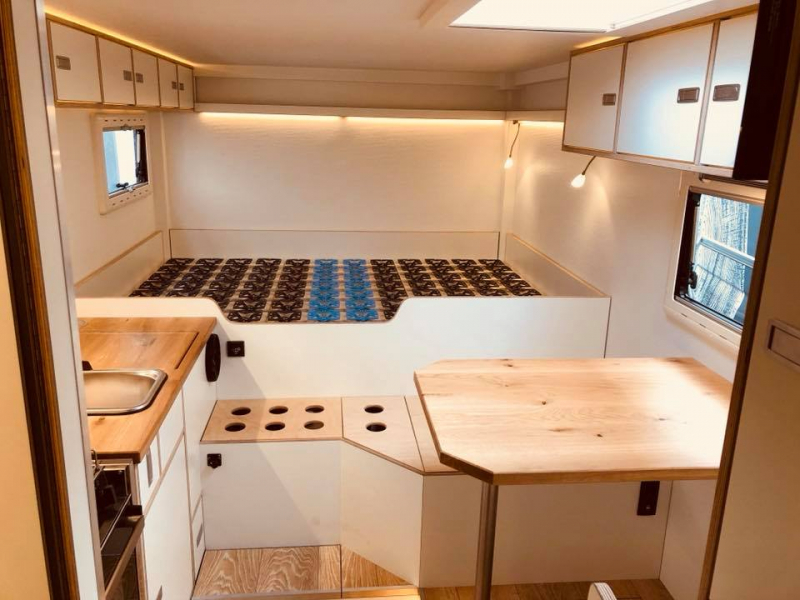

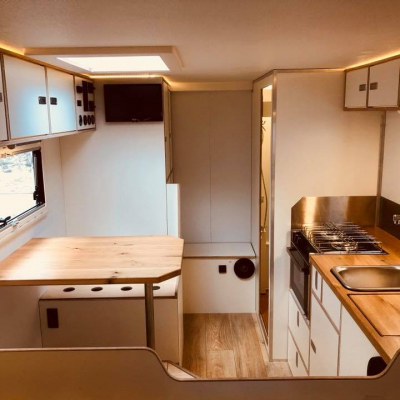

So soll er aussehen und ist bereits in der Entstehung.

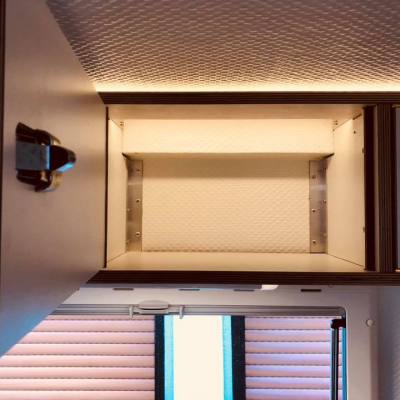

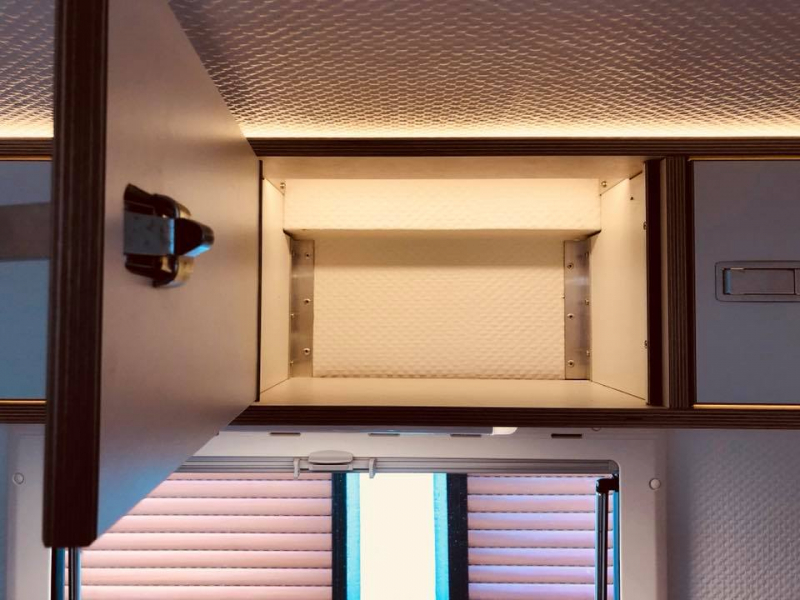

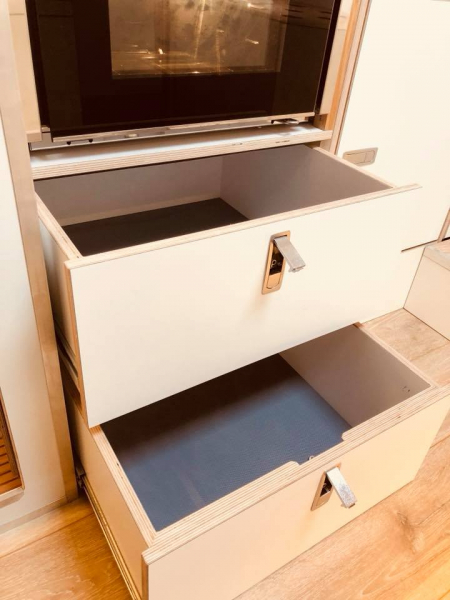

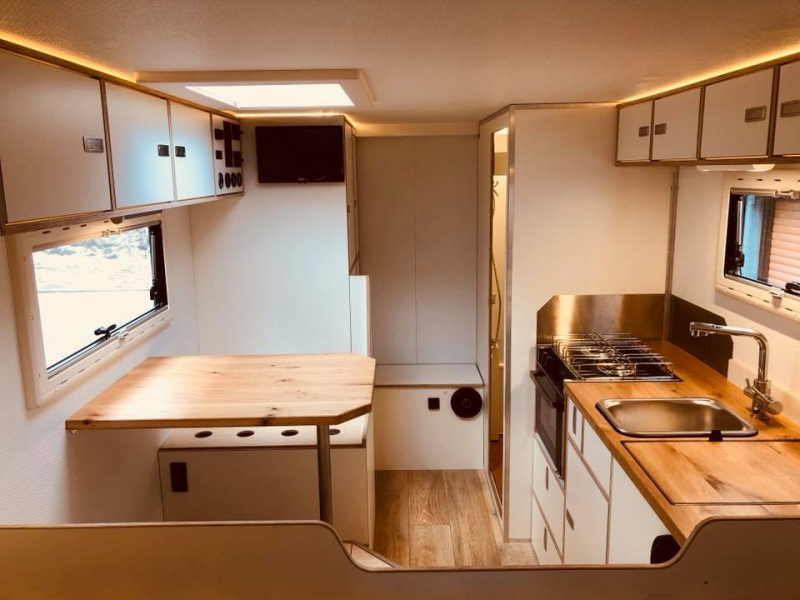

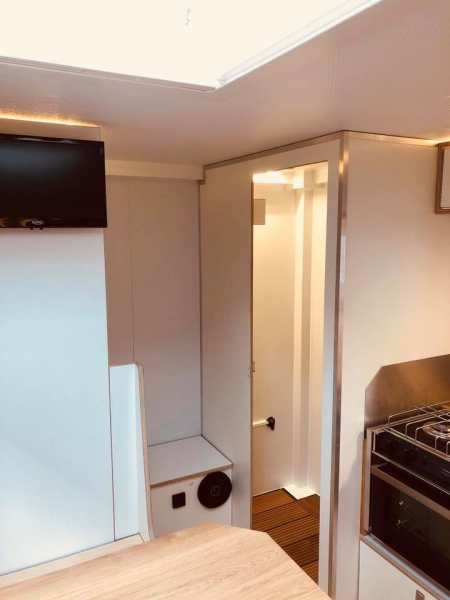

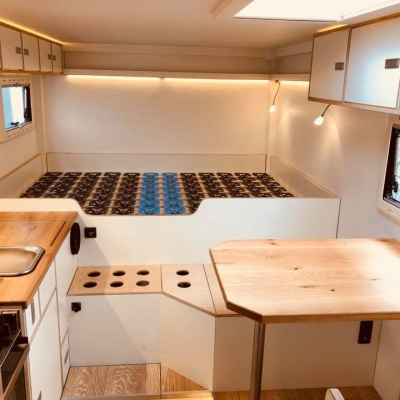

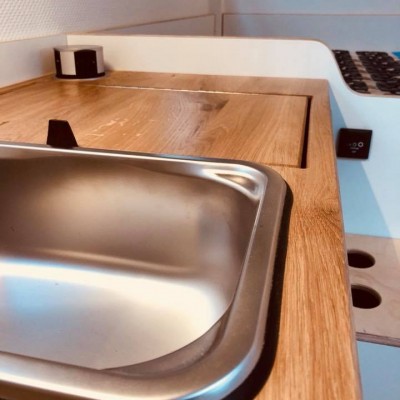

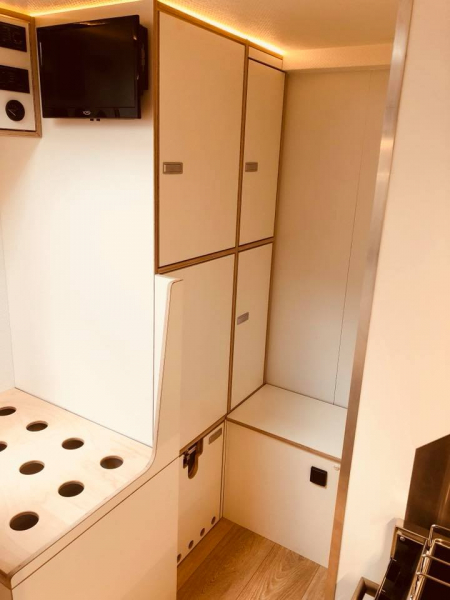

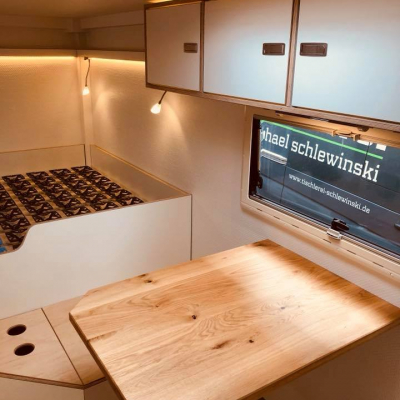

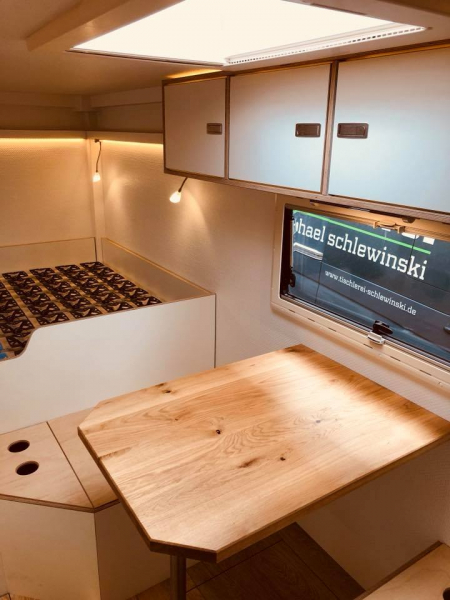

Furniture

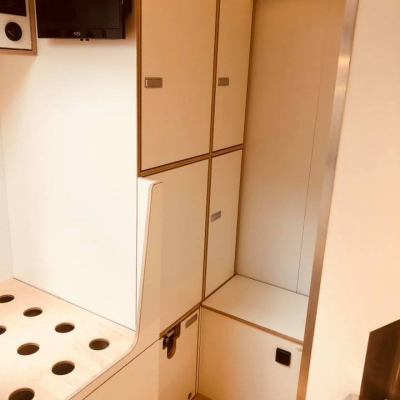

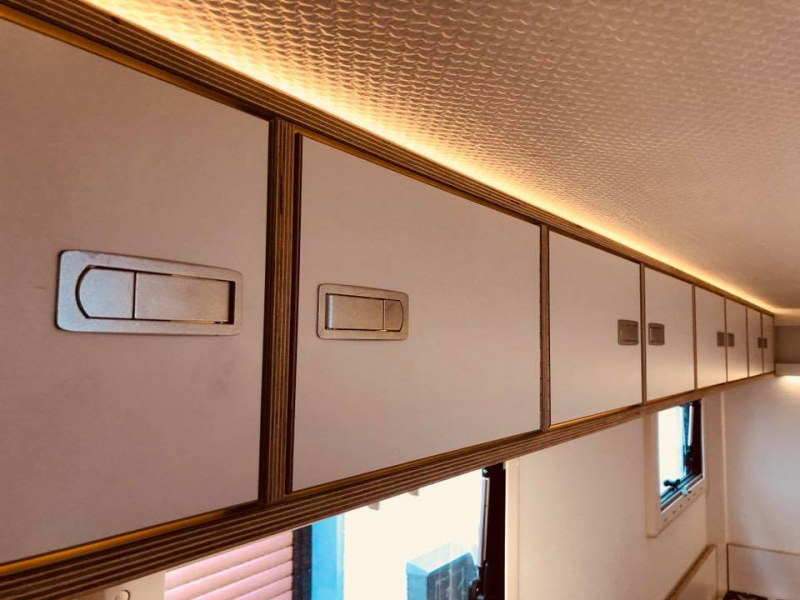

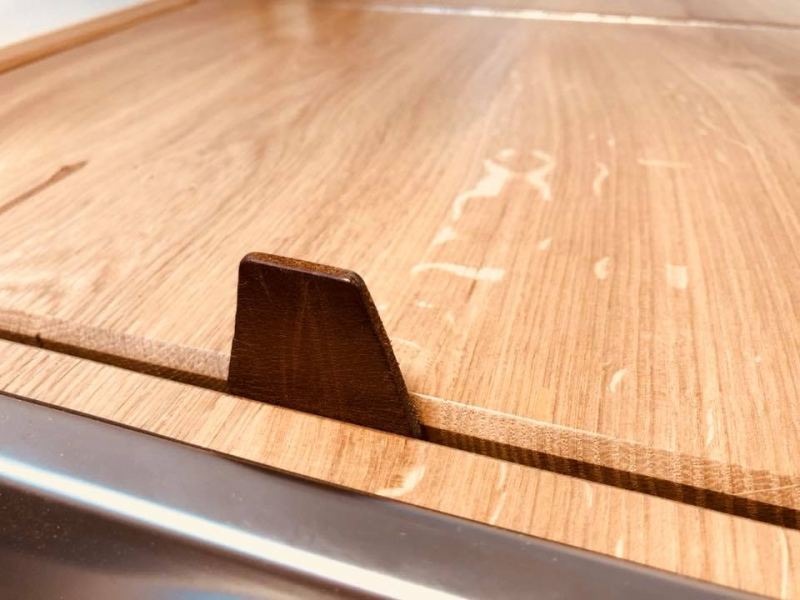

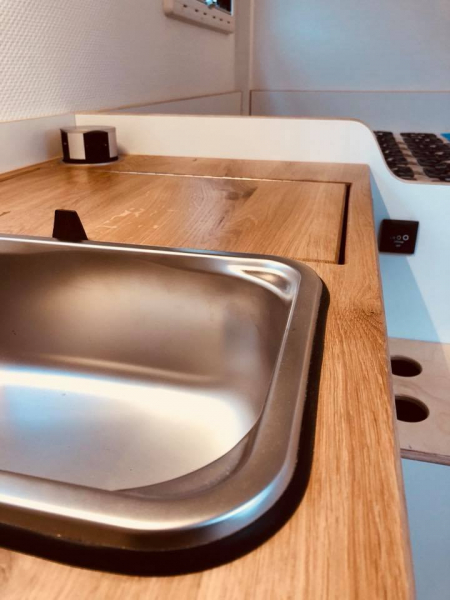

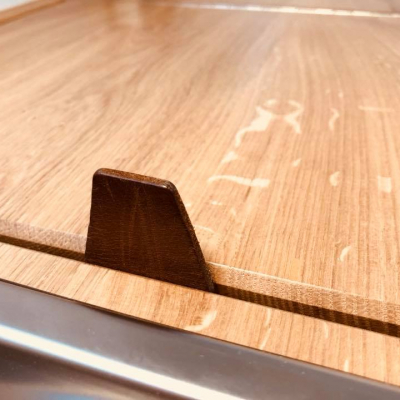

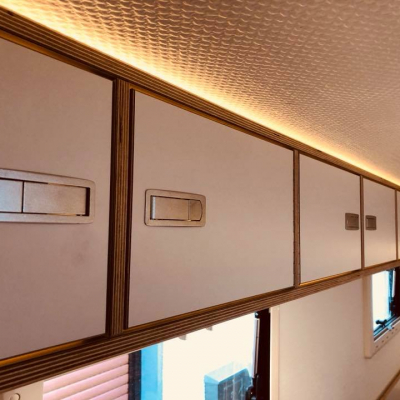

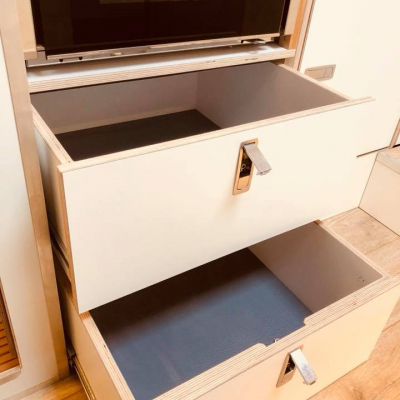

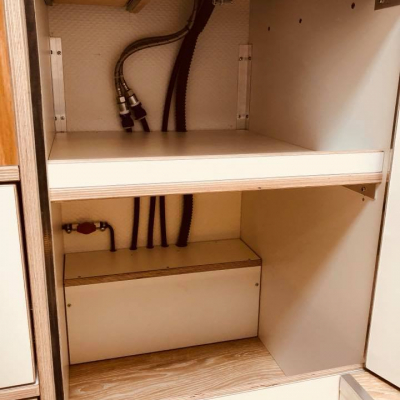

Material of furniture 15 mm HPL Platten

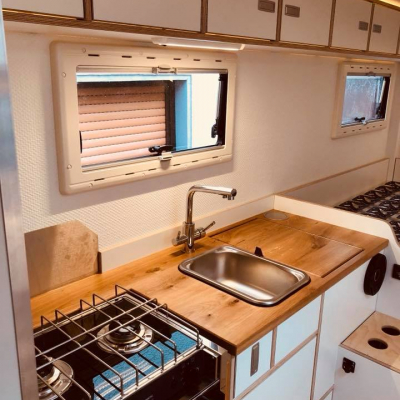

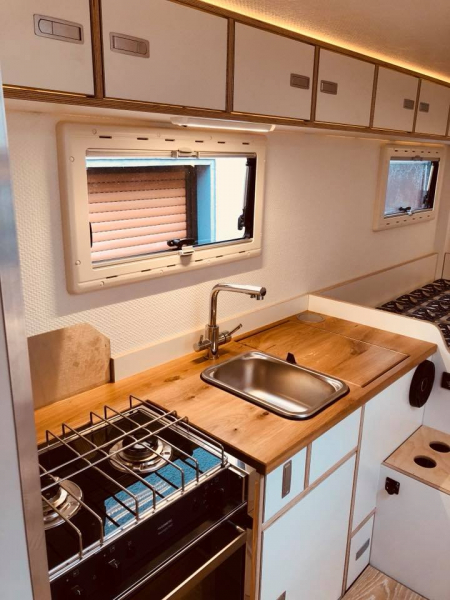

Cooking stove

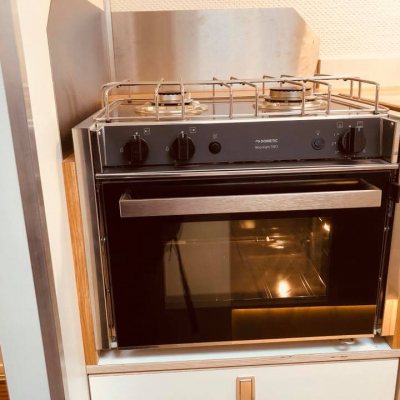

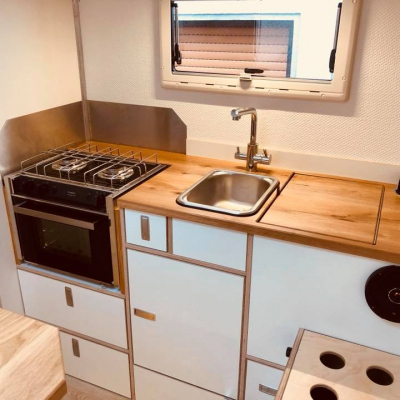

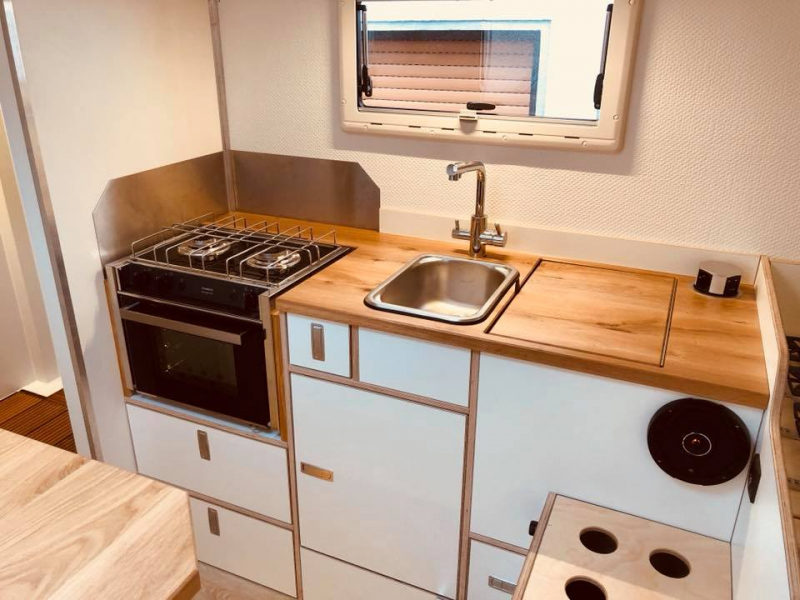

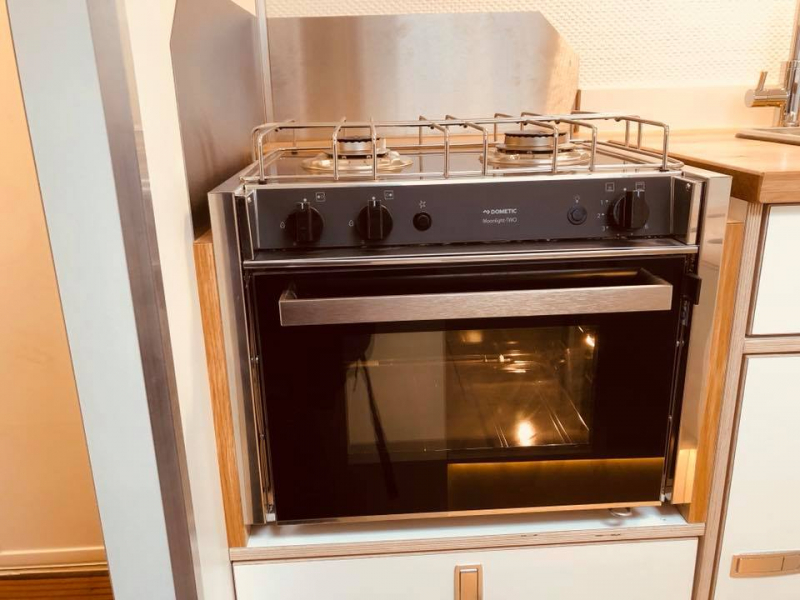

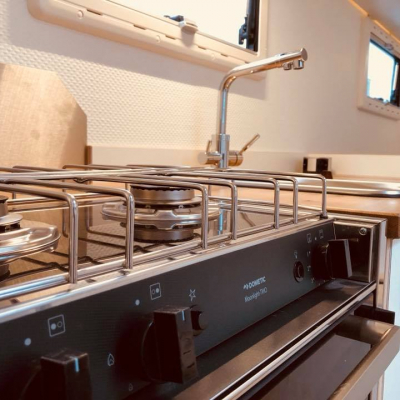

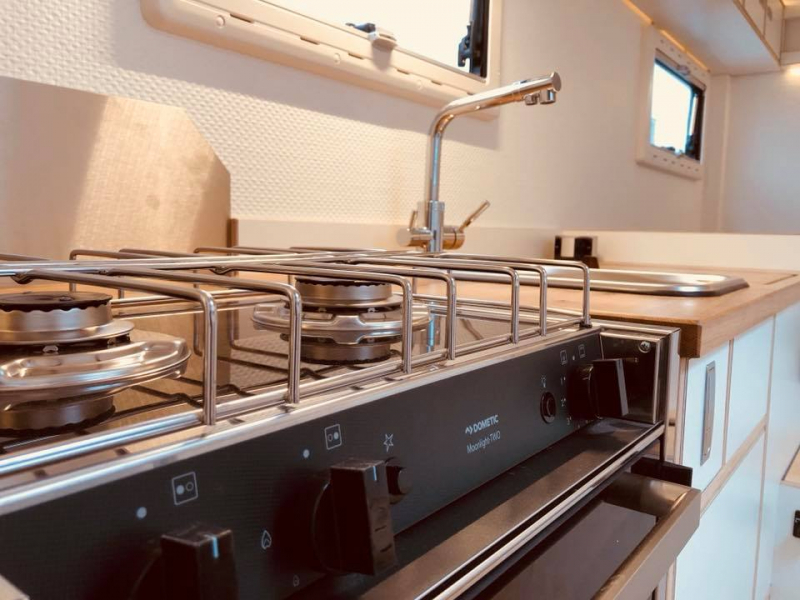

Cooking stove Dometic Moonlight Two

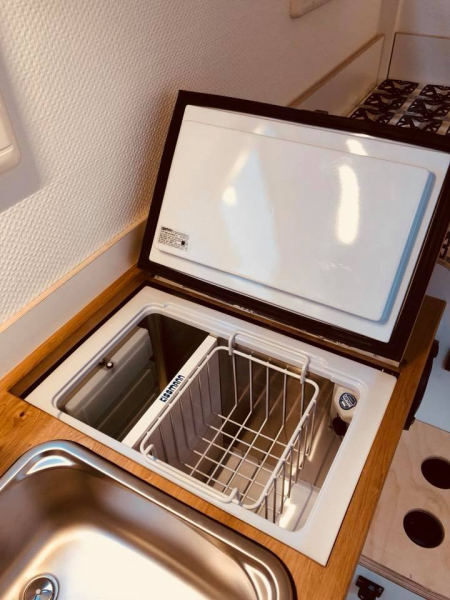

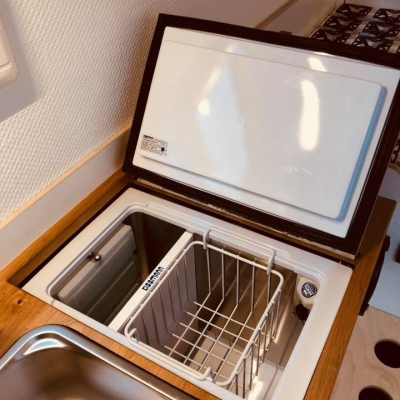

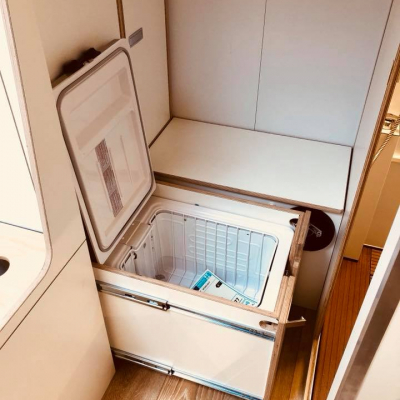

Refrigerator; cool box

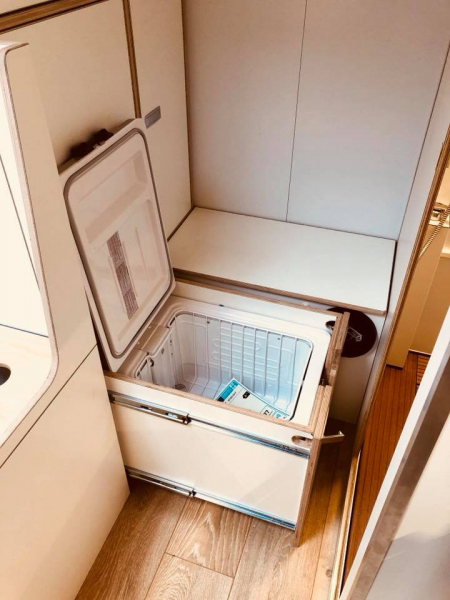

Manufacturer and type of fridge / cooler Kissmann KB 43 IPENTt und Engel 45 Literbox

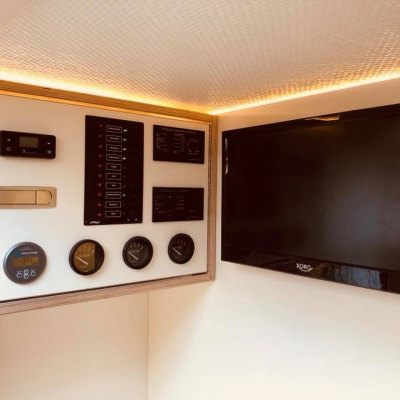

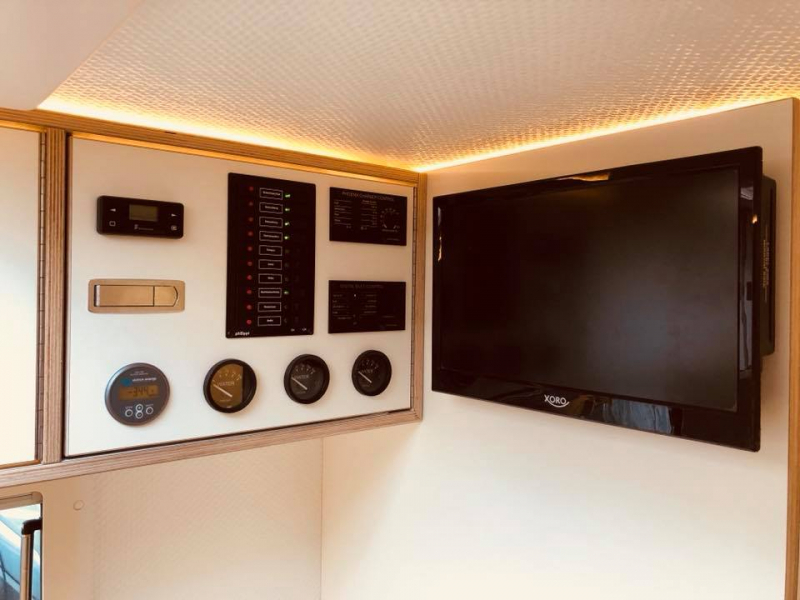

Power supply

Voltage in the chassis 24 Volt
Voltage in the cabin 12 Volt
110V / 230V in the cabin? no

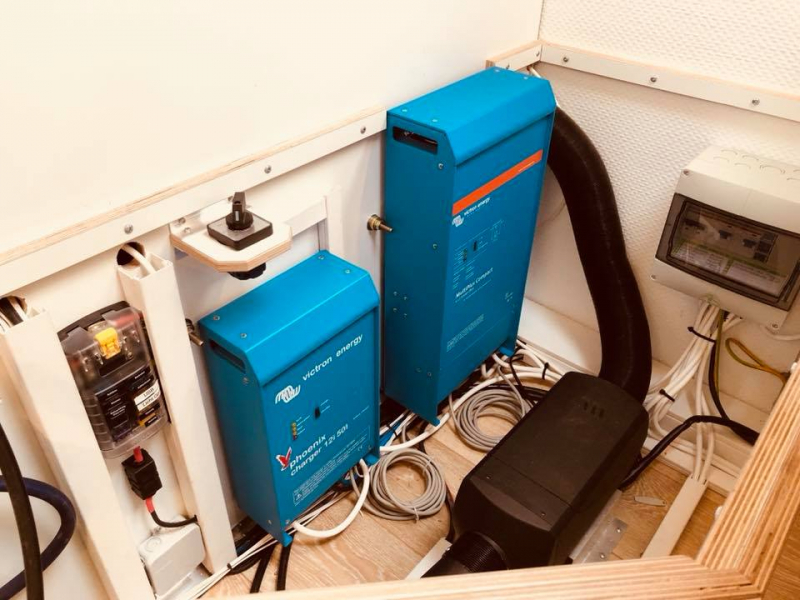

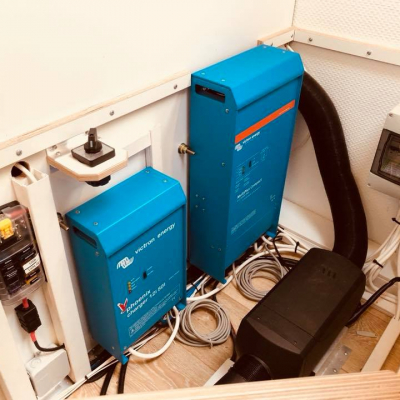

Inverter Victron MultiPlus C12/2000

Capacity of batteries in the cabin

Capacity of batteries in the cabin 4 x 110 Ah
Battery type Victron Gel Deep Cycle Batterie
Battery charger for cabin batteries Victron Phoenix Charger 12/50

Power generation

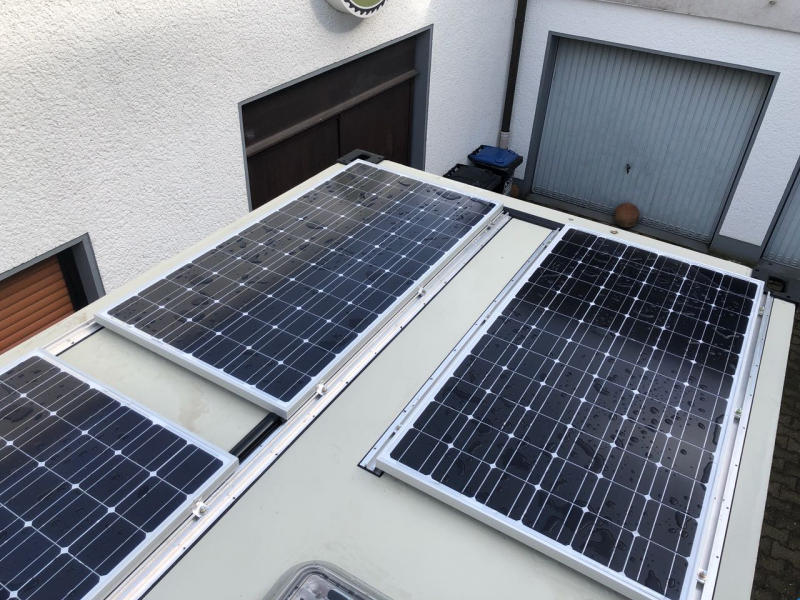

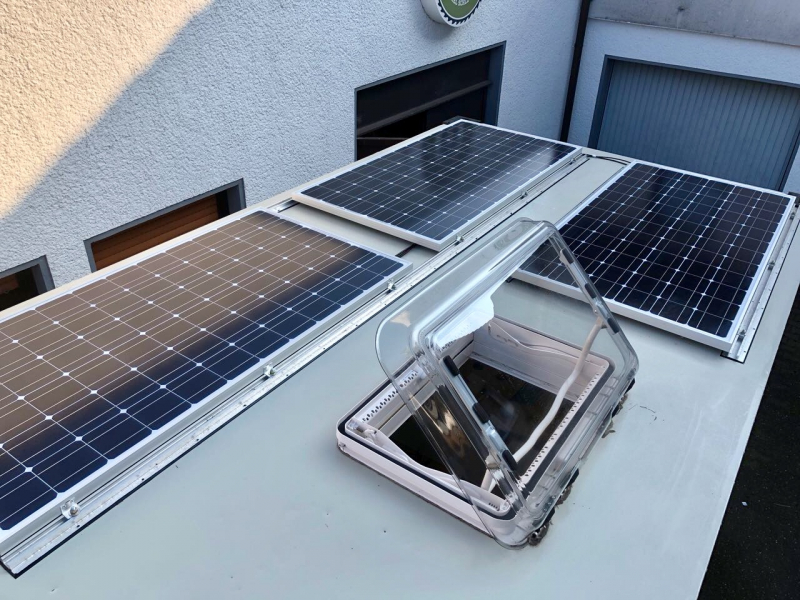

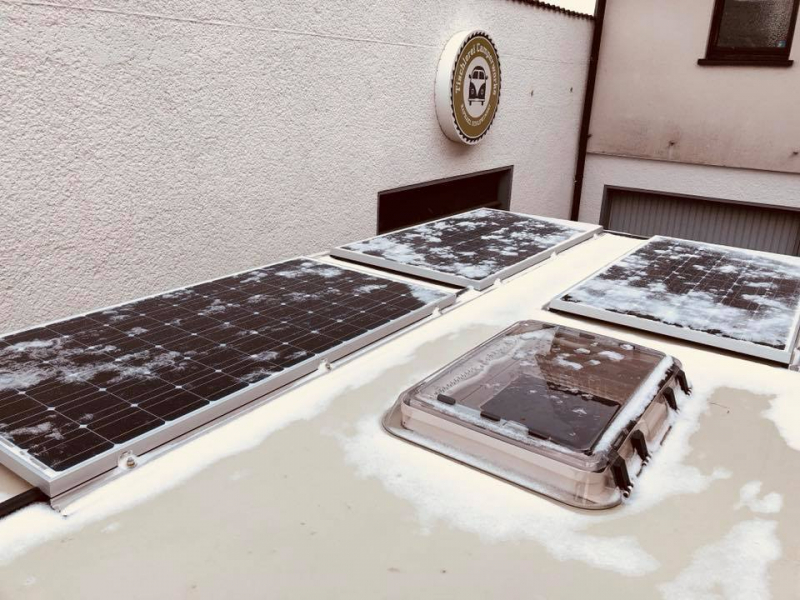

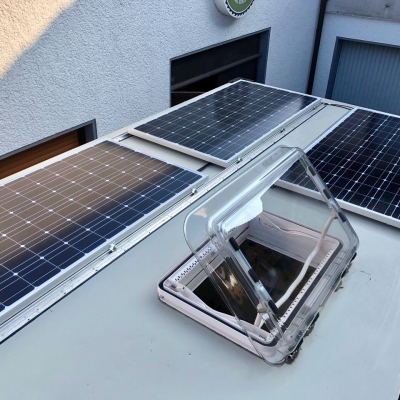

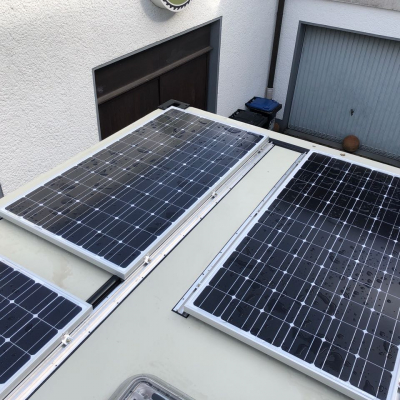

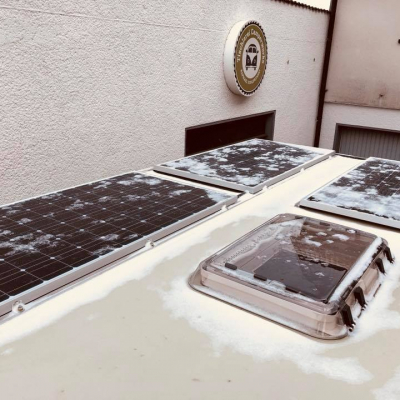

Solar capacity 3 x 195 Watt
Solar controller Victron Blue Solar MPPT 75/15
Fuel cell no
Power generator Honda 2EUi

Heating system

Manufacturer and type of heating system Eberspächer D4 Plus
Warm water processing Isotemp Slim 15

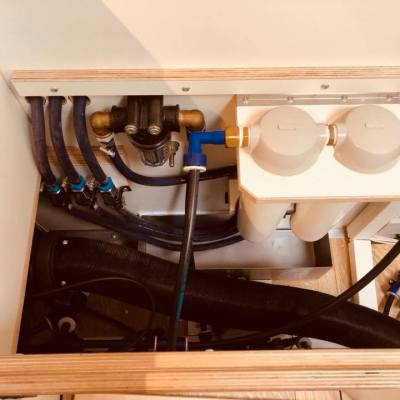

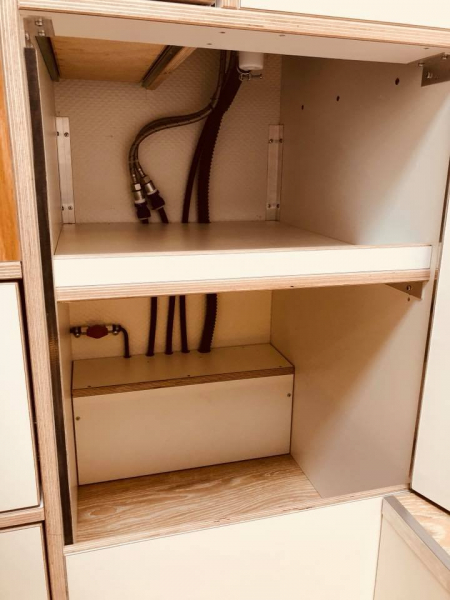

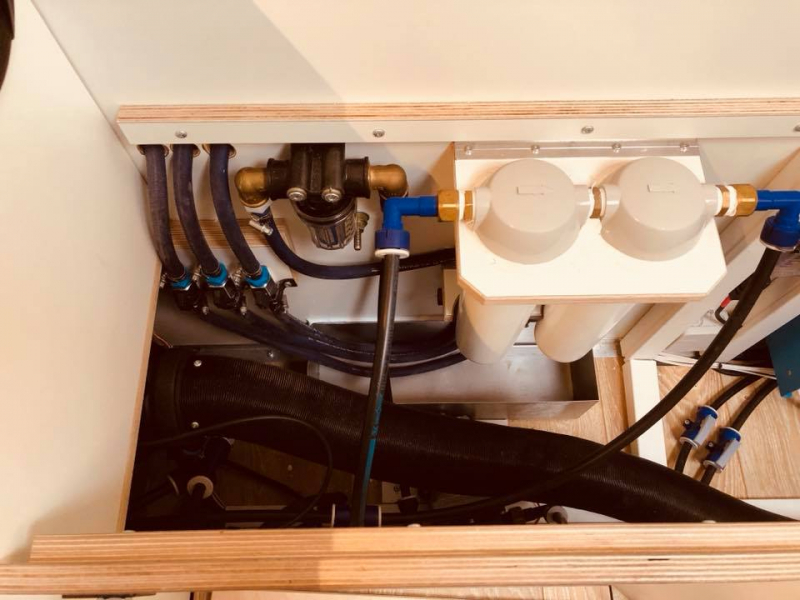

Water system

water flow Uniquick

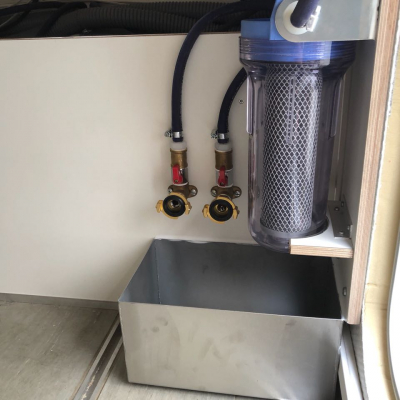

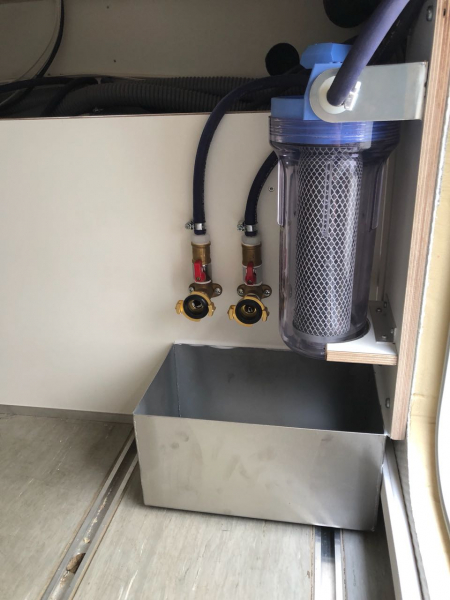

Water filtration system Katadyn

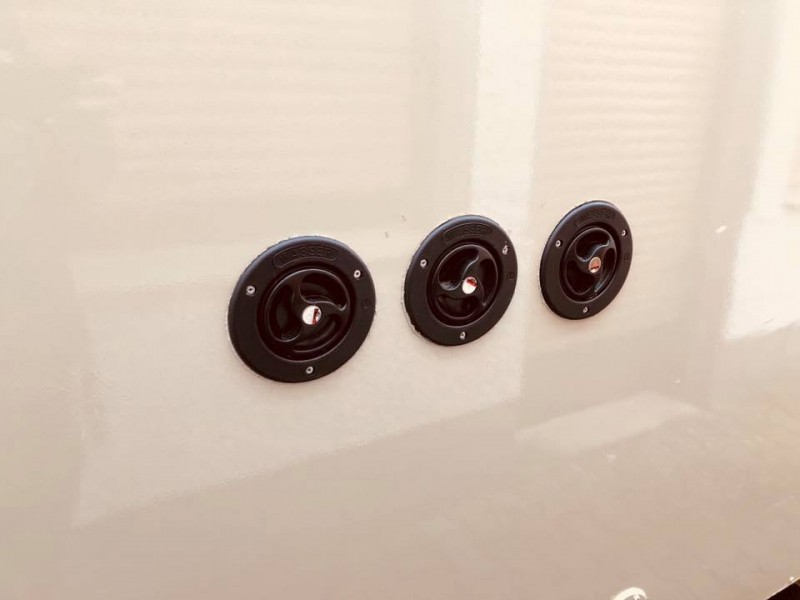

Capacity of fresh water tank(s) 3 x 100 Liter
Capacity of waste water tank(s) 35 Liter

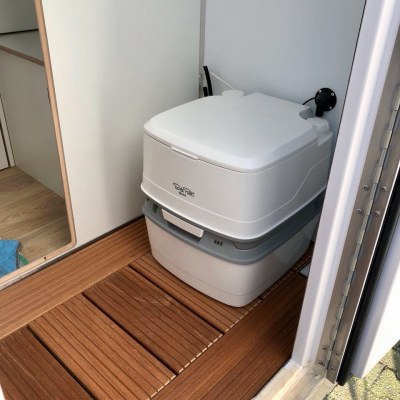

Toilet

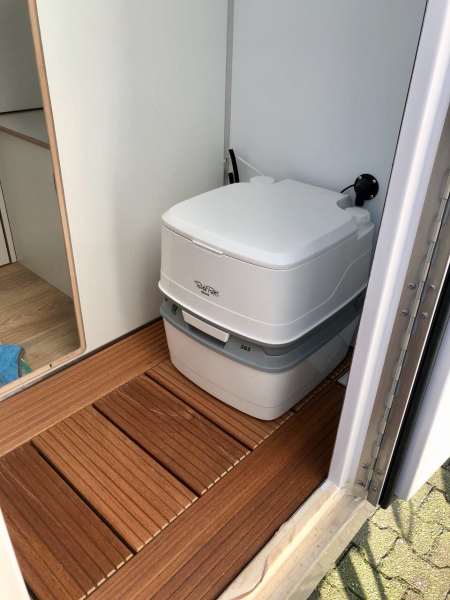

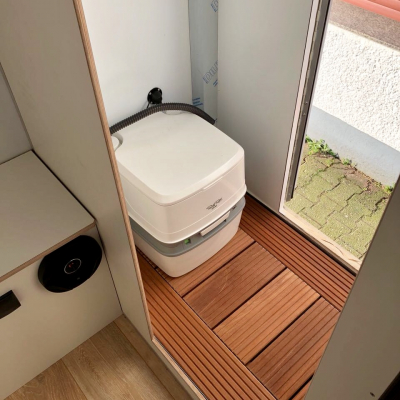

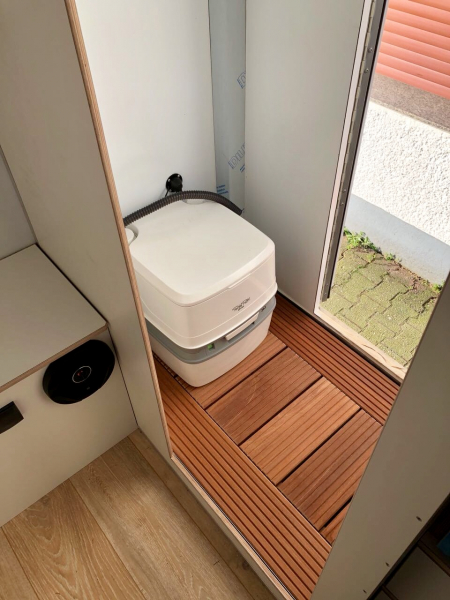

Manufacturer and type of toilet Porta Potti Excellence
Capacity of black water tank 21 Liter
released 01.05.16
owner Dieter Hufen
views 9826
filled out 75%
