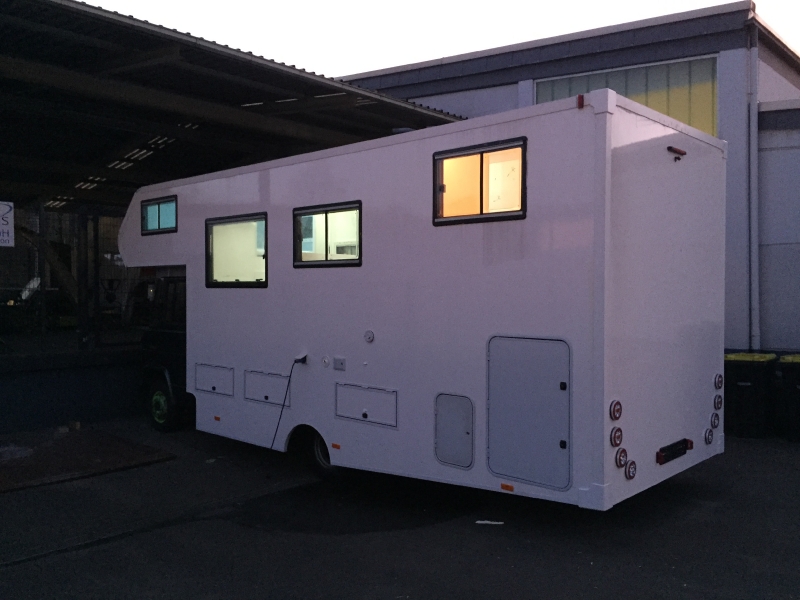

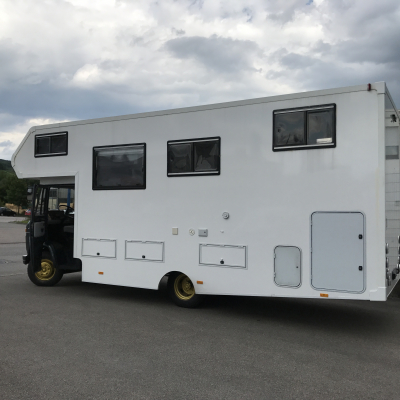

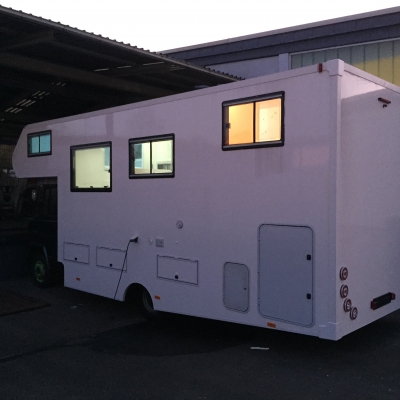

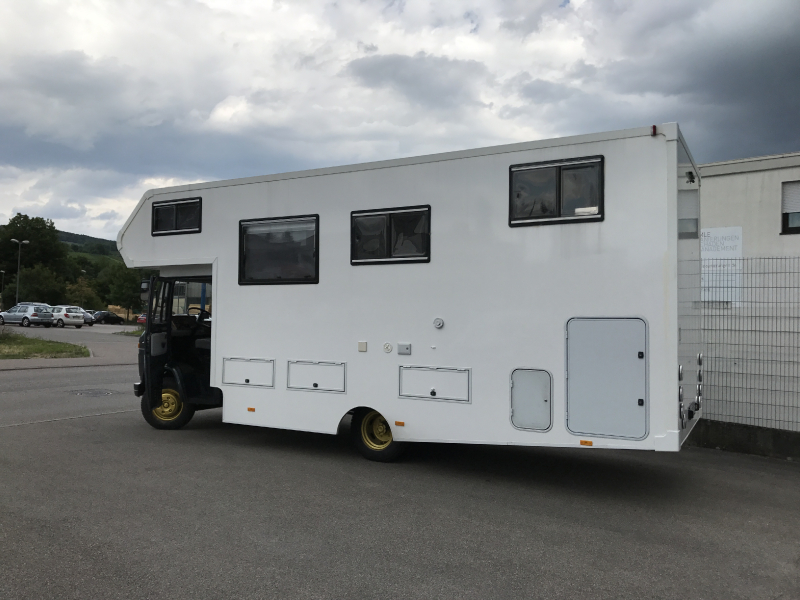

Weini 1 (#564)

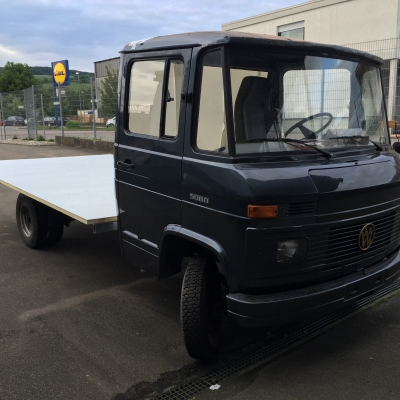

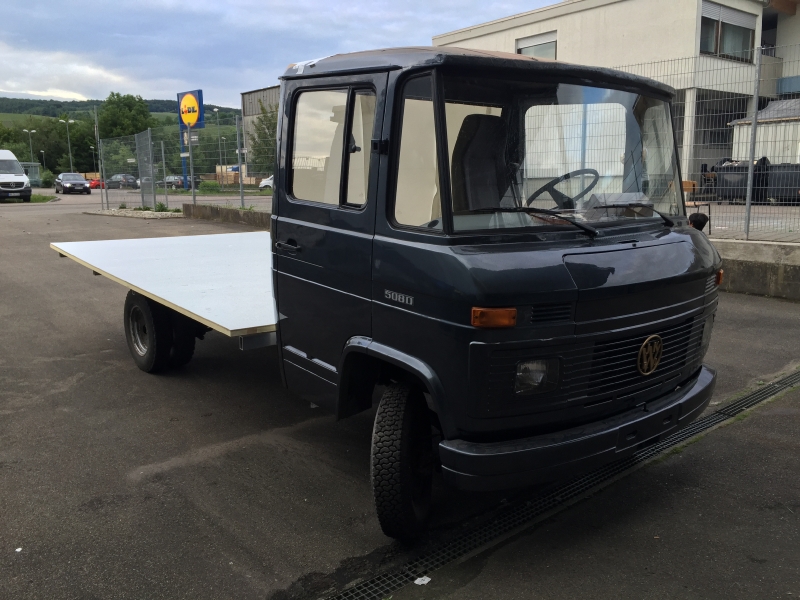

Neuaufbau auf Düdo 508 Chassis

General Information

Manufacturer and model Mercedes L 508 T2, 3m Radstand
Name Jörg Weinmann
Year of manufacture 1983 / 2016
For sale? no

Engine

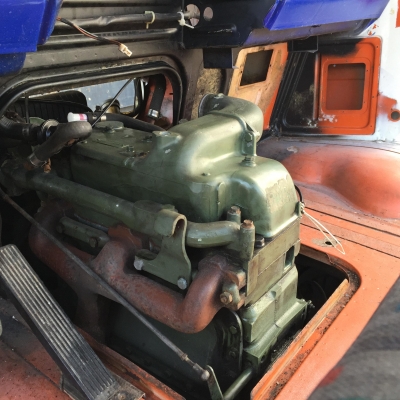

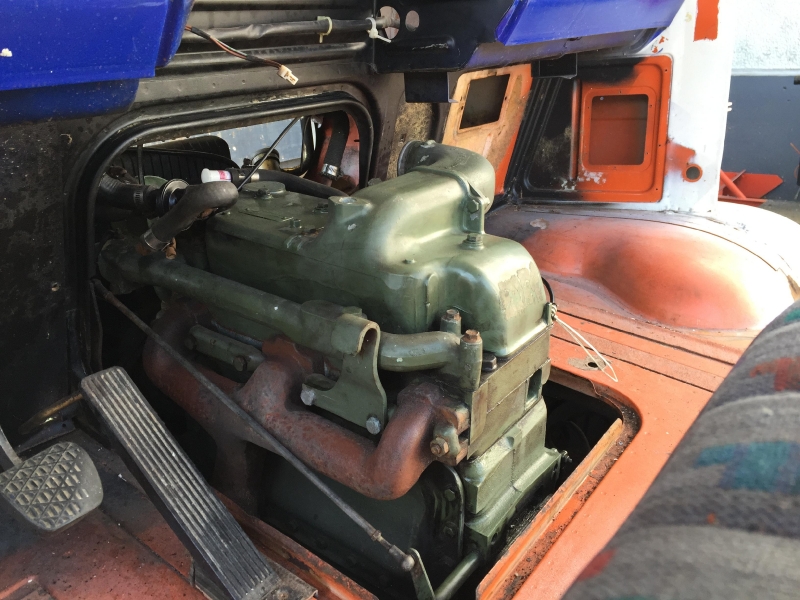

Engine type OM 314
Cubic capacity 3,7l
Number of cylinders Reihe 4
Horsepower 85
Torque 235

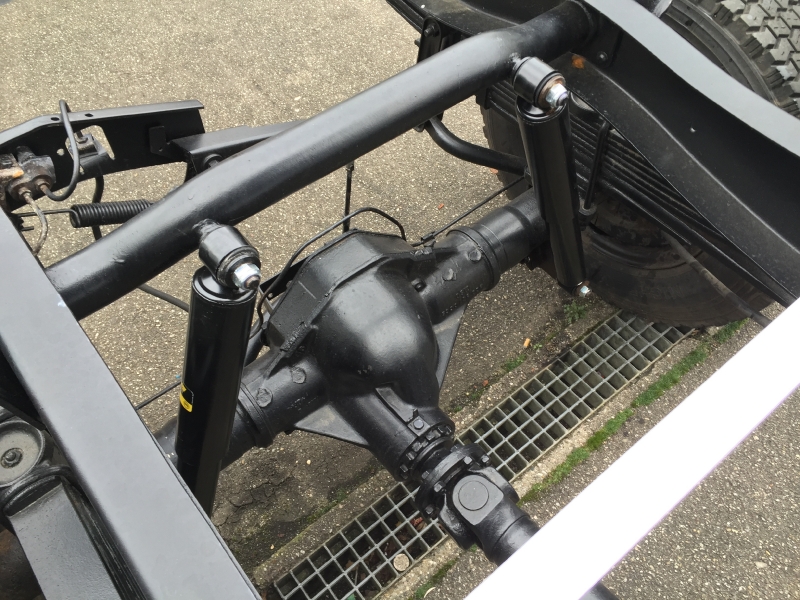

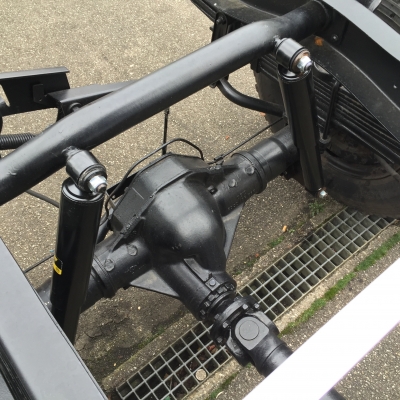

Chassis

4x2, 4x4, 6x6, 8x8 4x2
Wheel base 300 cm
Number of seats 6
Tyre size 6,5 R 16
Type of tyre Allwetter
Tank capacity 60l Zusatztank 60l
Diesel filter no
Permanent or manually selectable 4-wheel drive nein
Diff locks nein

Cabin

Manufacturer of the cabin Eingenkonstruktion

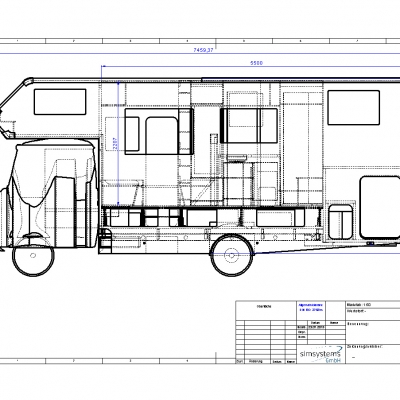

Inner dimensions (LxWxH) Länge ohne Alkoven 5500 Höhe 2200 Breite 2320

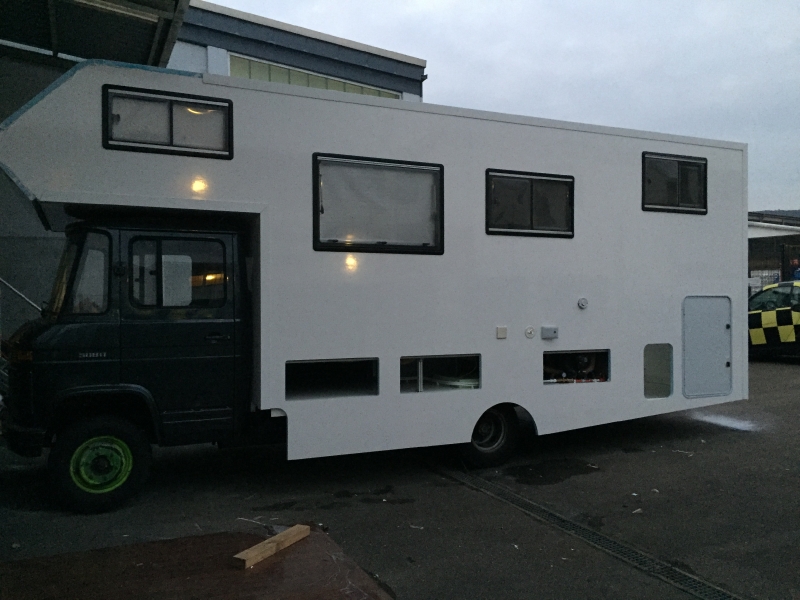

Outer dimensions (LxWxH) Mit Alkoven 7,45 x 3,00 x 2,4m

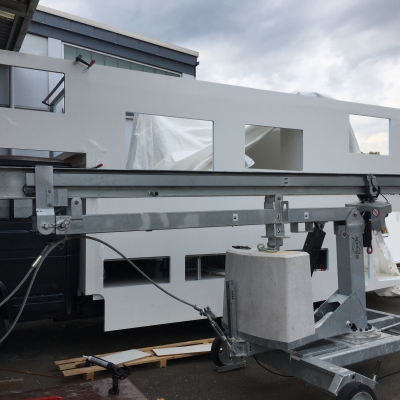

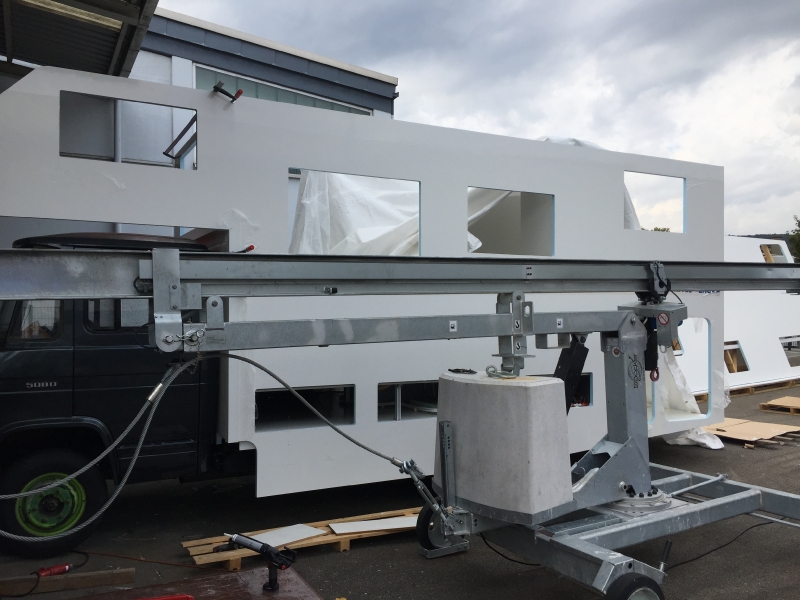

Cabin material GfK Sandwich 40mm 3mm aussen, 1,5 mm innen
Kind and thickness of insulation 35mm
Number of beds 6
Windows 8
Subframe Eigenbau

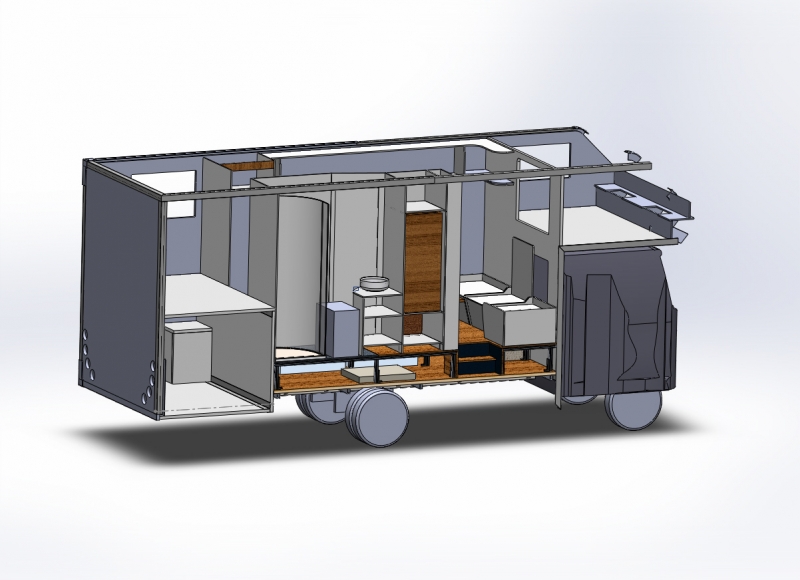

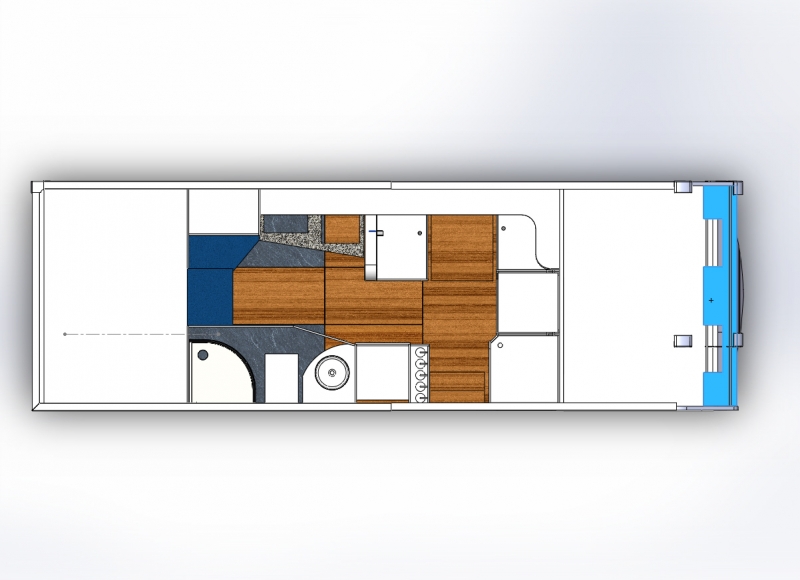

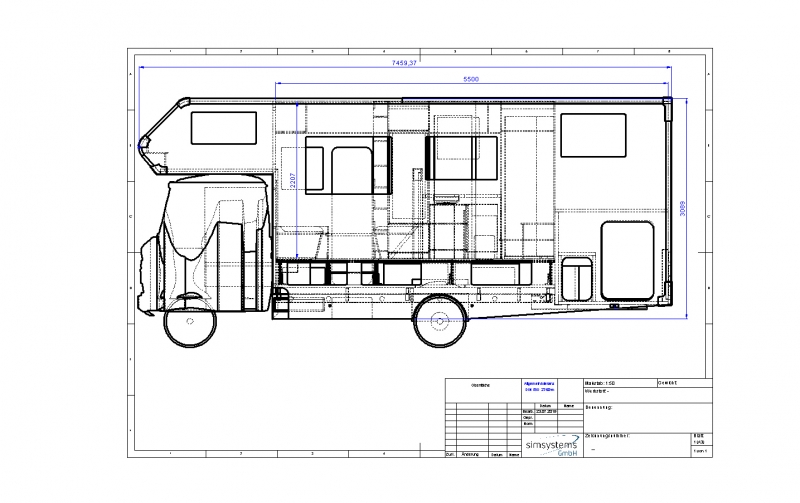

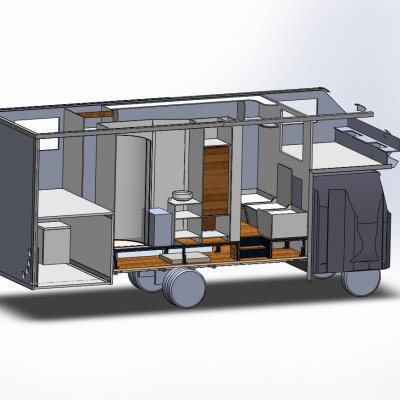

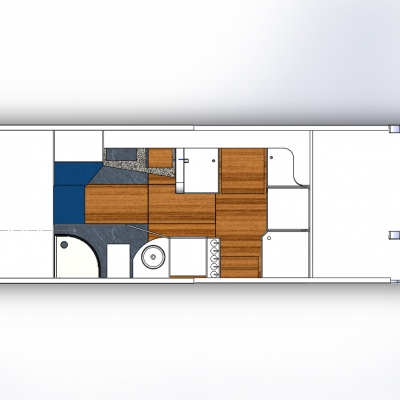

Floor plan

Explanation of floor plan

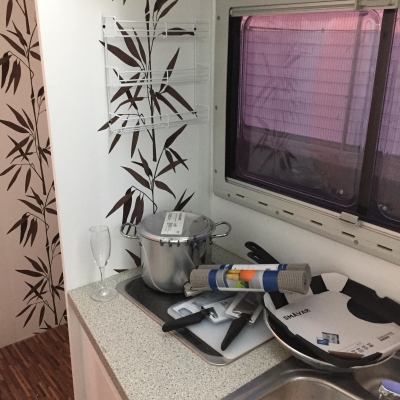

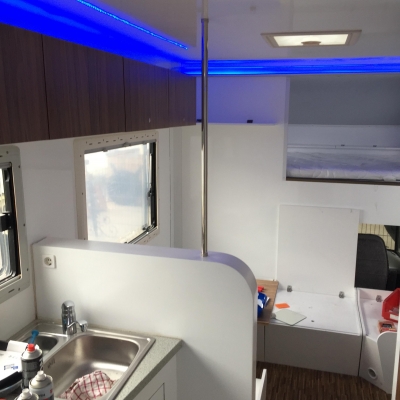

Doppelboden, Umbaubare Sitzgruppe vorne, Küche, Doppelbett über Garage, Alkoven

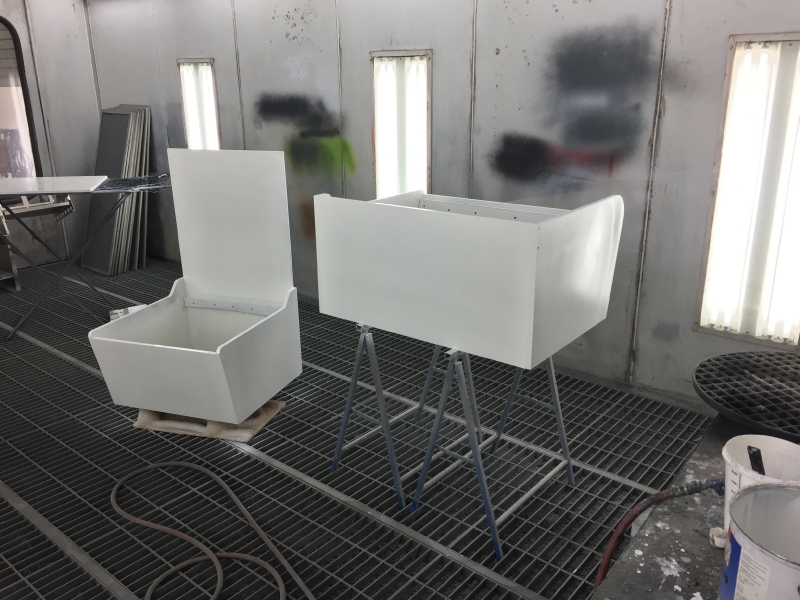

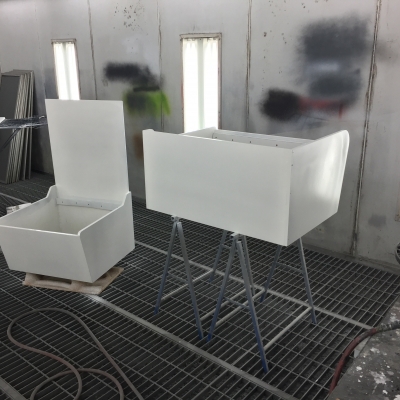

Furniture

Material of furniture Mdf / Sandwich Wabenplatten
Other
Eigenbau mit Stauklappen unter den Bänken

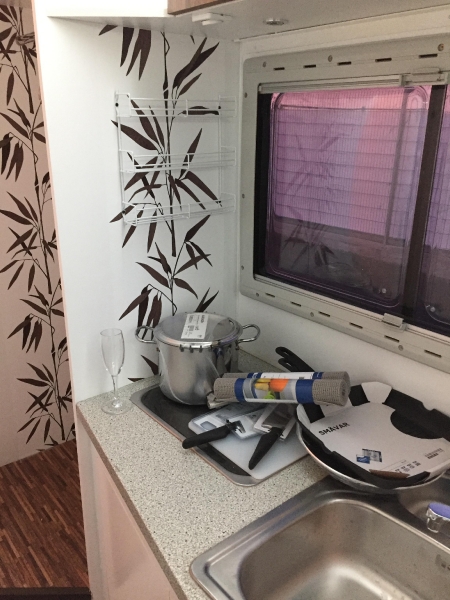

Cooking stove

Cooking stove Dometic 3 Flammen
Gas installation Eigenbau

Refrigerator; cool box

Manufacturer and type of fridge / cooler Dometic

Power supply

Voltage in the chassis 24 V
Voltage in the cabin 12V / 230V
Charging converter 24V-12V Im Chassis
110V / 230V in the cabin? yes
Inverter keiner verbaut
Other

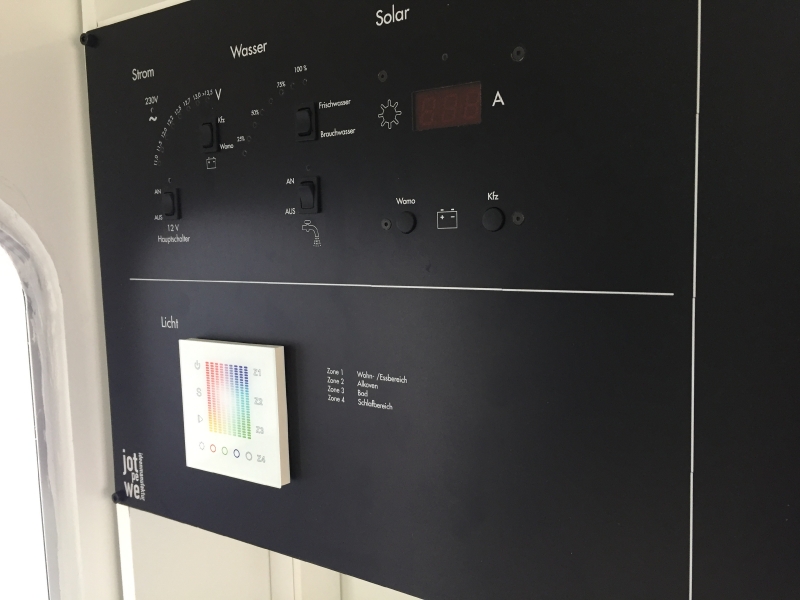

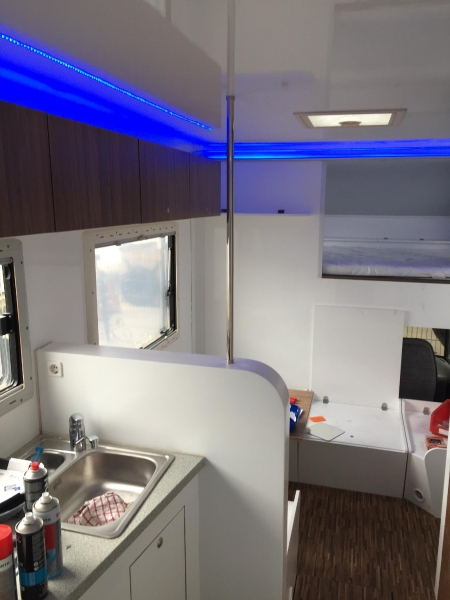

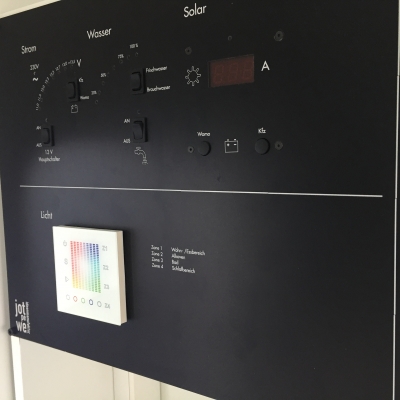

Licht komplett LED über DMX-Bus steuerbar

Capacity of batteries in the cabin

Capacity of batteries in the cabin 80A
Battery type Gel
Battery charger for cabin batteries Schaudt Elektroblock mit Solarlader
Battery management Schaudt

Power generation

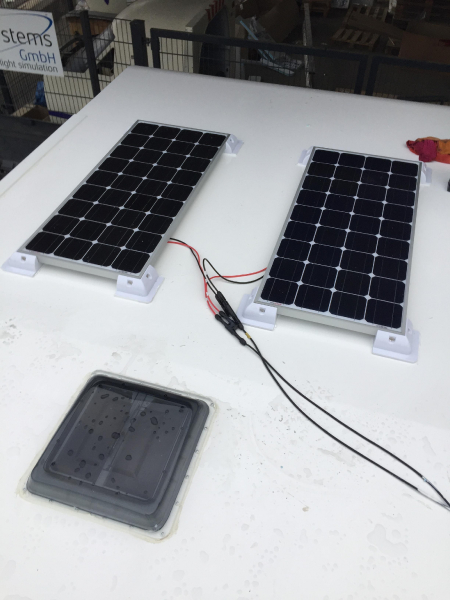

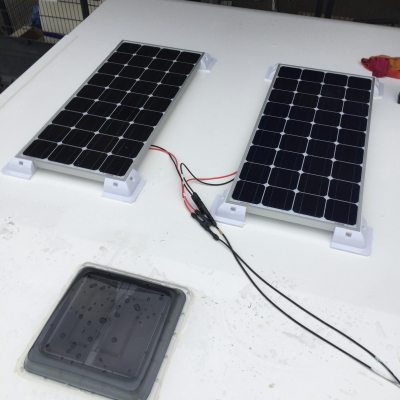

Solar capacity 2 x 150W
Solar controller Schaudt
Fuel cell no
Power generator Efoy Brennstoffzelle

Heating system

Manufacturer and type of heating system Truma C6000
Warm water processing Truma
Cab heating nicht beheizt

Gas system

Explanation of gas system
Doppelgasversorgung mit Crasherkennung, 1 x Alu, 1 x Standard Gaskasten in hintere Garage integriert.

Water system

water flow Hausinstallationstechnik Marley aquasteck
Capacity of fresh water tank(s) 100l
Capacity of waste water tank(s) 100l

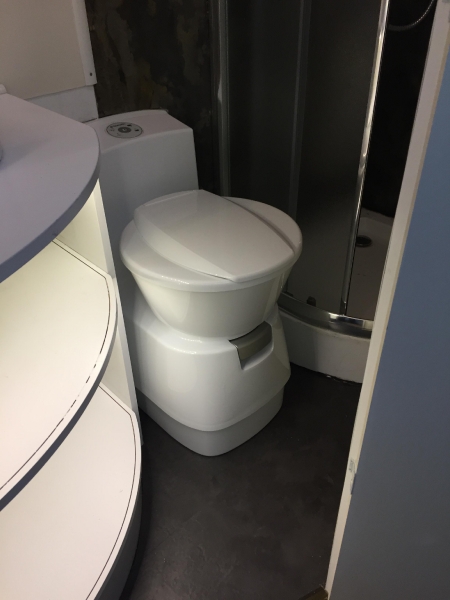

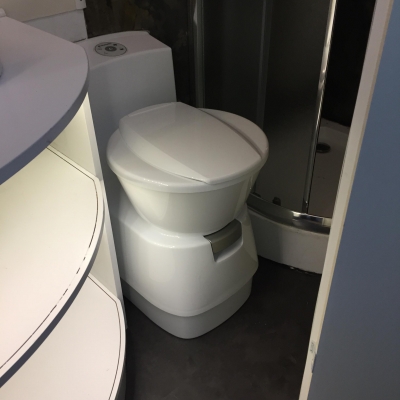

Toilet

Manufacturer and type of toilet Dometic
Capacity of black water tank keiner Vorhanden

Vehicle accessories

Rear carrier -
Roof rack -
Storage boxes In Möbel und Treppe integriert
Outside cooking facilities -
Awning Fiamma 6m
Other
Aussendusche
