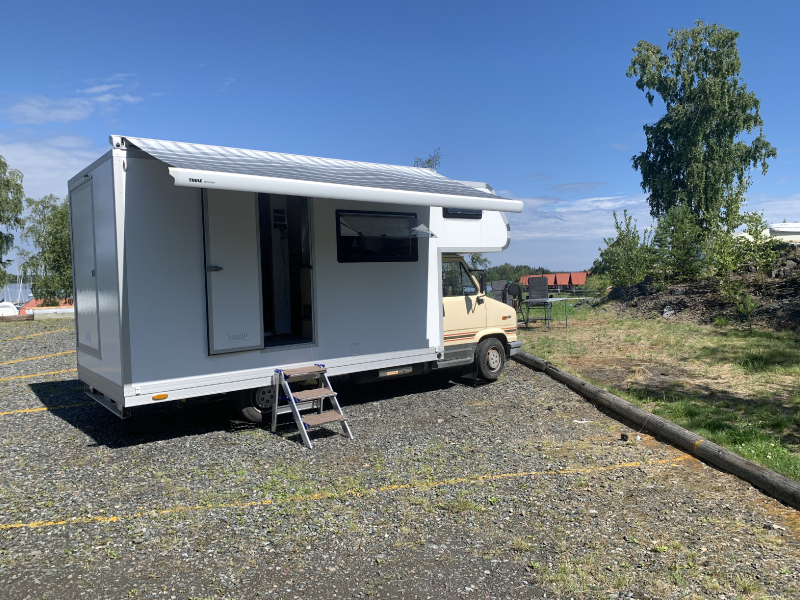

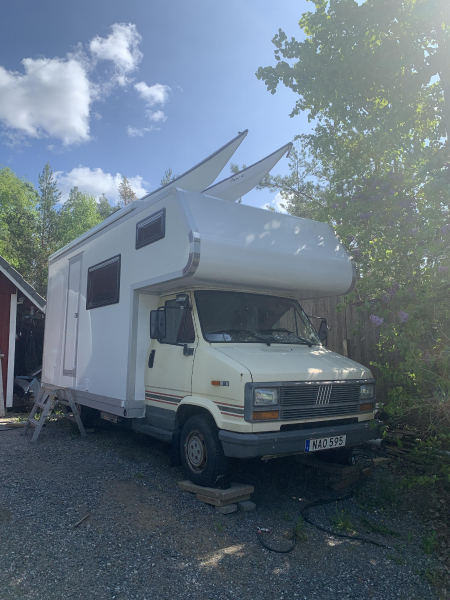

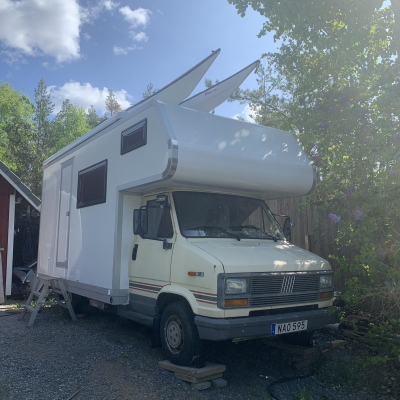

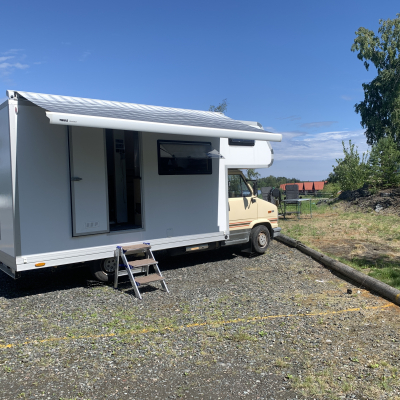

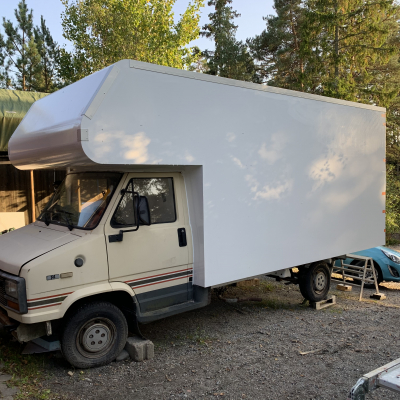

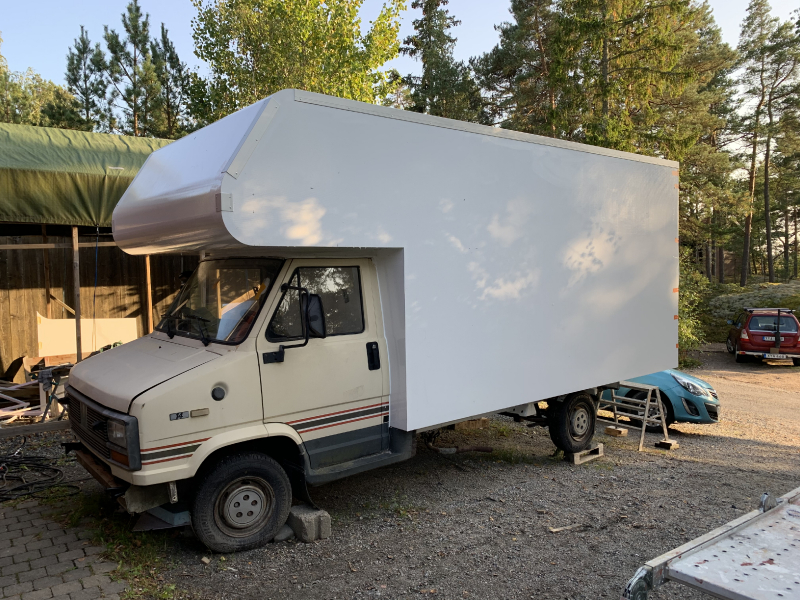

On the road again, almost finished.
| Manufacturer and model | Fiat Ducato/Frankia 570 TME |
|---|---|
| Country | Sweden |
| Year of manufacture | 1987 |
| For sale? | no |
| Engine type | FIAT 2500D (8144.67) |
|---|---|
| Cubic capacity | 2499 cc |
| Number of cylinders | 4 |
| Horsepower | 55kW (75 hp) |
| Torque | 16.18 daNm |
| 4x2, 4x4, 6x6, 8x8 | 4x2 |
|---|---|
| Wheel base | 3650 mm |
| Number of seats | 2 |
| Tyre size | 185R14C |
| Rim size | 14 |
| Tank capacity | 70 litres |
| Diesel filter | no |
| Manufacturer of the cabin | Self build |
|---|---|
| Outer dimensions (LxWxH) | 5995x2300x3100 |

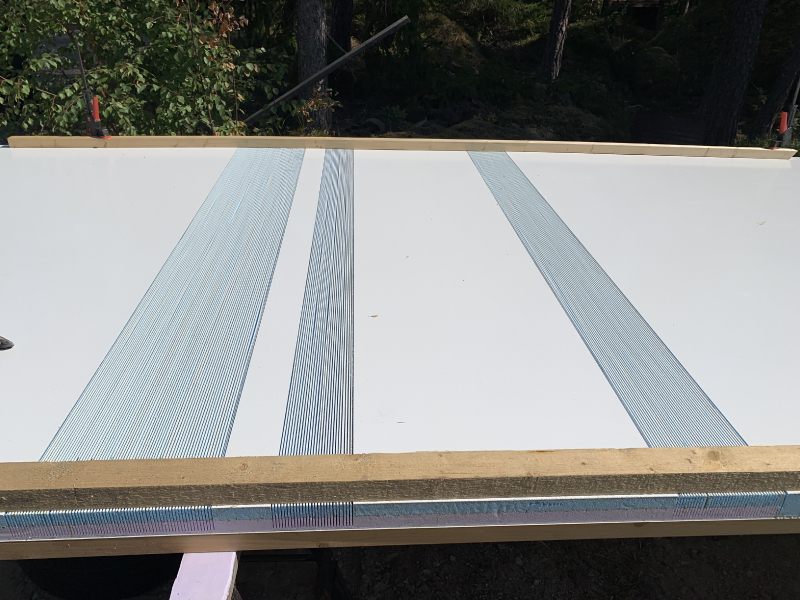

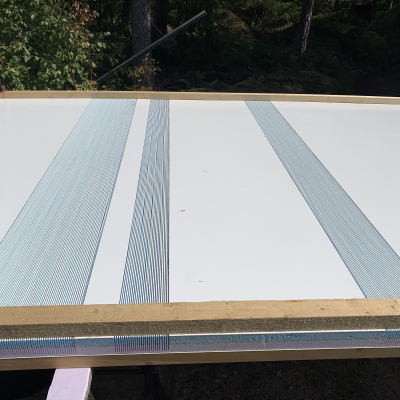

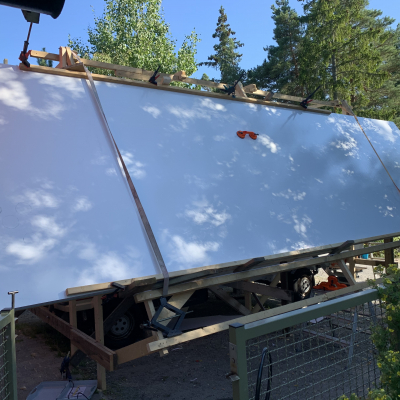

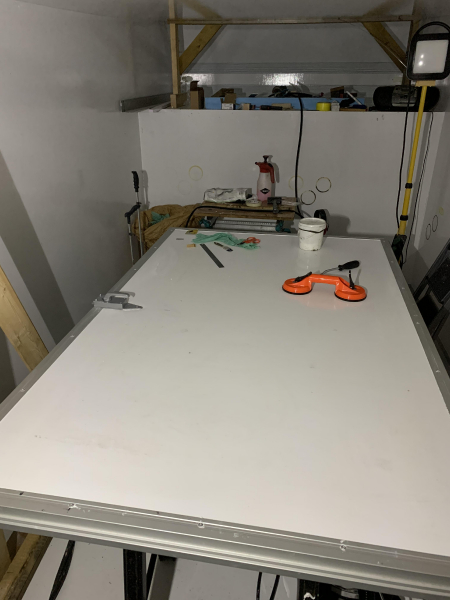

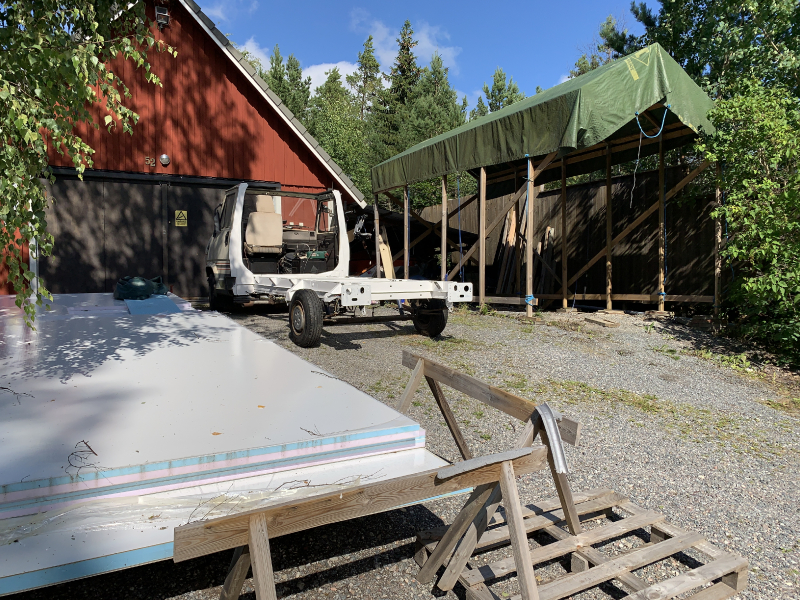

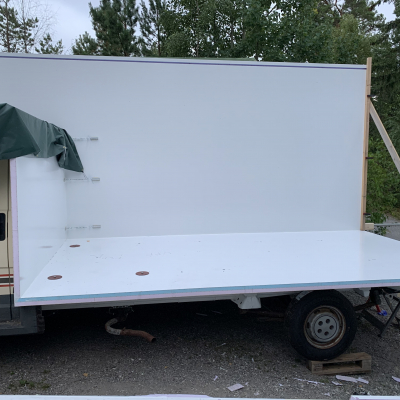

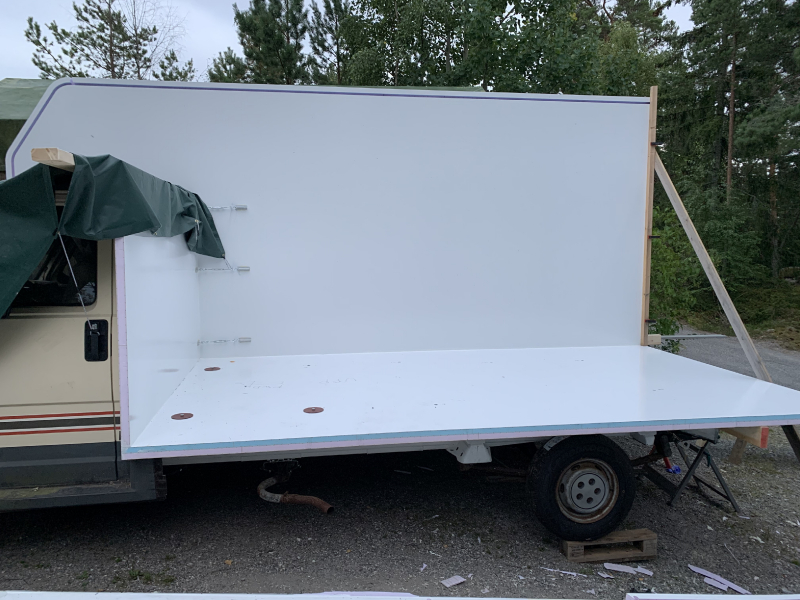

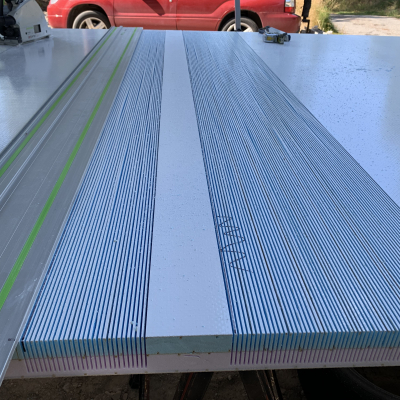

| Cabin material | Sandwich (skin: 2x LAMILUX High Impact 1.1 mm GRP). Roof panel with 8 mm honeycomb reinforcement. |
| Kind and thickness of insulation | Jackon Super-XPS (expanded polyester) Roof and floor: 57.8 mm. Walls: 37.8 mm |

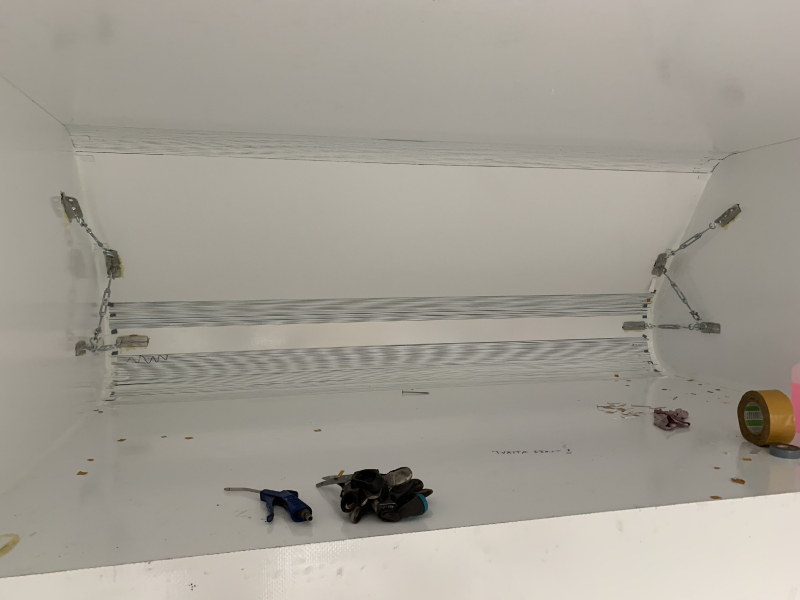

| Number of beds | 2 (in alcove) |
| Windows | 3 |
| Subframe | None |
| Other | |
|

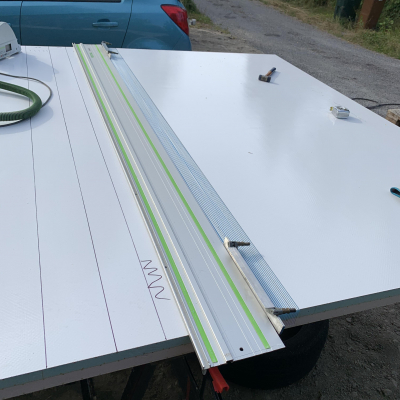

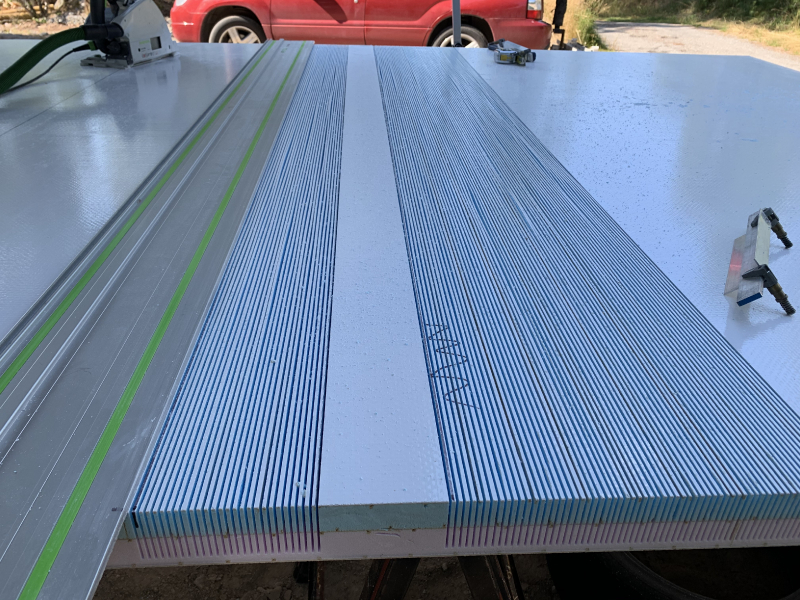

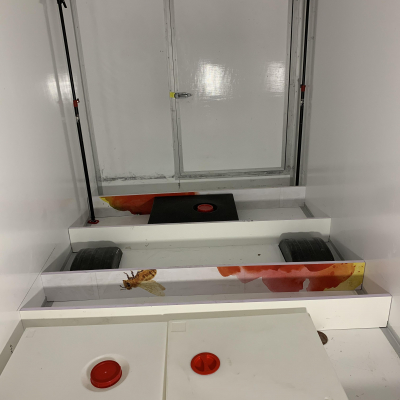

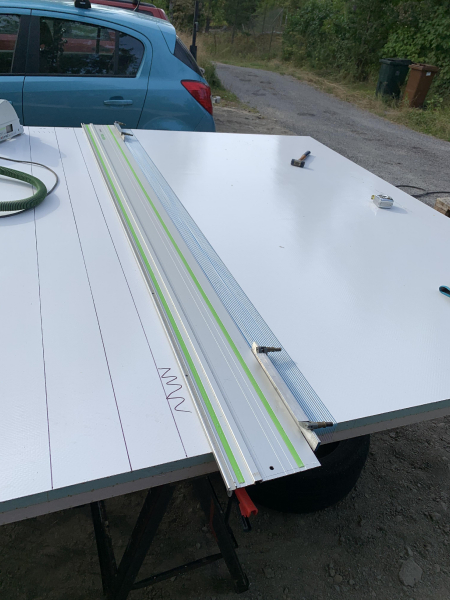

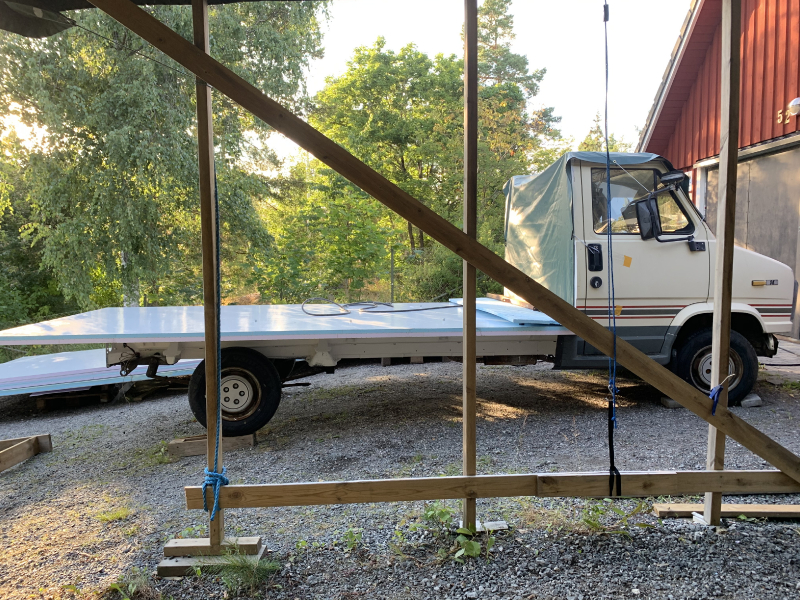

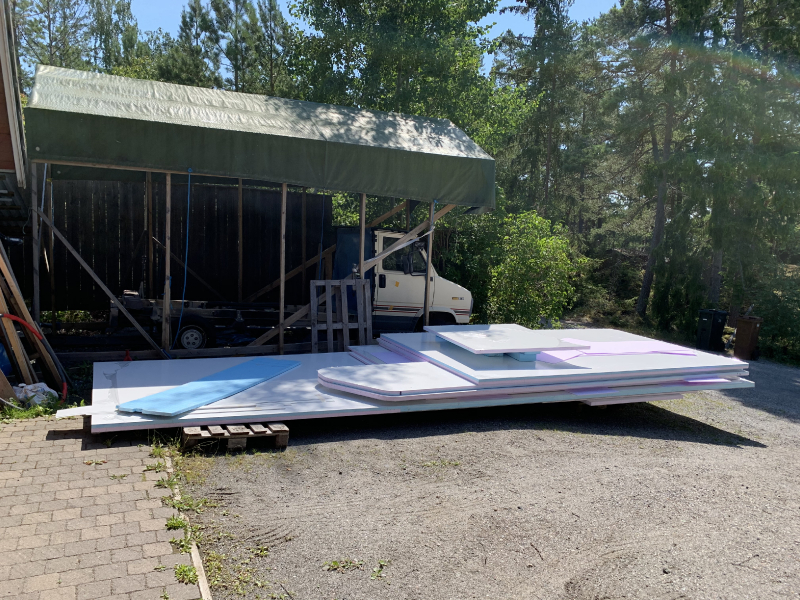

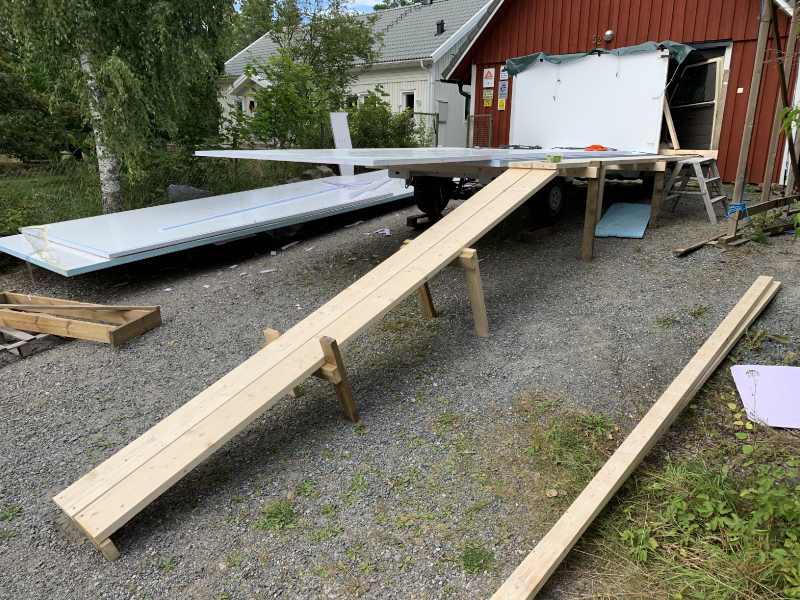

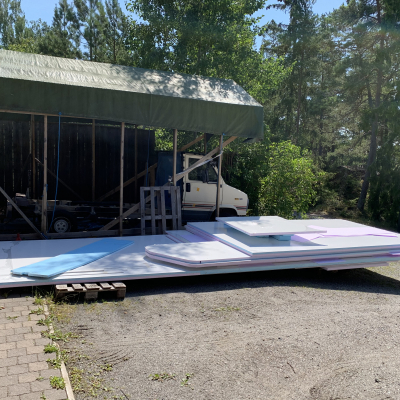

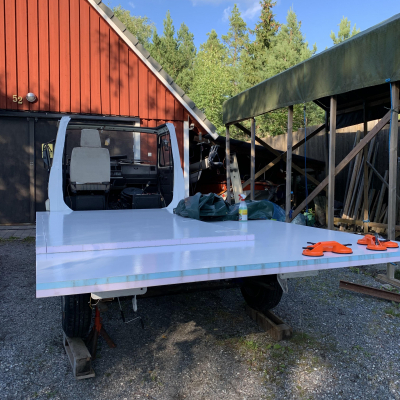

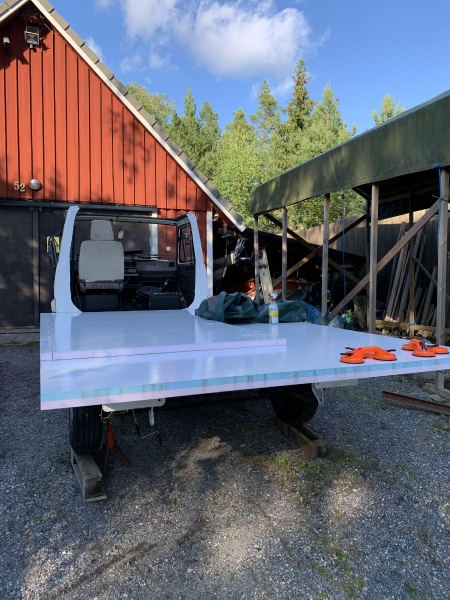

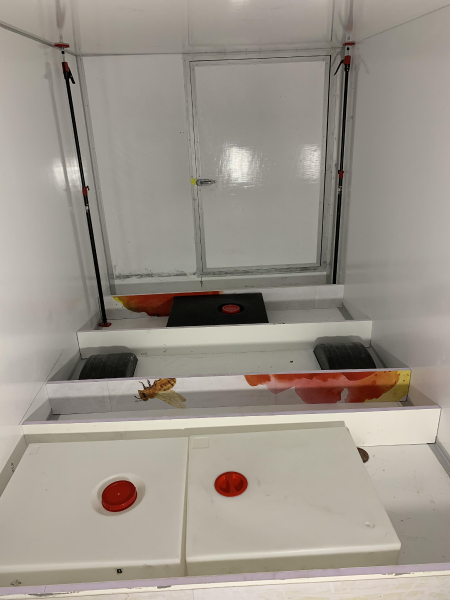

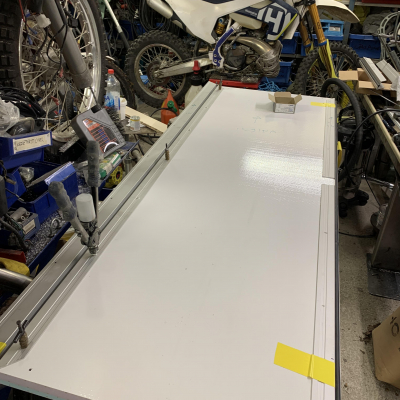

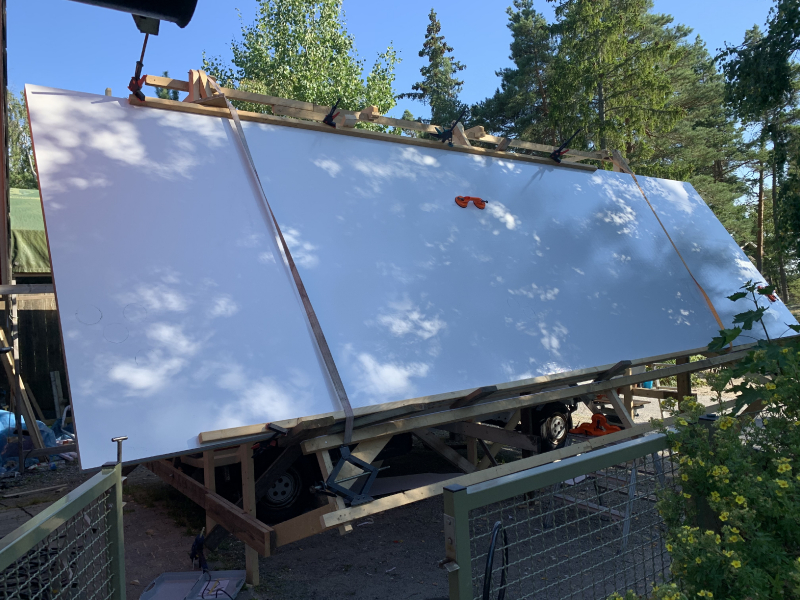

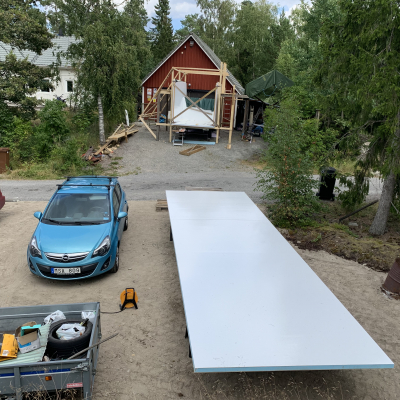

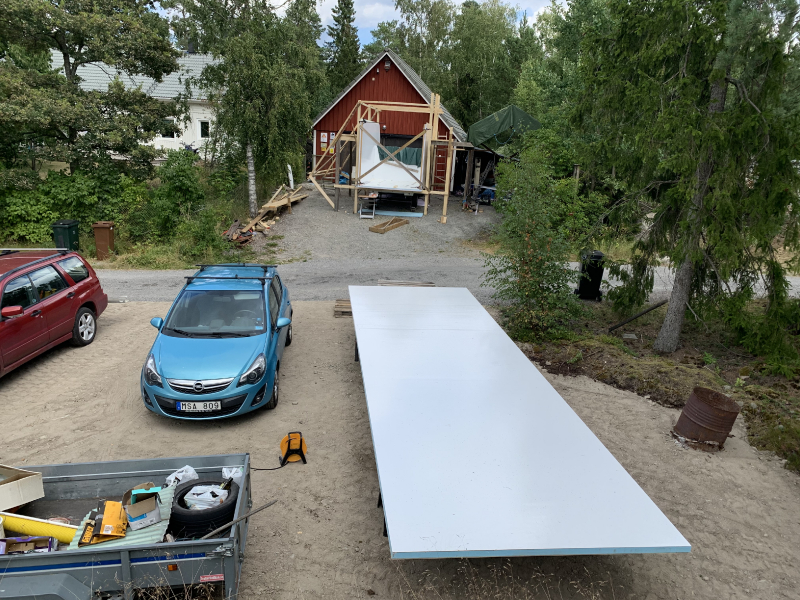

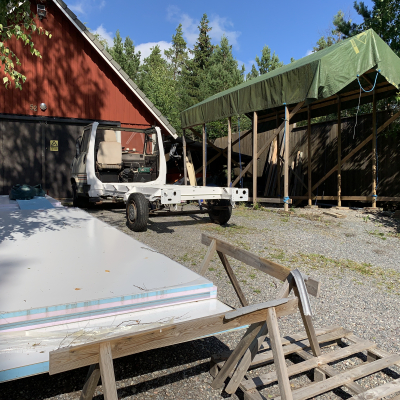

Sandwich panels manufactured, cut to shape and delivered to door by company www.dalalaminat.se Double floor: Inner floor 25 mm thick (2x 1,8 mm GRP skin, distance material: 21,4 mm XPS). Garage for two dirt bikes. | |

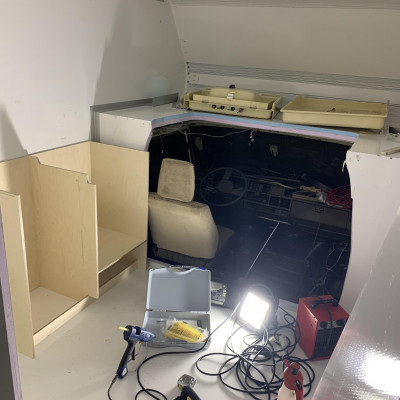

| Material of furniture | 12 mm Birch plywood |
|---|
| Cooking stove | Cramer - 2 flame |
|---|
| Manufacturer and type of fridge / cooler | Electrolux RM 200 B |
|---|
| Voltage in the chassis | 12 volt |
|---|---|
| Voltage in the cabin | 12 volt |
| 110V / 230V in the cabin? | yes |
| Inverter | Votronic - MobilPOWER Inverter SMI 600 Sinus-NVS |
| Capacity of batteries in the cabin | 100 Ah |
|---|---|
| Battery type | Lead-Acid |
| Battery charger for cabin batteries | Votronic - VBCS 30/20/250 Triple CI |
| Solar capacity | 2x 125 W |
|---|---|
| Solar controller | Votronic - VBCS 30/20/250 Triple CI |
| Fuel cell | no |
| Manufacturer and type of heating system | Truma - Trumatic SL3002 with fan. |
|---|---|
| Warm water processing | IMASS IWH-1.5 E - Instantaneous water heater/Mobil Durchlauferhitzerer |
| Cab heating | Thermo Top EVO Motorcaravan |
| Other | |
| Hot air ducts run under floor. | |
| Explanation of gas system | |
|---|---|
| 90 Litre (36 kg) propane tank. Crash sensor. |
| Water filtration system | Carbon filter for potable water. |
|---|---|
| Capacity of fresh water tank(s) | 2x 108 litres |
| Capacity of waste water tank(s) | 1x 108 litre |
| Other | |
| Tank-O3 Ozone generator | |

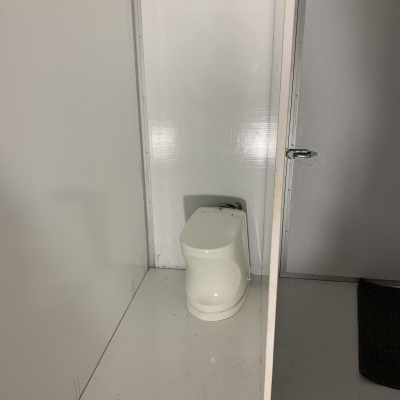

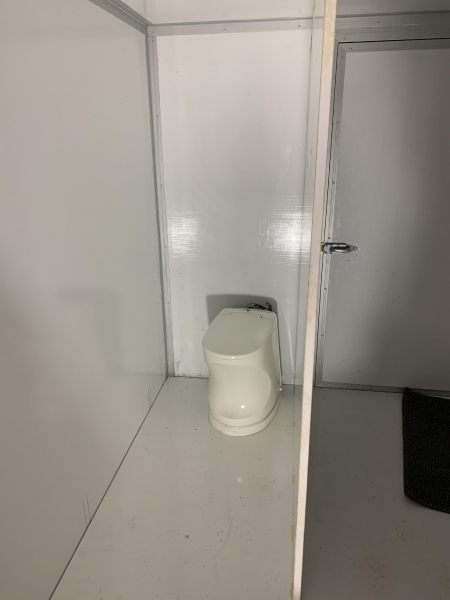

| Manufacturer and type of toilet | Clesana C1 |
|---|---|
| Capacity of black water tank | Not applicable |
| Roof rack | Thule - Omnistor Serie 6 & 9200 Mounting Rails |
|---|---|
| Outside cooking facilities | Cadac Safari Chef 30 LP |

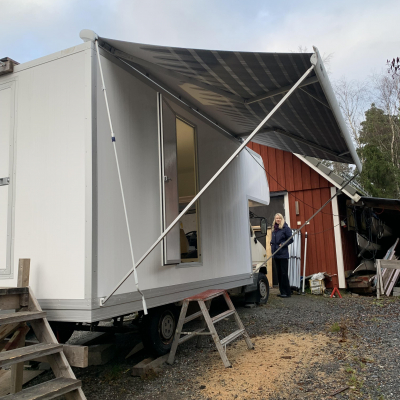

| Awning | Thule Omnistor 9200 |
