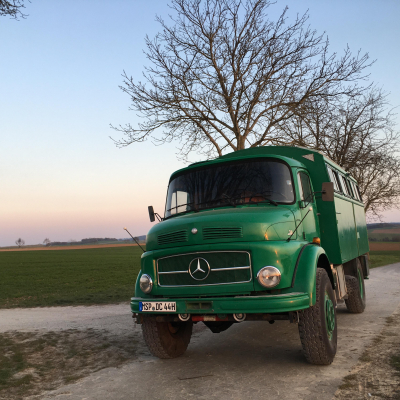

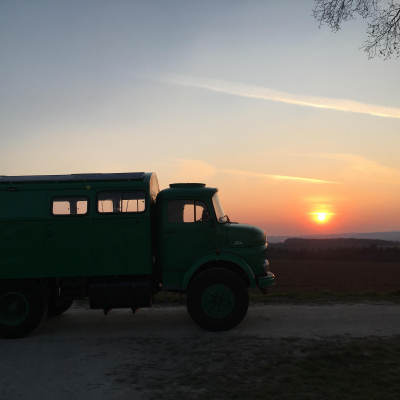

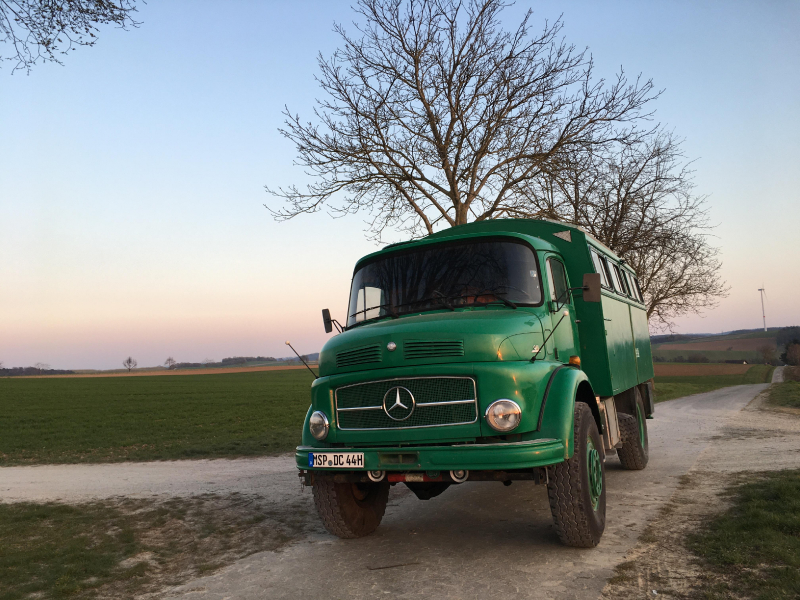

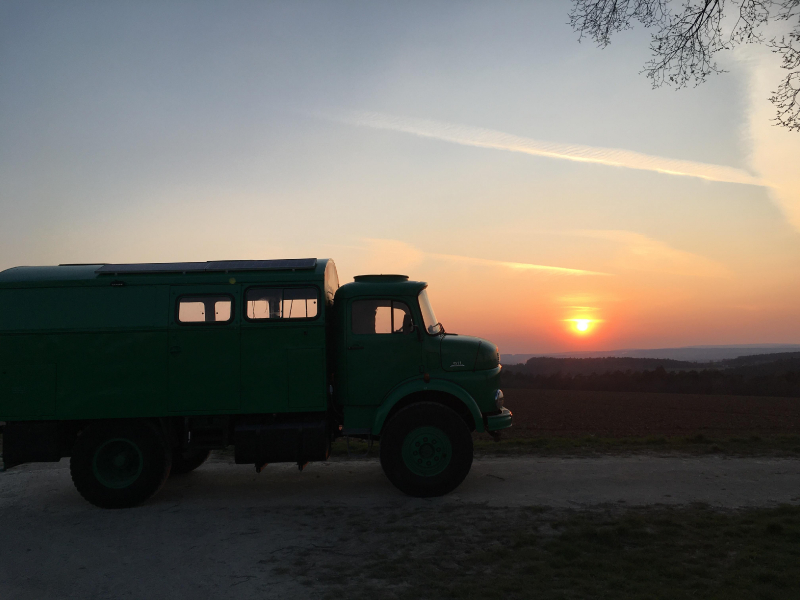

Mercedes LA 911 (Kurzhauber) mit kurzer Fahrerkabine und BGS-Koffer
| Manufacturer and model | Mercedes LA 911 |
|---|---|
| Name | Dietmar Kaufmann |
| Year of manufacture | 1980 |
| For sale? | no |

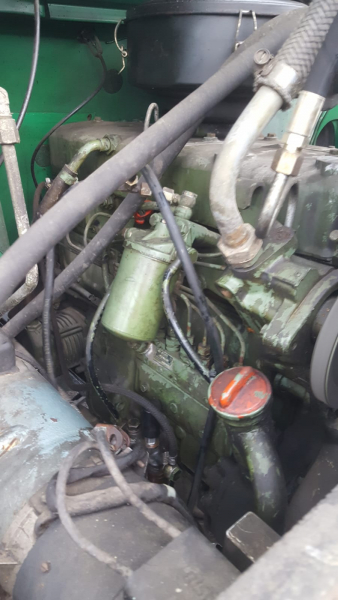

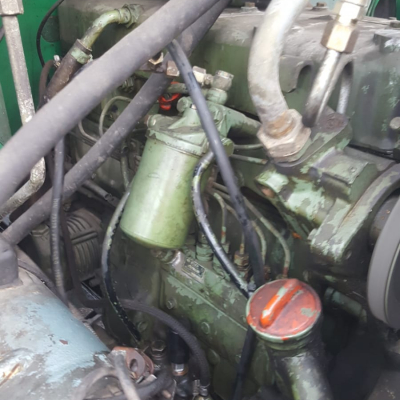

| Engine type | OM352 |
|---|---|
| Cubic capacity | 5,7l |
| Number of cylinders | 6 |
| Horsepower | 130 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3,6m |
| Number of seats | 3 |
| Tank capacity | gesamt 470l auf zwei Tanks aufgeteilt |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | zuschaltbar |
| Diff locks | Hinterachse |
| Manufacturer of the cabin | BGS Einheitskoffer |
|---|---|
| Inner dimensions (LxWxH) | L 3,88; B 2,33 |
| Outer dimensions (LxWxH) | L 4,0; B 2,45 |
| Cabin material | Stahl |
| Kind and thickness of insulation | 38mm Armaflex |

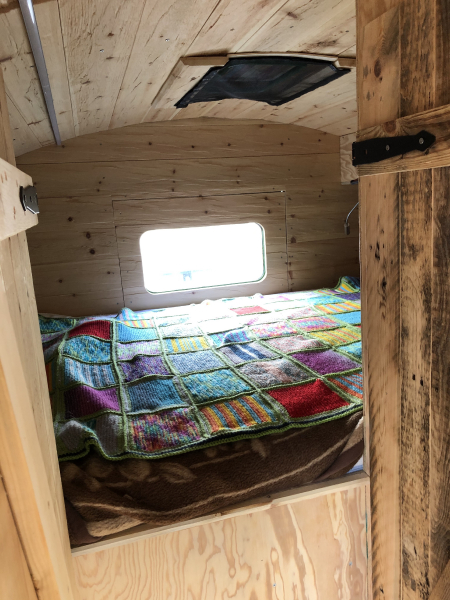

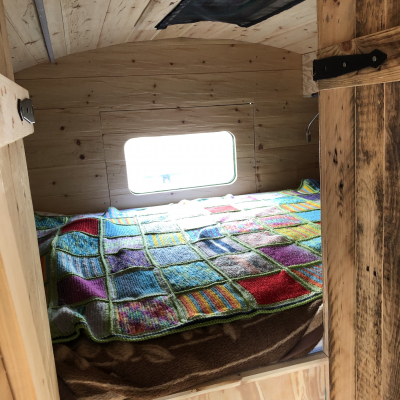

| Number of beds | 2 ein weiterer ist optional |
| Windows | Orginal Einheitskoffer 7 Stück |
| Other | |

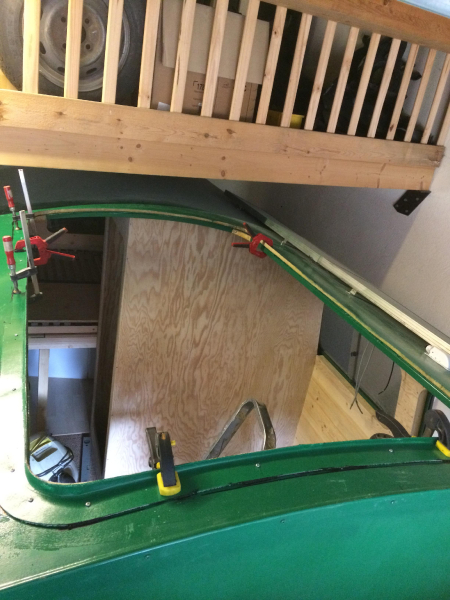

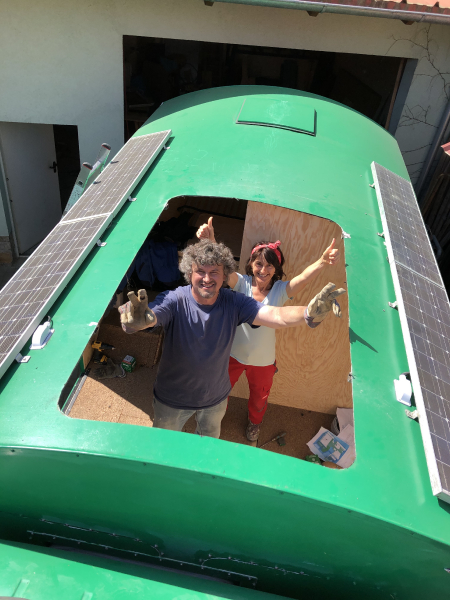

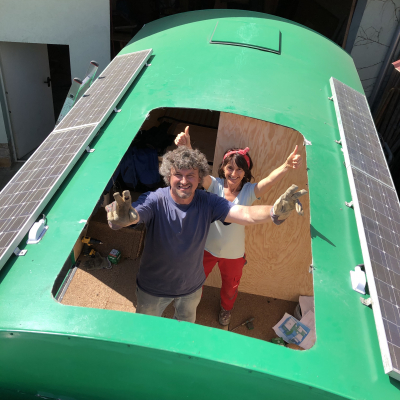

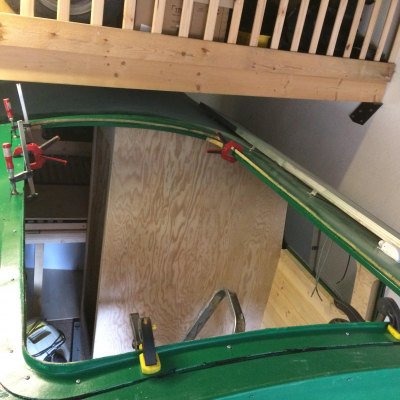

| Im Küchen- und Wohnbereich haben wir ein Aufstelldach eingebaut damit ich mit meinen 1,85 Körpergröße auch aufrecht stehen kann | |

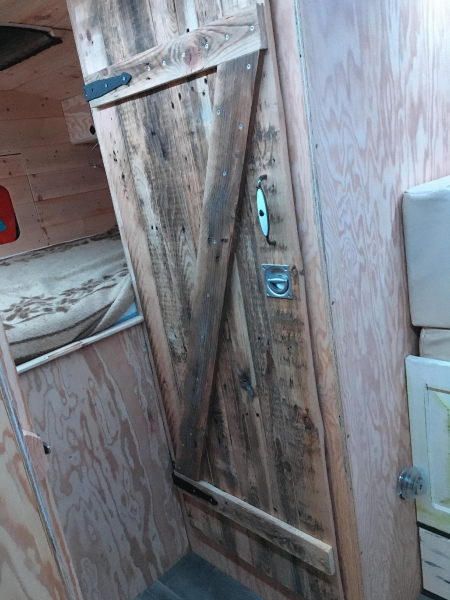

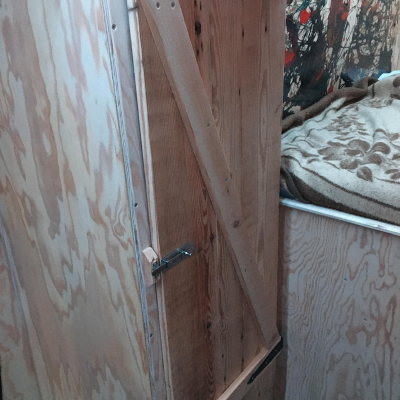

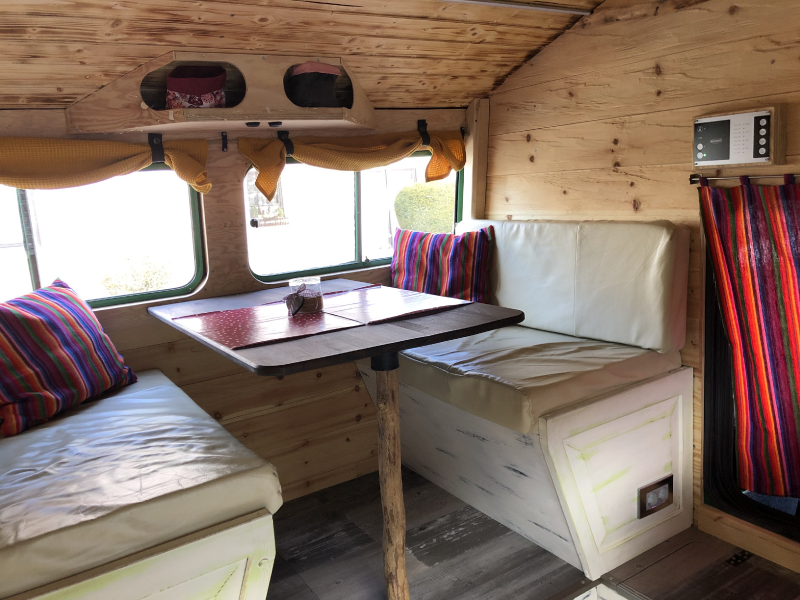

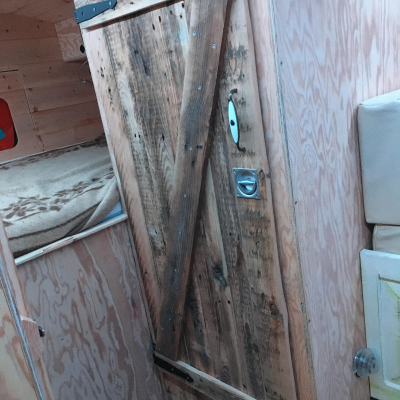

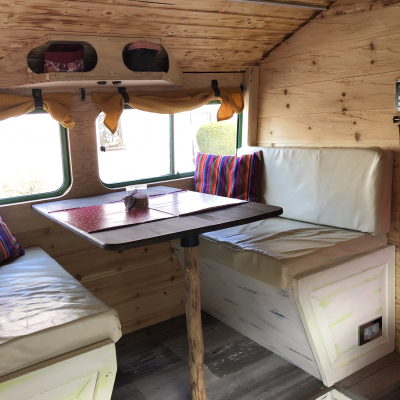

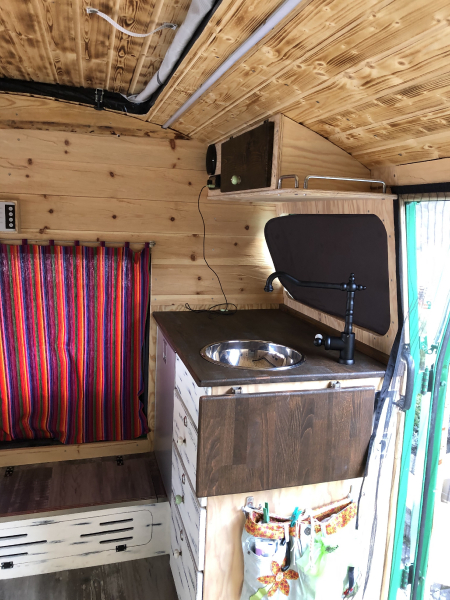

| Material of furniture | Seekiefer und Verwendung alter Möbelstücke |
|---|---|
| Other | |

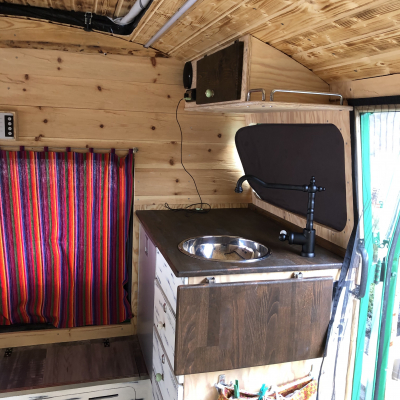

| Wand- und Deckenvertäfelung größtenteils Zirpe | |
| Other | |
|---|---|
| Derzeit haben wir nur einen Katuschenkocher. Keine festinstallierte Gasanlage. |
| Manufacturer and type of fridge / cooler | Isotherm New CR Classic 12/24V 85l |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 12V und 230V |
| 110V / 230V in the cabin? | yes |
| Other | |

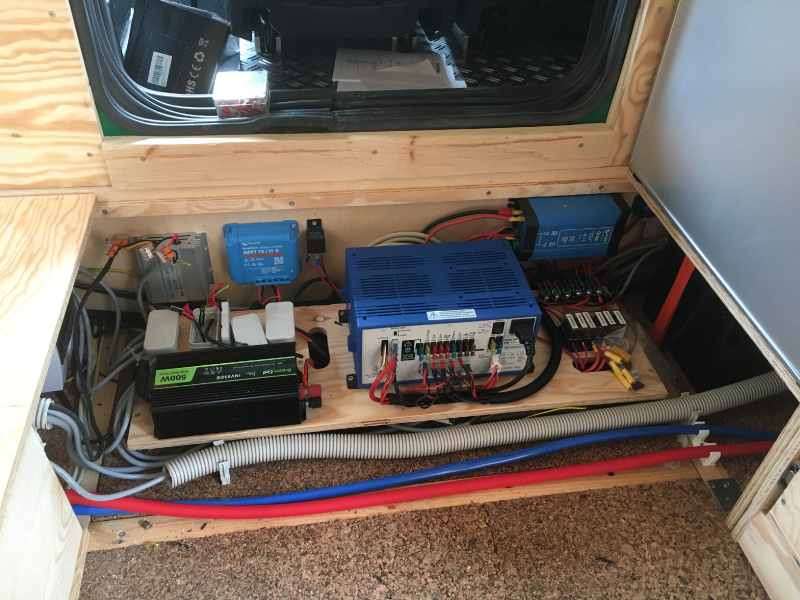

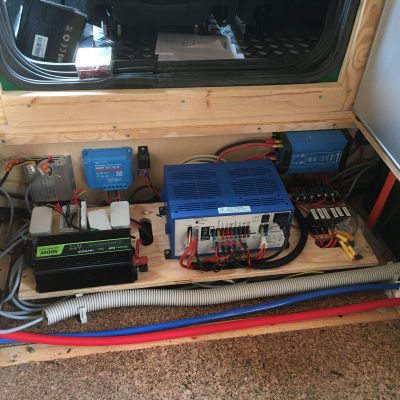

| Zentrales Element meiner Elektroinstallation ist das EBL211 von Schaudt | |
| Capacity of batteries in the cabin | 390Ah |
|---|---|
| Battery type | AGM |
| Battery charger for cabin batteries | EBL211 |

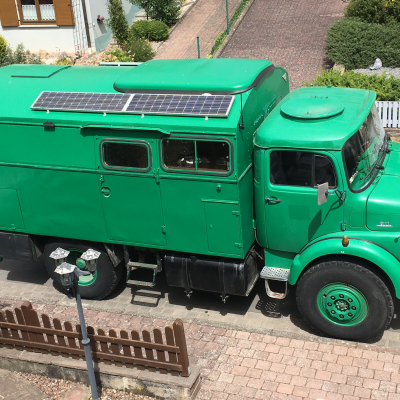

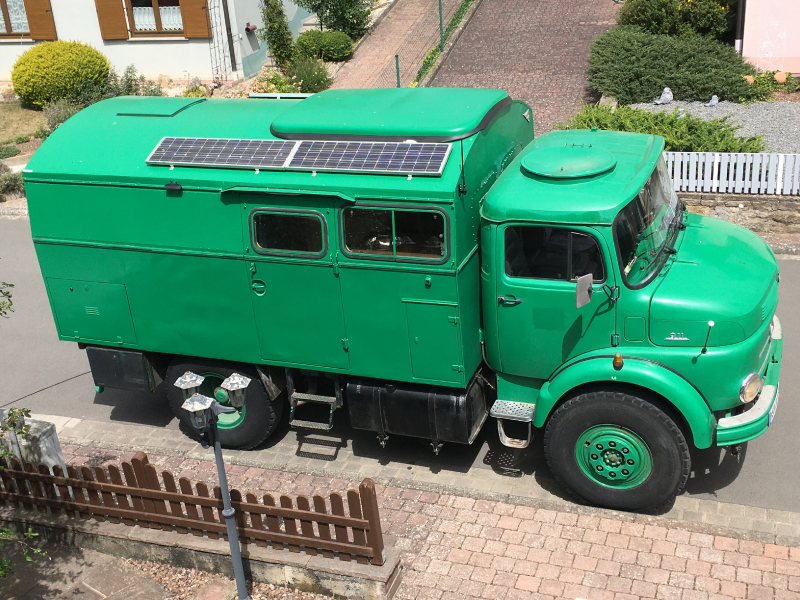

| Solar capacity | 220W |
|---|---|
| Fuel cell | no |
| Manufacturer and type of heating system | Webasto 2KW |
|---|---|
| Warm water processing | Warmduscherkit von Tigerexped |
| Cab heating | Vorhanden aber derzeit außer Betrieb |
| Capacity of fresh water tank(s) | 2x95l |
|---|

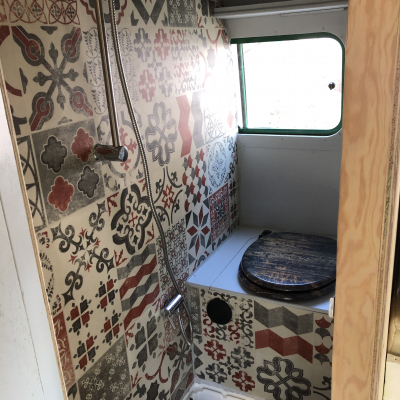

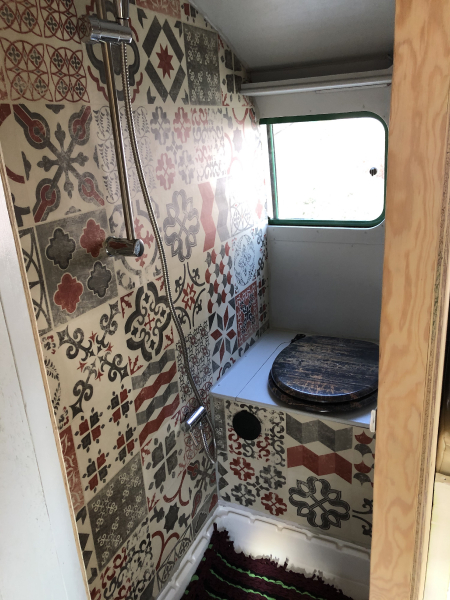

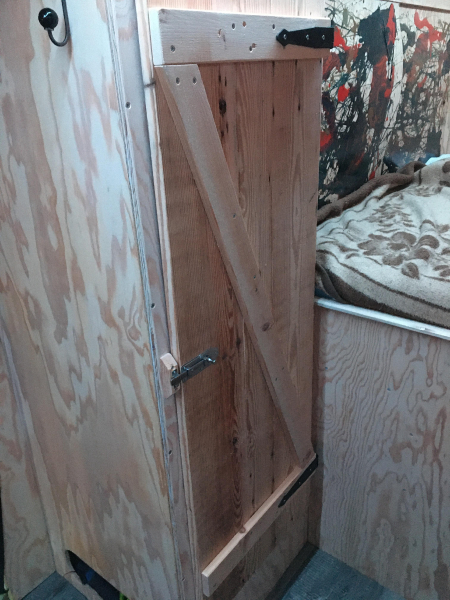

| Manufacturer and type of toilet | Trockentrenntoilette Eigenbau |
|---|---|
| Capacity of black water tank | Pipi-Tank sind 12l, für Kacka das war mal ein 20l Eimer den ich an den Kasten angepasst habe. |

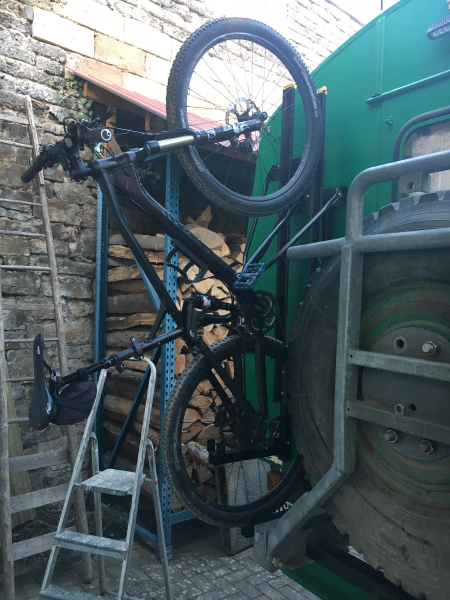

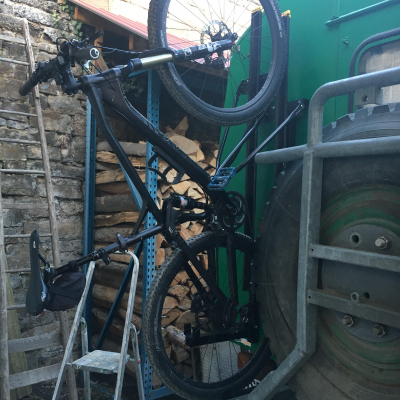

| Rear carrier | ja = Ersatzradhalter |
|---|---|
| Roof rack | nein |
| Storage boxes | 2 |
| Outside cooking facilities | noch nicht |
| Awning | Sonnensegel |
