Butterfly 2.0 nimmt seit dem 14.11.2020 Formen an.

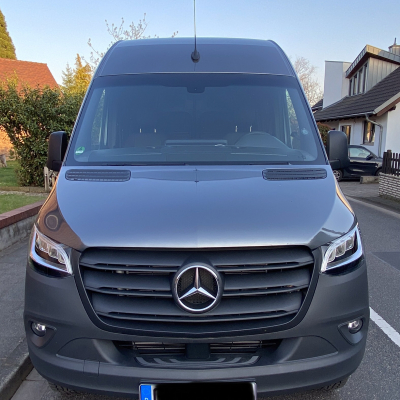

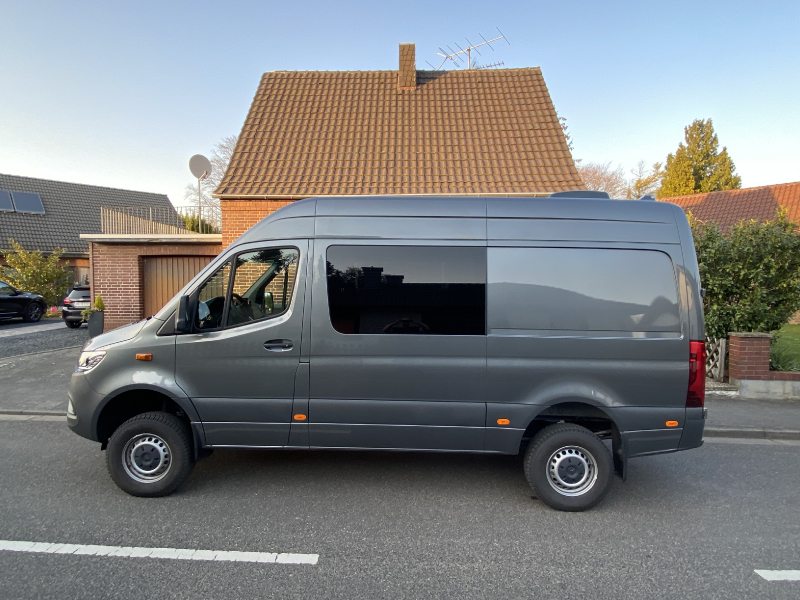

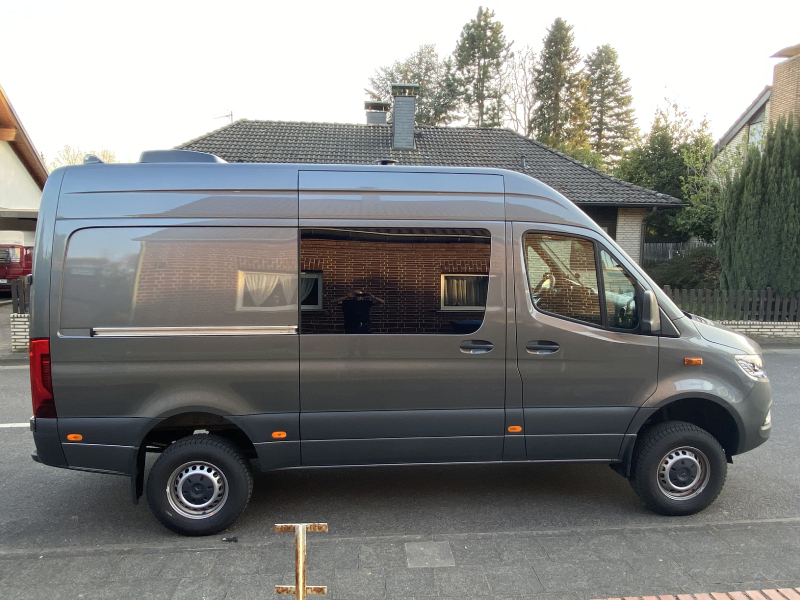

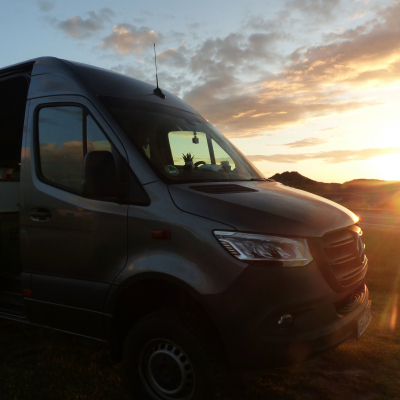

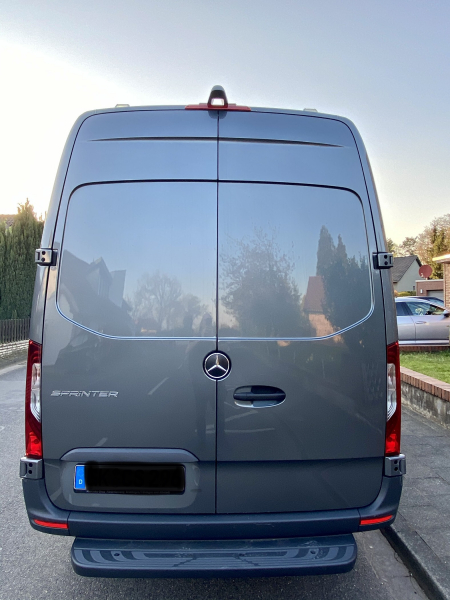

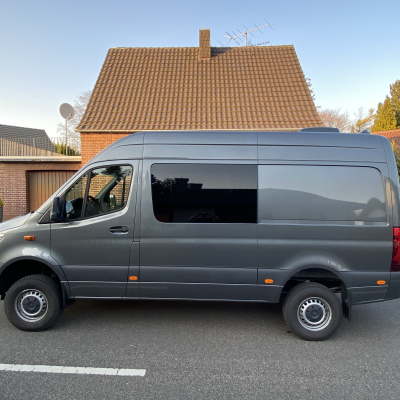

| Manufacturer and model | Mercedes Benz Sprinter 4x4 |
|---|---|
| Name | Josef Horstmann |
| Country | Deutschland |
| Year of manufacture | 2020 |
| For sale? | no |
| Engine type | OM 642 DE 30 LA |
|---|---|
| Cubic capacity | 3,0 Liter |
| Number of cylinders | 6 |
| Horsepower | 190 PS |
| Torque | 3800 U/min |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3665 mm |
| Number of seats | 2 |
| Tyre size | 245/70 R 16 |
| Rim size | STAHLFELGE 6.5JX16 ET54 6X130 |
| Type of tyre | General Grabber AT3 |
| Tank capacity | 93 L |
| Diesel filter | yes |
| Other | |
| Achsübersetzung i = 3,923 | |
| Permanent or manually selectable 4-wheel drive | zuschaltbar |
| Diff locks | keine |
| Manufacturer of the cabin | Mercedes Benz |
|---|---|
| Inner dimensions (LxWxH) | 330 x 178 x 194 cm |

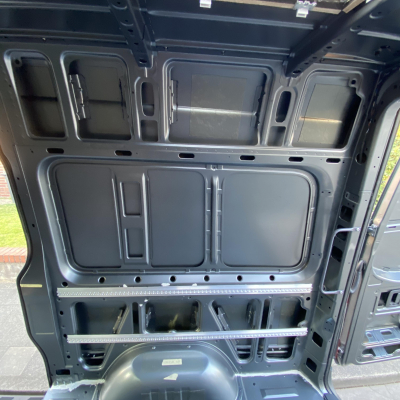

| Cabin material | Kastenwagen |

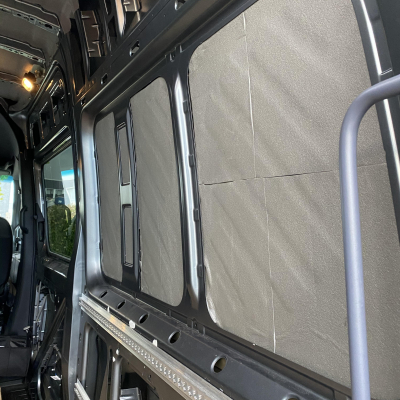

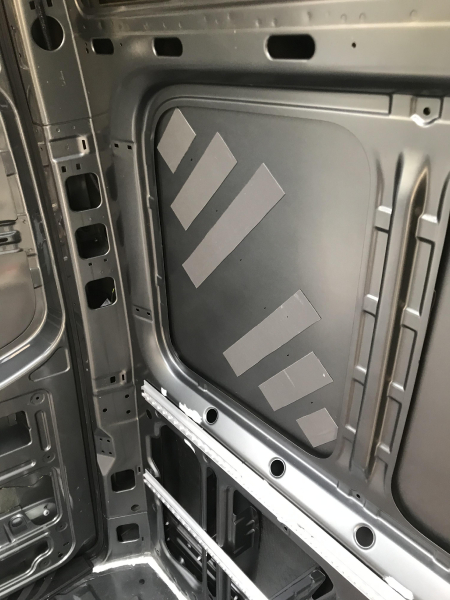

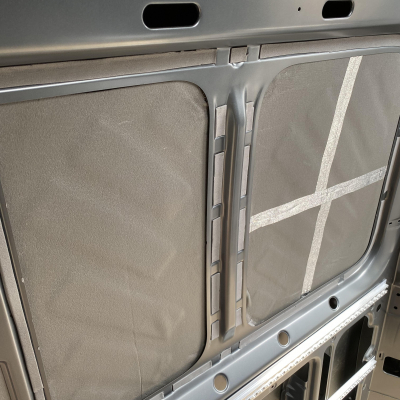

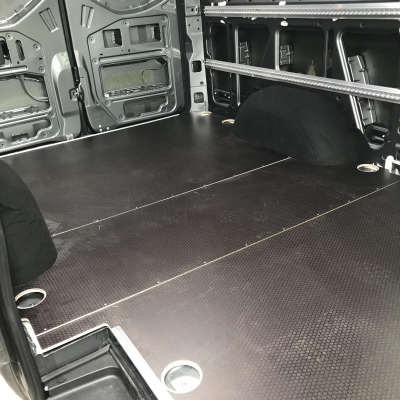

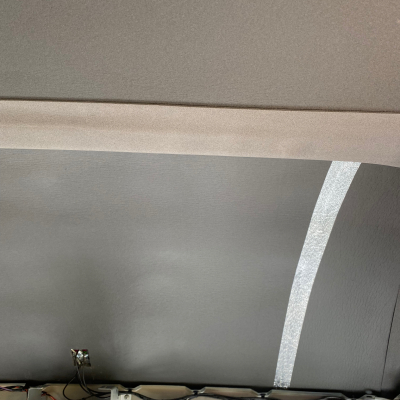

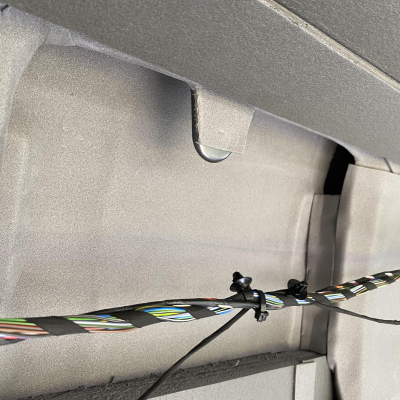

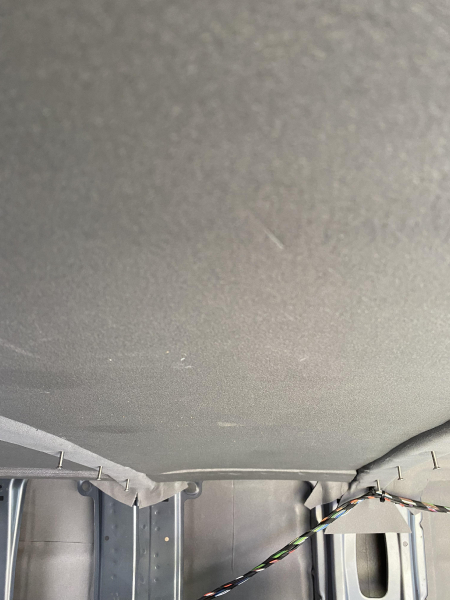

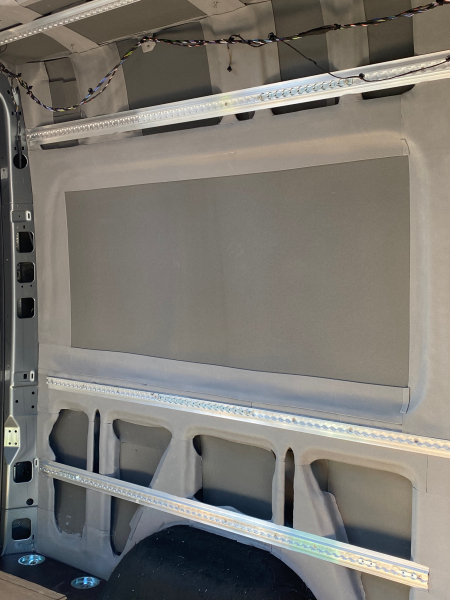

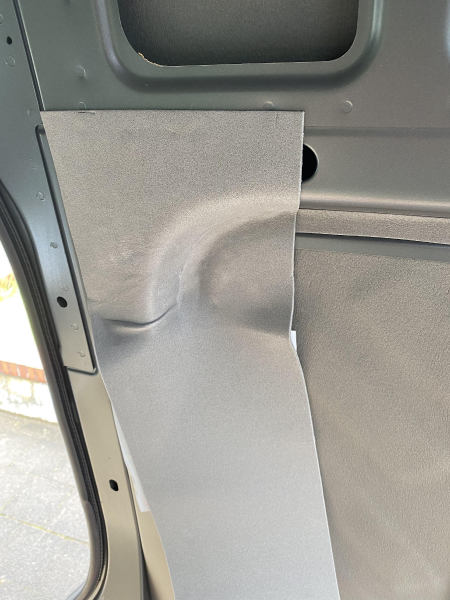

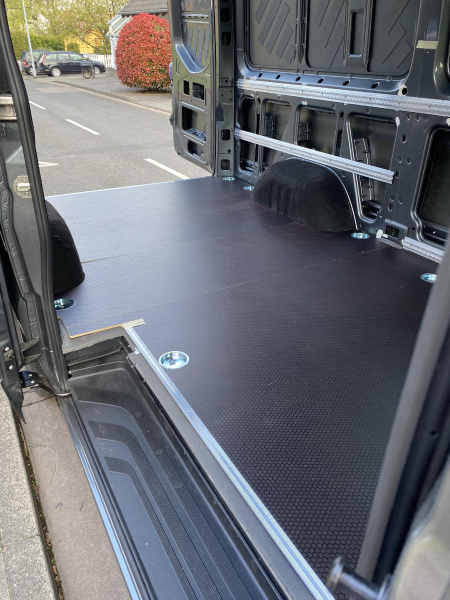

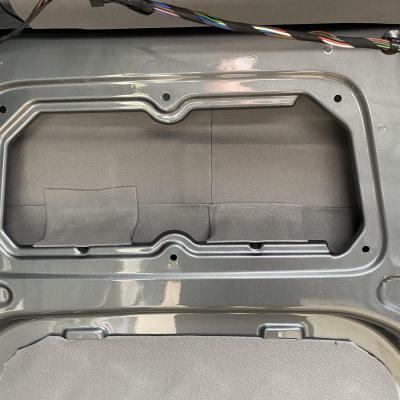

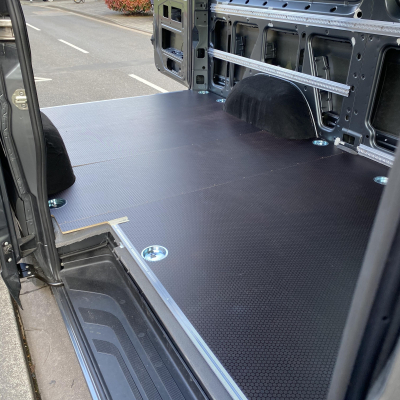

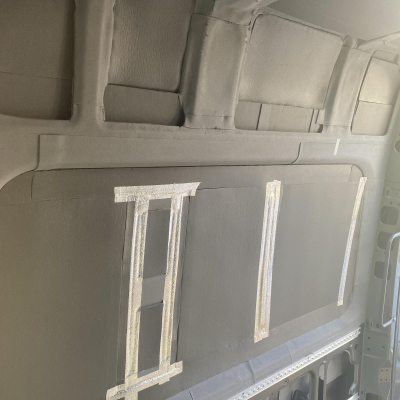

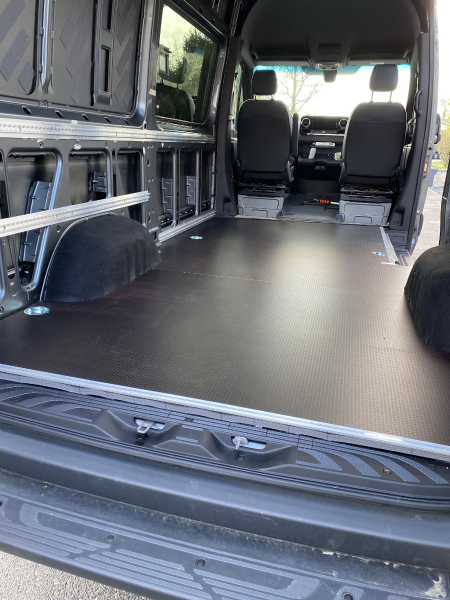

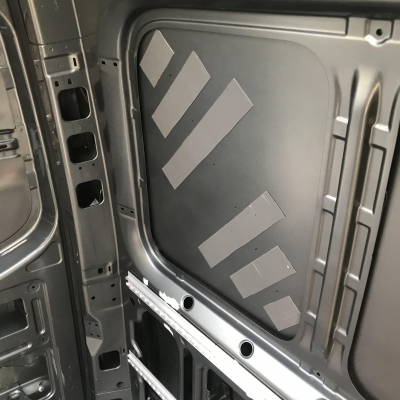

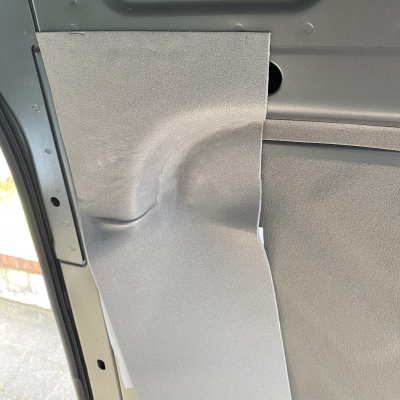

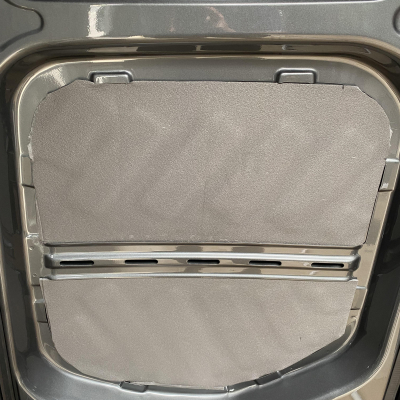

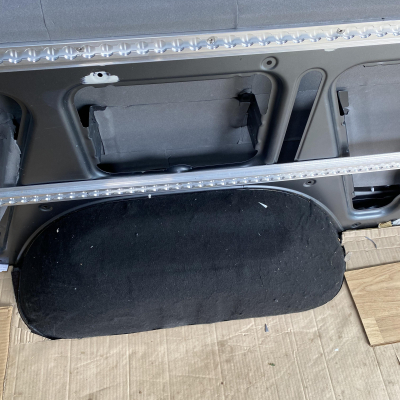

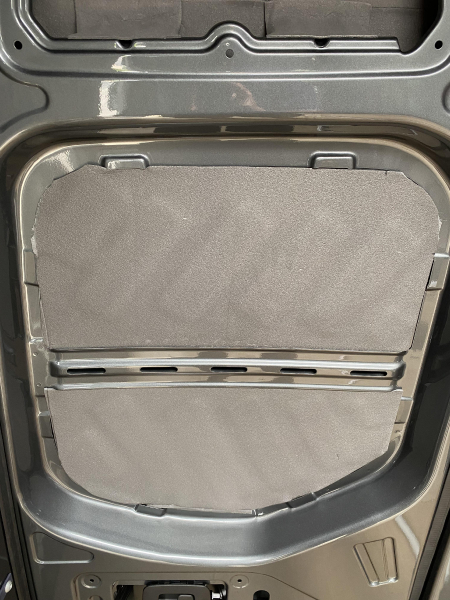

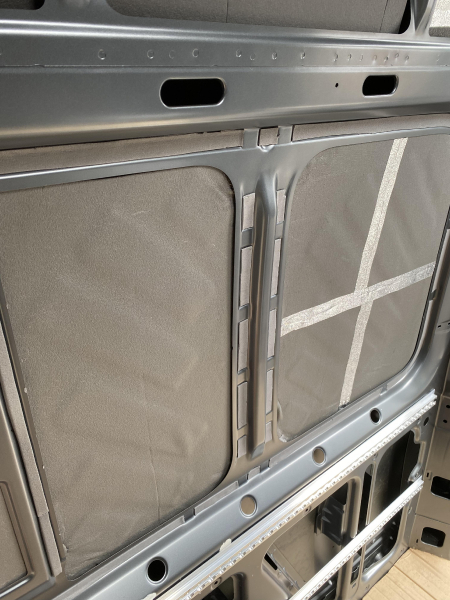

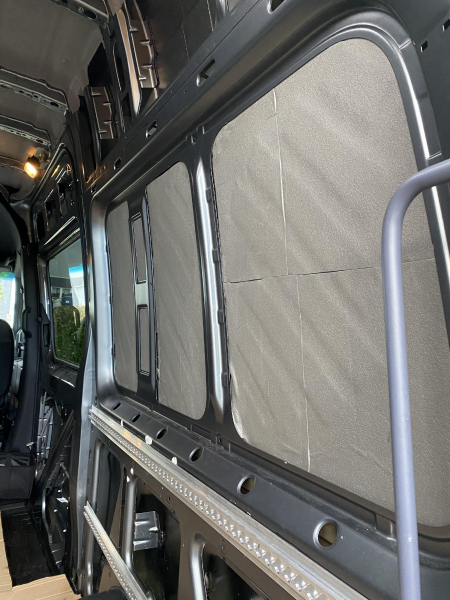

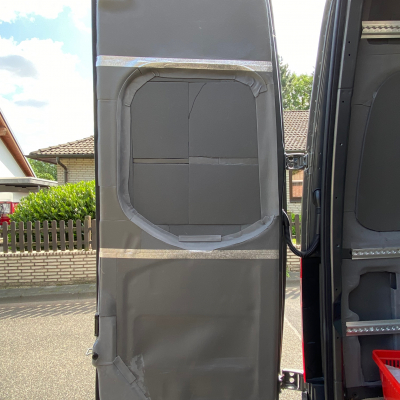

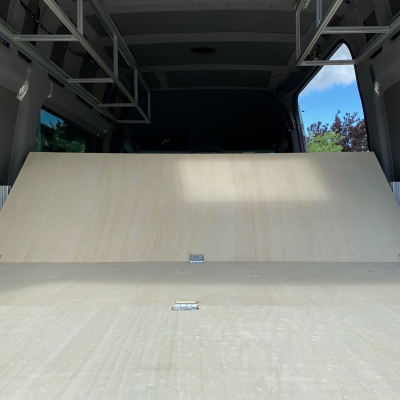

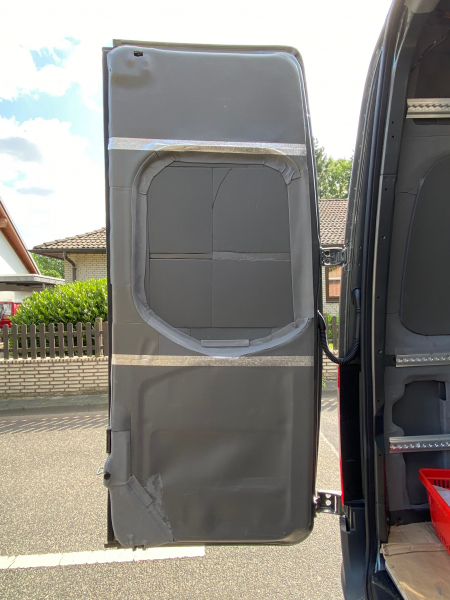

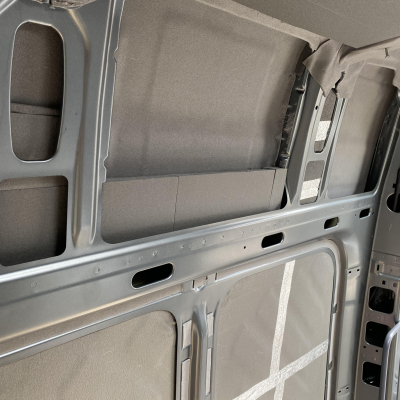

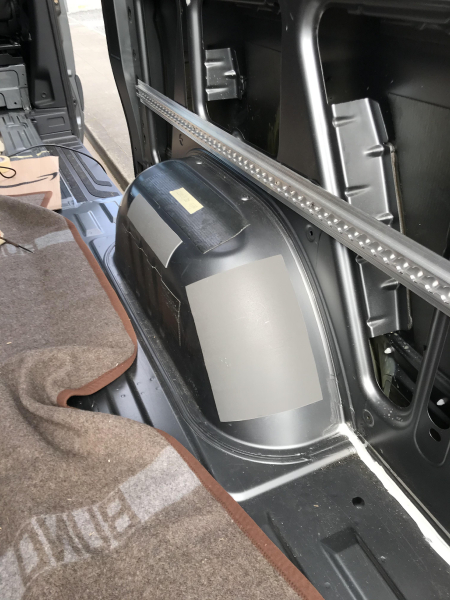

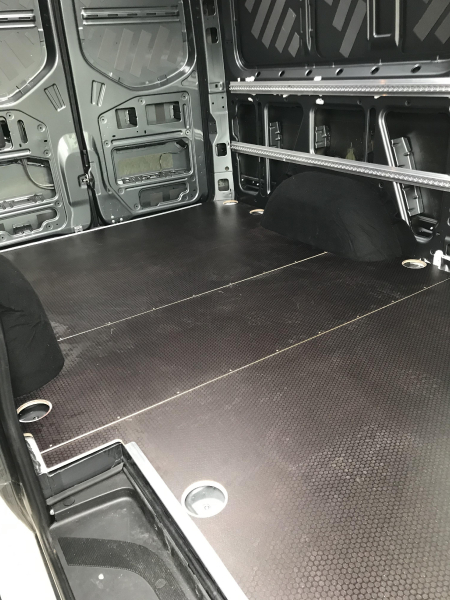

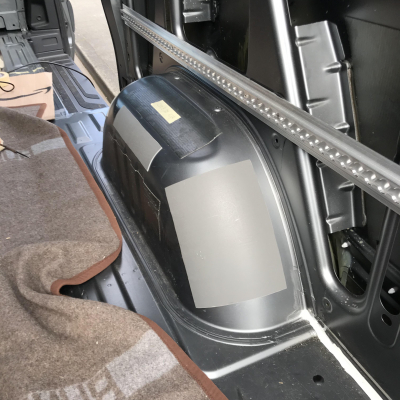

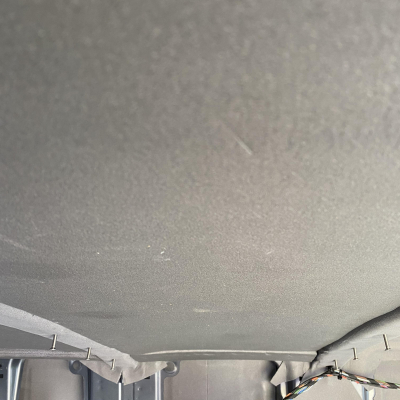

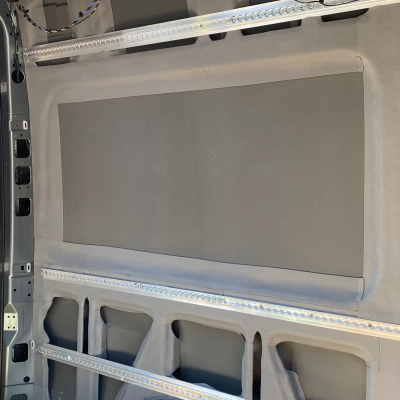

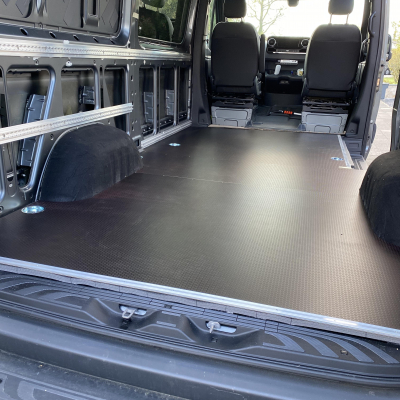

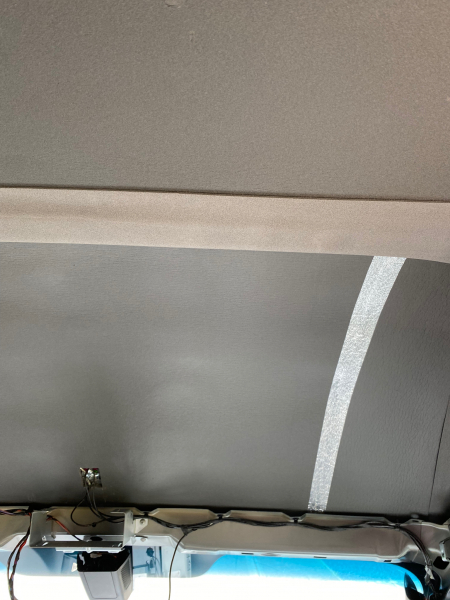

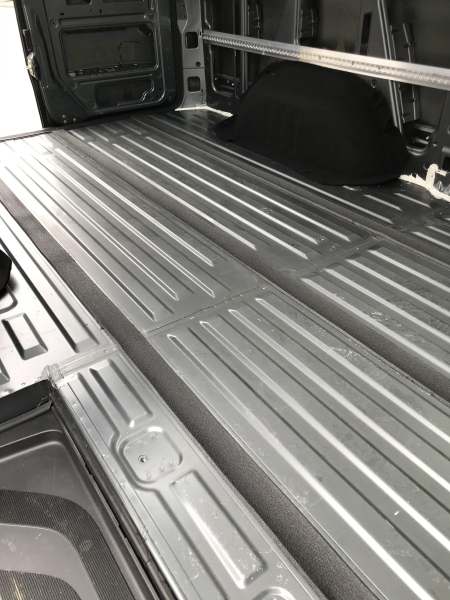

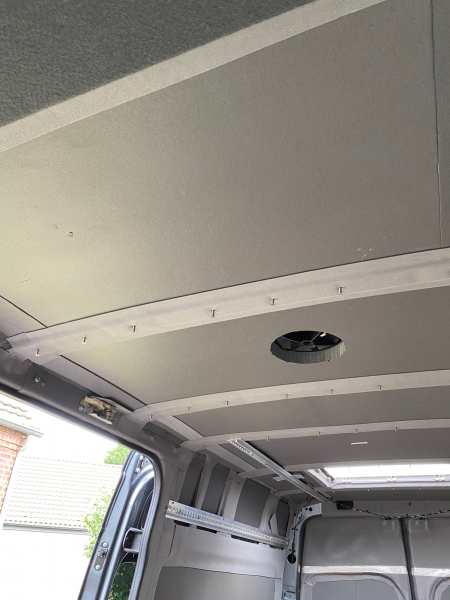

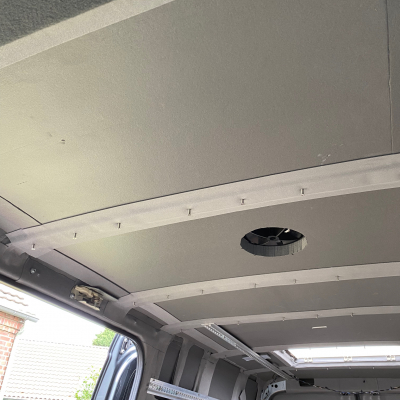

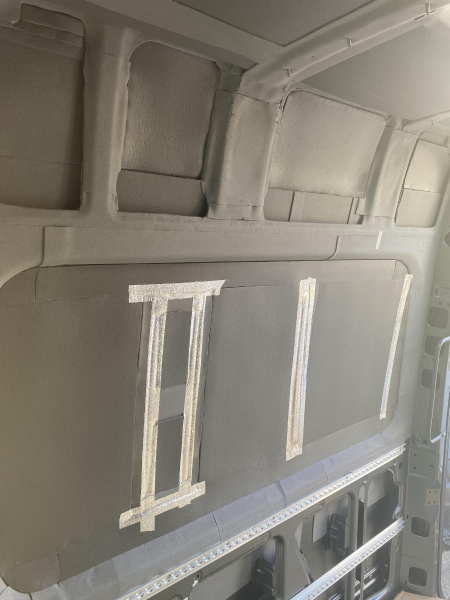

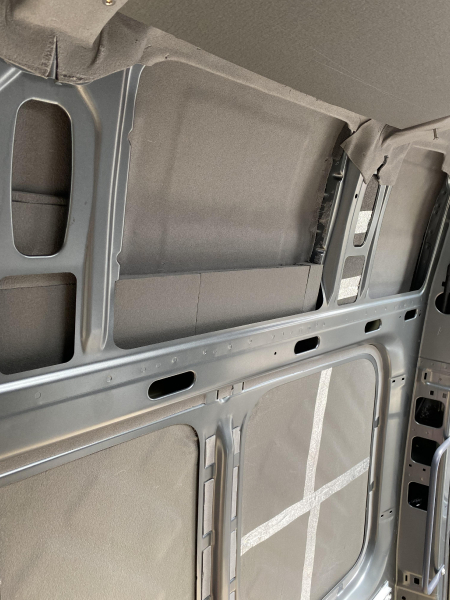

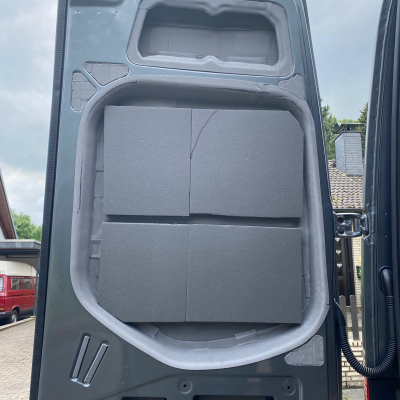

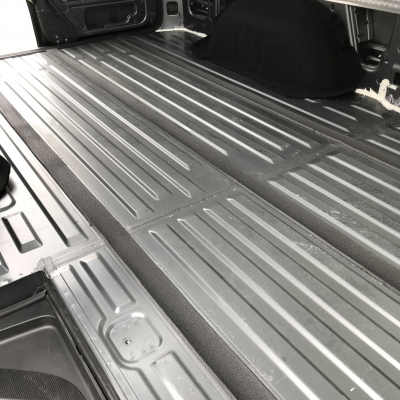

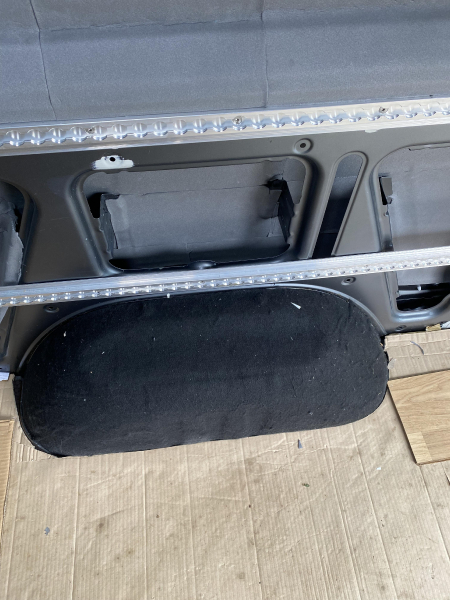

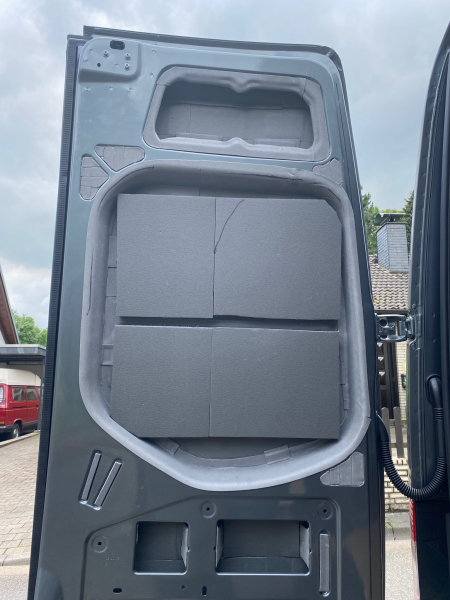

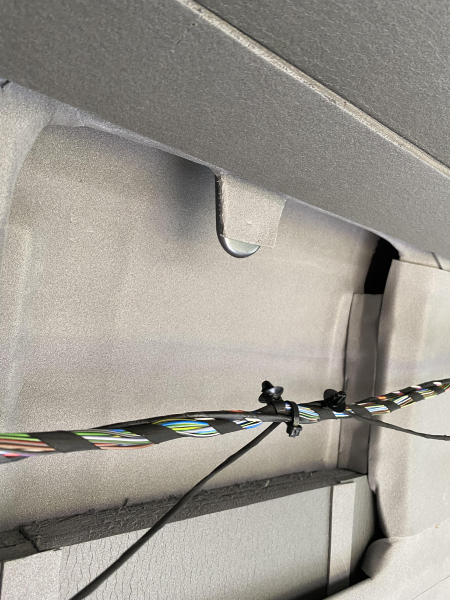

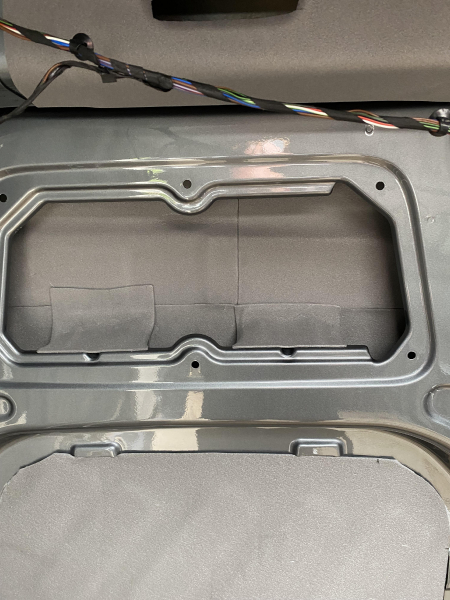

| Kind and thickness of insulation | IsoproQ (www.isoproq.de) Antidröhn, Boden PE 20 mm, PP 2,5, 5, 10, 30 mm |
| Number of beds | 2 |

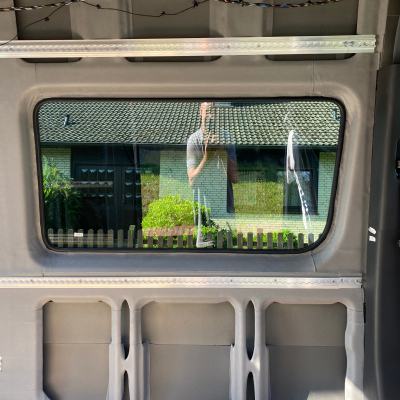

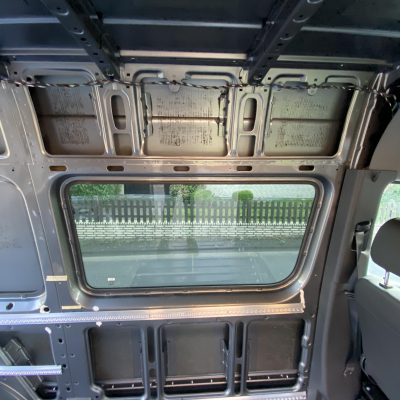

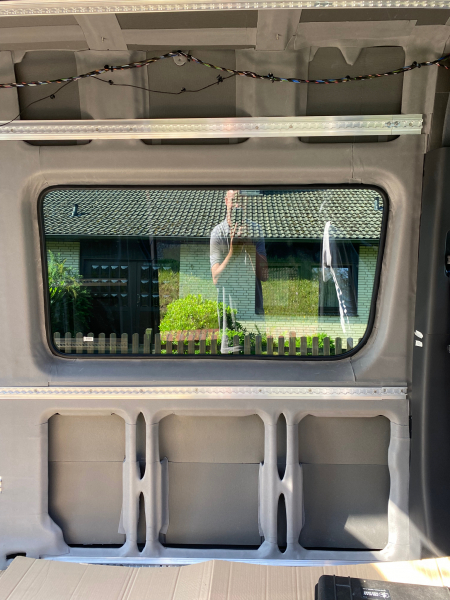

| Windows | 2 |
| Other | |
|

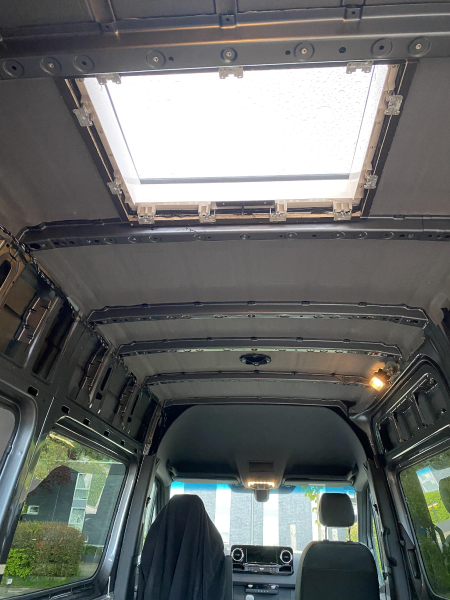

Selenitgrau Metallic Dachluke Belluna Flettner Lüfter | |
| Explanation of floor plan | |
|---|---|

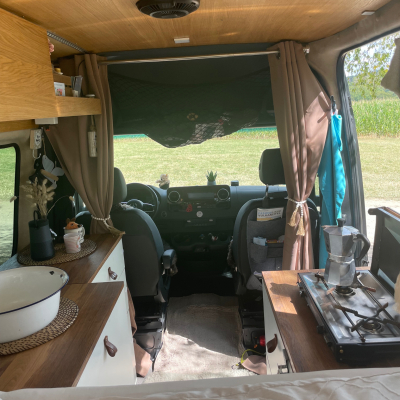

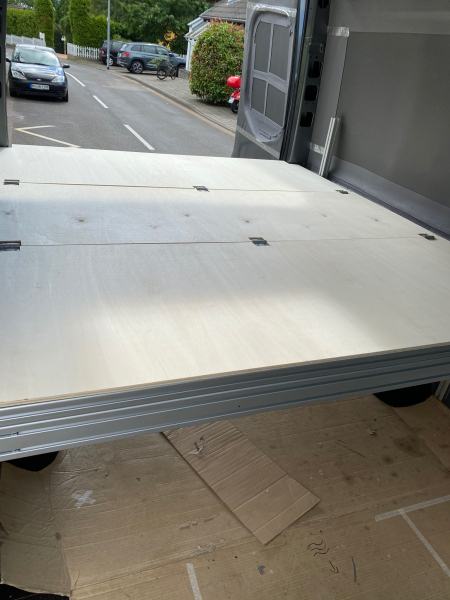

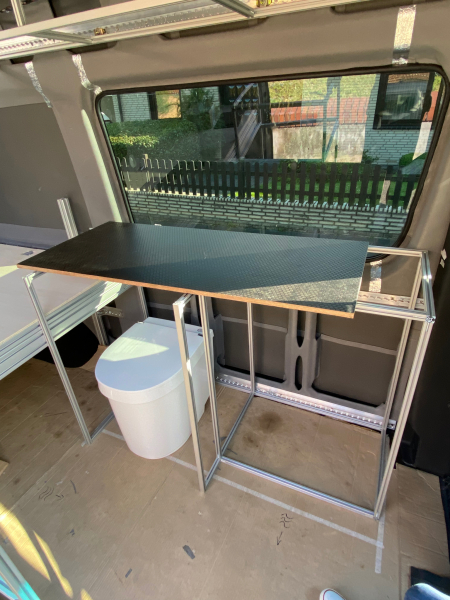

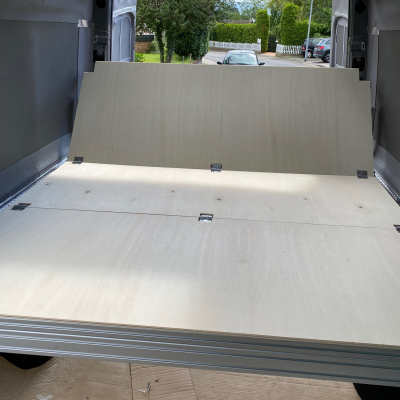

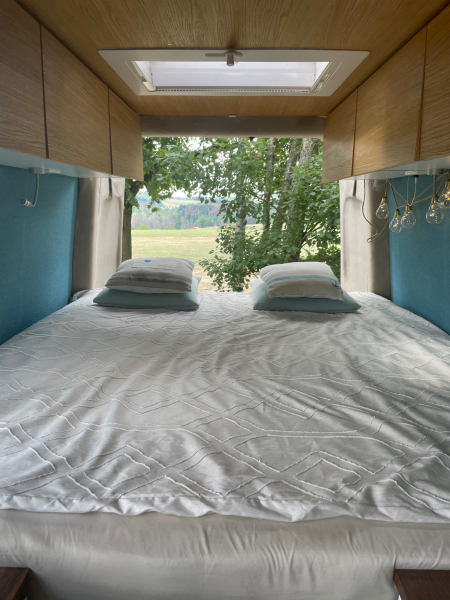

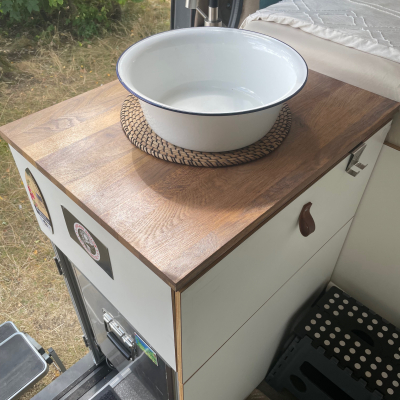

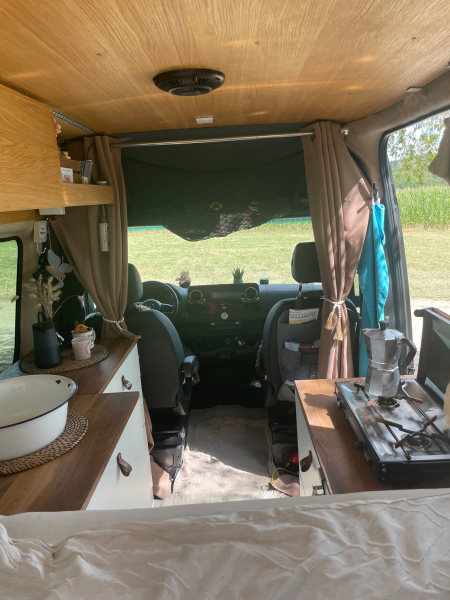

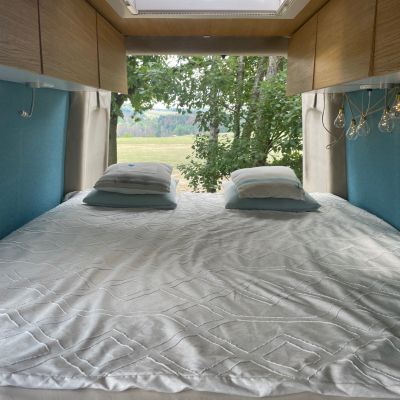

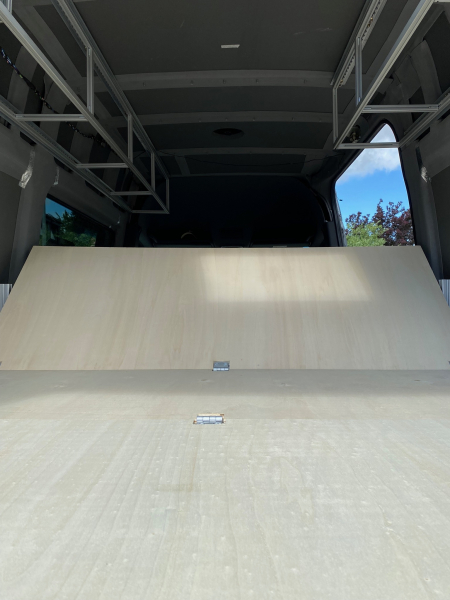

| Längsbett 160 x 190 cm Umbau zur Loungecouch, Küche 63 x 45 cm auf Fahrerseite, Toilette 60 x 65 cm auf Fahrerseite, Kühlbox 67 x 50 in Schiebetür, Drehsitze Fahrer und Beifahrer (siehe Bilder im Möbelbau). |

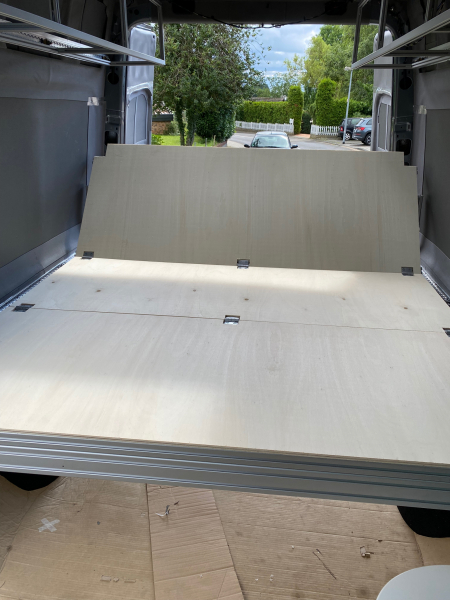

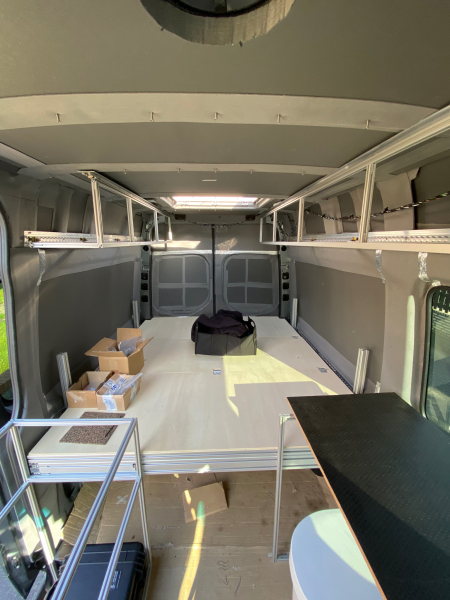

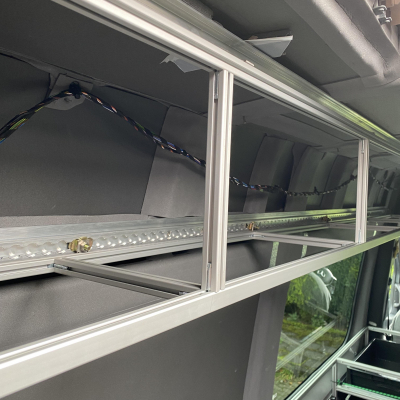

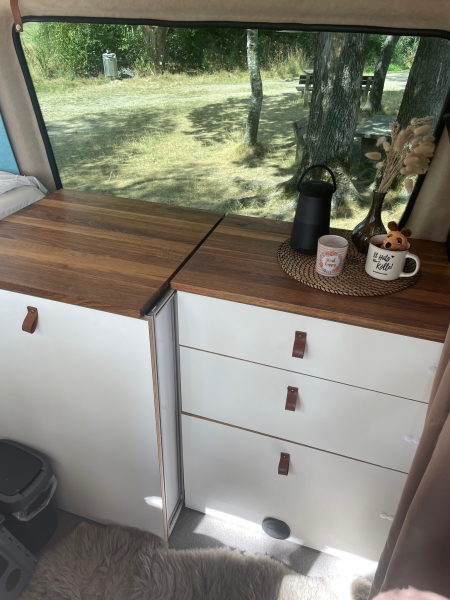

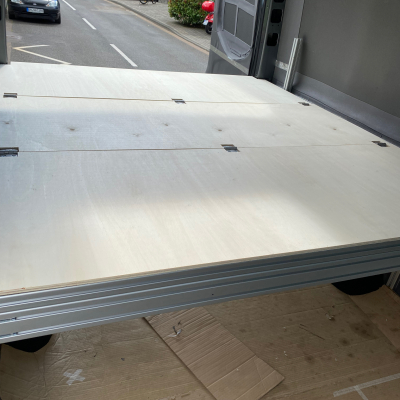

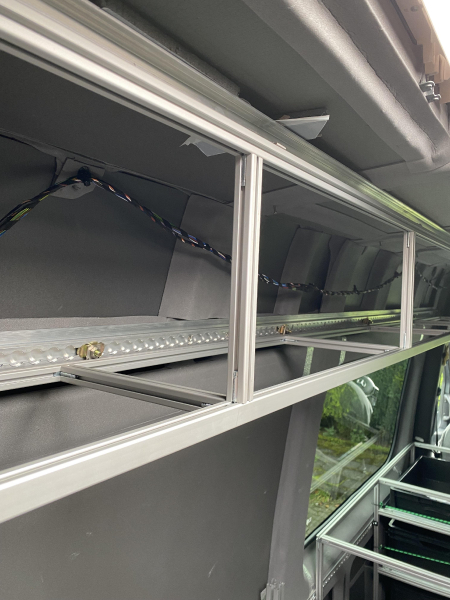

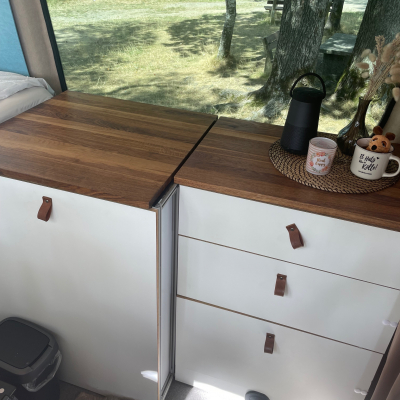

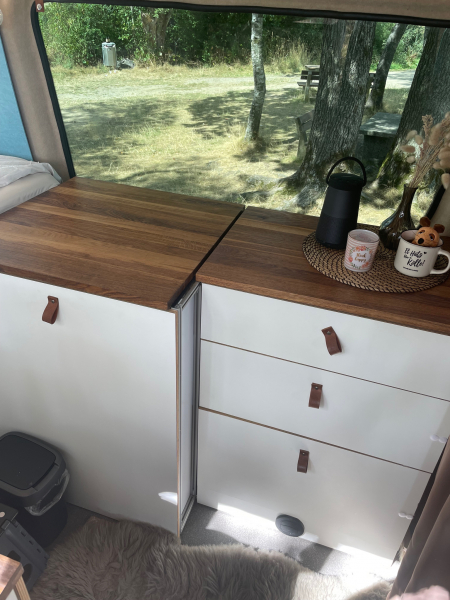

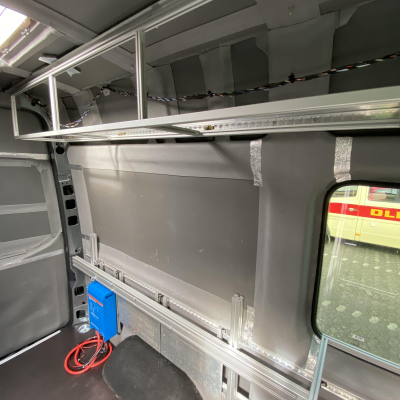

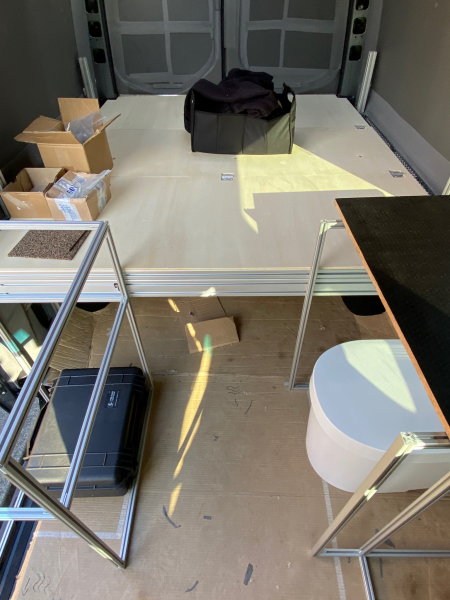

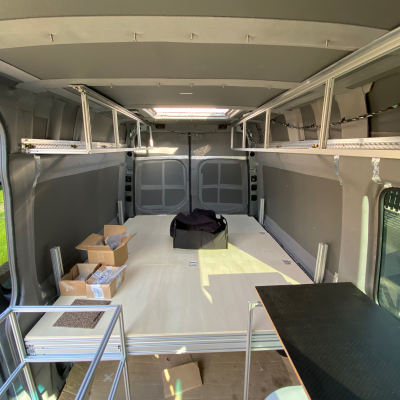

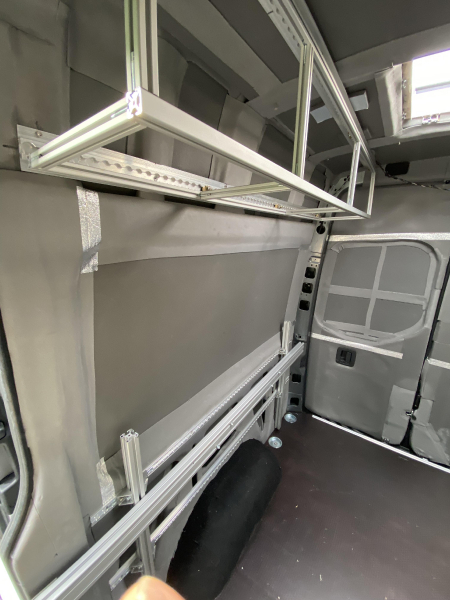

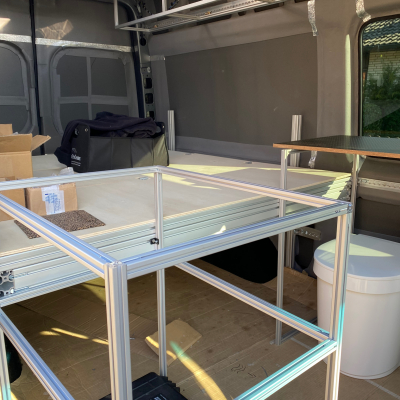

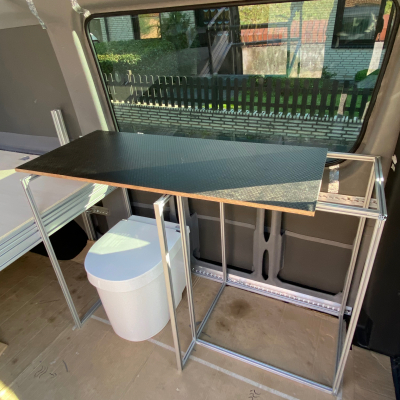

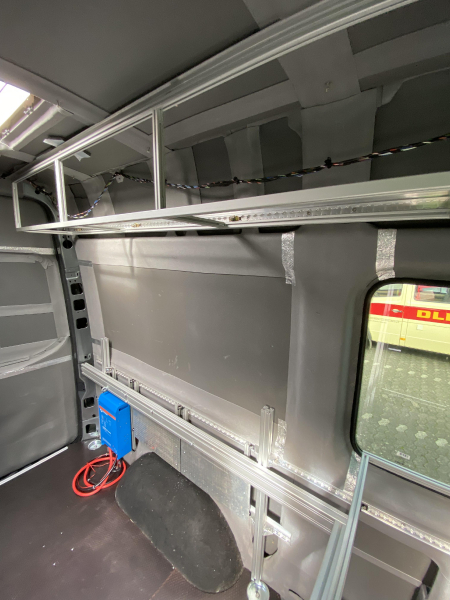

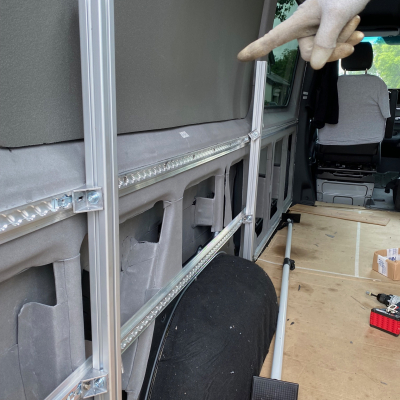

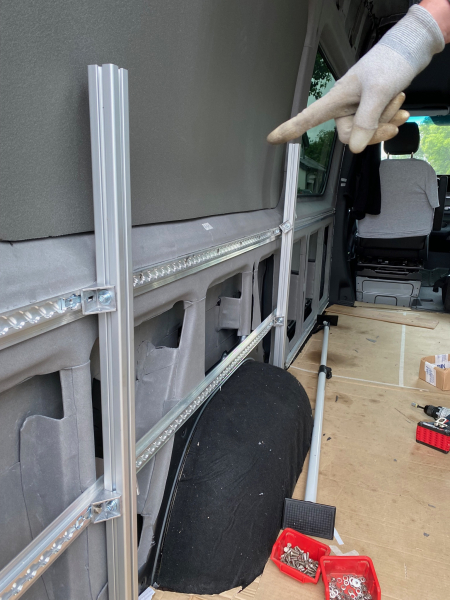

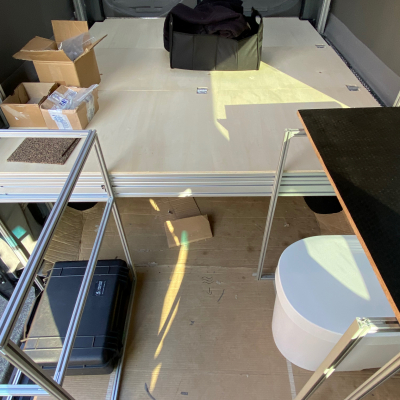

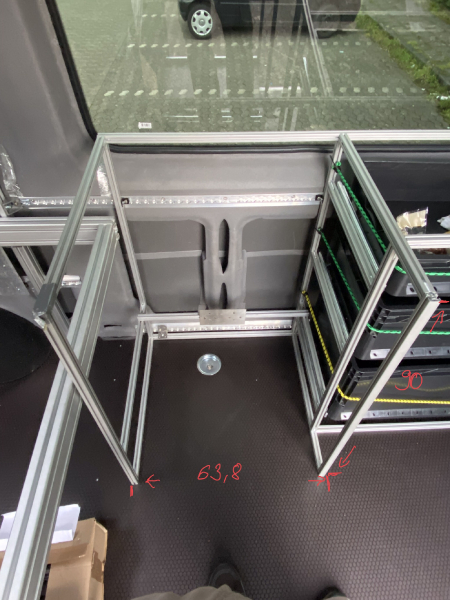

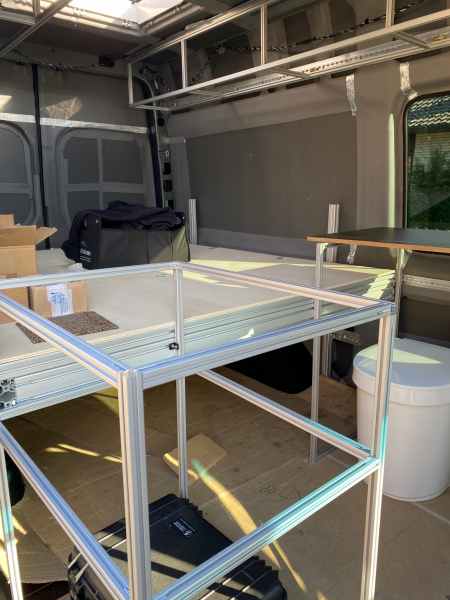

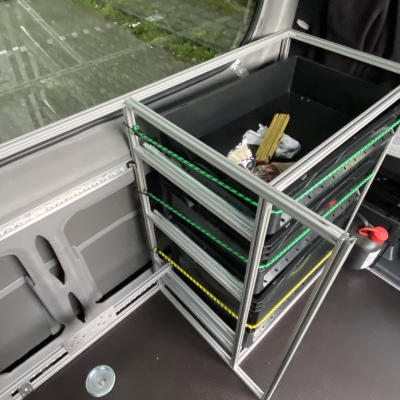

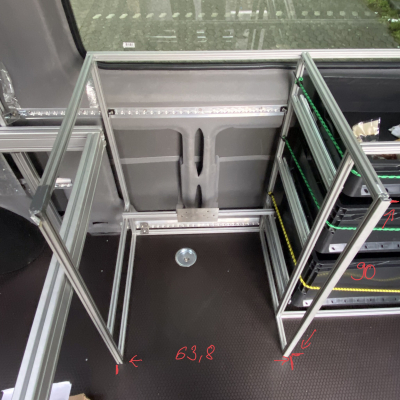

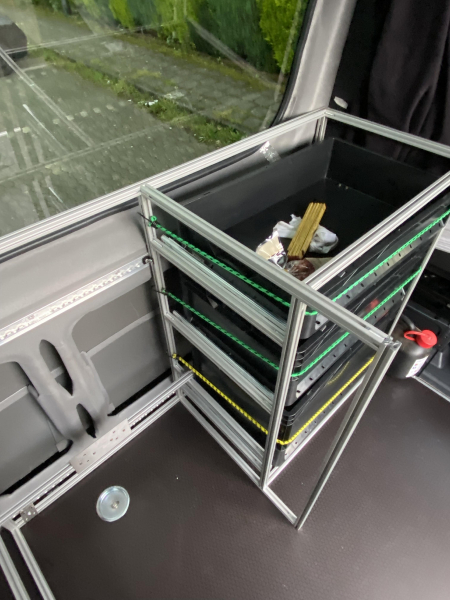

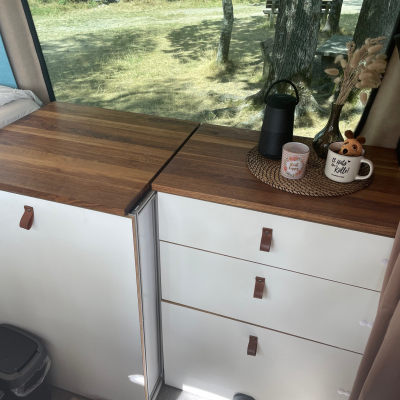

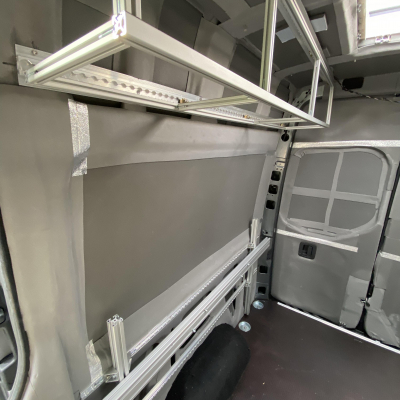

| Material of furniture | Bett 40er Aluminiumprofil, Schränke 20er Aluminiumprofil, Holzfronten in Queensply, Dibond für dünne Verkleidungen |
|---|---|
| Other | |

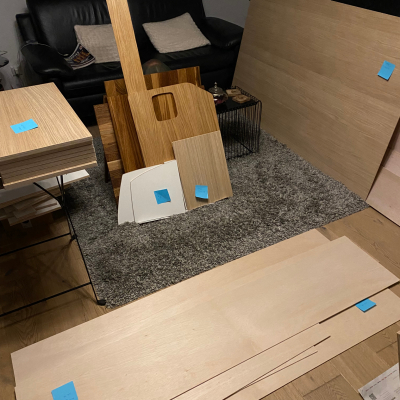

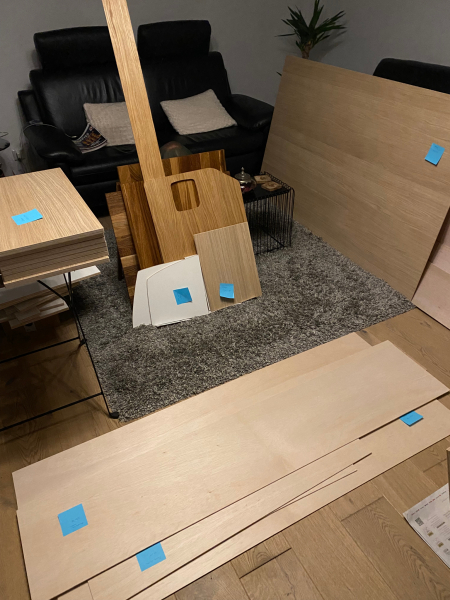

| Holz gekauft und gefräst Captain Camper in Wuppertal (www.captain-camper.de). | |
| Cooking stove | Primus Tupike Stove Piezo |
|---|---|
| Gas installation | Kartusche |
| Other | |
| Mit Adapter für Gasflasche im Set enthalten. | |

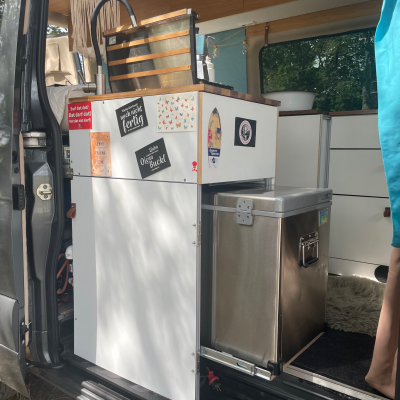

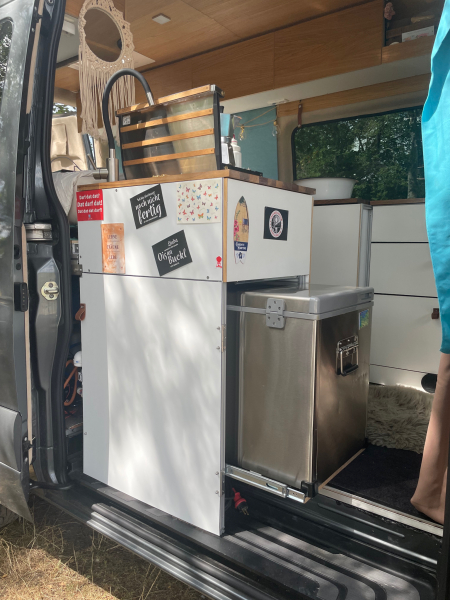

| Manufacturer and type of fridge / cooler | WEMO B56S Kompressor-Kühlbox 55 Liter, A+++ 12/24/230V, Unterspannungsschutz und Vorrangschaltung |
|---|---|
| Other | |
| www.mobilekuehlung.com | |
| Voltage in the chassis | 12V |
|---|---|
| Voltage in the cabin | 12V |
| 110V / 230V in the cabin? | yes |

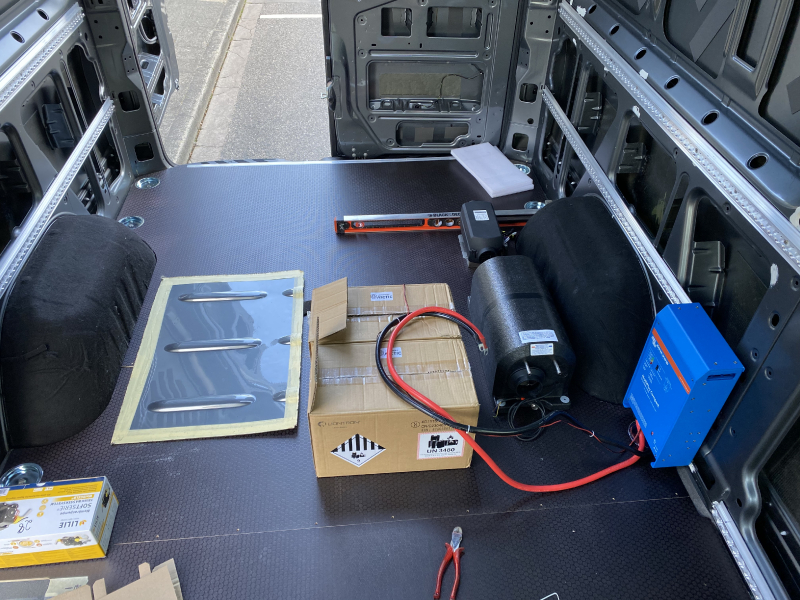

| Inverter | Victron MultiPlus Compact 12 V | 1600 VA | 70 A | 230 V AC |
| Capacity of batteries in the cabin | 200 Ah |
|---|---|
| Battery type | LiFePo4 |
| Battery charger for cabin batteries | Victron MultiPlus Compact 12V 1600 VA 70 A 230 V AC |
| Battery management | Bluetooth Liontron und VictronConnect |
| Solar capacity | Wattstunde 180 Wp Faltmodul |
|---|---|
| Solar controller | Victron MPPT 75/15 Smart |
| Fuel cell | no |

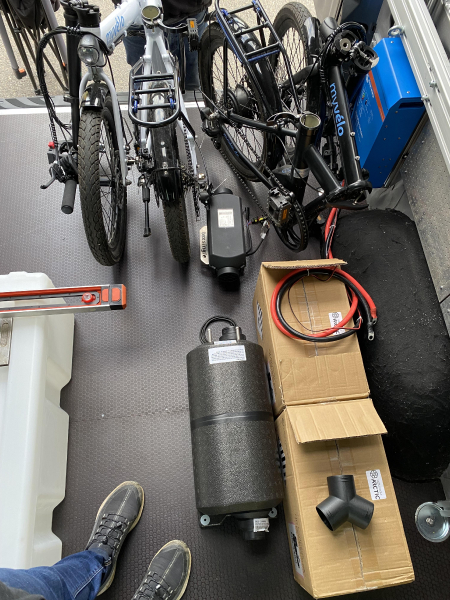

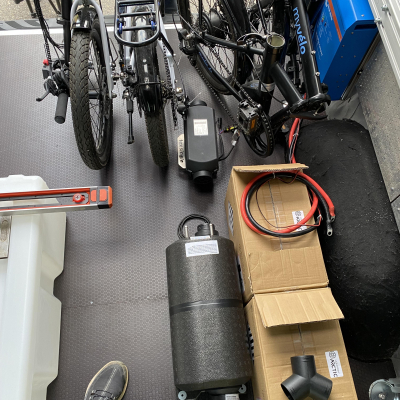

| Manufacturer and type of heating system | Autotherm Air 2D 12V |
|---|---|

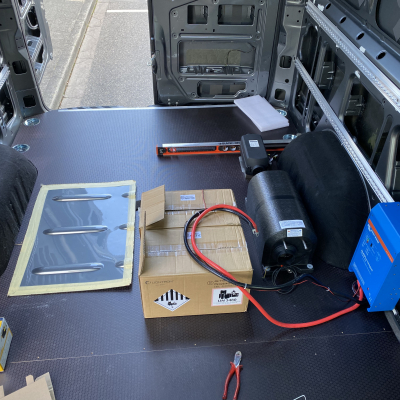

| Warm water processing | Elgena Boiler Nautic Compact Warmluft LE - 230 V / 500 W, 10 Ltr. |
| Cab heating | Serie |
| Other | |
| https://www.tigerexped.de/standheizung-camper-komplettset-2kw | |
| water flow | John Guest |
|---|---|
| Water filtration system | Pearlaqua Micro fertiges Anschlussset mit Durchflusschalter |
| Capacity of fresh water tank(s) | 130 L |
| Other | |
| https://www.wassertechnik.pro/elektrotechnik/uvc-led-technik/pearlaqua-micro-anschlussfertig-mit-durchflussschalter | |

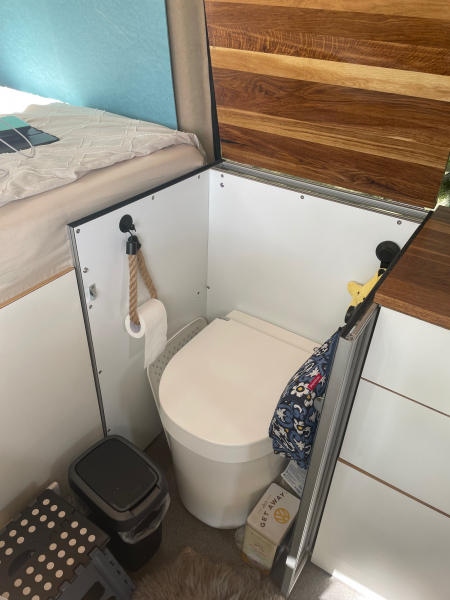

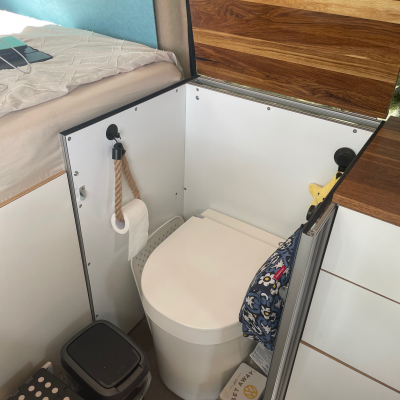

| Manufacturer and type of toilet | Separett Tiny Kompakt-TTC 1270 |
|---|---|
| Capacity of black water tank | Sammelbehälter (Fäkalienbehälter): 14,5l; Urinbehälter: 7,1l |
| Other | |
|
Material: hoch glänzendes , hoch dichtes Polypropylen (HD-PP), recycelbar 14,5l Fäkaliensammelbehälter HD-PP 7,1 l Urinsammelkansiser HD-PP 12V Lüfterbauteil 1,6 W mit Netzadapter auf 230V Maße: Breite 40 cm, Tiefe 50 cm, Sitzhöhe 44 – 45 cm cm, Gewicht 9 kg | |
