Simon Conollys Fahrzeug (#1158)

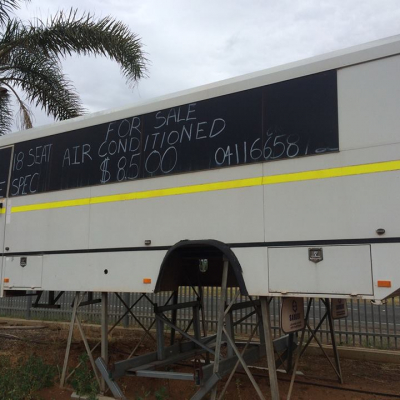

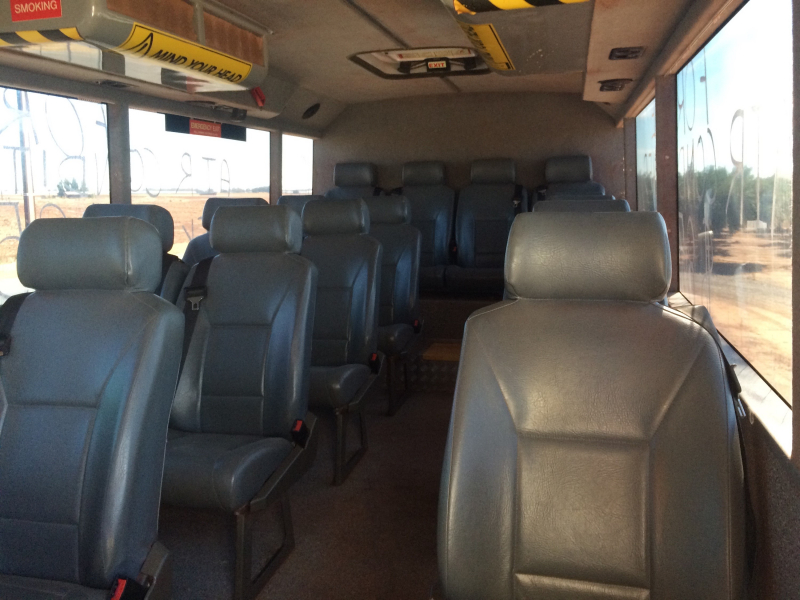

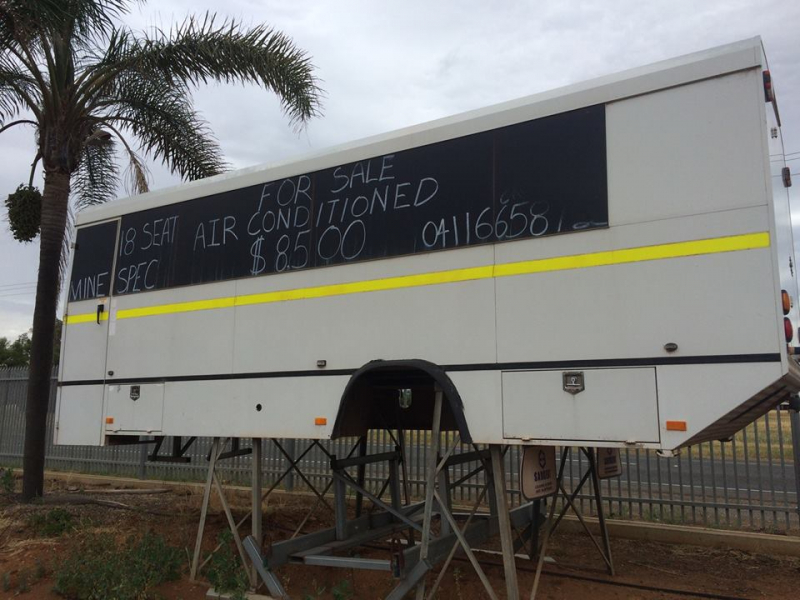

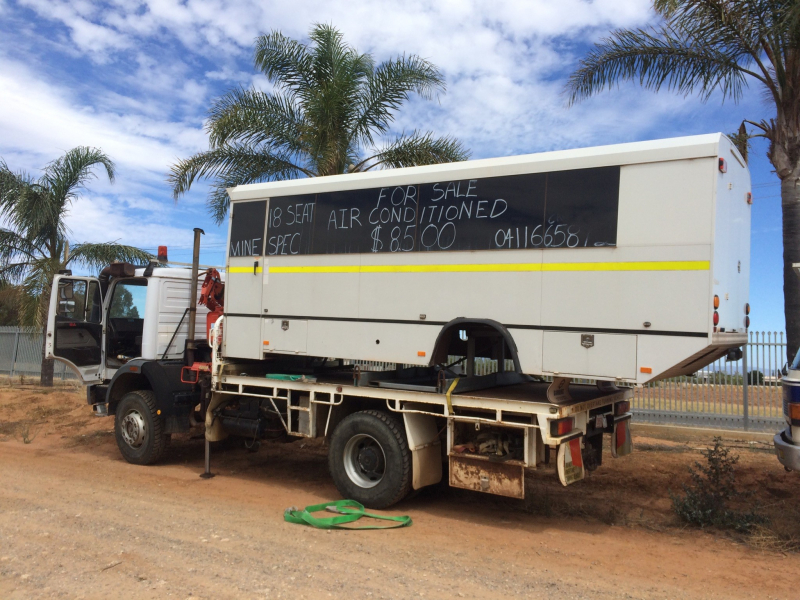

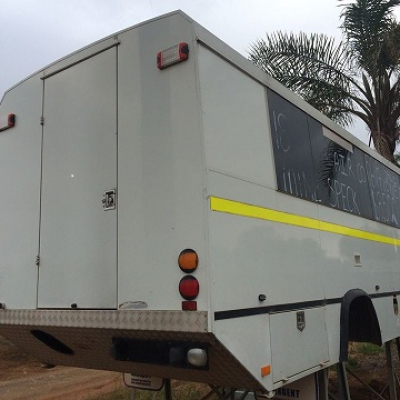

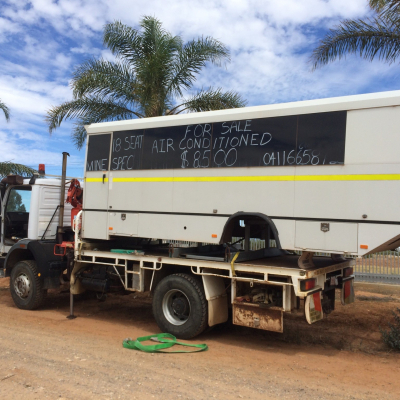

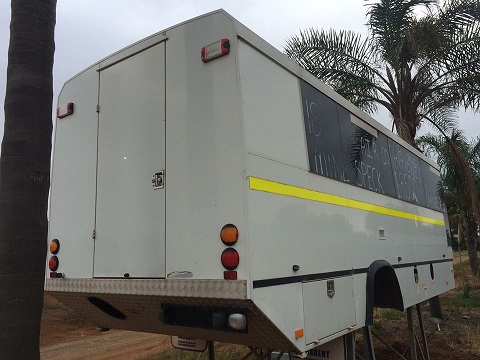

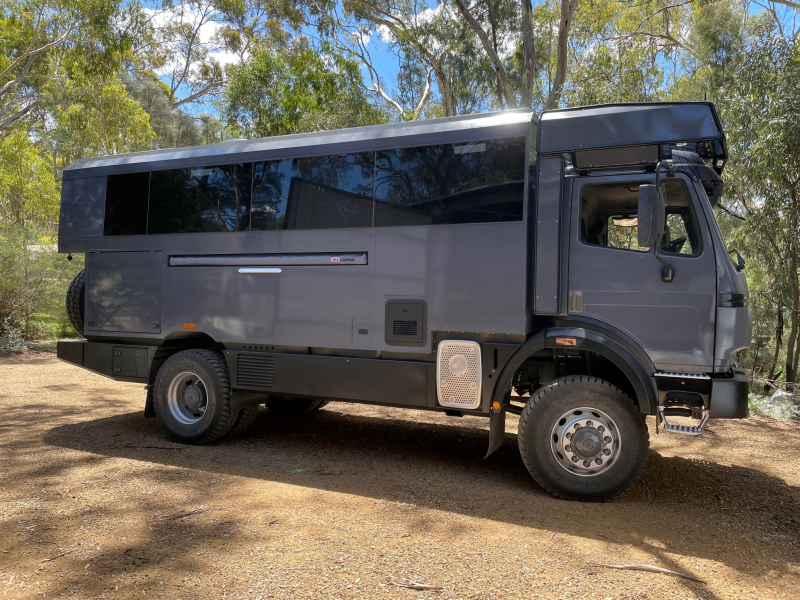

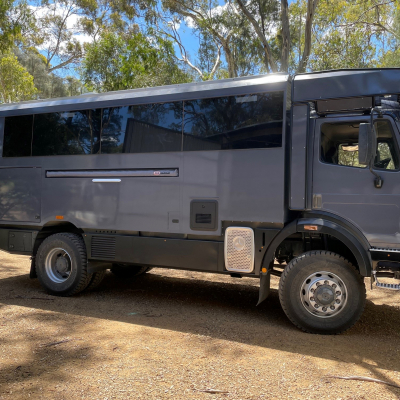

The plan is to build an overlander using the 4x4 Mercedes chassis and the ex Australian mine specification coach body. Buying this body worked out cheaper than starting from scratch.

General Information

Manufacturer and model Mercedes 1222A
Name To be decided.. Rafiki or Asha. (Swahili)
Country Australia
Year of manufacture 1996
For sale? no

Engine

Engine type OM441
Number of cylinders V6
Horsepower 220
Other

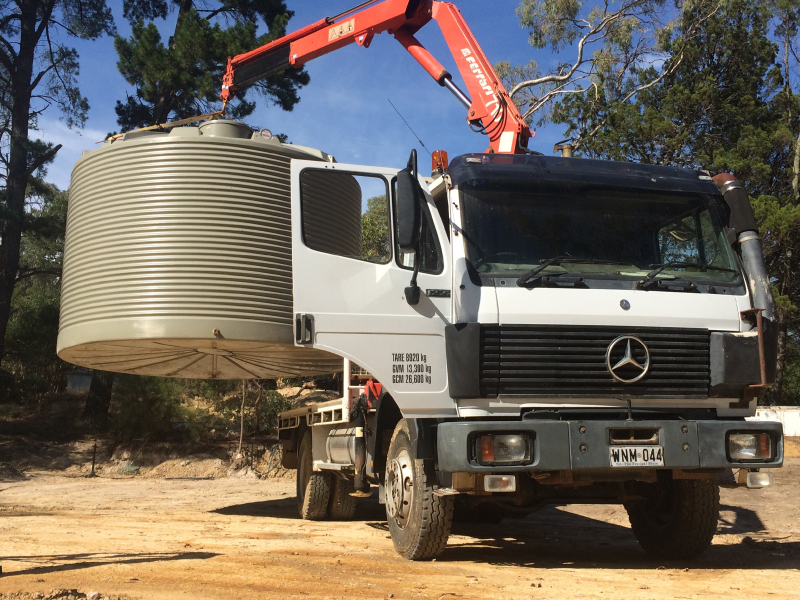

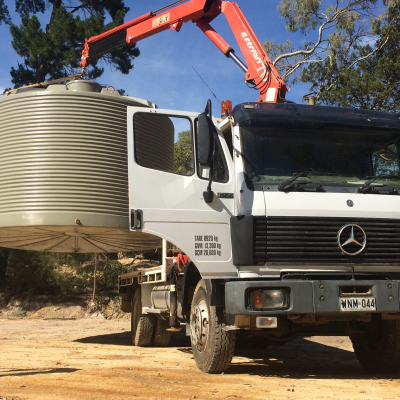

Turbo, fuel pump and injectors of donor truck to be fitted giving approx 300hp.

Chassis

4x2, 4x4, 6x6, 8x8 4x4
Wheel base 4.2m
Number of seats 2
Tyre size 315/80 R22.5
Rim size 22.5
Type of tyre Goodyear Omnitrac
Tank capacity 350lt
Diesel filter yes
Diff locks front and rear

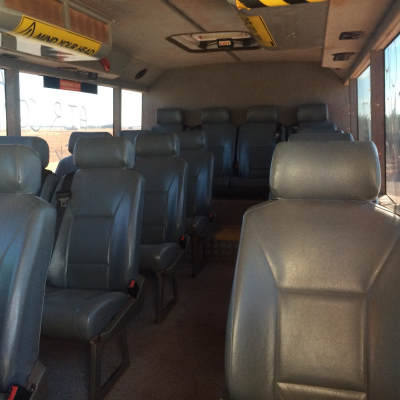

Cabin

Manufacturer of the cabin Able Bus and Coach, Perth, WA.
Inner dimensions (LxWxH) 5880L x 2360W x 2022H
Outer dimensions (LxWxH) 6010L x 2490W x 2200H
Cabin material Steel with alli outside and timber inside
Kind and thickness of insulation none as of yet. 50mm in walls and roof, 100mm in floor.
Number of beds none as of yet. 2 x single mattress's with linked foam mattress. Ref plans.
Windows 5 each side
Subframe rigid.. manufacturing 4 point
Other
Inbuilt engine driven air conditioning (came with body), full length tinted windows (blacked out and insulated where not required. Separate shower and toilet/sink planned. Cab tunnel also planned.

Floor plan

Explanation of floor plan

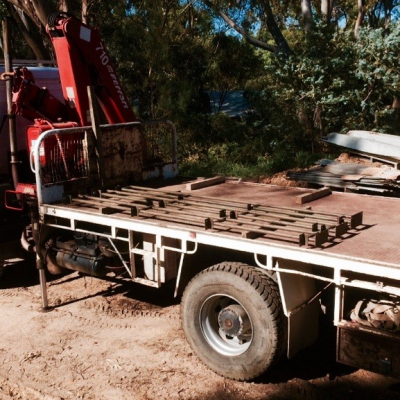

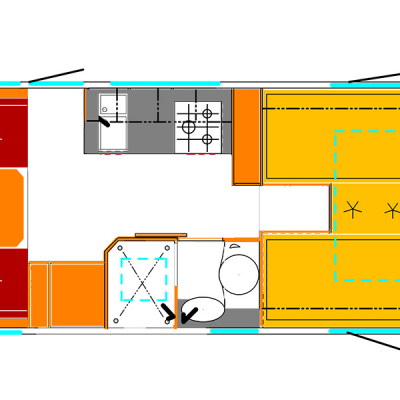

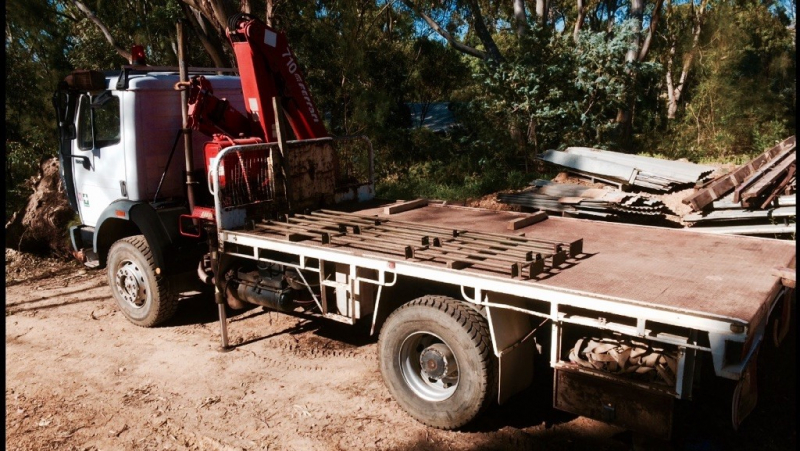

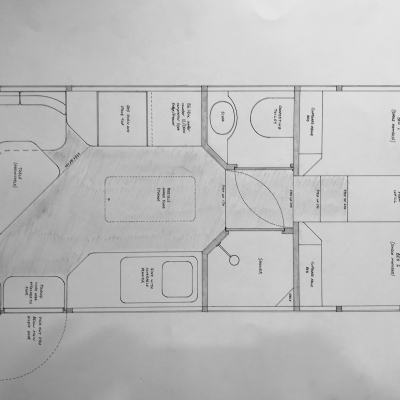

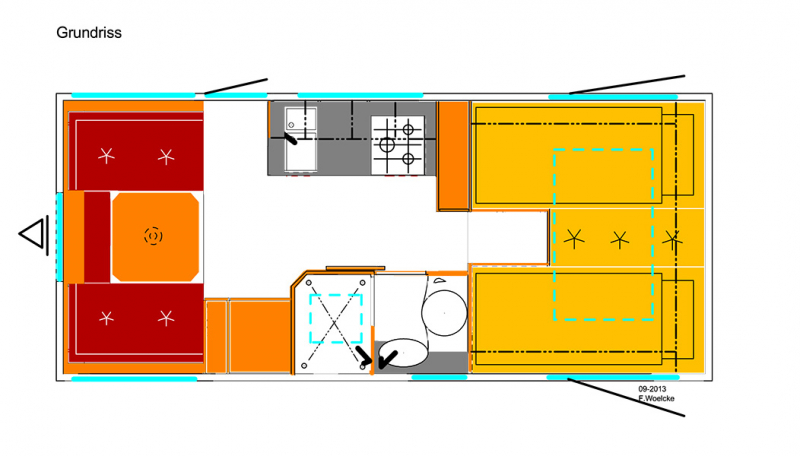

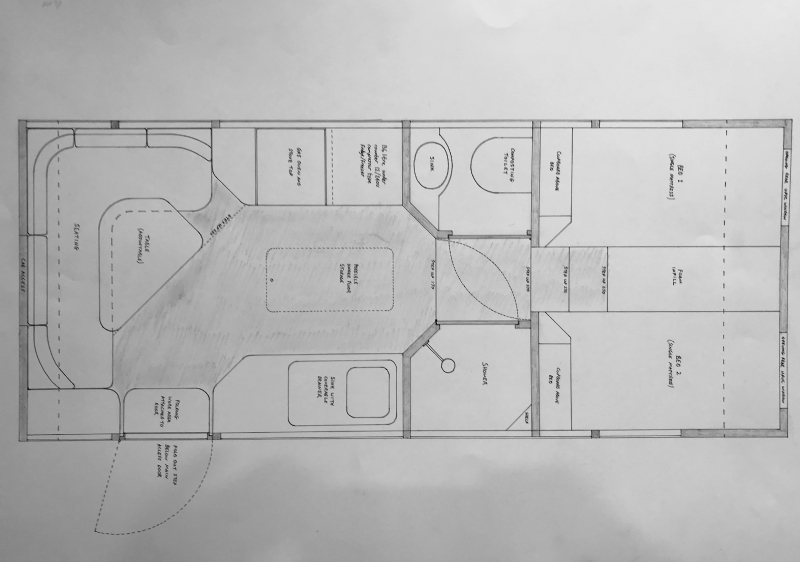

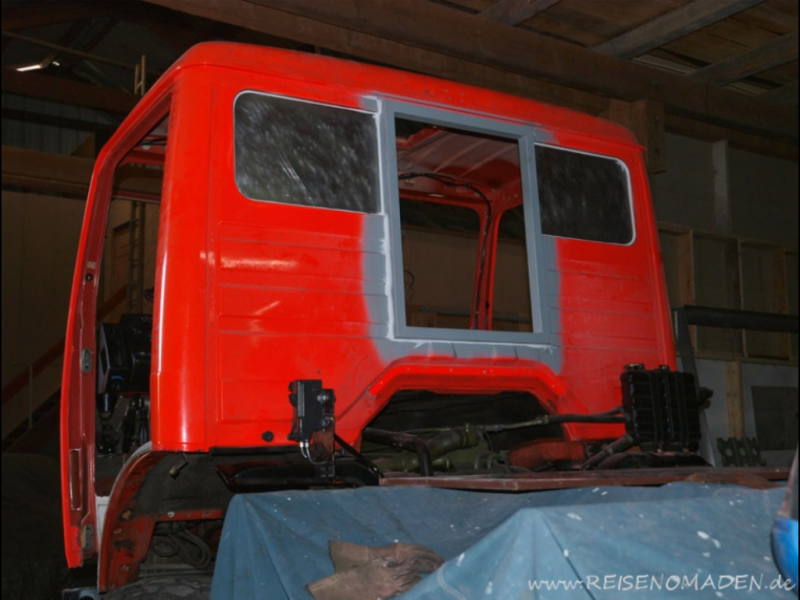

Here's a sketch of what we plan will happen... The second pic is a sketch is based on our 6 m long body. I saw the single bed idea in another truck (first attached picture. Whoever owns this truck, I love your plan and hope you don't mind me basing ours around yours!), and we both like the idea of single beds which lessens partner disturbance when getting in and out. It also allows for a Queen size bed when sleeping across if required. The bed area is raised with outdoor lockers underneath and a space for the genset in the middle. The composting toilet and basin will be in a room of their own, as will be the shower. The doors to these rooms also allow for closing the bedroom and privacy. The seating area will be raised by approx 400mm allowing for batteries and water tanks etc. All yet to be planned. There will be a central floor hatch and between the chassis rails we will house the heating etc. The third pic is of haw the cutout will look. Any ideas or suggestions welcome.

Cooking stove

Cooking stove Standard LPG oven with 4 burners.
Gas installation By ticketed engineer.
Other
I will be using two x 18kg aluminum forklift gas cylinders, fitted with vapor outlets. This allows them to be refilled when required, adapted when in remote areas, and removed for shipping if required..

Power supply

Voltage in the chassis 24v
Voltage in the cabin 12v/24v/240v
110V / 230V in the cabin? no

Power generation

Fuel cell no
Power generator Honda EU70is (doubles as house backup)

Gas system

Explanation of gas system
Plan to use 2 x 18kg aluminum forklift gas cylinders, mounted outside the cabin. One for heating and one for cooking.

Toilet

Manufacturer and type of toilet Natures Head composting toilet
Capacity of black water tank n/a
Other
A secondary sealed bucket will be stowed on the chassis under the living body for compost toilet emptying, so as to allow composting to continue before contents are then emptied at home into a dedicated compost area.

Vehicle accessories

Rear carrier Twin spare wheels mounted at rear of body which utilise hydraulic lowering.

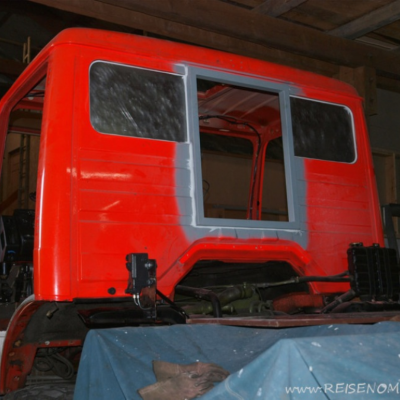

Roof rack Cab mounted to match height of body. 4 spot lights and a K5LA horn!
Storage boxes Under chassis lockers behind rear wheels for Jerry Cans (3 diesel, 3 petrol).
Outside cooking facilities Vehicle left locker below bed at rear dedicated 'cooking and outdoor' locker.
Awning Mounted just below window line on vehicle left (recessed into body).
Other
K5LA train horn... to keep other road users awake!
released 06.07.18
owner Simon Conolly
views 8111
filled out 75%
