folgt noch, wir stehen noch am Anfang. Die Leerkabine sollte demnächst abholbereit sein, dann startet das Projekt richtig. Die unten aufgeführen Dinge sind Stand jetzt, wie es geplant ist. Ich aktuallisiere fortlaufend.

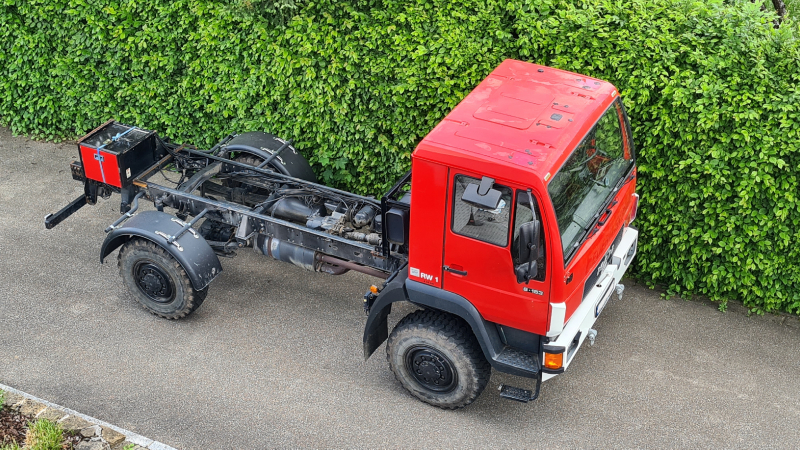

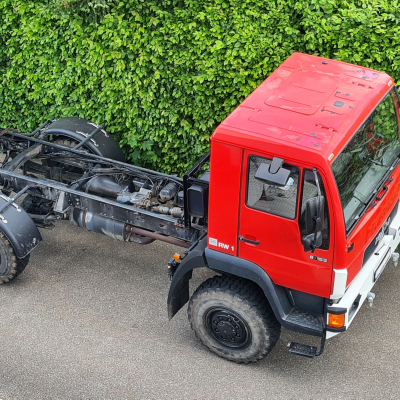

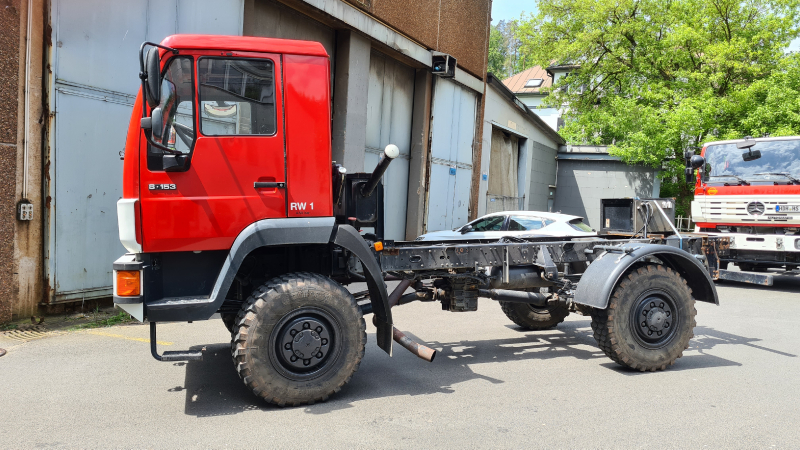

| Manufacturer and model | MAN L2000 8.153 LAEC 4x4 |
|---|---|
| Name | Alexander |
| Country | Deutschland |
| Website | Instagram: 2lions.overland |
| Year of manufacture | 1996 |
| For sale? | no |
| Engine type | D0824 LFL 01 |
|---|---|
| Cubic capacity | 4580ccm |
| Number of cylinders | 4 |
| Horsepower | 155 |
| Torque | 570 |
| Zulässiges Gesamtgewicht | 7490kg |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
| Wheel base | 3260mm |
| Number of seats | 3 |
| Tyre size | 12.5 R20 MPT |
| Rim size | 11-20 SCD |
| Type of tyre | MPT80 |
| Tank capacity | 55l |
| Diesel filter | no |
| Other | |

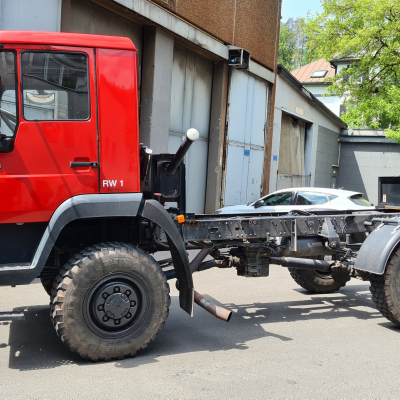

| Soll noch umbereift werden auf Felgen 11.75×22.5 mit 385/65 R22,5 Hankook AM15+. Zudem kommt der FW Dieseltank runter und ein ca. 400L Alutank dran. Rückgerüstet vom RW1 Aufbau, Rotzler Bergungswinde, Generator, FW Beleuchtung, Innen alle verbohrten Kunststoffteile neu, jeder Zentimeter Kabel was nicht mehr benötigt entfernt. | |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | Hinten, Mitte, Untersetzung (Crawler) |
| Manufacturer of the cabin | 4wheel24 |
|---|---|
| Inner dimensions (LxWxH) | LxBxH 4300x2250x2050 [mm] |
| Outer dimensions (LxWxH) | LxBxH 4420x2370x2195 [mm] |
| Cabin material | GFK Sandwitch, Fiber MOX Custom |
| Kind and thickness of insulation | Wände und Decke 60mm, Boden 85mm |
| Number of beds | 2 (140x200cm) |
| Windows | 4x Optimal Expedition |
| Subframe | Stahlrahmen light 160mm, Federgelagert |

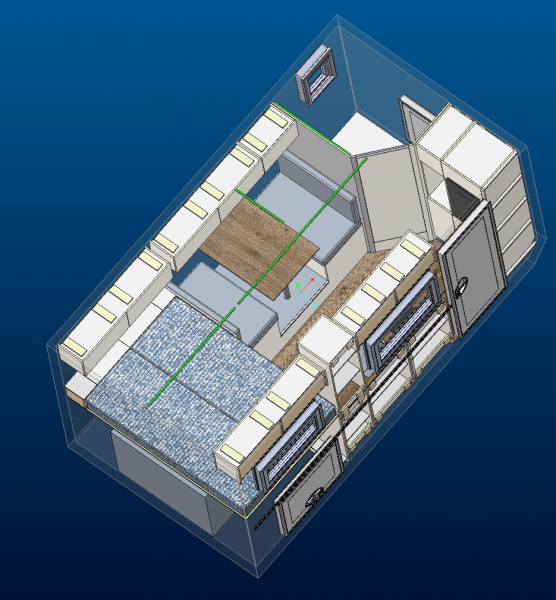

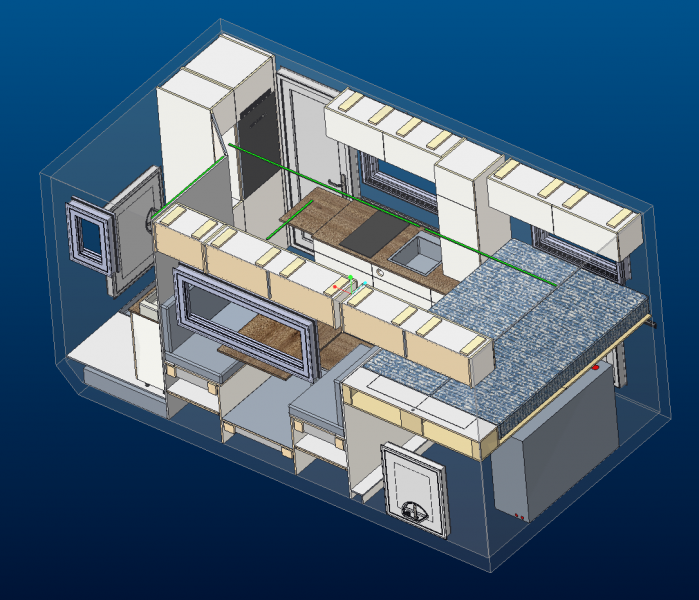

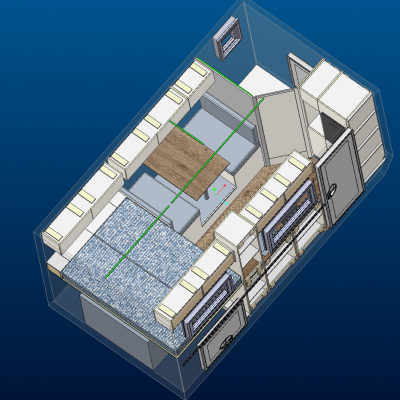

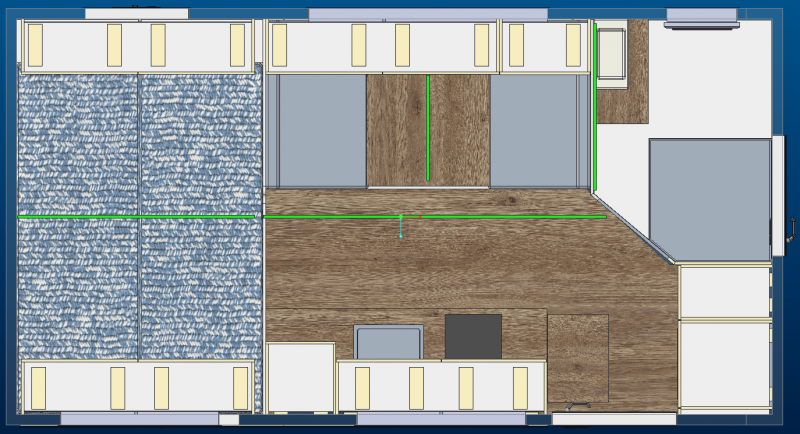

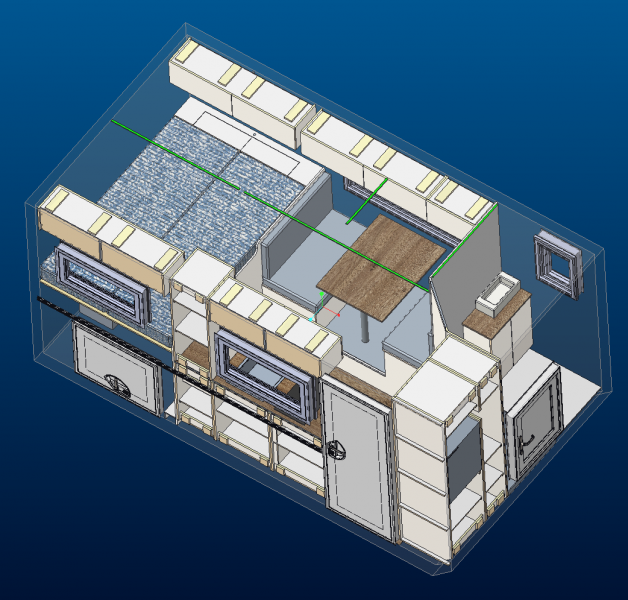

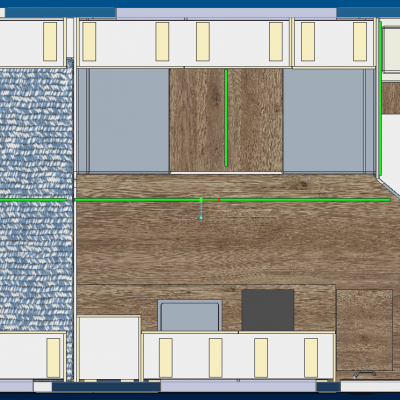

| Explanation of floor plan | |
|---|---|
| Offene Gestaltung, Raumbad |
| Material of furniture | Queenply oder Epicply |
|---|---|
| Other | |
| Passiert in Eigenregie. Ich berichte dann in 2 Jahren, ob die Idee gut war ;-) | |
| Cooking stove | 2 Flammen Gaskocher Phönix Domino-WGL |
|---|---|
| Gas installation | Aussenliegender Gastank im Zwischenrahmen |
| Manufacturer and type of fridge / cooler | Voraussichtl. Belluna DCR105BD |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 12V |
| Charging converter 24V-12V | Ecoflow Power Hub 5KVA integriert |
| 110V / 230V in the cabin? | yes |
| Inverter | Ecoflow Power Hub 5KVA integriert |
| Other | |
| Es wird das Ecoflow Power Kit Independence Kit (5kWh) installiert, All-in-one Lösung + sep. FI/LS-Schalter (3-Kreise) | |
| Capacity of batteries in the cabin | 5kWh |
|---|---|
| Battery type | Ecoflow LFP-Batterie |
| Battery charger for cabin batteries | Ecoflow Power Hub 5KVA integriert |
| Battery management | Ecoflow LFP-Batterie integriert, Anzeige via Ecoflow Power Kit Console |
| Solar capacity | 1200W |
|---|---|
| Solar controller | Ecoflow Power Hub 5KVA integriert |
| Fuel cell | no |
| Power generator | Lima LKW, Landstrom |
| Other | |
| Solarmodule 4x XXR-Lightweight a' 300W Mono EFTE+EVA 4.8Kg das Stück mit Alurahmen | |
| Manufacturer and type of heating system | Pundmann AQUA HOT Gen 1 D4 E |
|---|---|
| Warm water processing | Pundmann AQUA HOT Gen 1 D4 E, 10 Liter |
| Cab heating | LKW Standard |
| water flow | Lilie: Pumpe, Schläuche, Verteiler, Muffen, Fittinge, Adapter etc. |
|---|---|
| Water filtration system | Vorgeschalteter 2-Stufen Filter + MR-Helion-unterwegs (MR 45/60) |
| Capacity of fresh water tank(s) | 320 Liter |
| Capacity of waste water tank(s) | 150 Liter |
| Manufacturer and type of toilet | BioTioo 2.0 Trockentrenntoilette (mit Rührwerk und Lüfter) |
|---|
| Rear carrier | 4wheel24 für bis zu 2 Ersatzräder 385/65 R22,5 |
|---|---|
| Storage boxes | 2x 500x500x700 Alu oder Kunststoff |
| Awning | Airline Schiene außen für Sonnensegel 3x3m |
