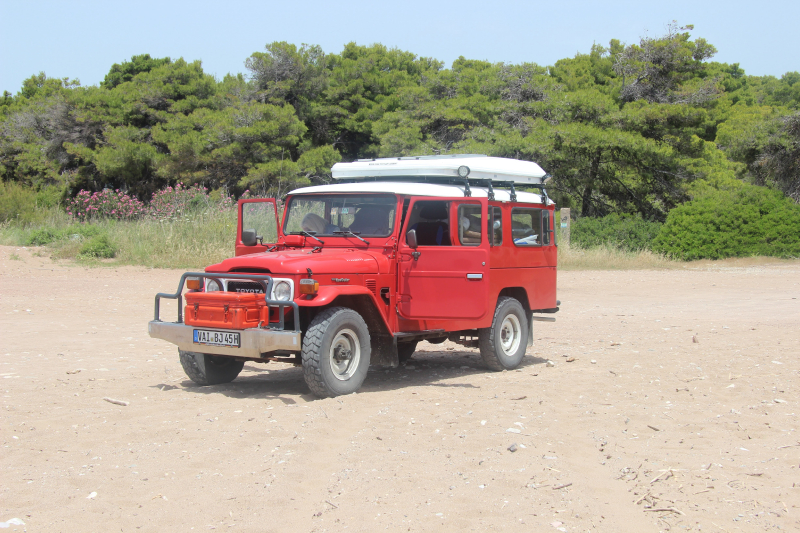

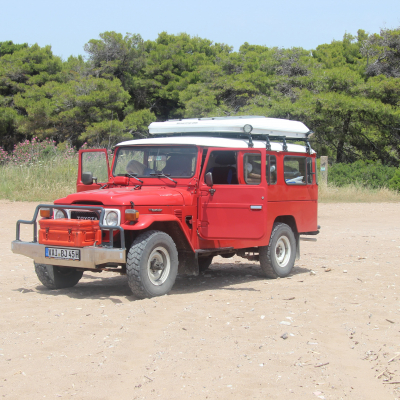

| Manufacturer and model | TOYOTA Landcruiser BJ45 KWC (Langer Radstand) 4x4 |
|---|---|
| Name | Frank Otto |
| Year of manufacture | 10.1983 |
| For sale? | no |
| Engine type | 3B |
|---|---|
| Cubic capacity | 3,5 l |
| Number of cylinders | 4 |
| Horsepower | 90 |
| Torque | 300 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | lang |
| Number of seats | 2 |
| Tyre size | 7,50R16 100% Reifen |
| Rim size | 5,50 16 SDC Sprengring |
| Type of tyre | Sandreifen Michelin XS und Allrounder Michelin XCL |
| Tank capacity | 85 |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | keine |
| Manufacturer of the cabin | eigenbau |
|---|---|
| Inner dimensions (LxWxH) | 3 x 1,4 x 1,2 l x b x h [m] |
| Cabin material | Blech unten und seitlich, GFK oben |
| Kind and thickness of insulation | 10 mm |
| Number of beds | 2 |

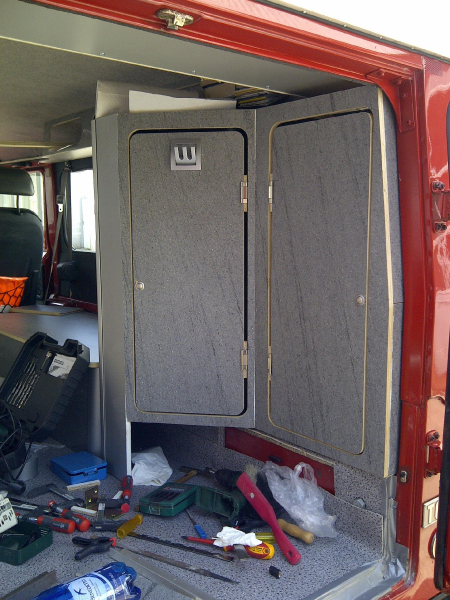

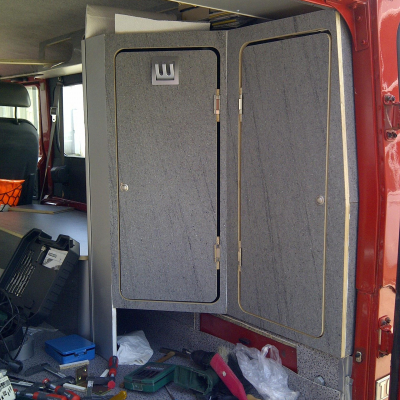

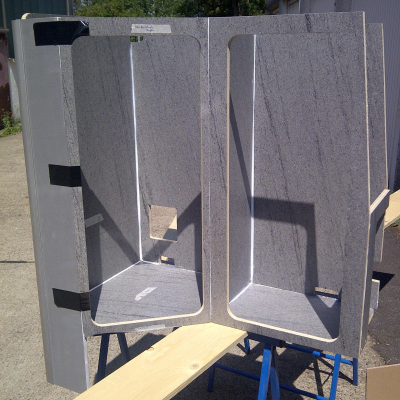

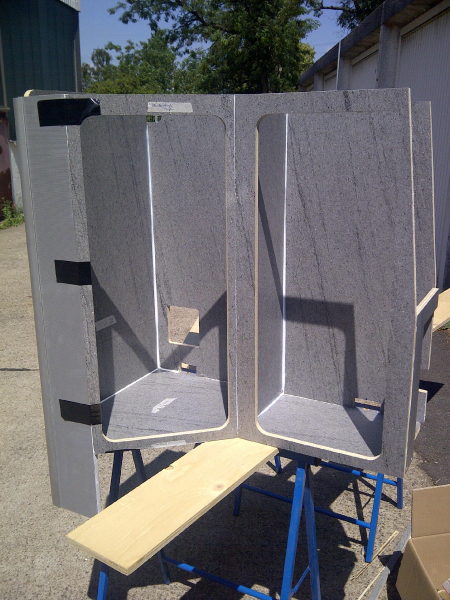

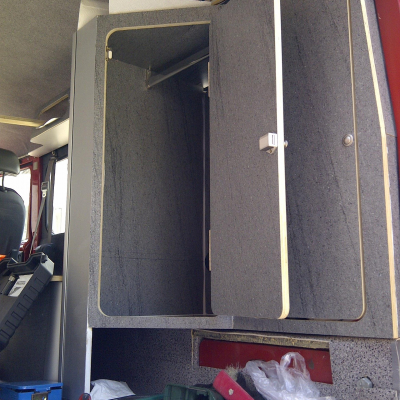

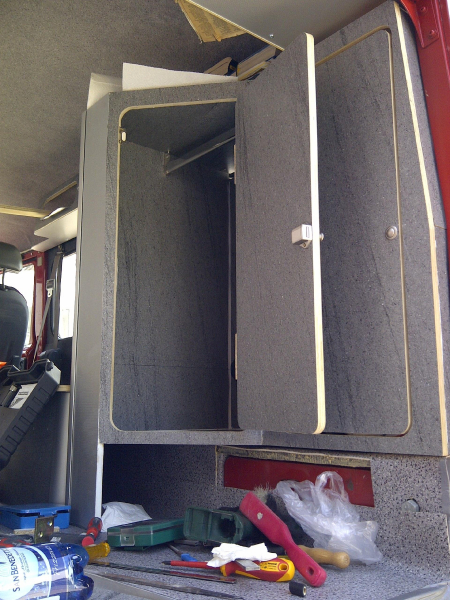

| Material of furniture | Pappelsperrholz beschichtet mit Egger Folien |
|---|
| Cooking stove | Benzin Coleman 2 flammig |
|---|---|
| Gas installation | Kartuschenkocher 2,2 kW |
| Manufacturer and type of fridge / cooler | Waeco 12 l Kompressor 24 V |
|---|
| Voltage in the chassis | 24 V |
|---|---|
| Voltage in the cabin | 24 V |
| Charging converter 24V-12V | Victron |
| 110V / 230V in the cabin? | yes |
| Inverter | Victron 1000 Watt |
| Other | |
| 2x40 Watt Solar | |
| Capacity of batteries in the cabin | 120 Ah |
|---|---|
| Battery type | Blei Säure |
| Battery charger for cabin batteries | Victron |
| Battery management | Victron |

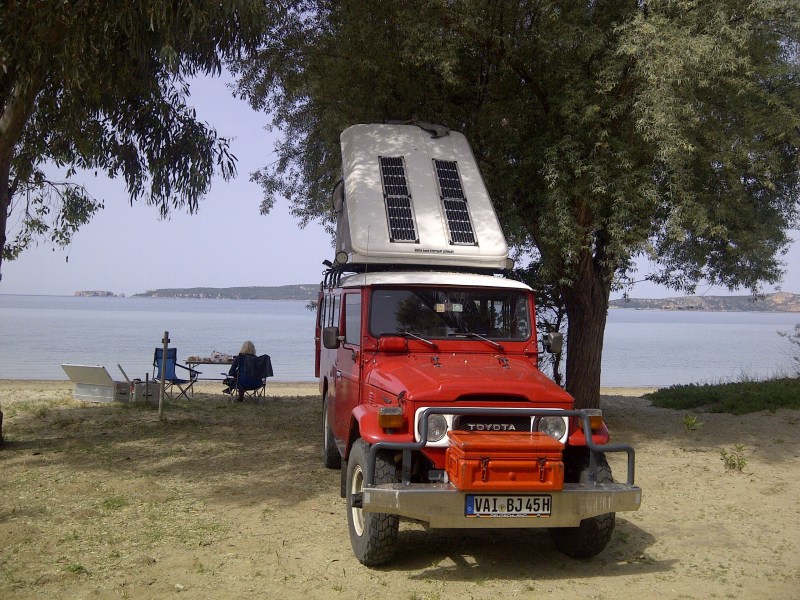

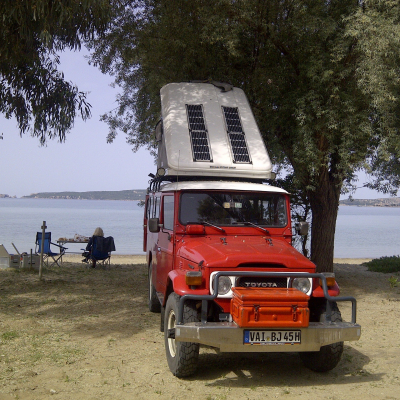

| Solar capacity | 2x40 Watt auf Dachzelt (Anstellbar bis 45 Grad) |
|---|---|
| Solar controller | Victron MPPT 75/10 |
| Fuel cell | no |
| Power generator | nein |
| Other | |
| Anschluss auch zum Landnetz | |
| Manufacturer and type of heating system | Webasto DBW46 |
|---|---|
| Warm water processing | 2 x 60 l Tanks ALU, davon einer an den Kühlwasserkreislauf des Motors angeschlossen = auch DBW46 in Reihe |
| Water filtration system | KATADYN |
|---|---|
| Capacity of fresh water tank(s) | 2x60 liter |
| Capacity of waste water tank(s) | kein |
| Other | |
| Aussendusche und Chemotoilette Porta Potti | |
| Manufacturer and type of toilet | Porta Potti |
|---|---|
| Capacity of black water tank | 10 liter |

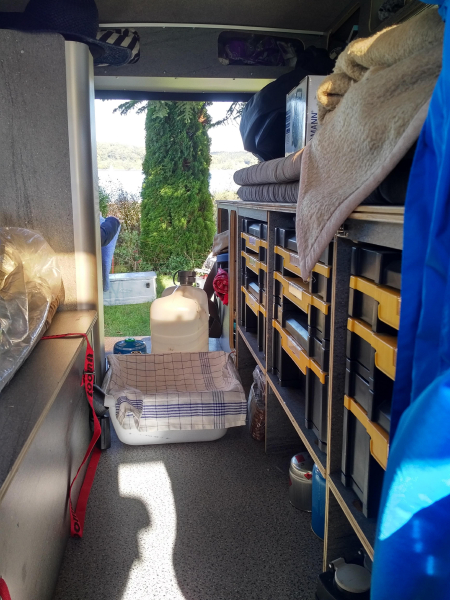

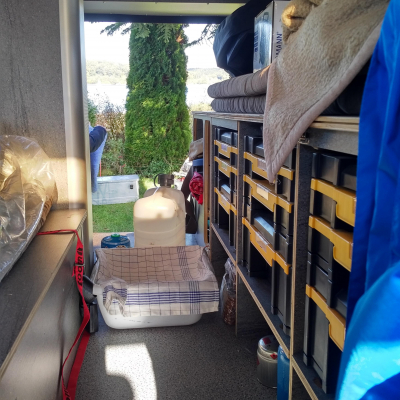

| Storage boxes | alle Boxen innen von DeWalt, herausnehmbar, teilweise mit Schubläden, KStoff, sehr leicht und robust |
|---|---|
| Awning | 2,2 x 2 m gehört zum Dachzelt von AUTOHOME |
| Other | |

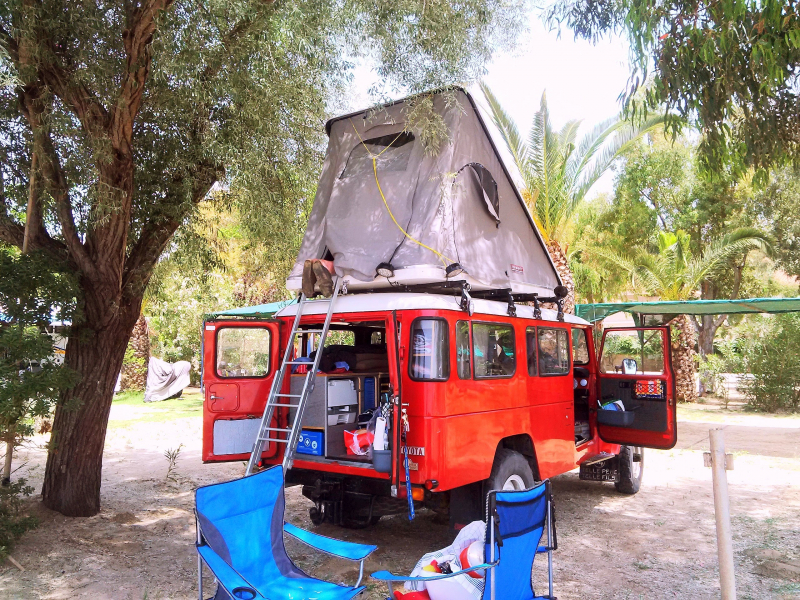

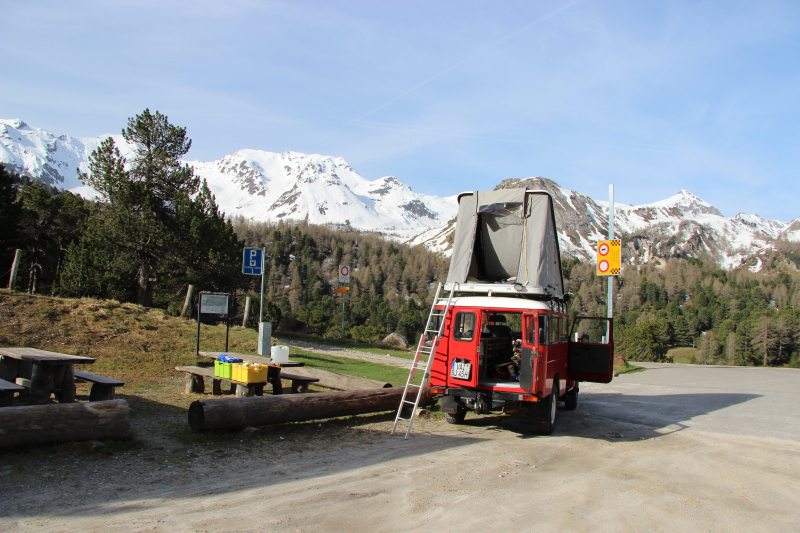

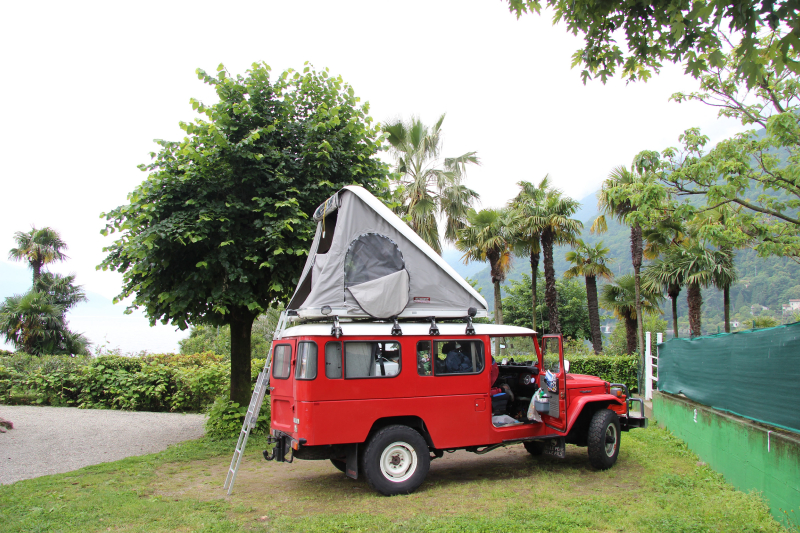

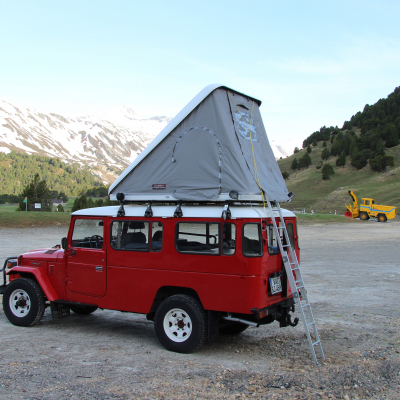

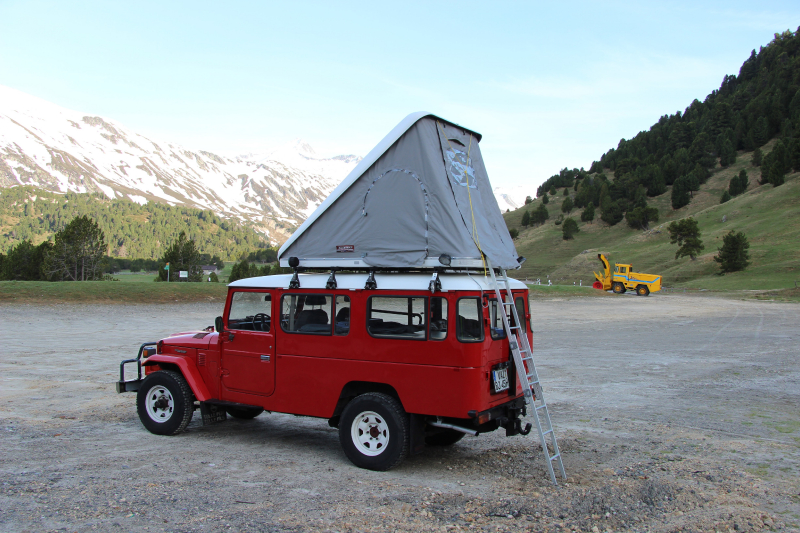

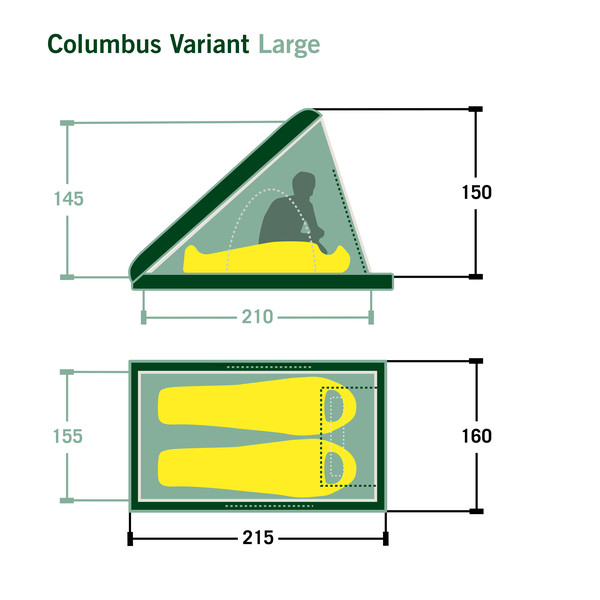

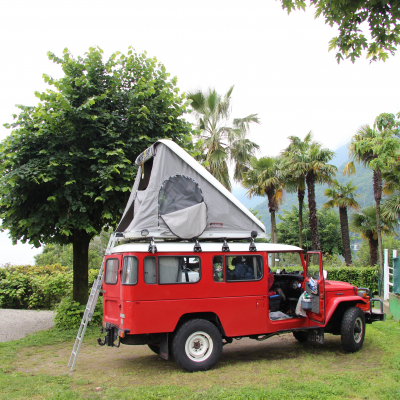

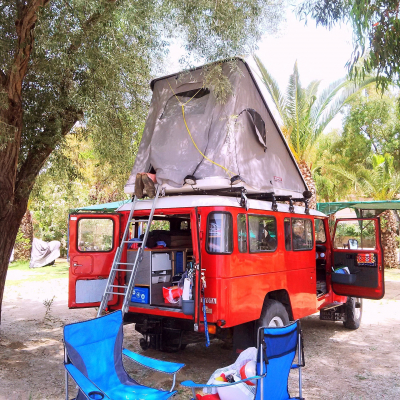

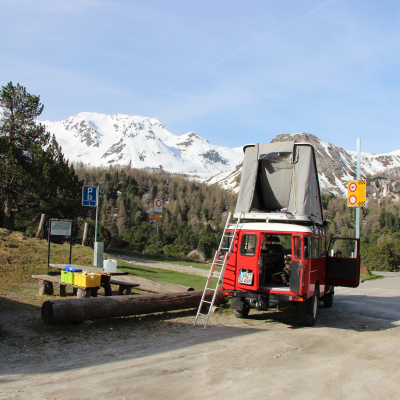

| Dachzelt als GFK Box 2,2 x 1,6 m, AUTOHOME Columbus Variant Large grey. Das beiliegende Bild ist belegt mit (C) von Autohome Italien. | |
