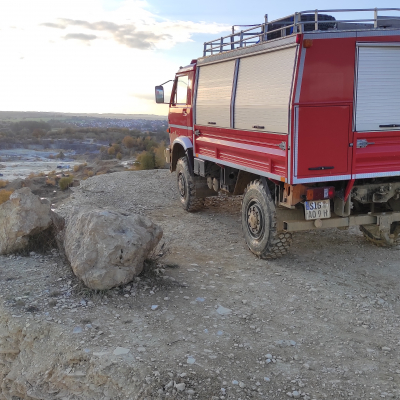

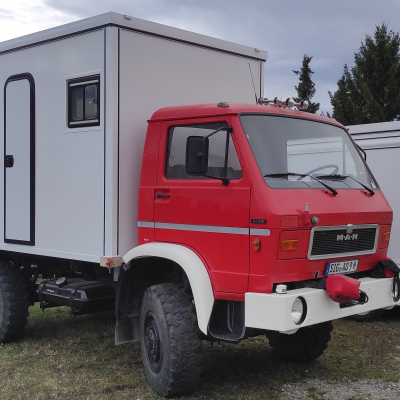

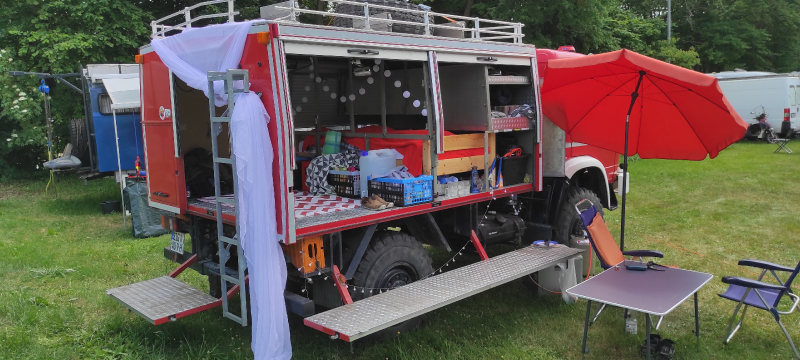

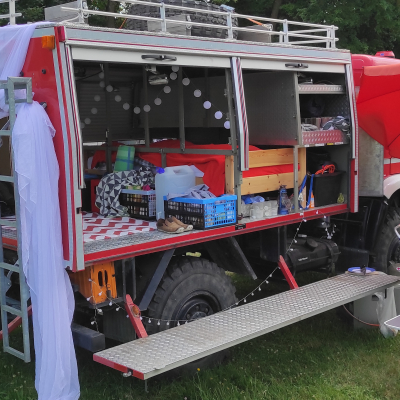

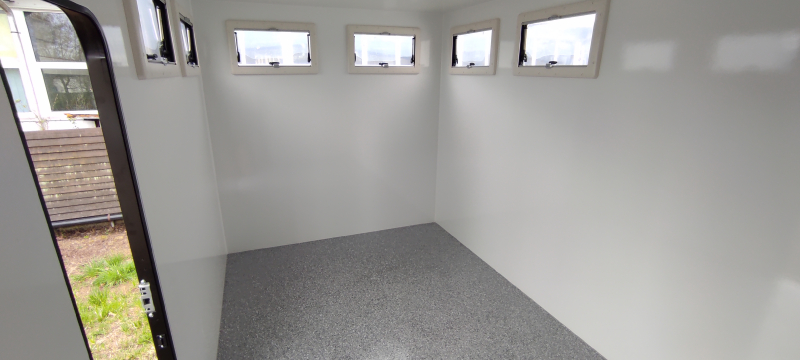

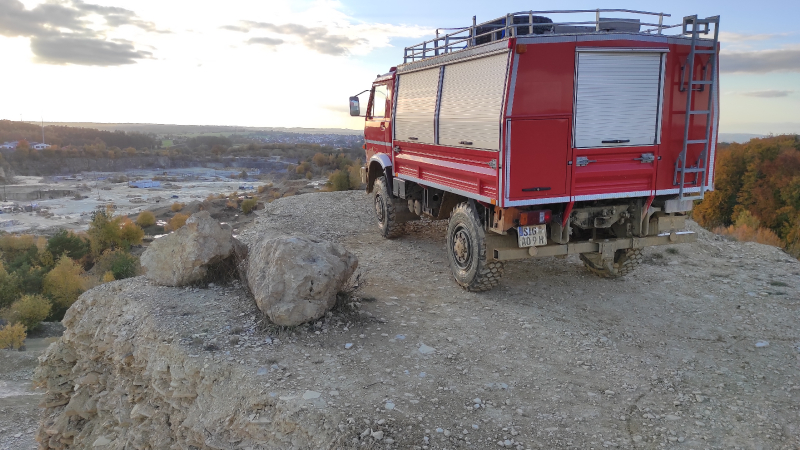

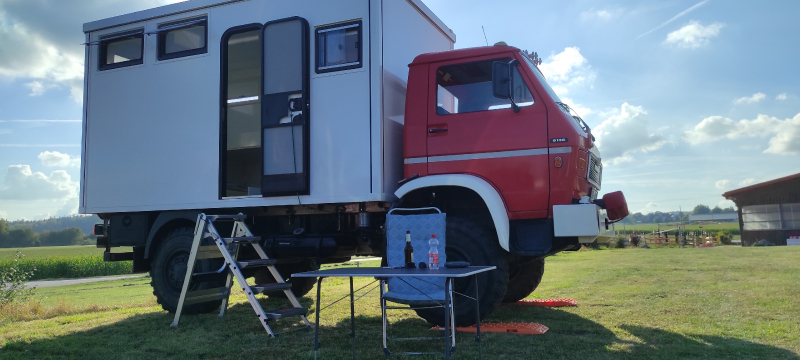

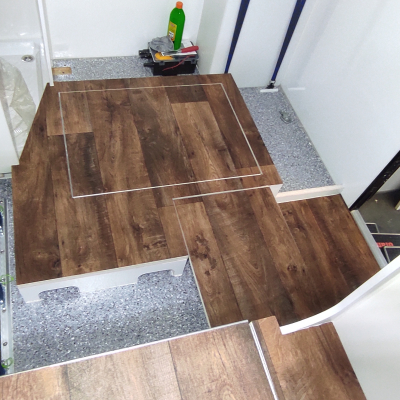

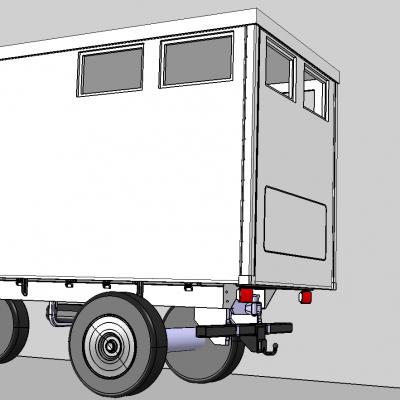

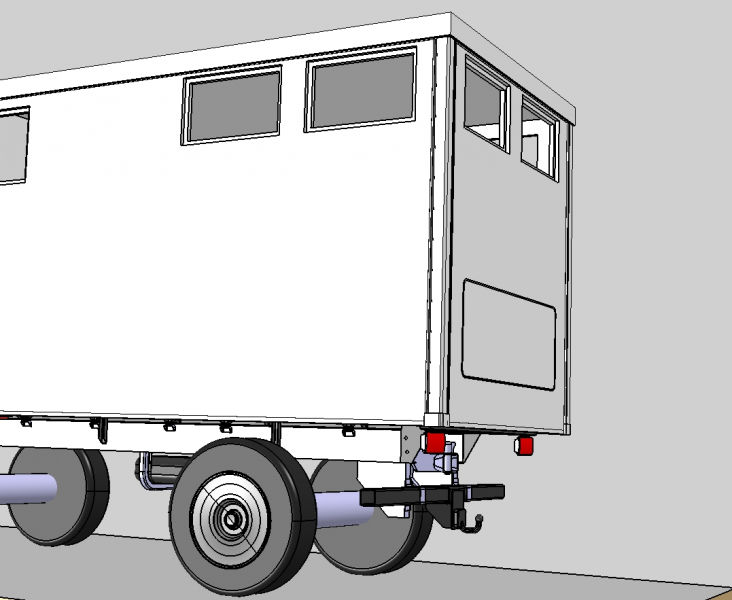

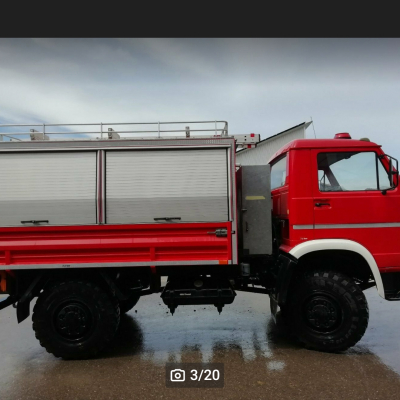

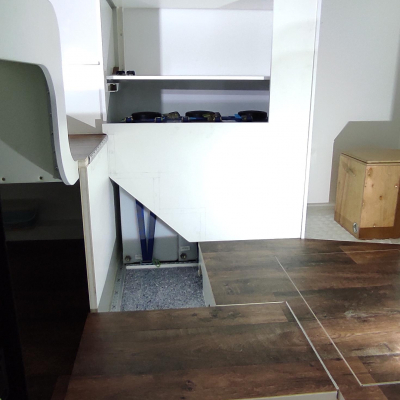

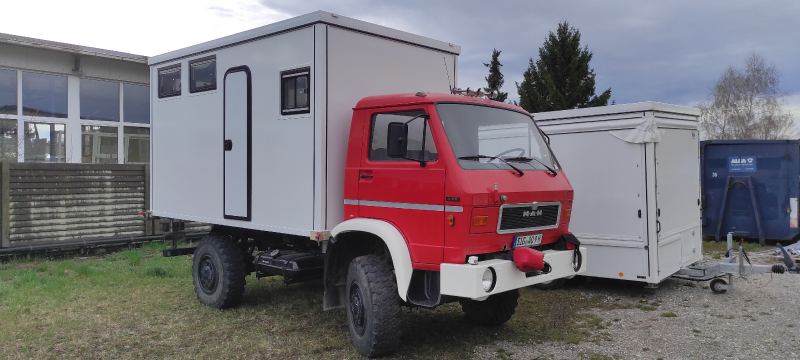

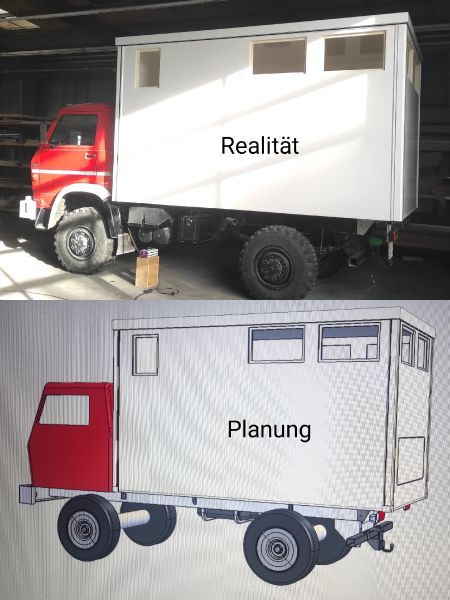

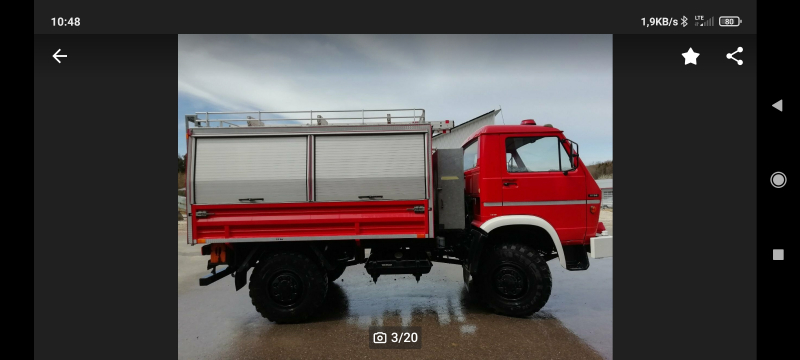

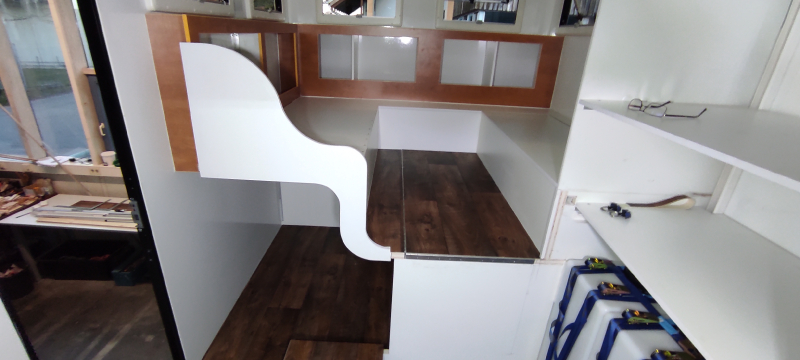

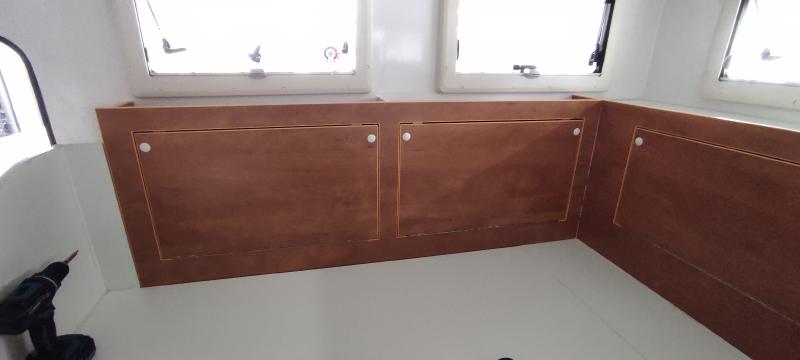

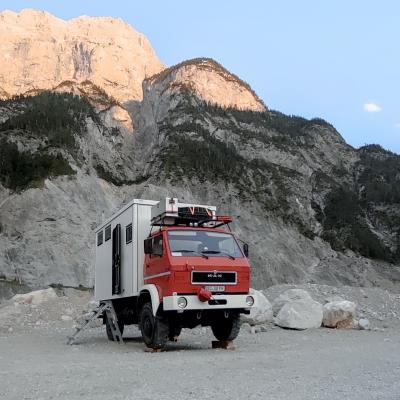

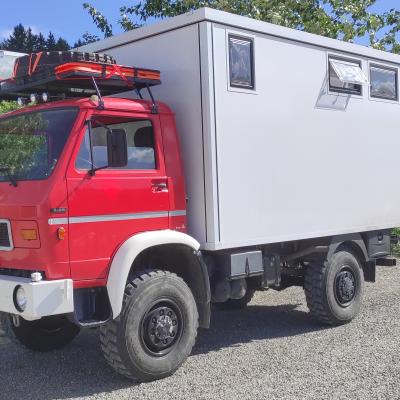

Der Feuerwehrkoffer ist runter. Eine neue Leerkabine ist montiert, Ich bin gerade am Innenausbau mit Leichtbauplatten,
| Manufacturer and model | MAN-VW Arbeitsgemeinschaft |
|---|---|
| Name | Alex |
| Country | Deutschland |
| Website | https://www.youtube.com/@wohnung-huckepack4481 |
| Year of manufacture | 1988 |
| For sale? | no |

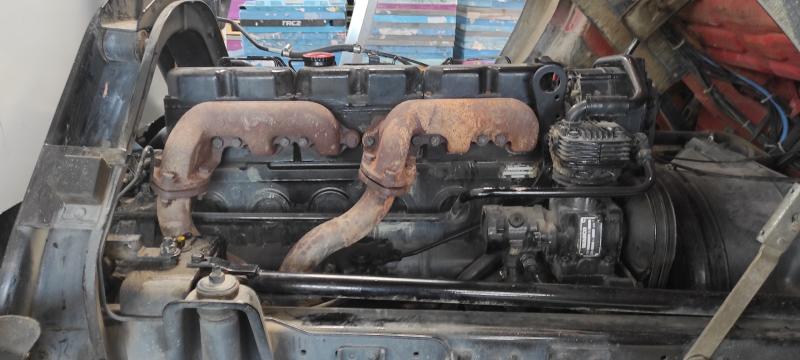

| Cubic capacity | 5648 ccm |
|---|---|
| Number of cylinders | 6 |
| Horsepower | 136 |
| Torque | ? |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3,1m |
| Number of seats | 3 |

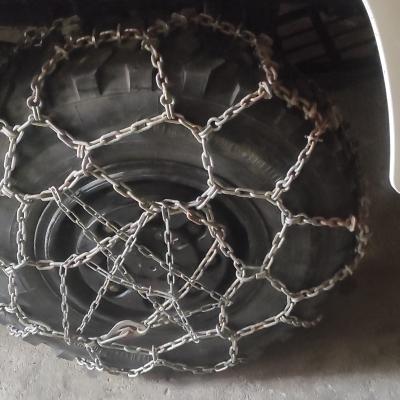

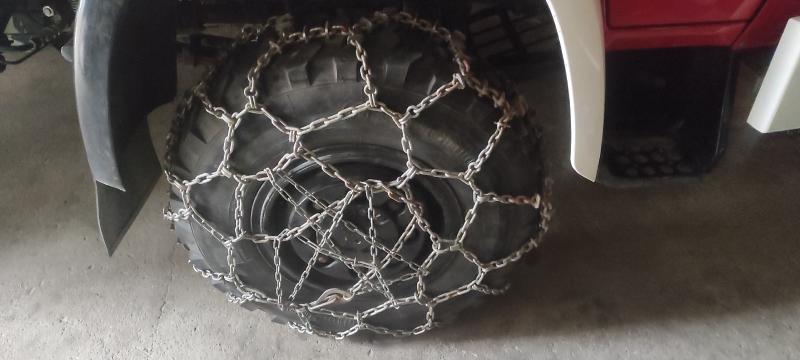

| Tyre size | 12,5 R20 MPT 80 |
| Tank capacity | 100 L |
| Diesel filter | no |
| Other | |
| Seilwinde Hydraulisch 5 To. | |
| Permanent or manually selectable 4-wheel drive | Permanent |
| Diff locks | alle 3 |
| Manufacturer of the cabin | Fa. Vemus in Illmensee |
|---|---|
| Outer dimensions (LxWxH) | geplant 4 x 2,3 x 2,35 m |
| Cabin material | GFK |

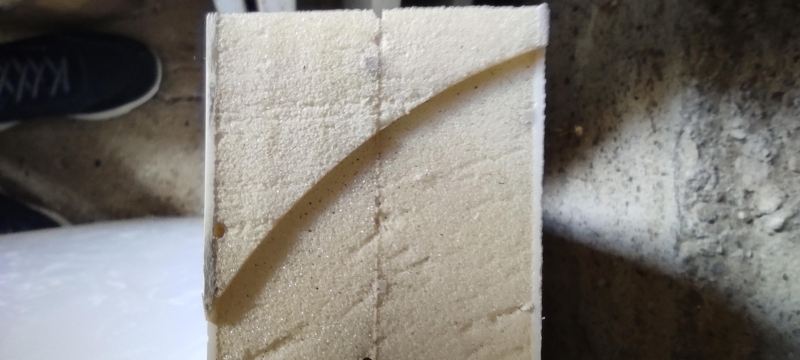

| Kind and thickness of insulation | 60mm |
| Number of beds | 2 fest + 2 durch Umbau |

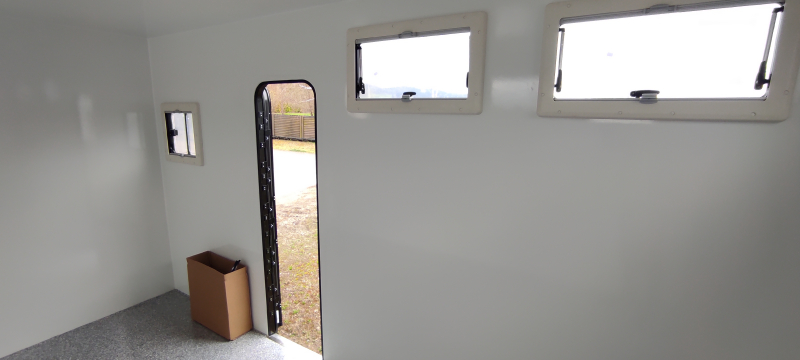

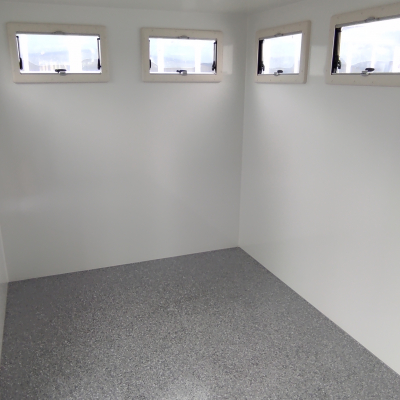

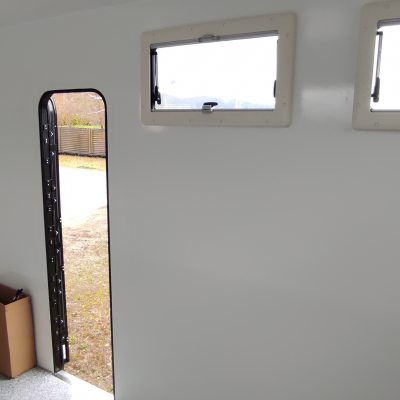

| Windows | 8 Stück |

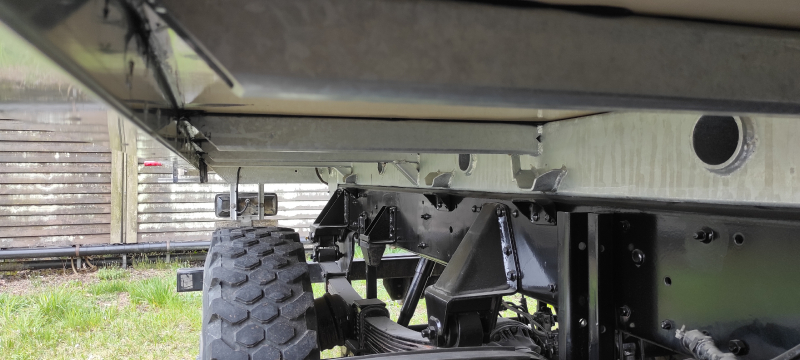

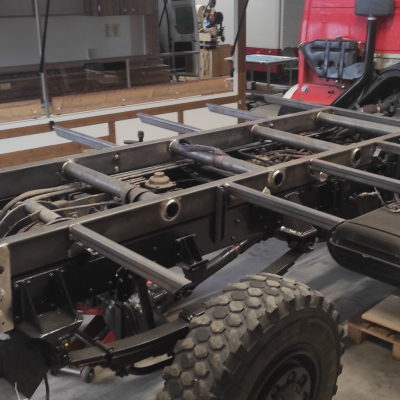

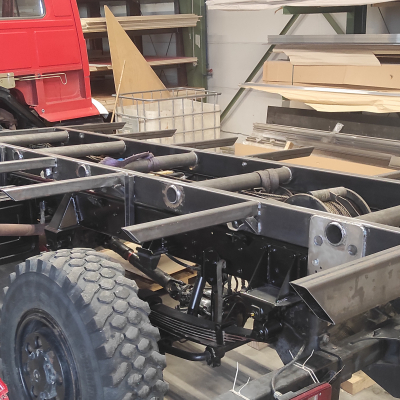

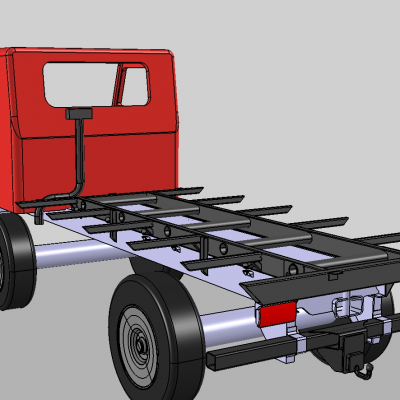

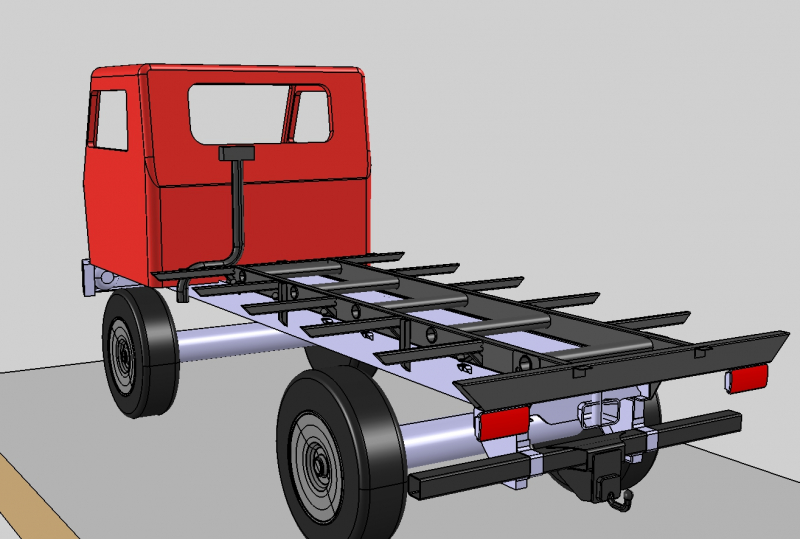

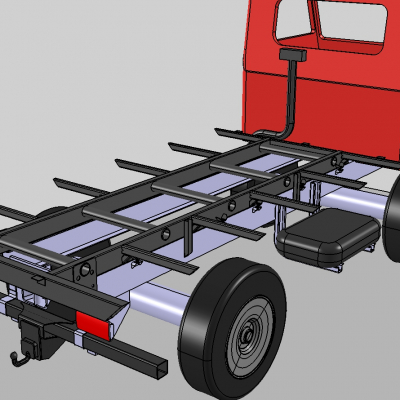

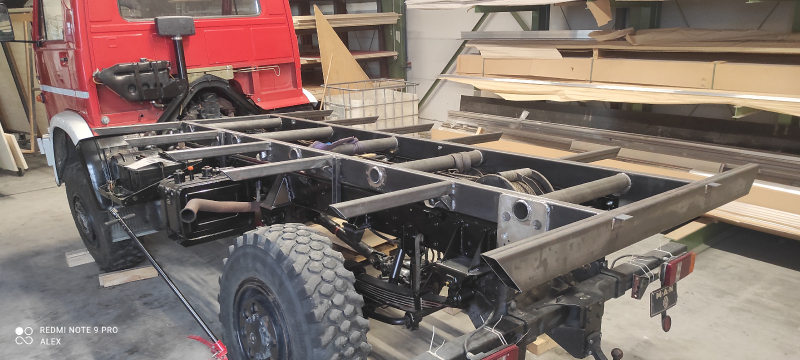

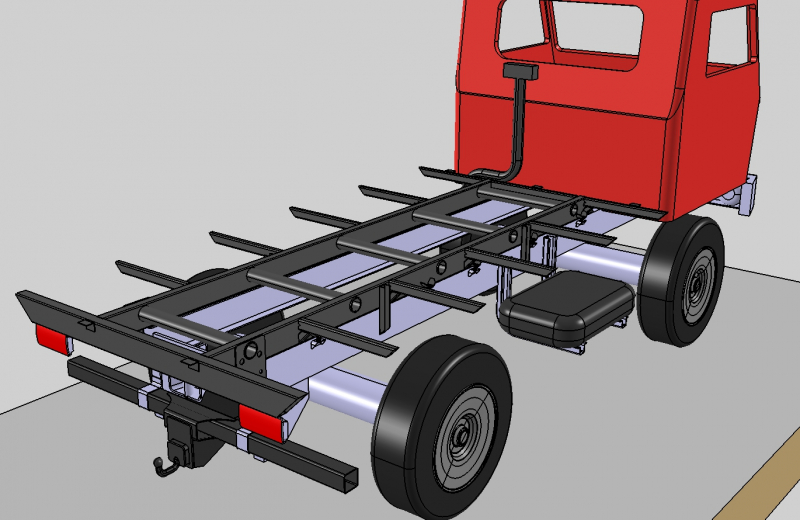

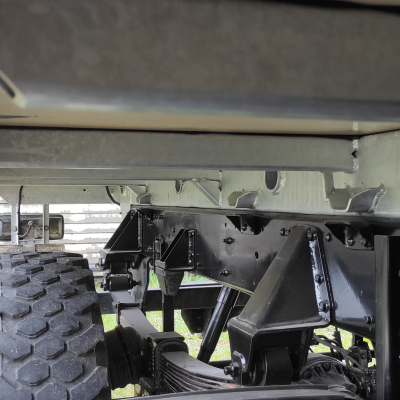

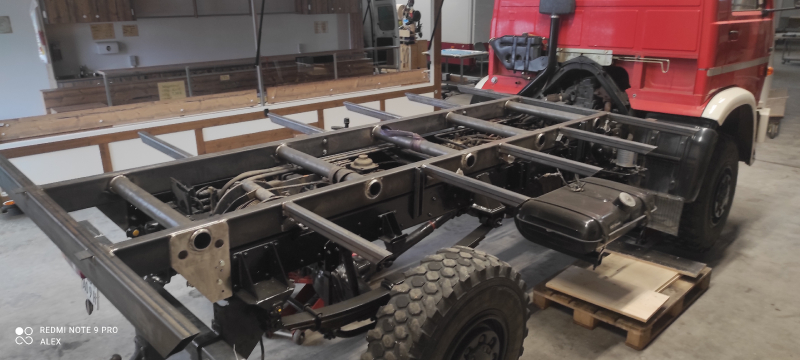

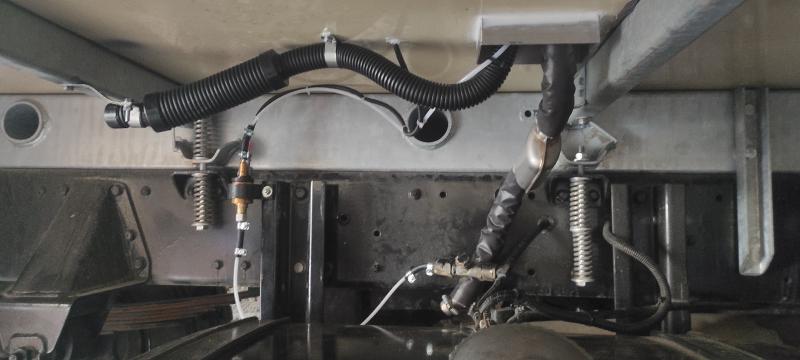

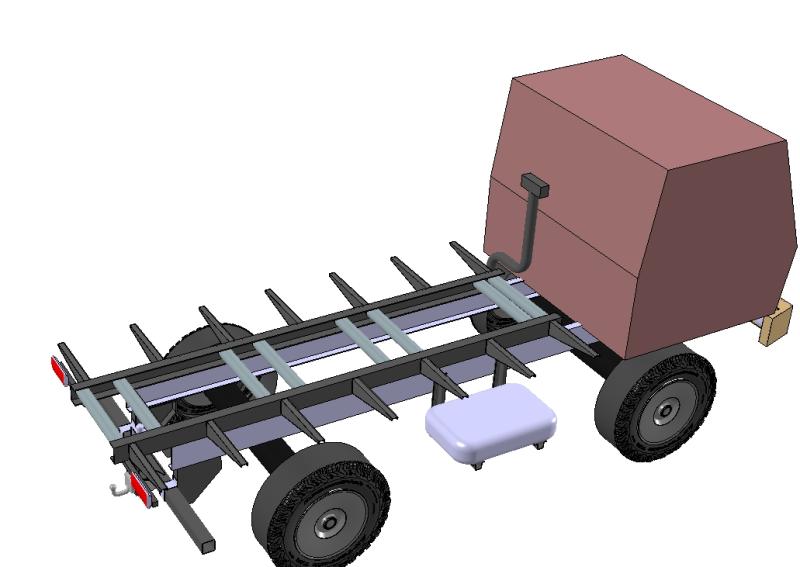

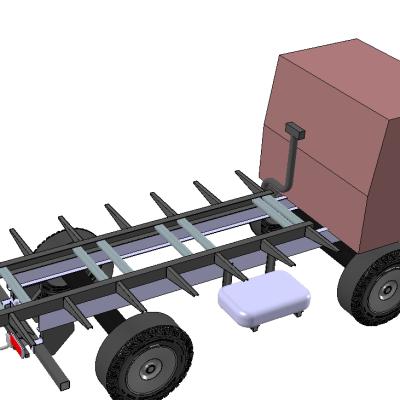

| Subframe | Stahl feuerverzinkt |
| Explanation of floor plan | |
|---|---|

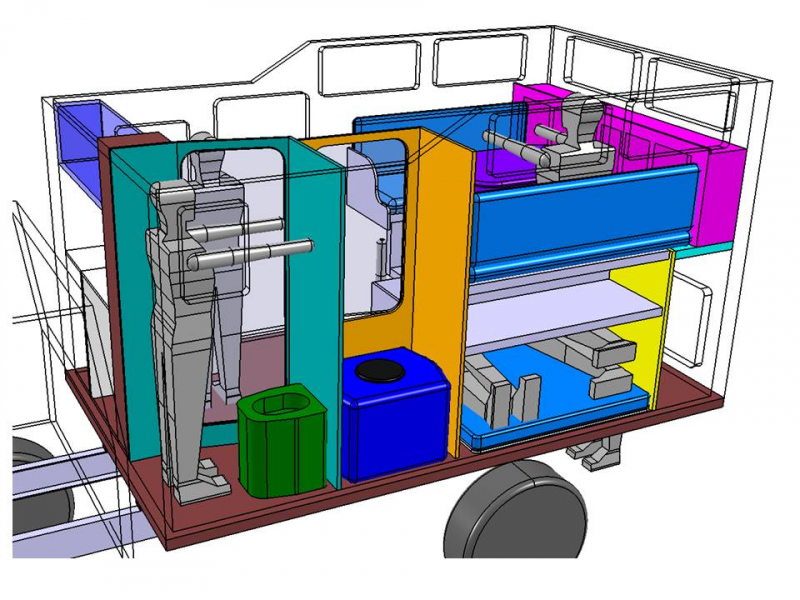

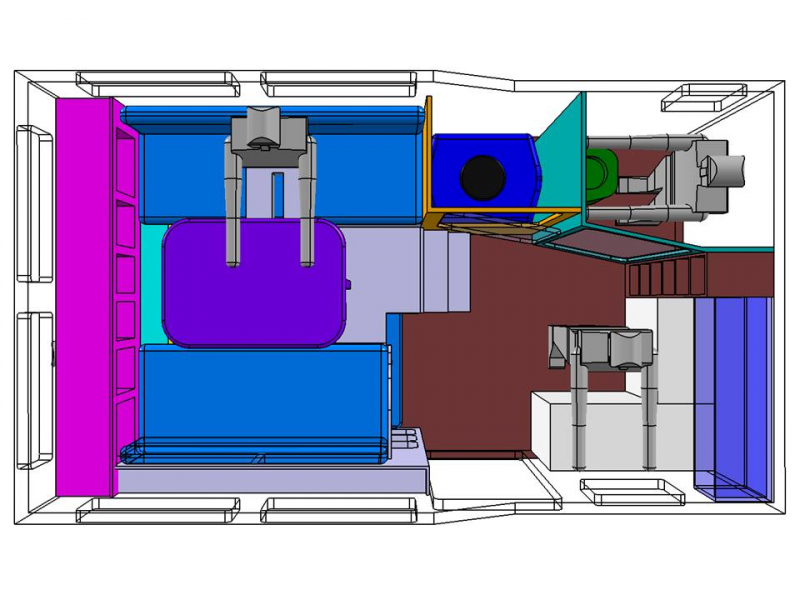

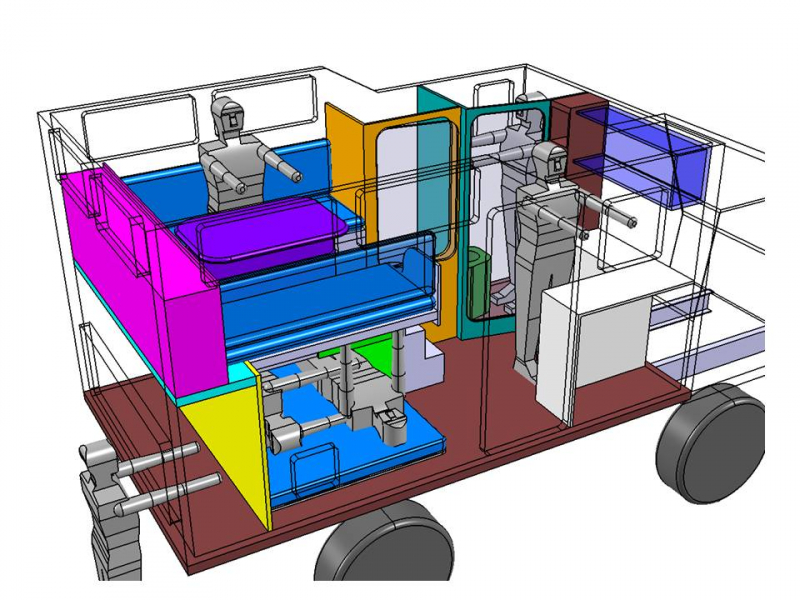

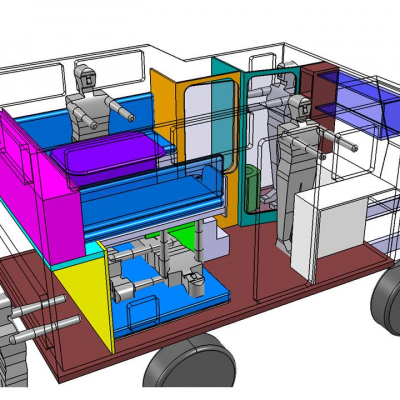

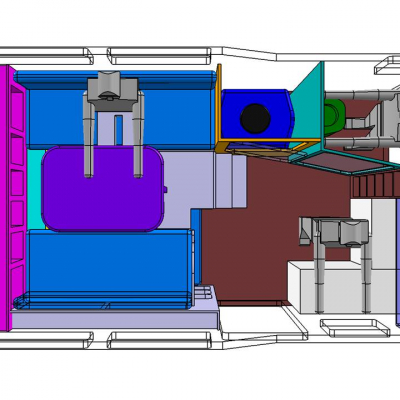

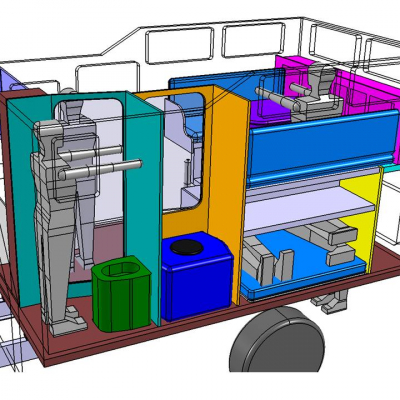

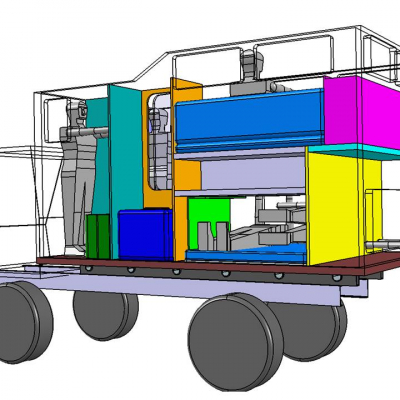

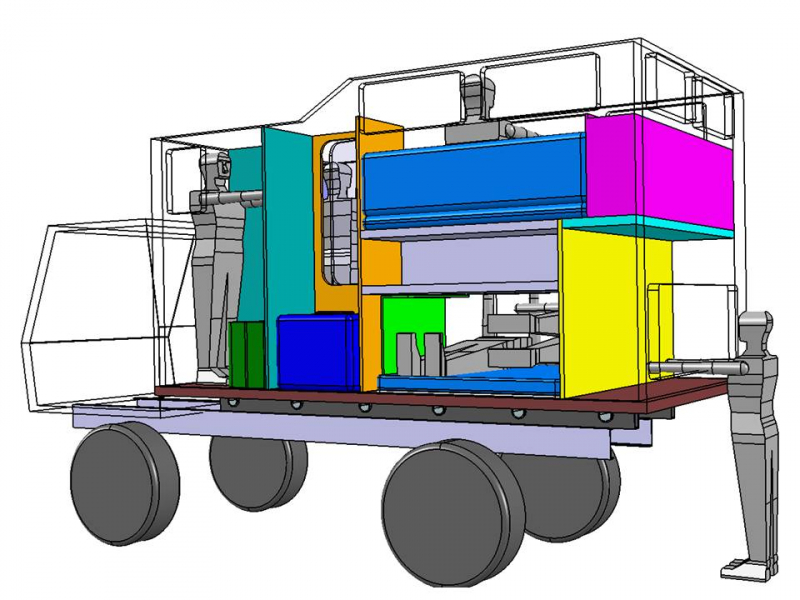

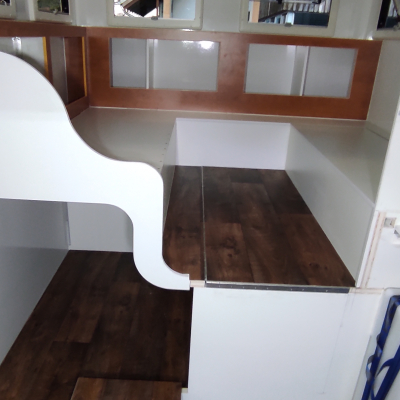

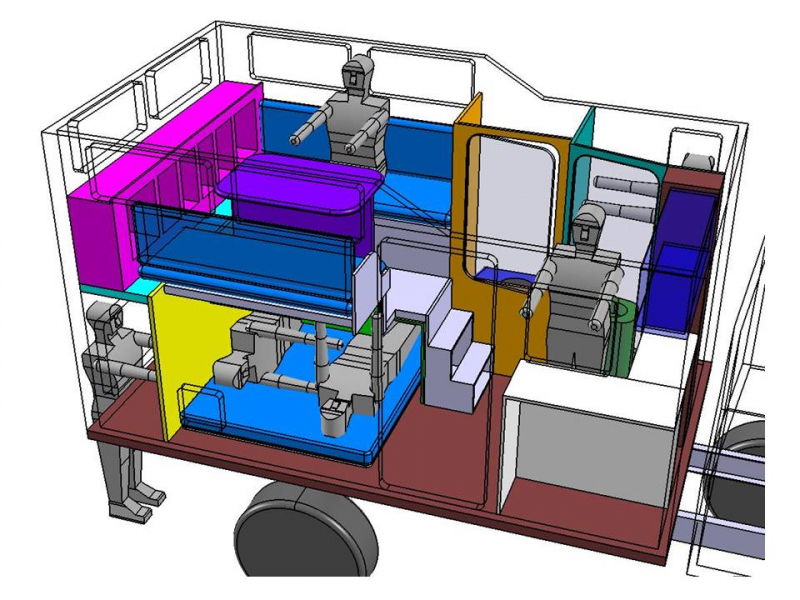

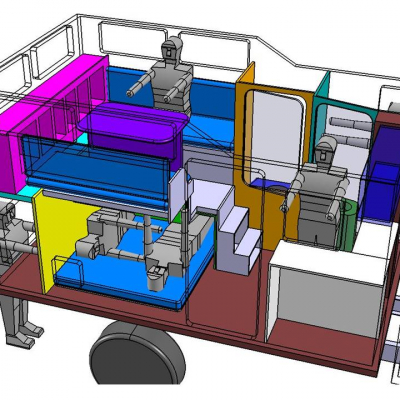

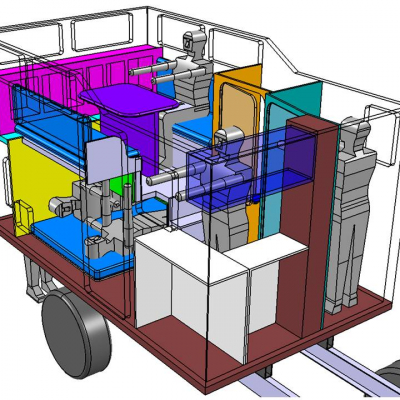

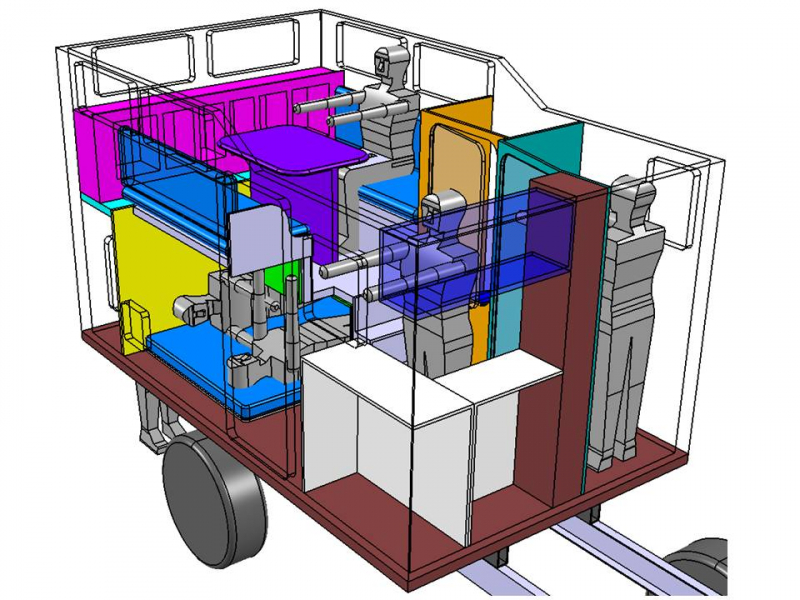

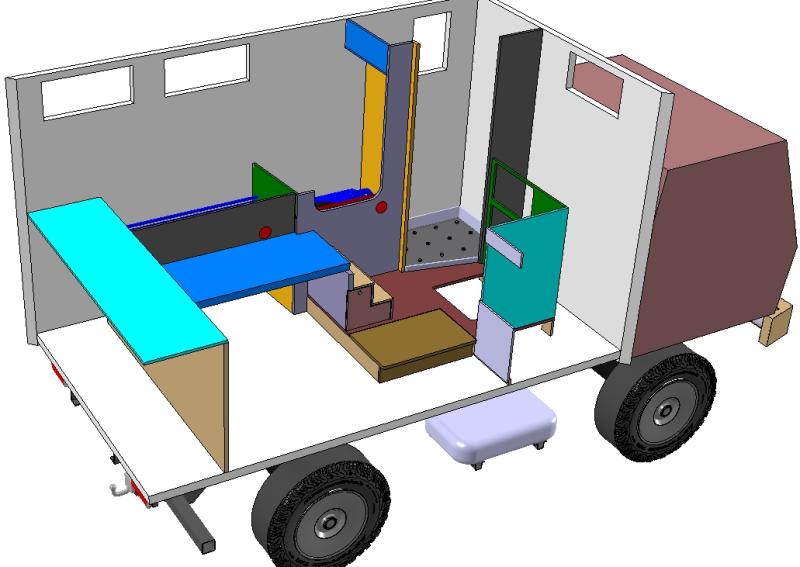

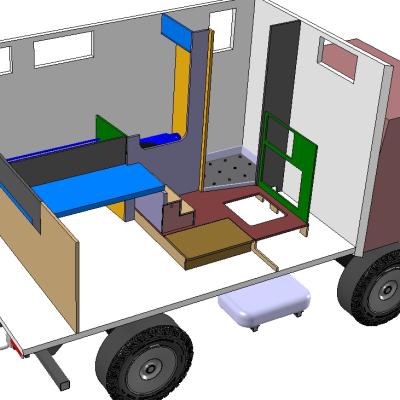

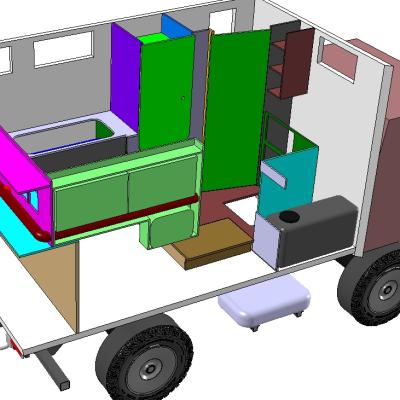

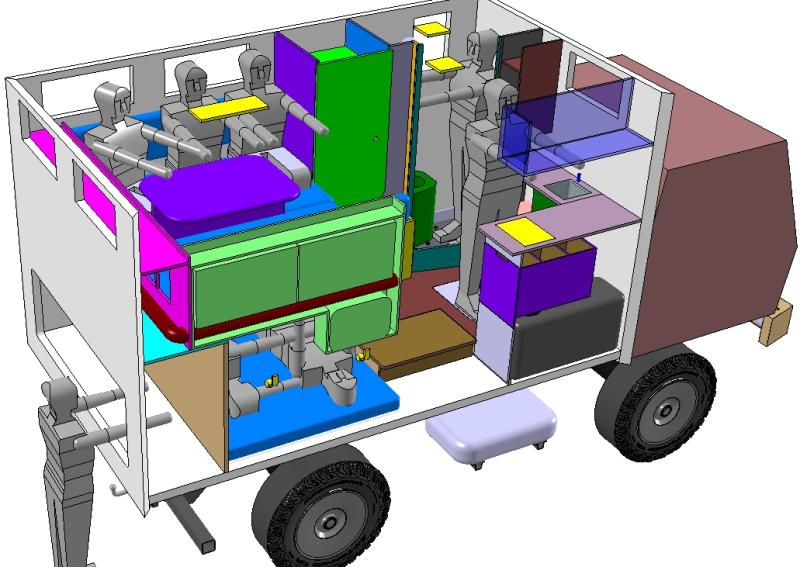

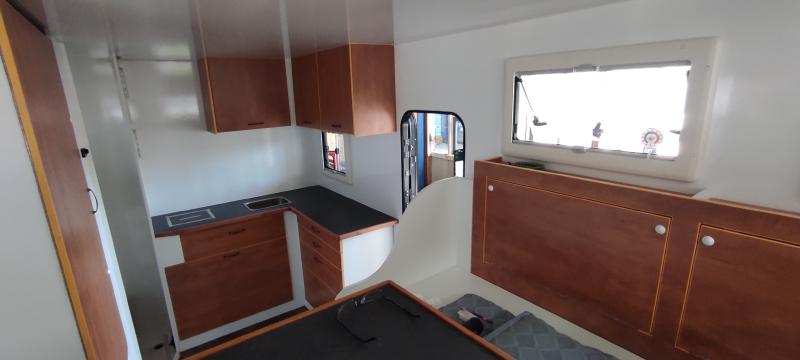

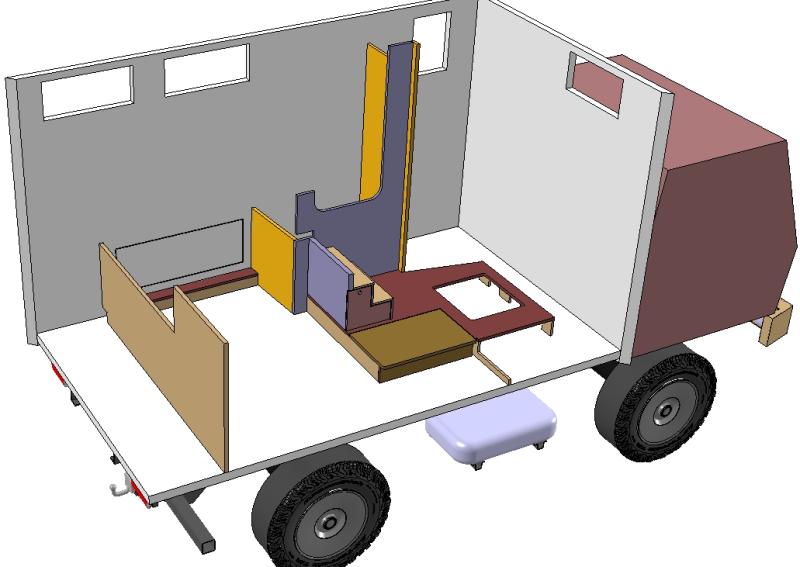

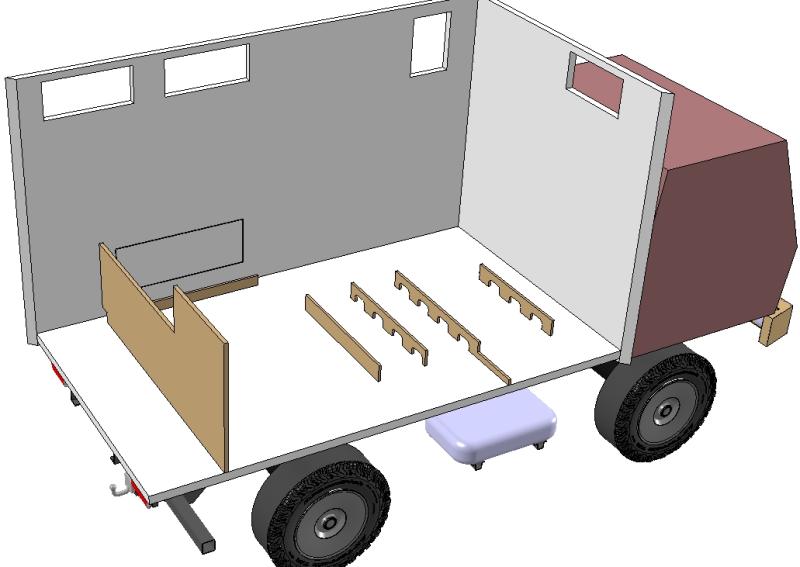

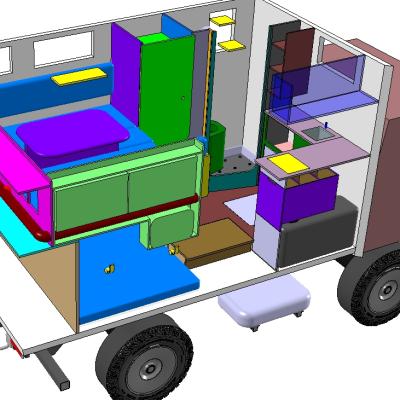

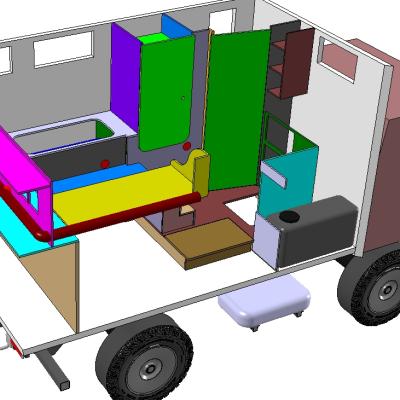

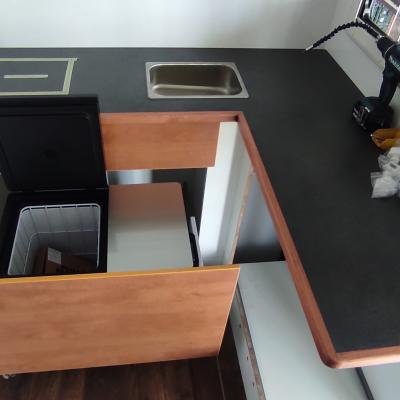

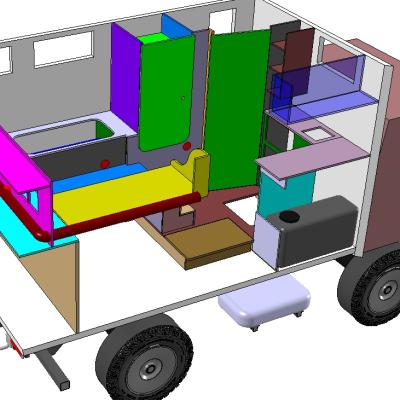

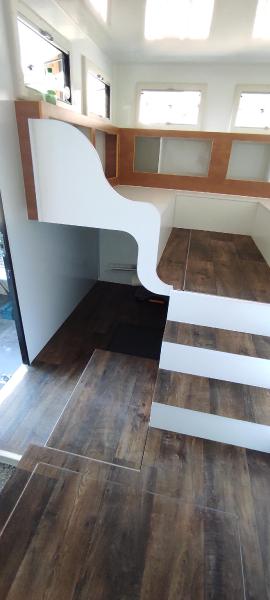

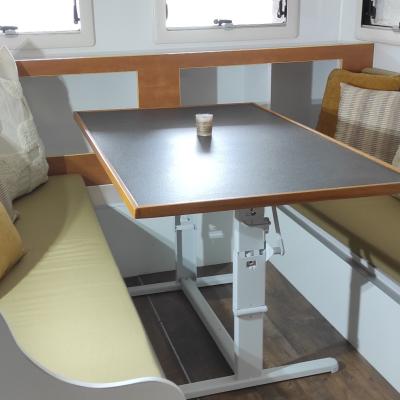

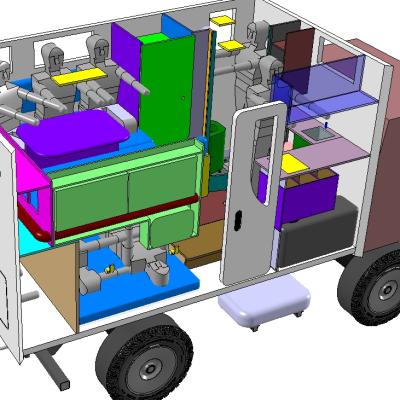

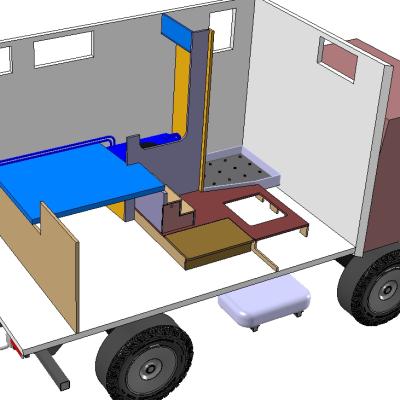

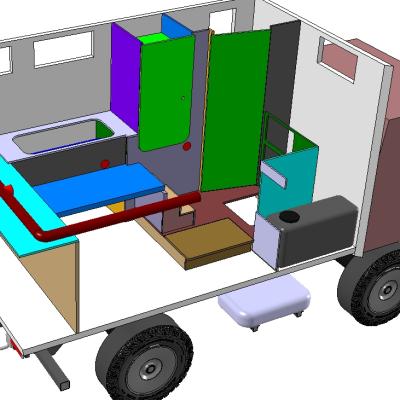

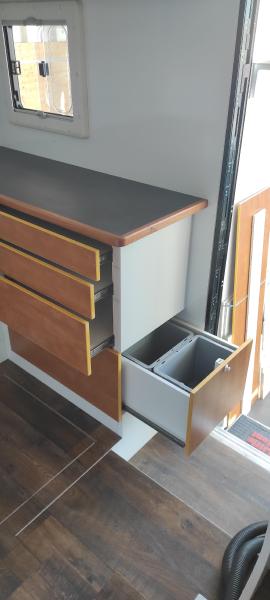

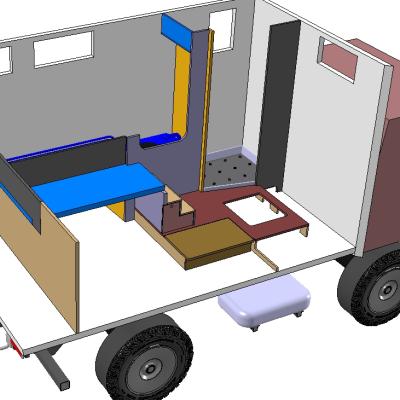

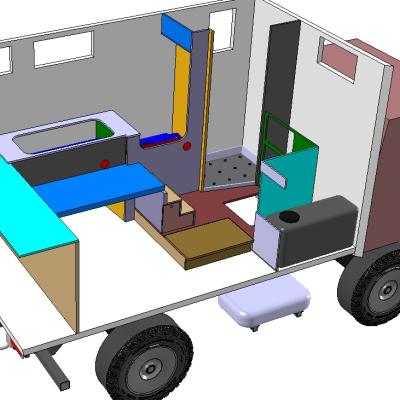

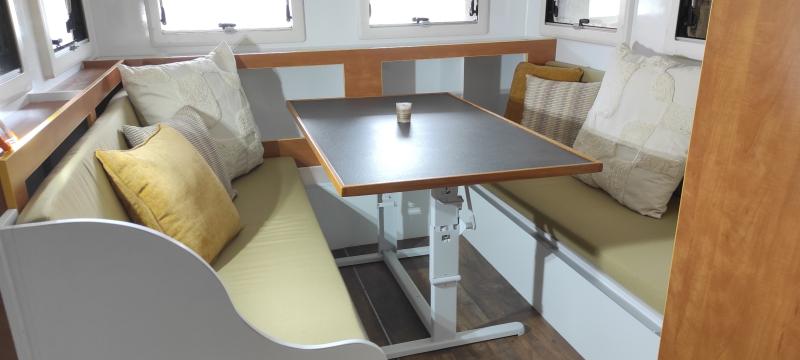

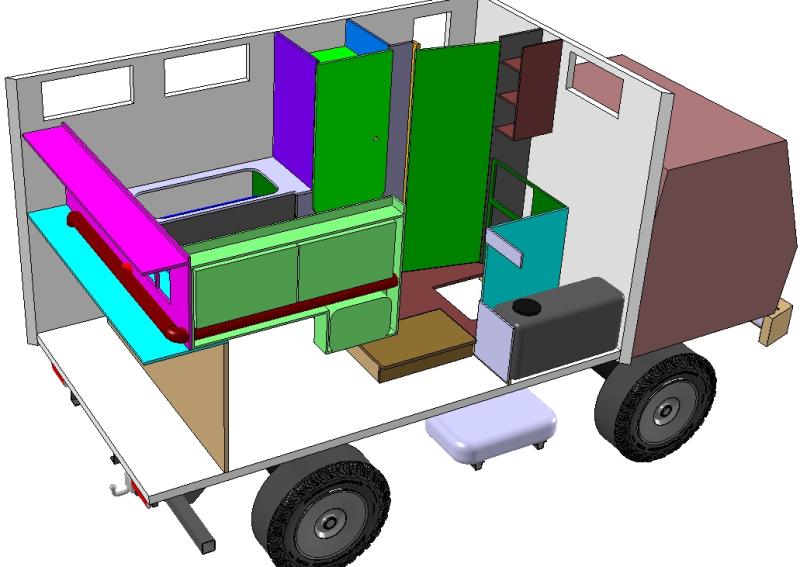

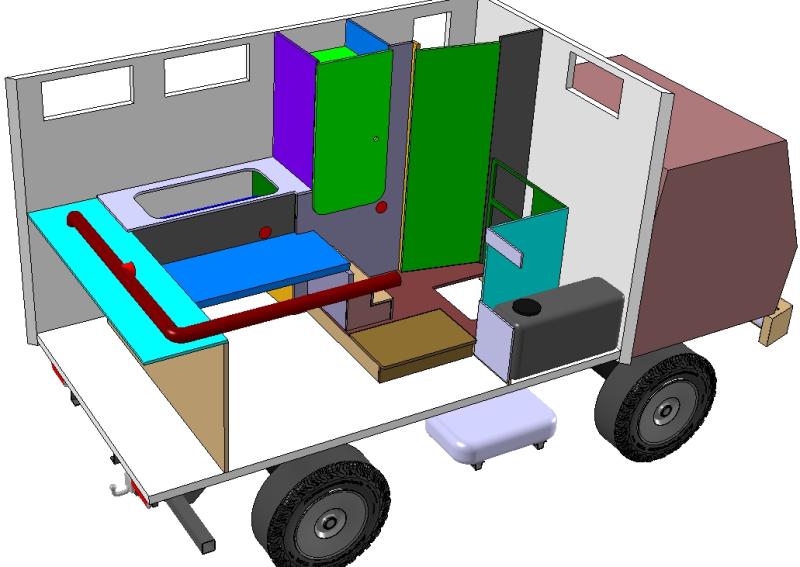

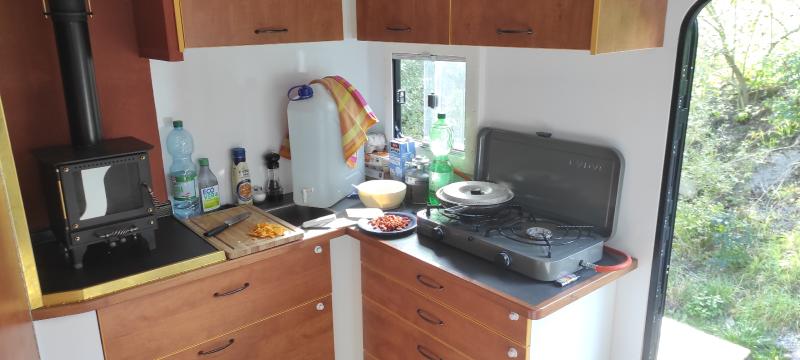

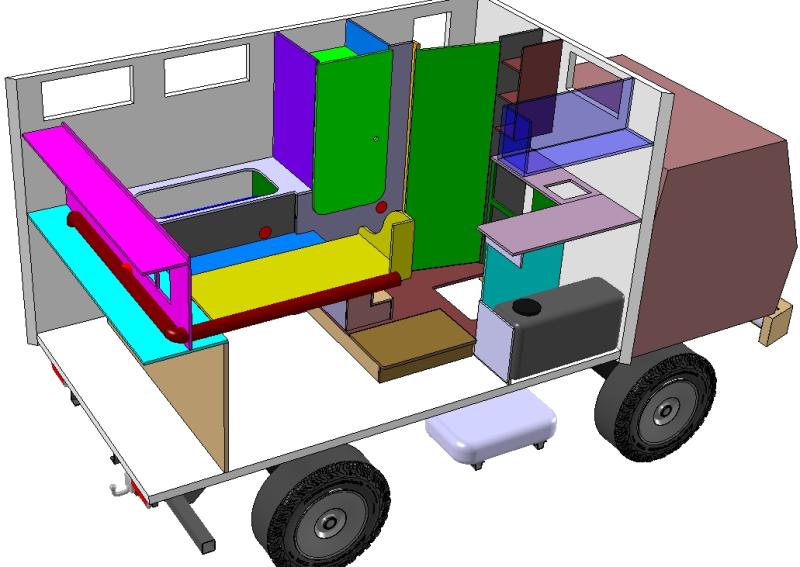

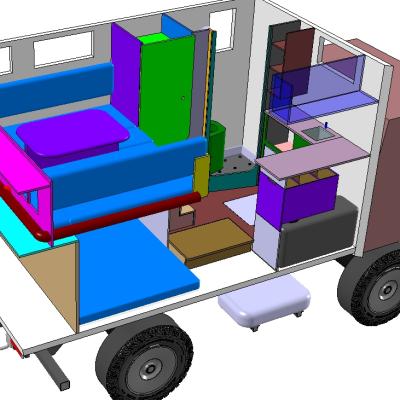

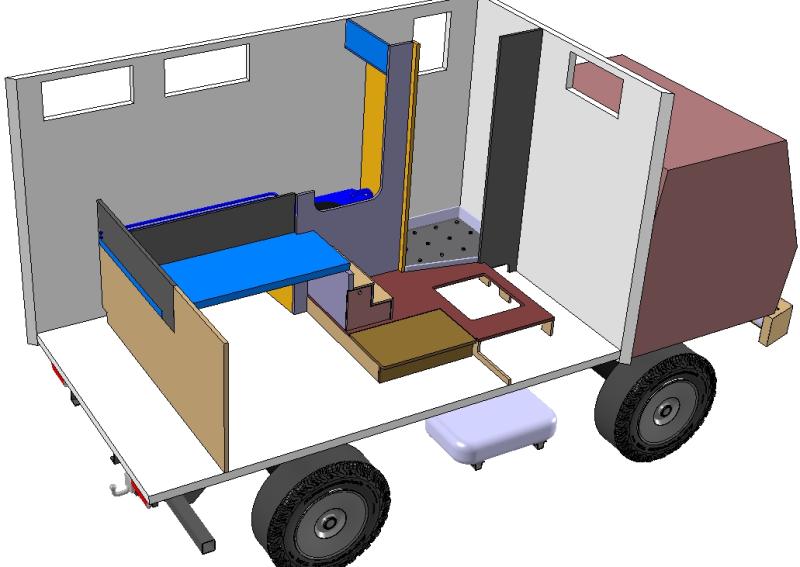

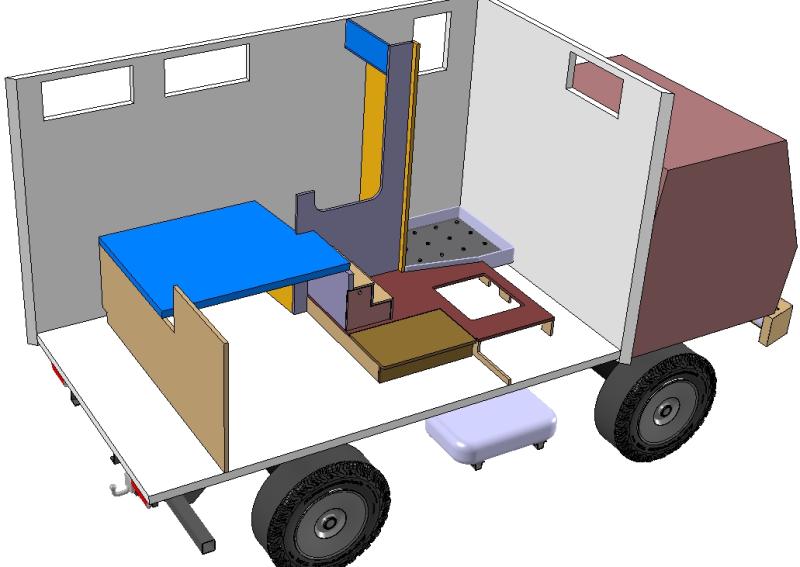

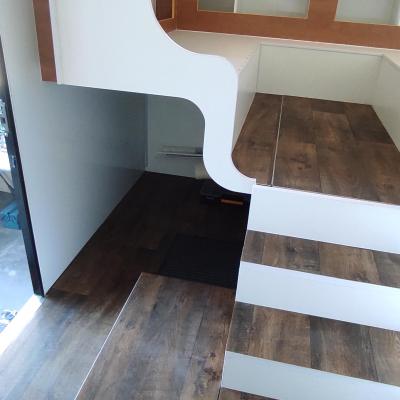

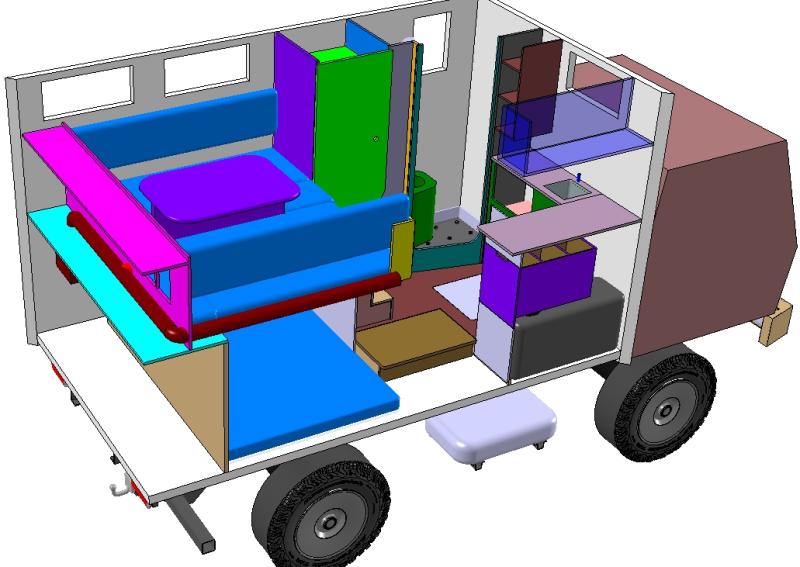

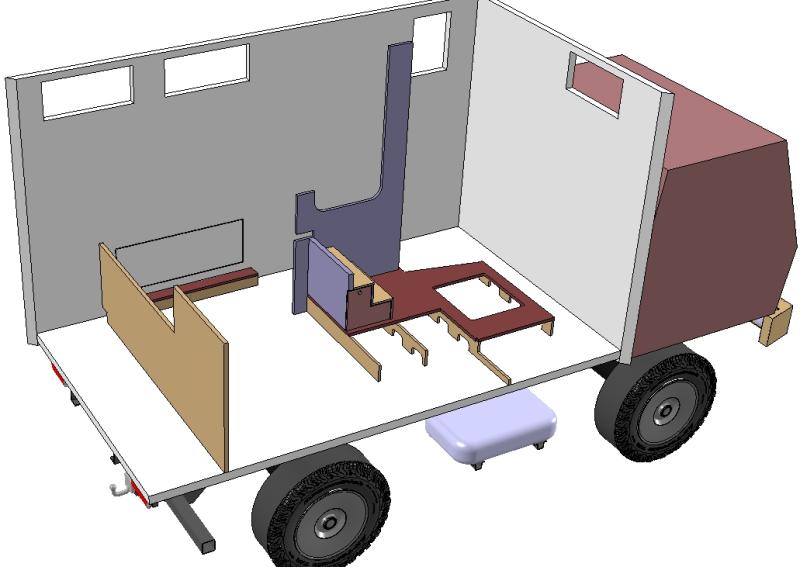

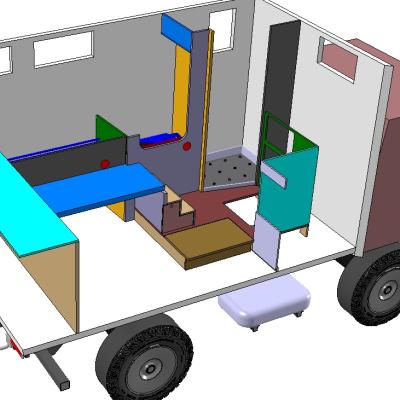

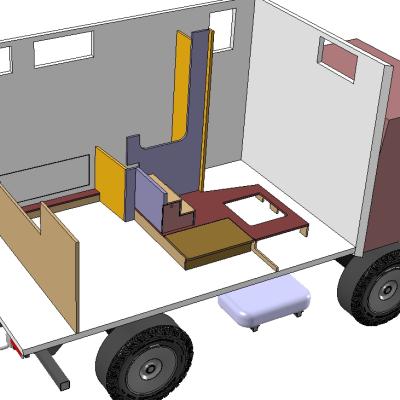

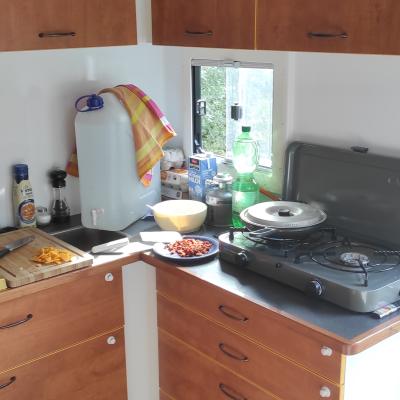

| Oben hinten sitzen mit Rundumblick. Schlafen unter der Sitzgruppe wie im Boot. Wassertank im Kleiderschrank. Eckküche vorne rechts. Dusche und WC vorne links. |

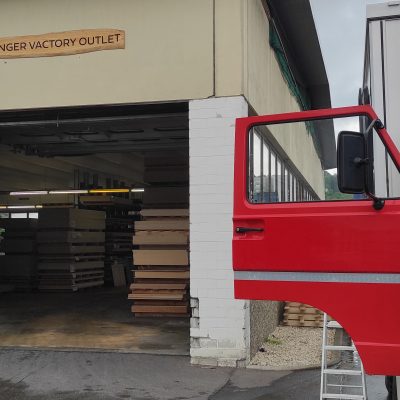

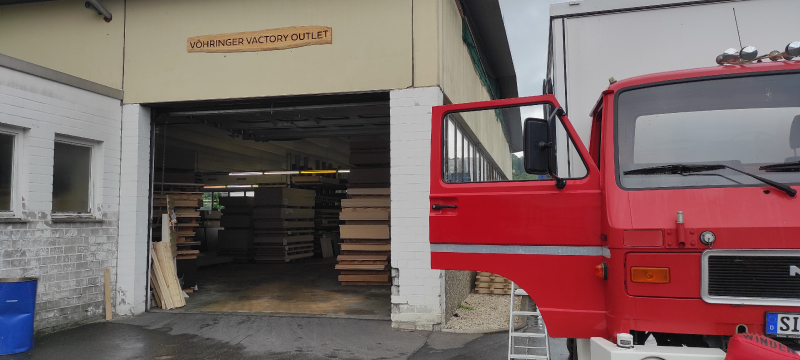

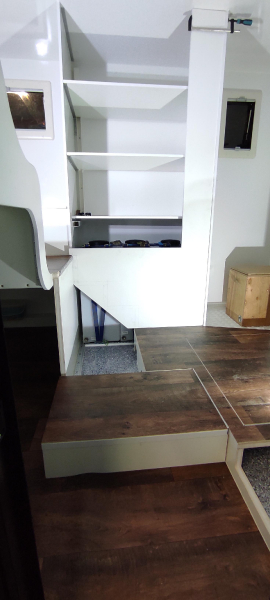

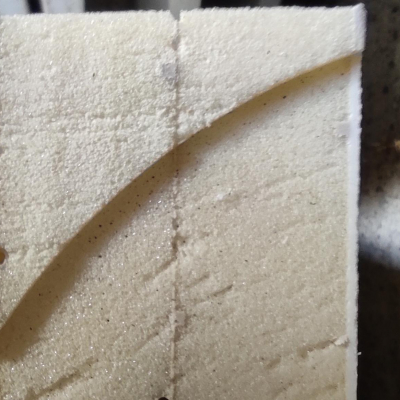

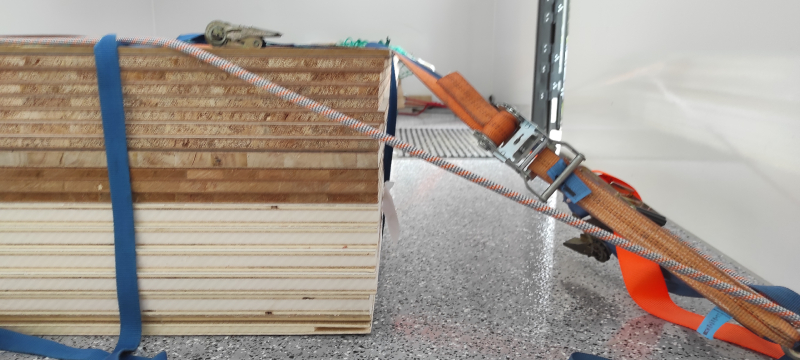

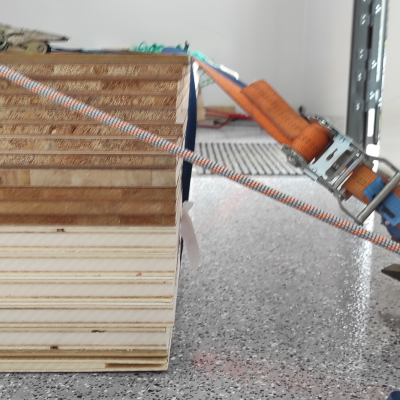

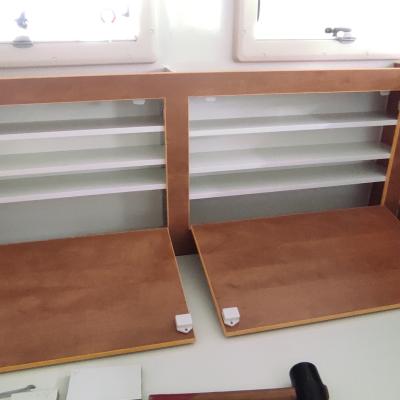

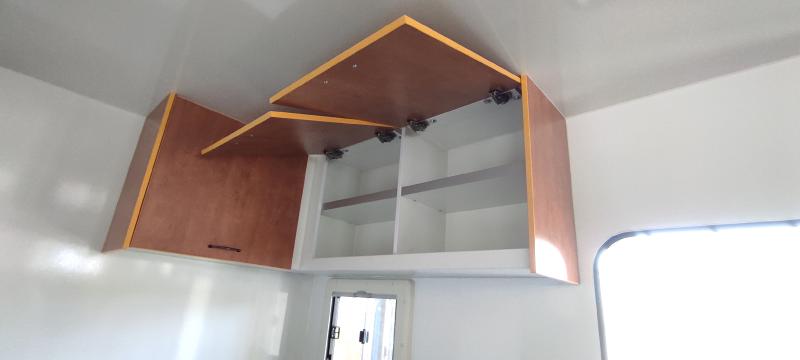

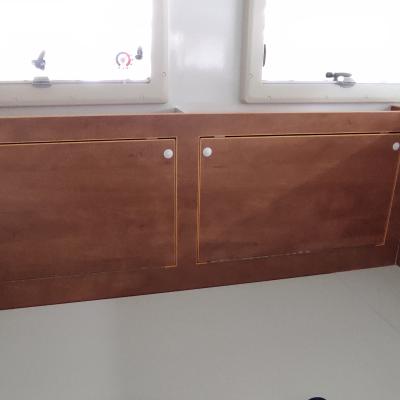

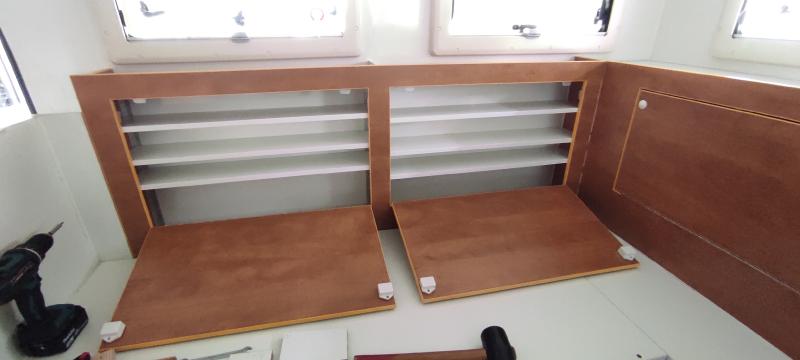

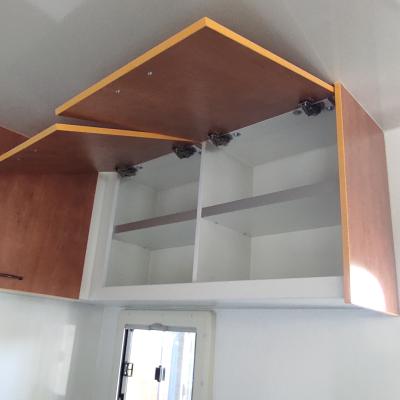

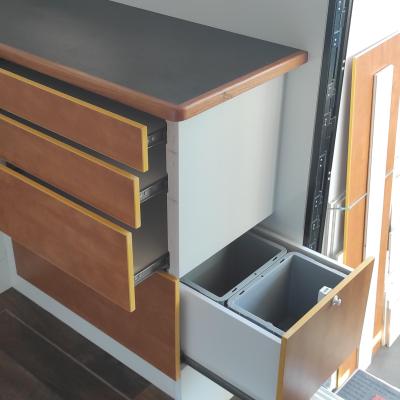

| Material of furniture | Leichtbauplatten Fa. Vöhringer |
|---|
| Cooking stove | Fehlt noch |
|---|

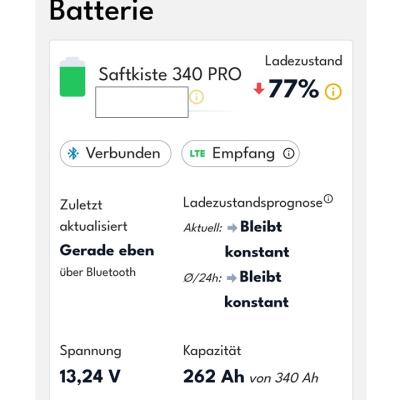

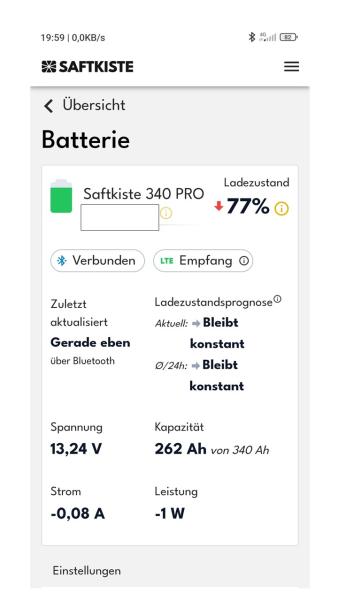

| Capacity of batteries in the cabin | Fehlt noch |
|---|
| Solar capacity | Fehlt noch |
|---|---|
| Fuel cell | no |

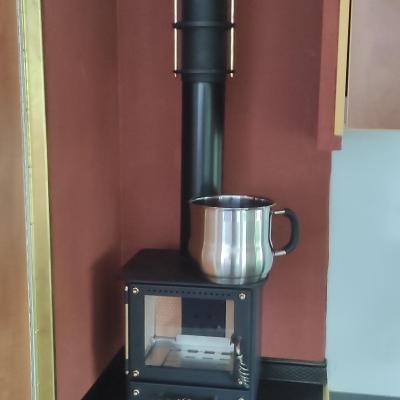

| Manufacturer and type of heating system | Fehlt noch |
|---|
| Explanation of gas system | |
|---|---|
| Fehlt noch |
| water flow | Fehlt noch |
|---|---|

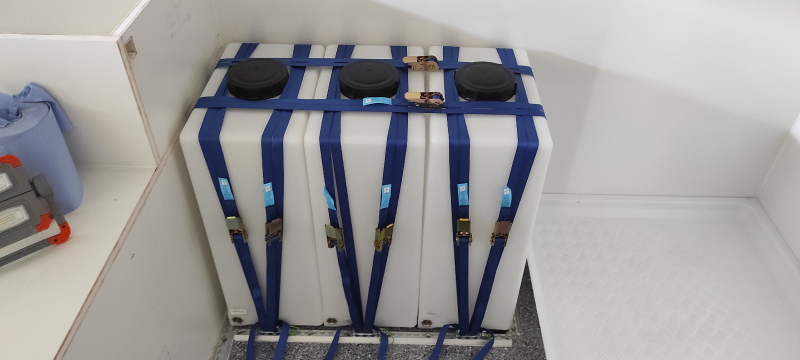

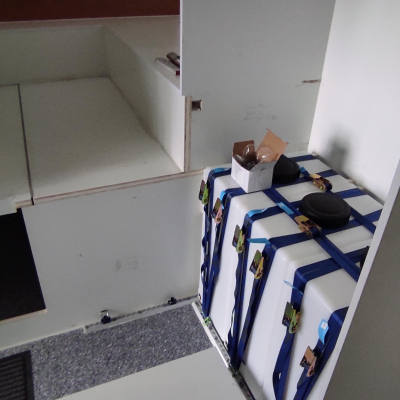

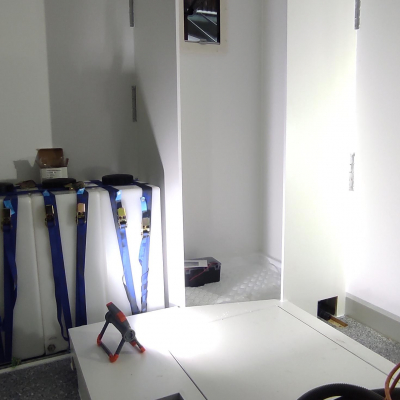

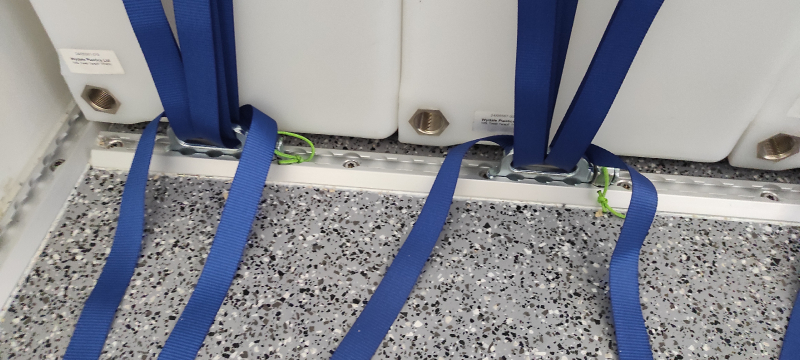

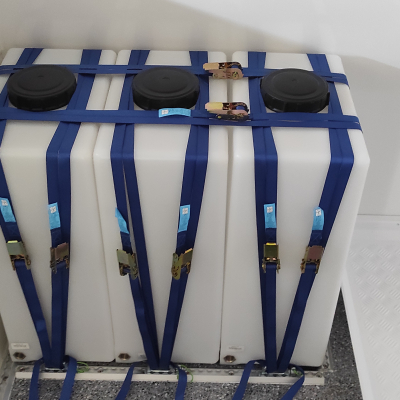

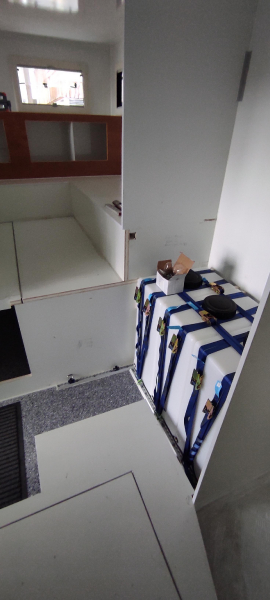

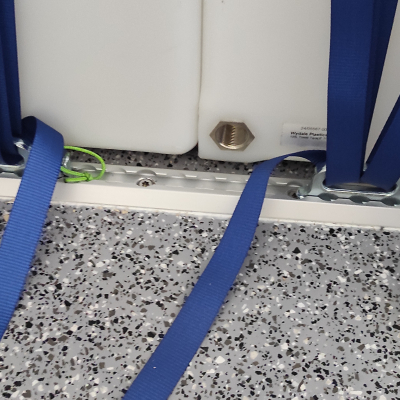

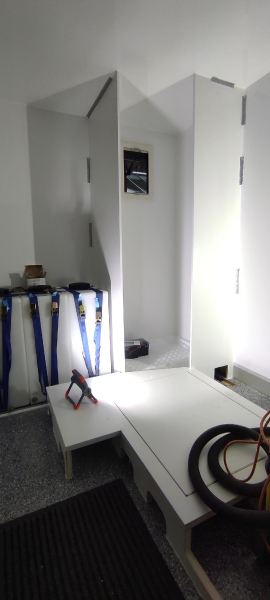

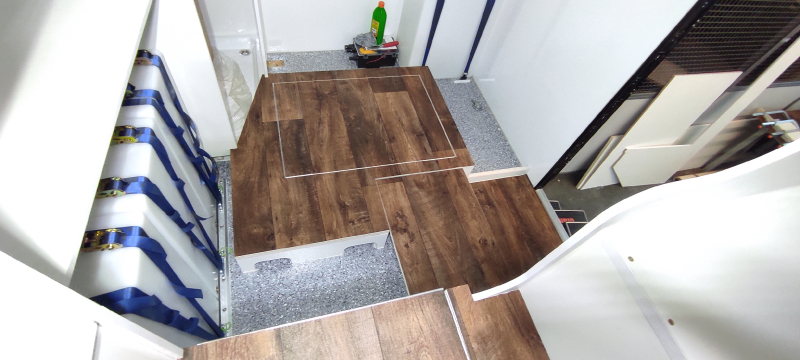

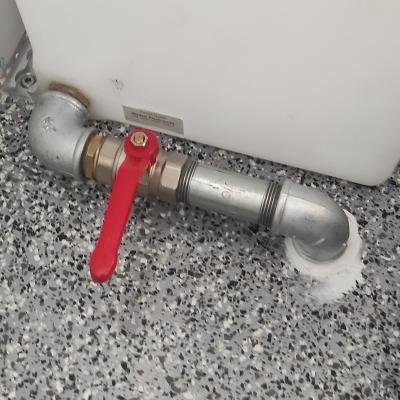

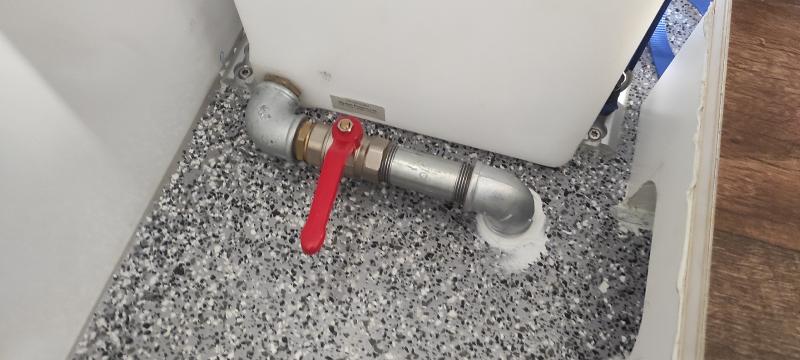

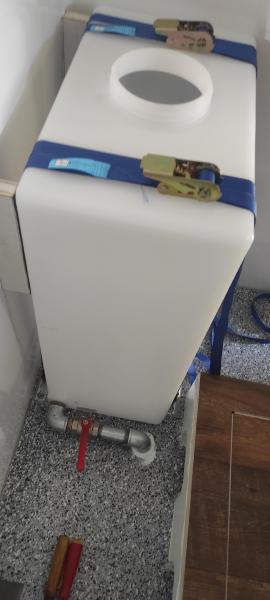

| Capacity of fresh water tank(s) | 3 x 105 Liter hochkant |
| Capacity of waste water tank(s) | 1 x 105 Liter hochkant |
| Manufacturer and type of toilet | Trocken Trenntoilette |
|---|

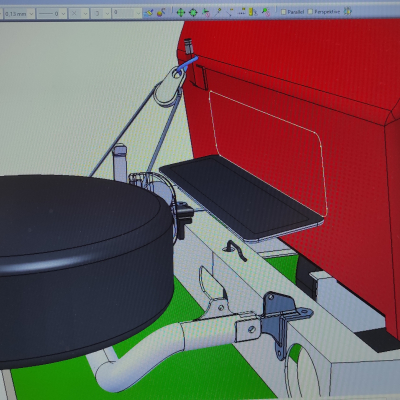

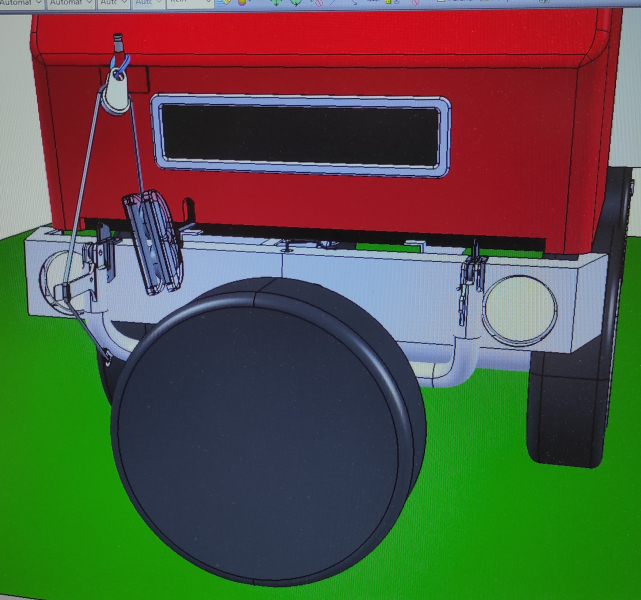

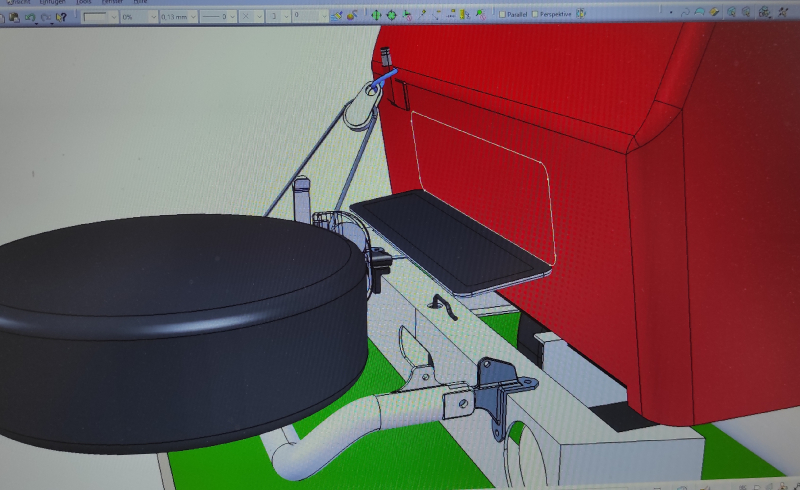

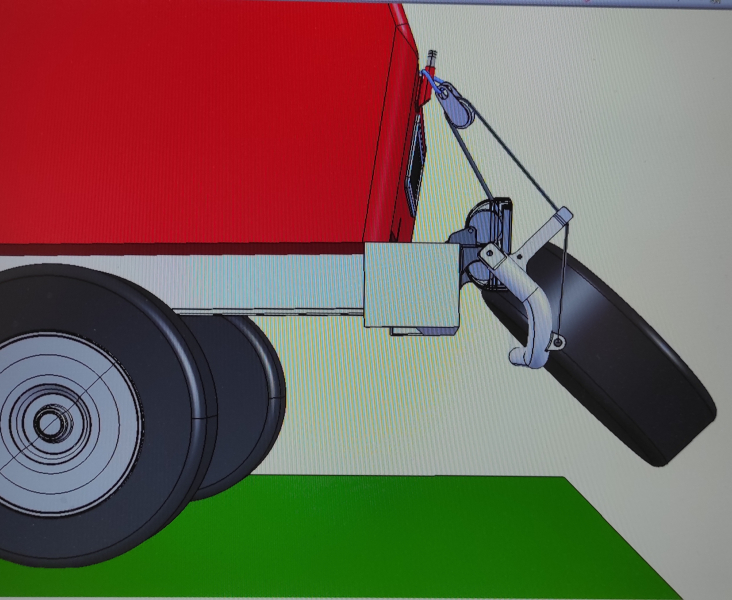

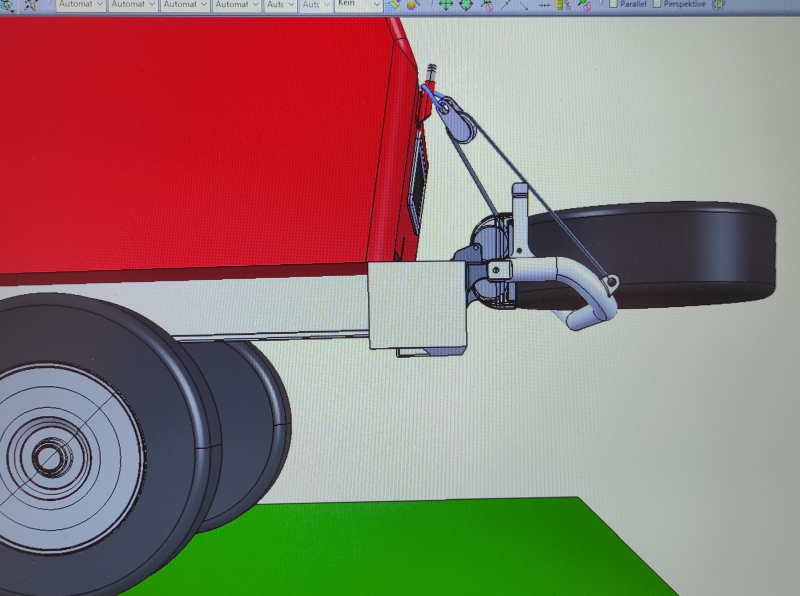

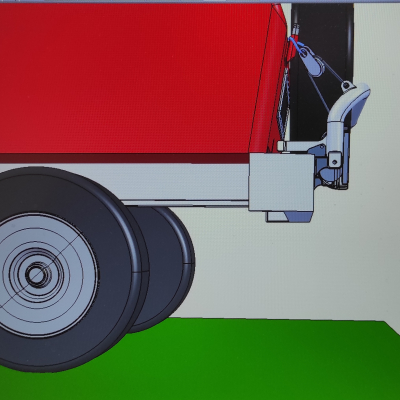

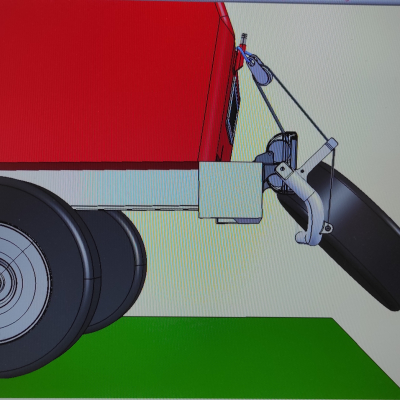

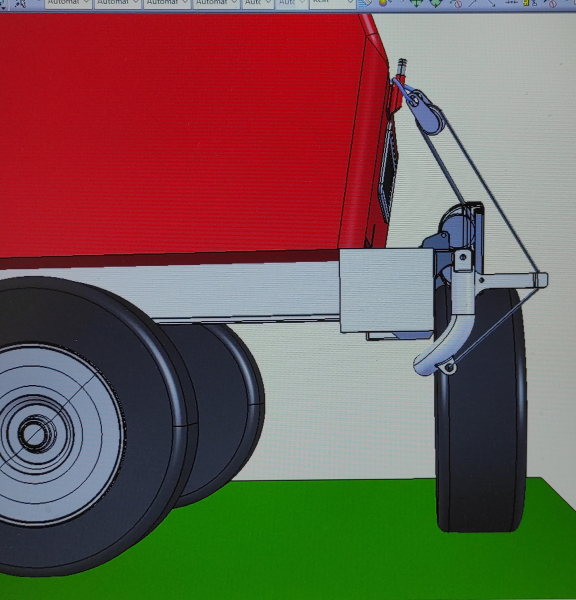

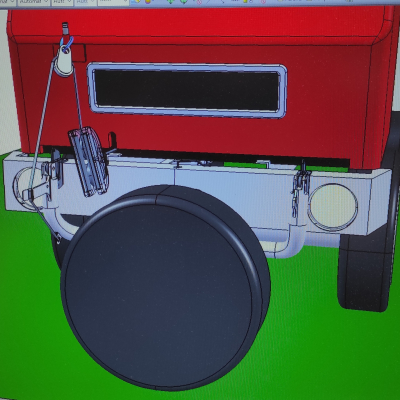

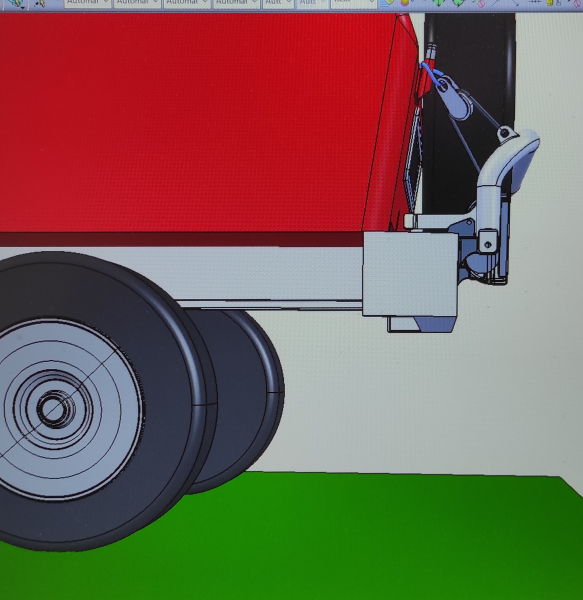

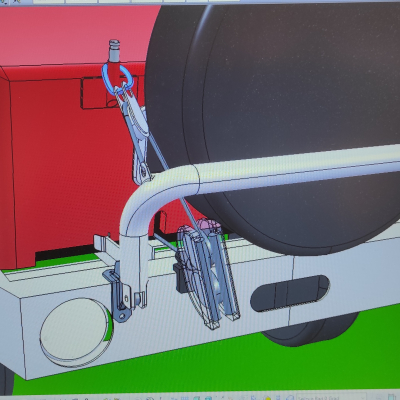

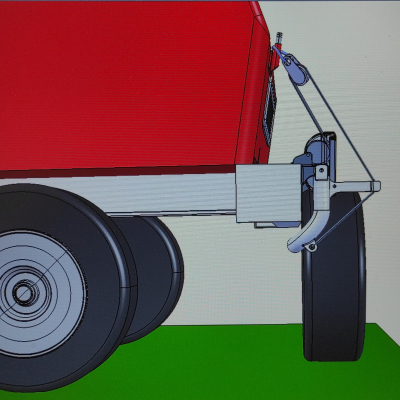

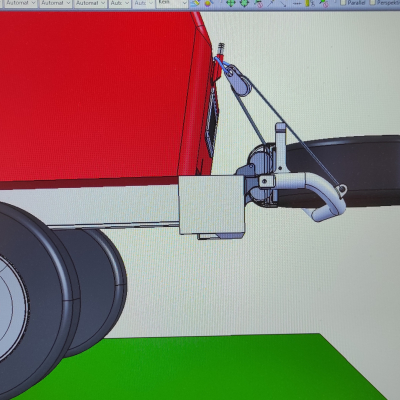

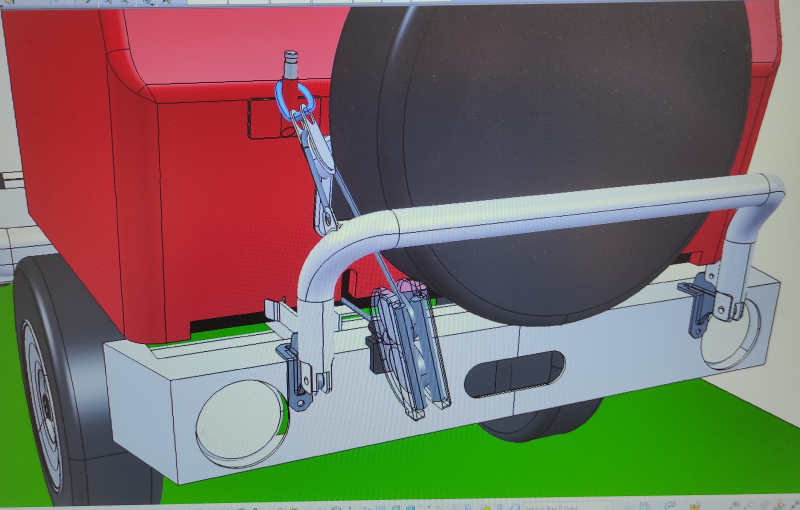

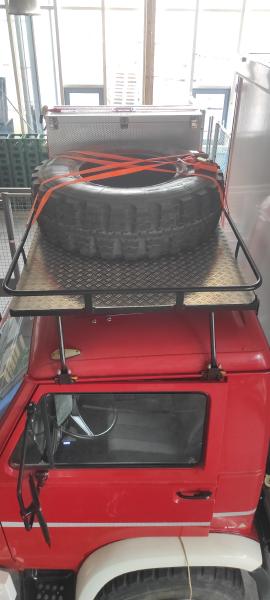

| Rear carrier | Nein Frontträger. Geplant ist die Bedienung mit der vorhandenen Seilwinde. |
|---|
