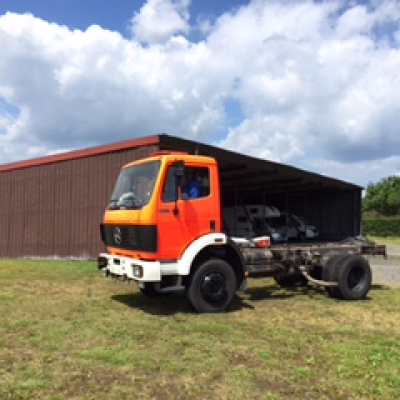

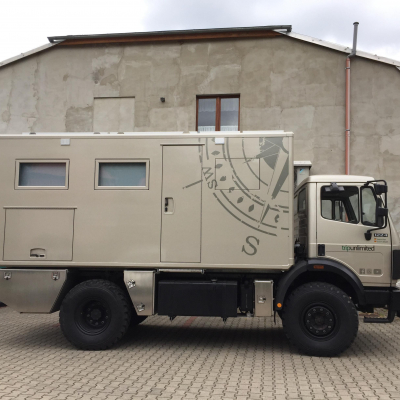

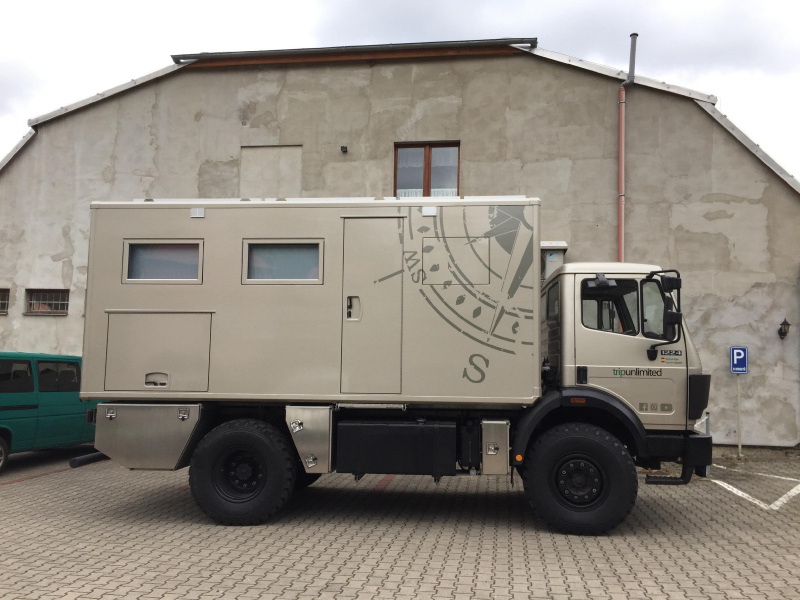

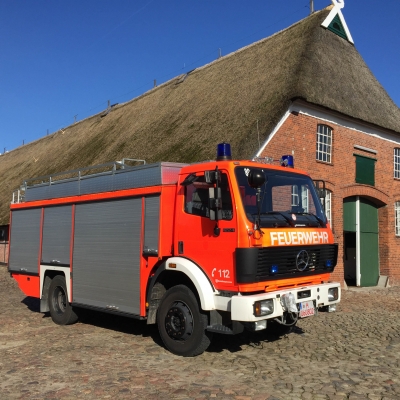

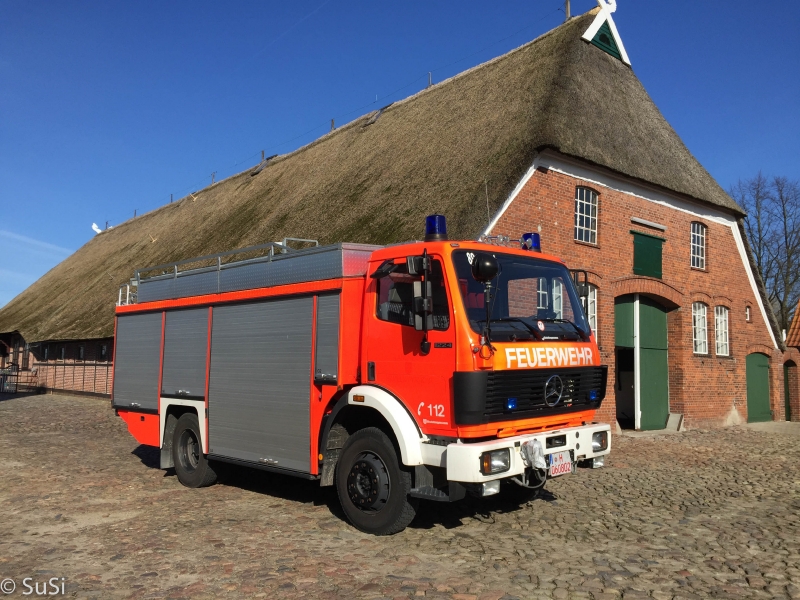

Wir bauen seit März 2017 aus einem ehemaligen Rüstwagen II ein Weltreisemobil für unseren "Trip-Unlimited". Ab 2022 wollen wir als Langzeitreisende in unserem Fahrzeug leben. Go with the "Floh"!
| Manufacturer and model | Mercedes Benz 1224 AF |
|---|---|
| Name | Stephan Post |
| Country | Deutschland |
| Website | www.trip-unlimited.de, https://www.youtube.com/c/tripunlimited |
| Year of manufacture | 1994 |
| For sale? | no |
| Engine type | OM 366 LA |
|---|---|
| Cubic capacity | 5958 |
| Number of cylinders | Reihensechszylinder |
| Horsepower | 240 |
| Torque | 840 1250–1500 |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3,60 m |
| Number of seats | 2 |
| Tyre size | 365/85 R20 |
| Rim size | Stahlfelgen 20 x 11,75 |
| Type of tyre | Michelin XZL 3 |
| Tank capacity | 800 l, 2x 400 l |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | ja |
| Manufacturer of the cabin | Boxmanufaktur |
|---|---|
| Inner dimensions (LxWxH) | 4,88 m |
| Outer dimensions (LxWxH) | 5m |
| Cabin material | GFK |
| Kind and thickness of insulation | GfK/ PU-Hartschaum / GFK 59 mm dick |
| Number of beds | 2-4 |
| Windows | 3 Stück KCT 1000x600mm, 1 Stück 800x600 mm, Dachluke Bad, Dachluke Bett |
| Subframe | 4-Punkt Rautenlagerung |

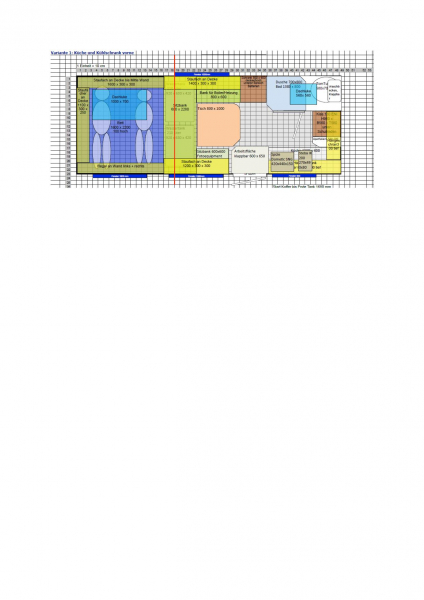

| Explanation of floor plan | |
|---|---|
| Festbett, Rundsitzgruppe, Bad mit Dusche, kein Durchgang |
| Material of furniture | Pappelsperrholz |
|---|---|
| Other | |
| Möbelfronten in Bambus | |

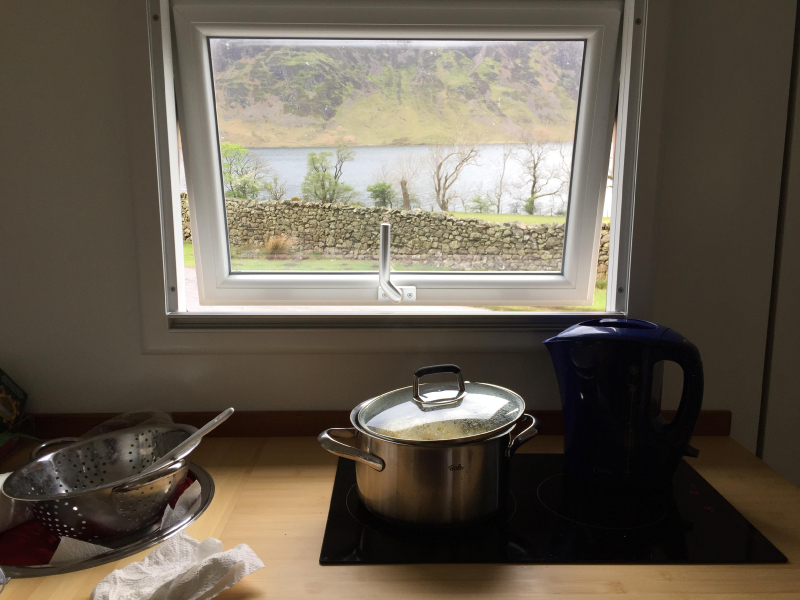

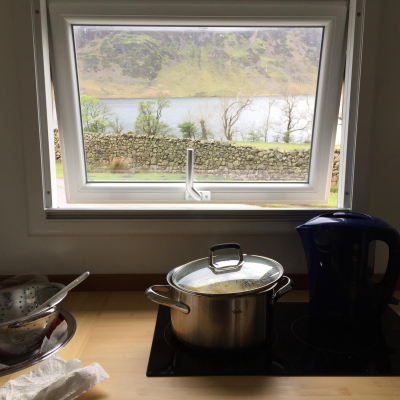

| Cooking stove | 2 Platten Induktion + mobiles Induktionsfeld für die Außenküche |
|---|---|
| Gas installation | gasfreies Wohnmobil |
| Other | |

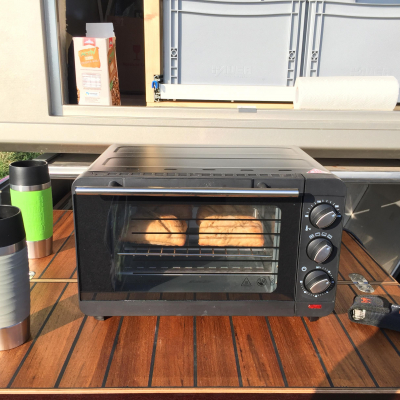

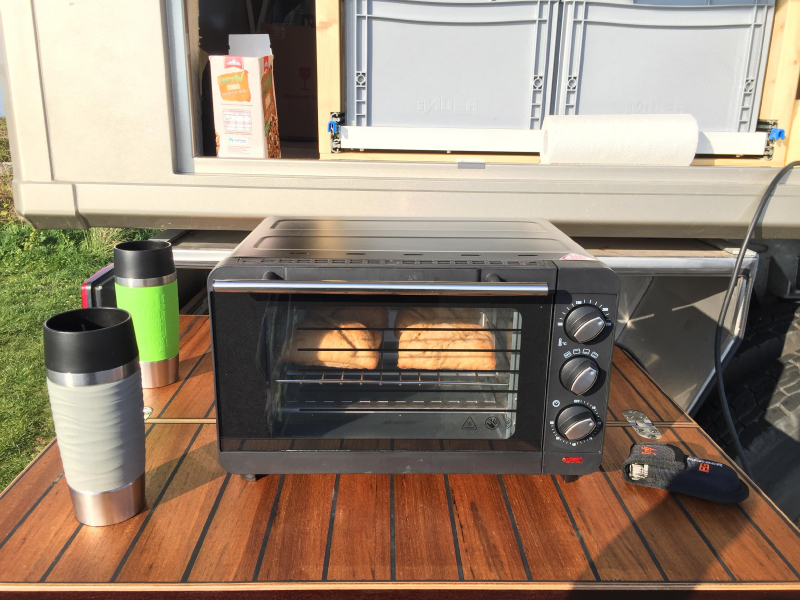

| Backofen | |

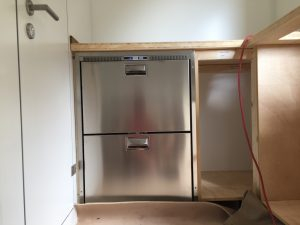

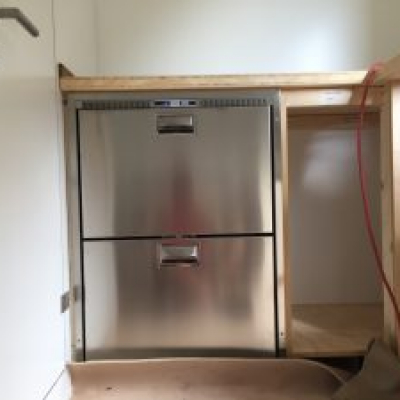

| Manufacturer and type of fridge / cooler | Vitrifrigo Schubladenkühlschrank |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 24 V Gleichspannung |
| Charging converter 24V-12V | Victron Multiplus |
| 110V / 230V in the cabin? | yes |
| Inverter | 5kW, reine Sinusform |
| Capacity of batteries in the cabin | zwei 12,8V/200 Ah Lithium Batterien |
|---|---|
| Battery type | Lithium Batterien |
| Battery charger for cabin batteries | Lichtmaschine und Solar und Landstrom |
| Battery management | BMS von Victron |

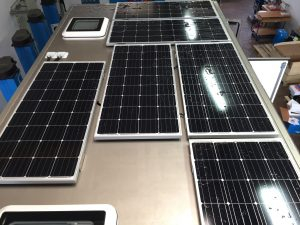

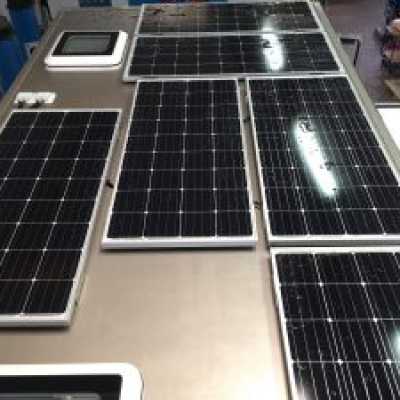

| Solar capacity | 900 kW/h |
|---|---|
| Solar controller | zwei MPPT-Solarregler, |
| Fuel cell | no |
| Power generator | Honda EU22i |
| Manufacturer and type of heating system | Eberspächer Diesel-Wasserheizung |
|---|---|
| Warm water processing | 24 l Boiler |
| Capacity of fresh water tank(s) | 3x 100l |
|---|---|
| Capacity of waste water tank(s) | 80l |
| Manufacturer and type of toilet | Trockentrenntoilette Natures Head, aber es folgt noch ein Selbstbau |
|---|---|
| Capacity of black water tank | 0 |
| Rear carrier | Ja, für Ersatzreifen und Motorrad |
|---|---|
| Roof rack | Ja |
| Storage boxes | Ja |

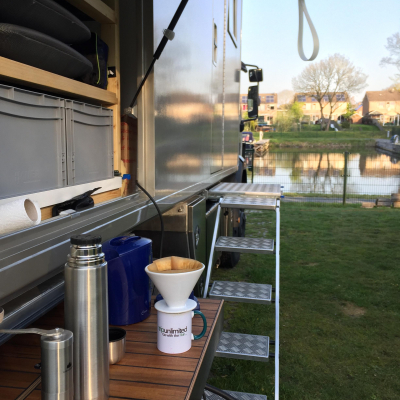

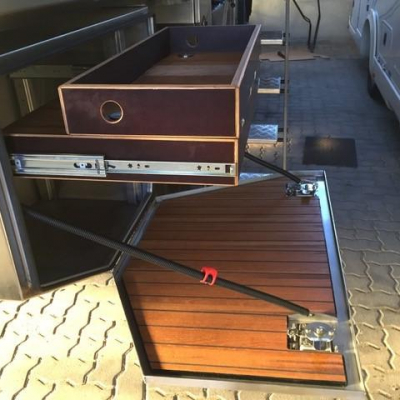

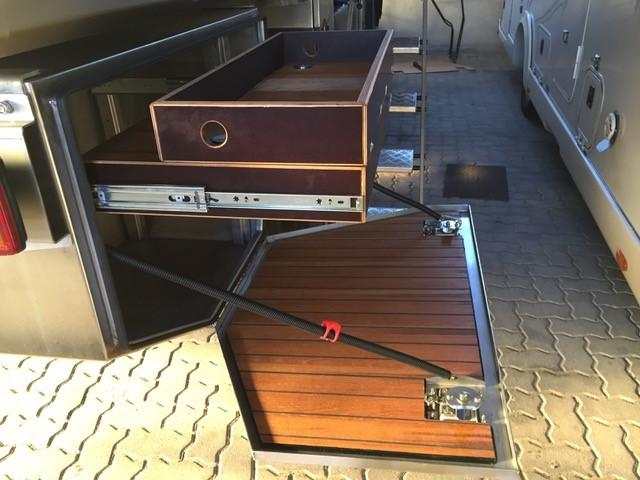

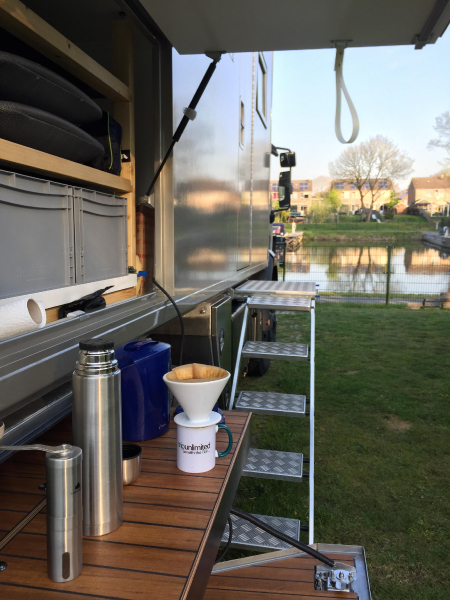

| Outside cooking facilities | Ja |
| Awning | nein, Tarp |
