Selbstausbau einer KRUG-Wohnkabine

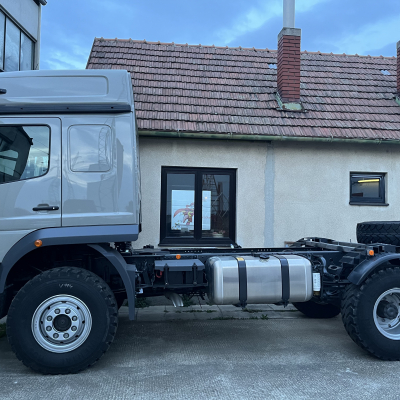

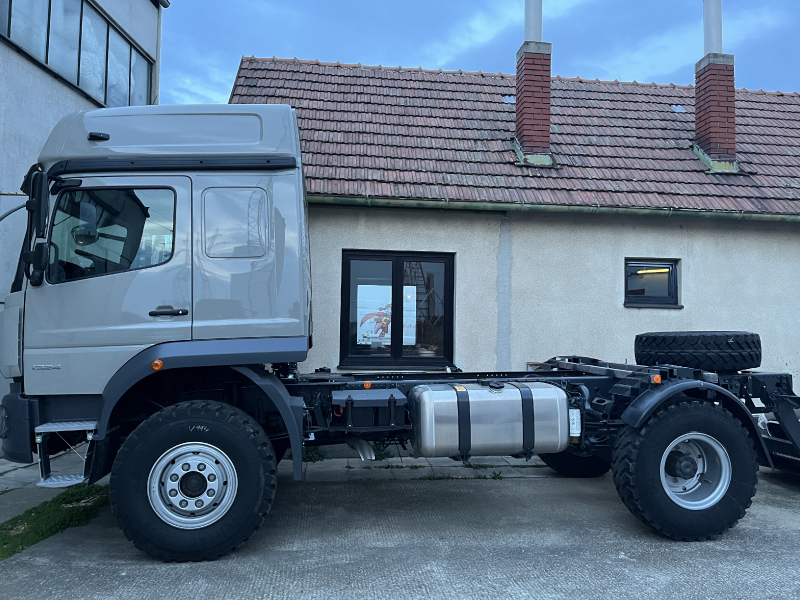

| Manufacturer and model | Mercedes Atego 1324 4x4 |
|---|---|
| Country | Österreich |
| Year of manufacture | 2023 |
| For sale? | no |
| Engine type | OM936 |
|---|---|
| Cubic capacity | 7.7 L |
| Number of cylinders | 6 |
| Horsepower | 238 |
| Torque | 1000 |
| Zulässiges Gesamtgewicht | 13 To |
|---|---|
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
| Wheel base | 3860 |
| Number of seats | 2 |
| Tyre size | 365/85 R20 |
| Tank capacity | 390 |
| Diesel filter | no |
| Permanent or manually selectable 4-wheel drive | Allrad permanent |
| Diff locks | 3 |

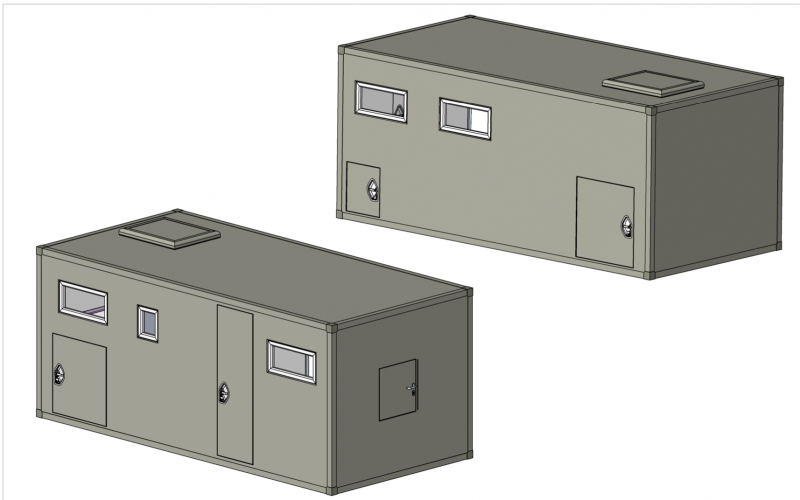

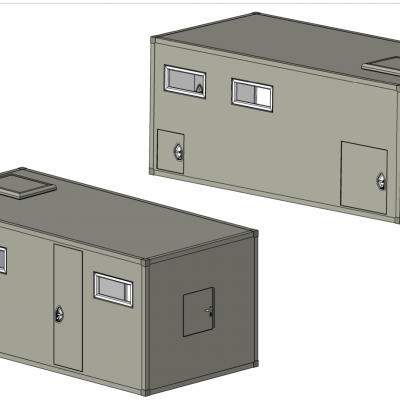

| Manufacturer of the cabin | Krug XP |
|---|---|
| Inner dimensions (LxWxH) | 5188x2456x2186 |
| Outer dimensions (LxWxH) | 5200x2480x2200 |
| Cabin material | GFK |
| Kind and thickness of insulation | Wände und Decke 60mm, Boden 80mm |
| Number of beds | 2 |
| Windows | 5 |

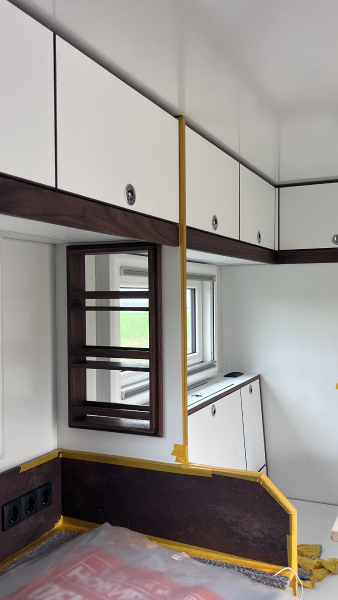

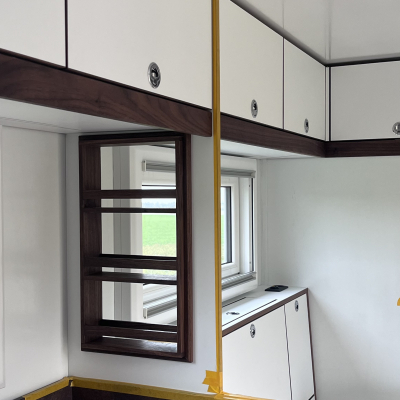

| Material of furniture | Queenply/Massivholzelemente Nuss |
|---|
| Cooking stove | 2 Induktionskochplatten (mobil), Backrohr/Mikro-Kombiofen 230V |
|---|---|
| Gas installation | keine |
| Manufacturer and type of fridge / cooler | Vitrifrigo 270Ltr. |
|---|
| Voltage in the chassis | 24V |
|---|---|
| Voltage in the cabin | 24V |
| Charging converter 24V-12V | 2 Stk. Victron BuckBoost |

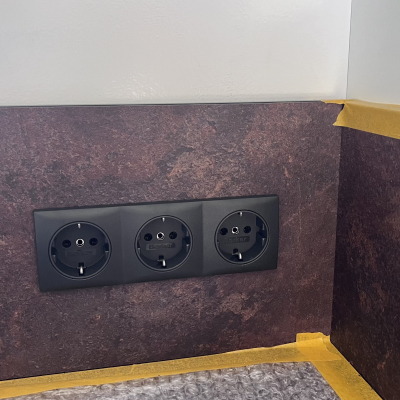

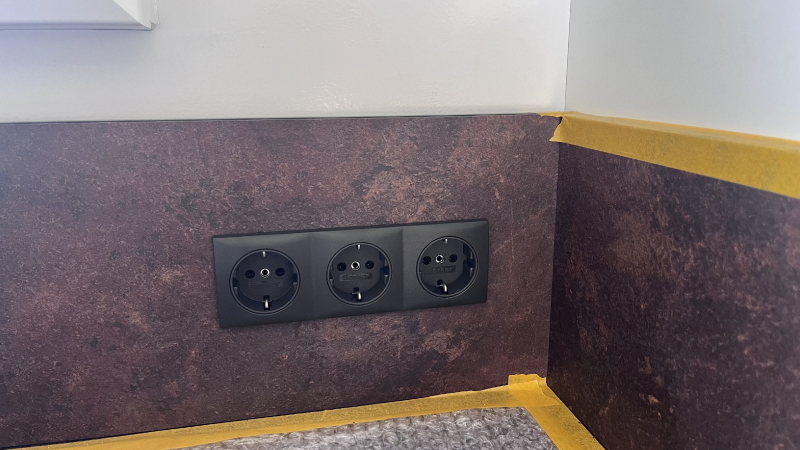

| 110V / 230V in the cabin? | yes |

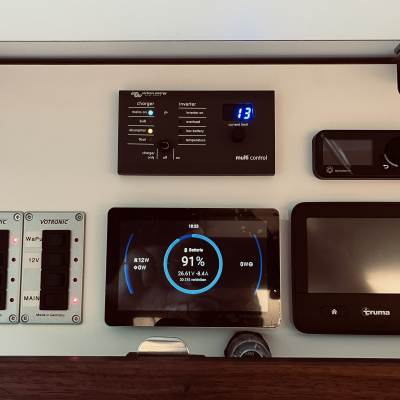

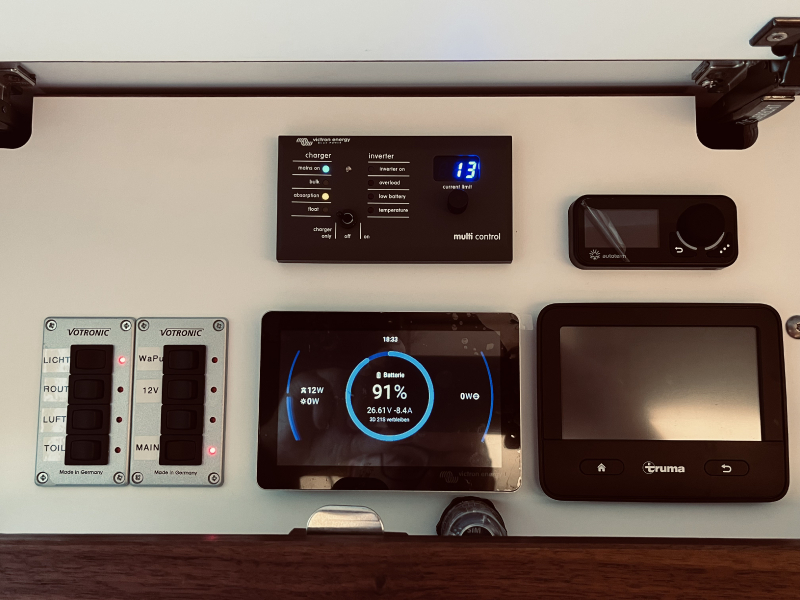

| Inverter | Victron Multiplus 5kVA |
| Capacity of batteries in the cabin | 3x 200 Ah, (15kWh) |
|---|---|
| Battery type | LiFePo4 |
| Battery charger for cabin batteries | 120A |
| Battery management | Victron VE.BUS BMS V2 |
| Solar capacity | 1310Wp |
|---|---|
| Solar controller | 4 Stk. Victron MPPT 75/15 |
| Fuel cell | no |
| Power generator | Nein |
| Manufacturer and type of heating system | Truma Combi D4E |
|---|---|
| Warm water processing | Truma Combi D4E |
| Cab heating | Webasto 2kW Luftheizung |
| Other | |
| Zusätzlich Autoterm 2kW als backup | |
| Explanation of gas system | |
|---|---|
| kein Gas (nur für Griller 5kg Gasflasche im Staufach) |

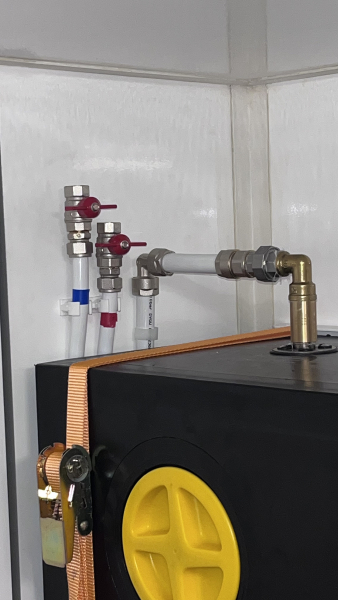

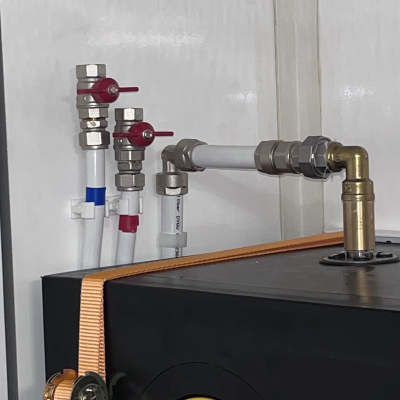

| water flow | Alu-Verbundrohre mit Schraubfittinge |
|---|---|

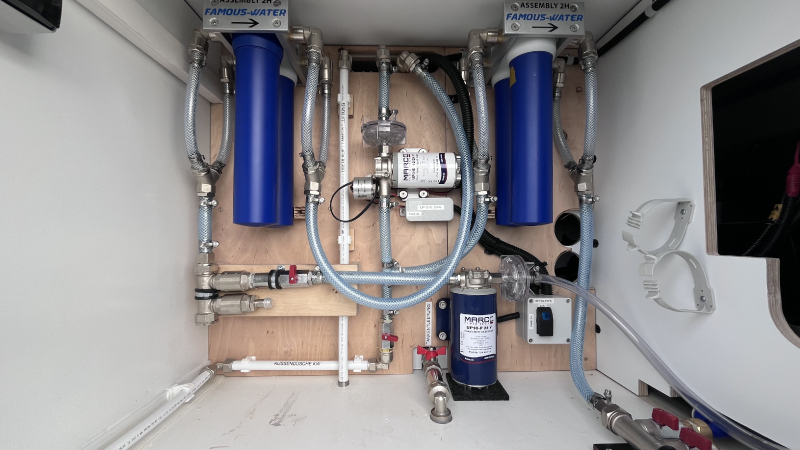

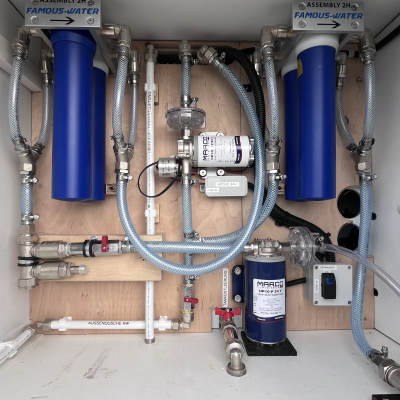

| Water filtration system | Famous Water Keramik und Aktivkohle |

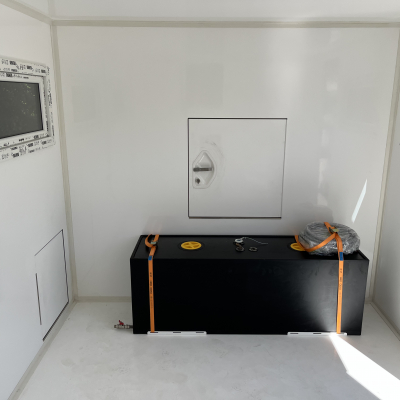

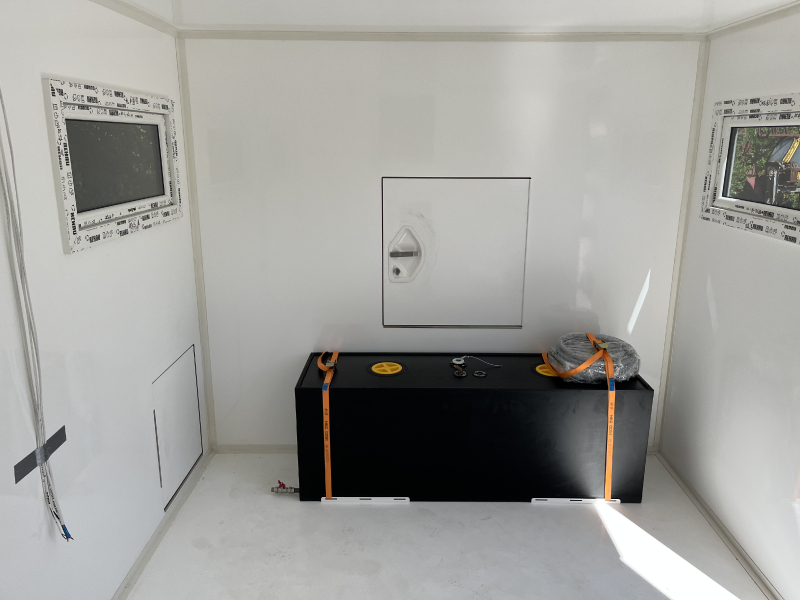

| Capacity of fresh water tank(s) | 350 Liter |
| Capacity of waste water tank(s) | 150 Liter |
| Manufacturer and type of toilet | Separett Tiny TTT |
|---|
| Rear carrier | ja für Motorrad |
|---|---|
| Roof rack | Plattform über Fahrerhaus aus Alu-Riffelblech |
| Storage boxes | ja jede Menge |
| Outside cooking facilities | Gasgriller Enders Urban II Pro mit 5kg Gasflasche |
| Awning | Thule Omnistor 1200 Sackmarkise |
