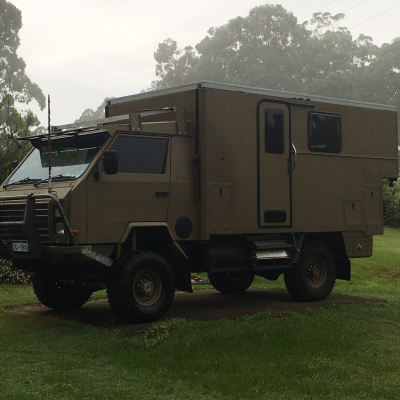

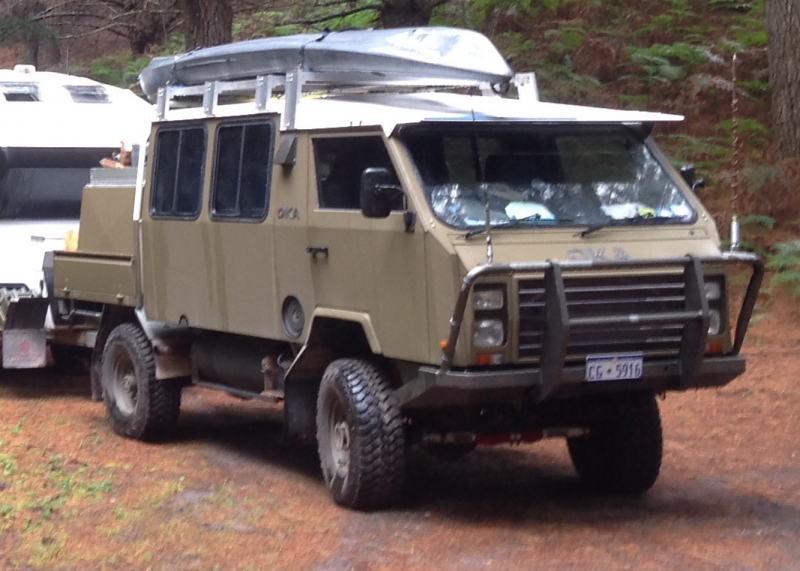

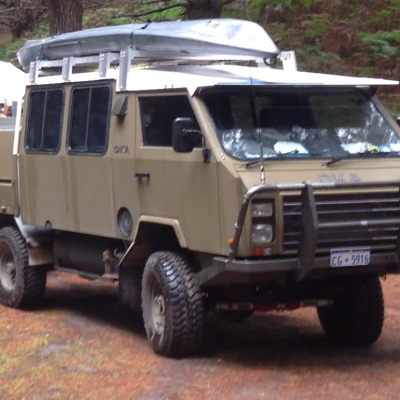

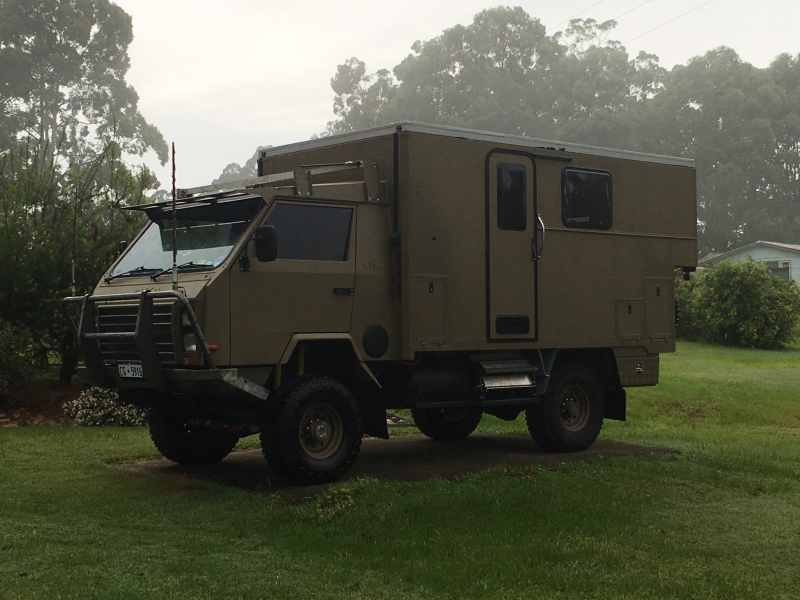

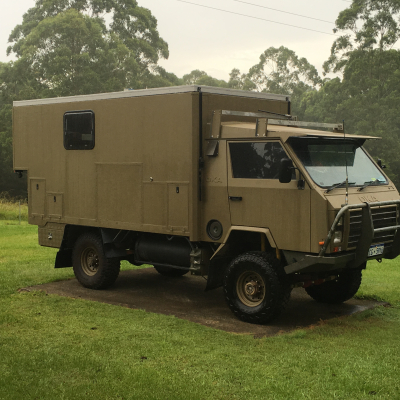

| Manufacturer and model | OKA LT |
|---|---|
| Name | Peter Fox |
| Country | AUSTRALIA |
| Year of manufacture | 1996 |
| For sale? | no |
| Asking price? | No |
| Engine type | Perkins Phaser 1004-4t |
|---|---|
| Cubic capacity | 4.0lt |
| Number of cylinders | 4 |
| Horsepower | 110hp |
| Other | |
| Spicer 5 speed transmission, NP205 transfer case, Dana 60 front axle, Dana 70 rear axle. Cruise speed 90km/hr, max speed 100km/hr. | |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 3000 |
| Number of seats | 2 |
| Tyre size | 315 x 75 R16 |
| Rim size | 16 |
| Type of tyre | Hankook RT03. Mud Terrain |
| Tank capacity | 200lt |
| Diesel filter | yes |
| Other | |
| OKA has GVM of 5500kg. This OKA weighs 5200kg with full fuel, full water, driver and passenger, food clothing and all equipment for travel. | |
| Permanent or manually selectable 4-wheel drive | Part time 4x4 |
| Diff locks | Front ARB locker. Rear Spicer PwrLok |

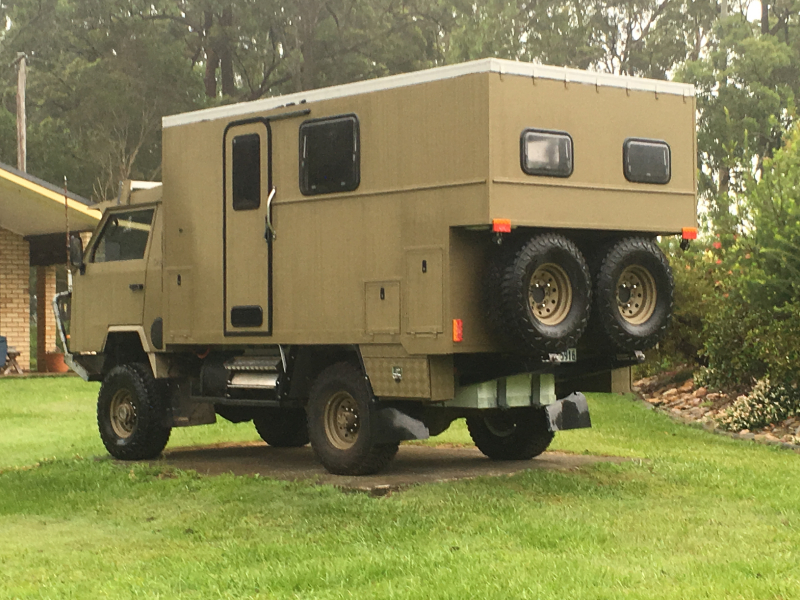

| Manufacturer of the cabin | Home built |
|---|---|
| Inner dimensions (LxWxH) | 3800 x 2100 |
| Outer dimensions (LxWxH) | 3900 x 2160 |

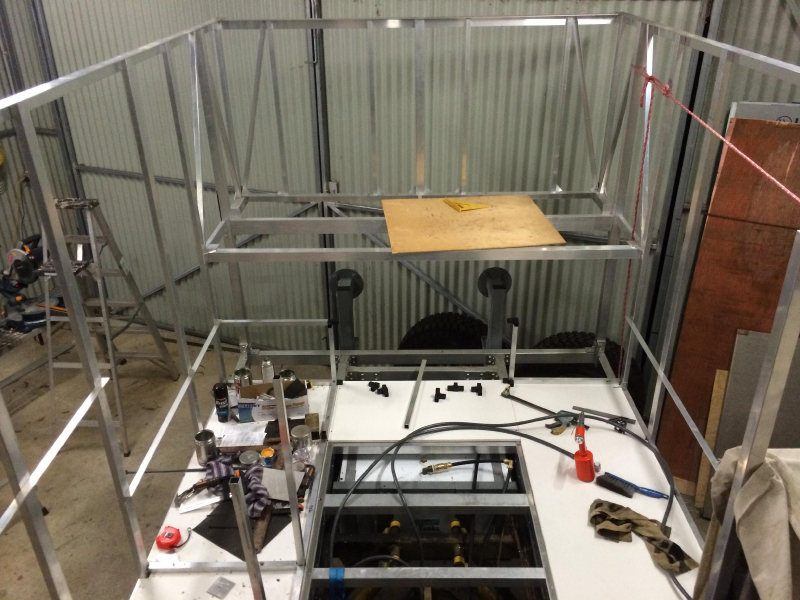

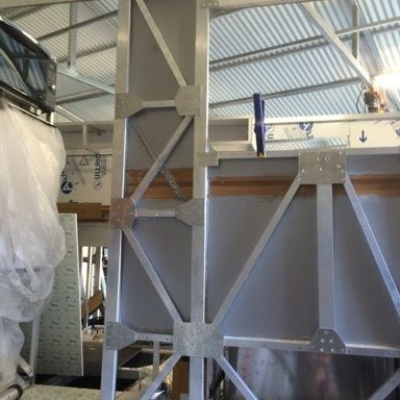

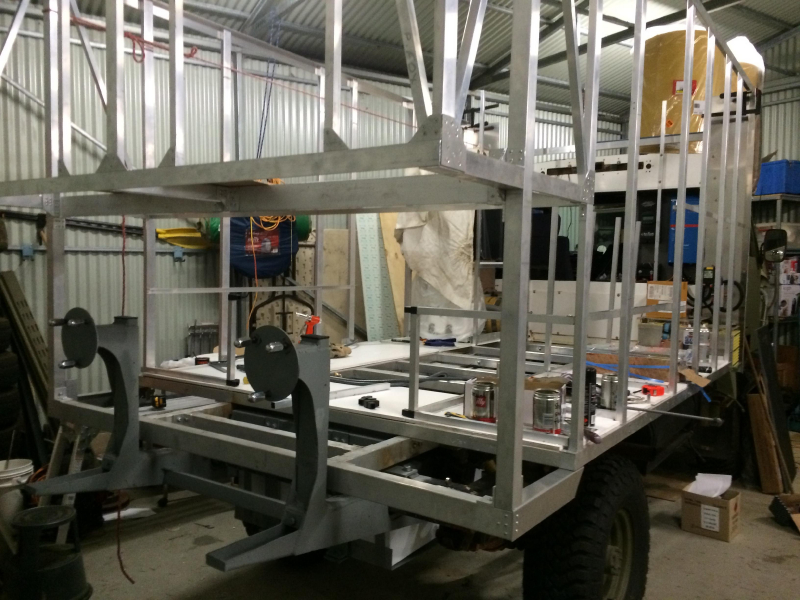

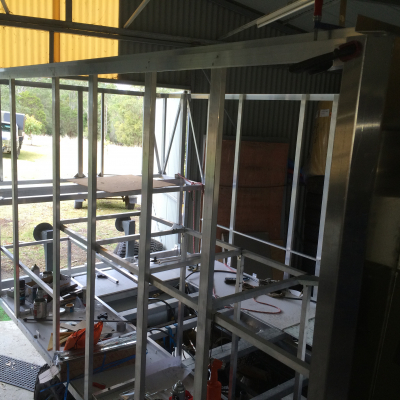

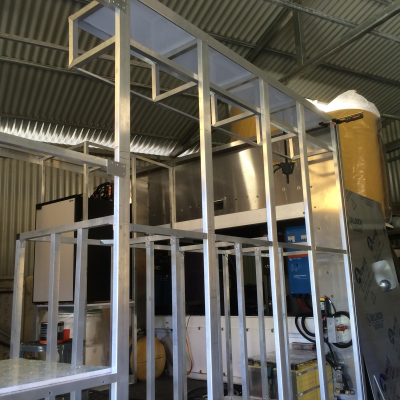

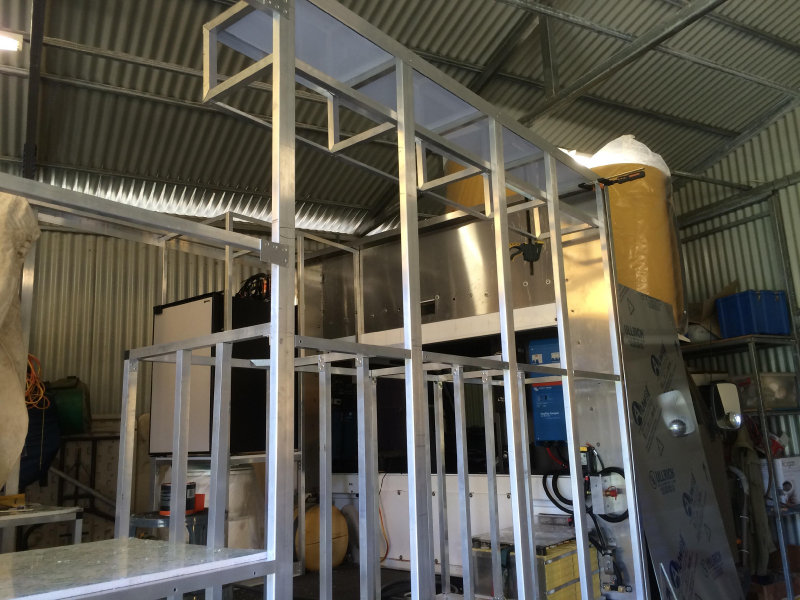

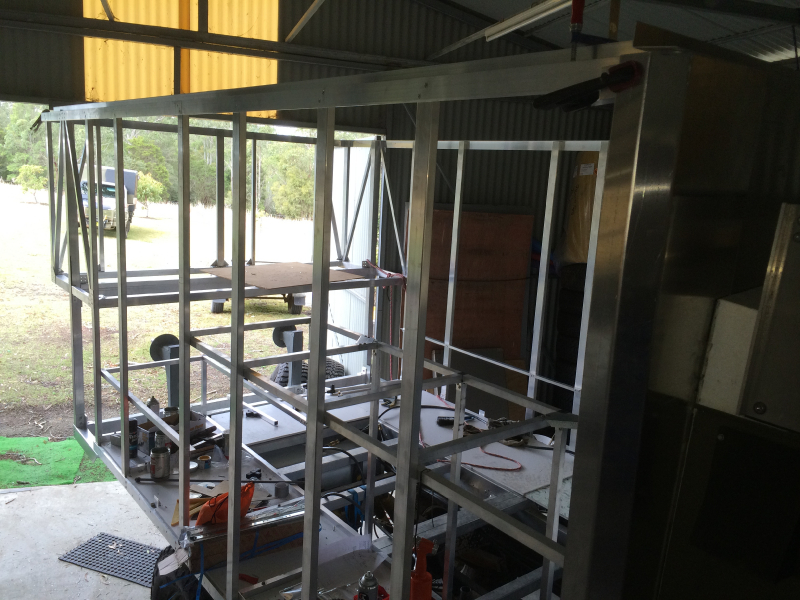

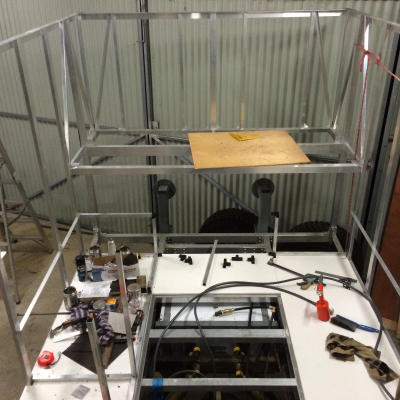

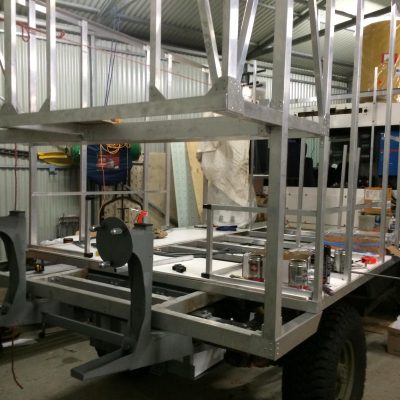

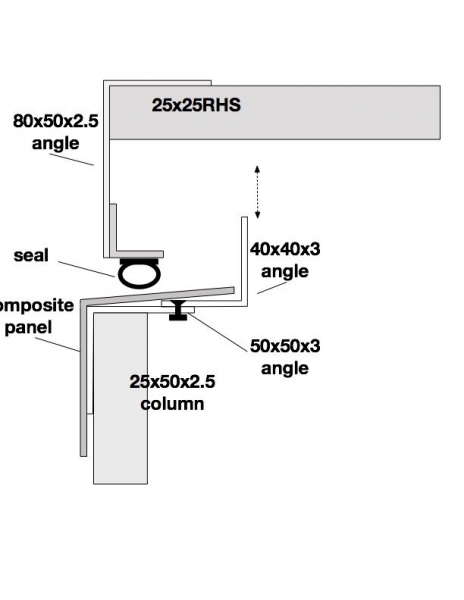

| Cabin material | Aluminium Frame with DiBond cladding |

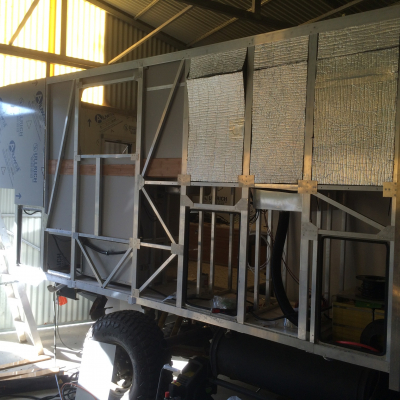

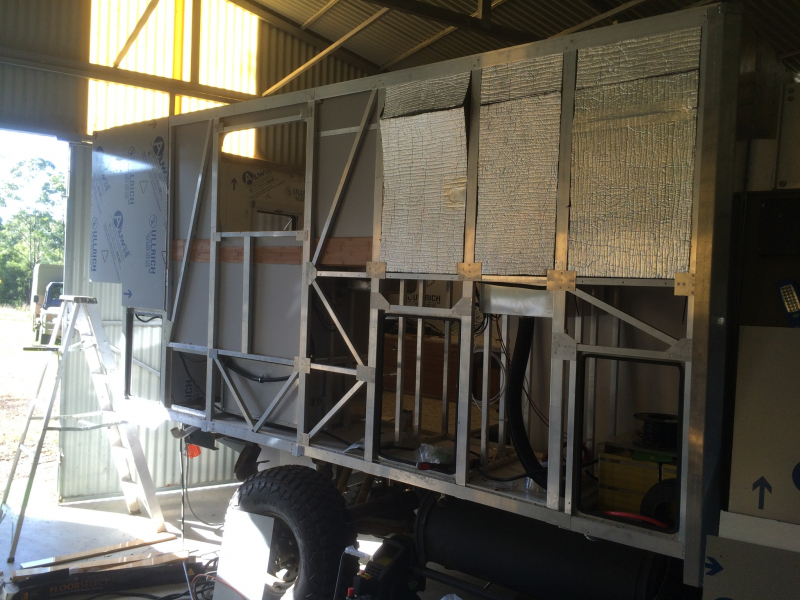

| Kind and thickness of insulation | Closed cell foam, 25mm |

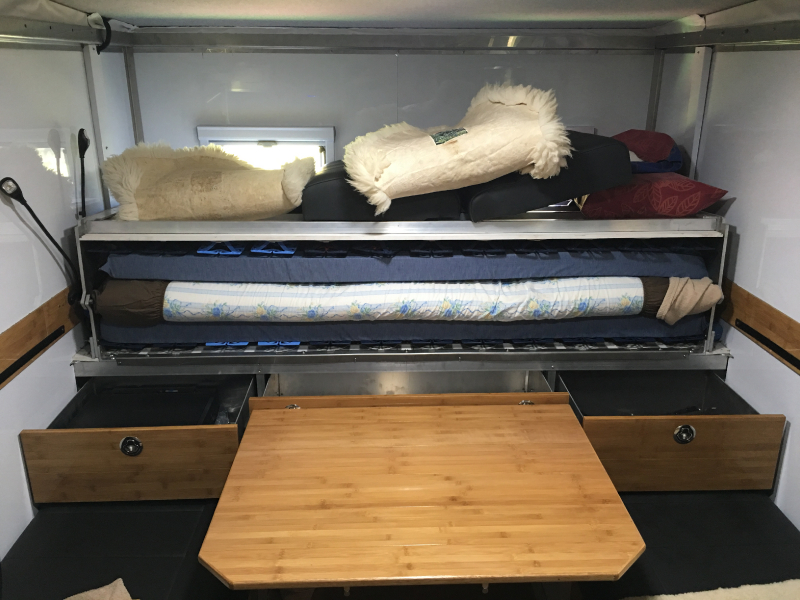

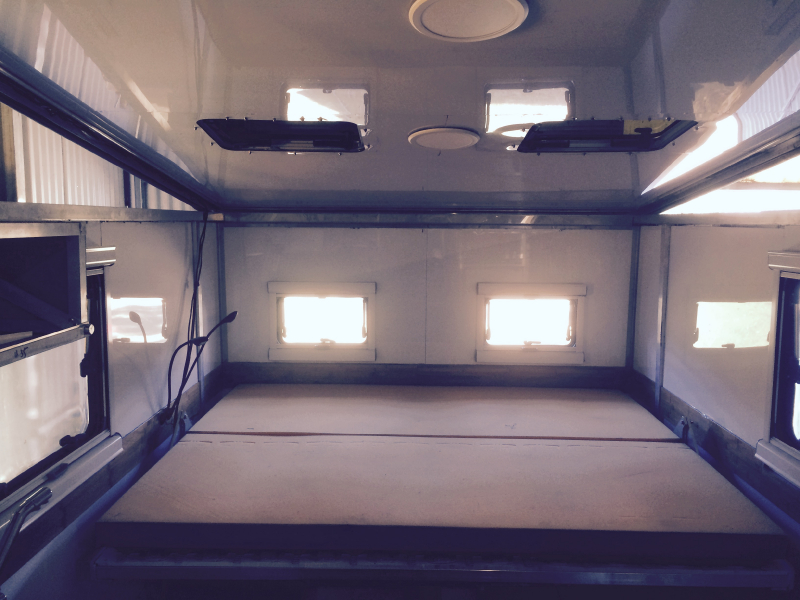

| Number of beds | 1 x queen |

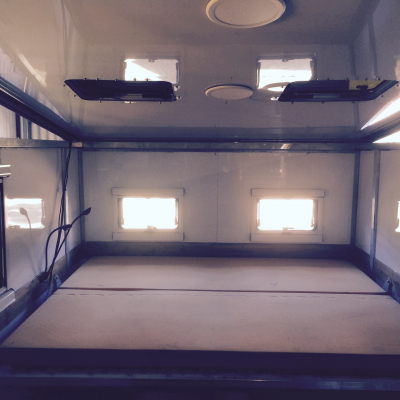

| Windows | Single hopper Aussie Traveller- Perspex double skin |

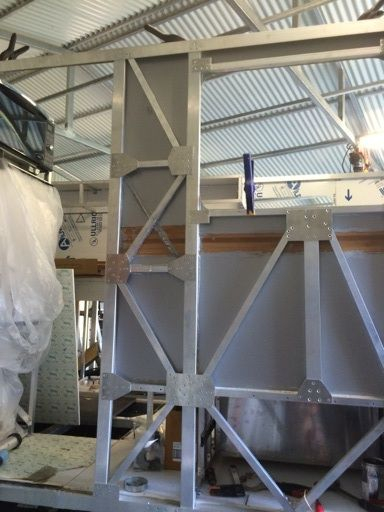

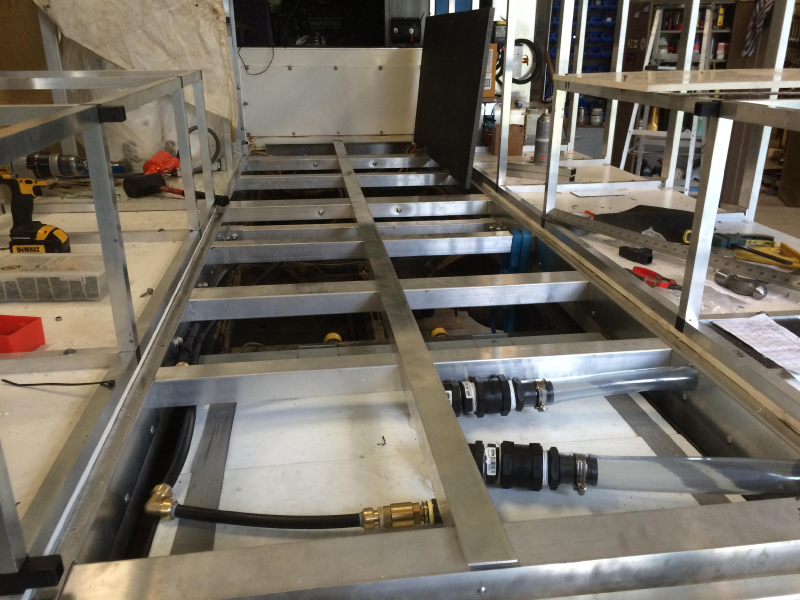

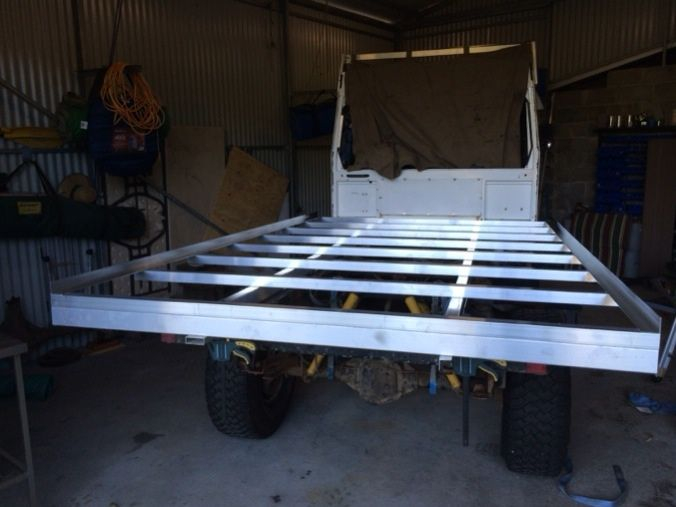

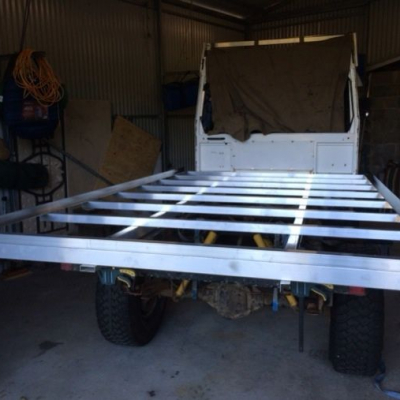

| Subframe | Aluminium frame fixed to chassis. OKA has a rigid non flex chassis and 3/4 pint mount is not necessary. |
| Other | |
|

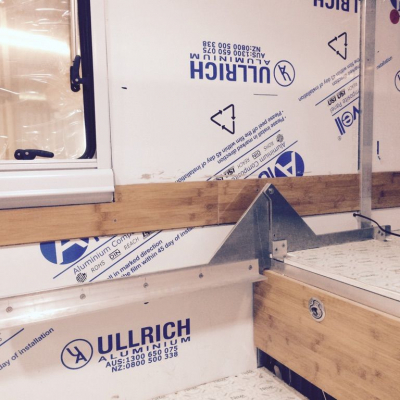

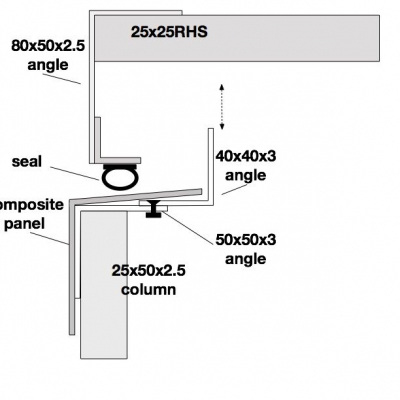

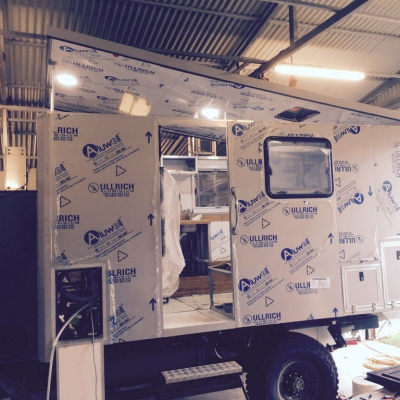

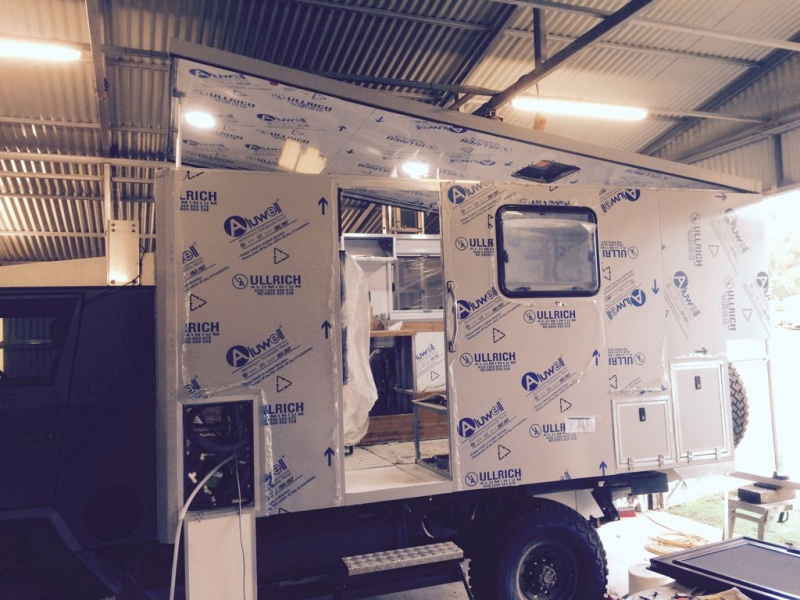

Cladding is fixed to the aluminium frame with 3mm gap, filled with Sikaflex 11FC. Thick insulation as used in Europe is not necessary in Australia. | |

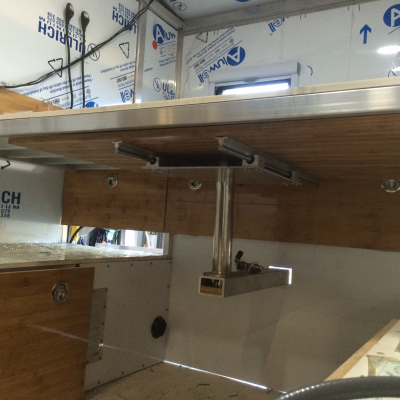

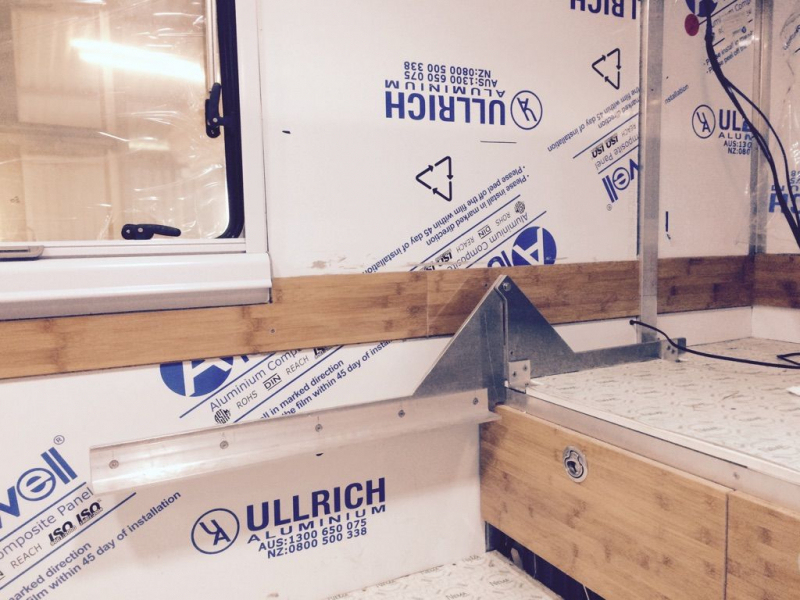

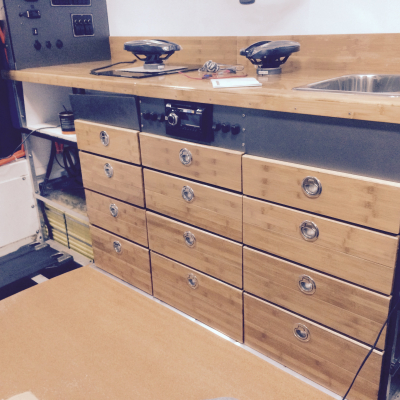

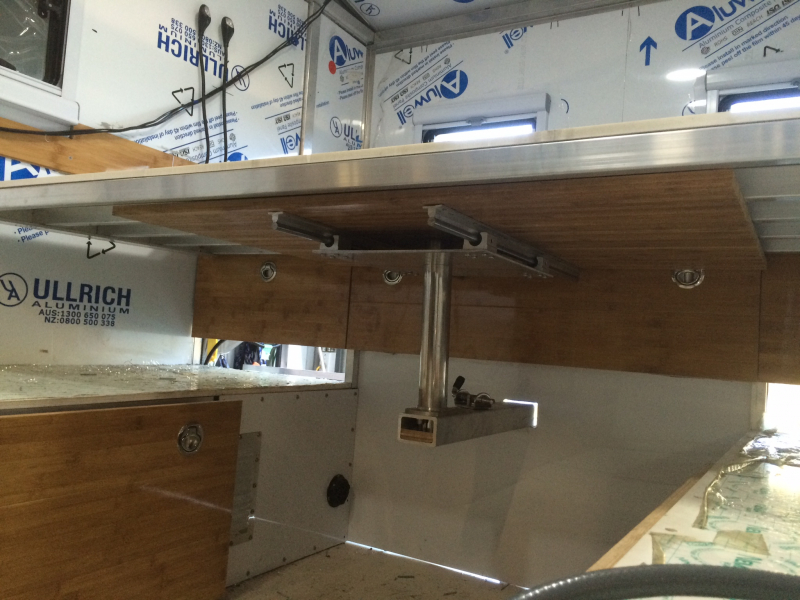

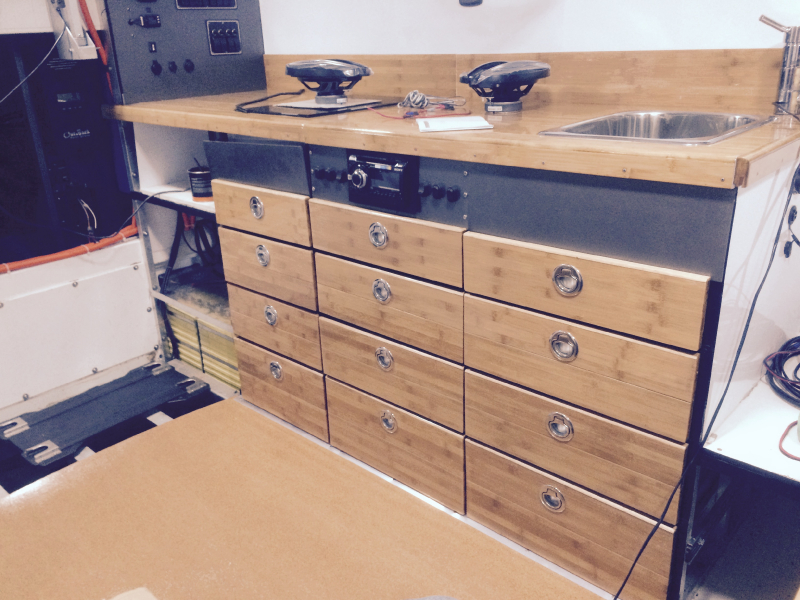

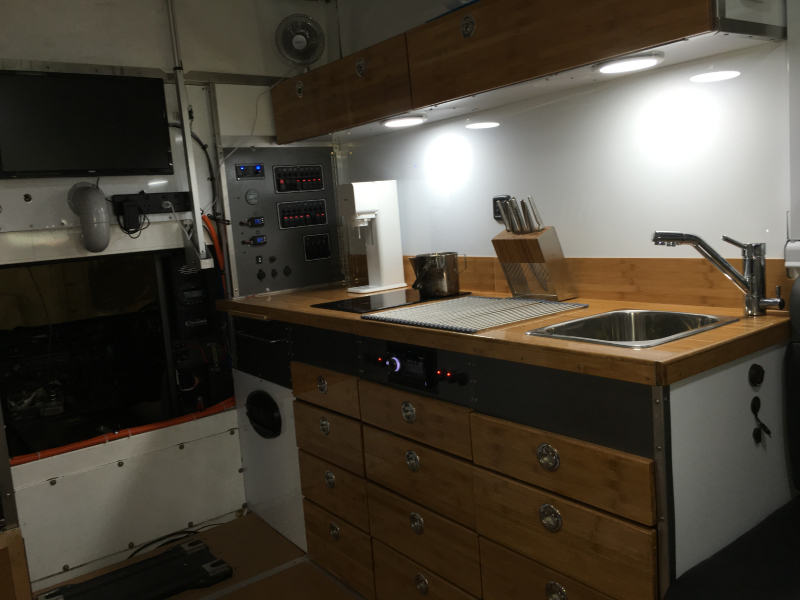

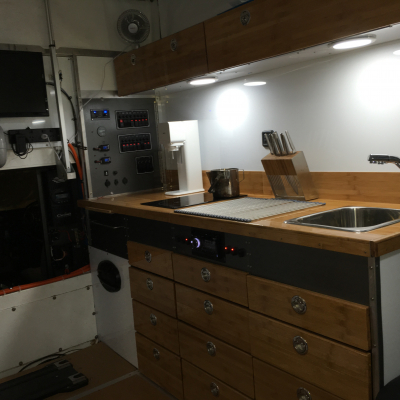

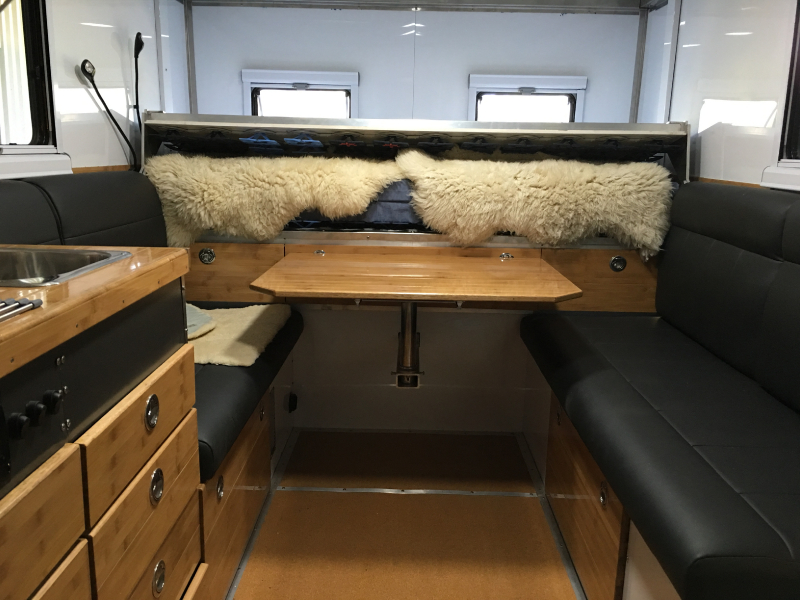

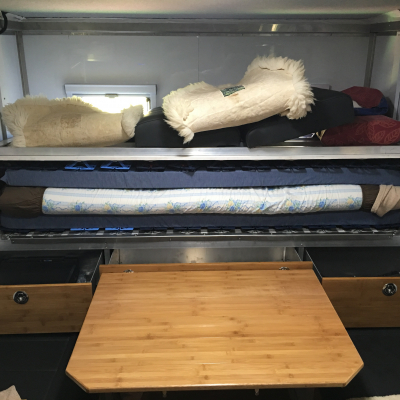

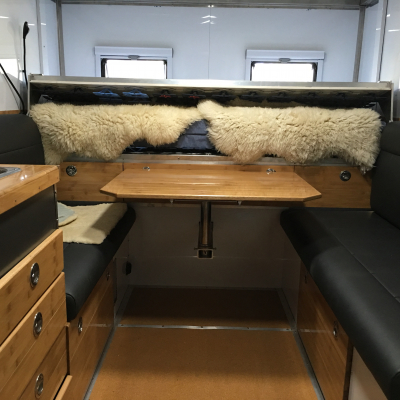

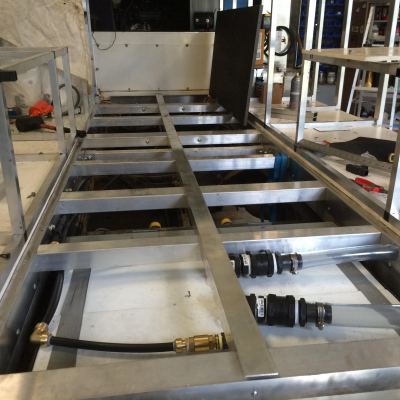

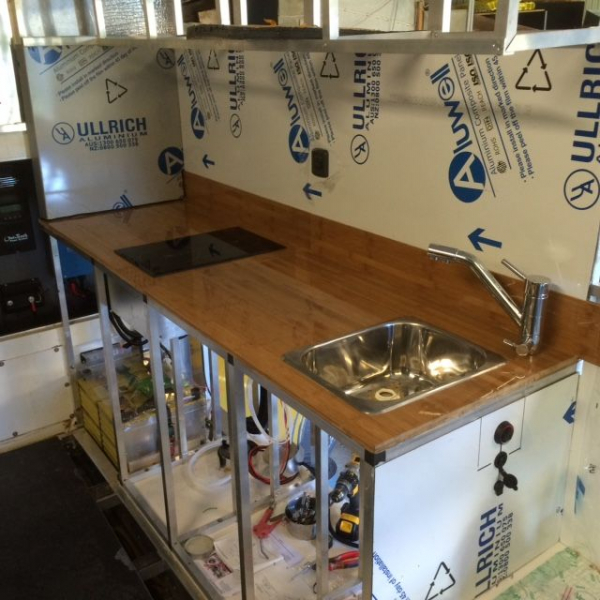

| Material of furniture | Aluminium frames. Seat bases made from 12mm Celuka. Drawer fronts , Bamboo. Drawers, folded aluminium. Internal lining, DiBond. |
|---|
| Cooking stove | Webasto Diesel X100 |
|---|---|
| Gas installation | No gas |

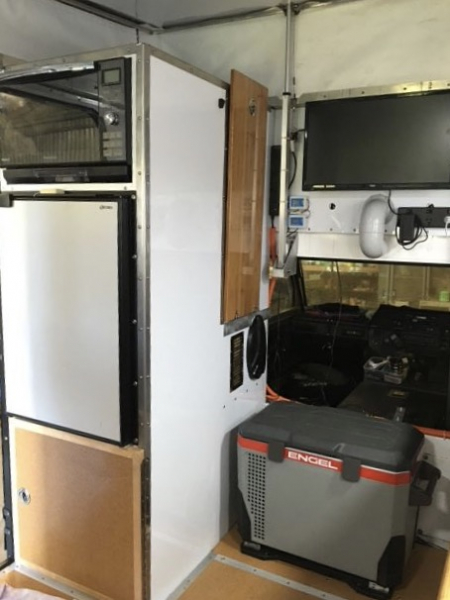

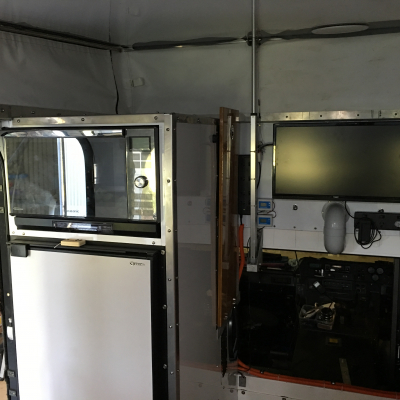

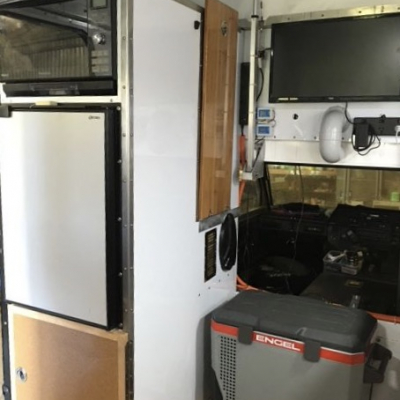

| Manufacturer and type of fridge / cooler | Vitrifrigo 135lt all fridge |
|---|---|
| Other | |
| Engle 40lt chest type - all freezer | |
| Voltage in the chassis | 12v |
|---|---|
| Voltage in the cabin | 12v |
| Charging converter 24V-12V | No |
| 110V / 230V in the cabin? | yes |

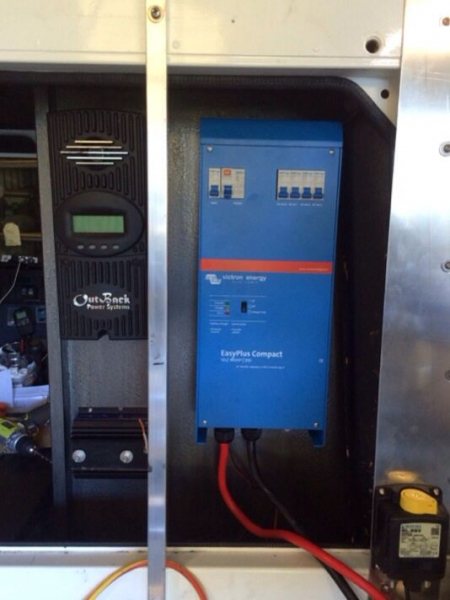

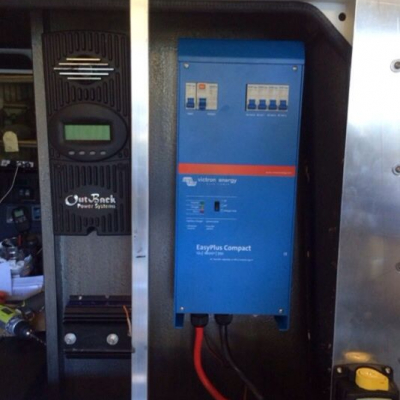

| Inverter | Victron EasyPlus 1600 |
| Capacity of batteries in the cabin | 400AH |
|---|---|
| Battery type | LiFeYPO4 |
| Battery charger for cabin batteries | Victron EasyPlus 1600 |
| Battery management | Individual cell voltage and current limiter, low voltage cutout, cell level monitoring. Made by owner. |

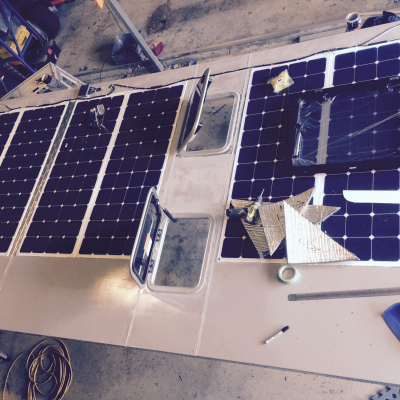

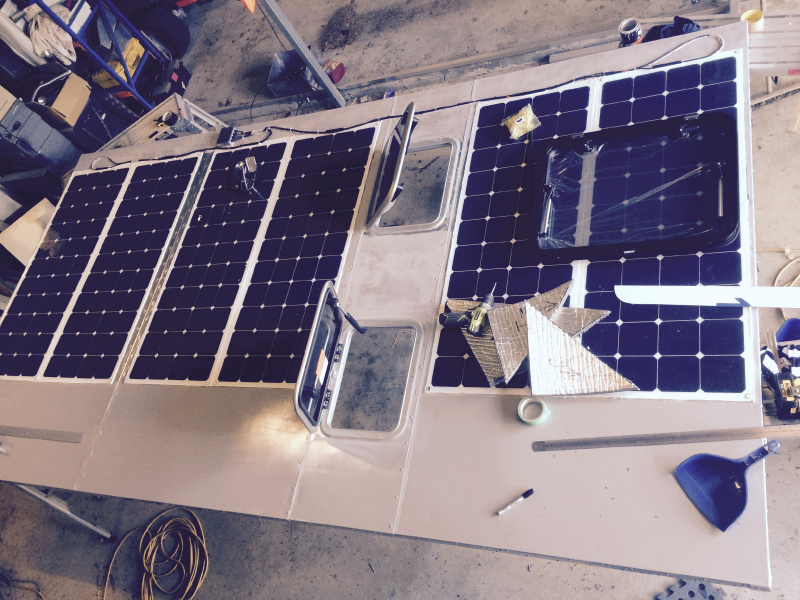

| Solar capacity | 900W |
|---|---|
| Solar controller | Outback 60A. |
| Fuel cell | no |
| Power generator | Honda 1 kVA |
| Other | |
| No mains connection | |
| Manufacturer and type of heating system | Webasto AirTop 2000 |
|---|---|

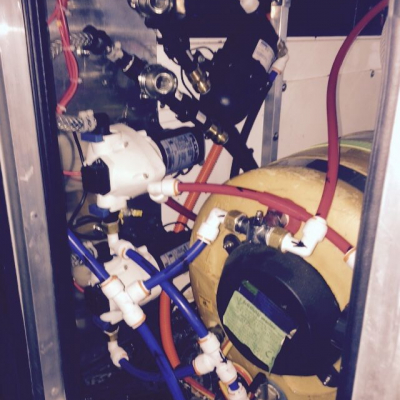

| Warm water processing | Calorifier 20lt with heating from engine or internal 230v element |
| Cab heating | Webasto |
| Explanation of gas system | |
|---|---|
| No gas |

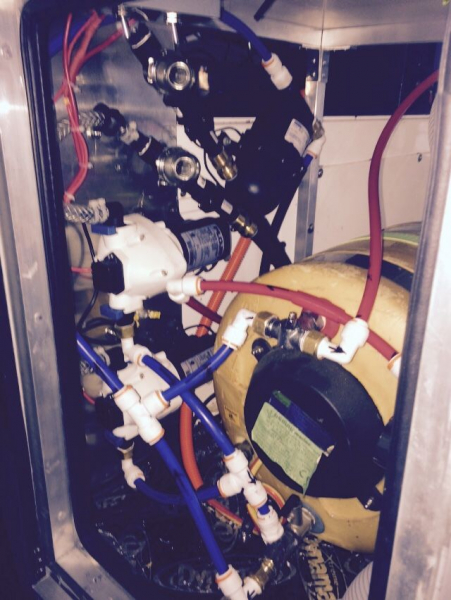

| water flow | 200lt |
|---|---|
| Water filtration system | Silver and activated carbon filter on drinking water circuit |
| Capacity of fresh water tank(s) | 240lt |
| Capacity of waste water tank(s) | 20lt |
| Other | |
| Waste water from kitchen only. Shower is outside. | |
| Manufacturer and type of toilet | Air Head composting toilet |
|---|---|
| Other | |
| Capacity for 2 people for one month. Toilet is installed in a cupboard under the fridge and slides out into the doorway. It is continuously vented to the outside. | |
| Rear carrier | No |
|---|---|
| Roof rack | Yes |
| Storage boxes | SpaceCase on roof rack |

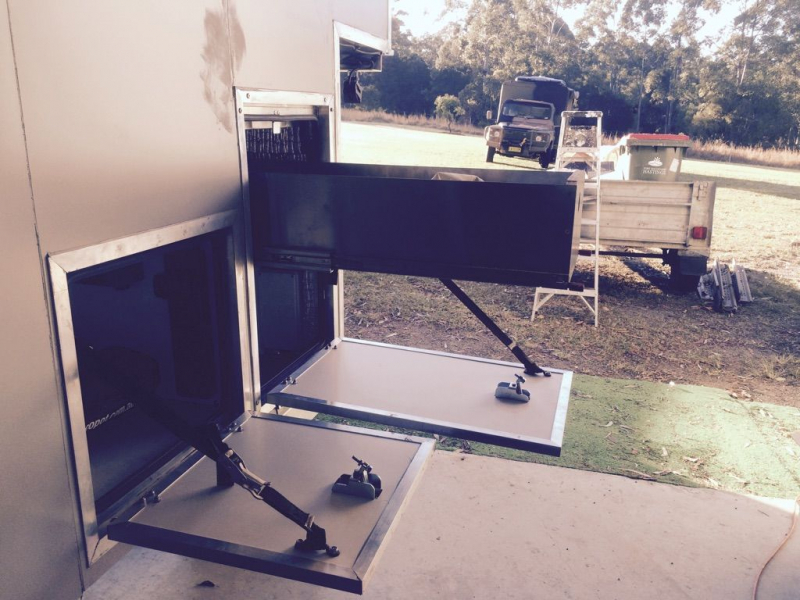

| Outside cooking facilities | Induction plate in kitchen hatch |
| Awning | Yes |
