Berchtl (#1338)

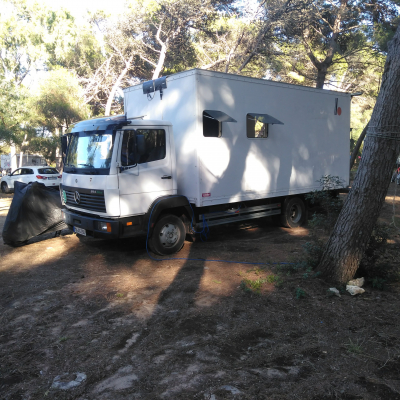

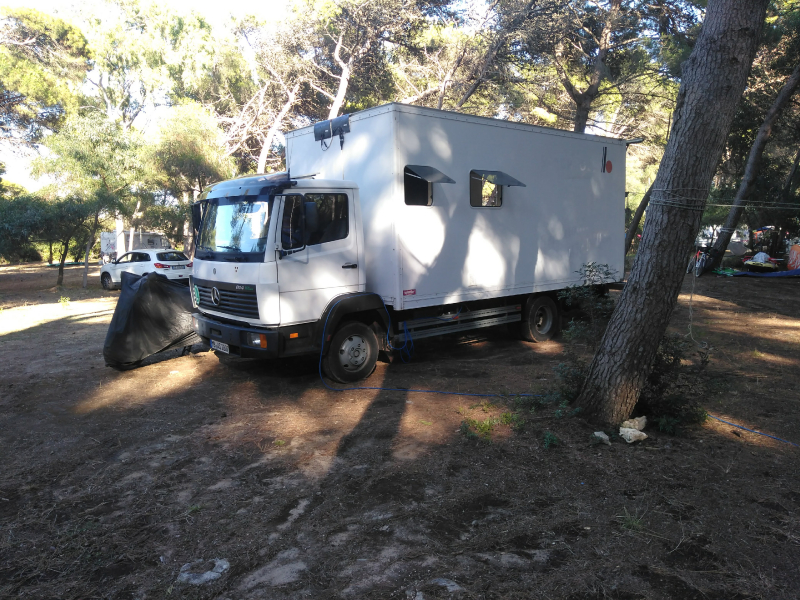

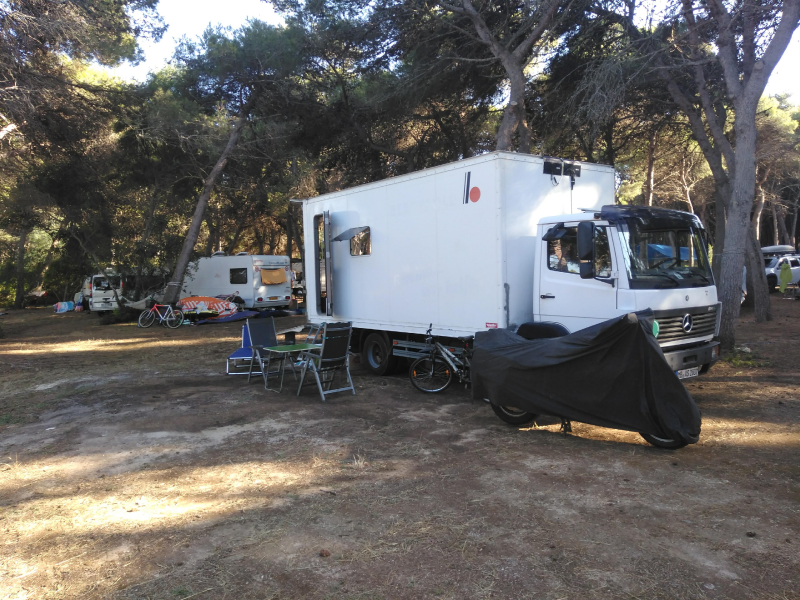

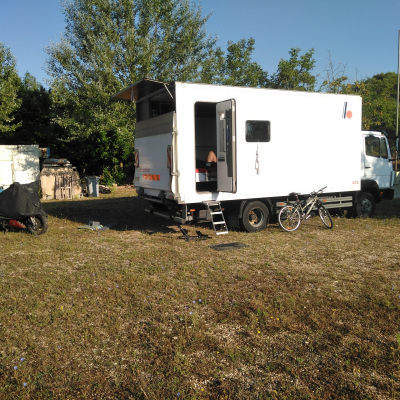

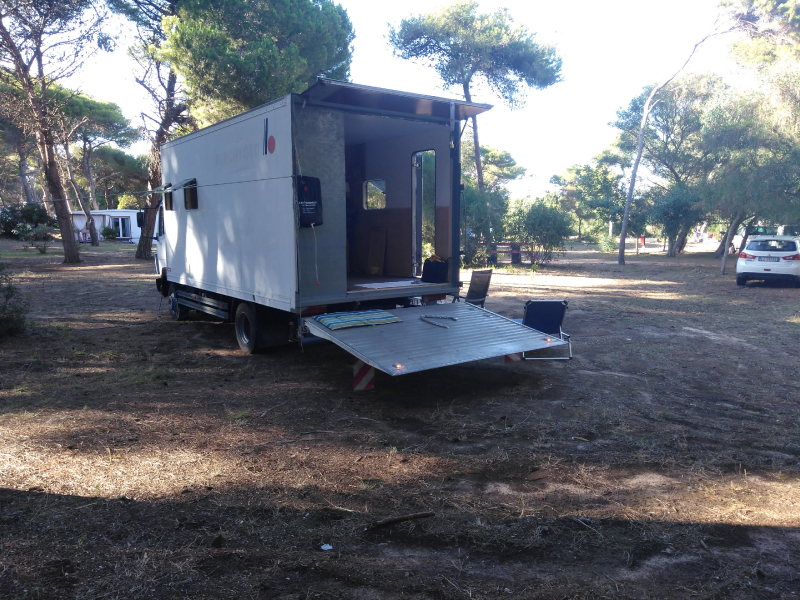

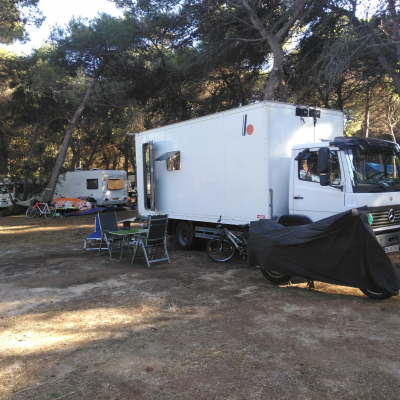

MB 814 KL LN2 aus 1998 mit Ackermann Kofferaufbau und Dautel Ladebordwand

General Information

Manufacturer and model Mercedes 814
Name Armin Schäfer
Year of manufacture 1997
For sale? no


Engine type OM904
Cubic capacity 4,3 l
Number of cylinders 4
Horsepower 136


4x2, 4x4, 6x6, 8x8 4x2
Wheel base 3700
Number of seats 3
Tyre size 215/75R17.5
Rim size Stahl
Type of tyre Straßenprofil
Tank capacity 120 l
Diesel filter yes
Permanent or manually selectable 4-wheel drive nein
Diff locks nein


Manufacturer of the cabin Weidler / Ackermann
Inner dimensions (LxWxH) 5,25 x 2,46 x 2,30
Outer dimensions (LxWxH) 5,25 x 2,55 x 3,20
Cabin material Alu
Kind and thickness of insulation 50 mm PUR, Decke 100 mm PUR

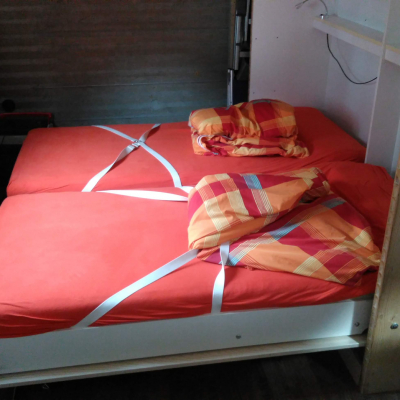

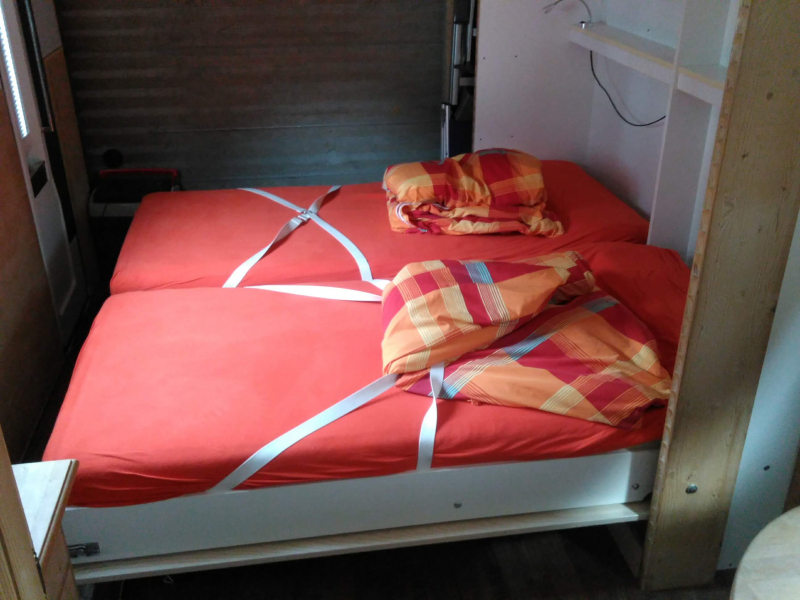

Number of beds 2
Windows 3 x Seitz S7

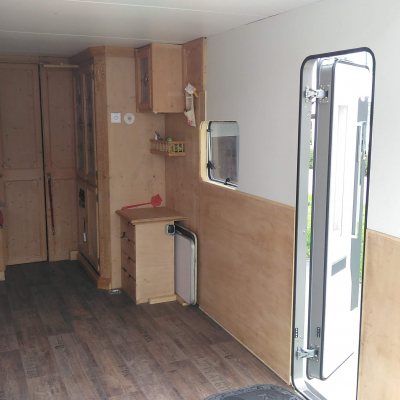

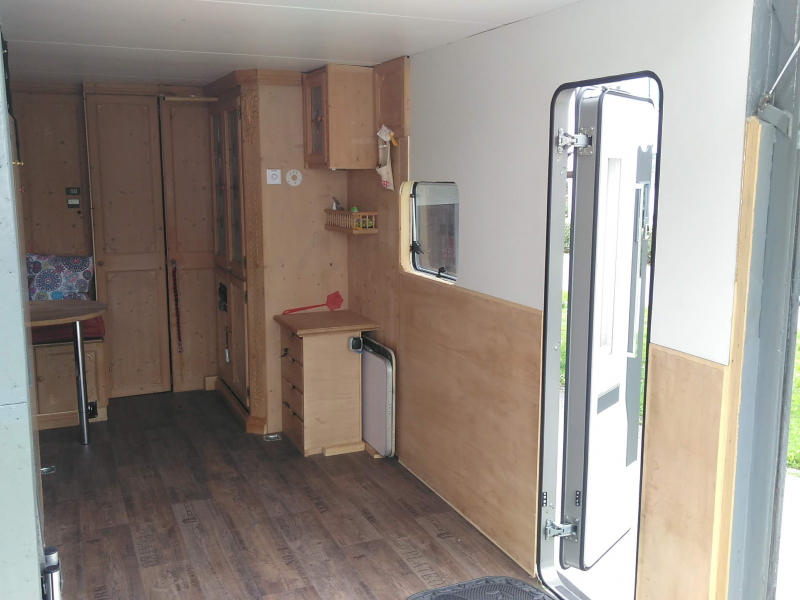

Floor plan

Explanation of floor plan

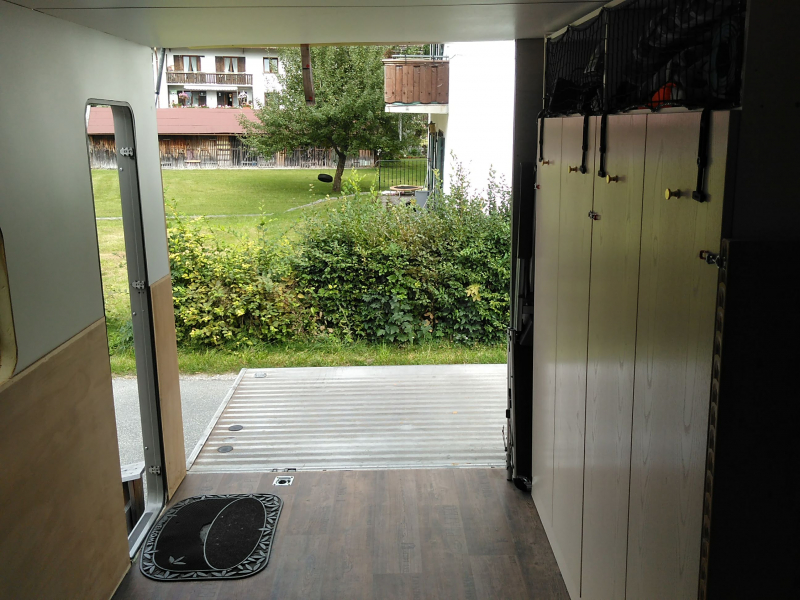

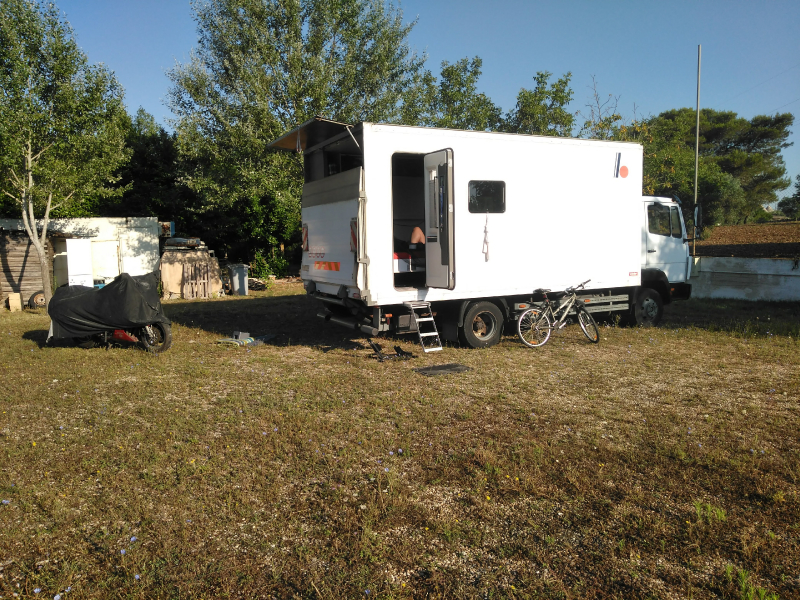

Im Freiraum wird das Motorrad transportiert.

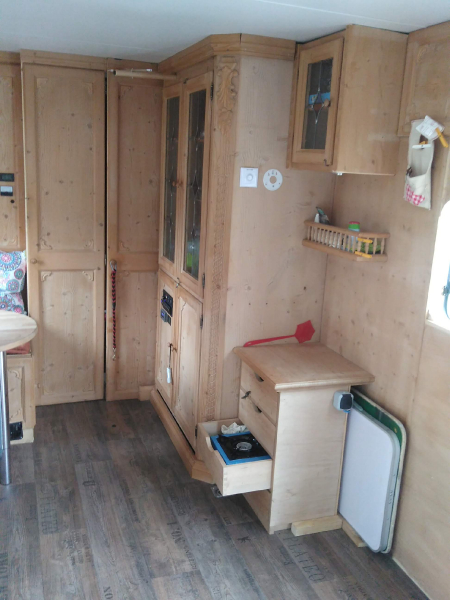

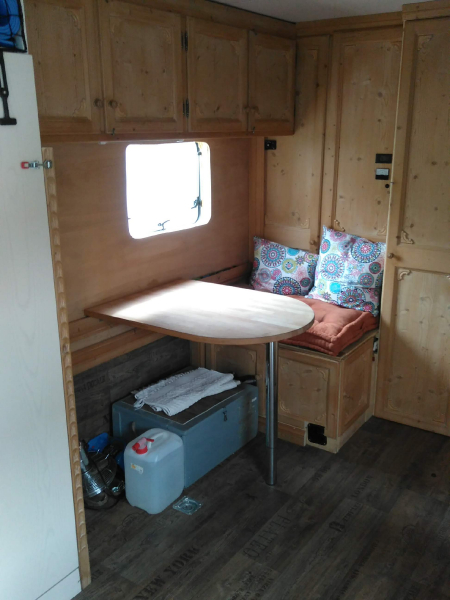

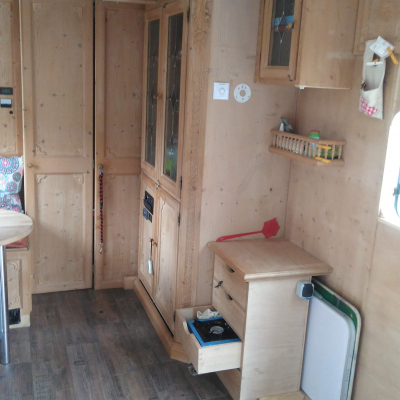

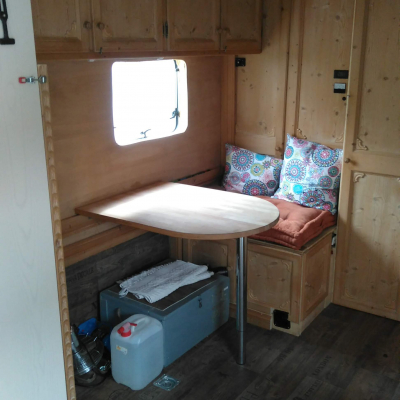

Material of furniture Möbelholz

Cooking stove

Cooking stove Kartuschenkocher
Gas installation nein

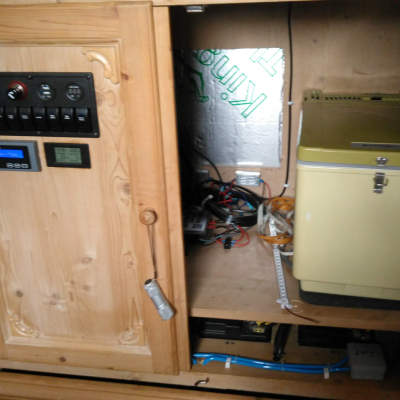

Refrigerator; cool box

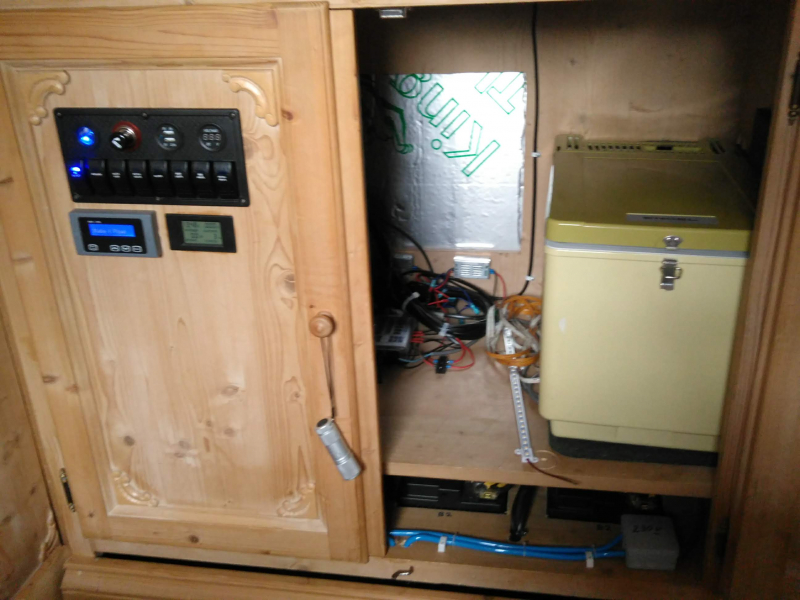

Manufacturer and type of fridge / cooler Engel Kompressor 12/230V, WAECO Kompressorbox 230V

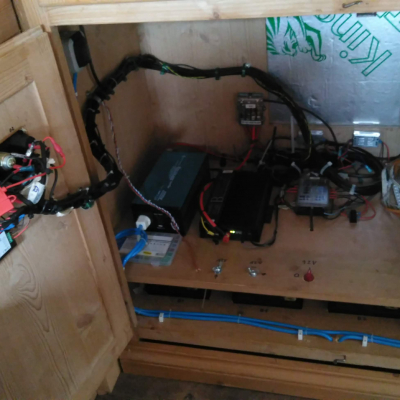

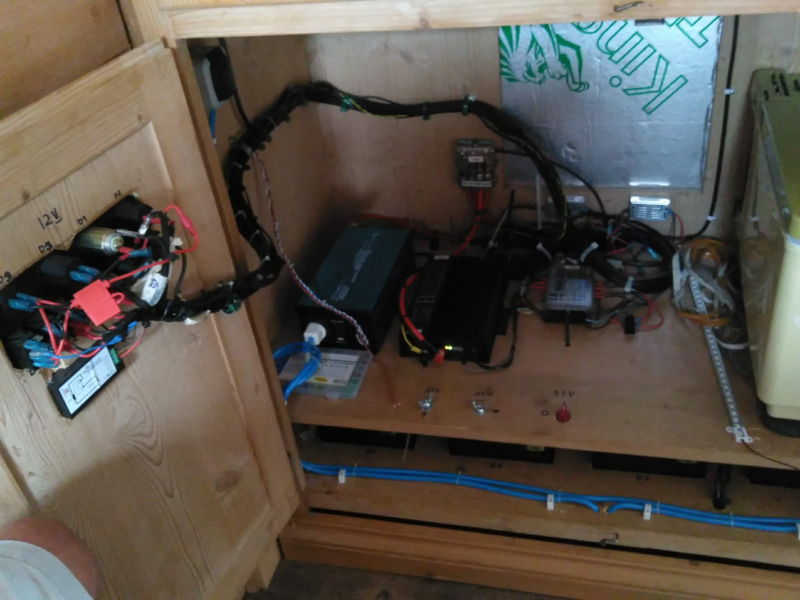

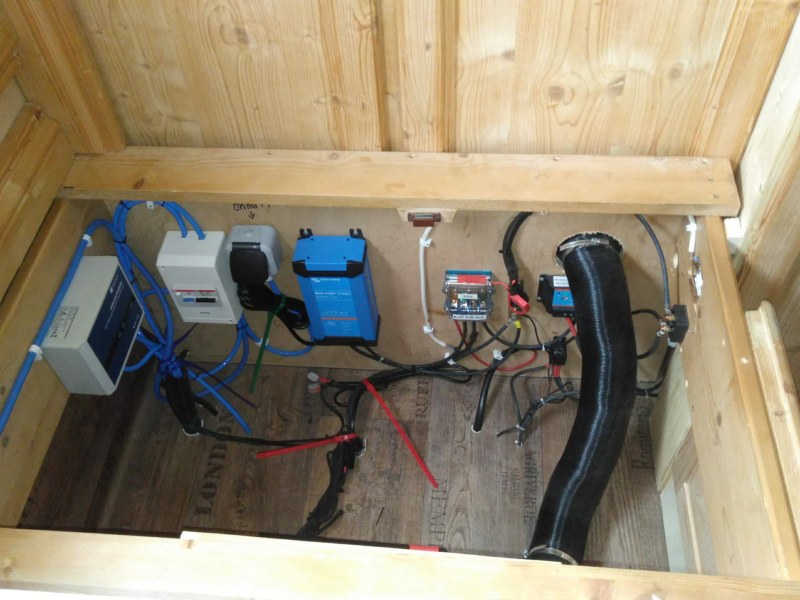

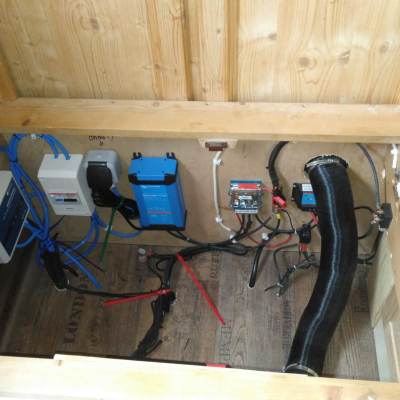

Power supply

Voltage in the chassis 24
Voltage in the cabin 12
Charging converter 24V-12V Fraron B2B40M12V
110V / 230V in the cabin? yes
Inverter Solartronic 1000/2000W, reiner Sinus

Capacity of batteries in the cabin

Capacity of batteries in the cabin 4 x 95 Ah
Battery type Varta AGM
Battery charger for cabin batteries Fraron B2B40M12V
Battery management Volt-, Amperemeter

Power generation

Solar capacity 2 x 150W
Solar controller Victron
Fuel cell no
Zwei begehbare Solarmodule, ca. 5.500 x 430 mm - ca. 240 Watt effektiv

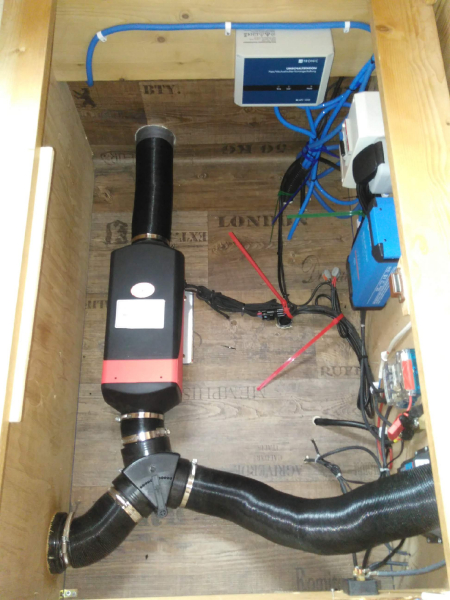

Heating system

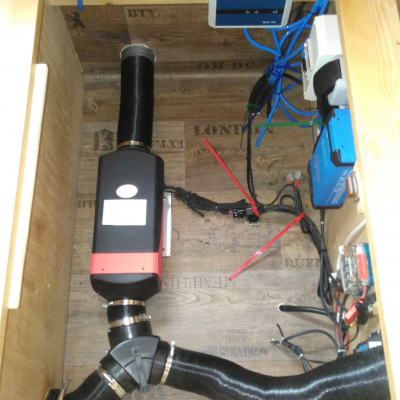

Manufacturer and type of heating system China 5kW
Warm water processing noch nicht
Cab heating Motorheizung

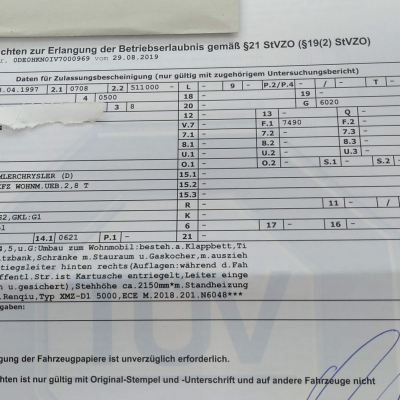

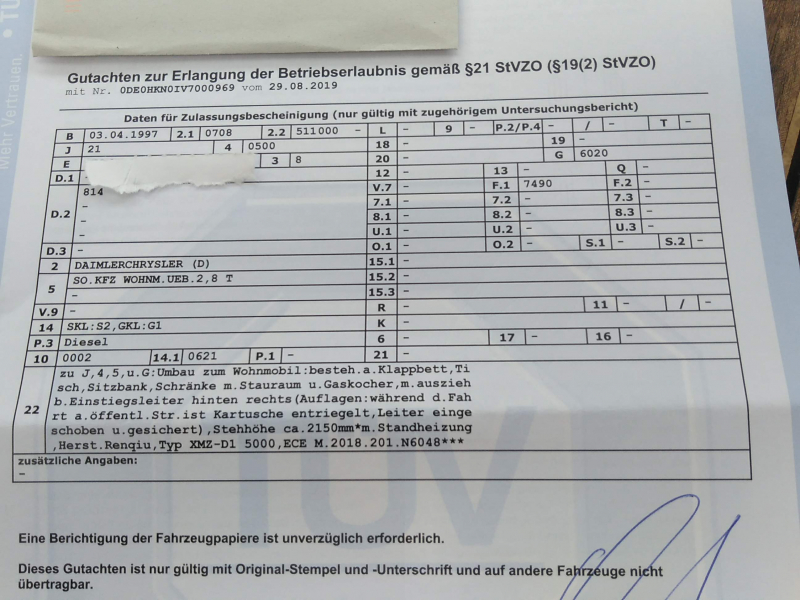

Die Heizung ist eingetragen.

Gas system

Explanation of gas system
Nein, ist nicht erwünscht

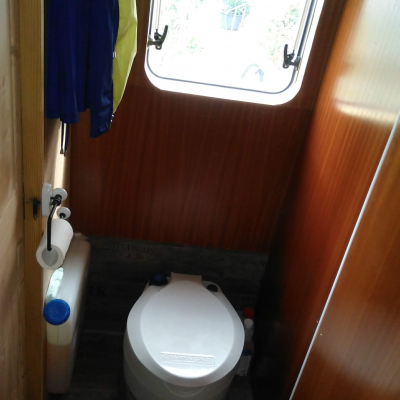

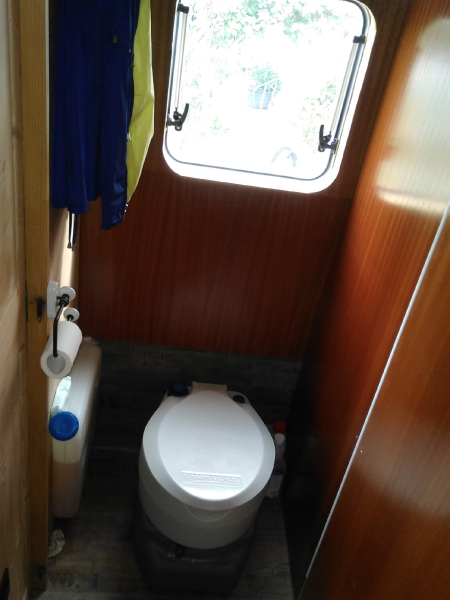

Manufacturer and type of toilet Campingaz Chemietoilette
Capacity of black water tank 20l
Umbau zur Trenntoilette geplant

Vehicle accessories

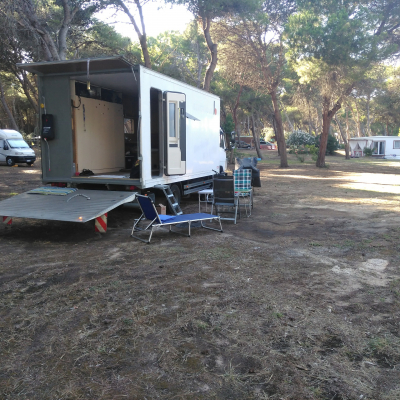

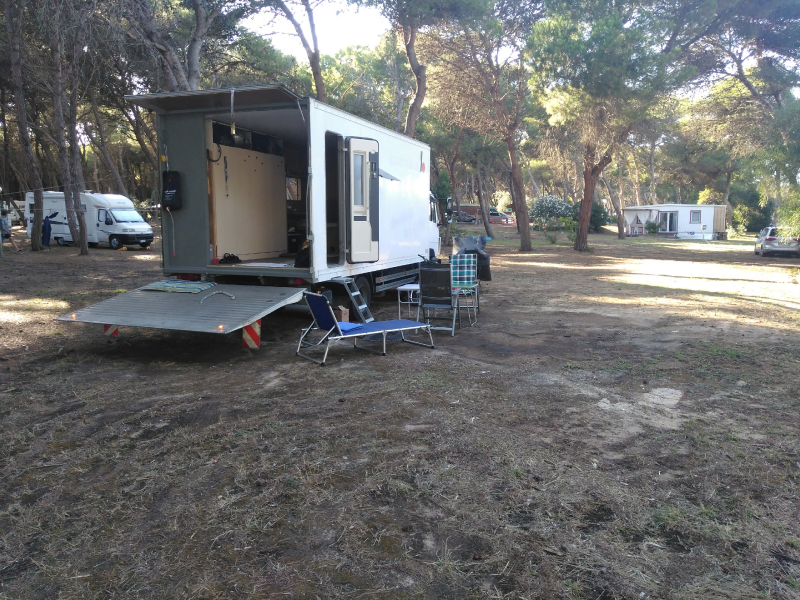

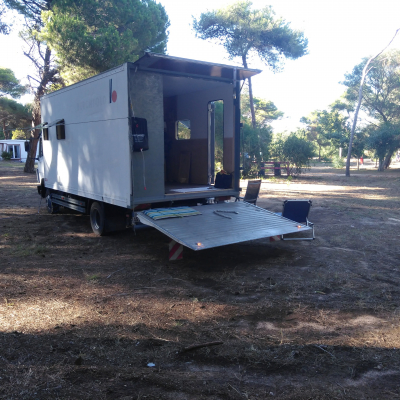

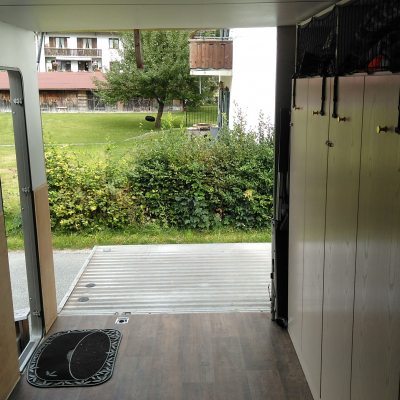

Awning über der Ladebordwand klappbares Dach
