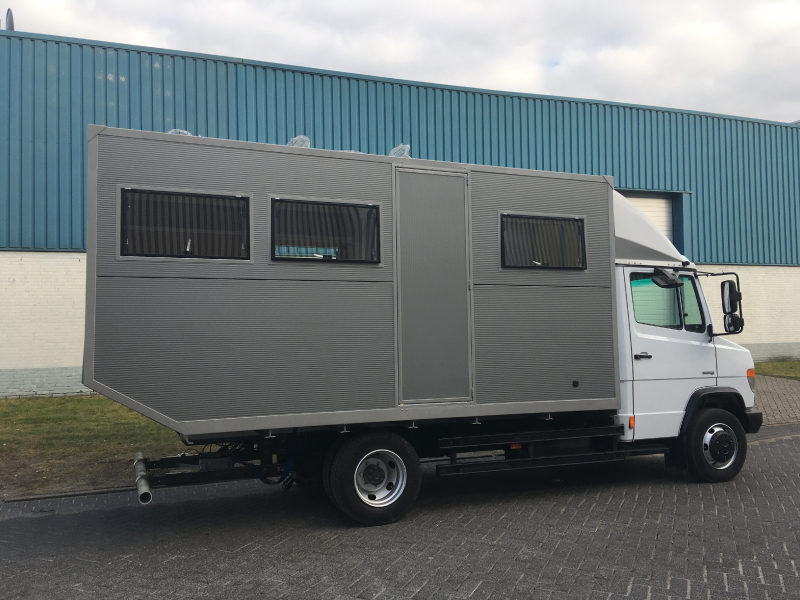

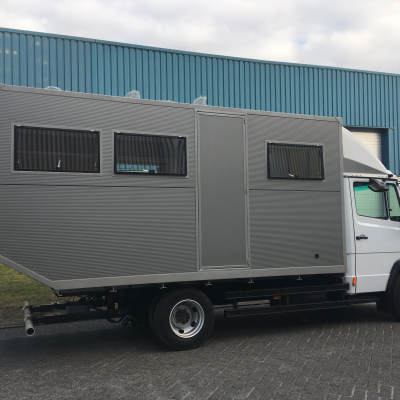

OWYN "Only What You Need" In my opinion the extra cost and weight of a 4x4 version of an on-road truck (if available) is not worthwhile. On my travel to remote places almost all local truck and busses are rear 2 wd. In my case i will ad Rear diff lock, slightly bigger wheels and a departure angle off ca. 30°. On the floor plan the main idea is to be able to use all functions such as sleeping, sitting, bathroom use and cooking for two people without making room for each other. The choice for a Mercedes Vario is a compromis: On weight (7,5 T) , size ( with use off overhang it will fit still on normal parking spot) Height (ca. 3.25 m) Modern engine (acces to city with environmental zone)

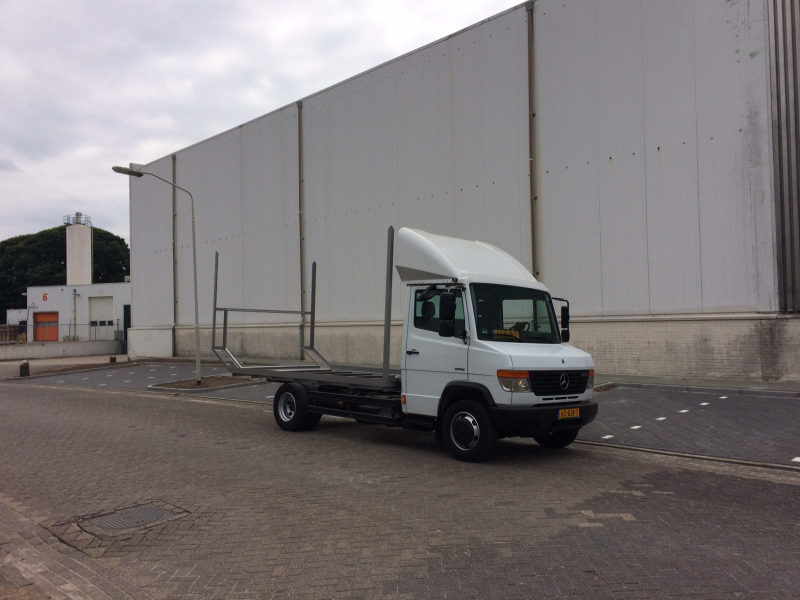

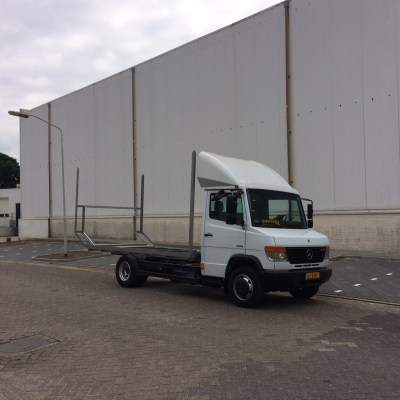

| Manufacturer and model | Mercedes Vario 818D |
|---|---|
| Name | Owyn |
| Country | Netherlands |
| Year of manufacture | 2008 |
| For sale? | no |

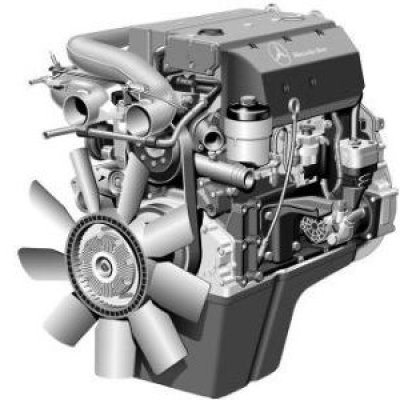

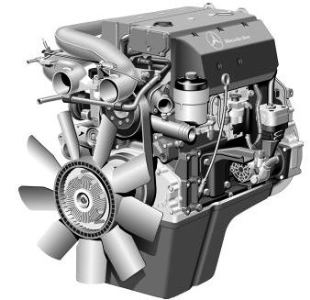

| Engine type | OM 904 euro bleutec4 |
|---|---|
| Cubic capacity | 4.249 cc |
| Number of cylinders | 4 |
| Horsepower | 177 |
| Torque | 675 |
| 4x2, 4x4, 6x6, 8x8 | 2x4 or 4X6 if you count tyre's ;)) |
|---|---|
| Wheel base | 3.700 |
| Number of seats | 2 |
| Tyre size | not yet fitted (9.5R17.5) |
| Rim size | R17,5 |
| Tank capacity | 90L + auxiliary tank |
| Diesel filter | no |
| Other | |
| Air suspension on de rear for comfort and easy leveling | |
| Permanent or manually selectable 4-wheel drive | no |
| Diff locks | self build rear lock |
| Manufacturer of the cabin | selfbuild |
|---|---|

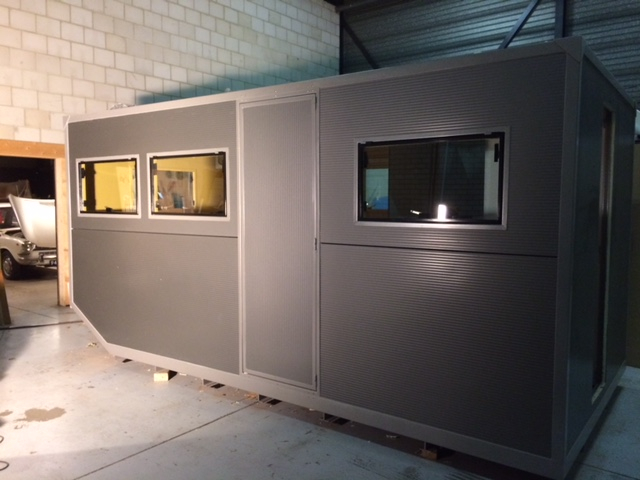

| Inner dimensions (LxWxH) | 448X217X210 |
| Outer dimensions (LxWxH) | 460x229x220 |

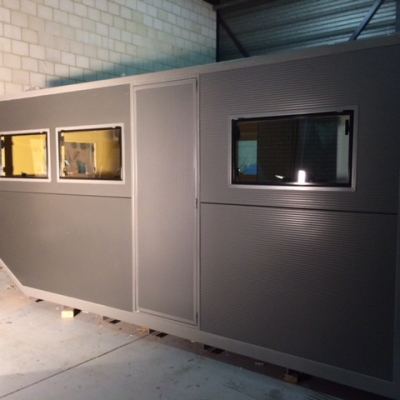

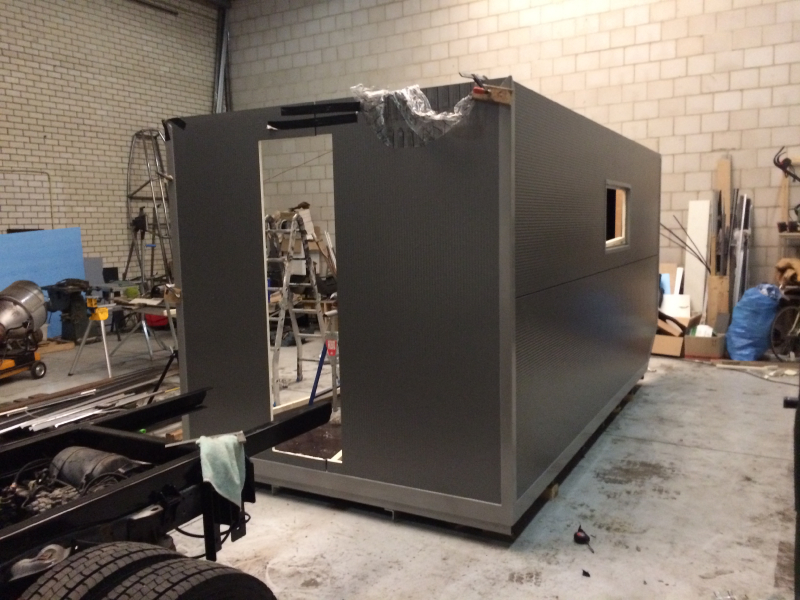

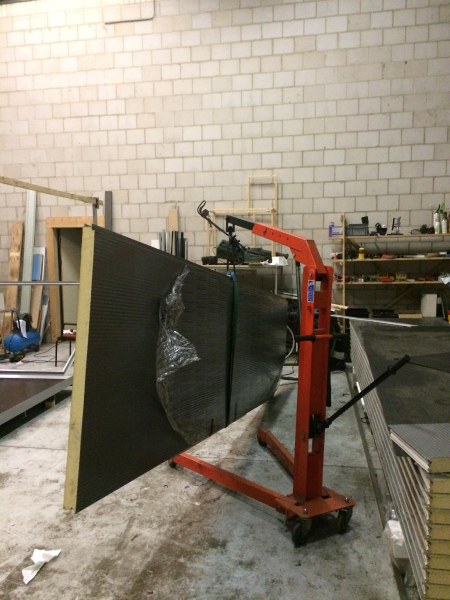

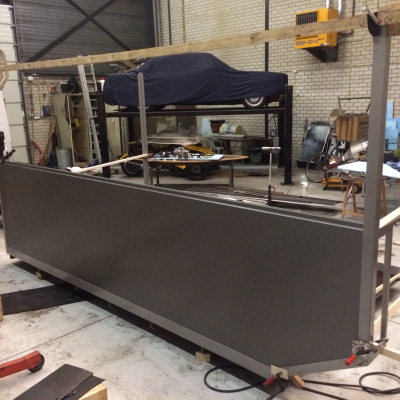

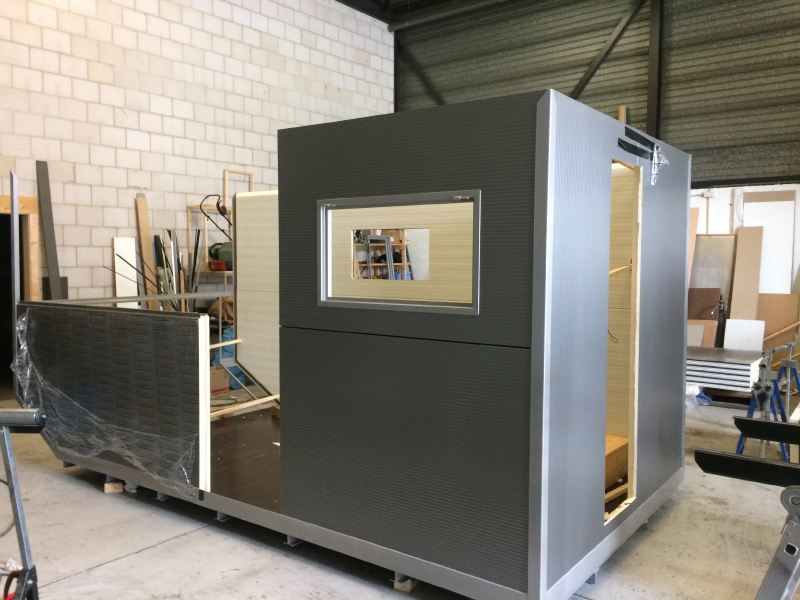

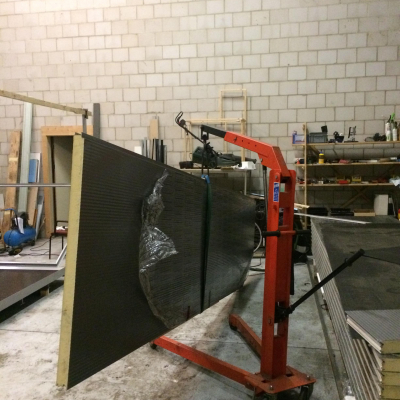

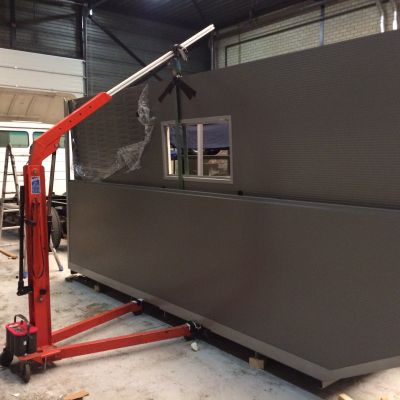

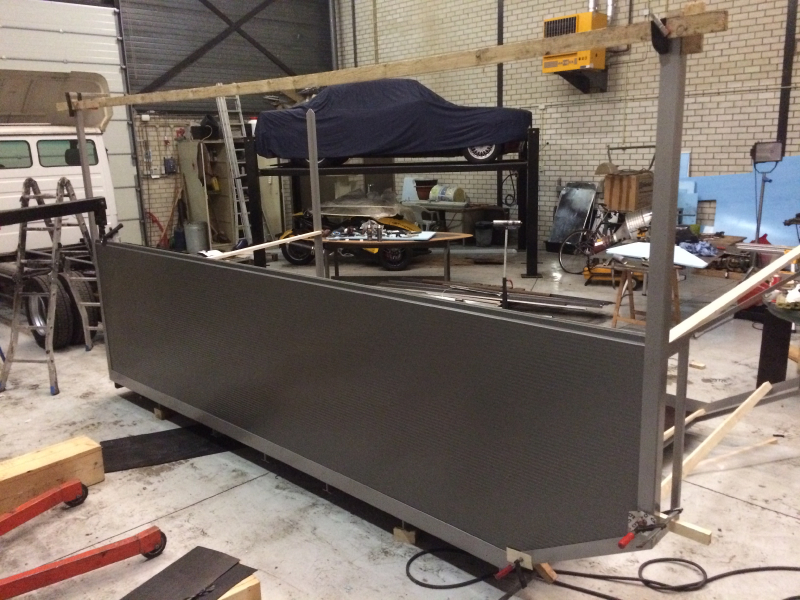

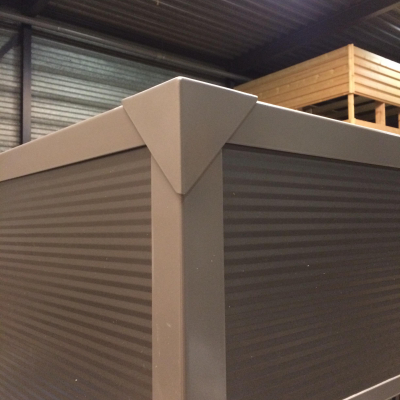

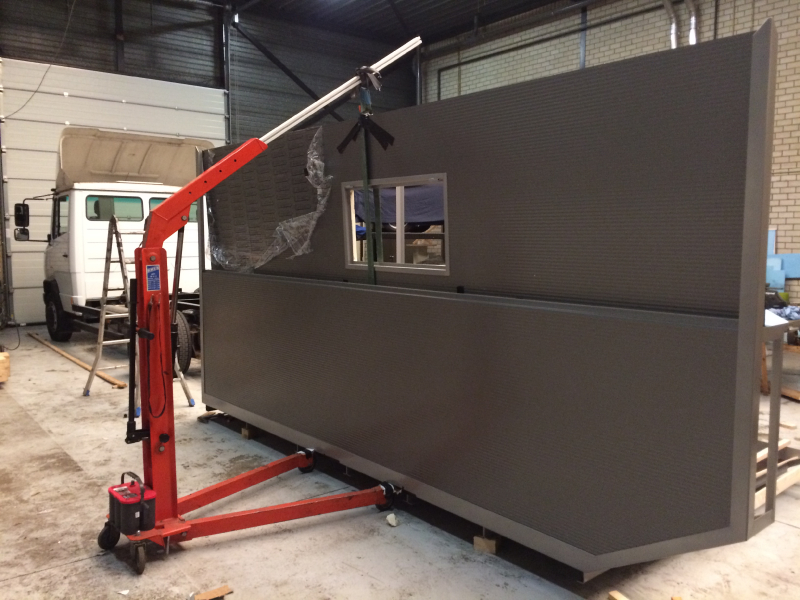

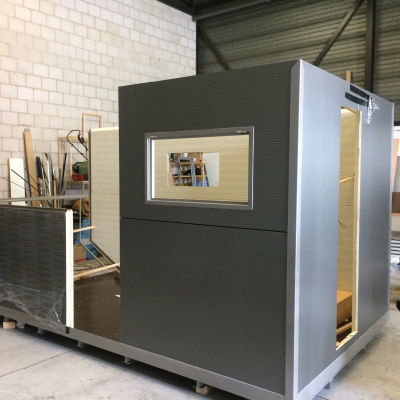

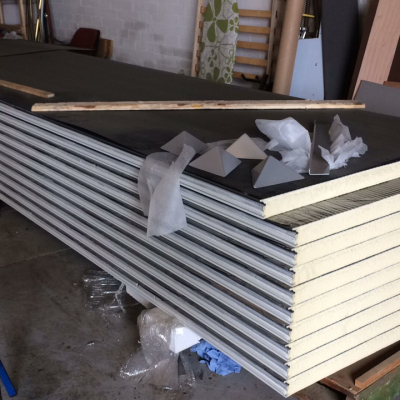

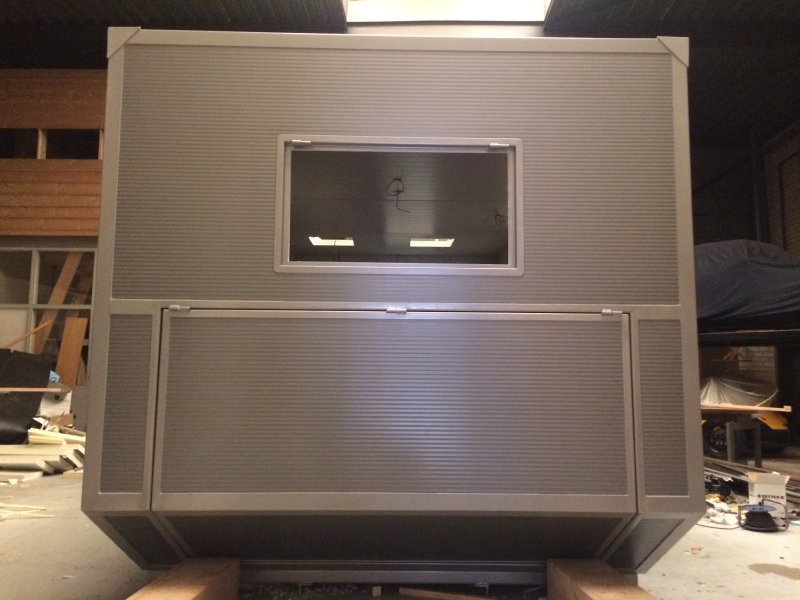

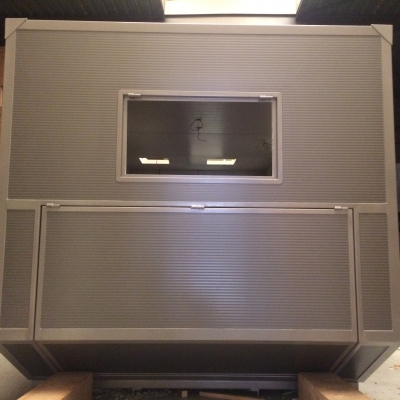

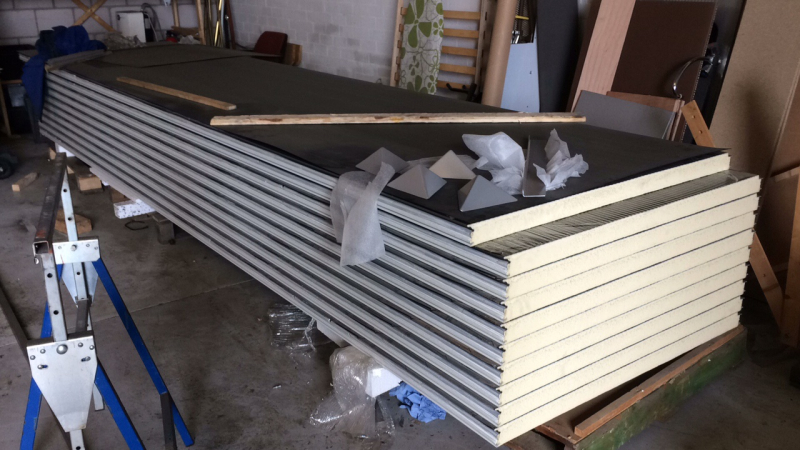

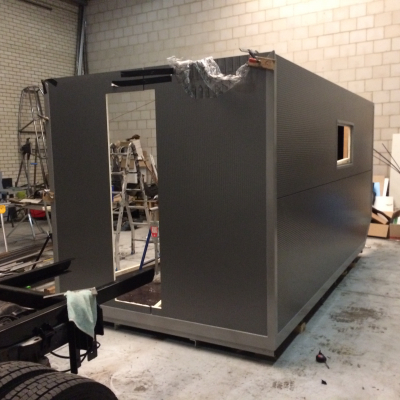

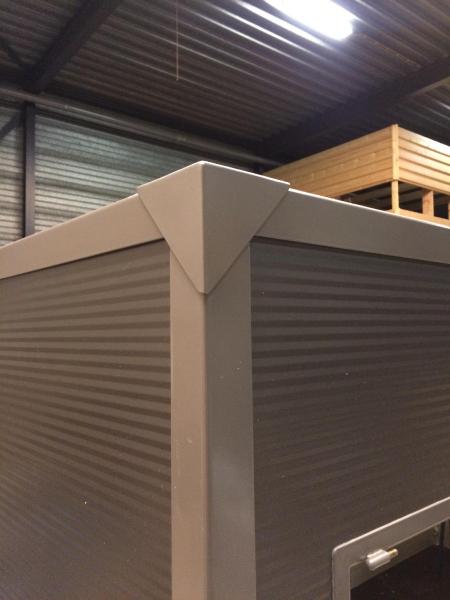

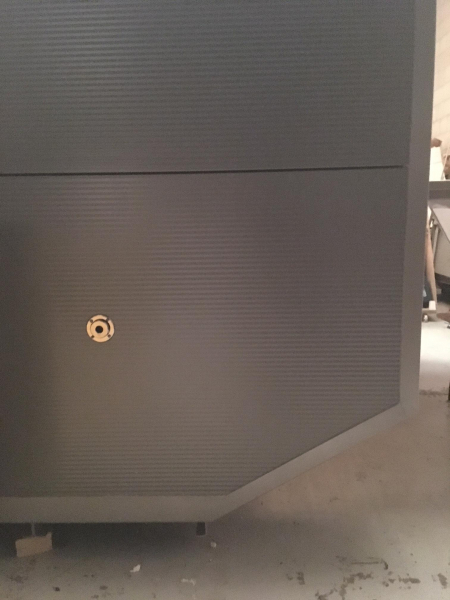

| Cabin material | sandwichpanel |
| Kind and thickness of insulation | roof and walls 60 mm, floor 80 mm |
| Number of beds | 210x140 |

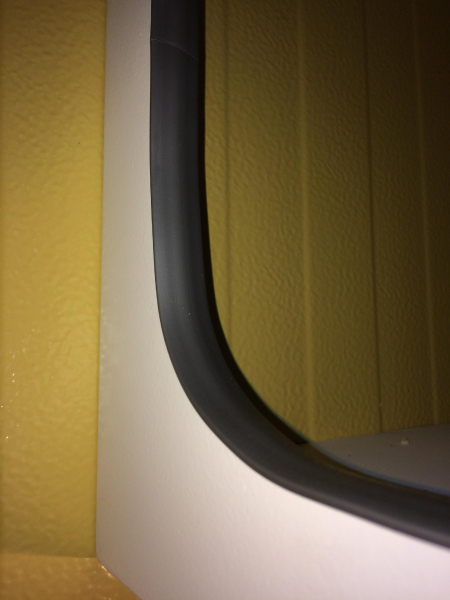

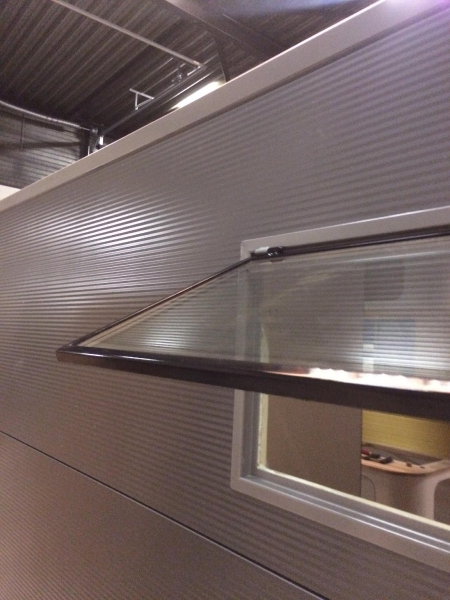

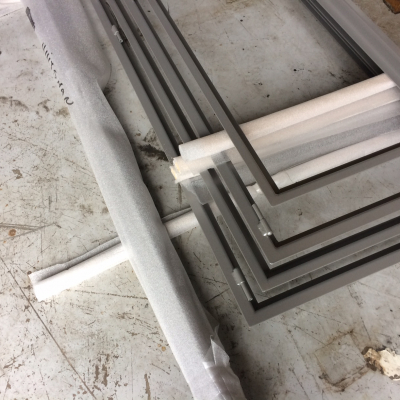

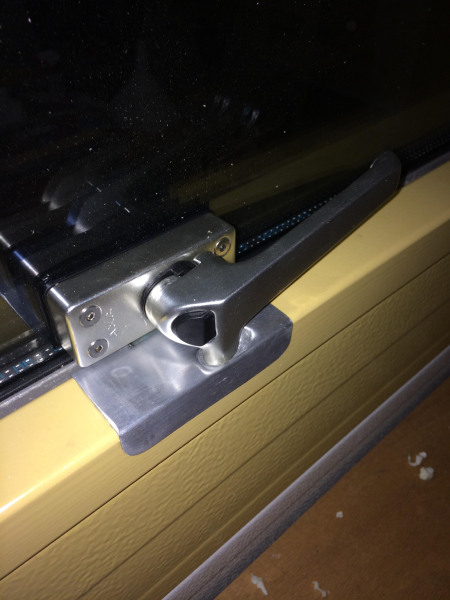

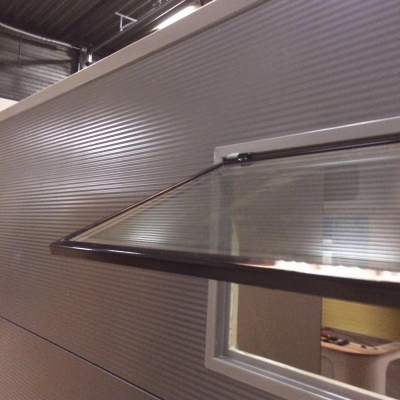

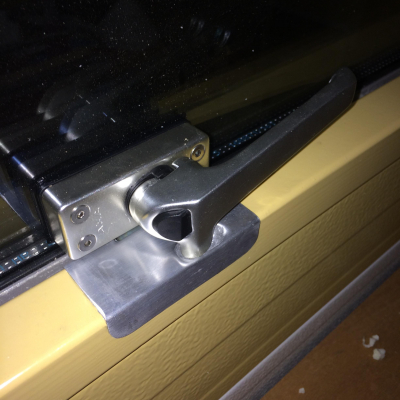

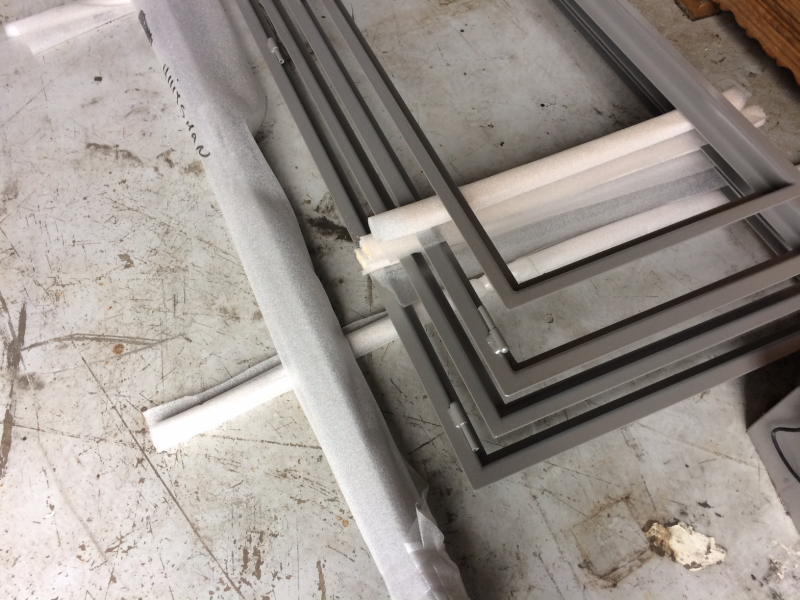

| Windows | 5 real glass double plane windows 500X900 2 roof hatch 40x40 |

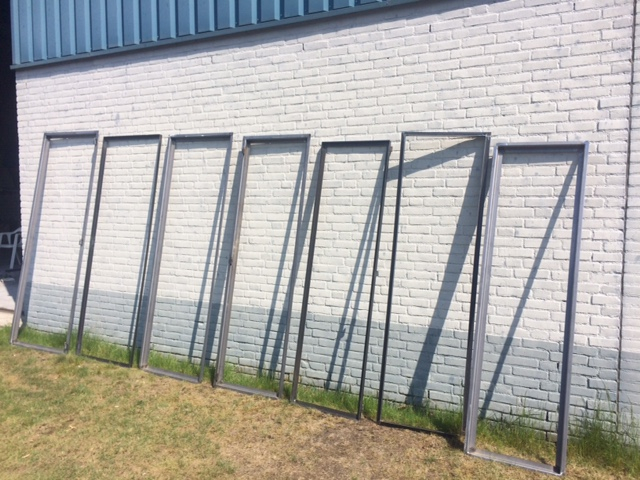

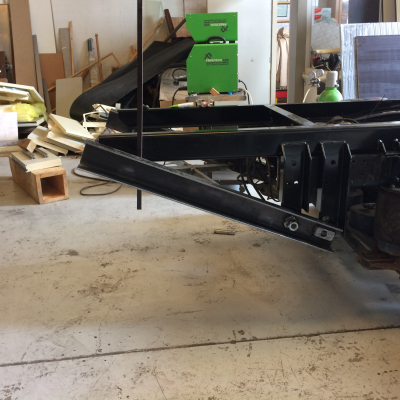

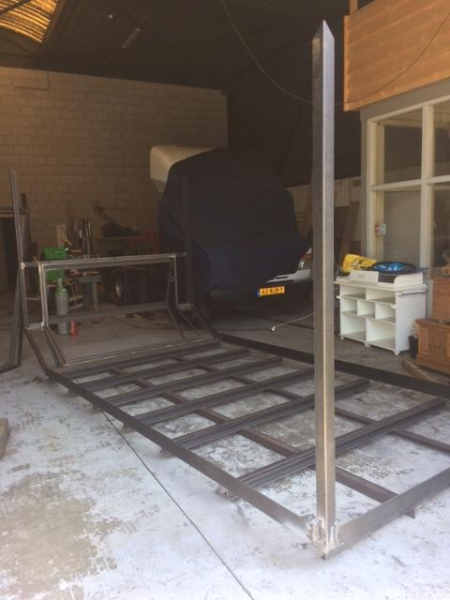

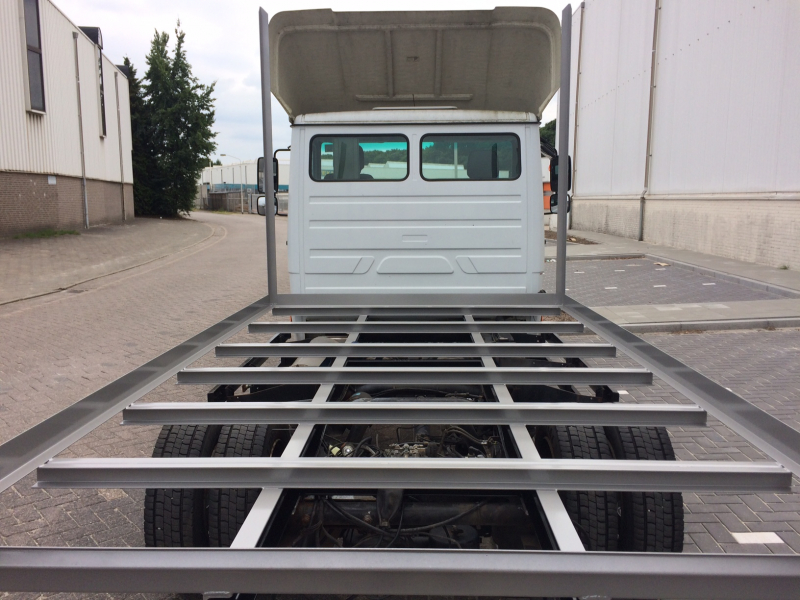

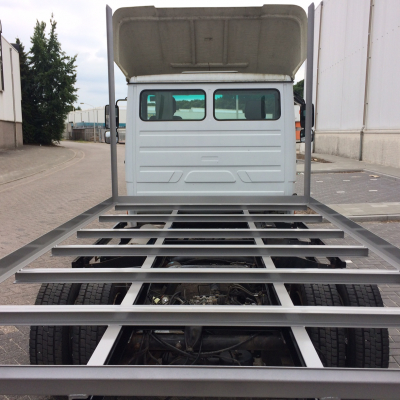

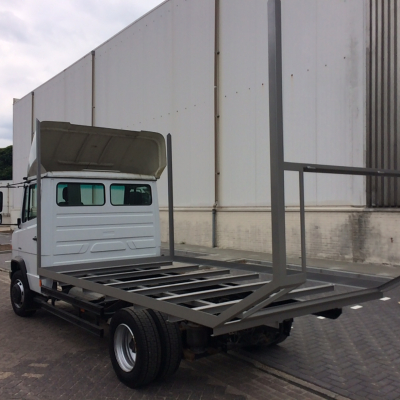

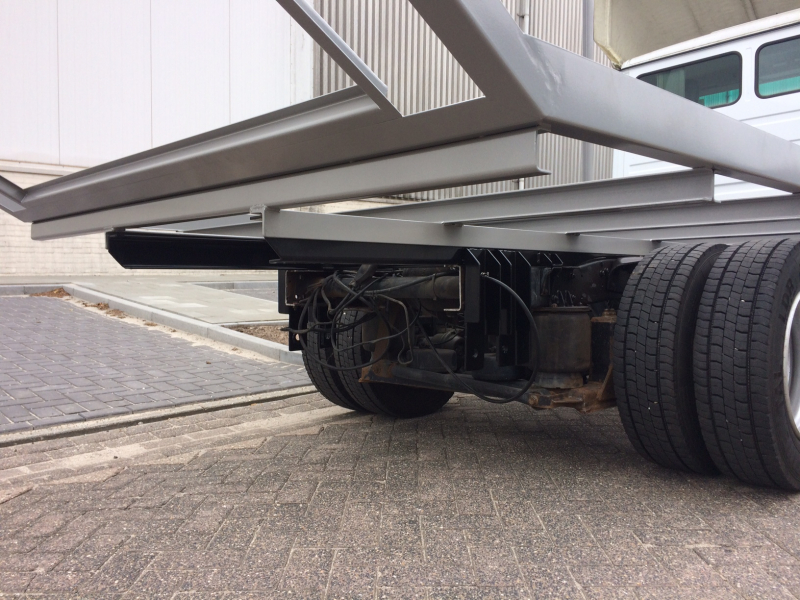

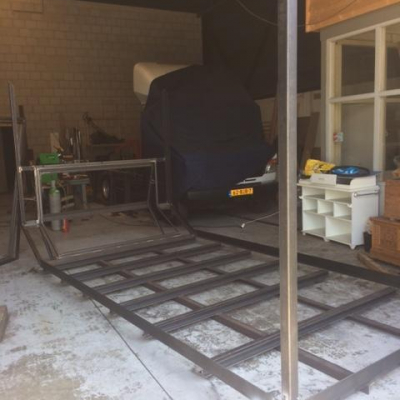

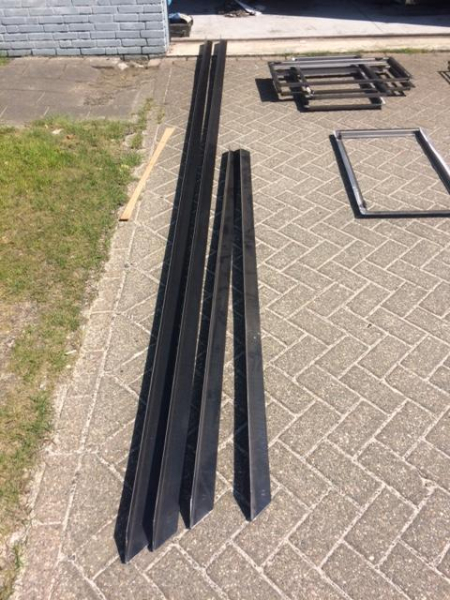

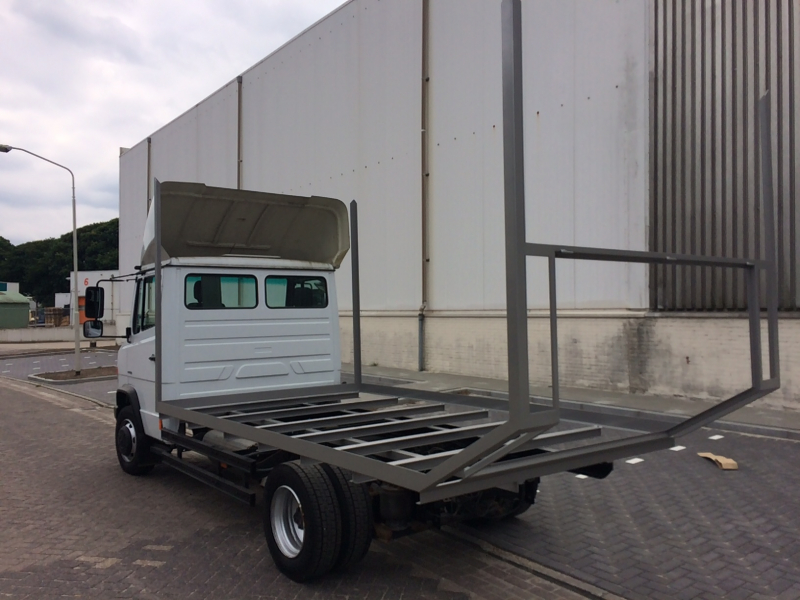

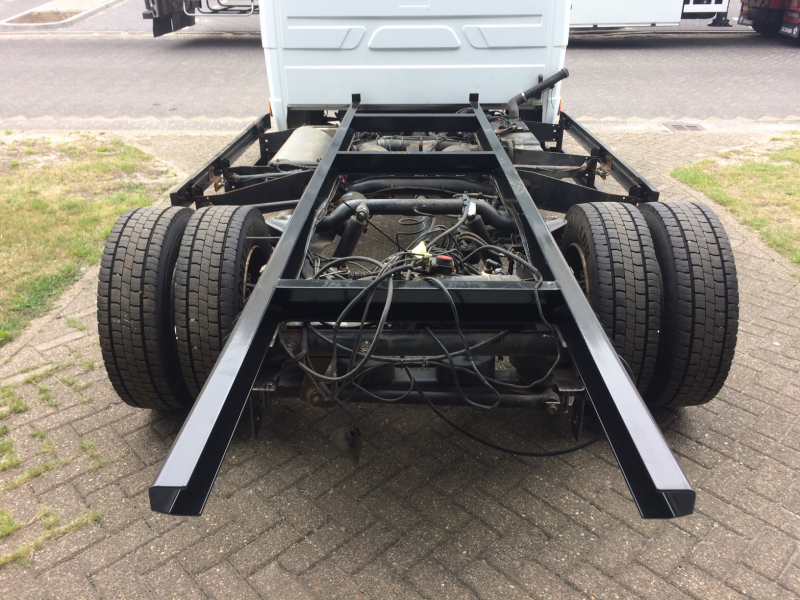

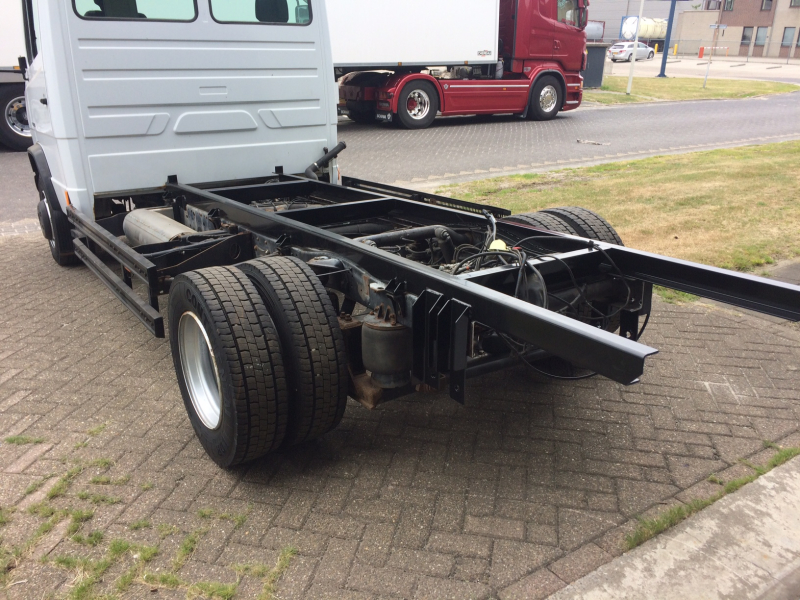

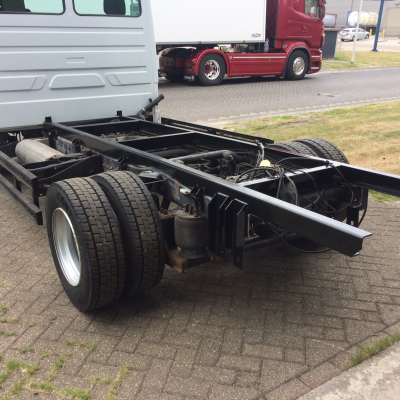

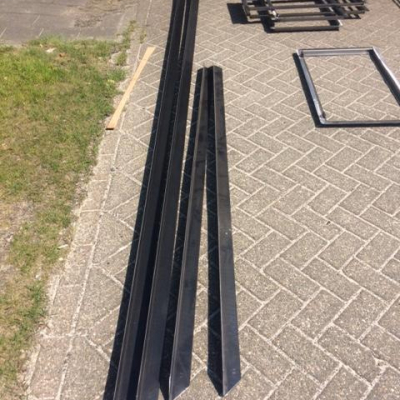

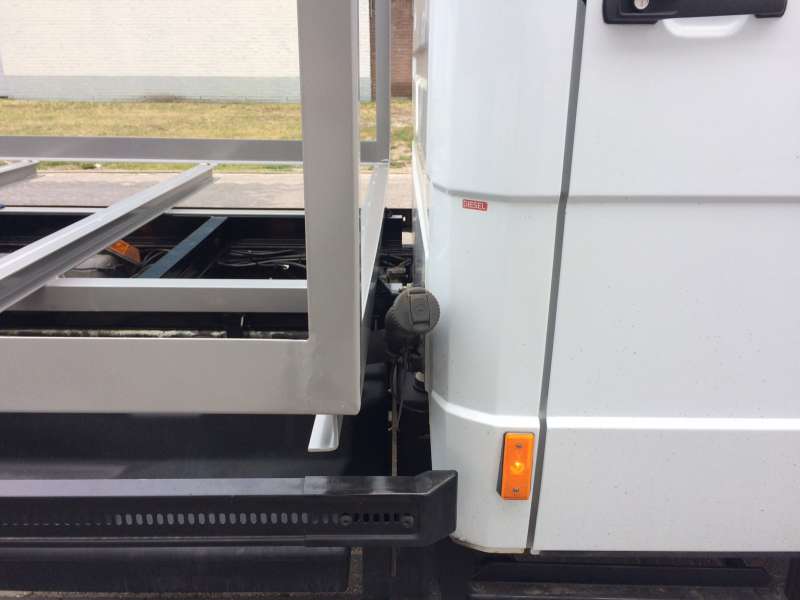

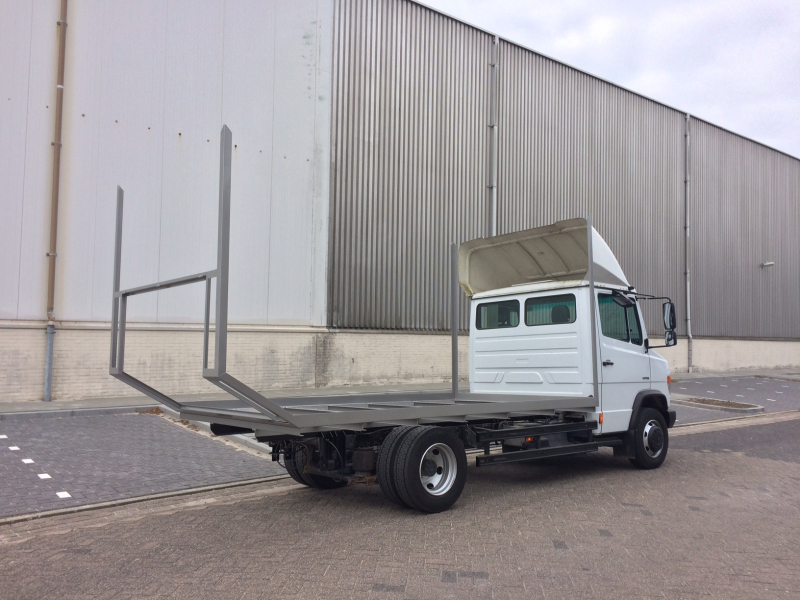

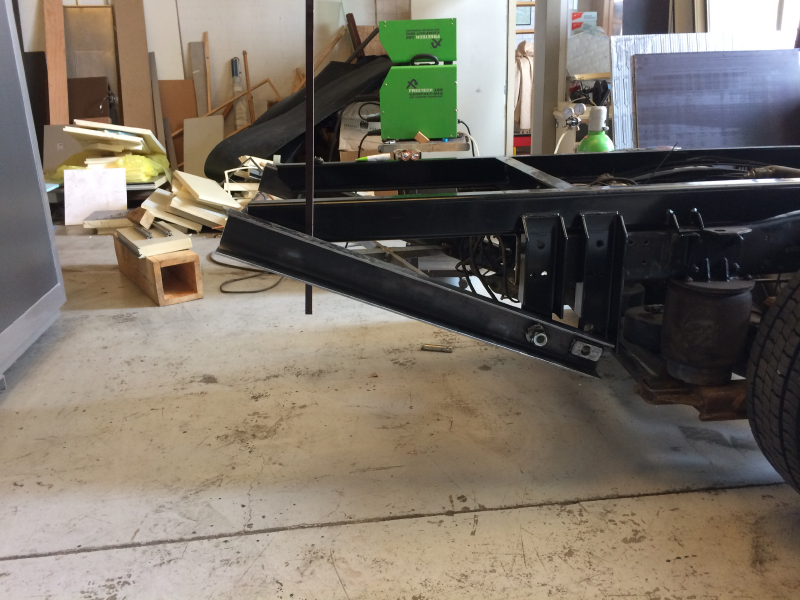

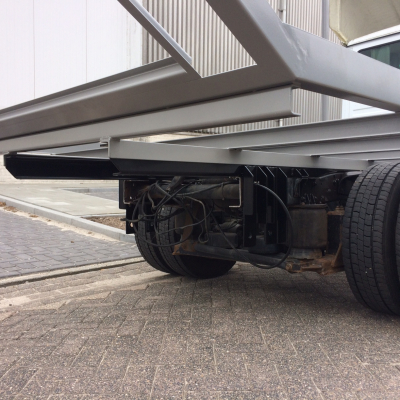

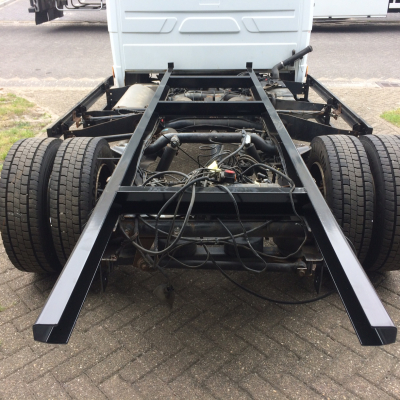

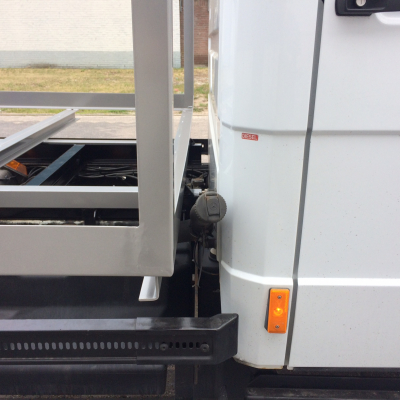

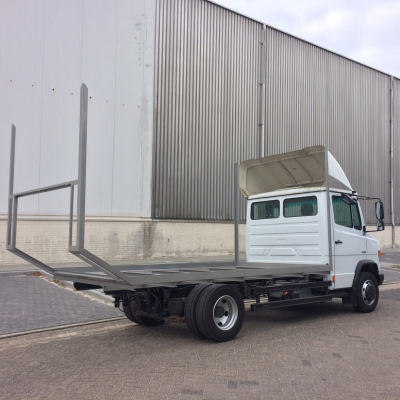

| Subframe | Yes self build. With build in torsion possibility |

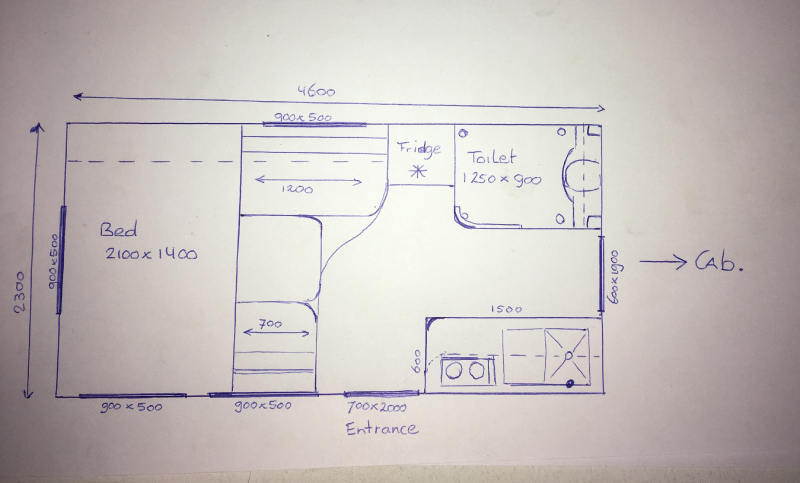

| Explanation of floor plan | |
|---|---|

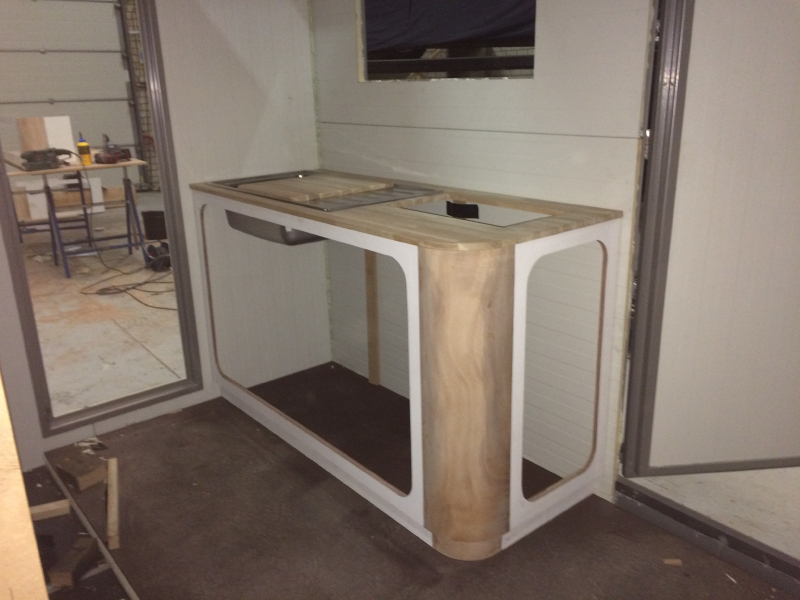

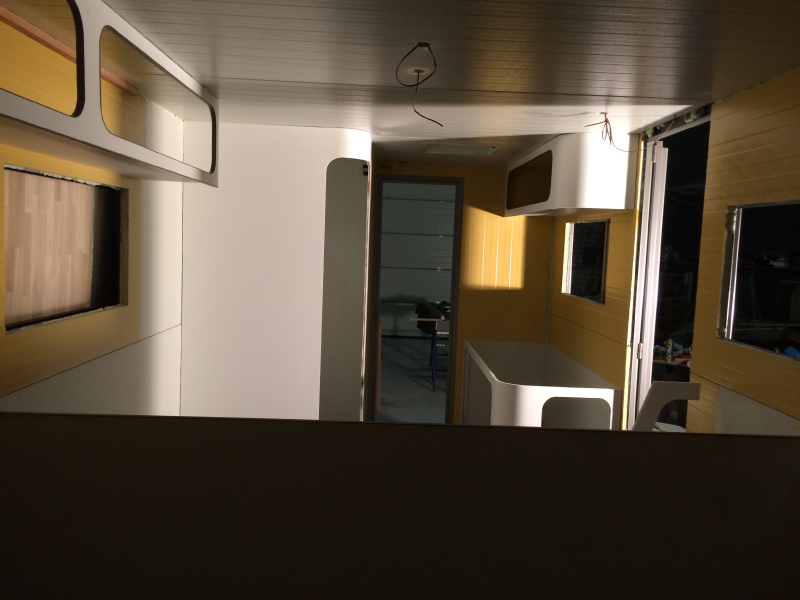

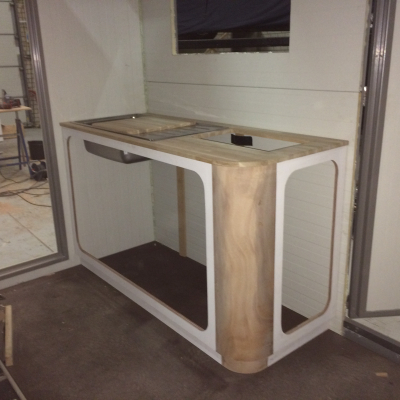

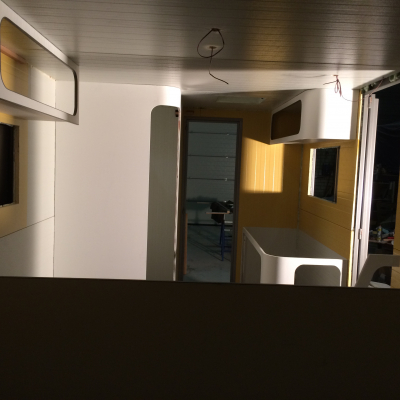

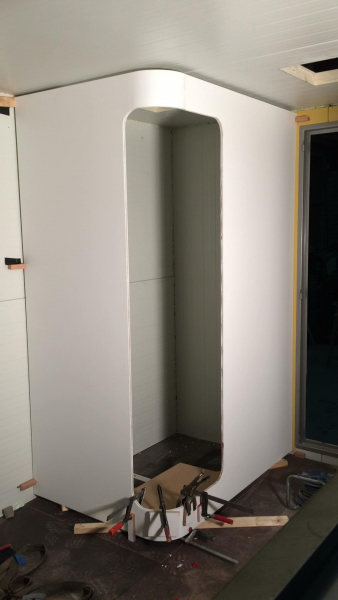

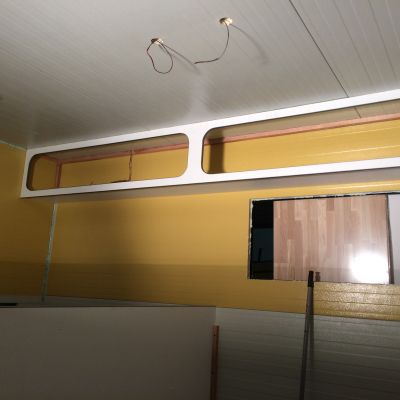

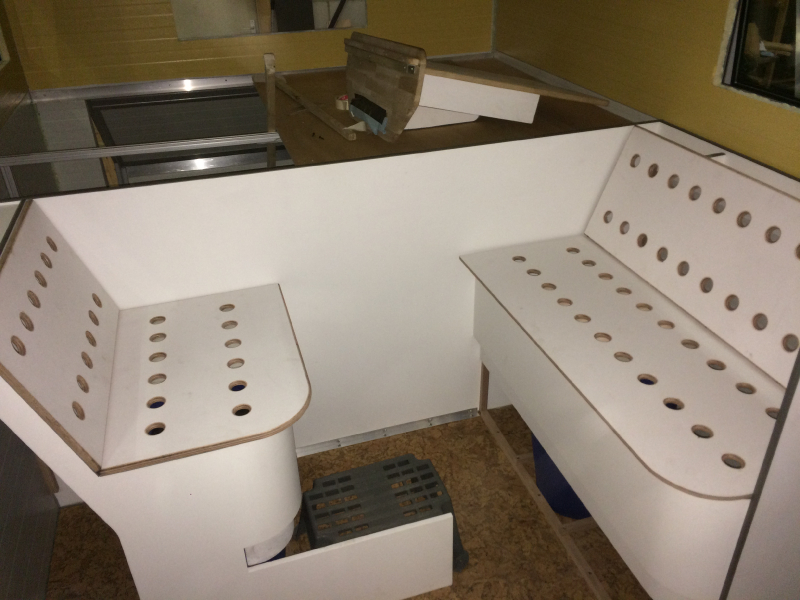

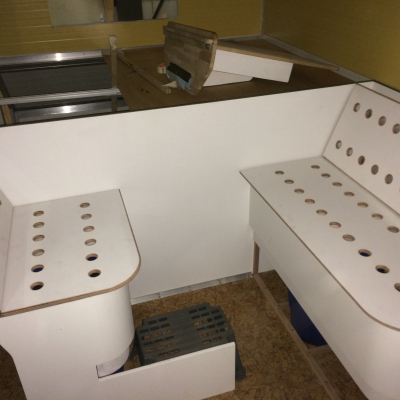

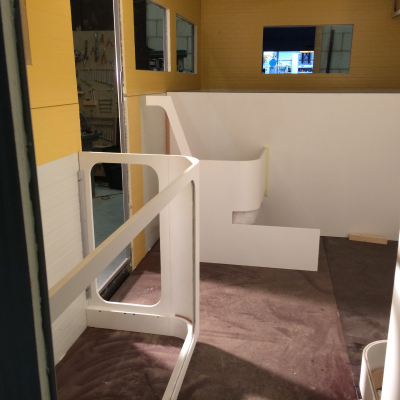

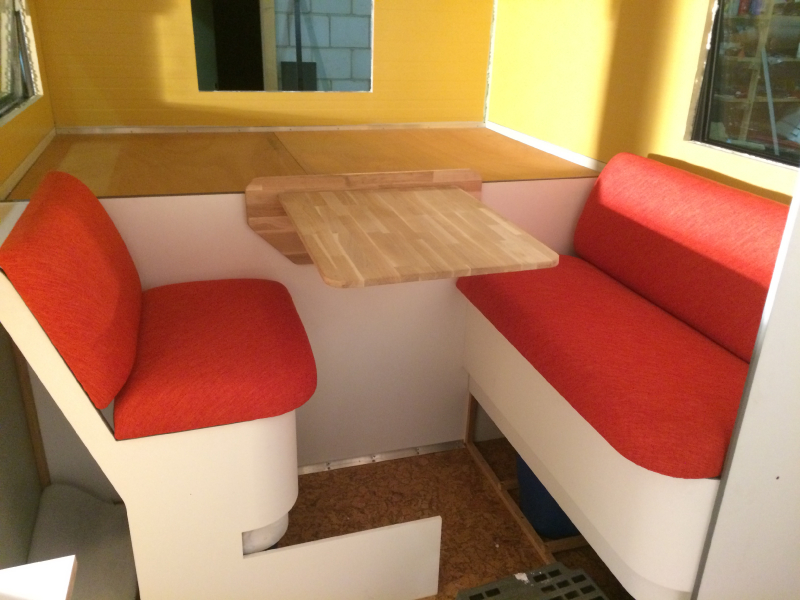

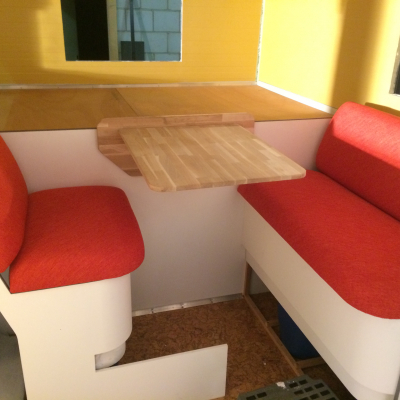

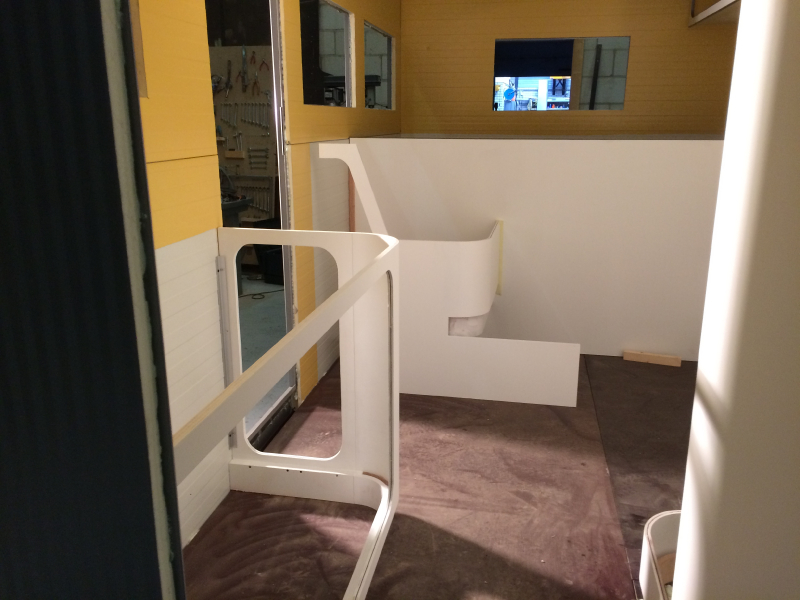

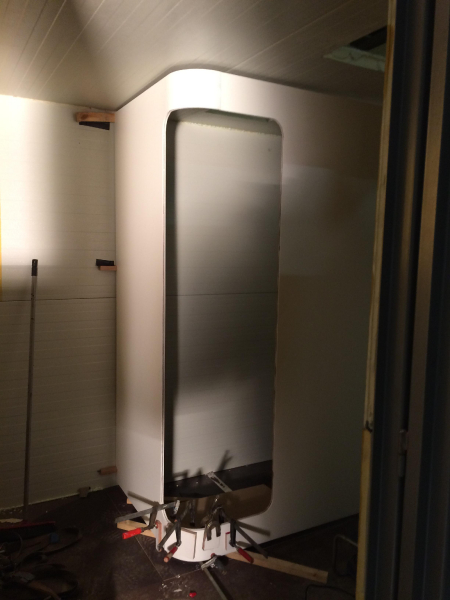

| Rear main bed 210x140 with 2,5 M3 storage underneath . Dinette aria with sliding table. in the front left bathroom and on the right kitchen. In the front a door with acces to cab (future) and acces to storage on top of the cab. |

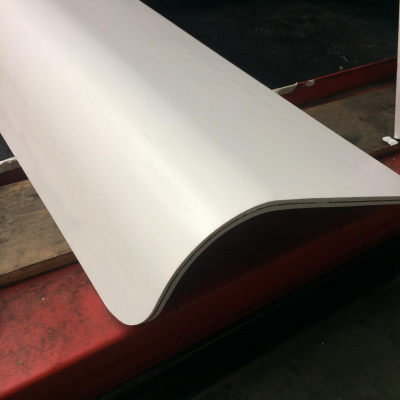

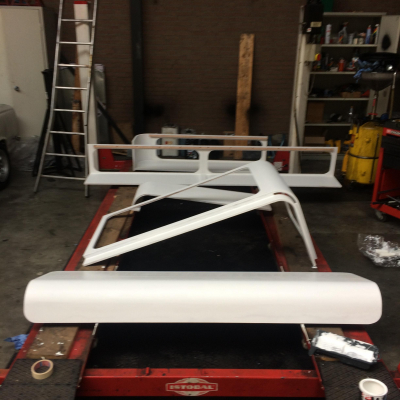

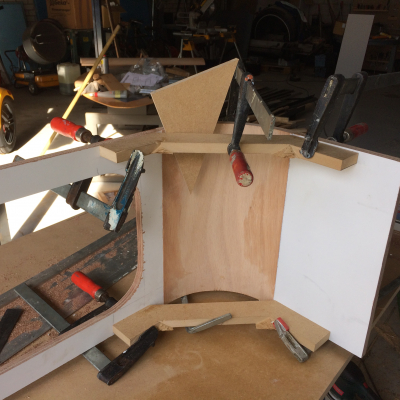

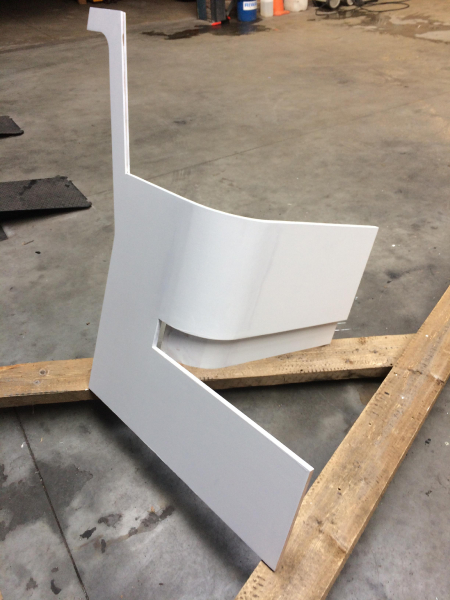

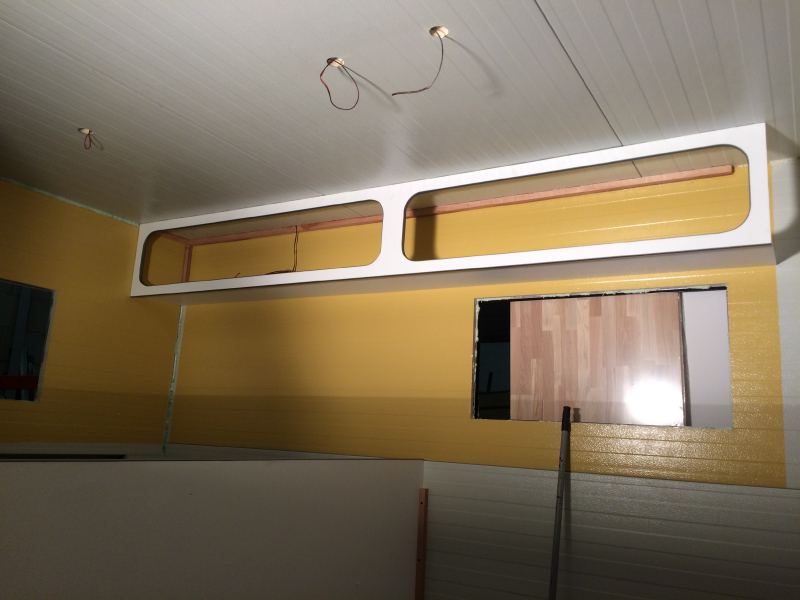

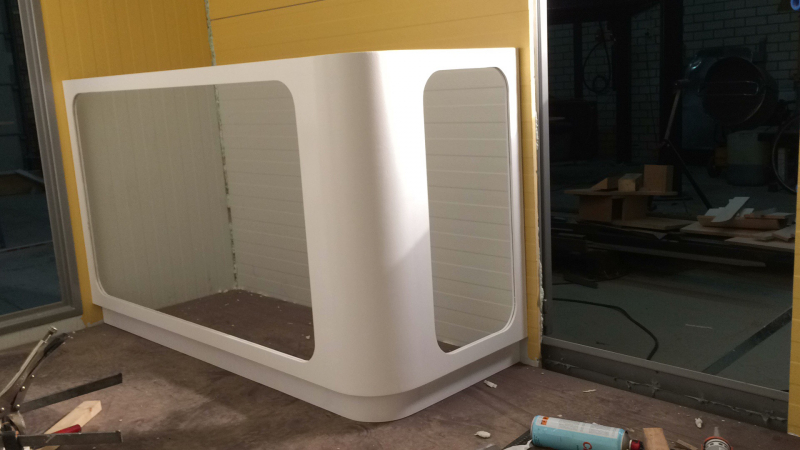

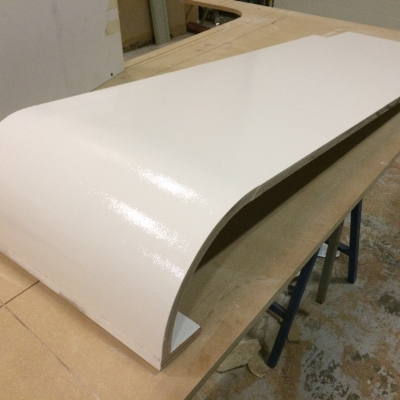

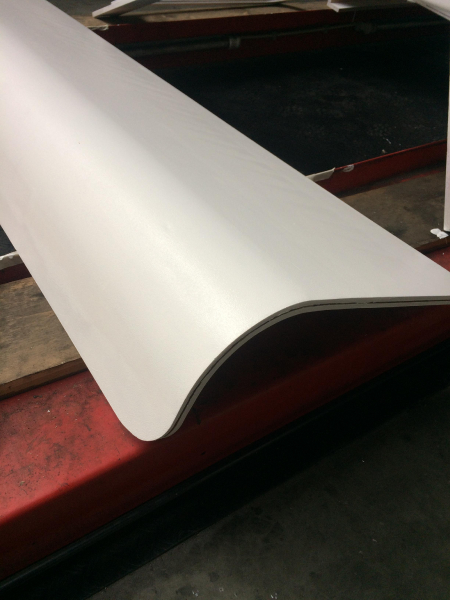

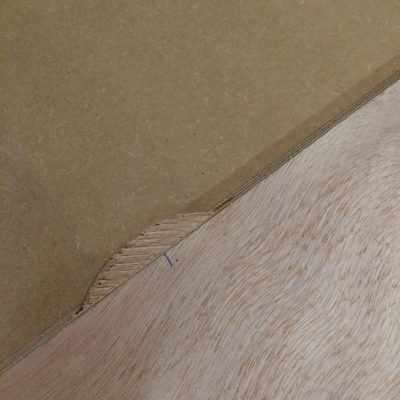

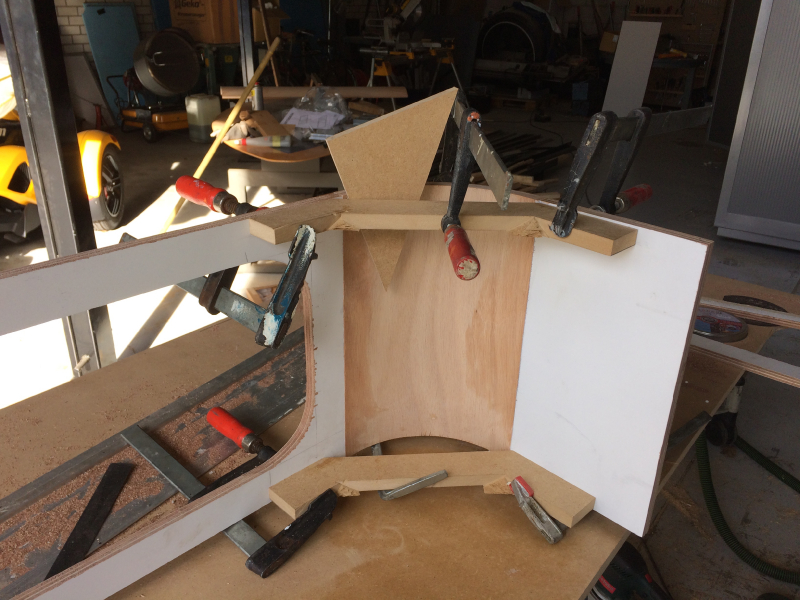

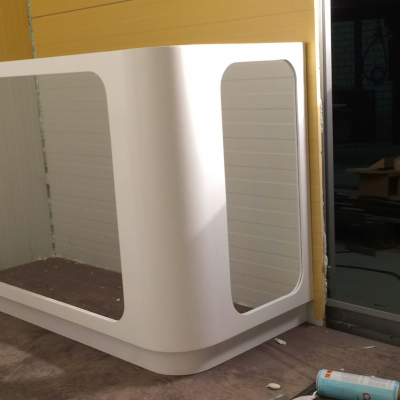

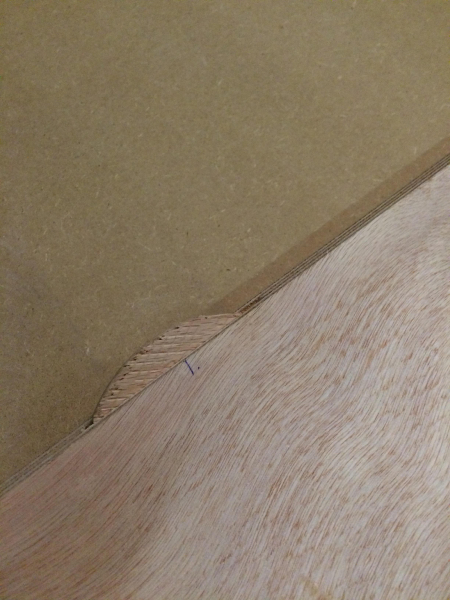

| Material of furniture | 15 mm marine grade plywood |
|---|---|
| Other | |

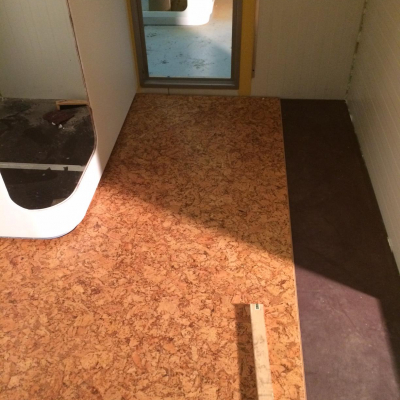

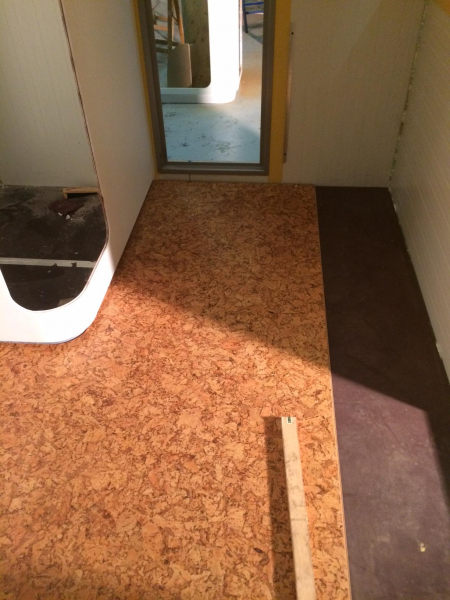

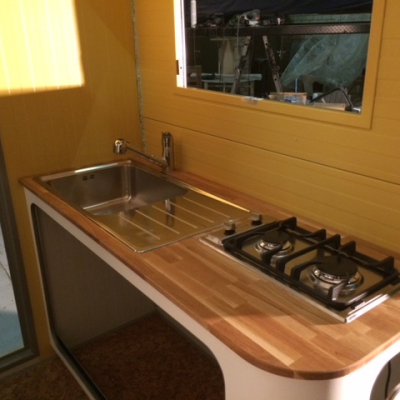

| Walls painted sandwich panel, Cork floor in main aria, PVC lining in bathroom and oak countertop | |

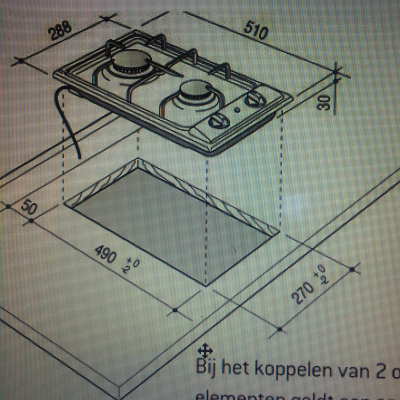

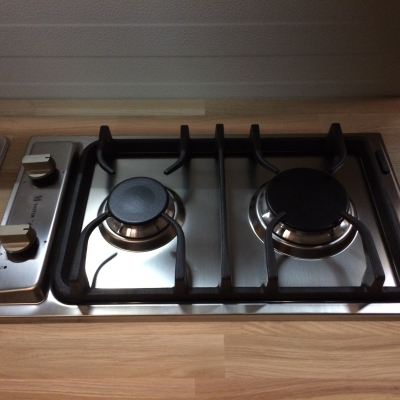

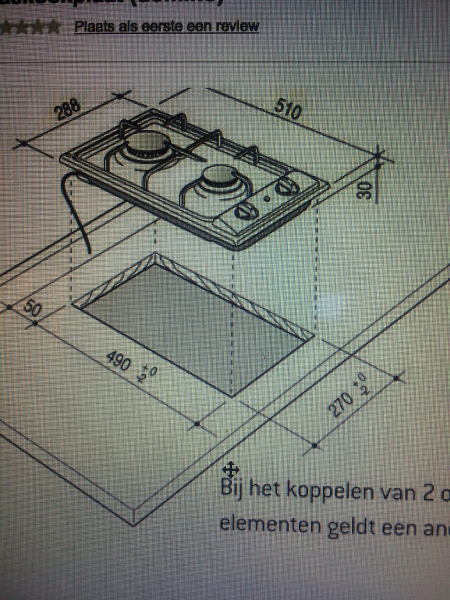

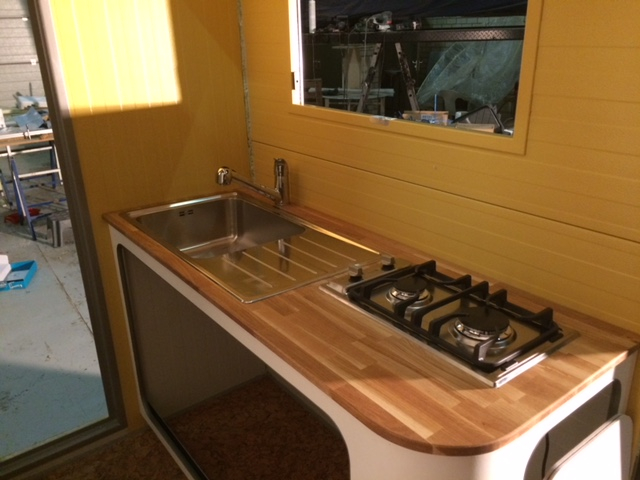

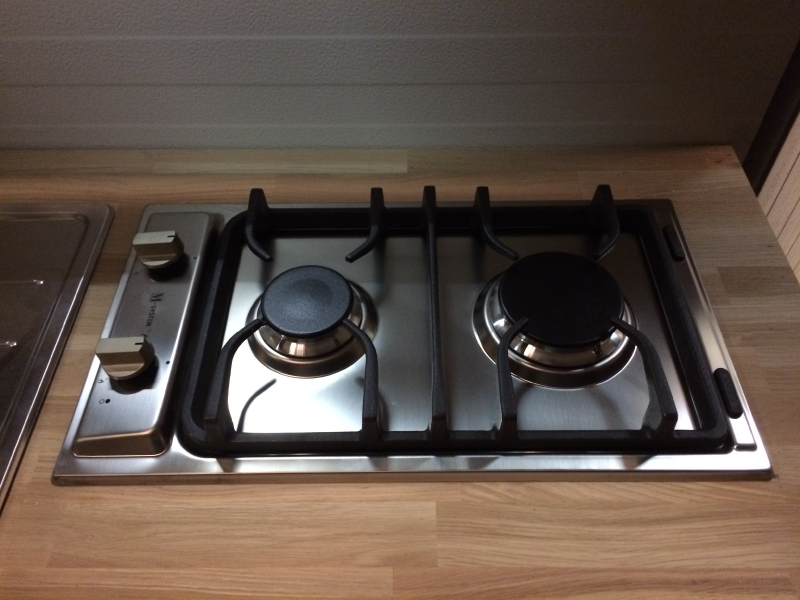

| Cooking stove | 2 burner |
|---|---|

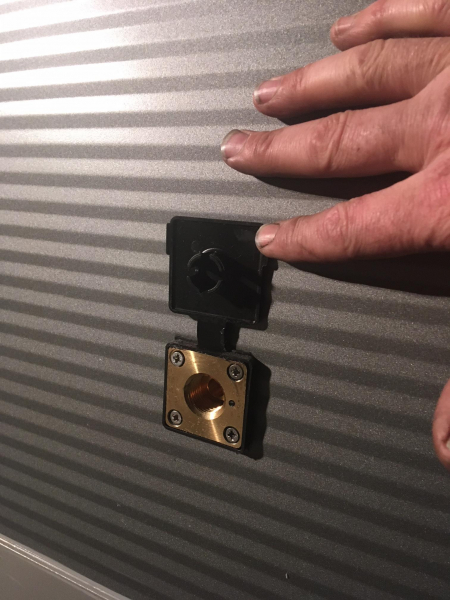

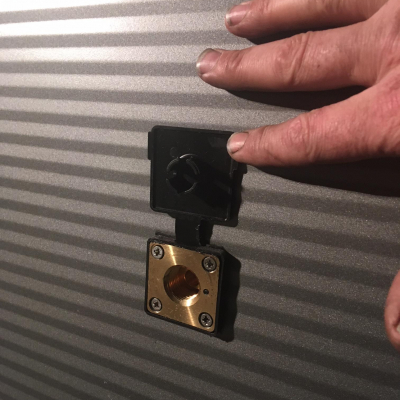

| Gas installation | LPG tank out side filling |

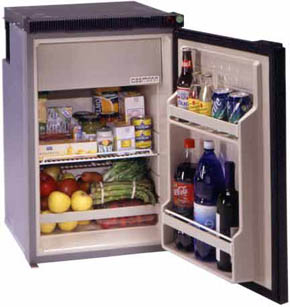

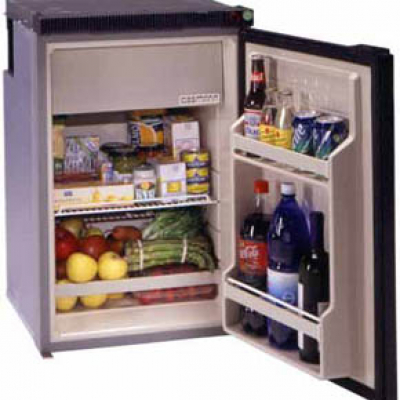

| Manufacturer and type of fridge / cooler | Kissmann KB100 ENI |
|---|---|
| Other | |
| 92 L with small freezer | |
| Voltage in the chassis | 24v |
|---|---|
| Voltage in the cabin | 12v and 220 |
| Charging converter 24V-12V | no |
| 110V / 230V in the cabin? | yes |

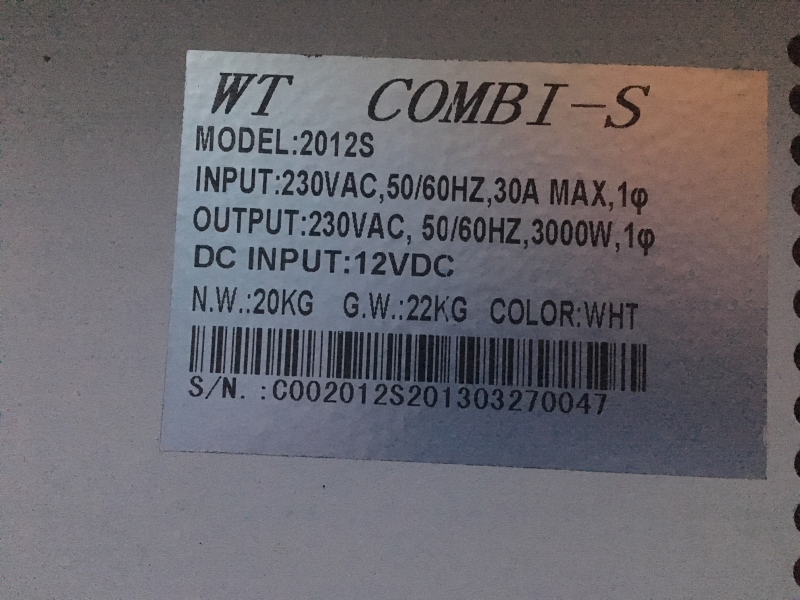

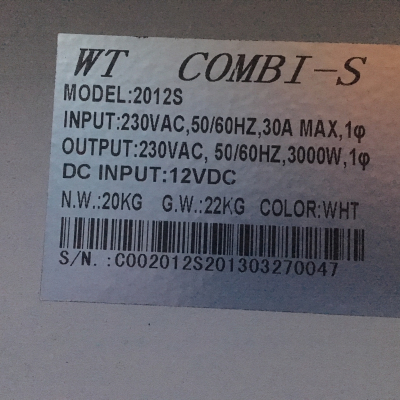

| Inverter | Westech 12v-220v 3000w |
| Other | |
| possible extra separated alternator only for Cabin | |
| Capacity of batteries in the cabin | 2x 12v 100 amp |
|---|---|
| Battery type | to be defined |
| Battery charger for cabin batteries | solar+possible own alternator+build in charger inverter |
| Battery management | victron |
| Other | |
| The batteries and the water tank are just above the rear axle in the middle of the vehicle | |
| Solar capacity | to be defined |
|---|---|
| Solar controller | to be defined |
| Fuel cell | no |
| Power generator | no |

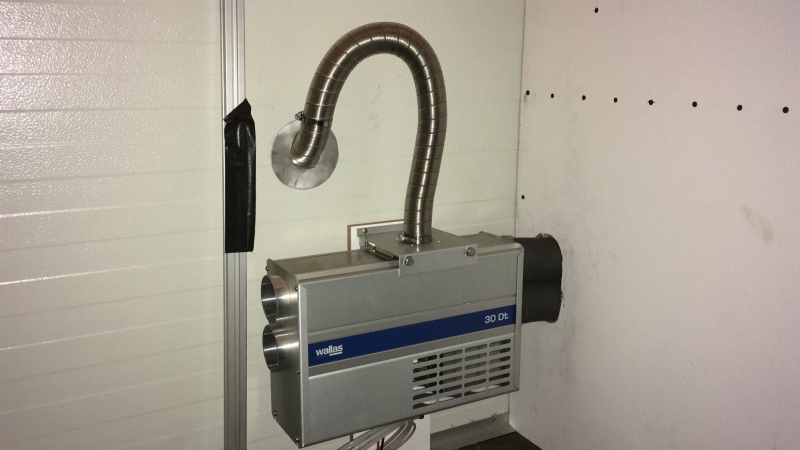

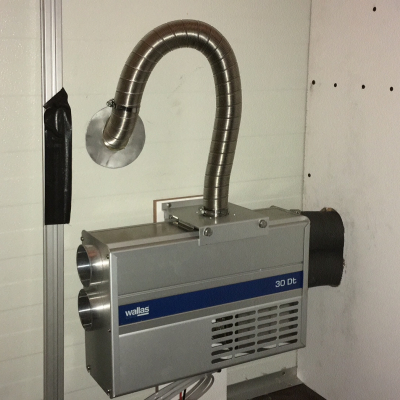

| Manufacturer and type of heating system | Wallas D30 hot air system on Diesel |
|---|---|

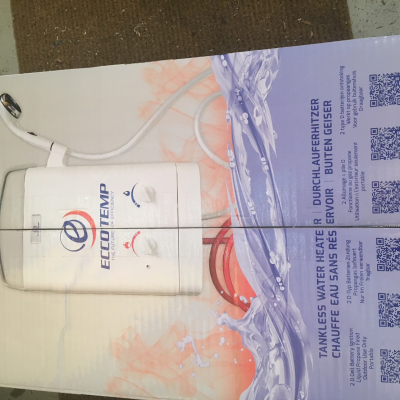

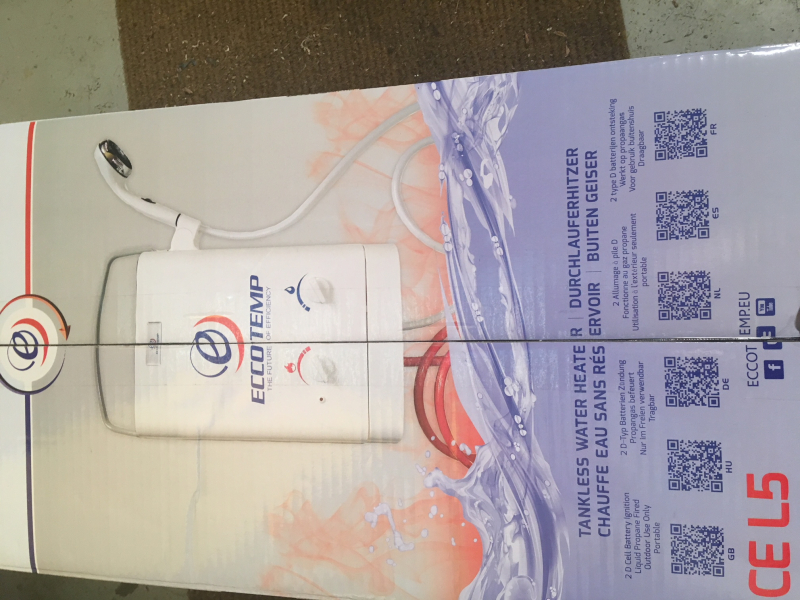

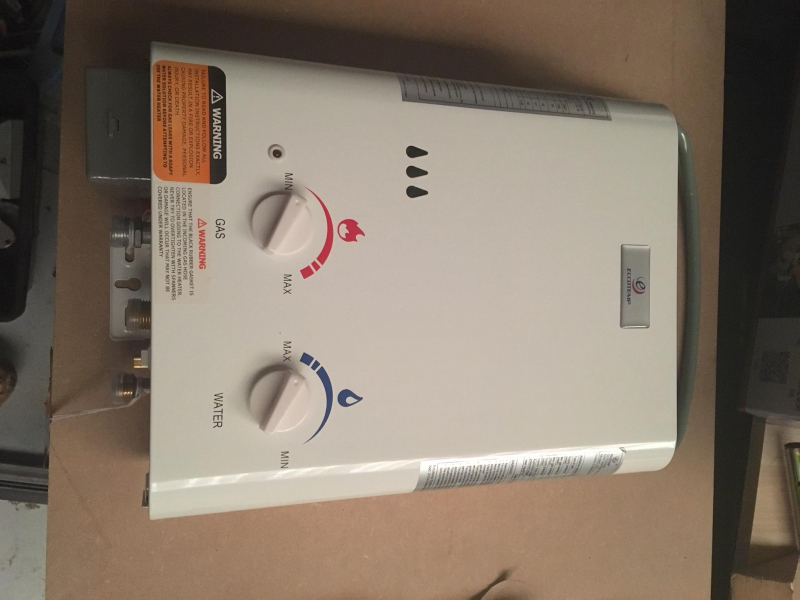

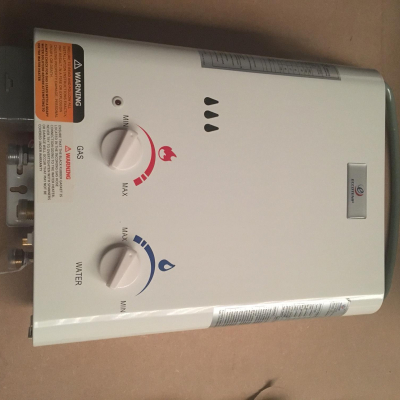

| Warm water processing | tankless heater |
| Cab heating | factory system |
| Other | |

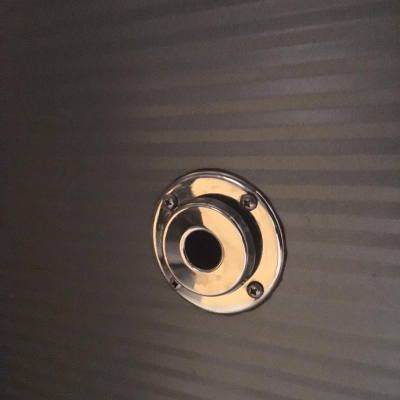

| Stainless steel exhaust and combustion air intake . | |
| Explanation of gas system | |
|---|---|

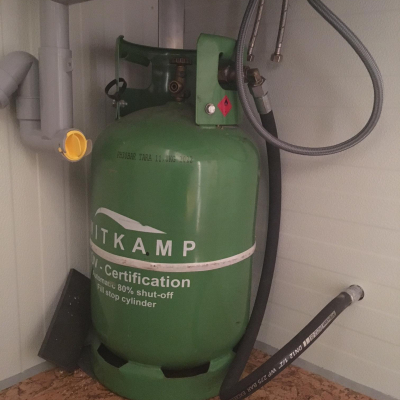

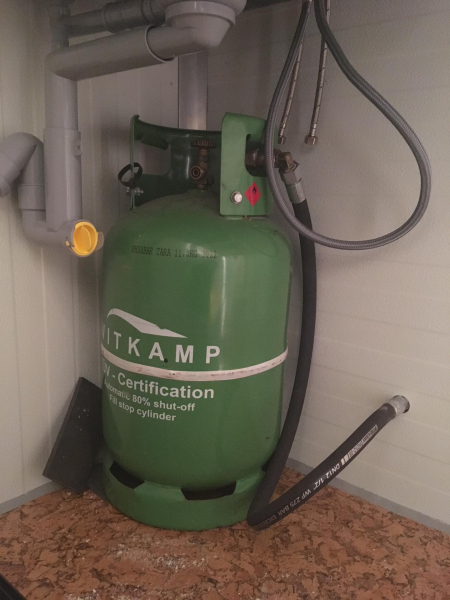

| LPG bottle only for cooking and hot water (under construction) |
| water flow | shurflo pump |
|---|---|
| Water filtration system | to be defined |

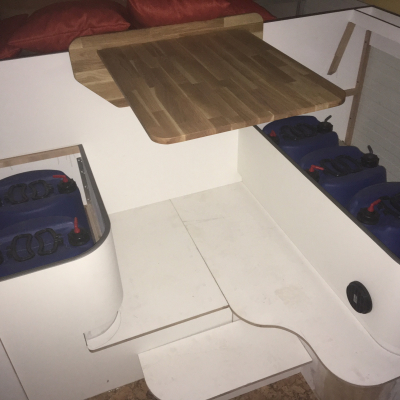

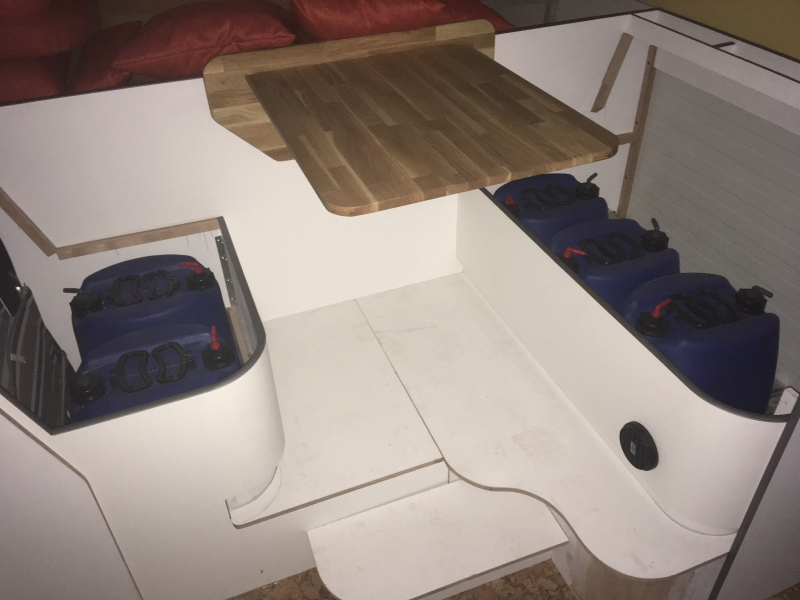

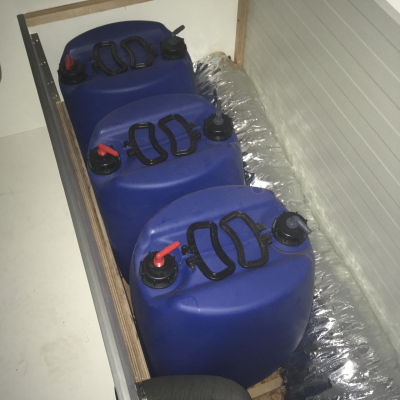

| Capacity of fresh water tank(s) | 300L Total 5x 60l The water tanks are just above the rear axle |
| Capacity of waste water tank(s) | 140 L |
| Other | |
|

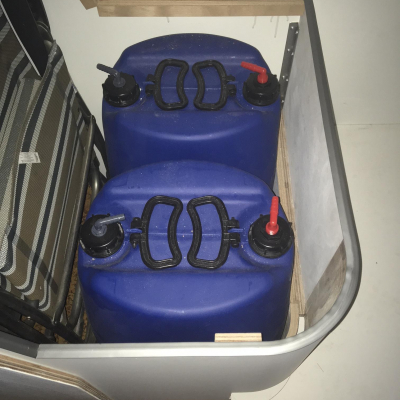

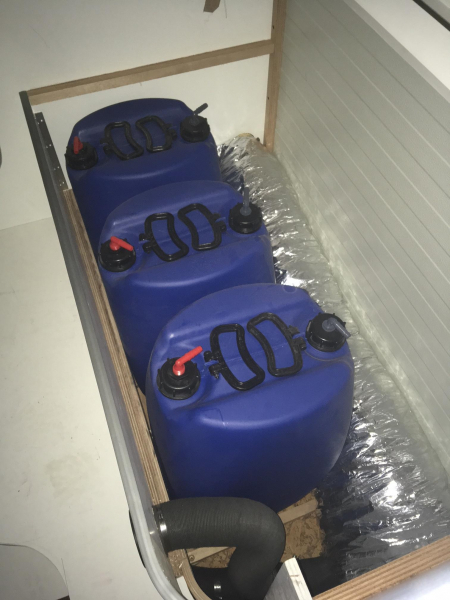

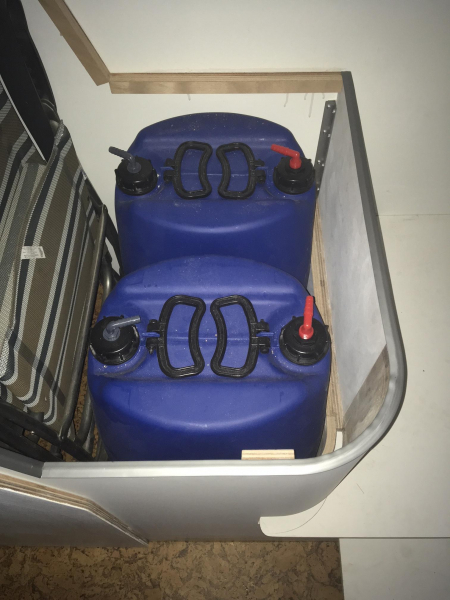

5 x 60L food grade containers that will individual selectable. Hot water for wet room,kitchen and external shower will be provided by tankless water heater. | |

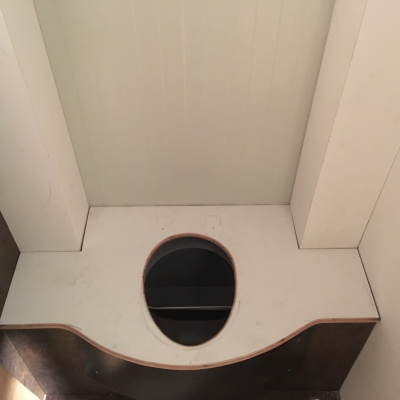

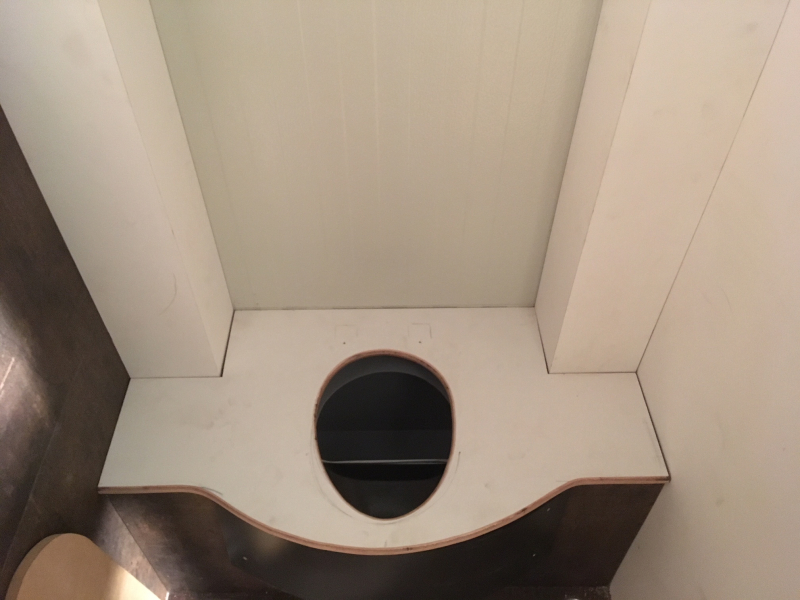

| Manufacturer and type of toilet | self build compost toilet separating liquid and solids |
|---|---|
| Capacity of black water tank | no |
| Other | |
| under construction | |
| Rear carrier | no |
|---|---|
| Roof rack | no |
| Storage boxes | on chassis |
| Outside cooking facilities | to be defined |
| Awning | to be defined |
| Other | |
|
Retractable terras. Will be sliding from under cabin. Recovery system to get unstuck Small workshop in rear storage | |
