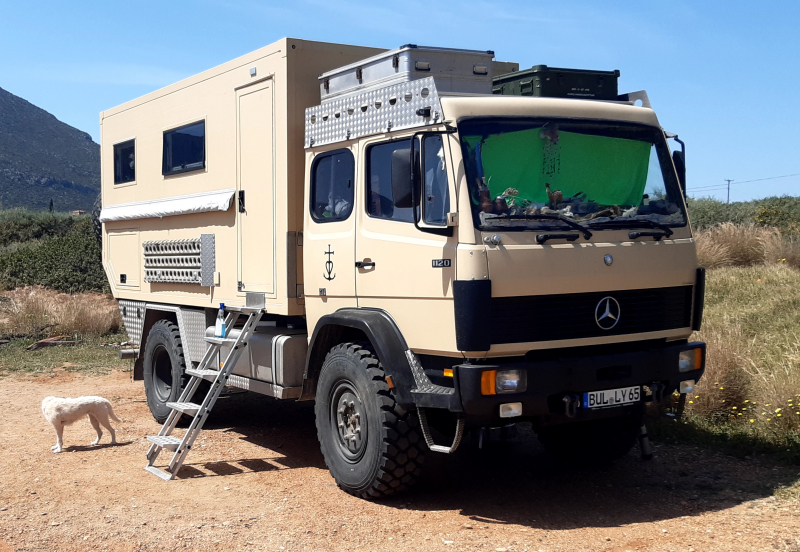

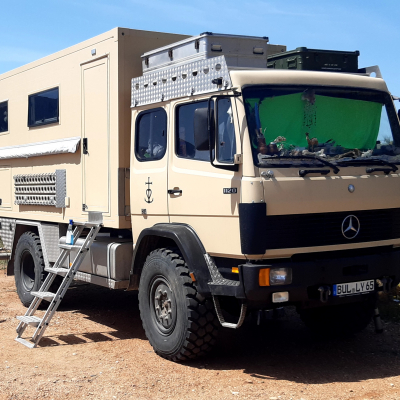

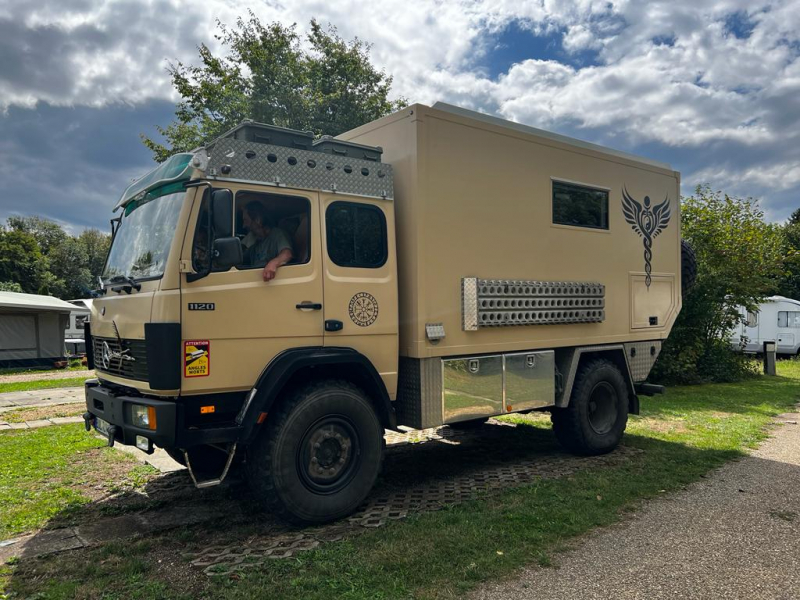

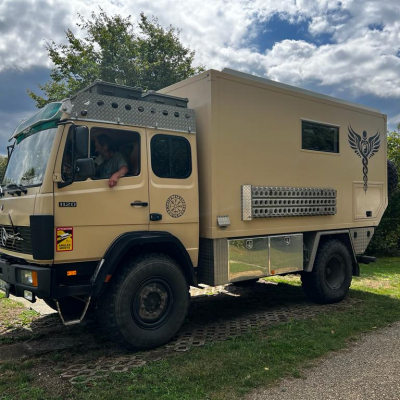

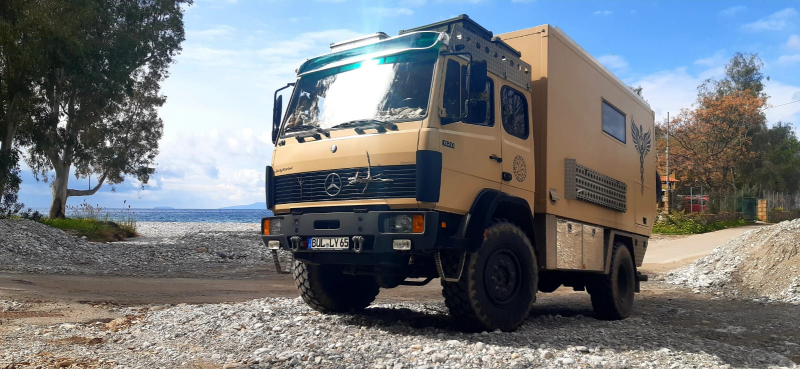

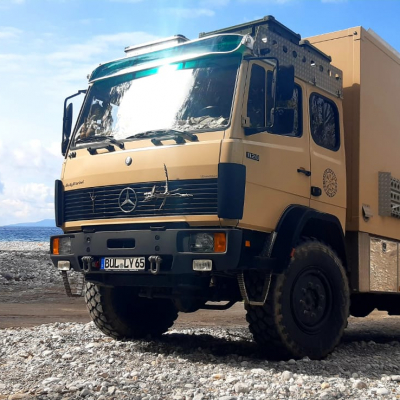

| Manufacturer and model | Mercedes 1120 AF |
|---|---|
| Name | Ulrike und Charly |
| Country | Deutschland |
| Year of manufacture | 1992 aufgebaut in 2020 |
| For sale? | no |
| Engine type | OM 366 LA |
|---|---|
| Cubic capacity | 6 l |
| Number of cylinders | 6 |
| Horsepower | 204 |
| Torque | 650 Nm |
| 4x2, 4x4, 6x6, 8x8 | 4x4 |
|---|---|
| Wheel base | 365 cm |
| Number of seats | 2 |
| Tyre size | 365 /85 /20 wahlweise 385 65 22.5 |
| Rim size | 10x20 Srengringfelge schlauchlos/ 11.75x22.5 Felge einteilig |
| Type of tyre | Michelin XZL |
| Tank capacity | 400 |
| Diesel filter | yes |
| Permanent or manually selectable 4-wheel drive | permanent |
| Diff locks | mitte und heck |
| Manufacturer of the cabin | 4 wheel 24 nur Kabine, Ausbau komplett in Eigenarbeit |
|---|---|
| Inner dimensions (LxWxH) | 445 x 225 x 205 cm |
| Outer dimensions (LxWxH) | 456 x 236 x 219 cm |
| Cabin material | GFK mit Aluwinkel |
| Kind and thickness of insulation | 50 mm PU |
| Number of beds | 2 bis 3 |
| Windows | 3 Stück Outbound |
| Subframe | federgelagerter Heavy duty Rahmen 180 mm, hinten befestigt |
| Other | |
| Durchgang zum Fahrerhaus 60 x 80 cm mit Neoprenfaltenbalg | |
| Explanation of floor plan | |
|---|---|
| Heckquerbett, Beifahrerseite Sitzgruppe, gegenüber Küche, Trockentrenntoilette mit Tür, Dusche im Eingangsbereich, Garderobe und Schuhschrank |
| Material of furniture | HPL beschichtete Multiplexplatten in 12mm |
|---|---|
| Other | |
| Blumscharniere und Metallpushlocks | |
| Cooking stove | 2-flammiger eno Gaskocher, Yachtbau |
|---|---|
| Gas installation | Gastank 50 l |
| Other | |
| Außenkocher in Heckstaubox, elektrisch und Gas | |
| Manufacturer and type of fridge / cooler | Dometic 110 l mit Gefrierfach, 18 Liter Engelbox im Heck |
|---|
| Voltage in the chassis | 24 Volt |
|---|---|
| Voltage in the cabin | 12 Volt |
| Charging converter 24V-12V | Votronic 24/12/45 |
| 110V / 230V in the cabin? | yes |
| Inverter | Votronic multiplus 3000 |
| Capacity of batteries in the cabin | 200 Ah |
|---|---|
| Battery type | Lipo |
| Battery charger for cabin batteries | 120 A Votronic |
| Battery management | BMS |
| Solar capacity | 580 watt |
|---|---|
| Solar controller | 150/35 Votronic Mppt |
| Fuel cell | no |
| Manufacturer and type of heating system | Autoterm 44d mit Höhenkit |
|---|---|
| Warm water processing | Elgenaboiler 10 l elektrisch mit 600 Watt |
| Explanation of gas system | |
|---|---|
| 50 l Gastank im Rahmen verbaut |
| water flow | 10 mm Warm und Kaltwasser |
|---|---|
| Water filtration system | Famous water 4-fach Filter |
| Capacity of fresh water tank(s) | 500 l |
| Capacity of waste water tank(s) | 70 l |
| Other | |
| Außendusche mit Warmwasser und Aussenduschkabine | |
| Manufacturer and type of toilet | Separett, Eigenbau |
|---|---|
| Capacity of black water tank | 35 l plus 40 l Urintank |

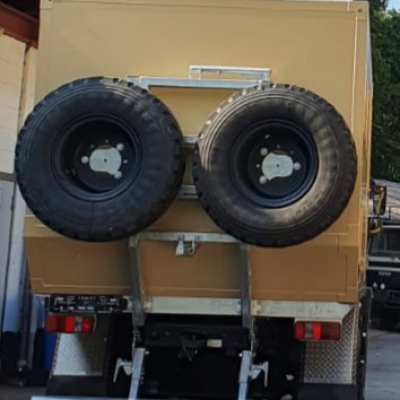

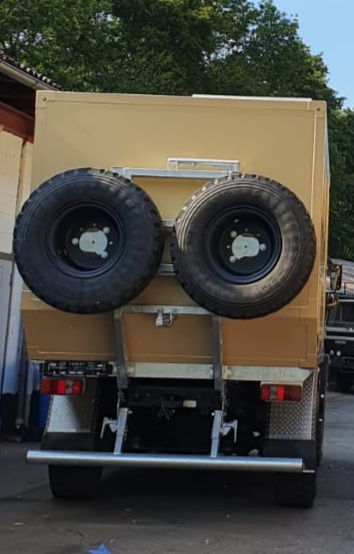

| Rear carrier | Für 2 vollwertige Ersatzräder plus Fahrradträger |
|---|---|
| Roof rack | Eigenbau mit 3 Stück Aluboxen |
| Storage boxes | 4 Stück |
| Outside cooking facilities | Gas und Elektrisch |
| Awning | Kurbelmarkise Thule 400 cm |
